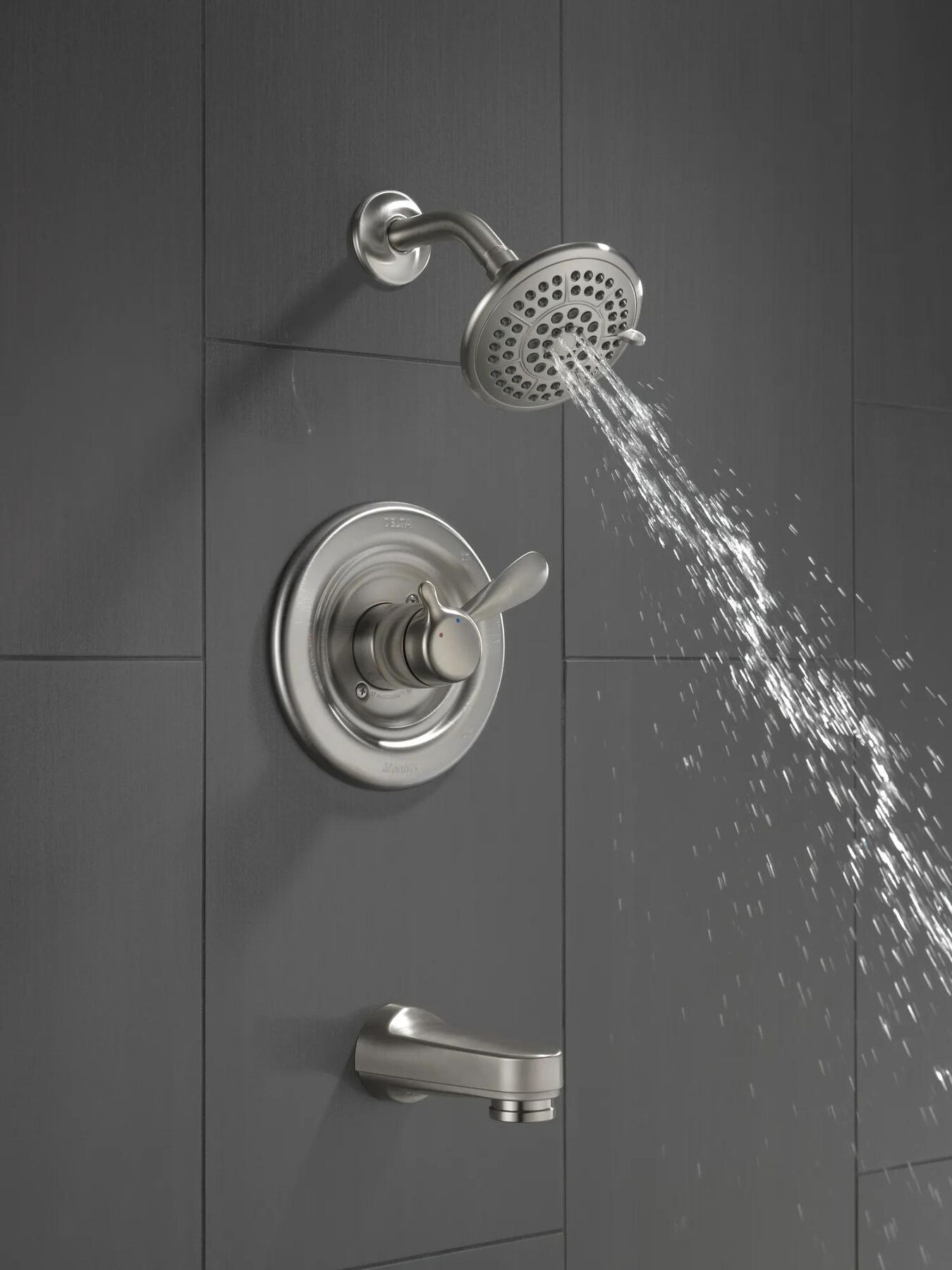

Monitor® 17 Series Tub & Shower Trim in Stainless

Model#: T17430-SS
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Bathroom Collection

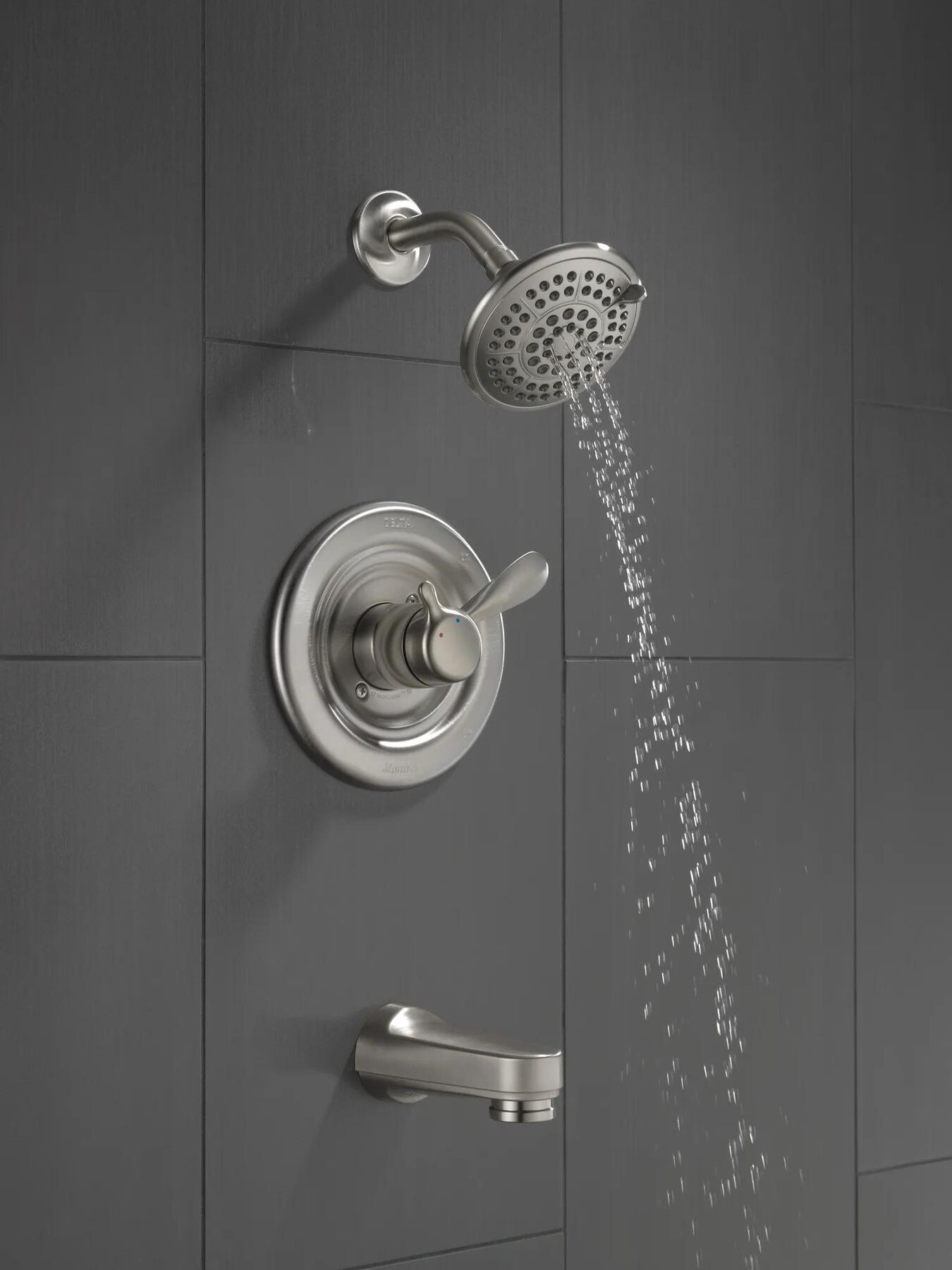

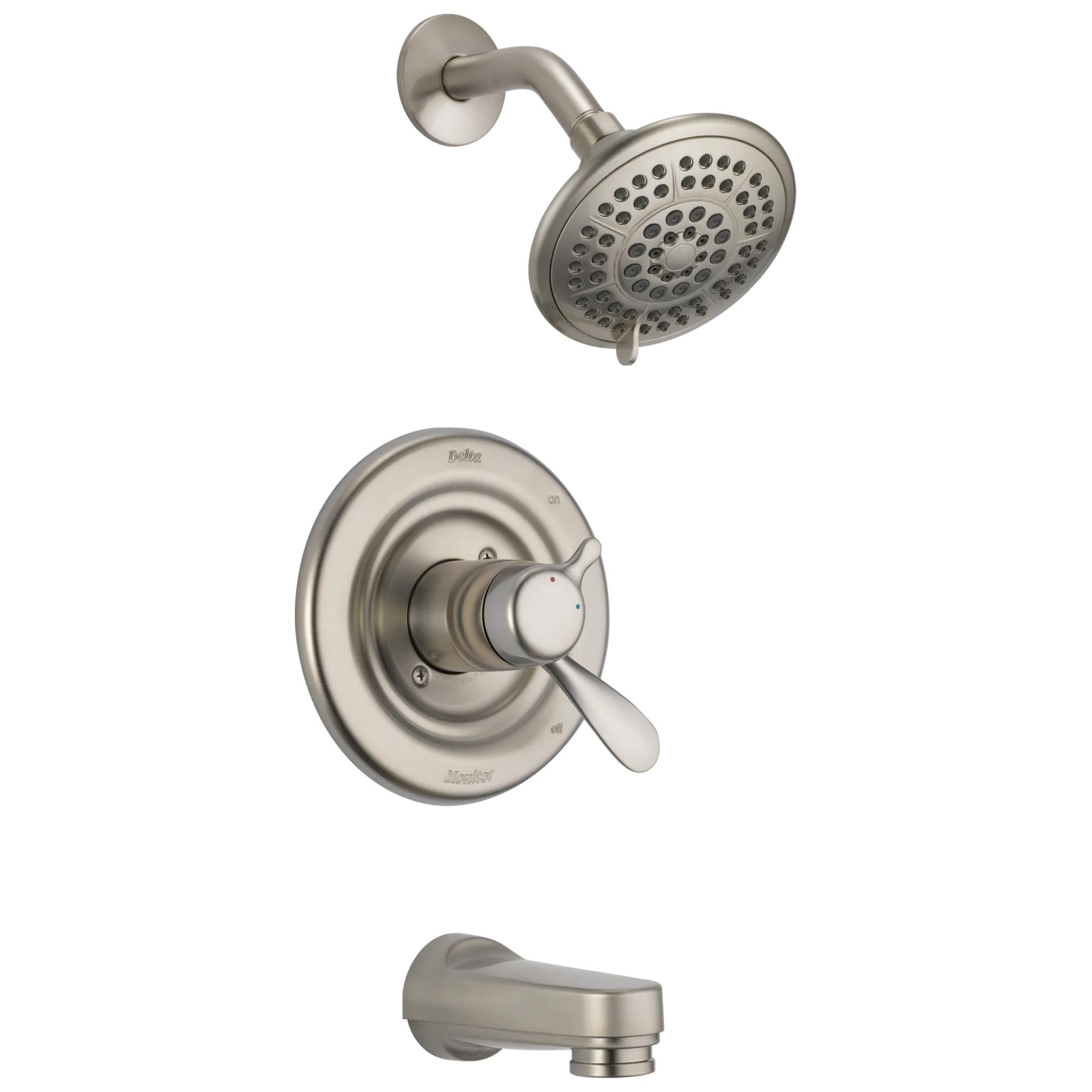

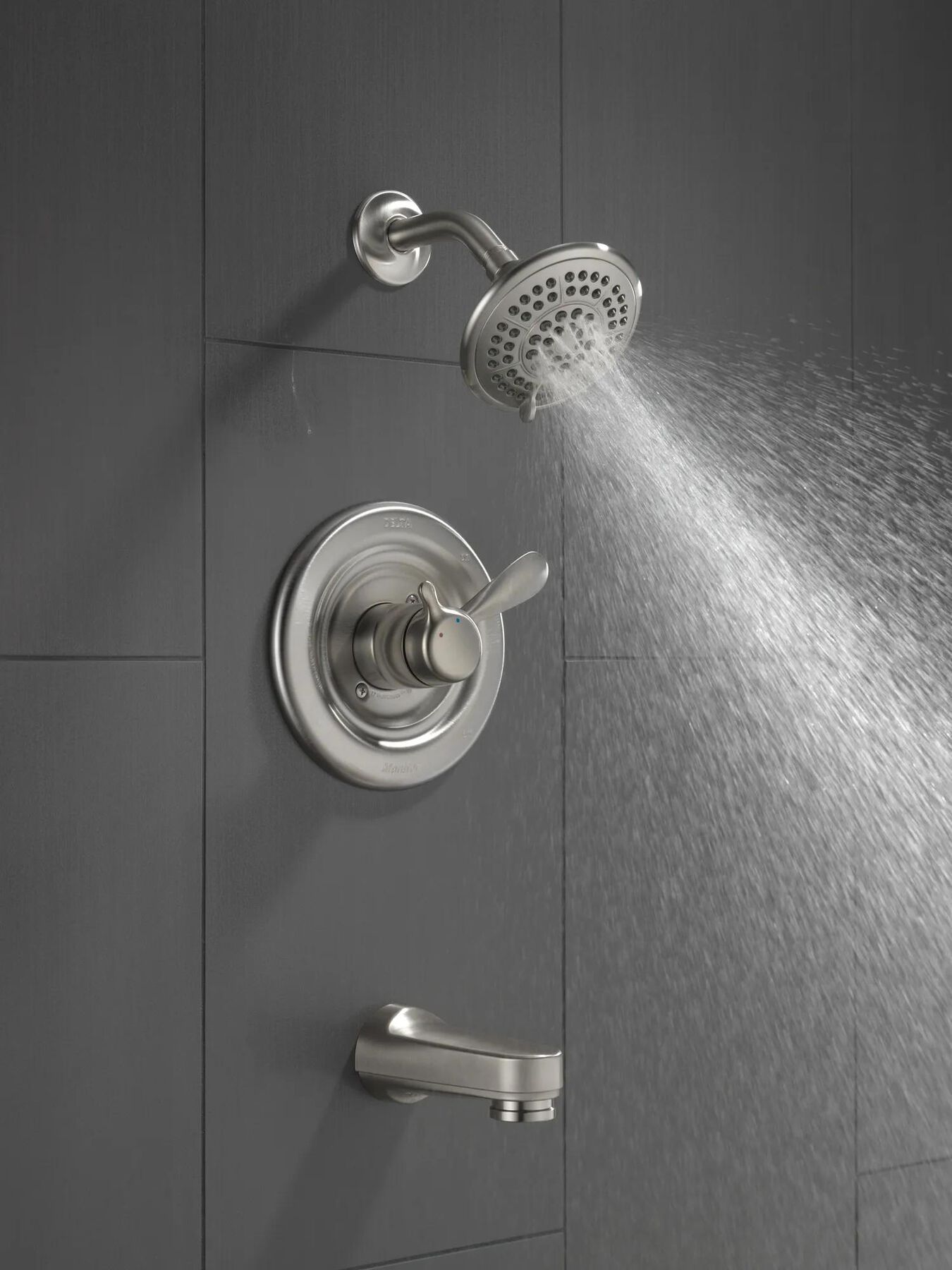

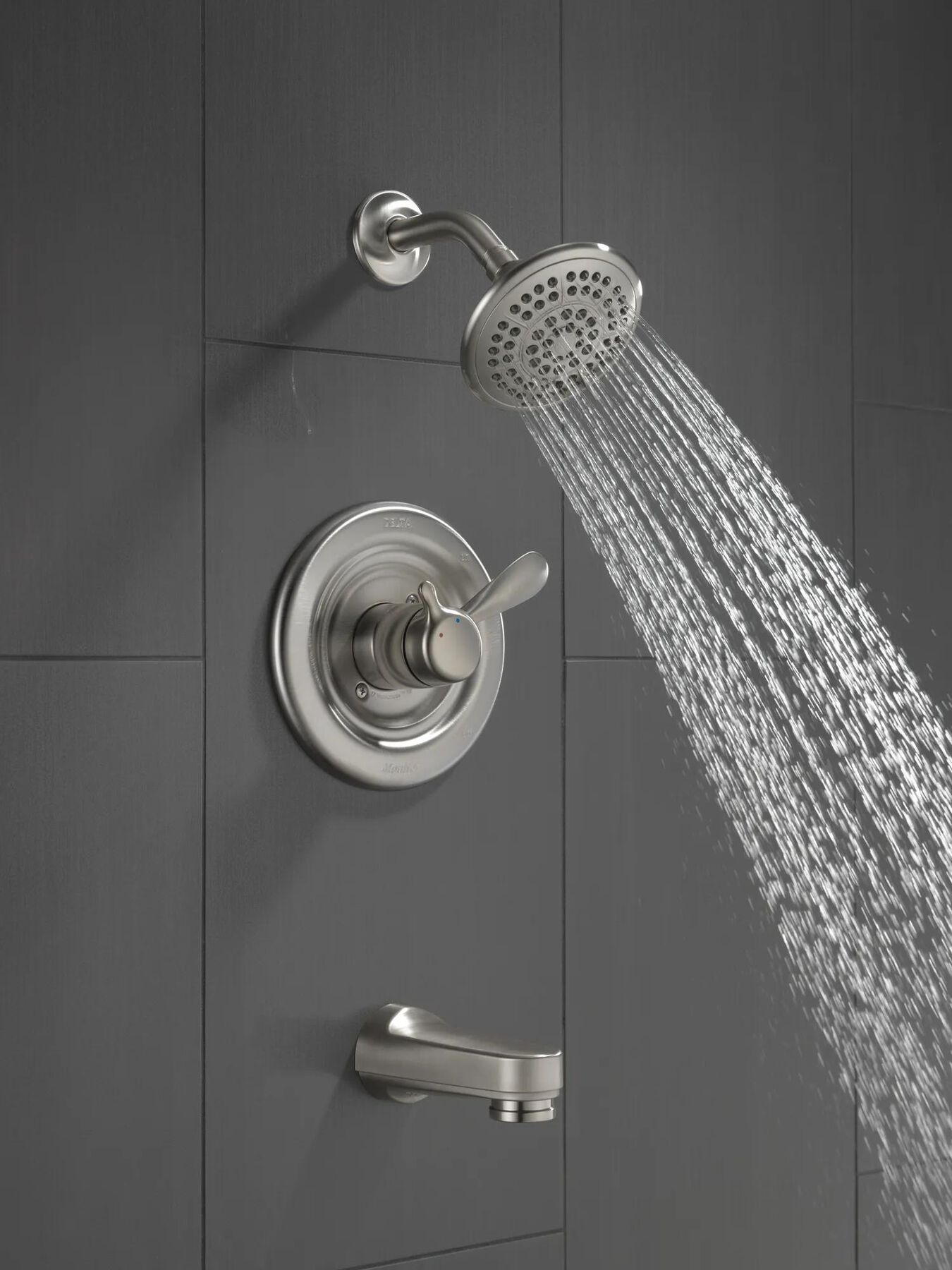

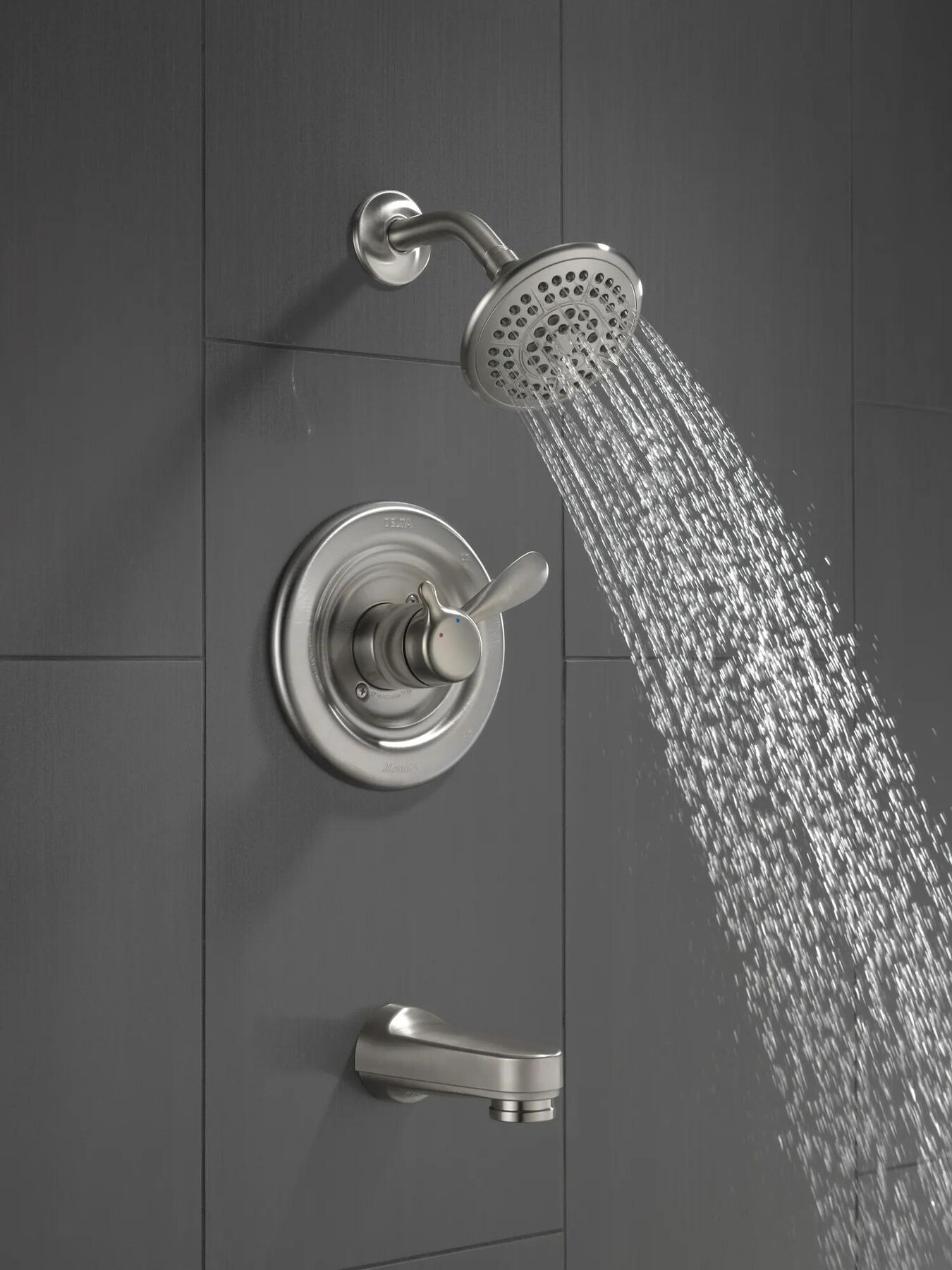

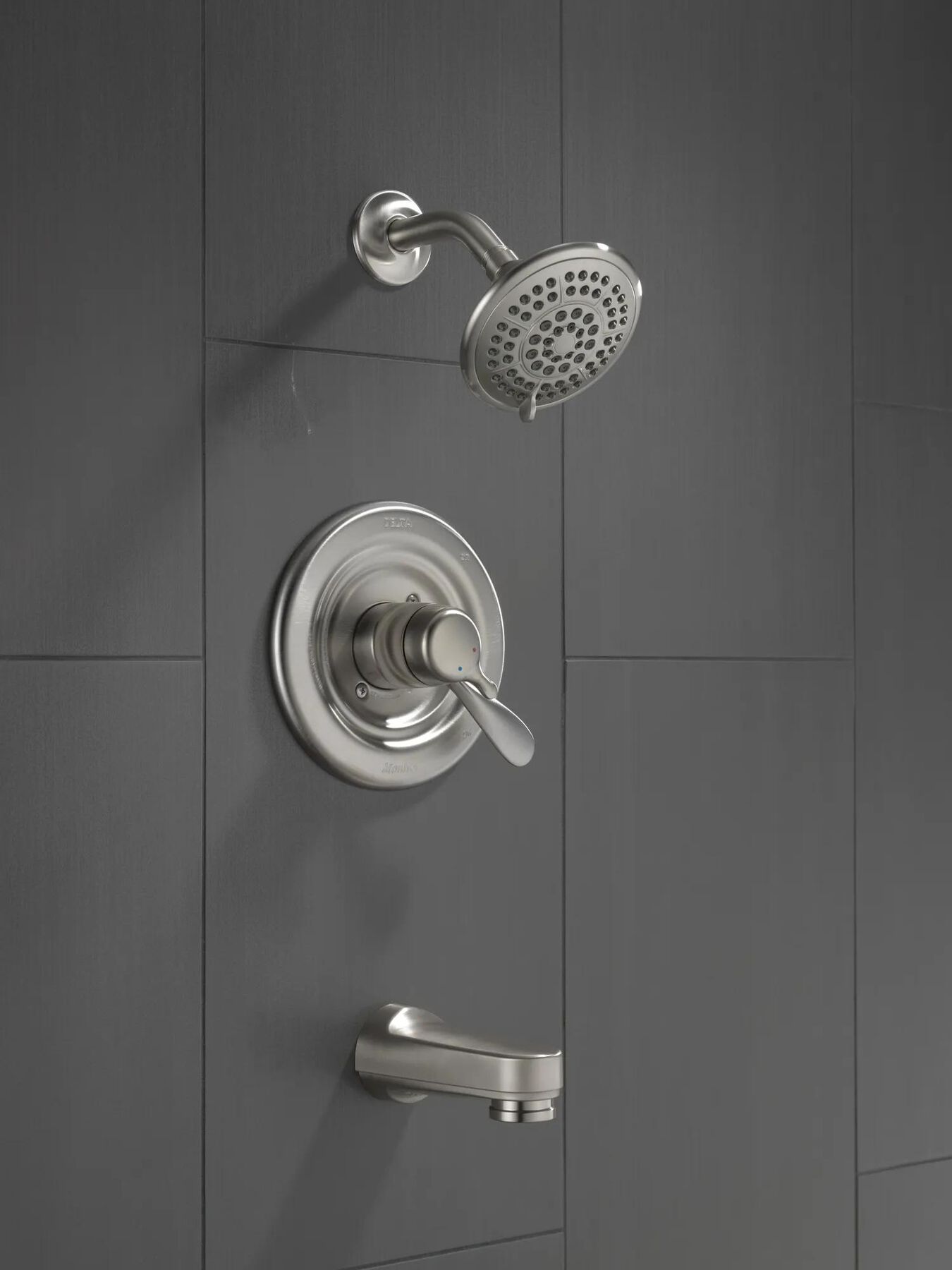

Monitor® 17 Series Tub & Shower Trim in Stainless
Model#: T17430-SS
List Price: $44200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Spray settings include: Full Body spray, Full Spray with Massage, Massaging spray, Soft Drench with Full Spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings

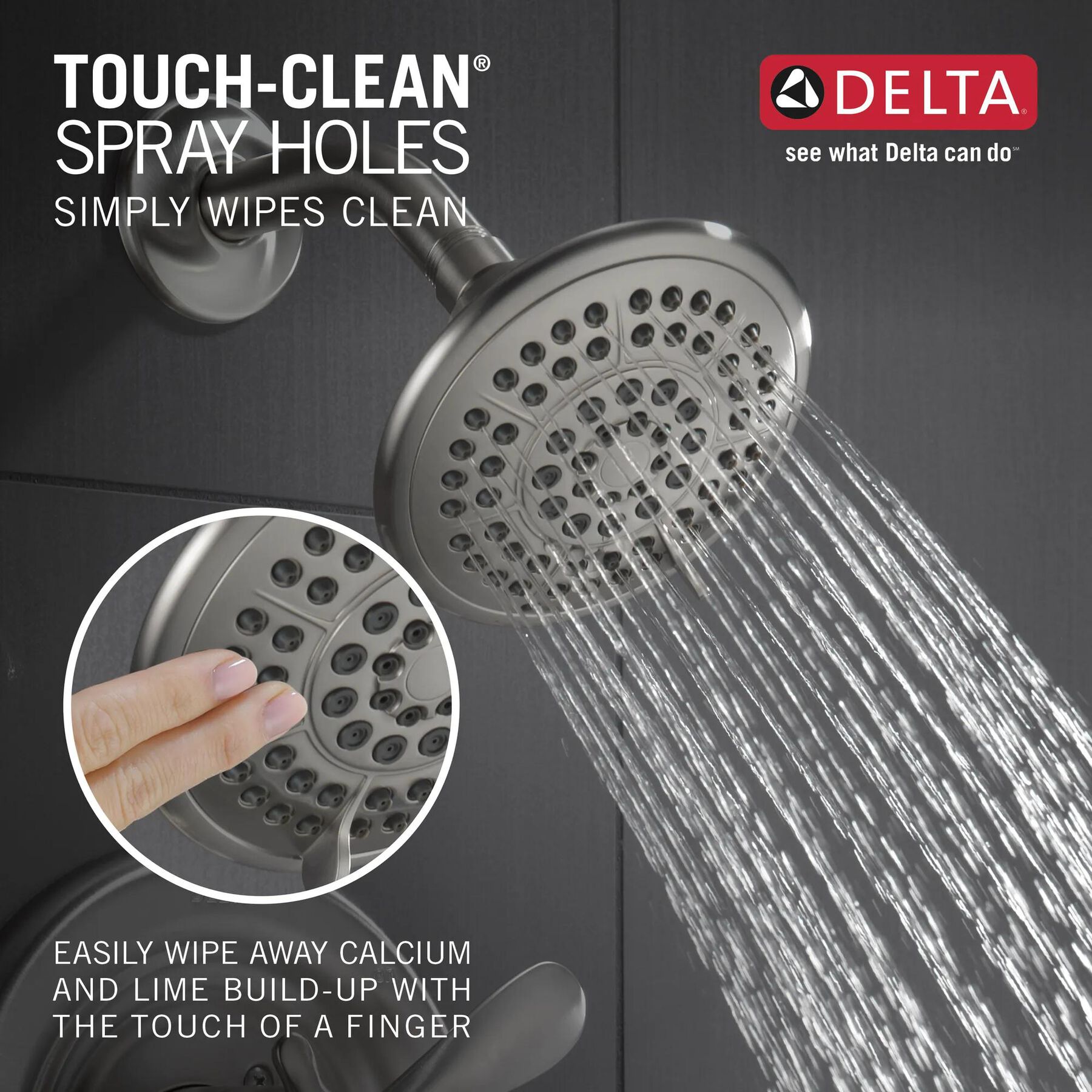

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Lever handle controls on/off and adjusts volume, while the dial controls temperature

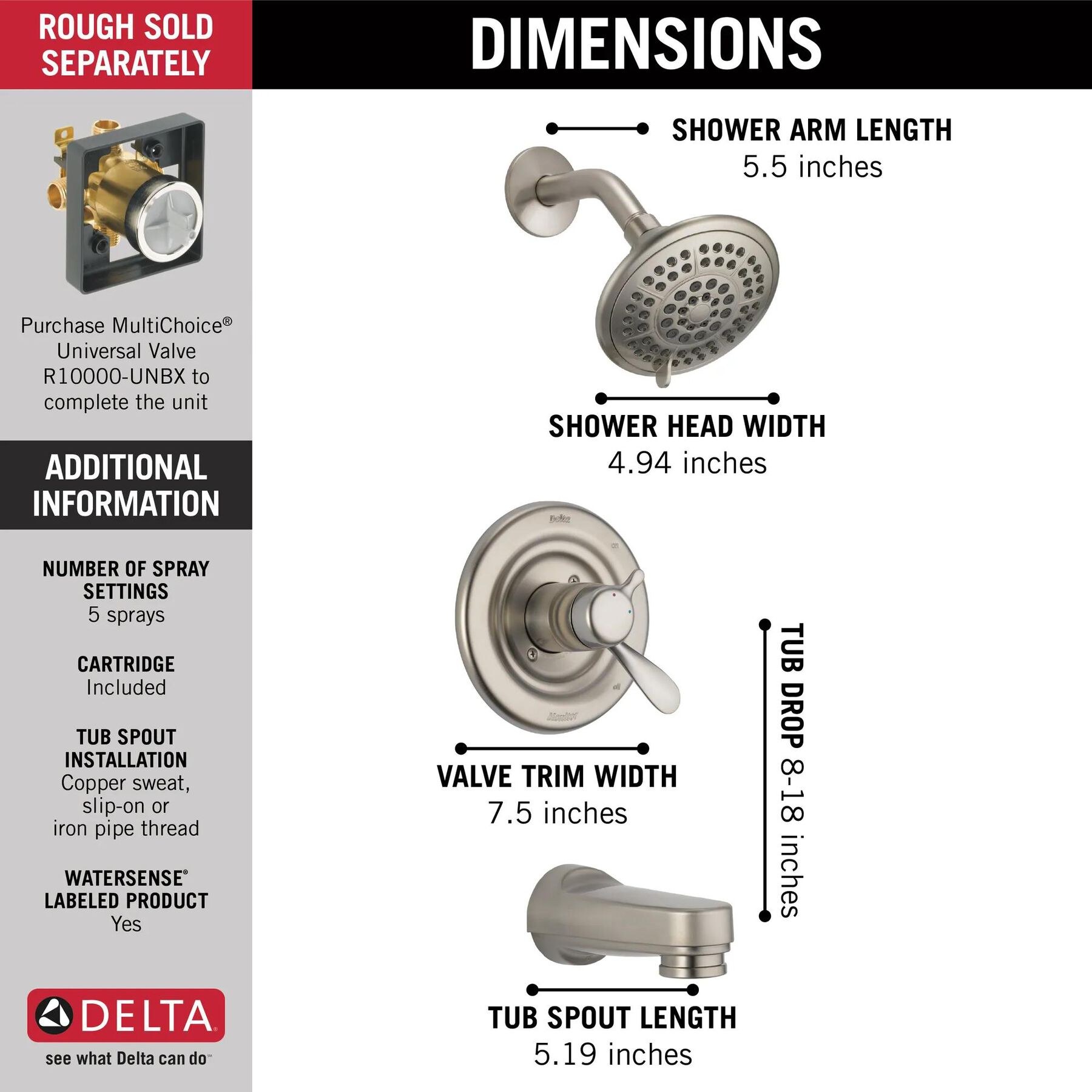

  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Solid brass forged body
  • Back-to-back installation capability
  • Pull-down diverter tub spout
  • Universal tub spout adapter allows for thread, sweat or slip-on installation
  • Stem extension kit RP77992 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
  • ADA compliant lever handle
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Volume Control
Touch-Clean®
MultiChoice® Universal Valve
Brilliance® Finish
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12-5/8
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Lovely temperature control great faucet! [This review was collected as part of a promotion.] This Delta tub/shower faucet offers separate water volume and temperature controls making it a preferred faucet. The temperature control stays at the place you last left it so that you are not needing to do a complete hunt and seek for the correct temperature every time you get in the shower. The shower head offers several options for spray pattern.
Date published: 2025-12-12
Rated 5 out of 5 by from WAY BETTER THAN THE OLD ONE This is better than my original one I bought 18 years ago. Finish is top notch. So much better than old one. Operates smoother as well. Happy with my purchase
Date published: 2024-06-04
Rated 5 out of 5 by from Outstanding! Our plumber -- one of the best in NH -- recommended this unit to us. We couldn't be happier with it. Quality, performance, "look," you name it.
Date published: 2023-09-28
Rated 4 out of 5 by from Great product Works great. Water flow is nice. Instructions could have a been better concerning attaching the tub spout and setting the temperature range.@
Date published: 2019-08-20
Rated 5 out of 5 by from Beautiful shower set Spot resistant. Easy care with simple wiping using a damp cloth. Great shower head. Tub faucet installation was super easy. No leaks anywhere. Quality feel.
Date published: 2019-02-28
Rated 3 out of 5 by from Adjustments and water spots I'd ordered in the 17 series after reading other reviews that claimed this series was a better unit. I was disappointed to find alot of plastic in the fixture and the head of the shower dies not adjust left or right much at all. It is also awkward to change the shower flow on the shower head. Worst of all, the faucet and cover plate are badly spotted from water and no matter what I try to clean it with, I cannot get them off. They showed up immediately after we started using the shower in our new home. We purchased ALL Delta faucets as recommended by our builder and are noticing water spots on ALL of them. Found out AFTER they'd been installed that alot of the parts were plastic!!!! Disappointed. Please ask Delta how to clean the cheap plastic they use on their fixtures!
Date published: 2018-11-17
Rated 5 out of 5 by from As expected from a quality Delta Faucet! Better than another older Delta faucet set, this one is easier to maneuver for younger kids, so I can let my kids fill up the bathtub and adjust the proper temperature to their liking.
Date published: 2018-03-13
Rated 5 out of 5 by from Good product As always, I always buy delta product because of the high quality, abundant parts and excellent lifetime warranty.
Date published: 2017-02-11
  • y_2026, m_6, d_12, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_16
  • loc_en_US, sid_T17430-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

will this trim fit an old 1500 series valve body

Asked by: joe p
Thank you for your question, Joe! If the screw holes on the original escutcheon plate are at 1 and 7 o'clock, this trim will work on the existing valve using the RP32104 cartridge (sold separately). https://www.deltafaucet.com/parts-product-detail?modelNumber=RP32104 If the screws are at 5 and 7, you will need an R10000 Rough-In Valve to install this trim kit as we do not make a compatible trim for your existing unit. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

Hi, I bought the T17430-SOS Delta model, how much copper pipe is needed to be coming out of the wall surface for the tub spout?

Asked by: Vinny M
Hi Vinny M, Thank you for your question. The SOS model has a slip-on spout, which requires 2-4" of copper pipe extending from the finished wall. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

How do you adjust the temperature for the faucet temperature knob? Mine is set at the hottest it can go and it's not as hot as I want it. The plumber came out to adjust it, but all he did was make it very difficult to turn on now.

Asked by: Laura
Hi, Laura. Thank you for your question. The rotational limit stop can be adjusted for the Delta Monitor T17430-SS shower trim. To adjust the adjust the rotational limit stop, first remove the temperature cover and take a Phillip's head screw driver and turn the set screw counter clockwise to remove. Next, remove the gray knob. Behind the knob, you should see a black disk. Please take this disk and take it out and place the disk to the hotter side. The hot side should be up against the iron piece that is sticking down on the volume handle. If you should need further assistance with this issue, please contact our Delta Customer Service line at (800)345-3358. We are available Monday-Friday, 7am-7pm, CST and Saturday, 8am-5pm, CST. You may also email at customerservice@deltafaucet.com. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I have an older (20 years) Monitor 17. Will the valve in that unit work with this trim?

Asked by: MarkB
Dear MarkB, Thank you for your inquiry! Yes, the Delta Classic 17 Series Trim T17430-SS will work on your older 1700 series valve and cartridge assembly, As long as the screw holes on your large round escutcheon plate are at the 1 and 7 o'clock positions and you do not have a push button shower diverter directly below the off and on handle. Any of the Delta tub and shower trim kits that start with a T17, except for the T17T series trim kits will interchange for you. The cartridges that come with the new trim kits will not fit your valve body, so you will need to reuse your existing cartridge (RP32104 White cap). Best regards, Tanya
Answered by: Tanya
Date published: 2017-07-05

Does this come with the drain plug switch lever also?

Talking about the lever that mounts down on the tub to plug the drain.
Asked by: Brian
Thank you for your question, Brian. The bath drain is sold separately. RP693 Toe-Operated Bath Waste Assembly: https://www.deltafaucet.com/bathroom/product/RP693SS RP391 Trip Lever Bath Waste Assembly (RP31555 and RP7430 trim available in other finishes): https://www.deltafaucet.com/bathroom/product/RP391 Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-01-03

Is the flow restriction device in the shower head removable?

Asked by: ron57
Hello ron57, Thank you for your question regarding the Delta Classic Monitor® 17 Series Tub & Shower Trim. I will be happy to assist you today. Unfortunately, we cannot recommend removing the flow restrictor from the shower head as it will no longer meet the specific plumbing codes and could potentially disrupt the way the model functions. Also, removal of the flow restrictor will void the warranty for this product. For more information on our flow restrictors, please visit the link below: http://worldwide.deltafaucet.com/customersupport/faq/water+pressure/index.html I hope this information helps. If you ever have any other questions, concerns, or require anything further please feel free to give us a call on our warranty line at 800-345-3358 and we will be happy to assist you in any way that we can. Thank you again! Matthew M. Delta Faucet Company Consumer Care
Answered by: Consumer Care
Date published: 2024-03-28

Please tell me what materials all of the parts are made of: 1)shower head 2)tub faucet 3)pull-down diverter 4)controls Thank you.

Asked by: Michael
Hello Michael, Thank you for your inquiry! The shower head, valve cartridge, temperature dial/handle and the pull-down diverter tub spout of the Delta Classic Tub and Shower T17430 model are non metallic, all other parts are metal. Please feel free to call, email, or message us on social if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2024-03-28

dual function or single function

what is the difference between dual function pressure balance cartridge and single function pressure balance cartridge? Also, I see that there is a dual function thermostatic cartridge - I always thought that the above mentioned cartridges were thermostatic as well? Is this thermostatic cartridge newer? How long has it been around?
Asked by: jg
Hi Jg, Thank you for your question. The single function pressure balance cartridge controls temperature only. The dual function pressure balanced and dual function thermostatic cartridges allows you to control the temperature and volume separately. The RP47201 thermostatic cartridge came out in 2006. The pressure balanced cartridges control temperature through water pressure, the thermostatic through water temperature. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28
  • y_2026, m_6, d_12, h_16CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_36
  • loc_en_US, sid_T17430-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 59ms
  • questions, product
PART LIST

PART LIST

1 2 >
Image-Master-RP51307

Lahara®

Lahara® Temperature Knob & Cover - 17 Series

List Price: $31.35 - $47.00
Free Ground Shipping All Orders $49+

RP51307

Image-Master-RP51306

Lahara®

Lahara® Metal Lever Handle Kit - 17 Series

List Price: $83.10 - $124.25
Free Ground Shipping All Orders $49+

RP51306

Image-RP73642SS

Classic

Classic Temperature Knob & Cover - 17 Series

List Price: $45.05
Online Price: $36.04
Free Ground Shipping All Orders $49+

RP73642SS

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP17453

Delta®

Delta® Tub Spout - Pull-Down Diverter

List Price: $73.55 - $157.00
Free Ground Shipping All Orders $49+

RP17453

Image-RP73643SS

Classic

Classic Handle Assembly

List Price: $105.15
Online Price: $84.12
Free Ground Shipping All Orders $49+

RP73643SS

Image-Master-RP51303

Lahara®

Lahara® Tub Spout - Pull-Up Diverter

List Price: $99.70 - $164.80
Free Ground Shipping All Orders $49+

RP51303

Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP28795

Delta®

Delta® Escutcheon - Monitor® 17 Series

List Price: $72.65 - $220.25
Free Ground Shipping All Orders $49+

RP28795

Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP5883

Delta®

Delta® Escutcheon - 600 / 1600 Series Tub & Shower

List Price: $82.85 - $266.20
Free Ground Shipping All Orders $49+

RP5883

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880
