Kayra®
View Full Kayra® Bathroom Collection

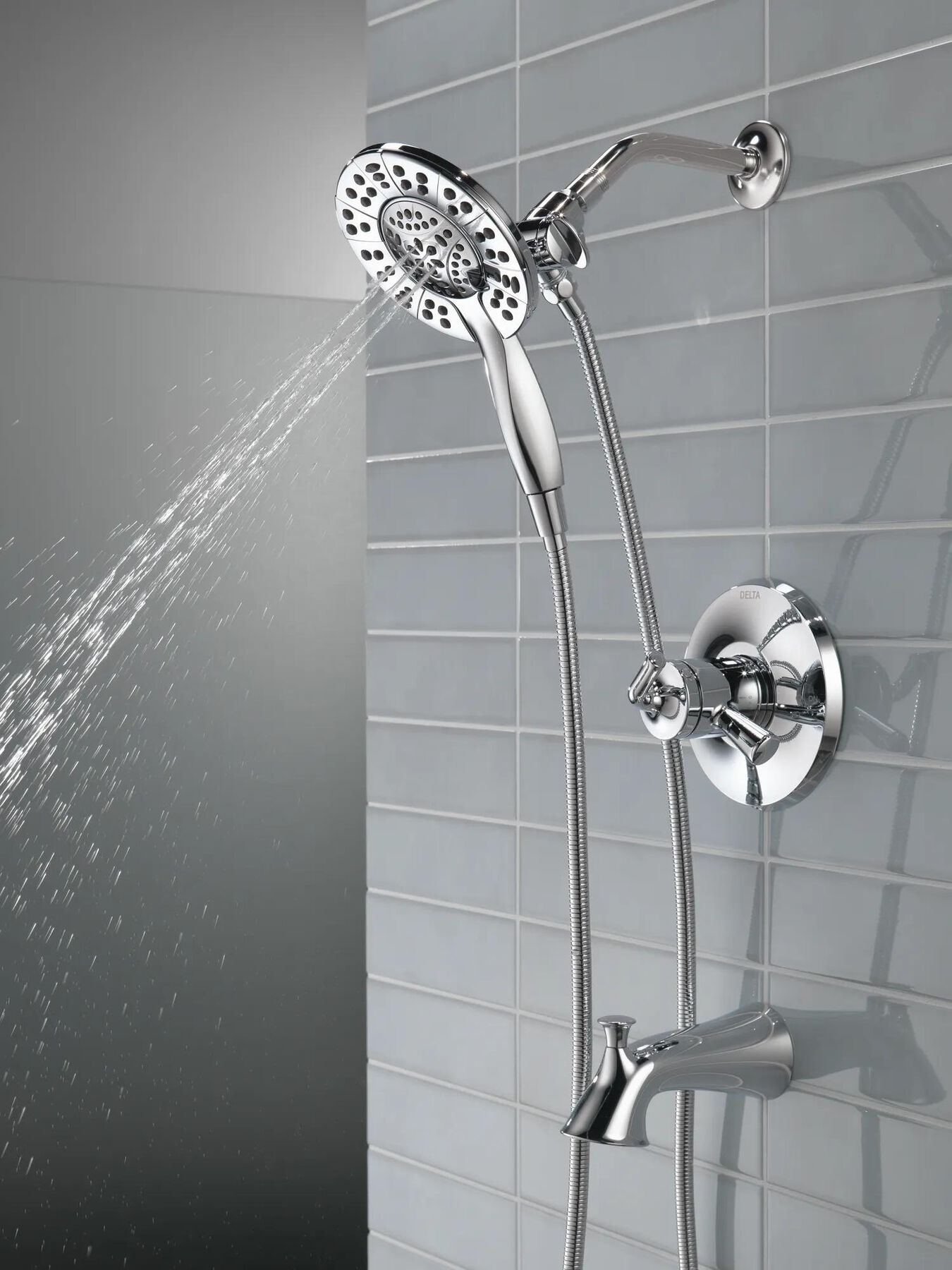

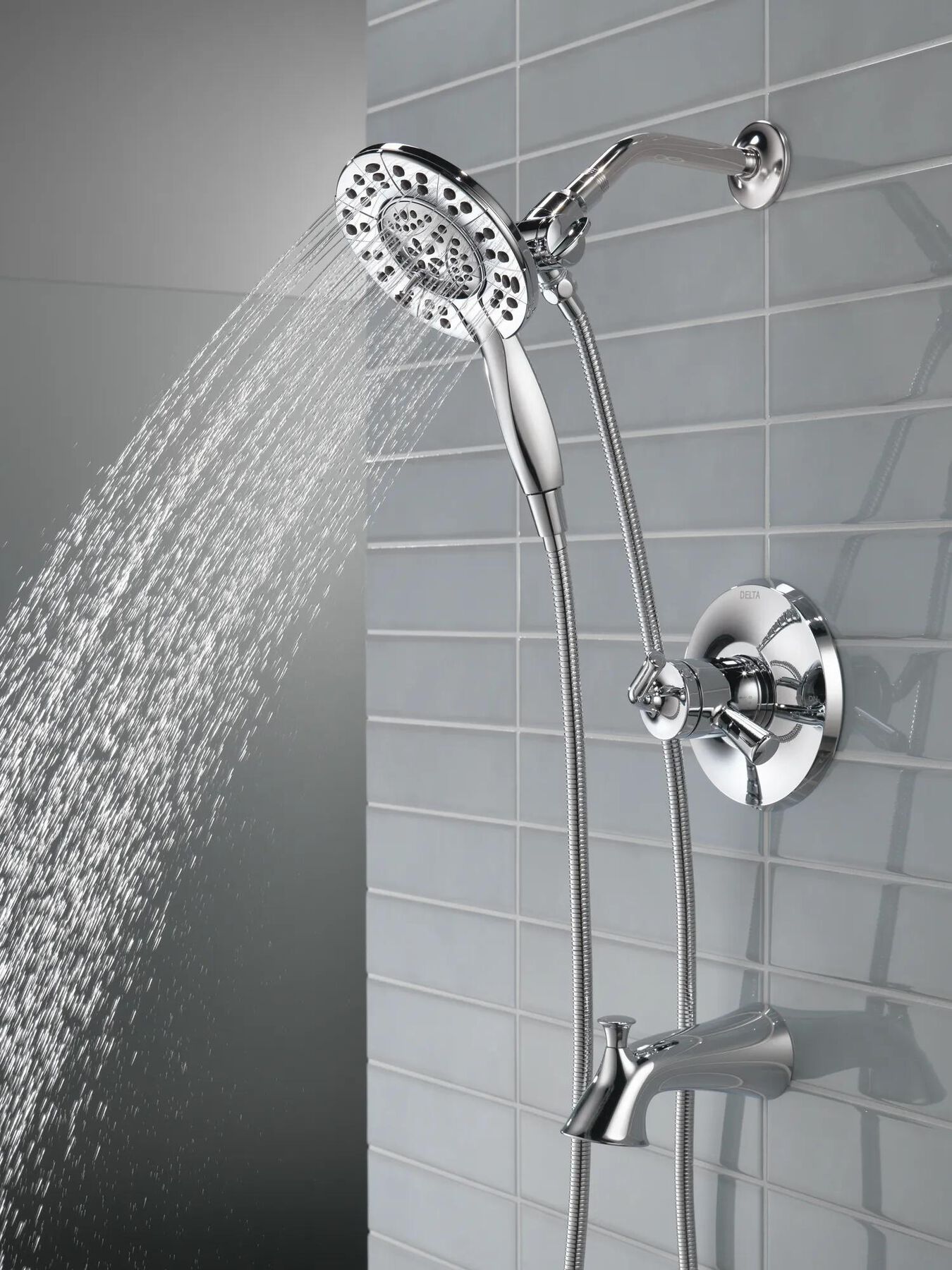

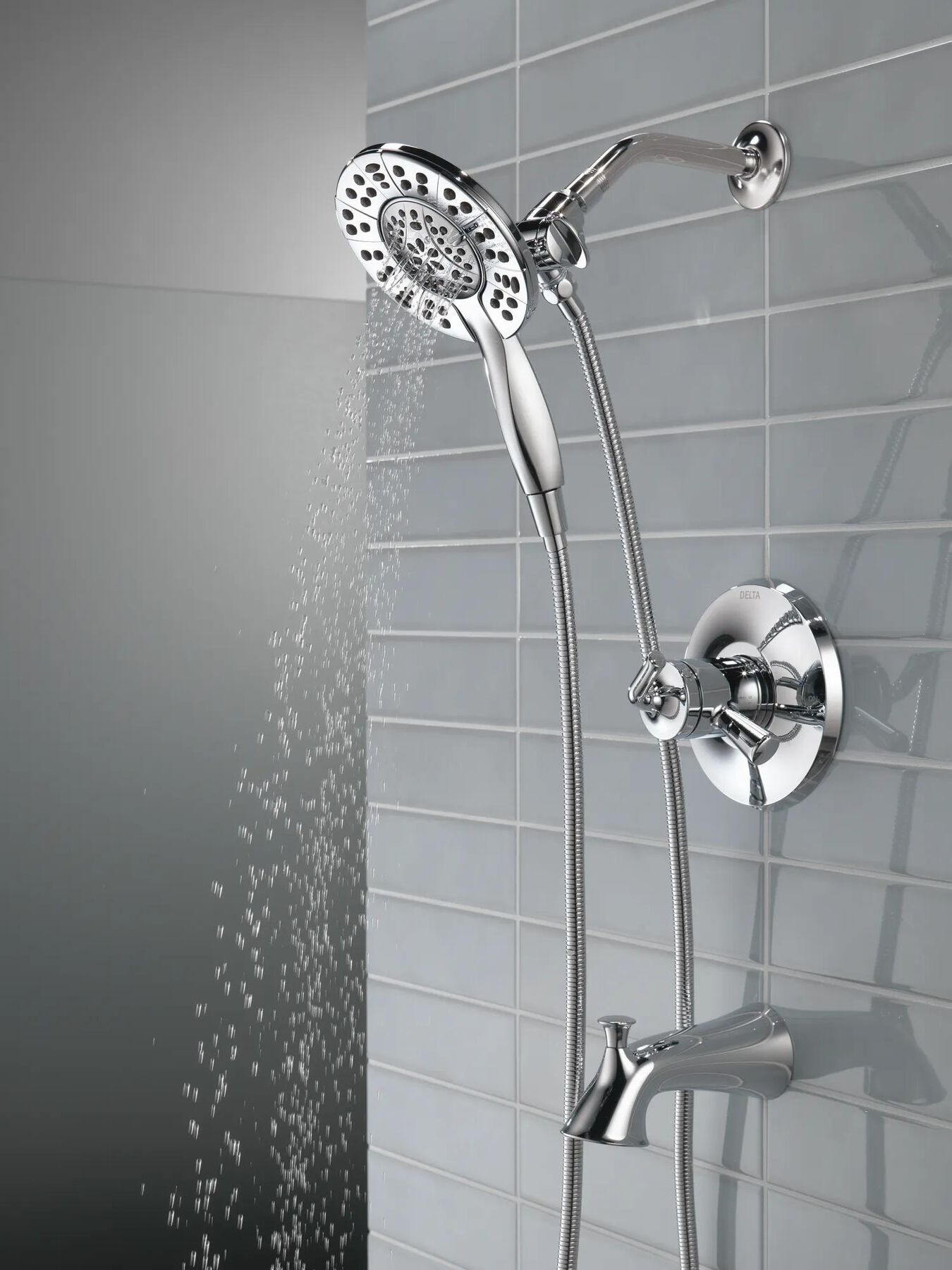

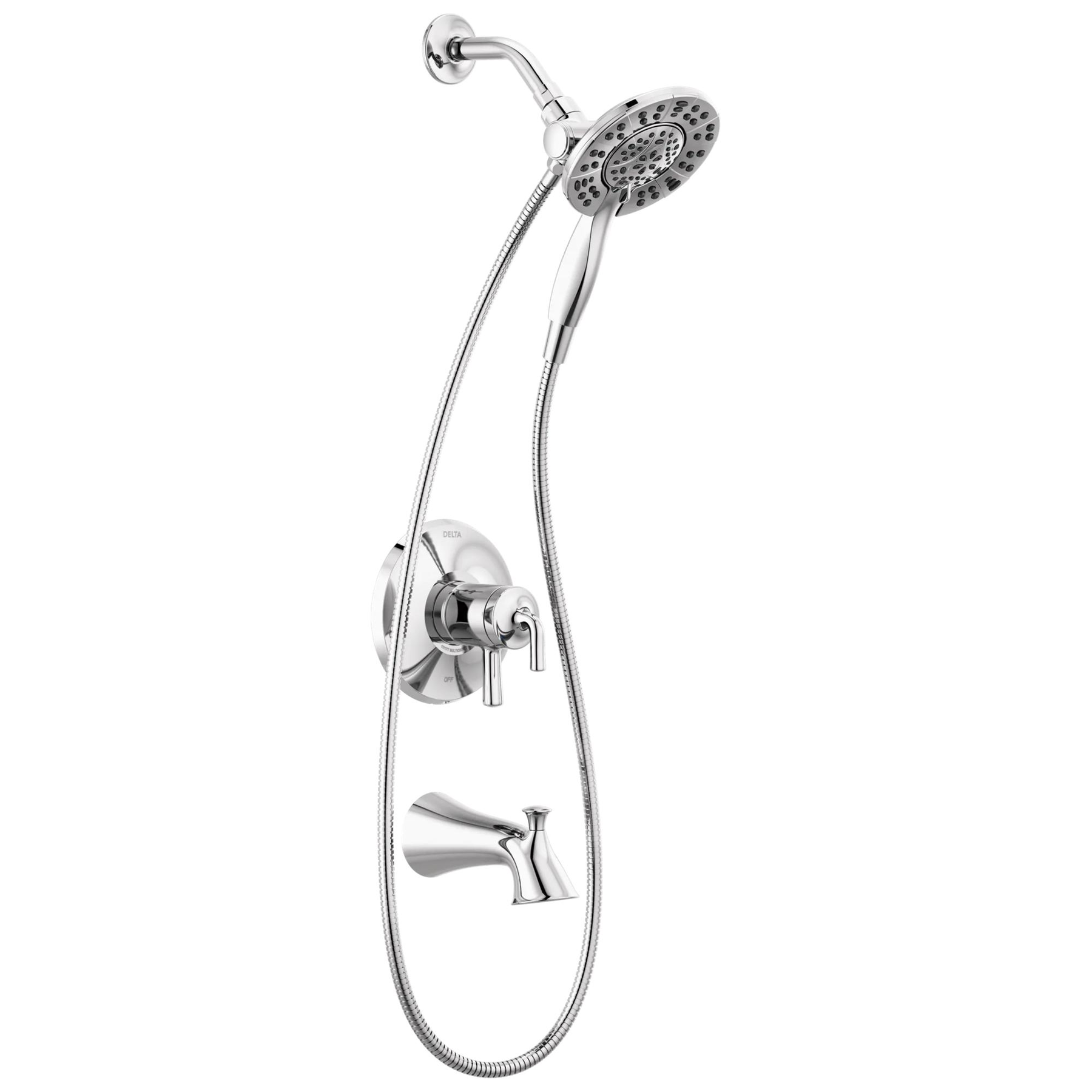

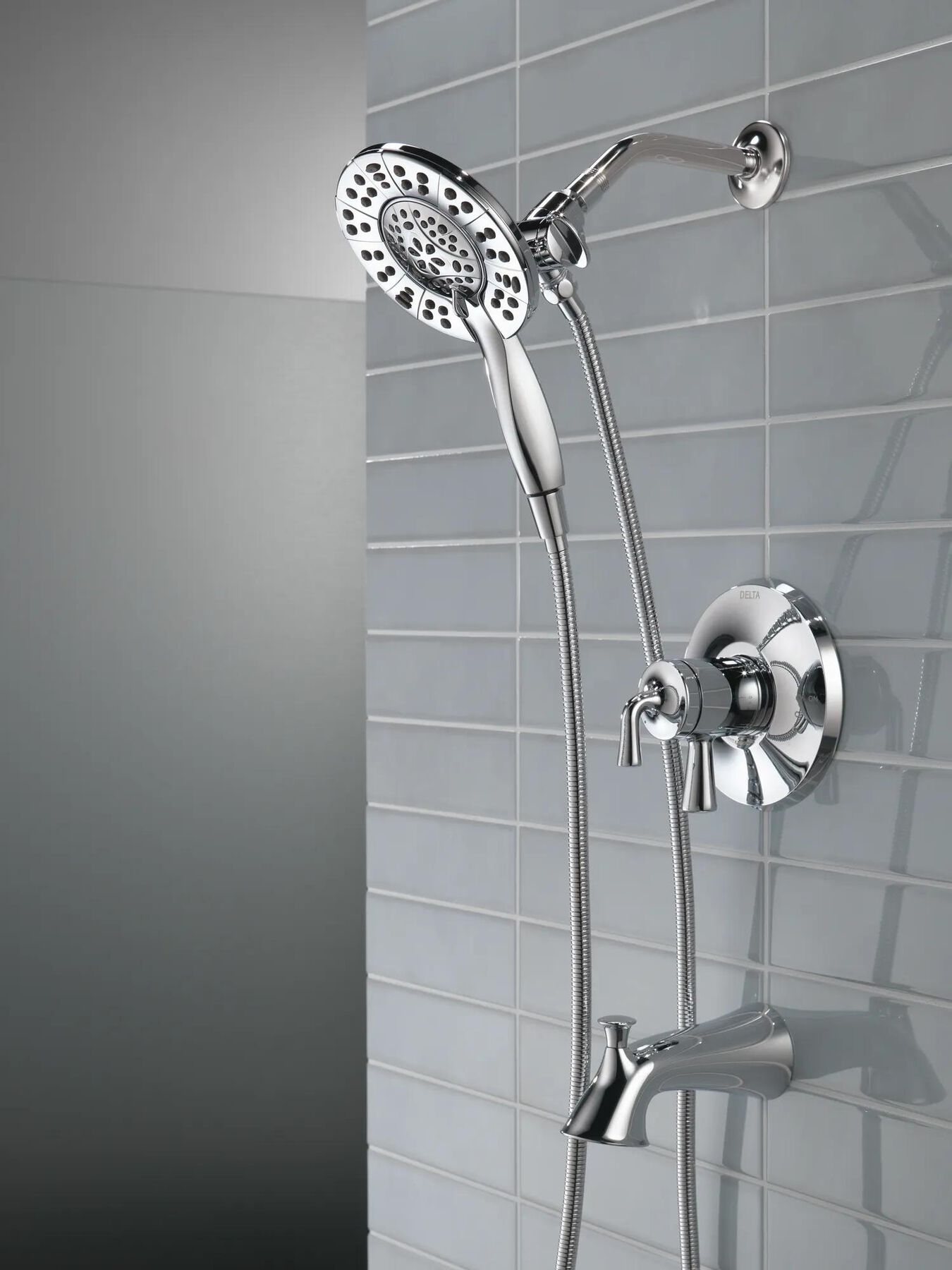

Monitor 17 Series Tub and Shower Trim in Chrome

Model#: T17433-I
Add to Favorites
Find local Delta® installers.
Kayra®
View Full Kayra® Bathroom Collection
Monitor 17 Series Tub and Shower Trim in Chrome
Model#: T17433-I
List Price: $34990
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES

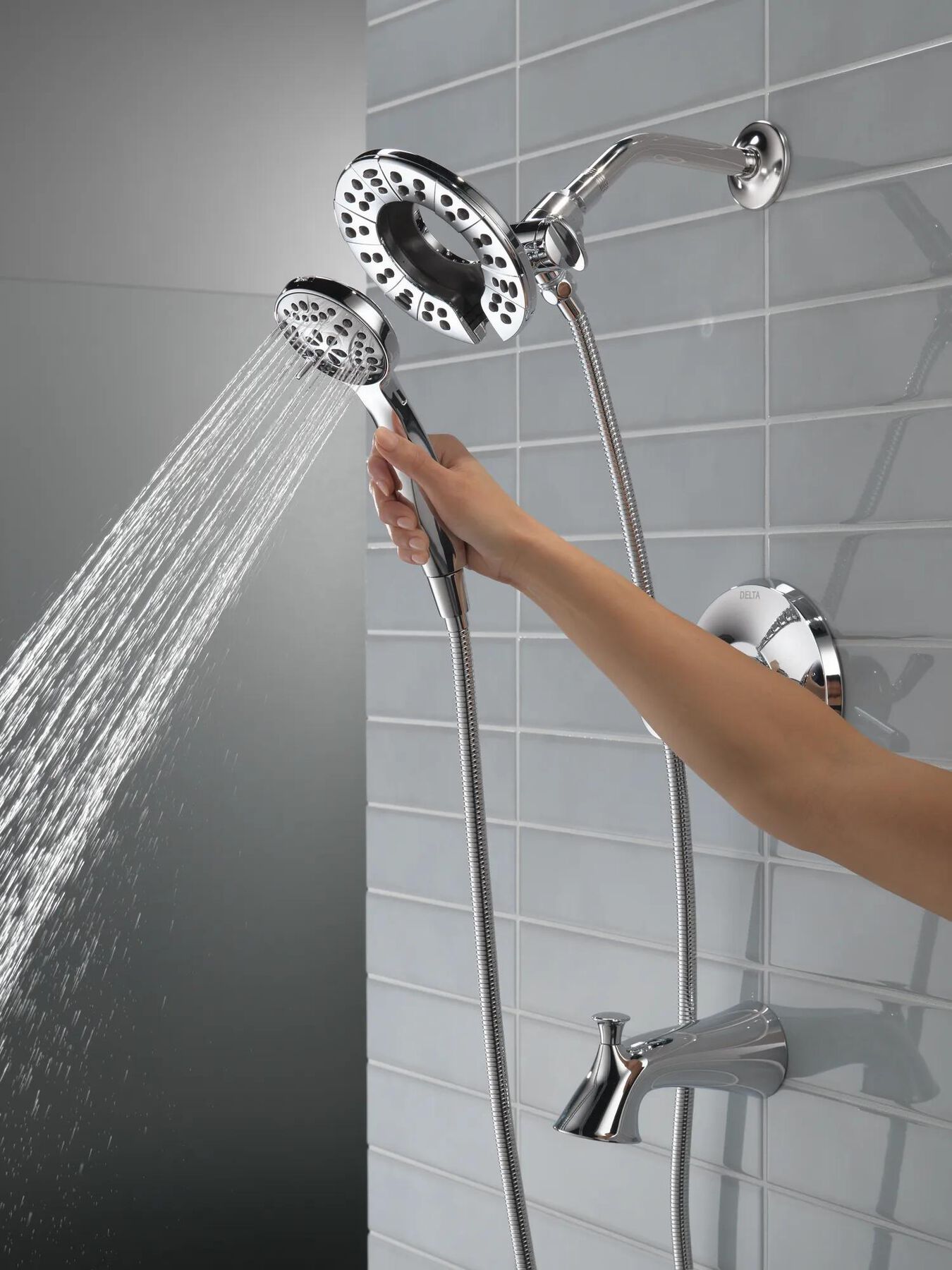

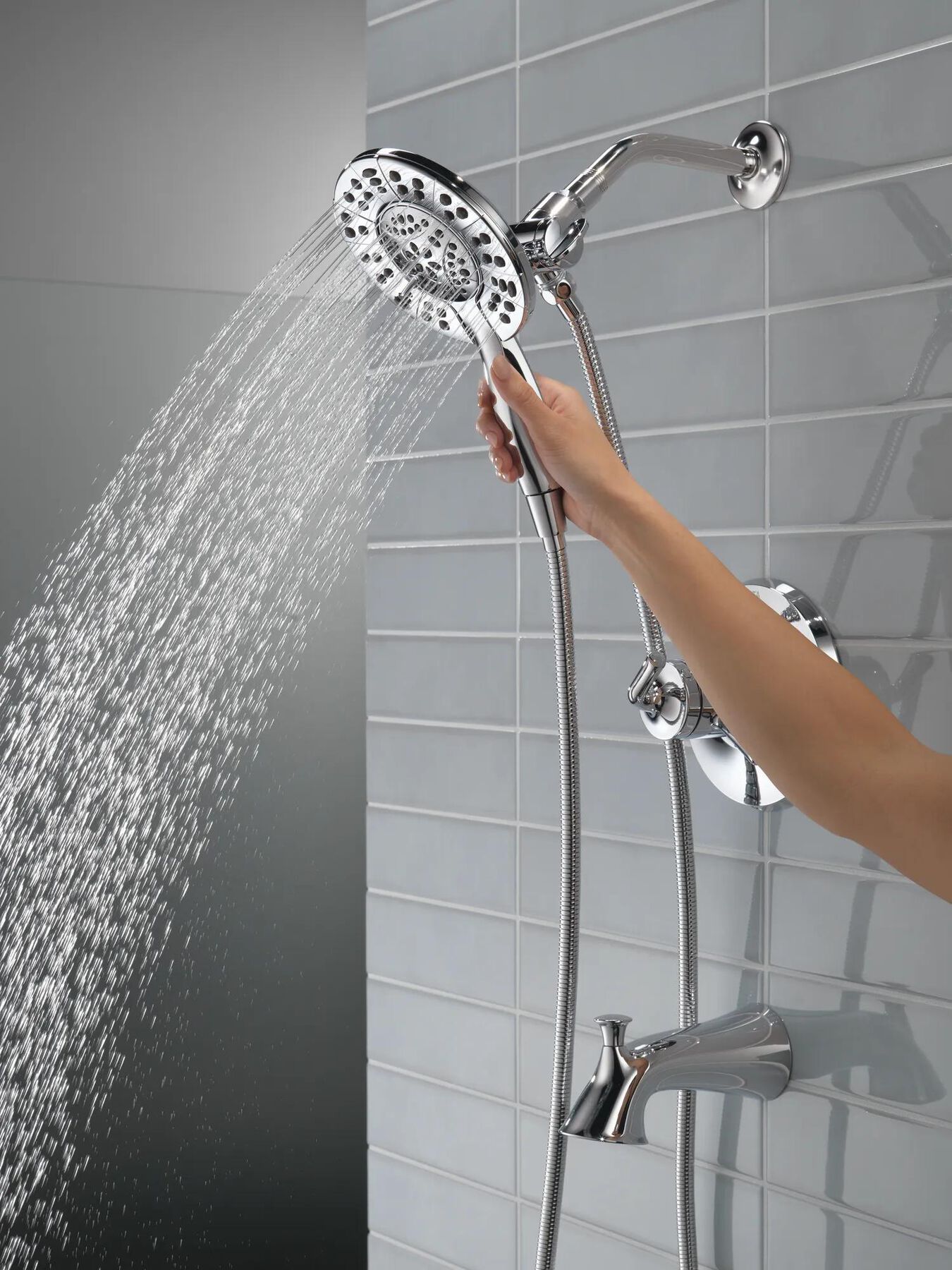

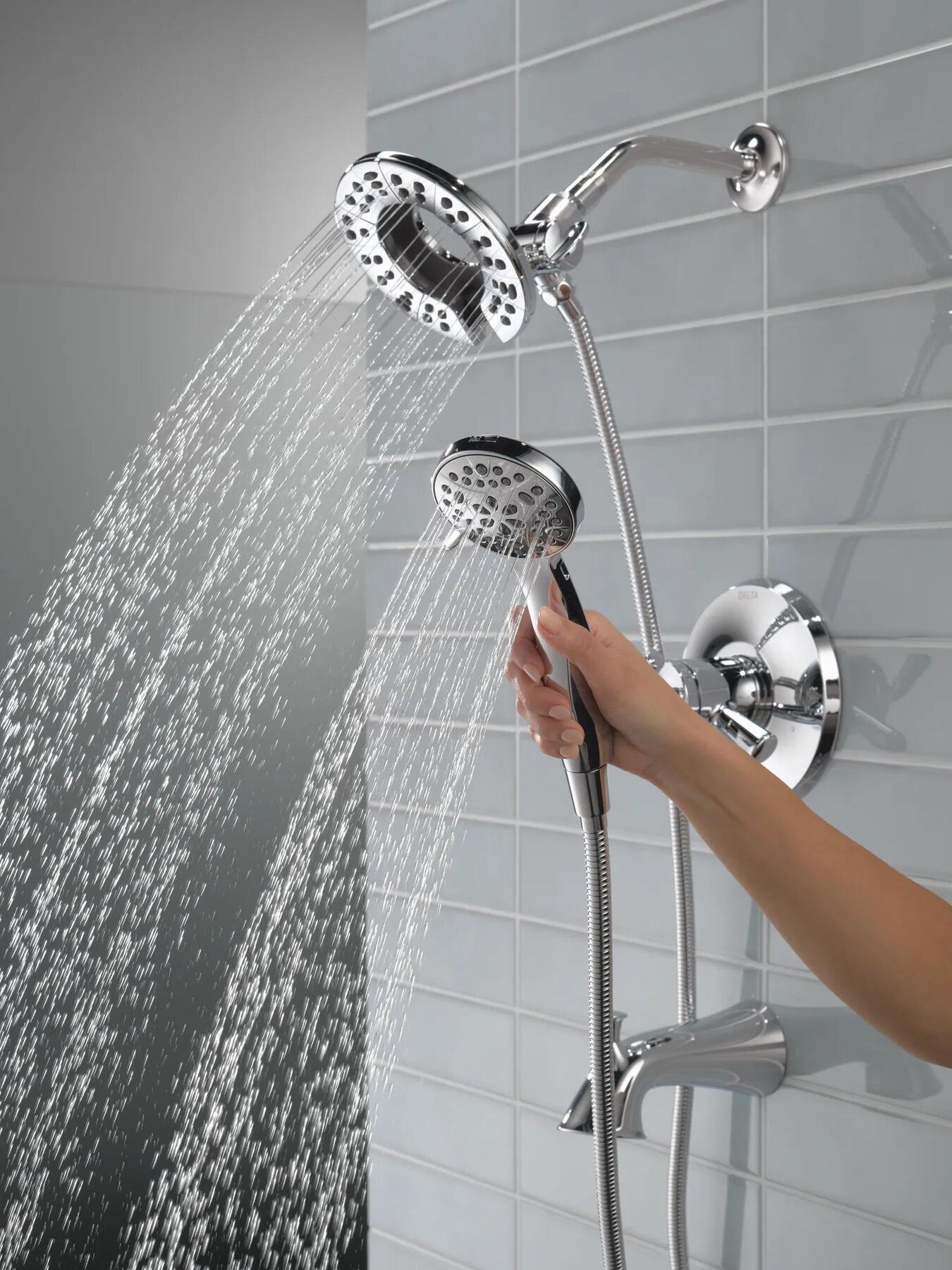

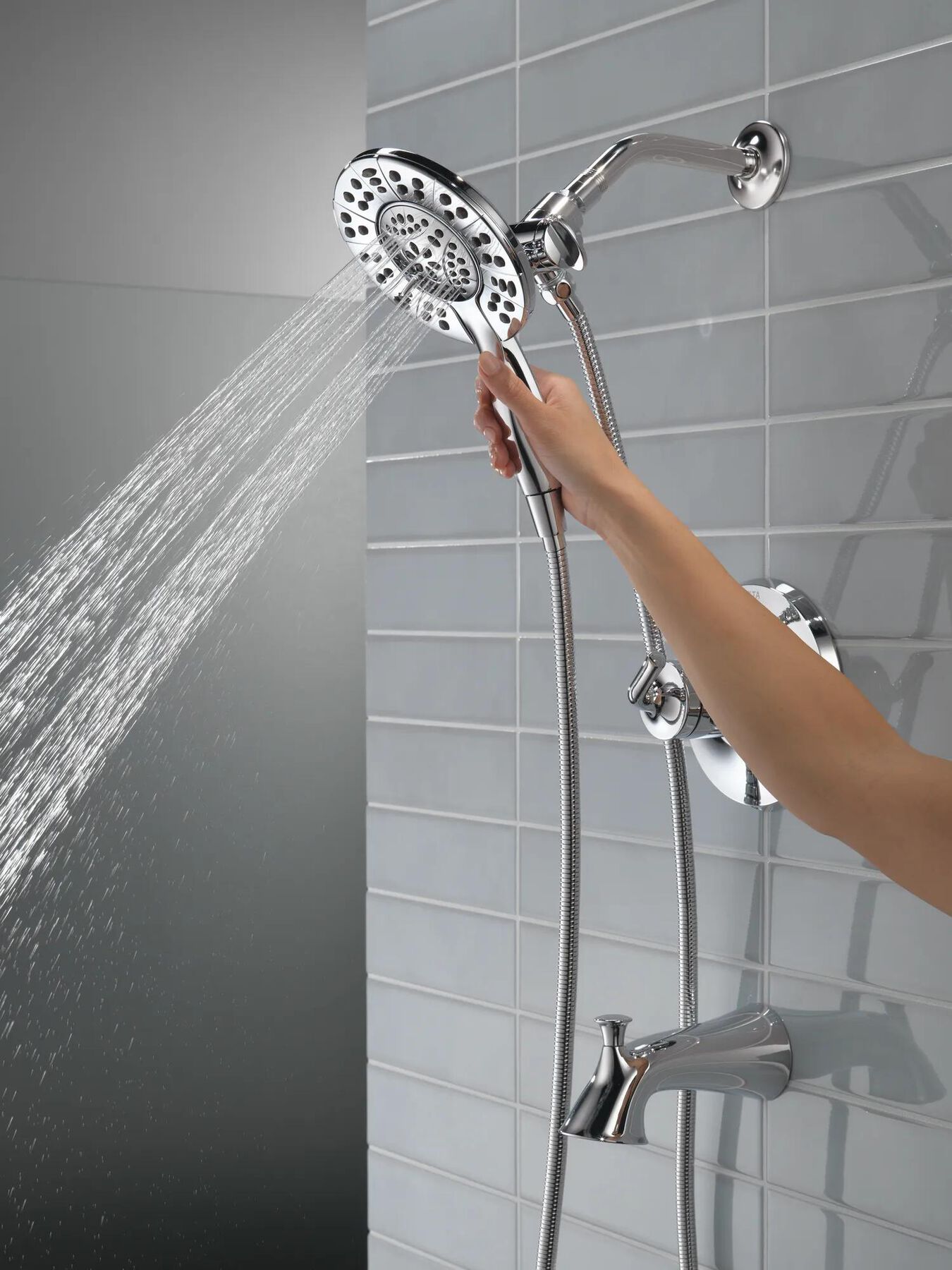

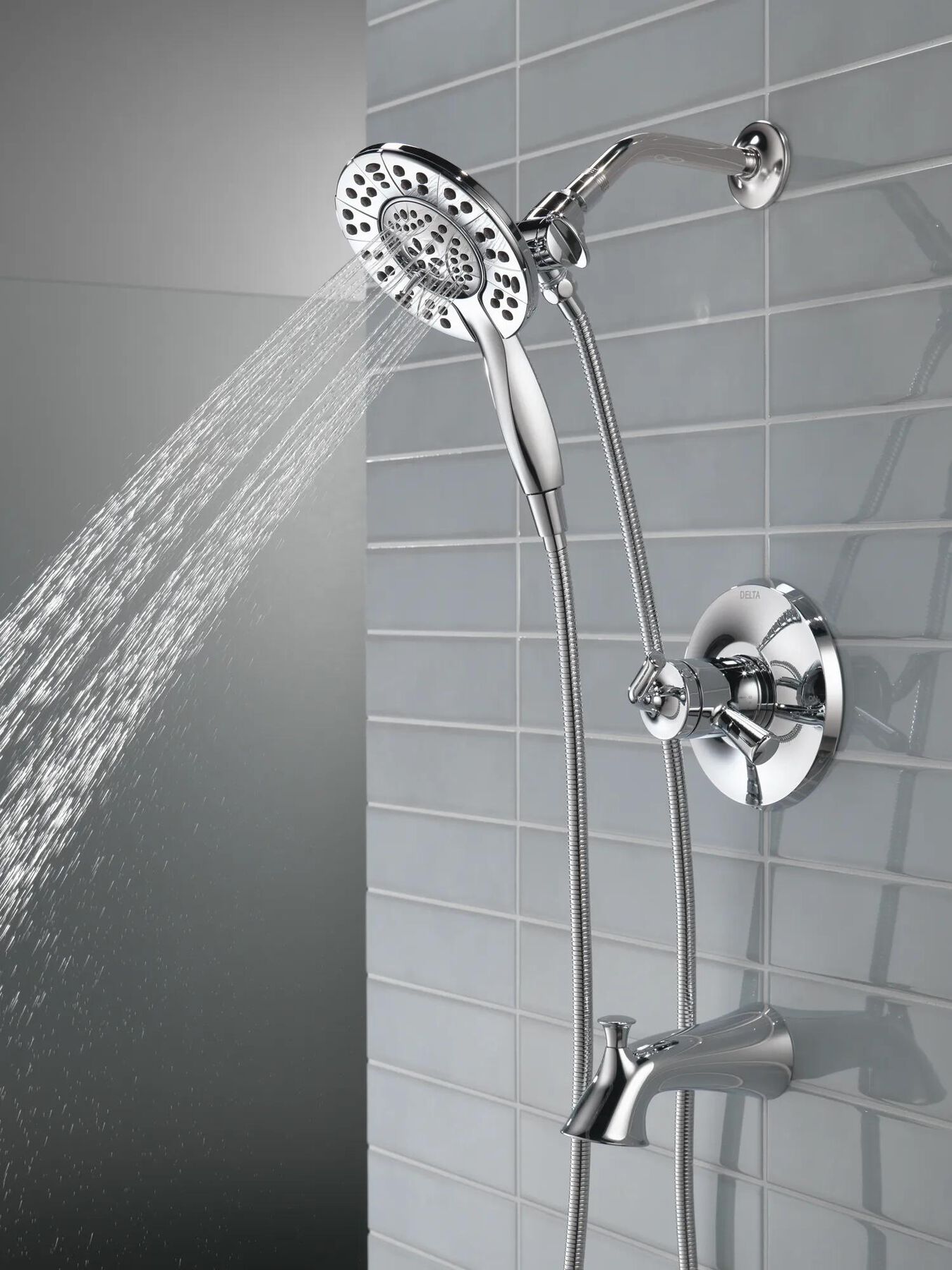

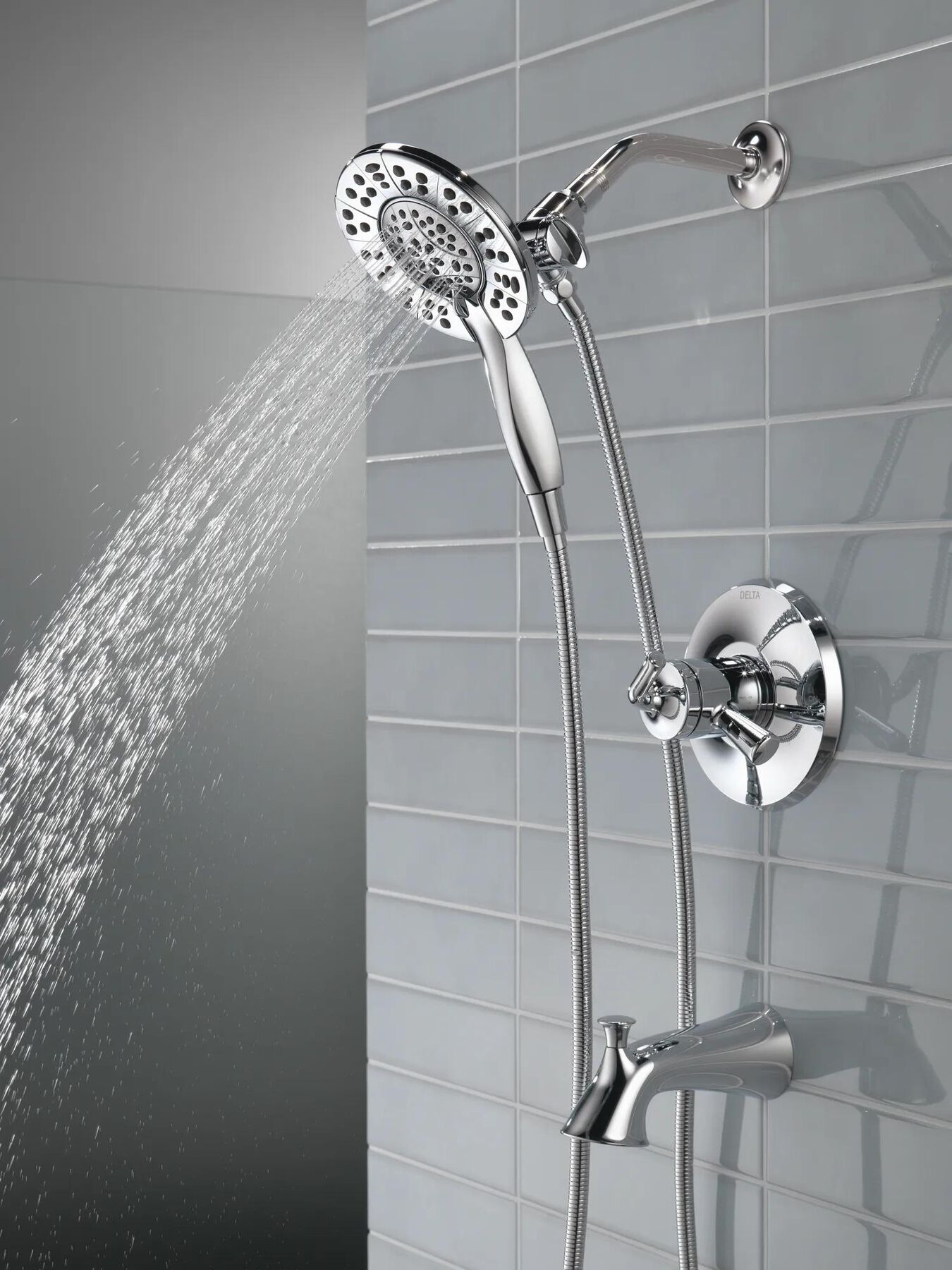

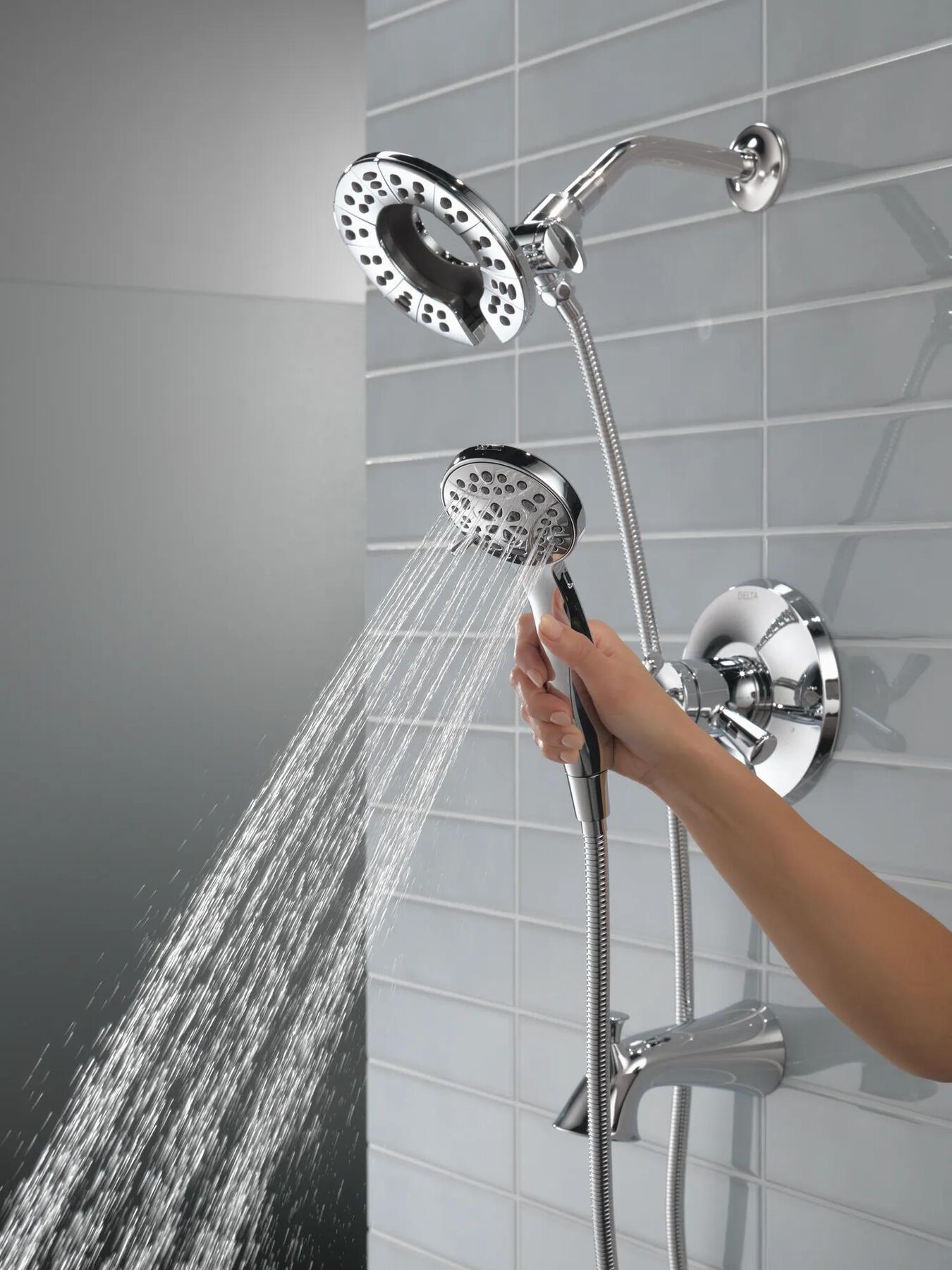

The In2ition® Two-in-One Shower gets water where you need it most using the integrated shower head and hand shower separately or together
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Recommended rough-in kit R10000 series
  • Perfect for bathing loved ones and pets as well as keeping the inside of your shower and tub clean
  • Spray settings include: Full Body spray, Massage spray, Full spray with Massage, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • ADA compliant metal lever handle
  • Lever adjusts volume
  • Dial adjusts temperature
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Back-to-back installation capability
  • Includes coordinating pull-up diverter tub spout
  • Red/Blue indicator markings
  • Cartridge included
  • Tub/shower faucet
  • All parts replaceable from the front of the valve
  • Solid brass forged body
  • Pull-up diverter tub spout diverts the flow of water from the tub spout to the shower head
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
In2ition®
ADA Compliant

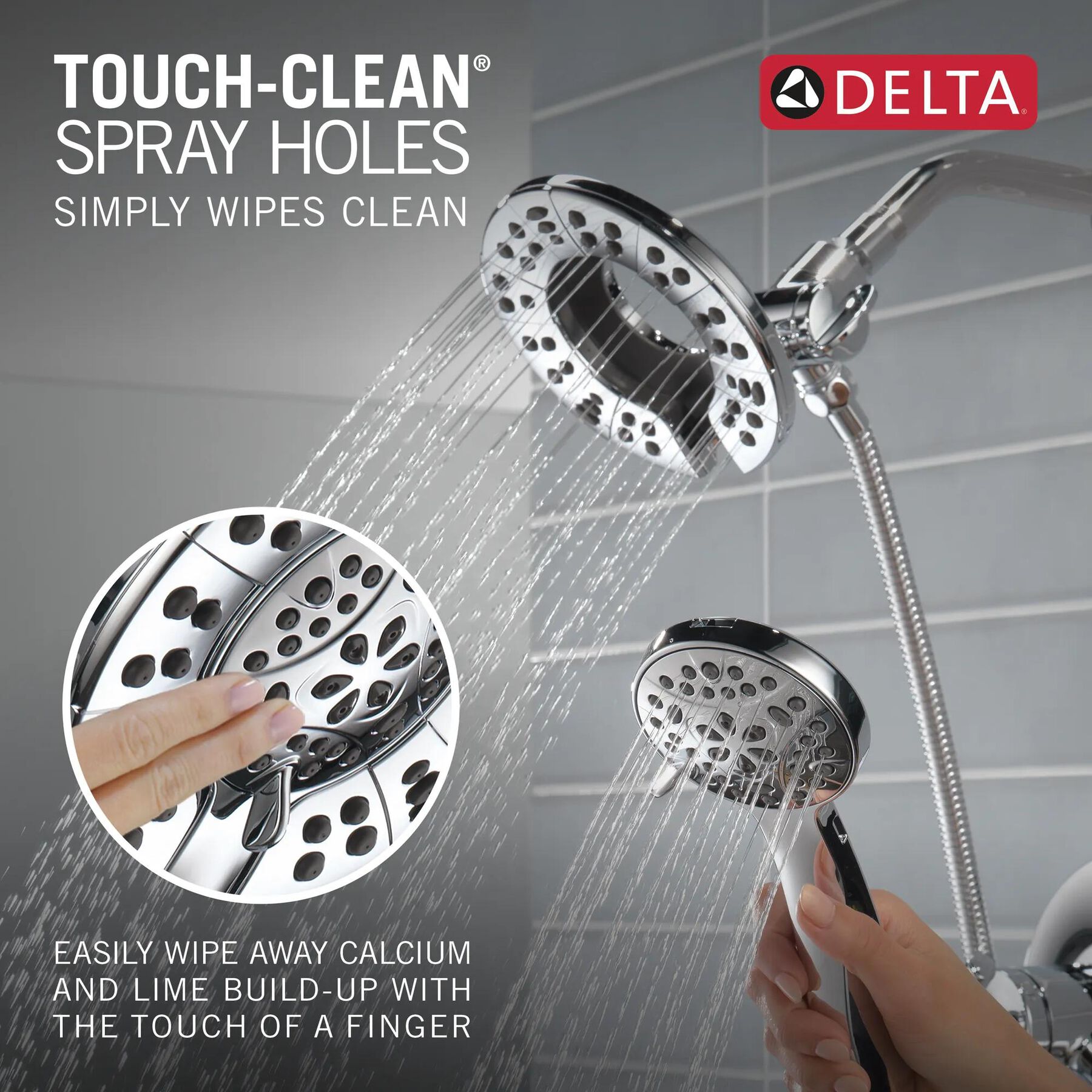

Touch-Clean®
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

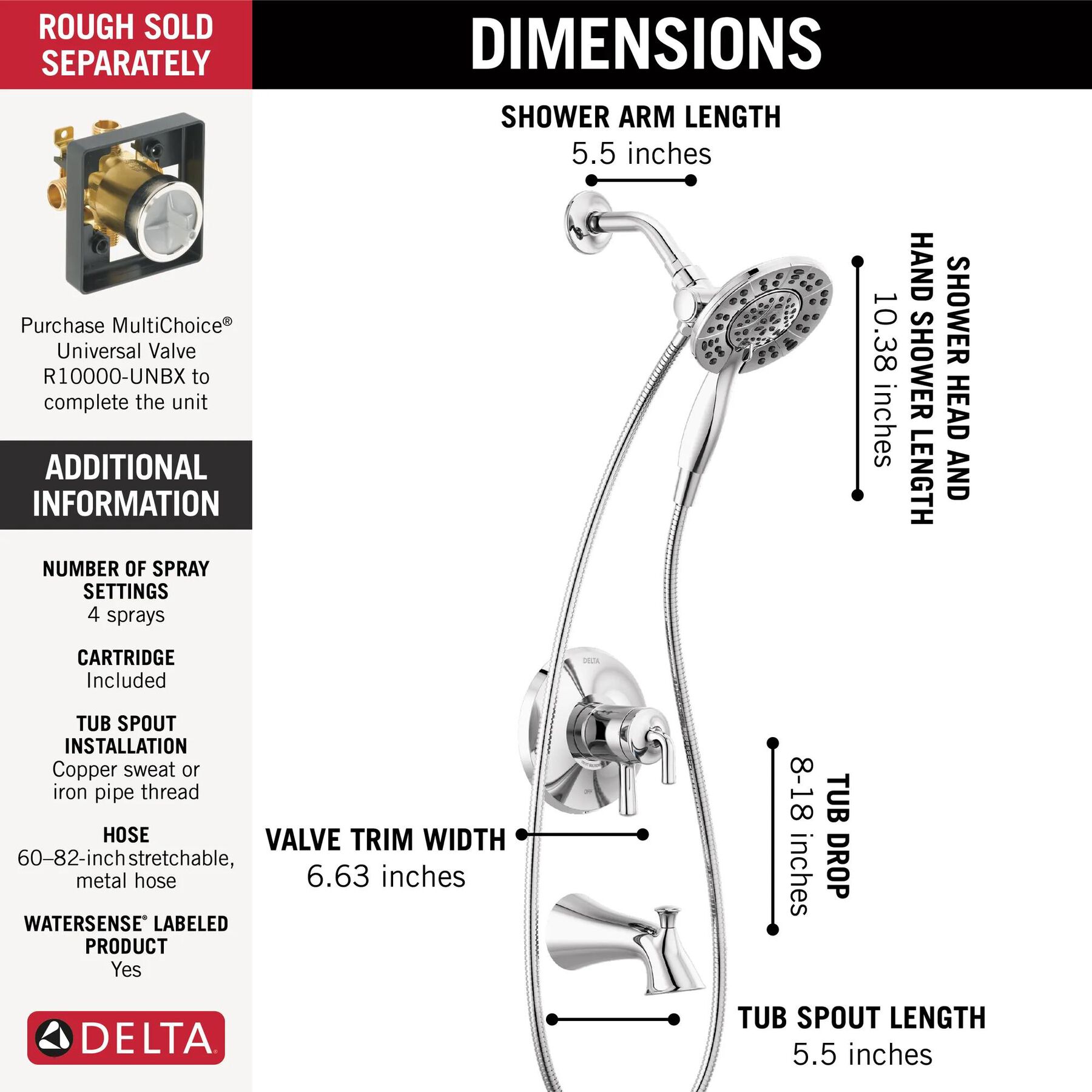

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
6-5/8
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Skip this one I installed this for a client in April 2024 because the brand I normally purchase was out of stock. Had to go back twice because the inside parts came loose. Then yesterday got an emergency call the faucet would not shut off at all. Complete failure. Called Delta but because I was the installer and not the homeowner, they would only deal with them. Fortunately, the supplier gave me a replacement cartridge. For the price clients pay for these things they should be so much more trouble free.
Date published: 2024-08-28
Rated 1 out of 5 by from Buyers remorse I wanted and asked about the material composition of parts of this product, plastic or metal, your reps were unable to provide any information. They instead gave the phone of the manufacturer, Delta. After a two day effort to reach Delta CS I was informed that indeed the the tub spout is made of metal The fact is, it is not. What a sad commentary on online shopping. I was then forced, because of the installation schedule, to purchased a different shower kit from a local retailer. I will certainly never purchase from an online retailer that does not know what they are selling nor are willing to obtain that info for a customer. I Will never make that mistake again. Retailers clueless, manufacturers clueless. Hands on only purchases. If I can not see it, feel it and answer and confirm all my questions at time of purchase , there will be no purchase. I'm certain you can deduce the implication.
Date published: 2024-08-20
Rated 5 out of 5 by from Great replacement FGit perfectly on the old rough in.
Date published: 2024-04-06
Rated 2 out of 5 by from Loose, tighten, loose, still loose. Had a Pro install. Pro had to return twice to tighten. I cannot afford Pro anymore. I'm seeking advice on how to fix.
Date published: 2023-09-15
Rated 1 out of 5 by from Disappointed. Quit working in less than 6 months. I love the look of this shower faucet. In less than 6 months, the handheld shower head quit working when you change the spray patterns—it doesn’t change so I can’t use the massage or the water save setting. I’m trying to contact the company to see if they’ll stand behind it, but at this rate, I wouldn’t recommend the product if it can’t hold up to 6 months of use.
Date published: 2023-06-26
Rated 5 out of 5 by from Lovely This Delta - T17433-SS-I shower trim is gorgeous!! I put in my master bath and oh what a difference it has made in the look. My shower and bath now looks so classy and I’m just thrilled with it. I’m on my way to get the rest of the package as I love the look I wanna do my whole bathroom in it! Delta T17433-I Features: Covered under Delta's limited lifetime warranty Constructed of zinc ensuring durability and dependability Premier finishing process – finishes will resist corrosion and tarnishing through everyday use Coordinates with products from the Kayra line seamlessly Multi function shower head Pressure balanced valve trim - dual cartridges control the water temperature and volume independently Designed to easily install with standard U.S. plumbing connections
Date published: 2023-05-03
Rated 2 out of 5 by from Beautiful but problems with installation I really like the look of this in matte black. We had two sets installed in our remodeled bathrooms. The professional installers put these in, and we had issues with them right away. Water leaked out the back side of the faucet while the tap was diverted to the showerhead. They fixed that issue. Only to have another issue with the on/off handles that took a couple hours to fix. (They would not turn off!) Even now, the pieces are working but the hot/cold functions are not consistent from one bathroom to another. I think some of it has to do with the non-intuitive design of the handles. I know I will get used to it, but I would not buy this exact model again.
Date published: 2023-02-10
Rated 3 out of 5 by from Delta T17433 This is a pretty set, and functional, but all parts (including the tub spout!) are plastic and lightweight. I'll have to wait to see how they hold up. For the price, I guess I expected something a bit more substantial. I also notice that the handheld shower arm/handle (the part that disconnects) doesn't fit snugly into the shower head and you really have to play with it to get it to stay in. So I'm giving this an "average" rating.
Date published: 2022-12-31
  • y_2026, m_7, d_10, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.47
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_25
  • loc_en_US, sid_T17433-I, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
Q&A

Does this come with a 5-foot hose? Is there an option for a longer one (chrome)?

Asked by: John
Hello John! Thank you for your question! I am happy to help. The Delta T17433-I Shower Trim has a hose that is stretchable. It's 60" - 82" in length. Please reach out to us directly if you need further assistance. Best Regards, Antoine
Answered by: Delta Faucet
Date published: 2021-02-18

Can this be installed as shower-only (no tub spout)? What internal valve would be used?

Asked by: Daniel
Hello, Thank you for your question! Please see the following link for the R10000-UNWS rough-in for shower only applications. https://www.deltafaucet.com/bathroom/product/R10000-UNWS.html Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-08-08

We have a tiny neoangle shower. Does this shower head adjust vertically so it can be angled directly under ones head in tiny shower? If not ,do you have a product that does adjust vertically that also includes the hand held shower held component?

Asked by: maria22
Hi maria22, Thank you for your question! Unfortunately we do not offer a hand shower/showerhead combo that is positioned overhead. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-18

Went isn't there a video for this trio kit installation since it is different from the other T17 installation.

Asked by: Jenmedic
Hi Jenmedic, Thank you for taking the time to contact us! I am sorry that there is not a How-To video available for the installation of this Delta Faucet model T17433-I and understand how frustrating this can be. If there is a particular part of the installation of this model please do not hesitate to contact us directly by phone at 1-800-345-3358 or email at customerservice@deltafaucet.com. We apologize for any inconvenience this may have caused. Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-05-19

Is this, and are other Delta tub/shower trim combination products, ASSE 1016 compliant? Our local plumbing code is very specific, and the inspectors said that this should appear on the product. Thank you!

Asked by: David
Hello David, Thank you for reaching out to Delta Faucet Company! Yes, our products comply with the plumbing requirements by law. This information can be found on the Technical Specifications sheet for each product. For our T17433-I, please refer to the bottom right in the link below. https://media.deltafaucet.com/SpecSheet/DSP-B-T17033%20Rev%20B.pdf We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Engagement Specialist
Answered by: Customer Service
Date published: 2024-01-31

Delta Kayra tub/shower trim kit T17433-i features Pause on hand held shower. Mine came without this desired feature. How can I get it?

Asked by: wzluna
Hello Valued Customer, Thank you for contacting Delta Faucet Company! The shower head on our T17433-I is 58499. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-07-22

Flow rate?

Asked by: Nikki
Hello Nikki, Thank you for your question! I am happy to assist you! The Delta Faucet model 58499 has a 1.75 GPM flow rate. Please contact us back with any further questions. Best Regards, Skyler
Answered by: Delta7
Date published: 2024-03-28

I have this particular shower in my bath.  The handle which hangs over tub is not woking. I cannot find paper work on it.  I do not want to replace entire set.  Can you recommend a replacement.

Asked by: Dfox
Hello Customer! Thank you for your question and we are happy to help. The Delta T17433-I can be replaced with any 17 series shower that uses the RP46463 cartridge. The parts and accessories diagram is linked below: https://media.deltafaucet.com/PartsDiagram/DPD-B-T17033%20Rev%20C.pdf With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-09-03
  • y_2026, m_7, d_11, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.47
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_27
  • loc_en_US, sid_T17433-I, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 63ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP51303

Lahara®

Lahara® Tub Spout - Pull-Up Diverter

List Price: $99.70 - $164.80
Free Ground Shipping All Orders $49+

RP51303

Image-RP100939

DELTA

DELTA TEMPERATURE KNOB AND SCREW

List Price: $71.70
Online Price: $57.36
Free Ground Shipping All Orders $49+

RP100939

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP101544

DELTA

DELTA Temperature Handle, Set Screw and Button

List Price: $51.70 - $91.05
Free Ground Shipping All Orders $49+

RP101544

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP101543

DELTA

DELTA Volume Control Handle

List Price: $41.50 - $91.05
Free Ground Shipping All Orders $49+

RP101543

Image-RP25620

Delta®

Delta® Set Screw

List Price: $6.45
Online Price: $5.16
Free Ground Shipping All Orders $49+

RP25620

4.21 14
Image-Master-RP100937

DELTA

DELTA 17/17T ESCUTCHEON W/ GASKET

List Price: $131.40 - $233.05
Free Ground Shipping All Orders $49+

RP100937

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-RP100154

DELTA

DELTA Tub Spout Adapter - Tri Universal

List Price: $35.80
Online Price: $28.64
Free Ground Shipping All Orders $49+

RP100154

1.60 5
Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
