Kayra®
View Full Kayra® Bathroom Collection

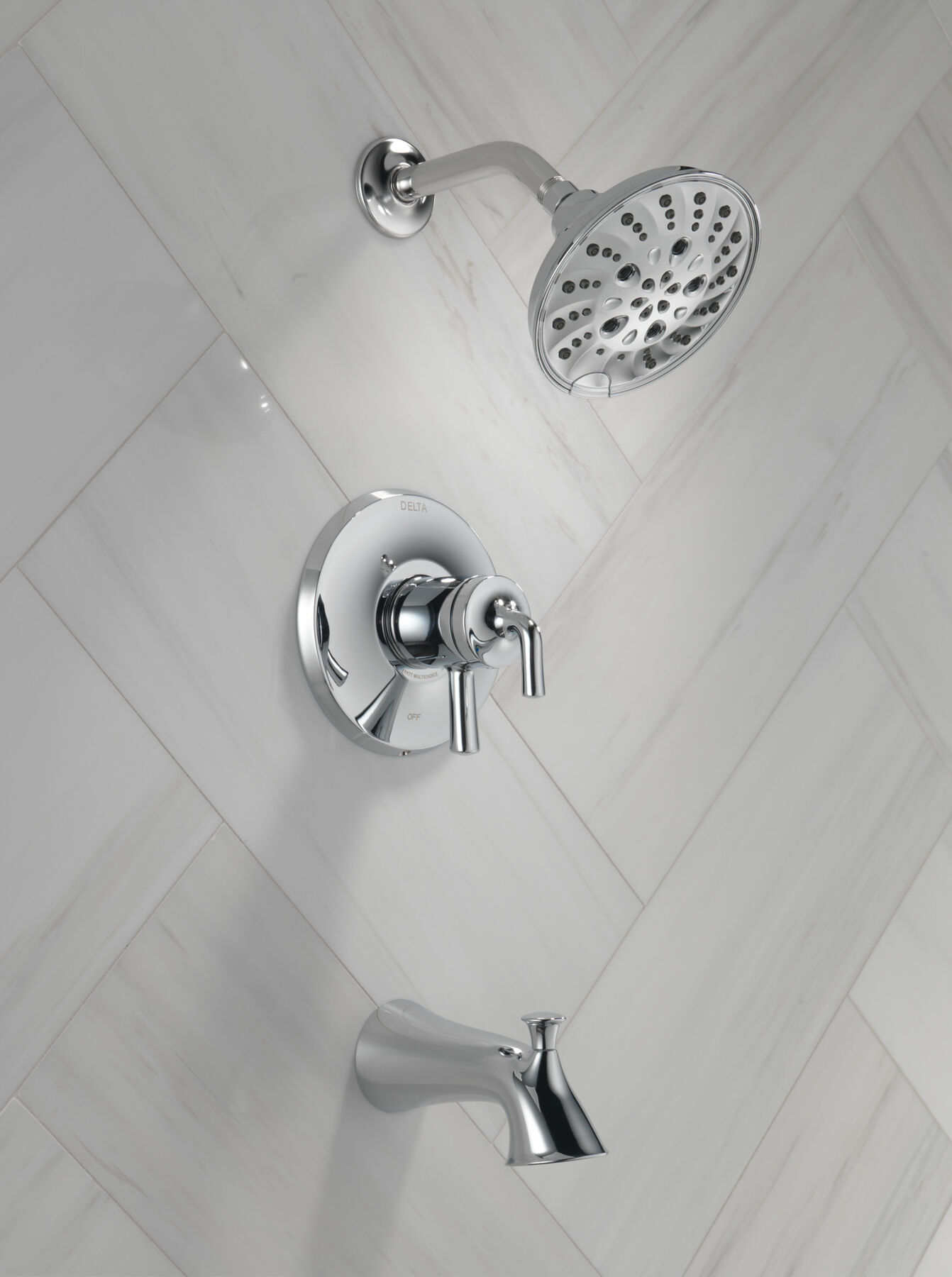

Monitor 17 Series Tub and Shower Trim in Chrome

Model#: T17433
Add to Favorites
Find local Delta® installers.
Kayra®
View Full Kayra® Bathroom Collection

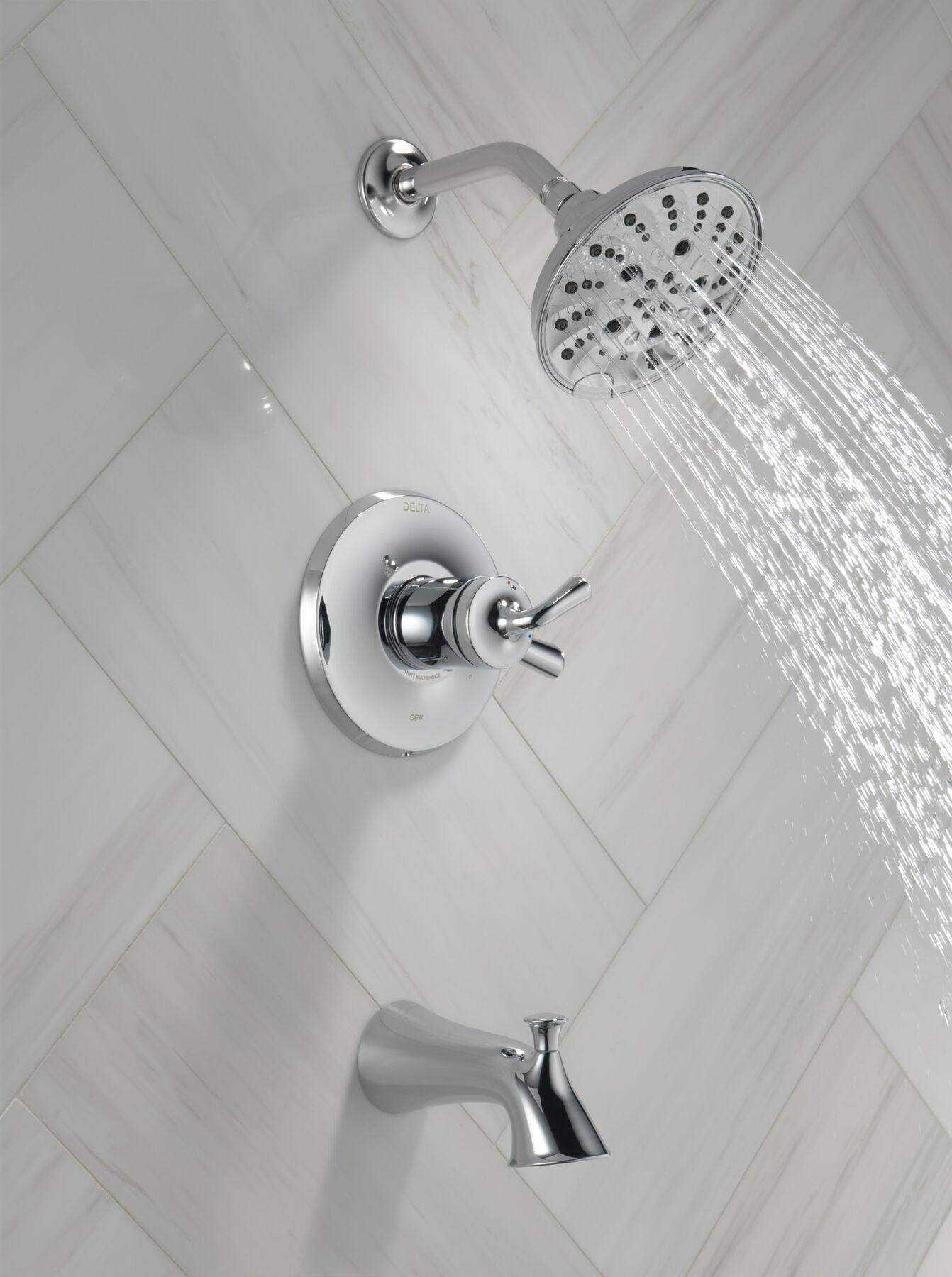

Monitor 17 Series Tub and Shower Trim in Chrome
Model#: T17433
List Price: $28560
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Recommended rough-in kit R10000 series
  • Monitor® pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure

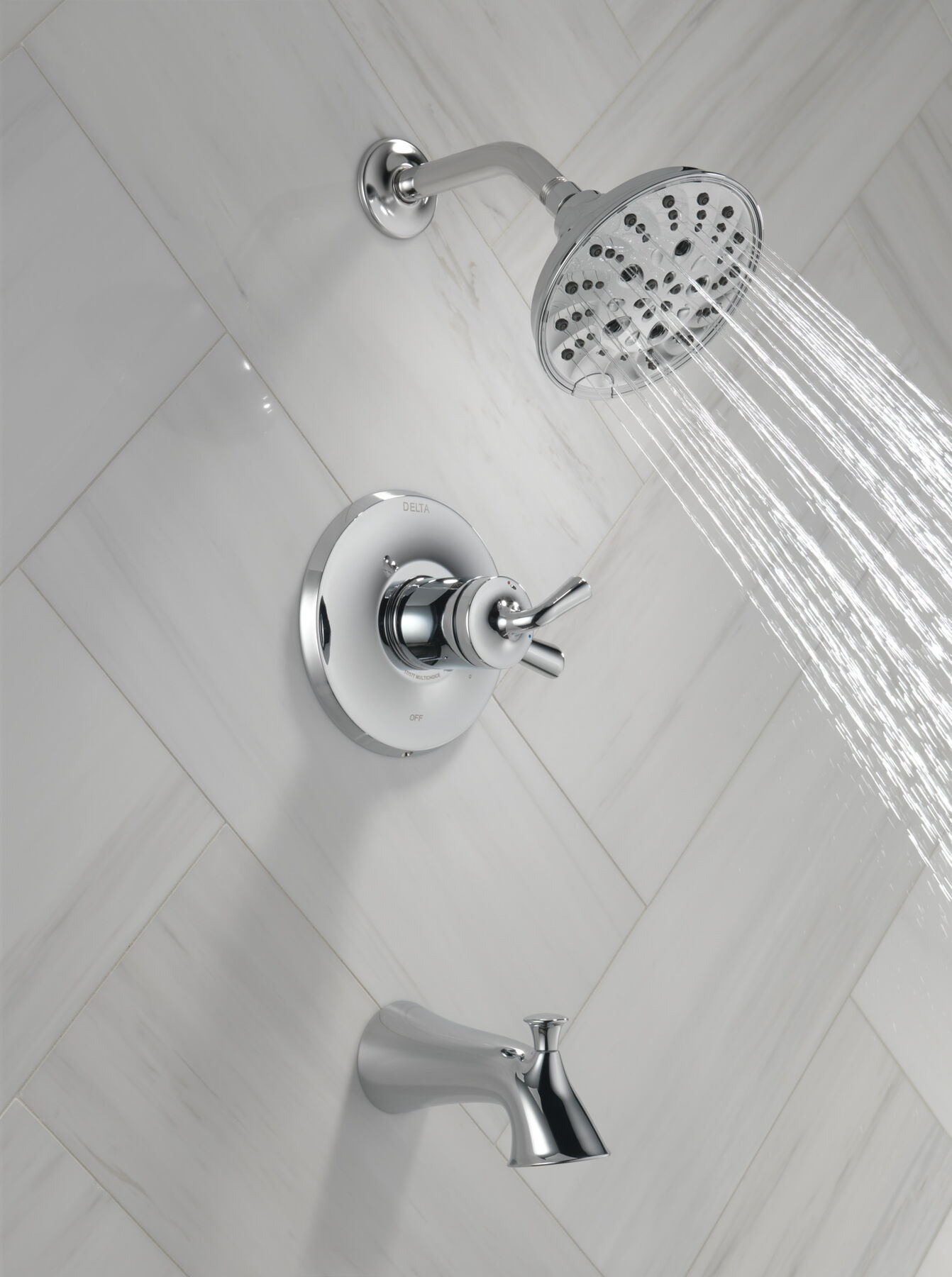

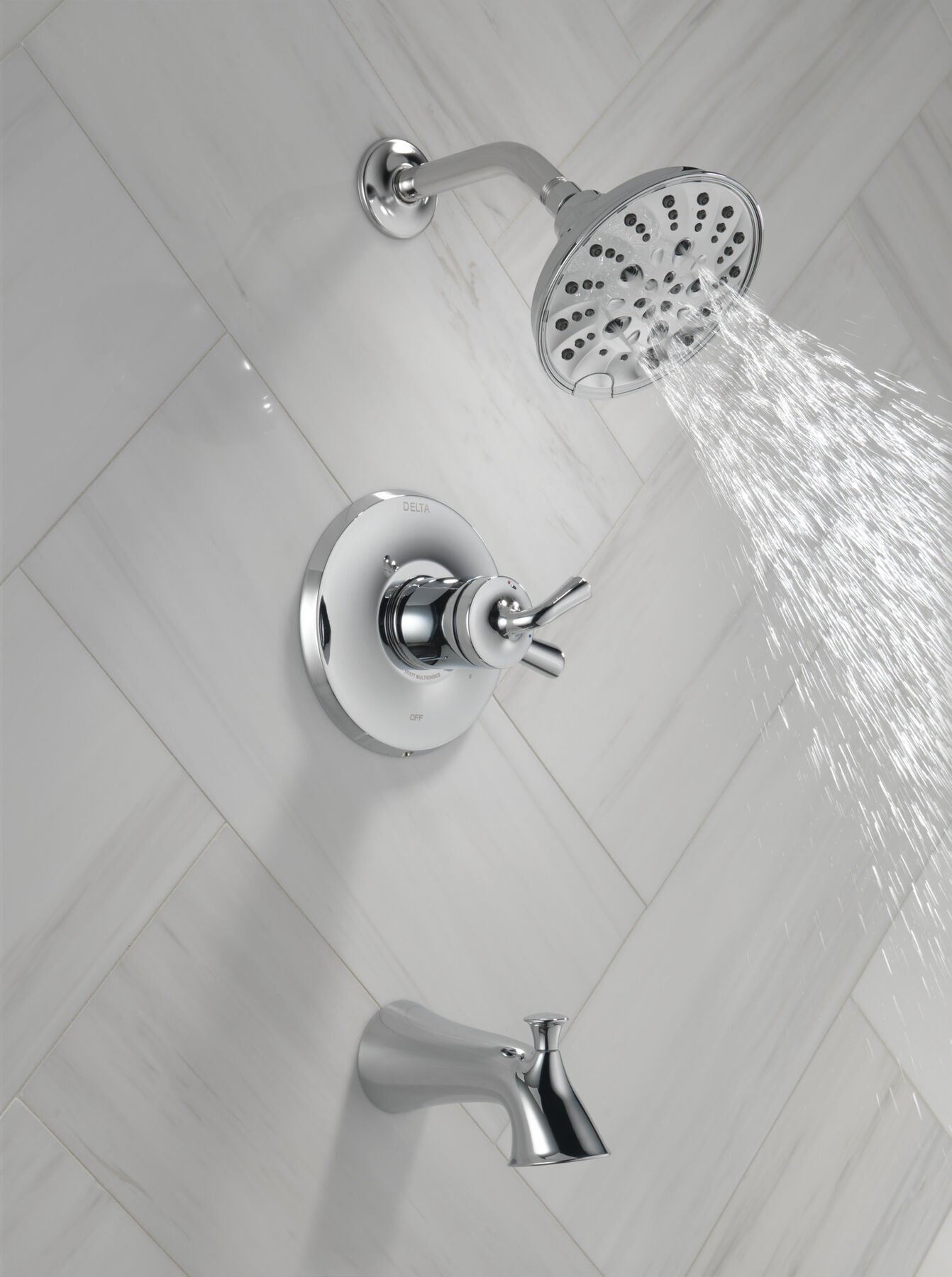

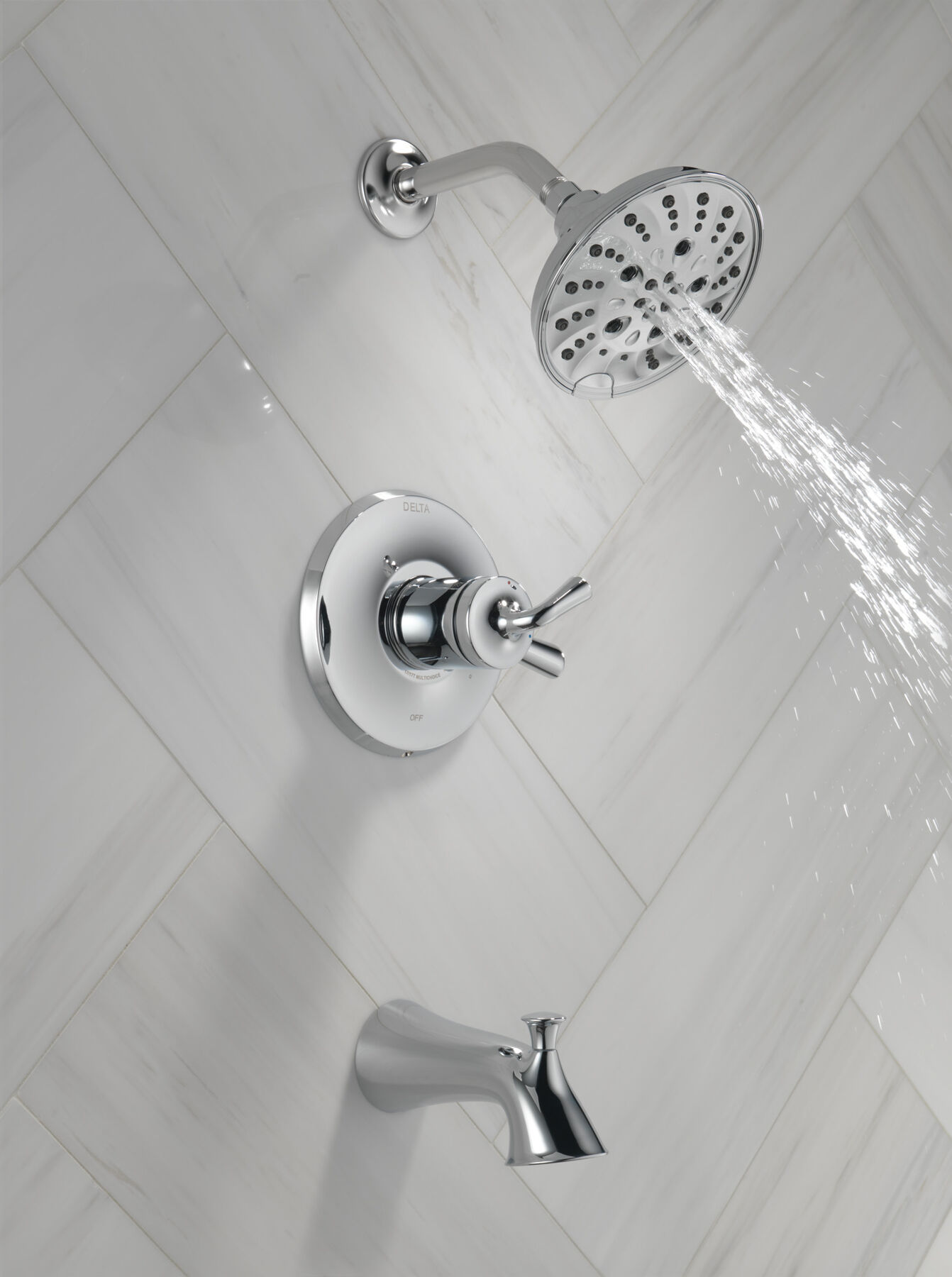

  • Spray settings include: H2OKinetic PowerDrench spray, Full Body spray, Massage spray, Full spray with Massage, and Pause
  • H2Okinetic® Shower technology sculpts water into a unique wave pattern, forming a powerful drench spray
  • Gives you the feeling of more water without using more water

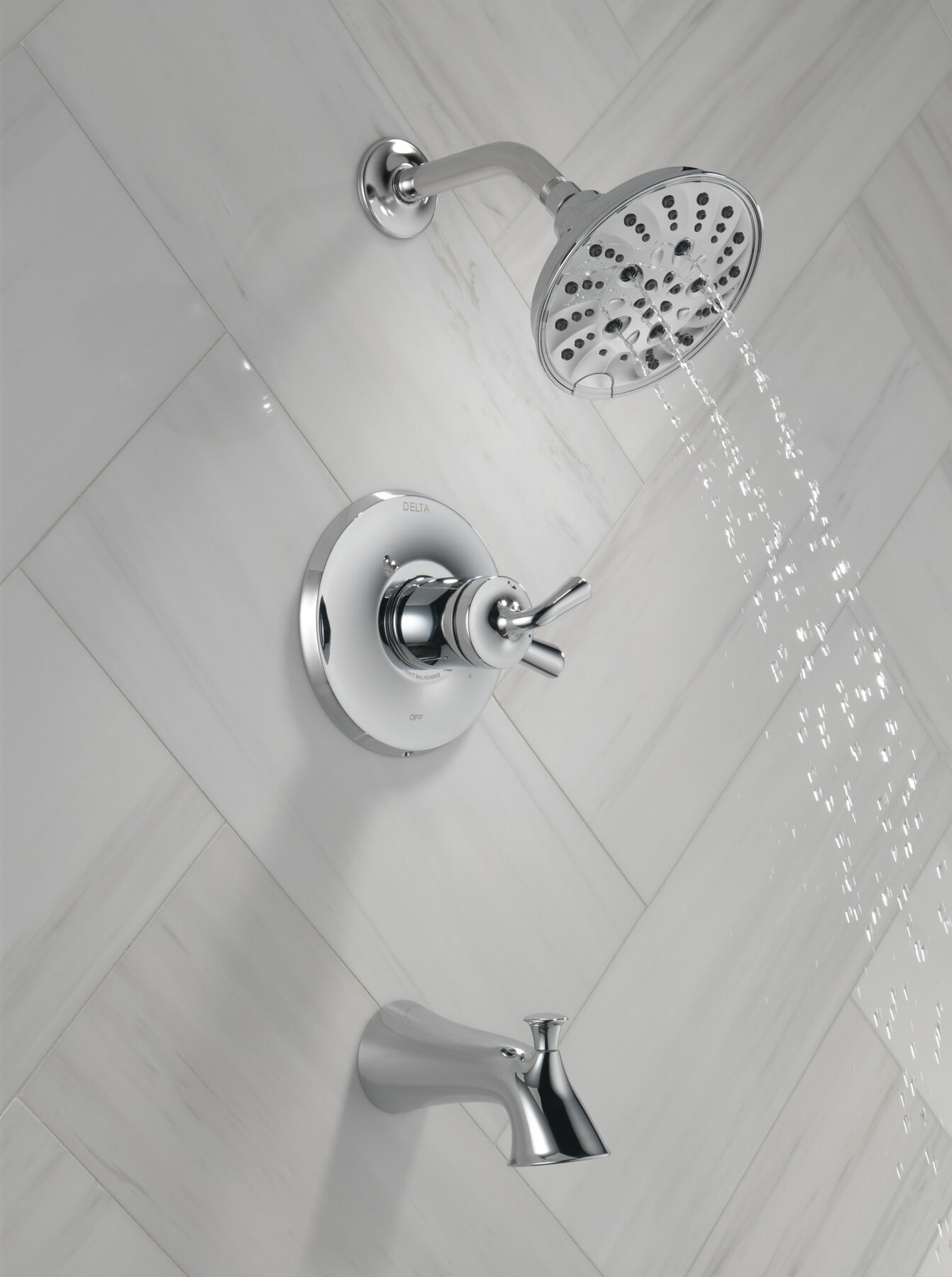

  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • ADA compliant metal lever handle
  • Lever adjusts volume
  • Dial adjusts temperature
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Back-to-back installation capability
  • Includes coordinating pull-up diverter tub spout
  • Red/Blue indicator markings
  • Cartridge included
  • Tub/shower faucet
  • All parts replaceable from the front of the valve
  • Solid brass forged body
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant

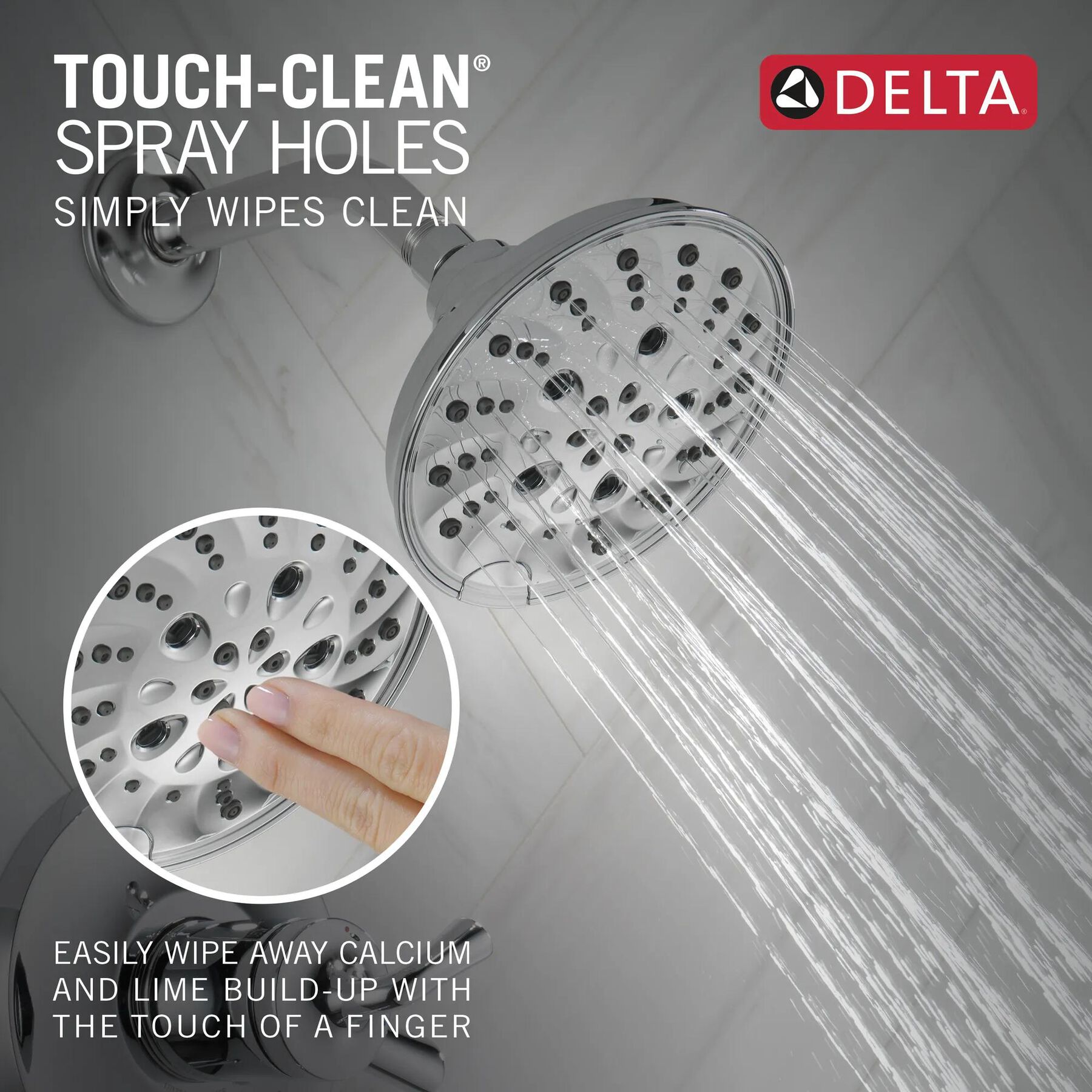

Touch-Clean®
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

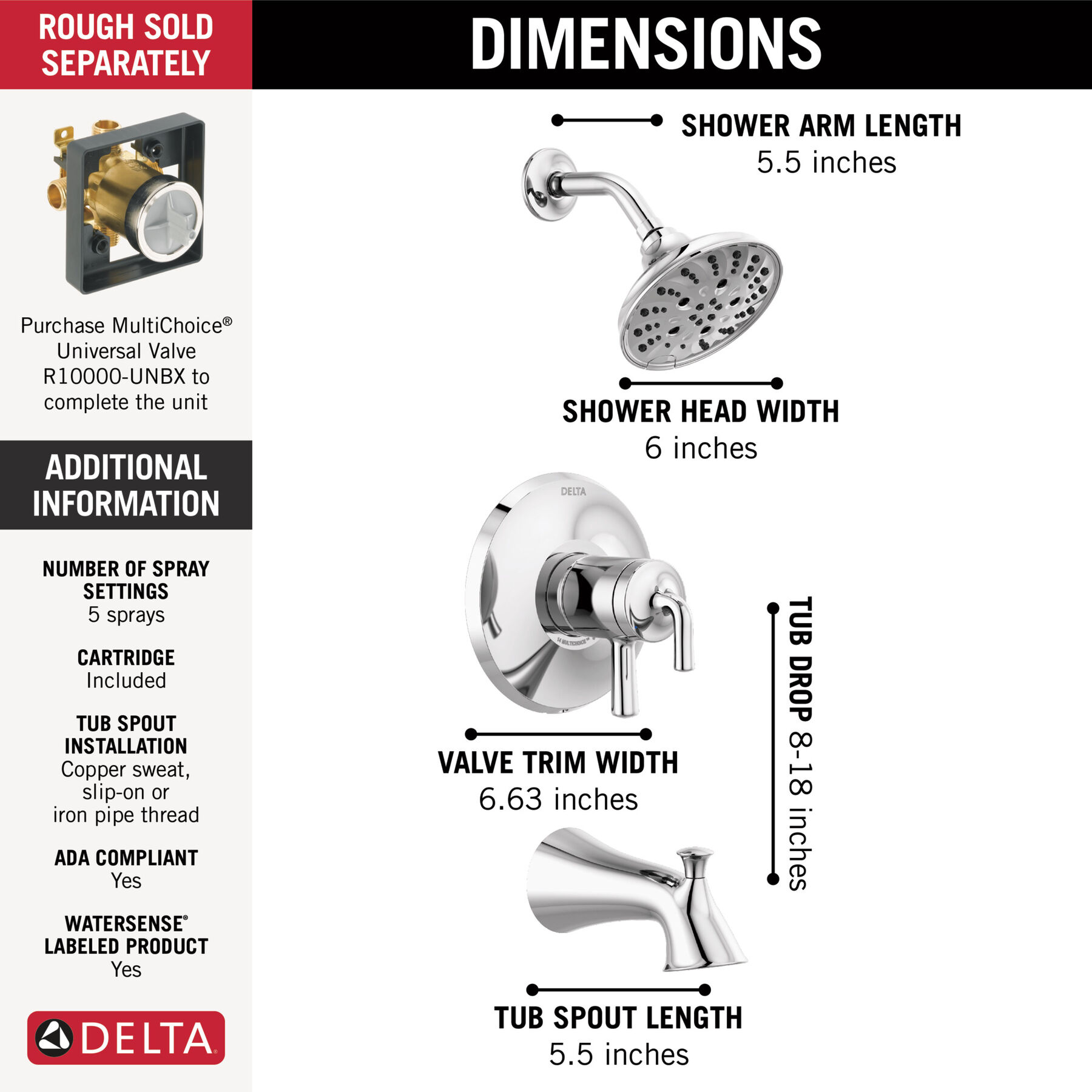

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
6-5/8
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Champagne Bronze is darker than other Delta models The fixture seems fine overall but the champagne bronze color is darker than the other Delta Champagne bronze fixtures I purchased (towel bar and faucet from different delta models). Unfortunately my contractor didn’t really notice this and now it’s installed and doesn’t match everything else.
Date published: 2026-02-22
Rated 5 out of 5 by from Good product Purchased this ensemble but only needed the spout, temperature adjustment and showerhead neck.
Date published: 2024-09-24
Rated 5 out of 5 by from Delta 17433 tub/shower fixtures Easy to install as I’m not a plumber. Wonderful ability to independently adjust volume and water temperature. A perfect choice for my needs.
Date published: 2022-03-01
Rated 5 out of 5 by from Delta shower faucet My brother recently installed my Delta t17433-ss shower/tub faucet. I wanted to try to install but was scared to. My brother made it look so easy, the installation. But keep in mind his wife and himself flip houses for a living. I have to say I absolutely love my Delta T17433-SS tub and shower kit.
Date published: 2022-01-17
Rated 5 out of 5 by from Great product I have been using this for about a month now and let me tell you that i absolutely love it. We just upgraded because we have had our shower thing for over ten years and it was time for a change. It was very easy to install and the water pressure is perfect the way it hits your body. It is definitely worth having.
Date published: 2021-02-16
Rated 5 out of 5 by from Beautiful and durable This was definitely the final touch my restroom needed. It wasn’t easy to install, but it was definitely worth it. It took my husband about an hr to install due to him having a little hard time setting up the water temperature handle. I should also note that he’s not a professional plumber, but has experience with plumbing so most was pretty simple for him. If you do not have experience with plumbing I would highly recommend hiring a plumber. The water pressure and temperature was new to him but he figured it out. I love that I can now control the temperature and water pressure on two separat handles. I also love how durable it is. You can feel the quality of the product right when you put it in your hand. If feels like it can we stand anything and going to last a long time . I highly recommend! You can never go wrong with Delta! They always provide quality products.
Date published: 2021-02-04
Rated 5 out of 5 by from Beautiful & durable! This was definitely the final touch my restroom needed. It wasn’t easy to install, but it was definitely worth it. It took my husband about an hr to install due to him having a little hard time setting up the water temperature handle. I should also note that he’s not a professional plumber, but has experience with plumbing so most was pretty simple for him. The water pressure and temperature was new to him but he was able to figured it out. I love that I can now control the temperature and water pressure on two separat handles. I also love how durable it is. You can feel the quality of the product right when you put it in your hand. If feels like it can we stand anything and going to last a long time . I highly recommend! You can never go wrong with Delta! They always provide quality products. l
Date published: 2021-02-04
Rated 5 out of 5 by from Awesome product We got this set to install in New tub shower we installed! Very well made, easy installation, looks great with the tub and walls! Works great! Very very happy with our choice on this set. When we replace our other bathroom this is the set we will be using.
Date published: 2021-02-04
  • y_2026, m_6, d_18, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_20
  • loc_en_US, sid_T17433, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

what is the name of part that goes on before handle?

Asked by: ann24
Hello Ann24! Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. The part before the handle of the Delta Faucet Kayra™ Monitor 17 Series Tub And Shower Trim In Chrome MODEL#: T17433 is the trim sleeve. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta Faucet customer. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-03-28

I realize all these faucets use a R 10000 valve. But there are over 100 different versions. Which one do I use?

Asked by: Craig
Hi Craig, Thanks so much for contacting Delta Faucet Company about T17433! We recommend to purchase the universal rough valve R10000-UNWS. Each valve is designed to work with any T13/14, T17, and 17T trim kit but would differ for installation. Please contact us directly if you have any questions or need additional assistance. Best Regards, Nicole Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-12

I do not have a lot of pressure, is there a way to fix this. My other shower unit had way more pressure.

Asked by: Low ptessure

Maybe I wasnt clear with my first question. I have a Monitor bathtub/shower and wanted to know what the part is called that goes on before handle. Looks like a collar or sleeve.

Asked by: ann24
Hello, ann24! Thank you for your question regarding our Delta Faucet DELTA® Kayra™ Monitor 17 Series Tub And Shower Trim In Chrome MODEL#: T17433. I am sorry this information was not readily available, and I am happy to help you! The part before the handle is the sleeve RP50880. Here is the parts breakdown. https://media.deltafaucet.com/PartsDiagram/DPD-B-T17033.pdf Thank you for being a loyal Delta customer. Please feel free to call, email, or message us on social if you need anything else. Best Regards, Themar
Answered by: Delta
Date published: 2024-03-28

Regarding step 5 of the install manual (installing the limit stop), my model most closely resembles box C-3. However, mine did not come with item 12 as shown in box C-3. Also, box C-3 doesn’t describe what position to set the stop or the adapter

Asked by: Bill
Hi Bill, Thank you for your question about the Delta Faucet model T17433. Please accept our apology for the inconvenience you are experiencing. We are happy to help! The installation instructions are not model specific. Your faucet may not have all the parts shown. See your model's parts diagram for more information: https://media.deltafaucet.com/PartsDiagram/DPD-B-T17033%20Rev%20C.pdf If the water temperature is above 120°F, remove the temperature control knob and rotate the limit stop clockwise one tooth for every 4°F - 6°F (approximate) change in temperature. If water temperature is cooler than desired, rotate the limit stop counterclockwise https://support.deltafaucet.com/s/article/How-to-Adjust-Your-Rotational-Limit-Stop-T17-Series-Video Please reach out with any additional questions! Best Regards, Bryan
Answered by: Delta
Date published: 2025-09-05

Purchased a Kayra multi choice valve trim package for a remodel project. The Escutcheon is 6 1/2 inches and does not cover the existing 7 inch hole in the wall. Is there a backing plate or different escutcheon I can purchase to finish the job?

Asked by: Frank
Hello Frank, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet KAYRA™ Monitor 17 Series Tub And Shower Trim MODEL#: T17433 escutcheon plate is 6 5/8", we have a renovation plate that would cover a larger hole in the wall. Please see the link below to our Renovation plate, the dimensions are 8-1/8 in. H x 13 in. W. https://www.deltafaucet.com/parts/product/RP29827.html Thank you for being a loyal Delta customer. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

Can I add the handheld on to this product?

Asked by: Mary
Hello Mary! Thank you for your question and we are happy to help. We apologize for this information not being readily available to you. The Delta Faucet Kayra™ Monitor 17 Series Tub And Shower Trim In Stainless MODEL#: T17433-SS may have a handheld added and purchased separately. We recommend installing it with the 3-Way Shower Arm Diverter With Hand Shower Mount In Chrome MODEL#: U4920-PK. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta Faucet customer. Best Regards, Carrie
Answered by: Delta7
Date published: 2024-06-14

RE: MODEL#: T17433-SS When I click on the PART LIST tab it shows a part that is discontinued. Does that mean the that the item will ship incomplete?

Asked by: khobbs
Hello Keith, Thank you for your question! I am happy to help you! Our Delta T17433-SS is currently still available, and the discontinued part just means it is not able to order separately, but it will come with the whole trim. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28
  • y_2026, m_6, d_18, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_9
  • loc_en_US, sid_T17433, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 22ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP51303

Lahara®

Lahara® Tub Spout - Pull-Up Diverter

List Price: $99.70 - $164.80
Free Ground Shipping All Orders $49+

RP51303

Image-RP100939

DELTA

DELTA TEMPERATURE KNOB AND SCREW

List Price: $71.70
Online Price: $57.36
Free Ground Shipping All Orders $49+

RP100939

Image-Master-RP101544

DELTA

DELTA Temperature Handle, Set Screw and Button

List Price: $51.70 - $91.05
Free Ground Shipping All Orders $49+

RP101544

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-Master-RP101543

DELTA

DELTA Volume Control Handle

List Price: $41.50 - $91.05
Free Ground Shipping All Orders $49+

RP101543

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-RP25620

Delta®

Delta® Set Screw

List Price: $6.45
Online Price: $5.16
Free Ground Shipping All Orders $49+

RP25620

4.21 14
Image-Master-RP100937

DELTA

DELTA 17/17T ESCUTCHEON W/ GASKET

List Price: $131.40 - $233.05
Free Ground Shipping All Orders $49+

RP100937

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-RP100154

DELTA

DELTA Tub Spout Adapter - Tri Universal

List Price: $35.80
Online Price: $28.64
Free Ground Shipping All Orders $49+

RP100154

1.60 5
Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
