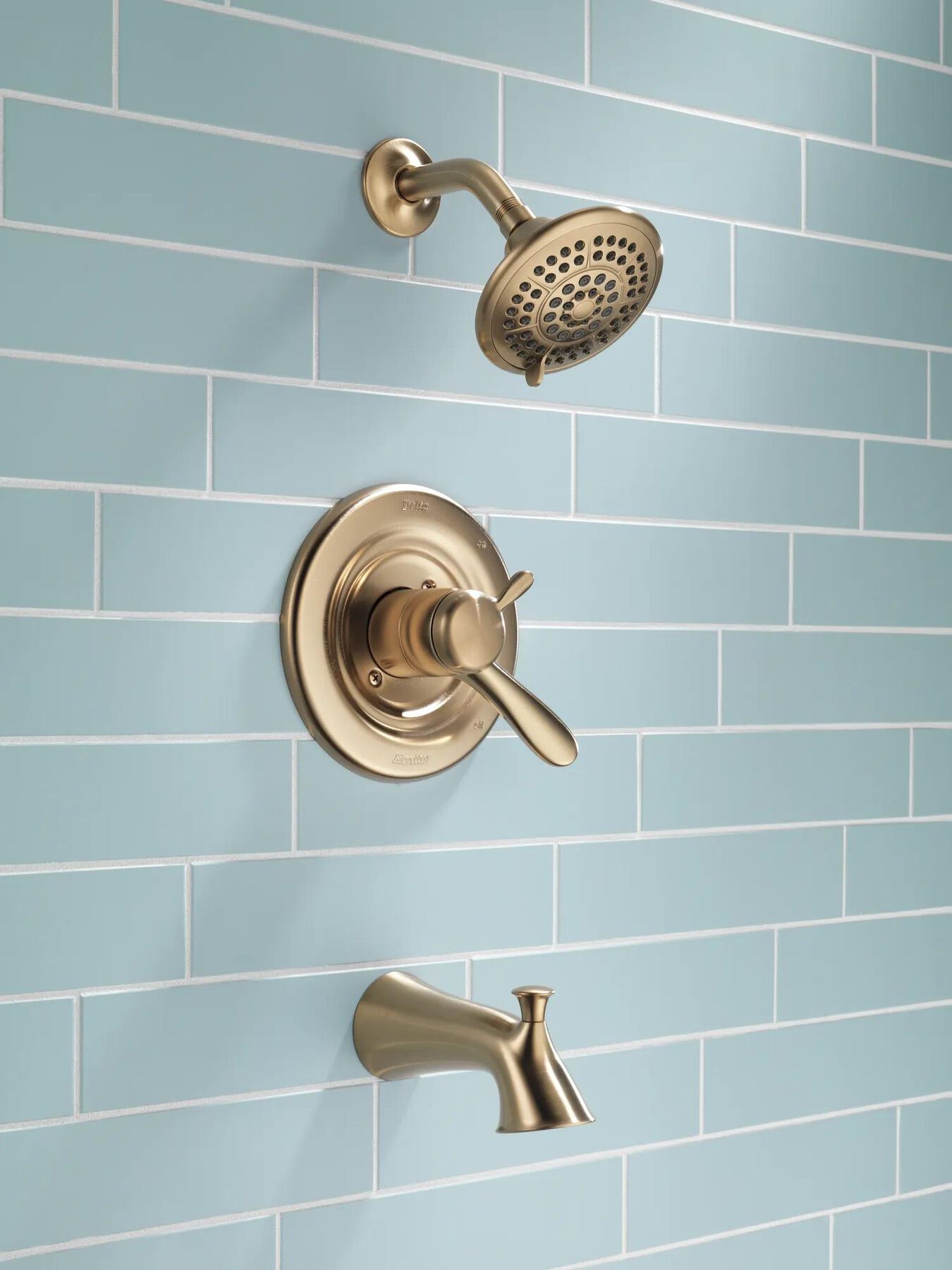

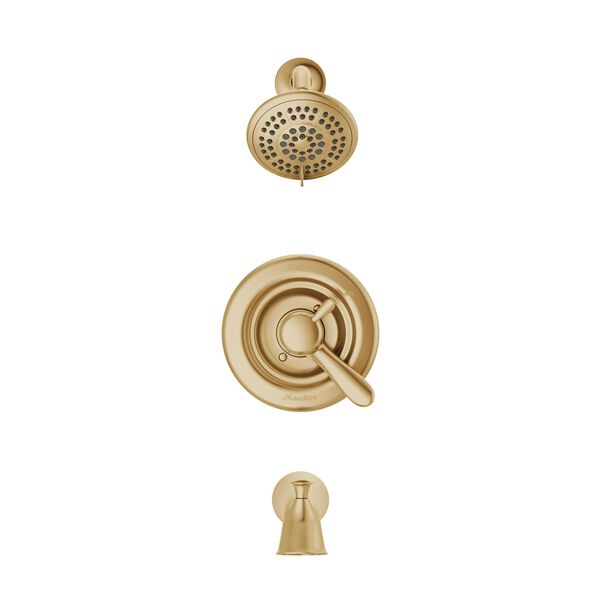

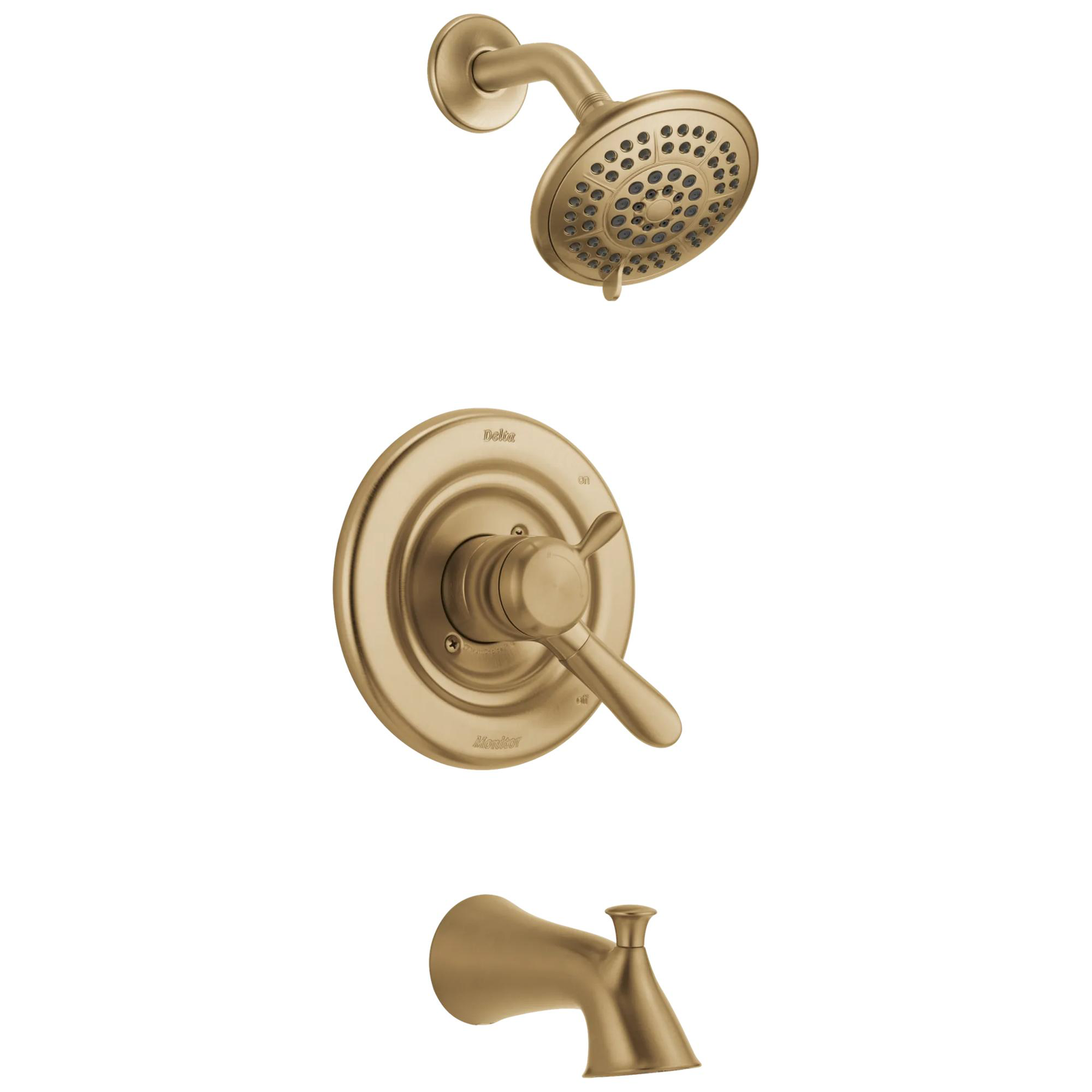

Monitor® 17 Series Tub & Shower Trim
Model#: T17438-CZ
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Monitor® 17 Series Tub & Shower Trim
Model#: T17438-CZ
Finish: Champagne Bronze
List Price*: $346.20
With separate handles for volume and temperature control, this Delta® tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure

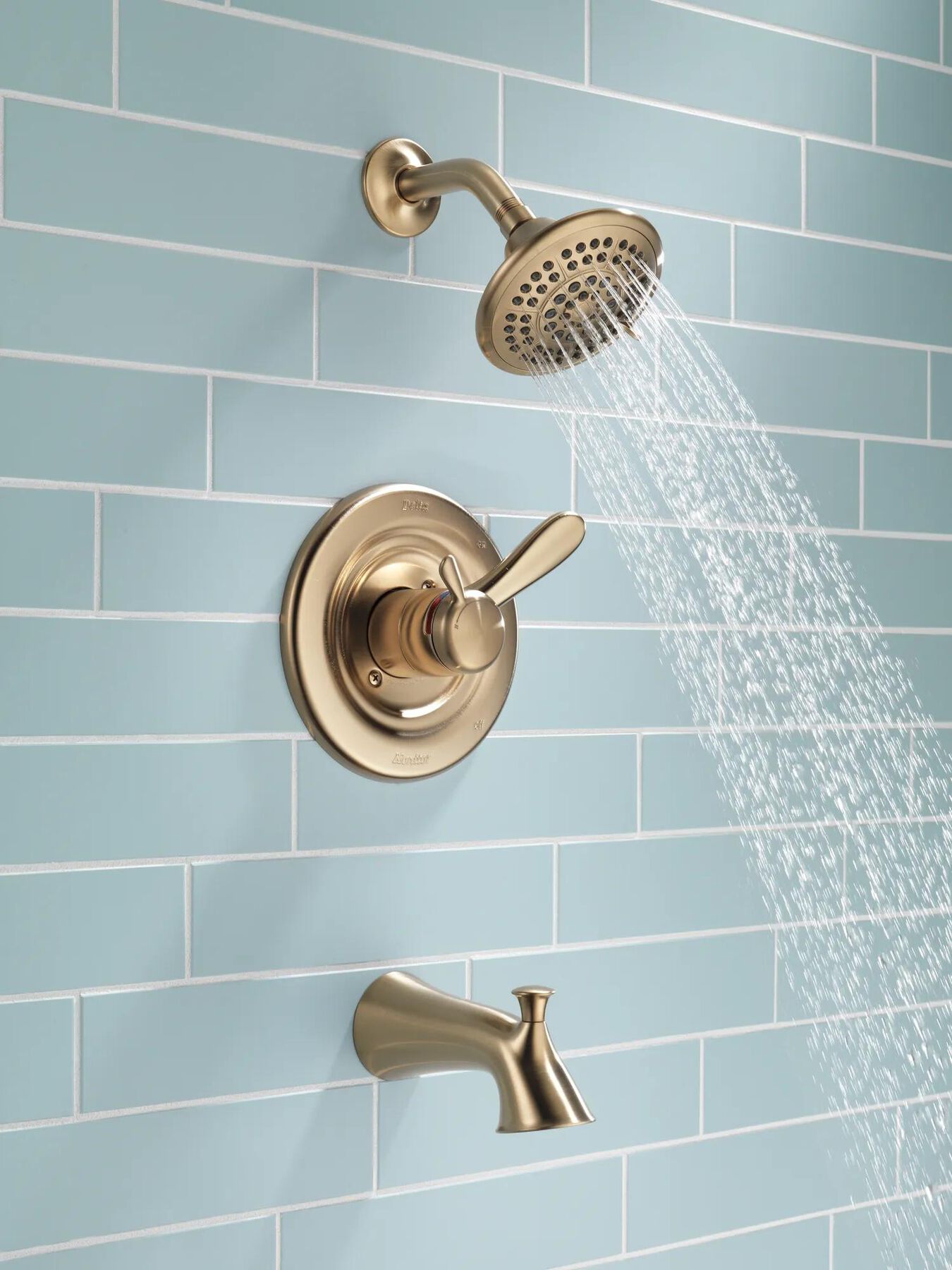

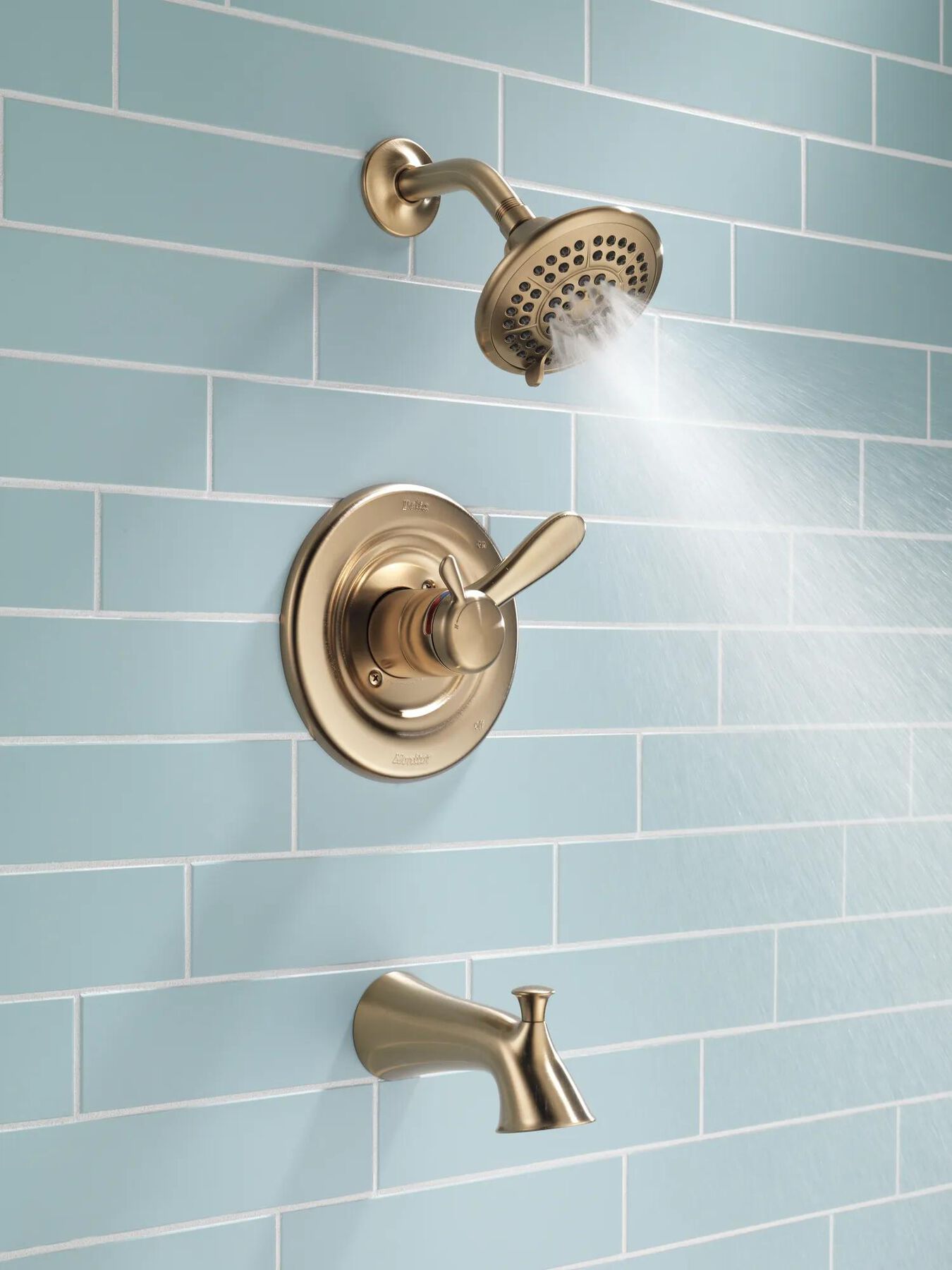

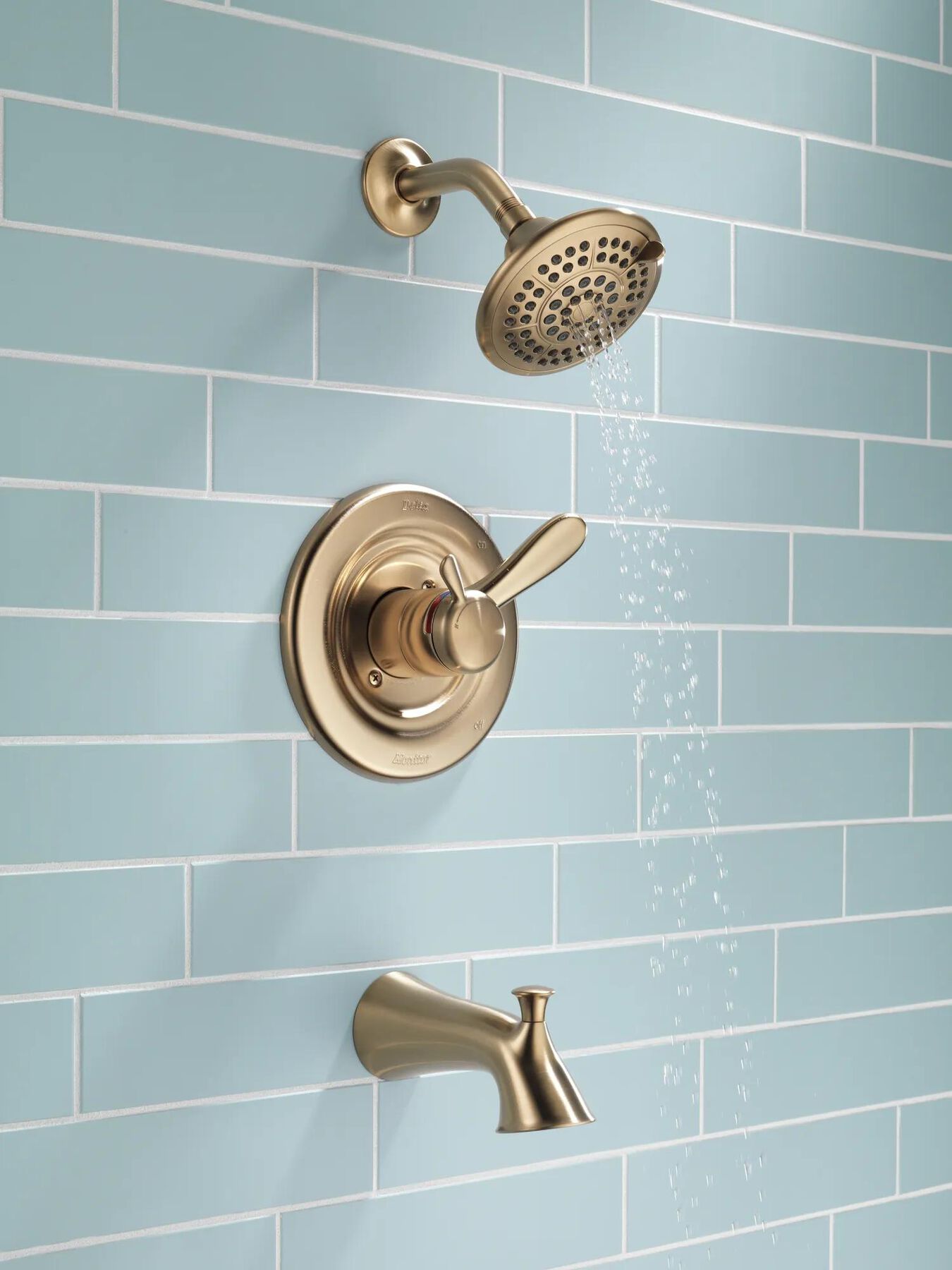

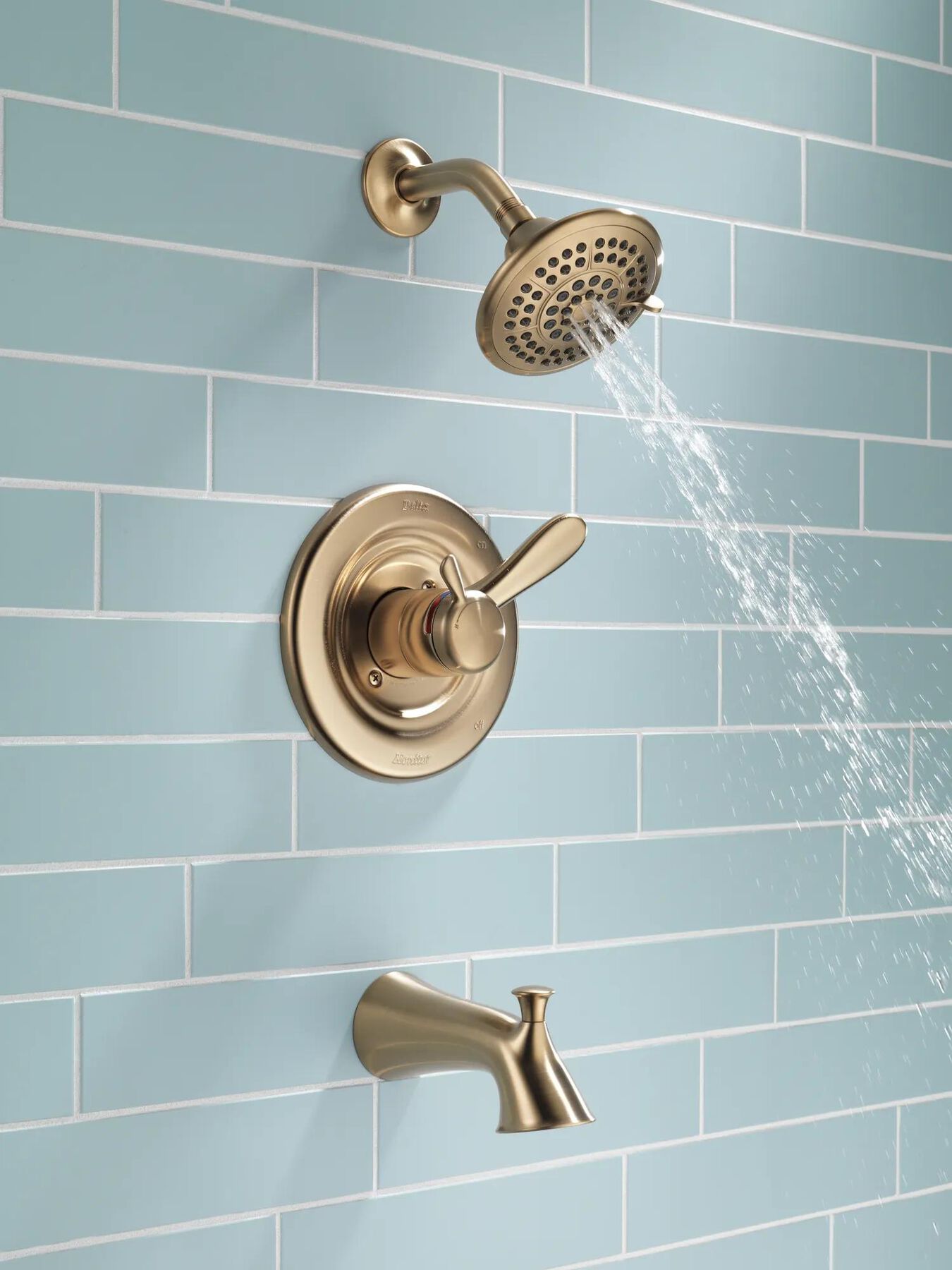

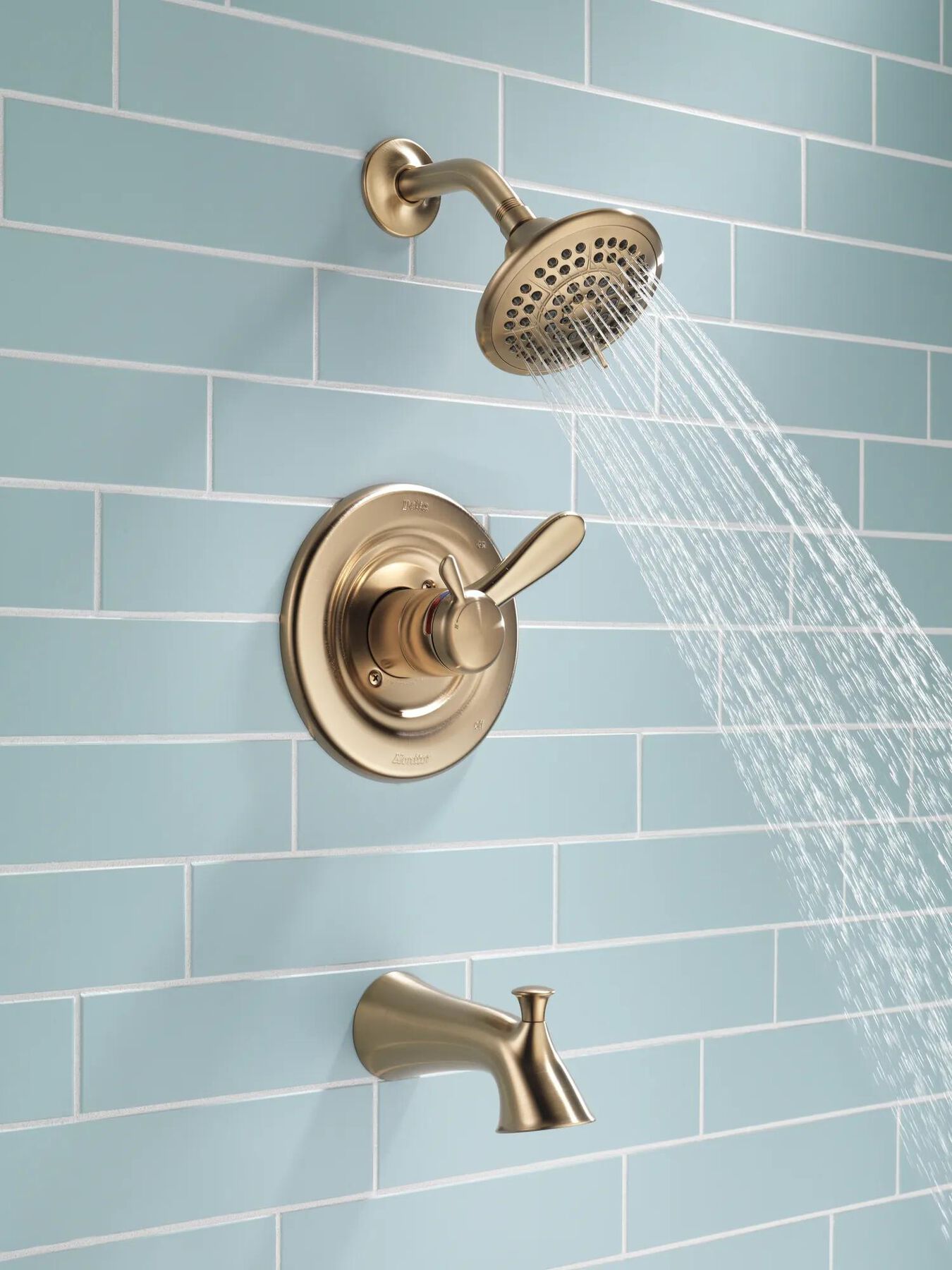

  • Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray

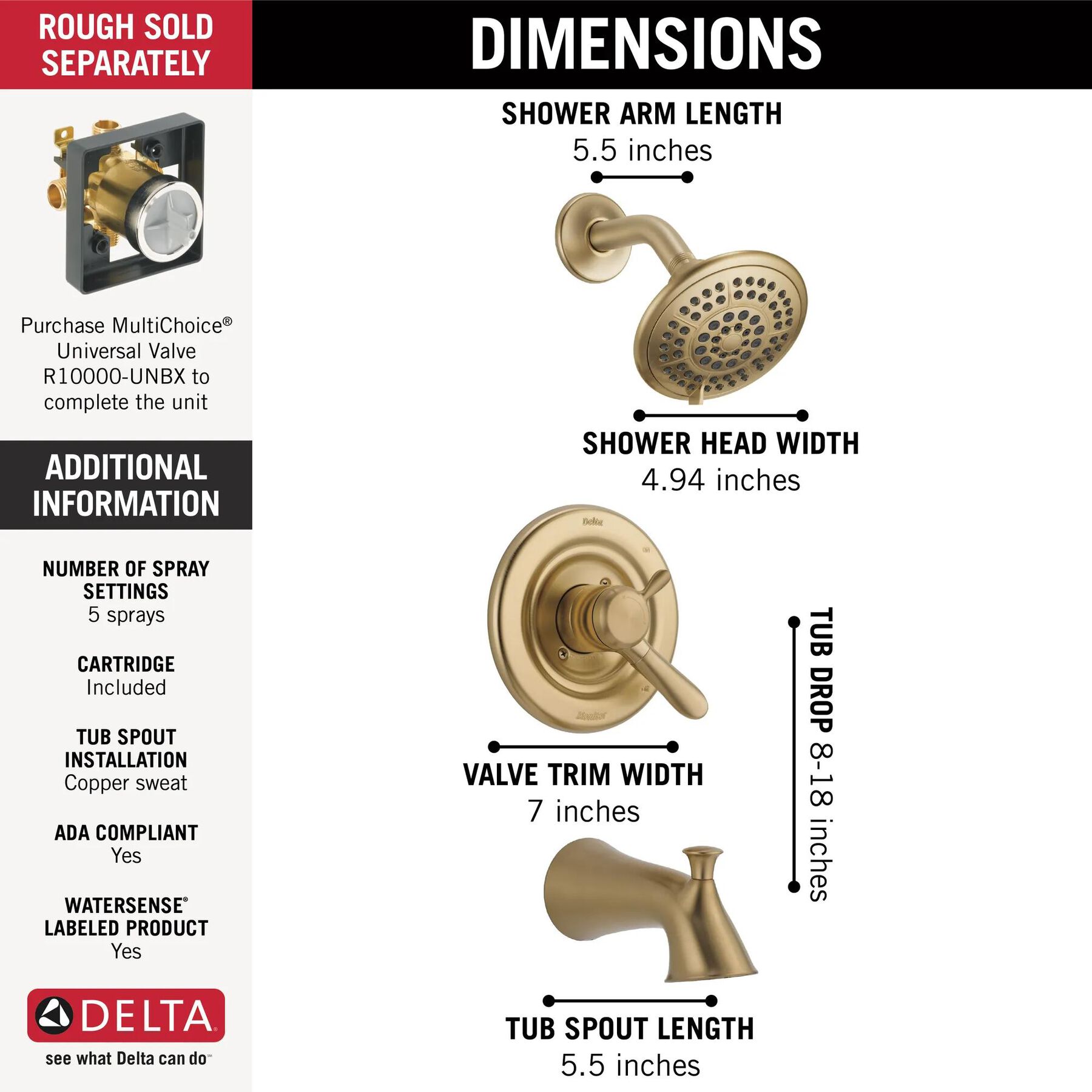

  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit

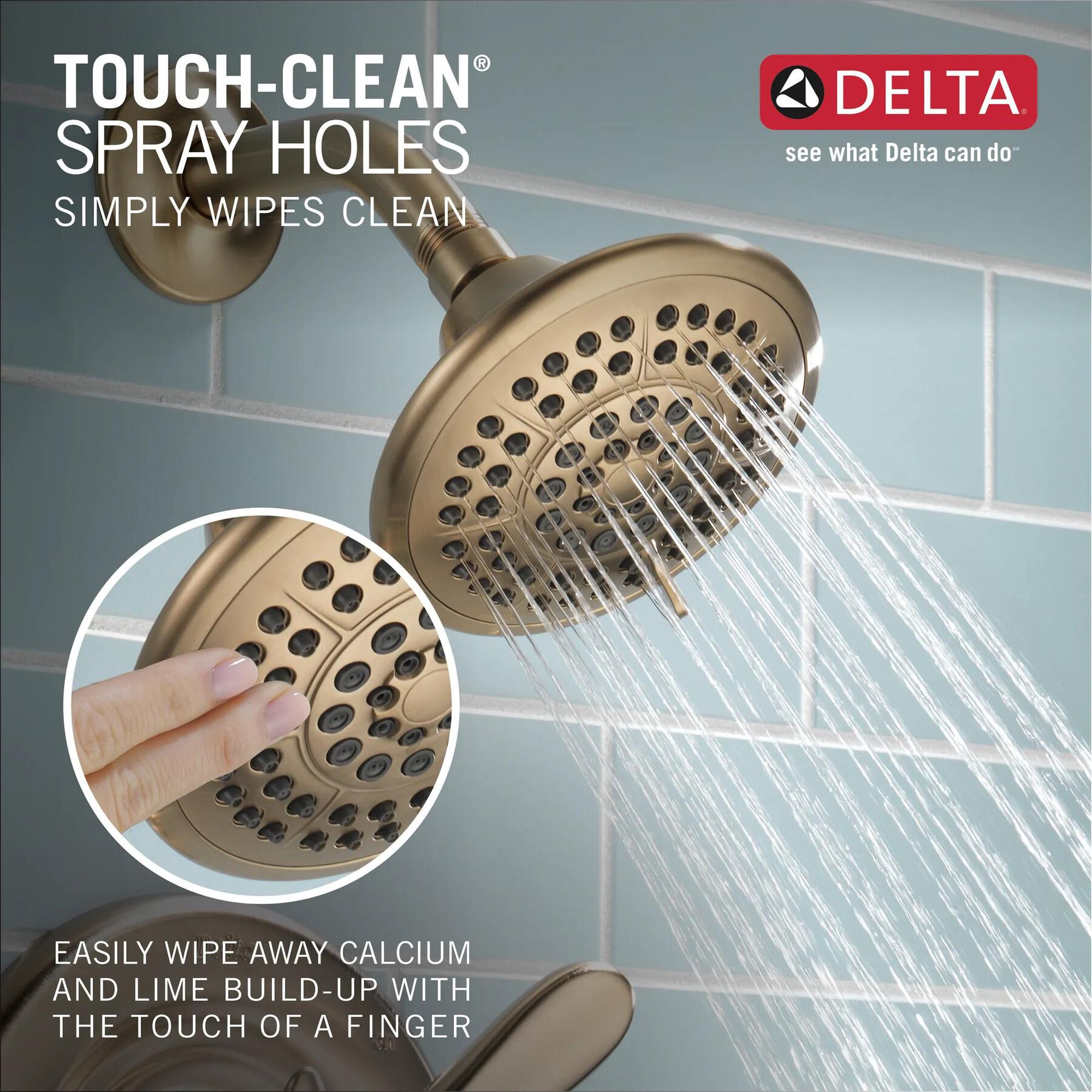

  • Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Single lever handle for ease of control
  • Meets standards set by Americans with Disabilities Act (ADA)
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Set ideal temperature and adjust volume separately
  • 5-setting shower head
  • Valve is not included, must purchase separately
WaterSense® Labeled
California Prop 65 WARNING


Rated 5 out of 5 by from works well use this model alot and always works well
Date published: 2020-12-29
Rated 1 out of 5 by from Tub spigot is abysmal Unfortunately this is a low quality construction and the tub spout just sprays water all over
Date published: 2020-10-17
Rated 1 out of 5 by from Design flaw This should not come with a diverter in the faucet. It's managed by the handle. If you order this with a hand sprayer as well, the faucet diverter value will cause the water to back up. Design flaw? Maybe, but huge hassle as I need a different faucet that is non0diverter.
Date published: 2020-03-28
Rated 5 out of 5 by from Awesome product I got this a few weeks ago. I just got to install it about a week ago. The water is coming through the shower head better than it did in our old one. It makes such a difference when we take a shower. I really enjoy taking a shower now. It was tricky at first to hook it up but then we got it. I recommend this too my friends and family.
Date published: 2020-03-23
Rated 4 out of 5 by from Easy to install I recieved the Delta shower/faucet set about a month ago and installed it the day we received it. Installation was a breeze and it really helped to make our shower look updated and new again! The set has had no issues with leaking or not fitting properly. I would definitely recommend this to anyone who is looking for simple remodeling.
Date published: 2020-02-26
Rated 5 out of 5 by from High quality and looks nice Really loving this set. Was a great upgrade from what I had before. Easy to use the handle to adjust the temperature. Strong steam and even spray of the shower head. Stays shiny even when dried with water.
Date published: 2020-02-13
Rated 4 out of 5 by from Easy to install! I had never installed a shower head, tub spout, etc. but this product was super easy to install! Overall the appearance is great and it works well with my bathroom. The shower head provides a nice flow once it is dialed in correctly. One great thing is that if someone else starts using water (i.e. flushes toilet, starts washing machine) the water temperature and flow does not change through this shower head. The best feature of this set is that there are two handles: one turns the shower on and the other controls the temperature. I always hated trying to find that temperature that was just right every time I got in the shower. With this setup I can have the same temperature shower every time! Overall, a great product that I would definitely recommend.
Date published: 2020-02-11
Rated 5 out of 5 by from BEAUTIFUL! This new faucet set is a beautiful addition to my bathroom remodel. It is very easy to use and looks nice. I love the brushed nickel look. I will be looking at some of your other products for future upgrades.
Date published: 2020-02-04
  • y_2021, m_3, d_3, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_49
  • loc_en_US, sid_T17438-CZ, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product

I have T13220 Monitor 13 Series Shower Trim (fits Multichoice Universal Valve). Brand new build, but I would like to replace with T17438-CZ series. Will this work with the existing rough valve? Documentation just shows R1000-UNBX or R1000-LBX.

Asked by: coz123
Hello coz123, Thank you for your question. A Multi-choice Universal rough-in valve like the R10000-UNBX/LBX allows you the choice of easily swapping out any of our current shower trim kits. Any current T13/14, T17 or T17T trim will work with this type of rough-in valve. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2018-02-18

Is the loweer tub spout designed to use the "C1" method of attachment like the directions state?

I do not want to solder on an adapter as in the "C4" method. I just want to slip the spout on to the 1/2" copper pipe and tighten a set screw.
Asked by: Tim
Hi Tim, Thank you for your question. The tub spout that comes with the Lahara collection can only be sweated onto 1/2" C.W.T. or threaded onto 1/2" IPS. Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2016-05-23

how do i adjust temperature on this model

Asked by: barbara
Thank you for your question, Barbara! Instructions on adjusting the rotational limit stop to decrease or increase the potential maximum temperature on this model can be found on page 7, step 4 of the Maintenance and Installation manual below. Best regards, Edward
Answered by: Delta Faucet
Date published: 2019-04-06

how do I get the temperature control cap off to replace interior parts

Asked by: Rog
Hi Rog, Thank you for your question. The temperature knob cover can be removed by prying up on it from the tip. It should separate from the gray temperature knob, which has a Phillips head screw. Please be sure to turn off the water supplies before disassembling the faucet. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-07-03

Can I use an existing 1700 rough valve for a new T17438-SS Lahara Monitor 17 Series Tub and Shower Trim?

Asked by: Dwayne
Thank you for your question, Dwayne. This trim will work with an existing pre-2006 1700 series valve using the original cartridge (part number RP32104). Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-09-29

Will this work with a rough in which accepts only RP46463 cartridges?

Asked by: Frenchyaz
Hello Frenchyaz, Thank you for your question. Yes, the Delta Lahara Tub and Shower T17438 does come with the RP46463 valve cartridge assembly in its box, fits into our MultiChoice Universal Roughi-In Valve R10000-UNBX. Best regards, Tanya.
Answered by: Delta Faucet
Date published: 2019-01-09

We have the R1000-UNBX universal mount with this faucet. Why are we getting water out of the shower piece when we turn on the hot? We don't have

the shower activated but we are getting water out of the shower valve. The hot water is not hot. It is hot coming out of other faucets.
Asked by: Angie
Hi Angie, We are sorry that you are experiencing a problem with your faucet. Most likely, you are experiencing "shower-rise" where the water can’t get out of the spout as fast as it flows through the valve. This causes the water to back up and come out the shower head. There can be one of several reasons for this: The valve could be upside down The length from the valve to the tub spout is outside of the 8" to 18" rule There is more than one 90-degree angle Something other than copper or galvanized pipe was used going to the spout The most common reason is that there is something restricting the water flow to the spout, e.g. solder or something lodged in the pipe. Something is impeding the flow of water to the spout and causing it to back up and go out the shower head. If this is the cause of shower-rise it is possible to remove the blockage by removing the tub spout; then, feeding a plumber’s snake or a speedometer cable up through the tub drop. The act of feeding it causes it to twirl and loosen the blockage. Be sure to flush the valve before reinstalling the tub spout. Be sure to check the tub spout itself for blockage. If none of these help, you may need to call a plumber. After the shower has been installed and the wall has been closed, there is little that can be done to remedy this situation yourself. Your faucet is equipped with a rotational limit stop that allows you to set the max hot water temperature on your faucet. Making the adjustment to this piece will raise the water temperature in the faucet. Here is a link to the How to adjust the rotational limit stop video. The 17 series portion of the video starts at 1:50 into the video. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2014-11-17

Is there a longer attachment for the shower head

Asked by: george
Hi, George! Thank you for your question. The Delta Monitor T17438-RB Shower Arm measures 5 1/2" in length. We do have longer shower arms and all work with the shower head. For example, our Delta U4993-RB that measures 6" or the Delta RP40593RB that measures 7". We also do have 16" shower arms such as the RP46870RB. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-05-30
