Monitor® 17 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Champagne Bronze

Model#: T17459-CZ
Add to Favorites
Find local Delta® installers.
Trinsic®
View Full Trinsic® Bathroom Collection
Monitor® 17 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Champagne Bronze
Model#: T17459-CZ
List Price: $54200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
  • WaterSense certification promotes water conservation
  • Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Spray settings include: H2OKinetic
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Volume Control
MultiChoice® Universal Valve
Brilliance® Finish
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa

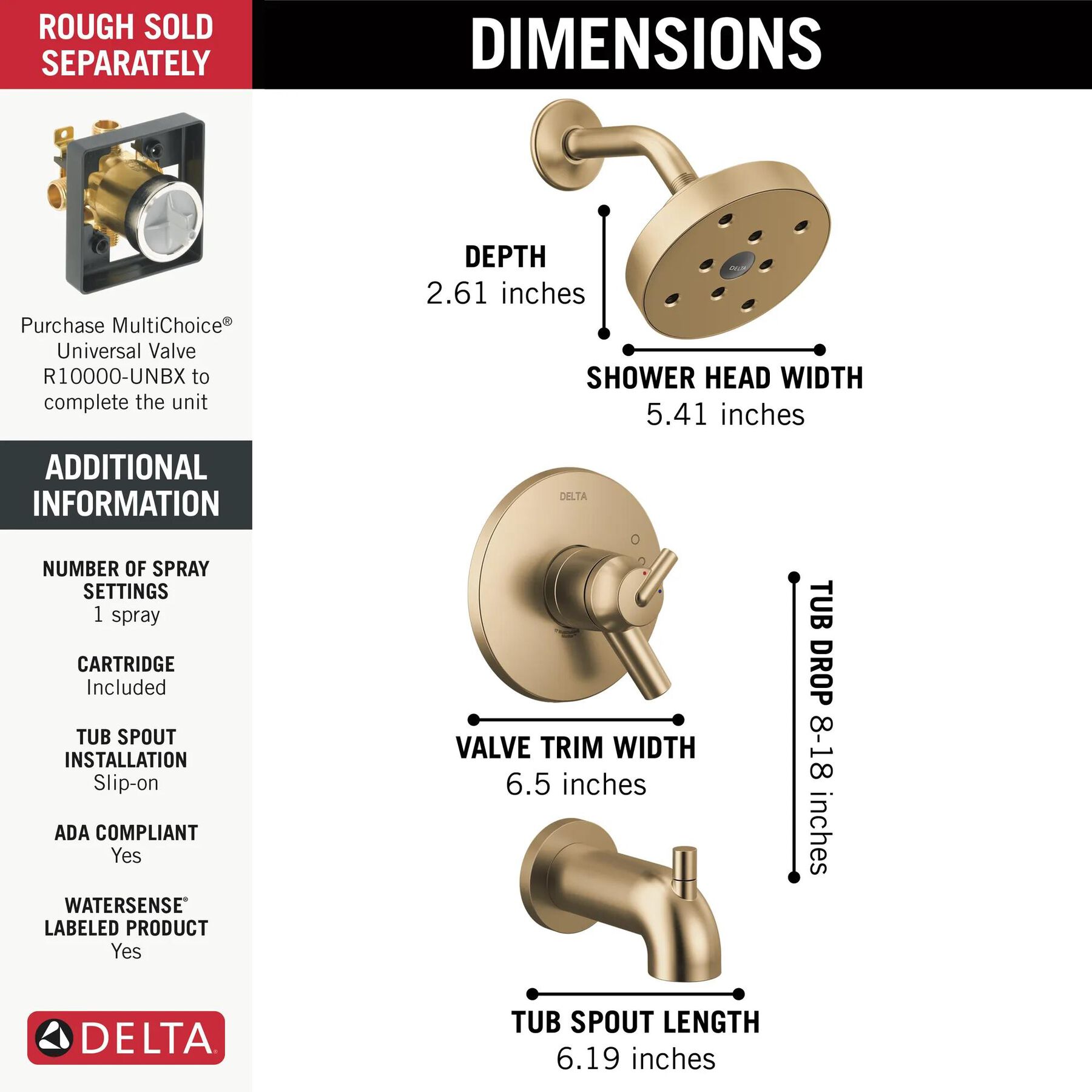

Overall Height (in.) :
6-1/2
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Great product! [This review was collected as part of a promotion.] Never been disappointed by Delta!
Date published: 2017-06-02
Rated 5 out of 5 by from Perfect look [This review was collected as part of a promotion.] We purchased this for the tub and shower going into a mother-in-law apartment in our 1927 house. It was important to use that the apartment feel efficient and modern, and this set fit the bill nicely. We love the way it looks and a year after installation it's given us no trouble at all.
Date published: 2016-12-07
Rated 2 out of 5 by from Plastic everything and challenging to install Delta, like their competitors, make plastic cheap shower hardware. I am appalled that these items are plastic. Plastic to me translates to poor quality because these items won't last. Also, my experienced plumber and his longtime assistant had trouble trying to put the trim components together even with the Delta diagrams and instructions. Next time we are putting money into the expensive bath hardware because those are made of brass with some type of finish.
Date published: 2016-06-02
Rated 4 out of 5 by from very attractive! I am very impressed with this product. It has a high quality appearance and it is well made. My plumber even commented on the level of quality. I recently added an extension arm on to the shower head to bring it out from the wall. I am only 5'2" tall and with the extension, I have less water running down the shower wall that the head is installed on. I did have some difficulty figuring out how to get the water hot enough. My plumber tried to make the adjustment twice and ended up removing the scald guard mechanism. Now it is perfect. No kids in the house, so it isn't a safety concern.
Date published: 2013-07-29
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_3, bvpage2n
  • co_hasreviews, tv_0, tr_42
  • loc_en_US, sid_T17459-CZ, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Is any of this solid metal?

I have read that the shower head is abs but is the tub spout also plastic? WE have the vero tub shower trim in our other bathroom and the spout is plastic
Asked by: anorman
Hello anorman! Thank you for your question. Both the showerhead and the tub spout on this model are non-metallic. Best Regards, Justin
Answered by: DeltaFaucet4
Date published: 2024-03-28

Does this come with a matte black tub drain stopper?

Asked by: Hillary
Hello Hillary, Thank you for your question. The Delta Trinsic Tub and Shower T17459-BL faucet does not come with a drain assembly. We do not manufacture a Bath waste/Drain assembly in the Matte Black finish. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Does this control the water flow volume to the bathtub faucet as well as shower? &nbsp;

Asked by: Michelllelee
Hi, Michellelee! Thank you for your question. The Delta Monitor T17459 valve trim will control the water flow volume for both the tub and shower. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Why does then spout installation manual show (4) possible installations with no sizes for any. Can you provide the necessary additional detail for each type so that the instructions can be used?

Asked by: NotHappy
Hi, NotHappy. Thank you for your question. The instructions that are included with the Delta Monitor T17459-BL Tub and Shower Faucet are general instructions for all of our Monitor 17 Series units. Our Monitor 17 Series units do include different types of tub spout assemblies and we've included all of the tub spout instructions so that they're easily accessible for our customers. I have included a link to a maintenance and installation sheet, that covers several tub spouts we manufacture. For installation instructions on model RP73371BL, the tub spout assembly that is included with the Delta Monitor T17459-BL Faucet, please refer to page 5, diagram C1. If you need further assistance, feel free to contact us directly. https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

how do you remove the temperature control cover? I thought you would just pop it off; but, I've pulled with considerable strength and it doesn't pop off.

Asked by: bmor
Hello bmor, Thank you for your question. The temperature knob of the Delta Trinsic Tub and Shower T17459-BL faucet can be removed by grasping the side edges and pull the cover straight off. Please feel free to call, email, or message us on social if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2024-03-28

Hello! Can this system be paired with one of your shower wands?

Asked by: Anna
Hi, Anna! Thank you for your question. The Trinsic Collection that the Delta Monitor T17459 trim kit works with has two hand shower units in this collection. Here is a link to these hand shower options: https://www.deltafaucet.com/bathroom/showering/showerheads--handshowers?categories=Delta_Bathroom_Showering_Shower+Heads+%26+Hand+Showers_Hand+Showers&amp;collections=Trinsic%C2%AE Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

The &quot;coldest&quot; position on the temperature setting is still quite hot. How do I modify that?

Asked by: Azaria
Hi, Thank you for contacting us. We apologize for any inconvenience with your Delta Faucet Company product. I am also more than happy to have this opportunity to help you. The temperature can be adjusted by rotating the knob on the front of the volume handle. The Rotational Limit Stop can be adjusted to set the maximum temperature. To do this, remove the temperature knob cover by prying it by hand at the tip. This should pop it off of the gray knob, allowing you to remove the Phillips head screw. Pull off the knob to access the RLS and set it to the desired position. Please refer to section 4 of the Installation Instructions for more information. Please contact us back if you have any questions or if you need further assistance you may call us at 1-800-345-3358. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Thank you for your cooperation. Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2024-03-28

1. What tub &quot;drain assembly&quot; do you make for this (T17459-SS) in stainless finish? 2. What is/are the difference(s) between the R10000-LBX or R10000-UNBX valves? Thanks.

Asked by: Steve
Hi, Steve! Thank you for you question. The Delta RP693SS bath waste assembly is the tub drain that we make in the Brilliance Stainless Steel finish to match the T17459-SS. The Delta MultiChoice Universal R10000-UNBX and R10000-LBX rough valve bodies are the exact same. The R10000-LBX rough valve is exclusive to Lowe's. The make, quality, and features are the exact same for each unit. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_31
  • loc_en_US, sid_T17459-CZ, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 52ms
  • questions, product
PART LIST

PART LIST

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-RP73378CZ

Trinsic®

Trinsic® Temperature Knob & Cover - 17 Series

List Price: $71.10
Online Price: $56.88
Free Ground Shipping All Orders $49+

RP73378CZ

Image-RP73374CZ

Trinsic®

Trinsic® Escutcheon - 17 Series

List Price: $151.70
Online Price: $121.36
Free Ground Shipping All Orders $49+

RP73374CZ

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP73371CZ Secondary Image-RP73371CZ

Trinsic®

Trinsic® Tub Spout - Pull-Up Diverter

List Price: $164.15
Online Price: $131.32
Free Ground Shipping All Orders $49+

RP73371CZ

3.67 15
Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP28598

Delta®

Delta® Decal - Hot / Cold Indicator - 17 Series

List Price: $8.30
Online Price: $6.64
Free Ground Shipping All Orders $49+

RP28598

3.40 5
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
