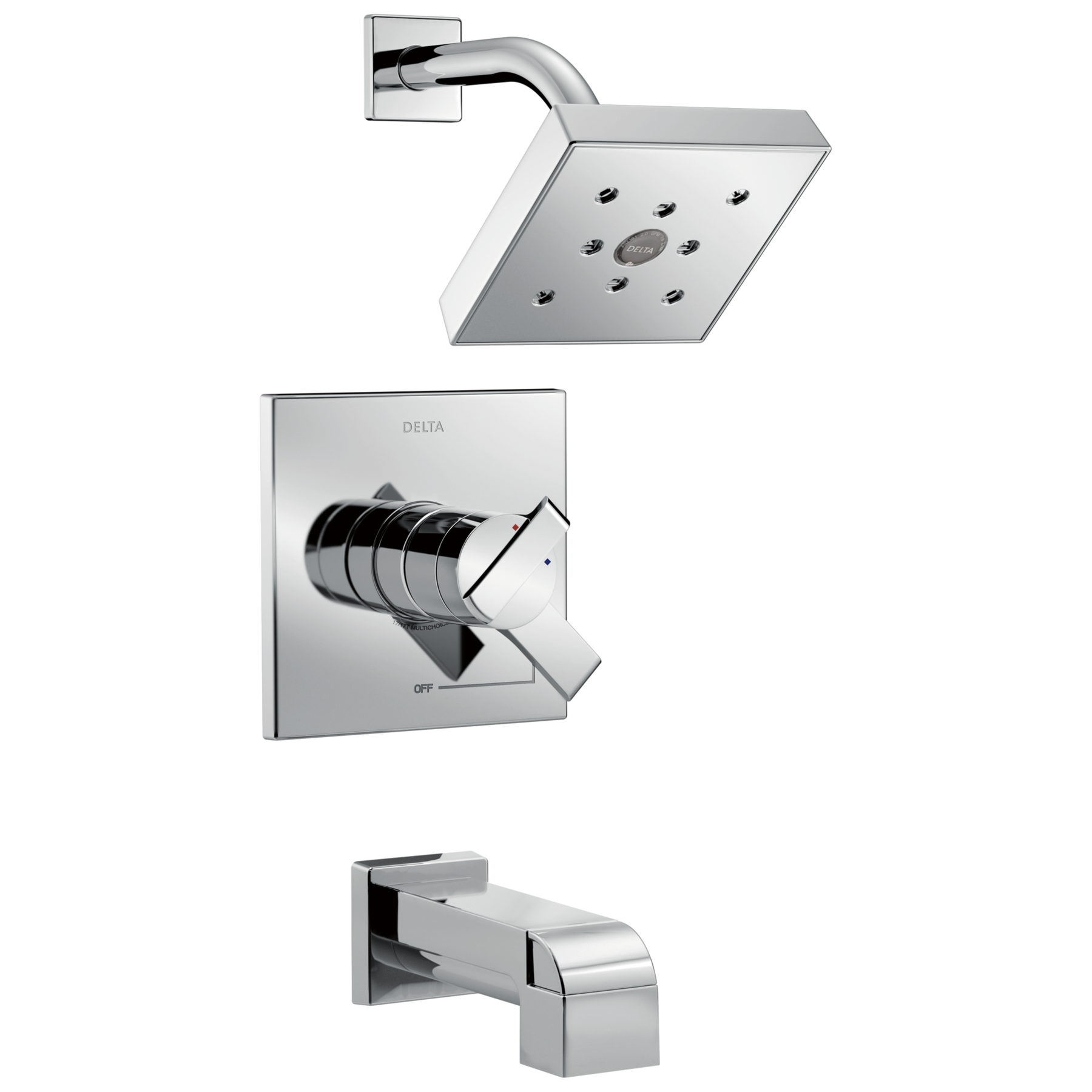

Monitor® 17 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Chrome

Model#: T17467
Add to Favorites
Find local Delta® installers.
Ara®
View Full Ara® Bathroom Collection
Monitor® 17 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Chrome
Model#: T17467
List Price: $48500
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
  • WaterSense certification promotes water conservation
  • Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Spray settings include: H2OKinetic
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Volume Control
MultiChoice® Universal Valve
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

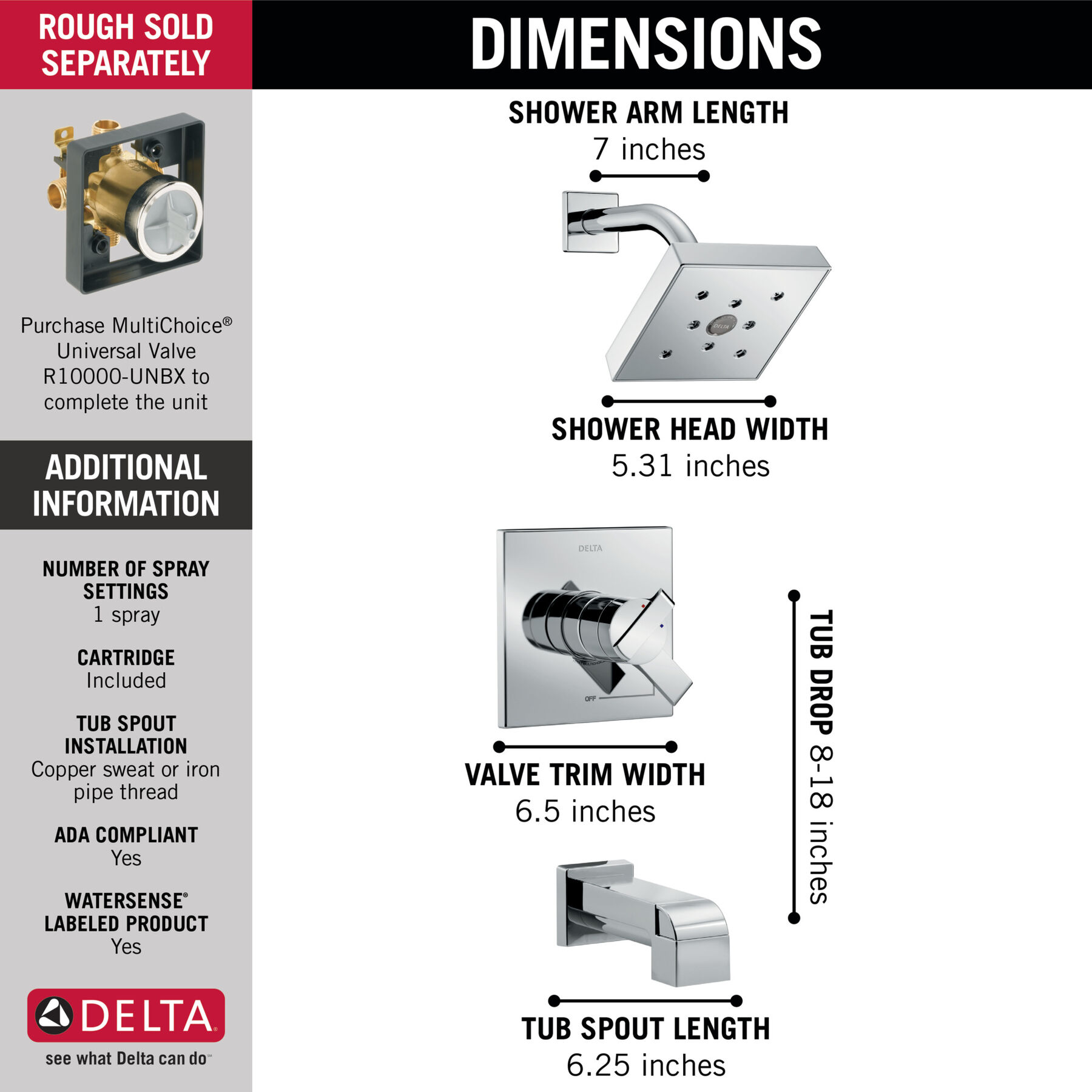

Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
6-1/2
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Very high-quality Exactly as advertised beautiful materials
Date published: 2024-09-29
Rated 1 out of 5 by from Poor Design, cost cut off on handle does not match off on label. they just used parts from other models to make this and didn't relabel to match. ascetically horrible. last time i checked, the label is to dictate where off is, in this case, don't try to get to off or you will break the valve. also, water flow is crazy horrible.
Date published: 2024-01-22
Rated 1 out of 5 by from No best bang for buck I’m not liking it. Not easy install function is off with the pop up. Can get much better product for the proce
Date published: 2023-10-02
Rated 1 out of 5 by from Terrible valve. Terrible water pressure Terrible valve. Terrible pressure. AND my original review is now missing from this site. Curious.
Date published: 2023-01-16
Rated 1 out of 5 by from Terrible valve. Terrible water pressure. Original valve that came with was broken. Got a new one from company. Valve says should be getting roughly 8.53gallons of water with 80psi. My house is 70psi. Barely get 4 gallons a minute, half of what the paperwork says and the professionals over at Delta say. It’s garbage. Don’t waste your money.
Date published: 2023-01-16
Rated 2 out of 5 by from Diverter is leaking is less than a month of use The shower is great, and the value has some plastic parts that were hard to self-install but it worked out eventually. The largest issue I have is with the diverter spout. In less than a month of use, the spout started leaking when the diverter was engaged. I always associated Delta with good quality, but not I am not so sure.
Date published: 2022-03-07
Rated 5 out of 5 by from Perfect Love the look and functions perfectly!! I would recommend this.
Date published: 2019-12-23
Rated 5 out of 5 by from Developer I have ordered the Delta Ara Monitor trims for multiple projects. They are high quality finishes while showing few water spots. Easy to install and don't get calls back for repair.
Date published: 2019-11-04
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_16
  • loc_en_US, sid_T17467, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

It says there is volume control connected with temperature control. Can you reduce the volume and maintain temperature?

Asked by: Pam 28
Thank you for your question, Pam. The 17 series offers a volume control lever as well as a temperature knob that allows you to control volume independently from the temperature. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28

new model T17467,

is the mixing valve for this new model specific to this model only. Could any standard mixing valve be used for the installation of T 17467. when at the earliest is the kit and specifically the mixing valve available.
Asked by: Heidi
Hi Heidi, Thank you for your question. The model T17467 Ara trim will use our R10000 multichoice rough in to make a complete faucet. The R10000 rough ins are available now and the T17467 is currently due to ship out in late March. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Ara Monitor T14467-SSH2O

Similar to a previous question: Will my current mixing valve for the existing shower fixtures work with this new trim kit or do I absolutely NEED to use the one recommended by Delta (R10000-UNBXHF)?
Asked by: Colton
Hi Colton, Thank you for your question. If you have a pre-2006 1300/1400 series shower, you can use any 13/14 series trim, such as the T14467-SSH2O. However, you will need to use the existing cartridge rather than the one that comes with the kit. Similarly, if you have at 1700 series shower, you update it with any 17 series trim by using the existing cartridge. Units made after September 2006 (13/14, 17 or 17T series) will have a MultiChoice R10000 valve. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

is there only 1 spray pattern? plumber just finished installing but noticed I couldn't change pattern. Can i swap out with another head if i wanted to eventually? why limit to 255 chars?

Asked by: senatorsquires
Thank you for your question, senatorsquires! The shower head included with model T17467-BL only has 1 spray setting. The shower head can be easily swapped with another shower head. If you need further assistance, feel free to contact us directly. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28

T27T867-SS with R22000-WS to use with shower head, rain shower and hand held shower here in California. &nbsp;Will I have any problem assigning each to separate valve with each independent?

Asked by: AlanL
Hi AlanL, Thanks so much for contacting Delta Faucet Company about the T17467! The T27T867-SS would only allow for two items to be used, we would recommend the T27T967-SS as this would allow for three items to be used. Since CalGreen has water restrictions, you may need to purchase the RP71718(3-setting Non-Shared) Please contact us directly if you have any questions or need additional assistance. Best Regards, Nicole Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

I would like to install the T17467-SS in new construction and add a hand held shower to it. Can this setup do it and if so, which rough in valve would I use? If not, which should I use?

Asked by: Michael

I&rsquo;ve lost the diverter tab on shower faucet&nbsp;RP75435. Is there a replacement part or do I need to replace the entire tub/shower water spout? Thank you Chris&nbsp;

Asked by: Chris
Hi Chris, Thank you for your question about the Delta Faucet model T17467 ARA&reg;17 Series H2Okinetic&reg; Tub &amp; Shower Trim In Chrome. I am sorry this information was not readily available, and I am happy to help! Unfortunately, the diverter on the tub spout is not available as an individual part, the RP75435 tub spout would need to be replaced. Please contact us directly if you have any questions or need additional assistance. We appreciate your business and look forward to continuing to serve you! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

T17467-BL. for my tube the plastic broke on the little piece that you pull up to switch from tub to shower. Only need spout (?) or way to fix the pull up.

Asked by: Dave
Hi Dave, Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. We will need more information to assist you better. Please watch out for an email from customerservice@deltafaucet.com. Best Regards, Emma Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_12
  • loc_en_US, sid_T17467, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 32ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP75439

Ara®

Ara® Metal Lever Handle Kit - 17 Series

List Price: $67.15 - $88.70
Free Ground Shipping All Orders $49+

RP75439

Image-Master-RP75438

Ara®

Ara® Escutcheon & Gasket - 17 Series

List Price: $149.85 - $235.90
Free Ground Shipping All Orders $49+

RP75438

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

List Price: $36.35 - $47.95
Free Ground Shipping All Orders $49+

RP51035

Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-Master-RP75440

Ara®

Ara® Temperature Knob & Cover - 17 Series

List Price: $44.80 - $60.40
Free Ground Shipping All Orders $49+

RP75440

Image-RP51019

Delta®

Delta® Set Screw & Button

List Price: $21.70
Online Price: $17.36
Free Ground Shipping All Orders $49+

RP51019

5.00 1
Image-Master-RP75435

Ara®

Ara® Tub Spout - Pull-Up Diverter

List Price: $114.15 - $221.85
Free Ground Shipping All Orders $49+

RP75435

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
