Tesla®

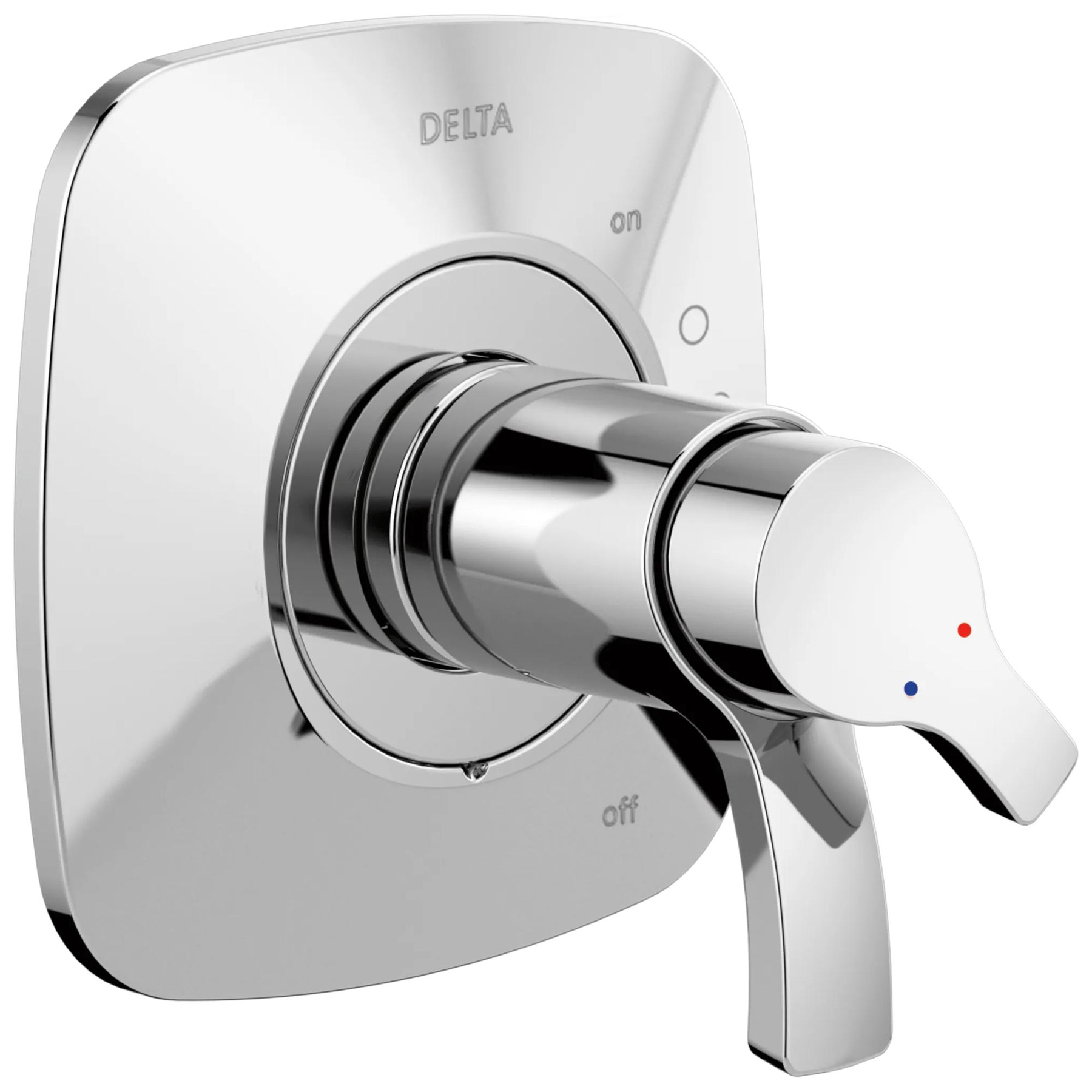

TempAssure® 17T Series Valve Only Trim
Model#: T17T052
Finish: Chrome
List Price*: $547.30
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta® thermostatic valves use TempAssure® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure thermostatic valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
  • Valve is not included, must purchase separately
  • Set ideal temperature and adjust volume separately
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Special Features
ADA Compliant
ADA Compliant
California Prop 65 WARNING
SUPPORT
Installation Information
Connection Type :
NA
PART LIST

PART LIST

REVIEWS
Rated 4 out of 5 by from Great shower control but poor documentation Like this unit very much. It is a clean design, and simple to operate. Only takes one hole in wall for complete functionality. Operation is smooth and precise. While actual installation is easy, the instructions on how to do it, and adjustment are poor. It is somewhat different fro other similar controllers but the instructions are generic and give no specific instructions for this model. In fact the instructions don't even list this unit as part of the series. As such you have to figure out a lot of it by inference and trial & error. The documentation is the reason it did not get a 5 star rating.
Date published: 2018-12-08
  • y_2021, m_2, d_25, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_T17T052, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

T17092 vs T17T092

Hi, What's the main difference about these two models? Any special on TemoAssure feature? Thanks, Sara
Asked by: Sara
Hi Sara, Thank you for your question! The T17092 is a Monitor Pressure Balance unit, and the T17T092 is a TempAssure Thermostatic unit. TempAssure units will monitor the temperature of the water, rather than the pressure, and provide you with a more consistent temperature. TempAssure units also have the potential to allow more water flow through the valve, which can be beneficial in custom shower applications. Please click the links below for more information. http://www.deltafaucet.com/smart-solutions/tempassure.html?filter=all http://www.deltafaucet.com/smart-solutions/delta-monitor.html?filter=all Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2018-04-07

Increase temperature

Is there a way to increase the temperature level? Contractor used in my tub/shower combo and cannot take a HOT bath.
Asked by: jeggijean
Hi Jeggijean, Thank you for your question. There is a rotational limit stop under the handle which can be adjusted to allow hotter temperatures. Please see our How-To Video for help adjusting the limit stop: https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I Best regards, Tanya
Answered by: Tanya
Date published: 2018-04-07

Have Tesla 17 handle. The hot/cold handle looks correct, red dot on top and blue on bottom. When turn it on, comes on hot, not cold. Pushing handle upwards makes it colder. Is this correct? Think it is backwards.

Asked by: Marilyn
Hi Marilyn, Thank you for your question. Yes you are right it is backwards. To fix this you will need to shut off the water to this shower. Remove the handles. Un-thread the bonnet nut and pull out the cartridge. Flip the cartridge 180° and put it back in. Put all the pieces back together and you are done. Best Regards - Beverly
Answered by: Beverly
Date published: 2020-07-20

The closes shower faucet I can find is the Tesla 17 series. I want to raise the hot water. I can not find any screw holes to remove the temperature arm to reset the temperature. How do I adjust the hot water in my shower.

Asked by: Carl
Hello Anonymous! Thank you for your question. We are more than happy to assist you. There is a rotational limit stop under the handle which can be adjusted to allow hotter temperatures. Please see our How-To Video for help adjusting the limit stop: https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I Best regards, Carrie
Answered by: Delta7
Date published: 2020-12-29
