Cassidy®
View Full Cassidy® Bathroom Collection

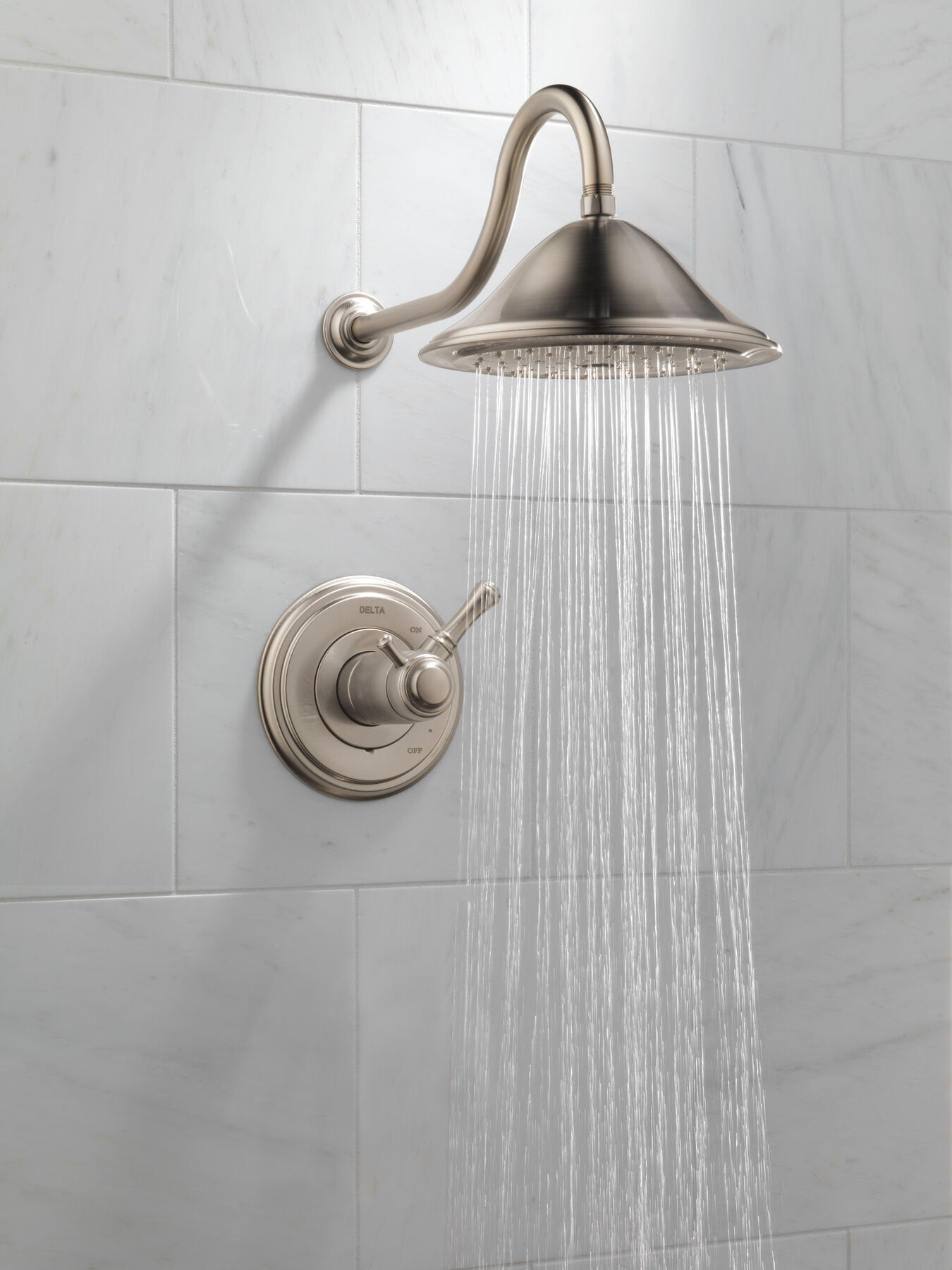

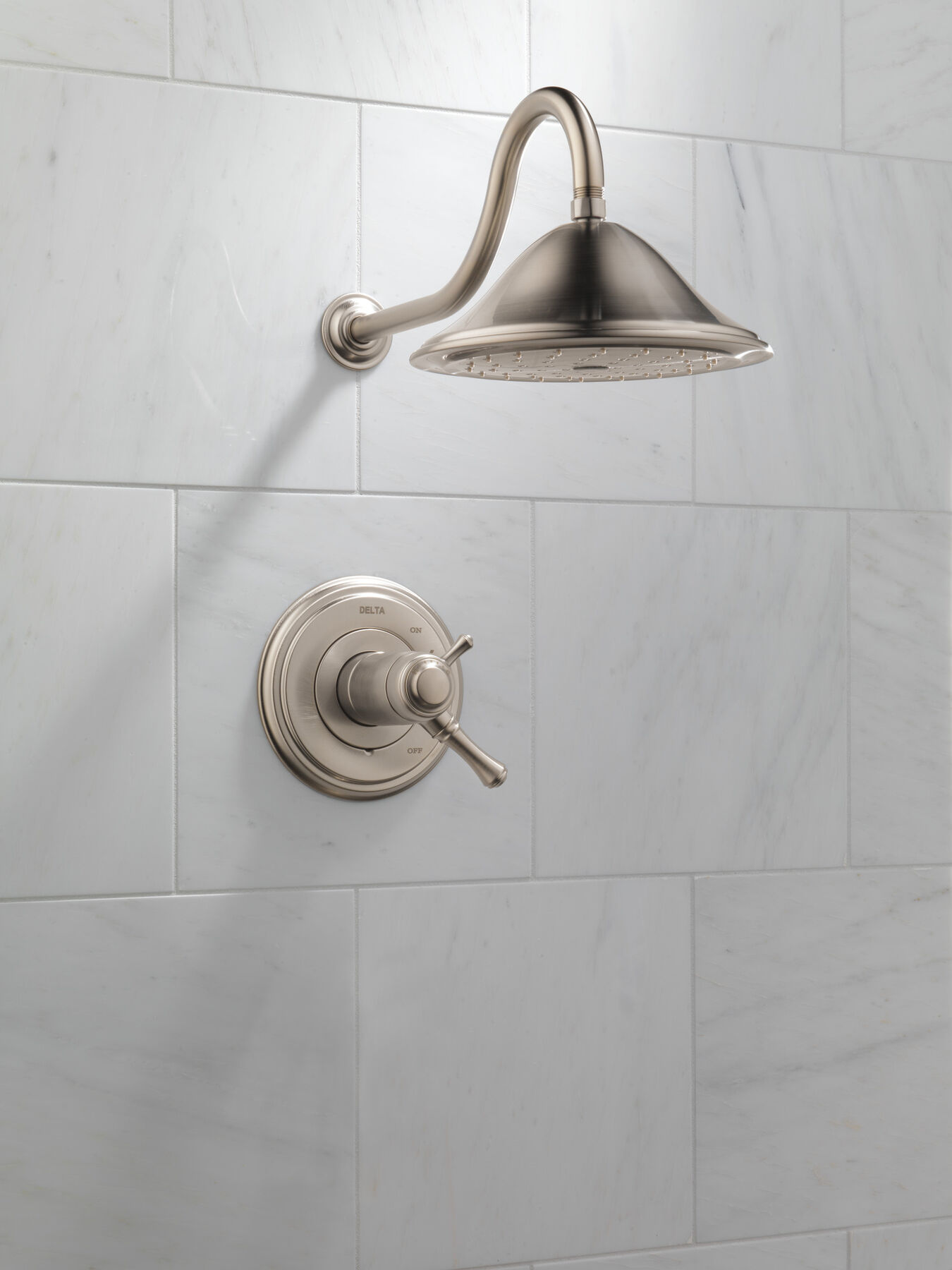

TempAssure® 17T Series Shower Trim in Stainless

Model#: T17T297-SS
Add to Favorites
Find local Delta® installers.
Cassidy®
View Full Cassidy® Bathroom Collection
TempAssure® 17T Series Shower Trim in Stainless
Model#: T17T297-SS
List Price: $1,02800
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® thermostatic valves use TempAssure® Technology to protect you and your family from sudden temperature changes. This Brilliance Stainless finish has subtle, warm undertones which make it an excellent match with nickel or stainless steel and is extremely versatile, complementing nearly any look, be it traditional, transitional or contemporary.

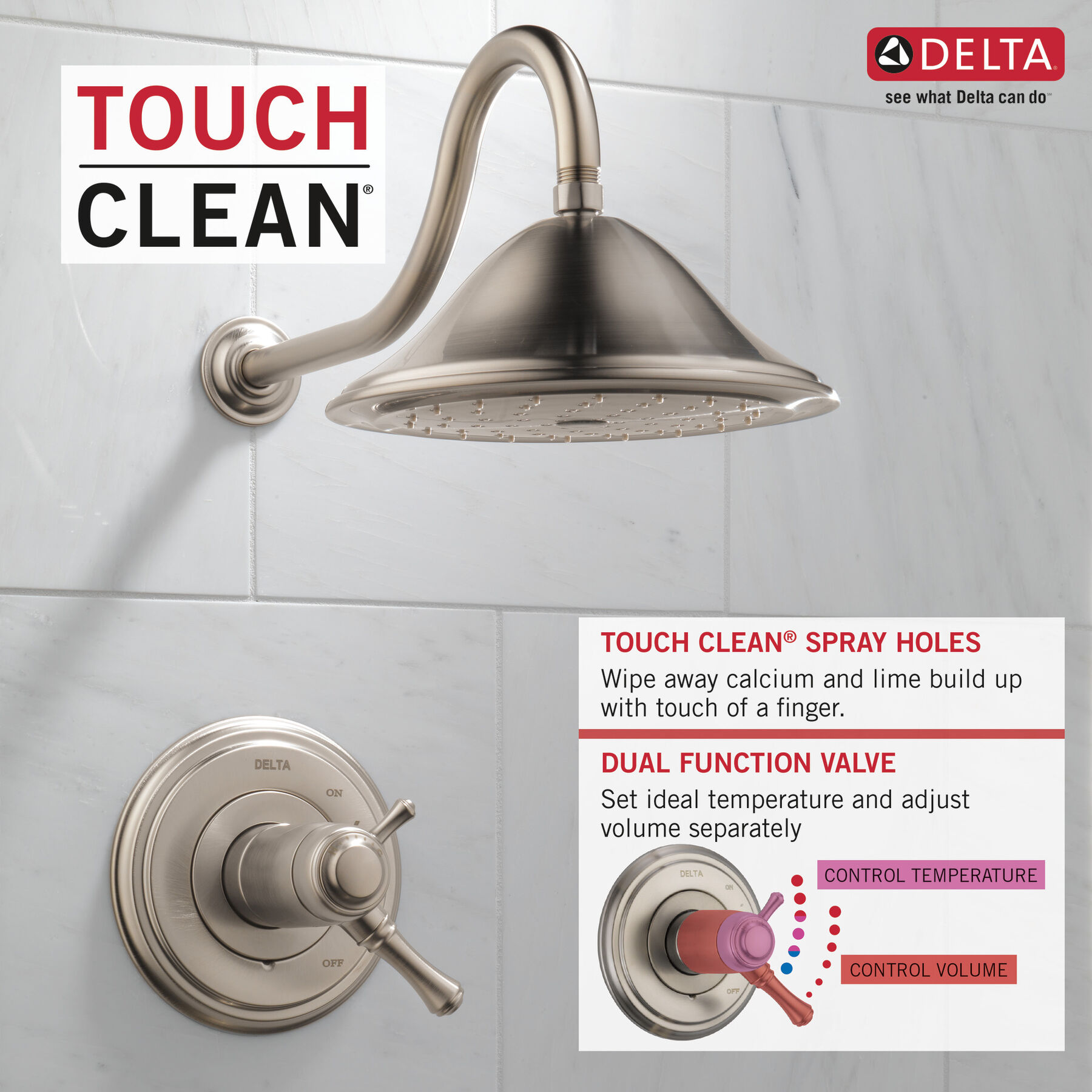

  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure thermostatic valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body spray
  • Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles
  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Volume Control
Touch-Clean®
MultiChoice® Universal Valve
Brilliance® Finish
TempAssure™
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Flow Rate :
2.50 gpm @ 80 psi, 9.5 L/min @ 552 kPa
Overall Height (in.) :
9-13/32
Valve Type:
Dual-function thermostatic cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Remodeling business I have ,and continue to use delta products. Not simply because they look good .but for their reliability...no call backs = satisfied customers .Steve L kc.mo
Date published: 2026-01-15
Rated 5 out of 5 by from Great product. Great water pressure, the temperature setting works great, and solid design.
Date published: 2025-07-16
Rated 5 out of 5 by from Cassidy Shower System I was so excited to see this shower system in the showroom. It is beautiful and just what I wanted for my primary bathroom renovation. I chose the chrome finish since that looked the best with the quartzite and marble I picked out for the vanity & shower. I can't wait for the renovation to be completed.
Date published: 2025-03-05
Rated 5 out of 5 by from Easy ordering and exactly what we wanted I was happy to find a kit with all of the pieces I needed for our bathroom in one place, and especially grateful that I did not have to think hard about which valves were needed. Having all the parts ready in one package was wonderful.
Date published: 2024-09-12
Rated 5 out of 5 by from Beautiful items!! This is exactly what I was looking for in my vintage inspired remodel. Absolutely beautiful and nice quality!
Date published: 2024-07-27
Rated 5 out of 5 by from None Quality product, have a great website and it’s easy to use.
Date published: 2024-06-14
Rated 4 out of 5 by from BIG! really nice looking but WAY bigger than I anticipated.
Date published: 2024-05-21
Rated 5 out of 5 by from Delta Cassidy Shower Head This shower head is heavenly! I love it.
Date published: 2024-03-24
  • y_2026, m_7, d_13, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.47
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_74
  • loc_en_US, sid_T17T297-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Is there any way to hide the threads where the shower head screws into the shower arm?

Asked by: Amanda A.
Thank you for your question, Amanda. Some of the threads at the shower head connection may be visible. Unfortunately, we do not make something to cover the threads. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-12-22

What does the WE stand for? What is the difference between T17T297-SS and T17T297-SS-WE?

Asked by: Kirk
Hi, Kirk! Thank you for your question. 'WE' on the Delta TempAssure T17T297-SS-WE Shower Trim Kit indicates the shower head is Water-Efficient. This will offer a flow rate of 1.75 gpm @ 80 psi. The Delta TempAssure T17T297-SS Shower Head will offer a flow rate of 2.50 gpm @ 80 psi. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

What is the vertical distance from the stub-in for the head (where it screws into the wall) to the bottom face of the head?

Asked by: Paul Welch

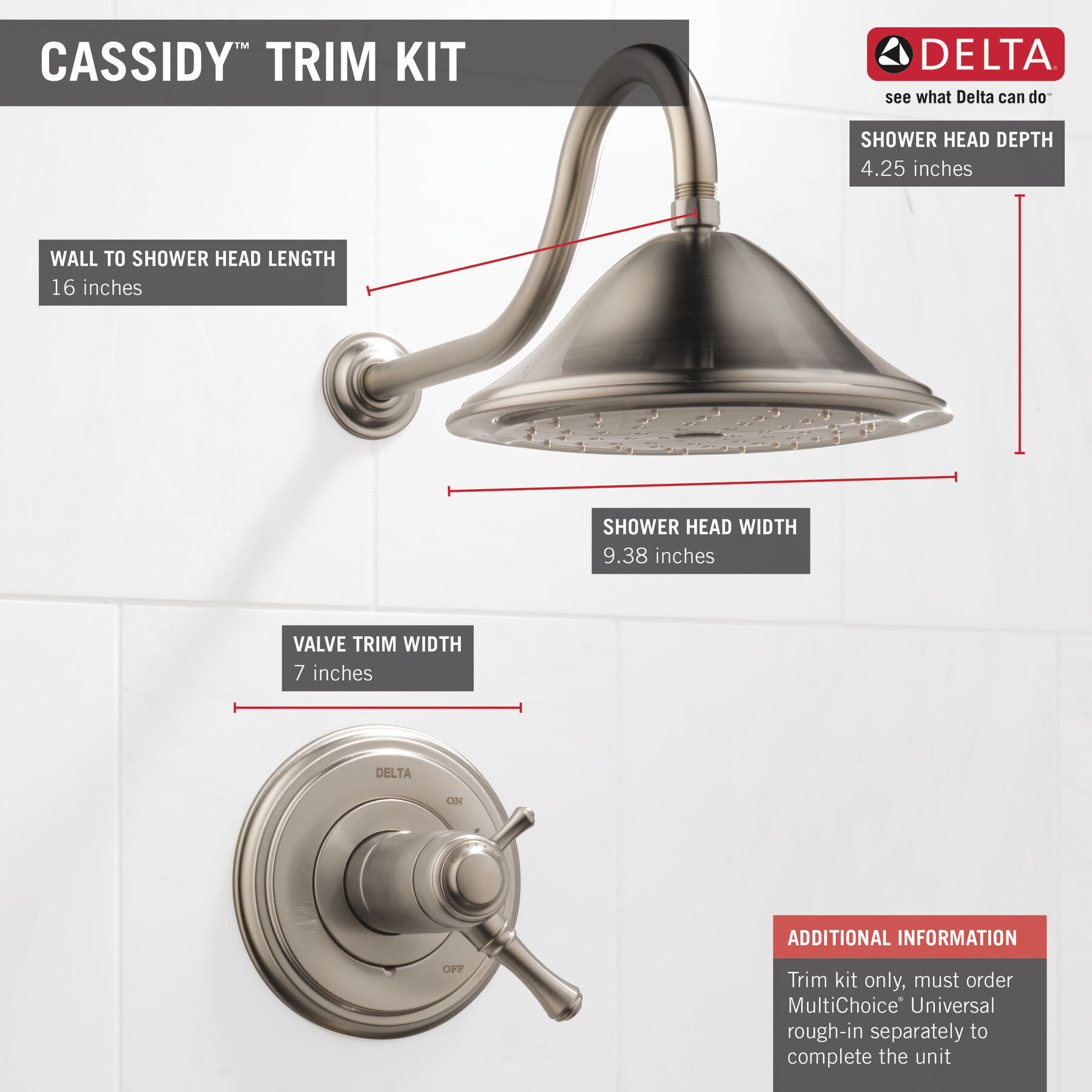

Dear Paul Welch, Thank you for your inquiry! The length of the shower arm of the Delta Cassidy Shower T17T297-SS faucet is 16" (406 mm). https://media.deltafaucet.com/SpecSheet/DSP-B-T17T097%20Rev%20E.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2018-01-17

TempAssure Question

Will the Tempassure feature prevent scalding should someone with a disability enter the shower and simply turn the valve to hot hot water only?
Asked by: Gay
Hi Gay, Thank you for your question. TempAssure® Thermostatic valves monitor the temperature of the water and adjust the mix automatically to maintain precise temperature control and to keep the water temperature in your shower within a safe ±3.6° F (±1.7° C). This provides a more consistent temperature than pressure balanced valves can supply. TempAssure valves also feature an adjustable high-temperature limit stop that when properly set helps ensure the handle cannot be turned to a position that is too hot for comfort. And because TempAssure measures the temperature of water, the handle limit stop will not need to be adjusted for seasonal ground water temperature changes. Basically when you install the faucet you will set the max hot water temperature by adjusting the rotational limit stop to a safe/non scalding water temperature. The valve will not allow the temperature to exceed this limit. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

What is the difference between T17T297 and T17297?

Asked by: Jennifer
Hi, Jennifer! Thank you for your question. Model numbers that start with 'T17' are our Delta Monitor 17 series that have a dual-function valve cartridge. This offers volume control and temperature control. Model numbers that start with 'T17T' are our Delta TempAssure™ 17T series that features a dual-function thermostatic cartridge. TempAssure™ keeps the temperature consistent by precisely measuring, monitoring, and automatically adjusting the water mix. Learn more about the difference between Monitor and TempAssure™ here: https://www.deltafaucet.com/design-innovation/innovations/shower/tempassure-valve--monitor-valve Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Hello, I am wanting to ONLY purchase a replacement shower head for the following: CASSIDY™ TempAssure® 17T Series Shower Trim MODEL#: T17T297-RB How or where may I do that?

Asked by: Dgray
Hi, Dgray! Thank you for your question. The Delta RP72568RB shower head is the shower head that is included with the Delta TempAssure T17T297-RB shower trim kit. Here is a link to this part: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP72568RB You can usually find Delta faucet parts at any dealer that sells Delta faucets. Some good places to check can be found on our website under Where To Buy. http://www.deltafaucet.com/where-to-buy/index.html To order parts directly from Delta, you may call the toll-free Delta Help Line at 1-800-345-3358. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Does this shower head pivot at all or is the water flow straight down only?

Asked by: GeorgeJ
Hello GeorgeJ, Thank you for your inquiry! Yes, the shower head of the Delta Cassidy TempAssure Shower T17T297-PN does tilts up, down, right and left, when installed. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Which parts are plastic?

I have seen several complaints in reviews about this trim kit being plastic, and the above reply to a question regarding this issue said parts of it are metallic and parts are plastic. I would like details about which parts of the exterior, on the showerhead and on the faucet control, are plastic, please.
Asked by: BW
Hi BW, Thank you for your question. All of the external parts are metallic, except for the shower head. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-12-01
  • y_2026, m_7, d_13, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.47
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_46
  • loc_en_US, sid_T17T297-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 48ms
  • questions, product
PART LIST

PART LIST

Image-RP72571SS

Cassidy®

Cassidy® Temperature Knob, Cover & Set Screw

List Price: $90.65
Online Price: $72.52
Free Ground Shipping All Orders $49+

RP72571SS

Image-RP72570SS

Cassidy®

Cassidy® Volume Control Handle - 17T

List Price: $123.95
Online Price: $99.16
Free Ground Shipping All Orders $49+

RP72570SS

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP47201 Secondary Image-RP47201

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17T Series

List Price: $600.40
Online Price: $480.32
Free Ground Shipping All Orders $49+

RP47201

2.00 35
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP72565SS

Cassidy®

Cassidy® Tub Spout - Pull-Up Diverter

List Price: $131.20
Online Price: $104.96
Free Ground Shipping All Orders $49+

RP72565SS

3.43 14
Image-Master-RP61273

Delta®

Delta® Shower Arm - 16"

List Price: $115.60 - $205.15
Free Ground Shipping All Orders $49+

RP61273

Image-RP32104 Secondary Image-RP32104

Delta®

Delta® Cartridge Assembly - Monitor® 17 Series (04/2006 and earlier)

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP32104

4.56 34
Image-RP52384

Delta®

Delta® Set Screw, Wrench & Button Cover

List Price: $15.70
Online Price: $12.56
Free Ground Shipping All Orders $49+

RP52384

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.21 107
Image-RP75136

Delta®

Delta® TempAssure® 17T Series Extension Kit

List Price: $102.30
Online Price: $81.84
Free Ground Shipping All Orders $49+

RP75136

Image-RP49089SS

Cassidy®

Cassidy® Screw Cover - Shower Trim

List Price: $60.45
Online Price: $48.36
Free Ground Shipping All Orders $49+

RP49089SS

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
