Dorval®
View Full Dorval® Bathroom Collection

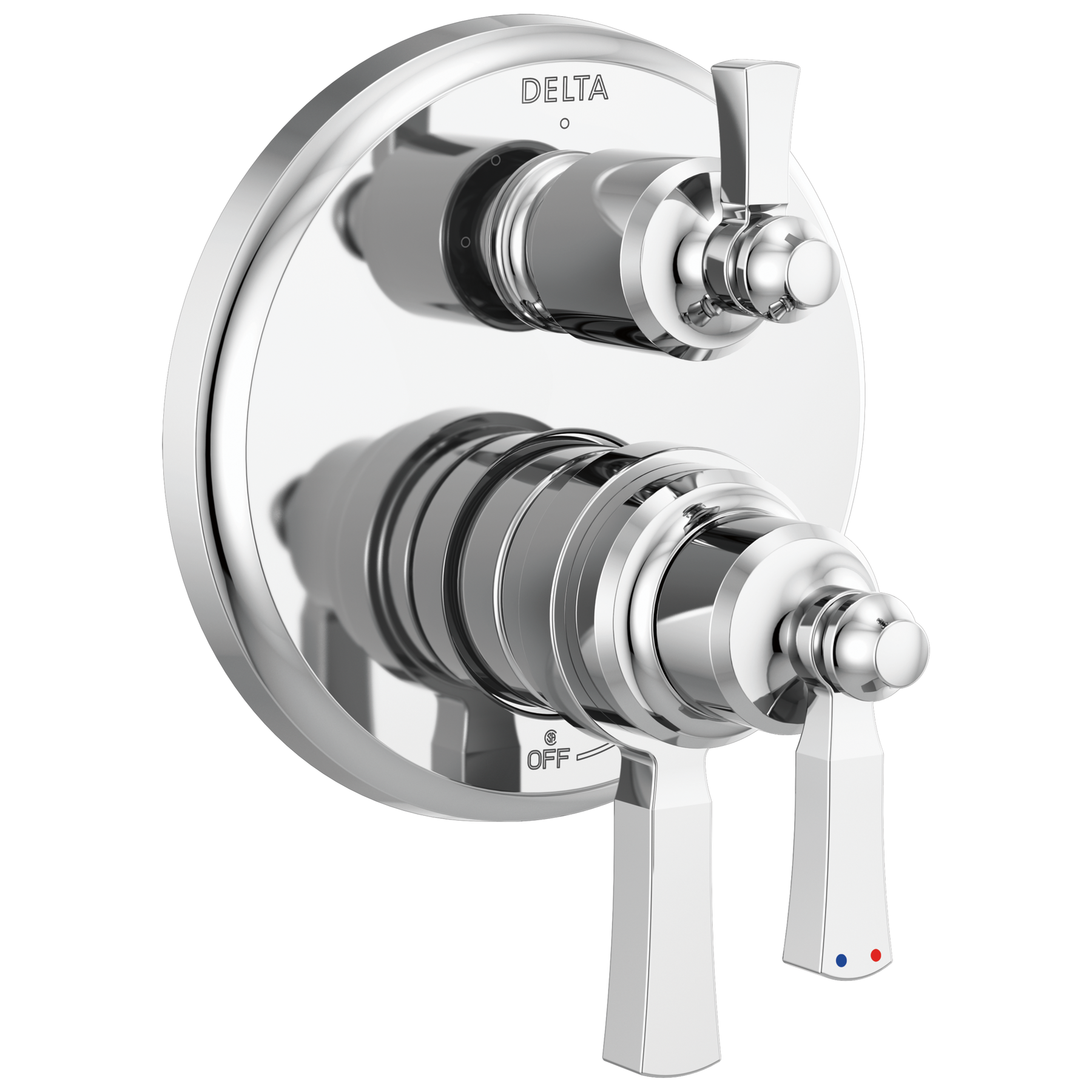

Traditional 2-Handle Monitor 17 Series Valve Trim with 3 Setting Diverter in Chrome

Model#: T27856
Add to Favorites
Find local Delta® installers.
Dorval®
View Full Dorval® Bathroom Collection
Traditional 2-Handle Monitor 17 Series Valve Trim with 3 Setting Diverter in Chrome
Model#: T27856
List Price: $78500
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Dorval® Bathroom Collection diverges from conventional expectations with regal accents and a powerful design that commands your attention. Inspired by the feminine lines of French architecture and the regal stature of German castles, the Dorval Bath Collection balances grace and power in this modern take on new traditional design. With separate handles for volume and temperature control, this Delta® tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Delta pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes.
  • 2 individual positions, 1 shared position
  • Top handle controls diverter functions
  • Bottom handle controls on / off and adjusts temperature; dial controls temperature
  • Monitor® pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Recommended rough-in kit R22000
  • ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

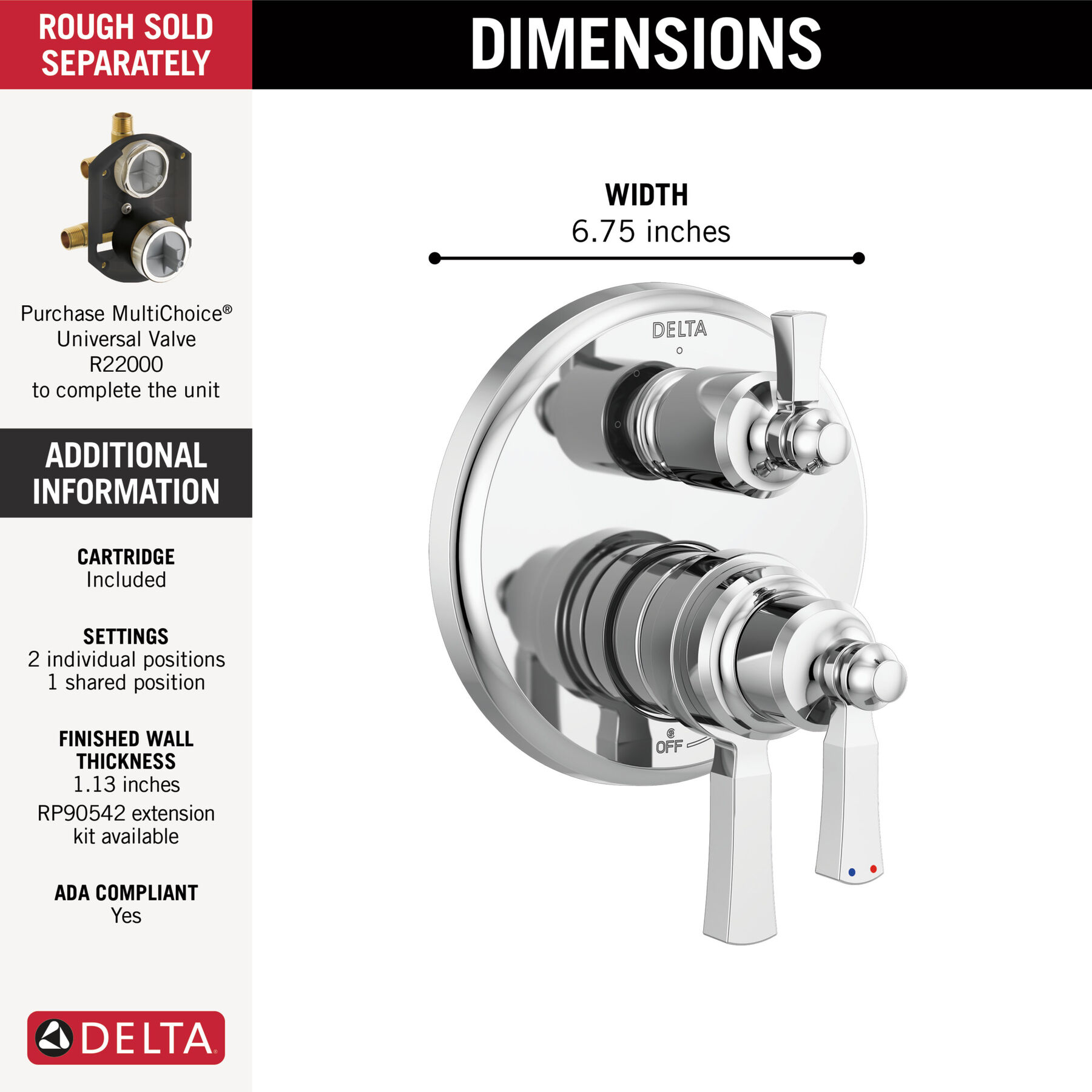

Overall Height (in.) :
8-1/2
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Loose all the time We installed one of these Delta Dorval controllers in two of our bathrooms and form a design standard we love them, but one of the units in a guest bathroom that seldom gets used is chronically having the temperature selection adjustment lever coming sloppy loose. I've be careful not to over tighten it after taking the lever off and snugging it back up but after a few uses it wobbles all over the place. It's done this since new but again it doesn't get used much and is now 2 years old. The unit in the other bathroom loosened up maybe once in the same period of time. Flawed design? Maybe but wanted to let you know.
Date published: 2025-11-12
Rated 5 out of 5 by from Love Beautiful fixture!! Efficiently purchased and shipped!!
Date published: 2022-02-19
Rated 5 out of 5 by from Nice quality - but pricey Nice quality- remodeled a upstairs shower and have used nothing but Delta faucets. Looks great. love the color but not the price. Choose Champagne Bronze that is more pricey than most other colors and harder to get. Plumber told me these have a lifetime warranty. Still glad I went with Delta.
Date published: 2021-08-04
  • y_2026, m_6, d_24, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_T27856, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Q&A

On Amazon, the description for these 3 and 6 setting valve controls says "not recommended for tub spout applications." Why can't this be used with a tub spout?

Asked by: milksteak
Hi milksteak, Thank you for your question about the Delta Faucet model T27856 Dorval™ Traditional 2-Handle Monitor 17 Series Valve Trim With 3 Setting Diverter In Chrome. We will be happy to assist you as quickly as possible. Connecting a tub spout to a diverter outlet is not recommended because the flow rate will be reduced and it will take too long to fill a tub. Unfortunately, the R22000 valve rough-in for a trim with an integrated diverter does not have a tub outlet. We recommend installing a tub spout to the bottom outlet of an R10000 mixing valve rough. Please contact us directly if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

In research I have found complaints in relation to Delta unit #T27856 restricting the temperature in relation to the household water heater setting. I had the same problem with a new bath shower control valve. How can this be overcome?

Asked by: Glennn
Hi Glennn, Thank you for your question about the Delta Faucet model T27856 Valve Trim. I am sorry this information was not readily available, and I am happy to help! This kit features a Rotational Limit Stop to limit the maximum temperature as a safety feature. Adjusting the RLS counterclockwise will increase the maximum hot water that can be mixed. See the manual for more information. https://media.deltafaucet.com/MandI/107532%20Rev%20C.pdf Please contact us directly if you have any questions or need additional assistance. We appreciate your business and look forward to continuing to serve you! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

Does the chrome version have a split finish with porcelain handles, or is it a brushed metal look? It's a bit hard to tell from the pictures.

Asked by: Cyguy
Thank you for your question, Cyguy! Our chrome finish is a polished mirrored finish. Best Regards, Benjamin
Answered by: Benjamin
Date published: 2024-03-28

What is the secret to keeping the hot water selection handle from getting loose all the time? Every couple of months I need to take the handle off, snug it up below and reattach the water temp handle. Being careful not to over tighten. Add Loctite?

Asked by: rjiken1
Hello! Thank you for contacting Delta Faucet Company! No, any modifications may result in a void in the warranty. Quality is very important to us and our products undergo rigorous testing to ensure high-quality performance. If at any time you experience any issues with any of your Delta Faucet Company products please reach out to us directly. We will be happy to assist you! We appreciate your feedback. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-11-17

MY DIVERTER AND TEMPERATURE FLOW HANDLES ARE LOOSE. HOW CAN I TIGHTEN THEM? HOW DO I ACCESS THE INNER PARTS TO TIGHEN UP?

Asked by: Daniel
Hello! Thank you for contacting Delta Faucet Company! The handles on our T27856-BL uses a set screw to tighten the handle. There is a button under the lever on the temperature adjustment handle, and on the diverter handle there is a button on the opposite side of the lever. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2026-02-09

What is the set screw size for this model?

Asked by: Andrew
Hi Andrew, Thank you for your question about the Delta Faucet model T27856-BL. The RP64871 set screw is #10-32x.38. Uses a 3/32" hex wrench. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-10-03
  • y_2026, m_6, d_24, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_6
  • loc_en_US, sid_T27856, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 47ms
  • questions, product
PART LIST

PART LIST

1 2 >
Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

2.33 6
Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-RP100939

DELTA

DELTA TEMPERATURE KNOB AND SCREW

List Price: $71.70
Online Price: $57.36
Free Ground Shipping All Orders $49+

RP100939

Image-Master-RP100940

DELTA

DELTA VOLUME HANLDE COVER

List Price: $40.00 - $60.80
Free Ground Shipping All Orders $49+

RP100940

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP100941

DELTA

DELTA HANDLE, SET SCREW AND BUTTON

List Price: $85.50 - $129.95
Free Ground Shipping All Orders $49+

RP100941

Only at Delta Trade
Image-Master-H256
Only at Delta Trade

DELTA

DELTA Metal Lever Handle Set - 2H Bathroom

List Price: $209.35 - $270.45

H256

Image-Master-RP100386

DELTA

DELTA Valve Seal - Integrated Div

List Price: $31.45
Online Price: $25.16
Free Ground Shipping All Orders $49+

RP100386

Image-Master-RP100948

DELTA

DELTA 17/17T 6F INTEGRATED DIVERTER ESCUTCHEON

List Price: $131.85 - $251.30
Free Ground Shipping All Orders $49+

RP100948

Image-Master-RP100947

DELTA

DELTA 17/17T 3F INTEGRATED DIVERTER ESCUTCHEON

List Price: $131.85 - $256.15
Free Ground Shipping All Orders $49+

RP100947

Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-Master-RP100938

DELTA

DELTA 17S VOLUME HANDLE

List Price: $117.90 - $180.15
Free Ground Shipping All Orders $49+

RP100938

Image-Master-RP100944

DELTA

DELTA DIVERTER HANDLE, SET SCREW AND BUTTON

List Price: $85.50 - $129.95
Free Ground Shipping All Orders $49+

RP100944

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
