Delta®

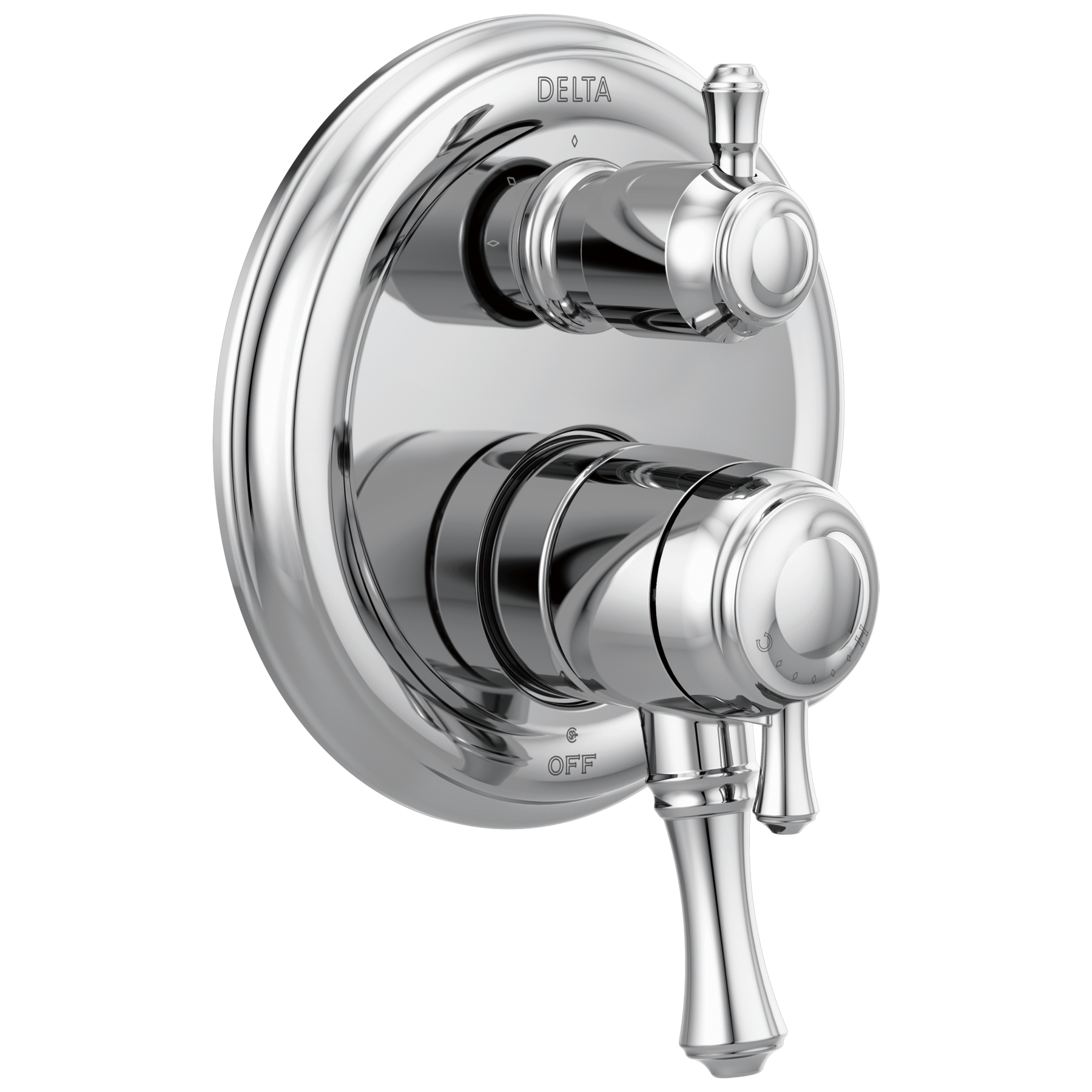

Traditional 2-Handle Monitor® 17 Series Valve Trim with 3-Setting Integrated Diverter in Chrome

Model#: T27897
Add to Favorites
Find local Delta® installers.
Delta®
Traditional 2-Handle Monitor® 17 Series Valve Trim with 3-Setting Integrated Diverter in Chrome
Model#: T27897
List Price: $64200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The traditional round style lends a timeless feel to your space. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
  • 3-Setting diverter trim
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Overall Height (in.) :
8-13/16
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from High Quality! High quality two-way diverter which is exactly what I wanted for the bathroom renovation.
Date published: 2025-09-12
Rated 1 out of 5 by from Poor valve design Shower valve does not isolate hand held unit without first having to cycle through shower head AND hand held first
Date published: 2025-05-31
Rated 5 out of 5 by from Shower redo Beautiful shower diverter. Excellent quality!
Date published: 2025-04-18
Rated 5 out of 5 by from Easy! This valve is easy and the new shower just makes the new hardware even nicer.
Date published: 2024-09-08
Rated 5 out of 5 by from Great product Great choice, love the ability to always have the water be the exact right temperature and to have that be in one place. Great to be able to quickly & easily change water output from shower head to hand held. Very smooth operation.
Date published: 2024-07-13
Rated 5 out of 5 by from Unique jobs I like that each knob has its own job. One for shower toggle, one for temperature and one for volume of water flow.
Date published: 2024-02-12
Rated 5 out of 5 by from New look in our new shower Works beautifully and looks very lovely in our new shower.
Date published: 2023-09-06
Rated 3 out of 5 by from Temperature Handle is Not Durable The temperature handle broke and will not stay on. Only two years old. Otherwise, seems like a good product. Just wish it was more durable.
Date published: 2023-09-03
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_18
  • loc_en_US, sid_T27897, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Is the temperature control handle on the T27897 plastic?

Asked by: Fred
Thank you for your inquiry, Fred! The temperature dial of the Delta Traditional 17 Series Integrated 3-Setting Diverter Trim T27897 kit, is non-metallic. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Are the chrome handles and trim all metal, or plastic?

Asked by: MerBear
Hi MerBear, Thank you for your question! The volume handle, diverter handle, and escutcheon are metal. The temperature knob is non-metallic. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Can I use the R10000 with the T27897 Trim? I want to use the R100000 so I can add a tub spout w/ diverter. Thanks!

Asked by: Neil
Hi, Neil! Thank you for your question. The Delta Monitor T27897 Integrated Valve and Diverter Trim Kit only works with the Delta MultiChoice Universal R22000 Integrated Valve and Diverter Rough. Here is a link to this rough valve body: https://www.deltafaucet.com/bathroom/product/R22000 We do not recommend installing a tub spout on the R22000 Rough Valve Body as the tub spout will not have a positive shut off while a shower component is being used. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Both the 6-Setting  (T27997) and the 3-Setting trim (T27897) include the 2-Setting Diverter (RP71717).  Does one trim align with the marks on the escutcheon plate better for that valve?  Is there a threaded cap part number for the port i won't need?

Asked by: AlexB
Thank you for your inquiry, AlexB! The Delta Delta 6-Setting Trim T27997 and the 3-Setting Integrated Diverter trim T27897 come with different diverter cartridges. The T27997 would have the RP51919 Shared 6 Function cartridge and the RP71718 Non-Shared 3 Function cartridge assembly. The T27897 would have the RP51918 Shared 3 Function cartridge and the RP71717 Non-Shared 2 Function cartridge assembly. The knob would line up with the markings on the escutcheon plate, for the proper function unit installed. The provided plug/cap should be soldered to the right outlet port for a 3-setting diverter. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

My bathroom is complete but the water is only luke warm out of shower. Need help

Asked by: Mike
Hello Mike! Thank you for your question regarding the Delta Faucet T27987 Shower! I am happy to help. The water is always preset to a lukewarm setting on a Delta Shower. This is done to prevent scalding. You must adjust the rotational limit to set the water to your desired temperature. Here is a link to the installation sheet that will provide directions: https://media.deltafaucet.com/MandI/107532%20Rev%20C.pdf Please see page 6 step 4 Please reach out to us directly if you need further assistance. Best Regards, Antoine
Answered by: Delta Faucet
Date published: 2021-02-22

What do I do if I only have 2 shower components and 3 settings?

I am about to install this in a stand-alone shower. I have an overhead shower head and a set of 3 body jet sprayers. 1. can I set it up so my settings are: (a: shower only, b: body only, c: both)? 2. if not, can how do I install it such that my settings are (a: shower, b: body, c: n/a)?
Asked by: doug
Dear Doug, Thank you for your inquiry! The Delta Traditional 17 Series Trim T27897-RB come with the 3-Setting Diverter (top handle). You would want to cap off the right side of the rough-in valve and plumb the body sprays to the left port of the valve. https://media.deltafaucet.com/MandI/92345%20Rev%20B.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

What cartridges is included with the T27897-ss trim? I want the following shower functions: shower head only, handheld shower only, and both the shower head and handheld shower.

Asked by: Nate
Hi, Nate! Thank you for your question. The T27897-SS has a Dual Function Pressure Balance Cartridge, RP46463, along with a 3 setting diverter cartridge assembly, RP51918. This will allow a shared setting for both units on at the same time and two individual settings. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Does this valve adjust water pressure or just turn on and off? The specifications states "Bottom handle controls on/off and ADJUSTS VOLUME; dial controls temperature", but many of these handles are just an on / off switch, so I wanted to confirm.

Asked by: Jimd
Hi, Jimd! Thank you for your question. The Delta Monitor® T27897-SS 7 Series Valve Trim with 3-Setting Integrated Diverter Faucet has both temperature and volume control. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_25
  • loc_en_US, sid_T27897, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 37ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP84930

Cassidy®

Cassidy® Set Screw & Button - Diverter Handle - Integrated Series

List Price: $20.15 - $31.65
Free Ground Shipping All Orders $49+

RP84930

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

1.80 5
Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-Master-RP84931

Cassidy®

Cassidy® Metal Lever Handle - Diverter - Integrated Series

List Price: $93.20 - $144.50
Free Ground Shipping All Orders $49+

RP84931

Image-Master-RP84934

Cassidy®

Cassidy® Temperature Knob & Cover - T17 Integrated Diverter

List Price: $48.65 - $92.55
Free Ground Shipping All Orders $49+

RP84934

Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-Master-RP84936

Cassidy®

Cassidy® Trim Sleeve - T27 Series

List Price: $29.85 - $73.20
Free Ground Shipping All Orders $49+

RP84936

Image-Master-RP90543

Delta®

Delta® Extension Kit - MultiChoice® Integrated Diverter - 27 Series

List Price: $244.50 - $290.65
Free Ground Shipping All Orders $49+

RP90543

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
