Delta®

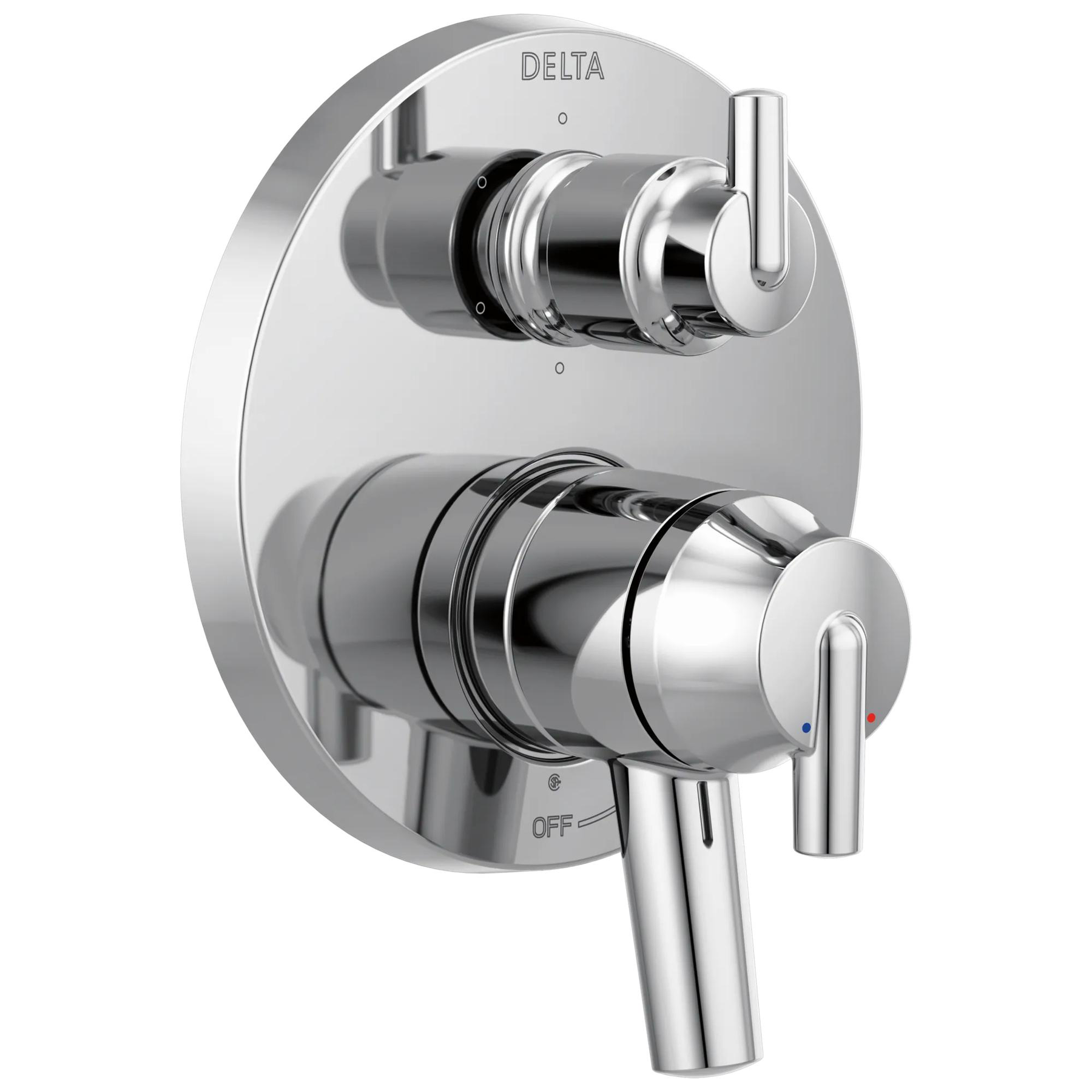

Contemporary Two Handle Monitor® 17 Series Valve Trim with 6-Setting Integrated Diverter in Chrome

Model#: T27959
Add to Favorites
Find local Delta® installers.
Delta®
Contemporary Two Handle Monitor® 17 Series Valve Trim with 6-Setting Integrated Diverter in Chrome
Model#: T27959
List Price: $45600
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The contemporary round style is a smooth take on modern geometrics, offering a fresh look which can complement a wide range of decor. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
  • 6-Setting diverter trim
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
8-13/16
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Diverted valve Looks great and installation was straightforward
Date published: 2026-01-12
Rated 5 out of 5 by from Get Delta I am a huge Delta fan as a designer and contractor. This is my 5th project using this particular style. Modern clean look, yet also transitional, Easy to install and great components for wear and tear, not to mention their warranty is fantastic.
Date published: 2025-09-16
Rated 5 out of 5 by from Works great. I've used this set-up multiple times and really like it.
Date published: 2025-07-30
Rated 5 out of 5 by from Clean looking trim with integrated diverter Quality made and look is very appealing. The integrated diverter is nice when wall space is limited, and a clean look is desired.
Date published: 2025-07-21
Rated 2 out of 5 by from Handle position Excellent product have used several times on the past, however this one handle splines cut in wrong location. Handle can not match up with the on and off marks.
Date published: 2023-10-06
Rated 5 out of 5 by from Shower faucet controls Love this, easy to use and looks wonderful!
Date published: 2022-02-23
Rated 5 out of 5 by from Delta multi function shower valve system Love it. Does require some adjustment but instructions are relatively straight forward Would recommend it go or a multi function shower system
Date published: 2022-01-02
  • y_2026, m_6, d_20, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_T27959, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 18ms
  • reviews, product
Q&A

Are the knobs plastic or metal with a chrome finish?

Asked by: NH_Al
Thank you for your inquiry, NH_Al! The volume handle, diverter handle and escutcheon plate of the Delta Contemporary Integrated 17 Series Trim Kit T27959, are metal. The temperature knob is non-metallic. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

What is the temperature range for the temperature control? Does it switch from all cold water (55 degrees F in my home) to all hot water (125 degrees F in my home)?

Asked by: NH_Al
Hello NH_Al, Thank you for your question. The temperature can be adjusted between approximately the same temperature as the cold supply and hot supply, plus or minus 3 degrees. Since it is pressure balancing, a slight amount of water from the opposite supply may be mixed in. You can also set the maximum temperature by adjusting the Rotational Limit Stop (see page page 6 of the Installation Instructions). https://media.deltafaucet.com/MandI/92345%20Rev%20E.pdf Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

I have the T27959 valve and need to change the temperature. How do I remove the snap-on temperature control cover?

Asked by: Bernie
Hi Bernie, Thank you for your question! The temperature knob cover can be removed by prying it up from the gray knob. Please click the link below for more help adjusting the Rotational Limit Stop. https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-08-03

Can this be used to control a tub spout, shower head and handheld shower?

Asked by: BizzleB
Hi BizzleB, Thank you for your inquiry! The Delta Integrated diverter rough-in valve that installs with the the Delta Contemporary 17 Series 6-Setting Integrated Diverter Trim T27959 model, is not recommended for use with a tub spout, as this is a shower-only valve. You may connect a non-diverter tub spout to one of the diverter ports as a temperature tester, however since the flow rate from the spout would be lower than a standard installation, we do not recommended to use it as a tub filler. Alternatively, you can install an R10000 and R11000 valve with corresponding trim kits. The tub spout should be connected to the bottom port of an R10000 valve to provide sufficient flow to fill a tub. https://www.deltafaucet.com/bathroom/product/R10000-UNBX https://www.deltafaucet.com/bathroom/product/R11000 Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Can I use this trim for wall shower and hand shower. I only have to use 2 non shared setting and one shared setting. I like the separate pressure and temperature controls on this compared to T24859

Asked by: Anne
Thank you for your question, Annamika! For two non-shared positions and one shared position you will need the Delta Contemporary 3-setting integrated trim, model T27859. https://www.deltafaucet.com/bathroom/product/T27859 Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

When will this be available in the matte black?

Asked by: aglazar
Hi, aglazar! Thank you for your question. The Delta Monitor T27959-BL Integrated Diverter and Valve Trim Kit will be available Quarter 4 of 2019. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

valve question

Will the R22000 valve allow me to run three seperate zones within my shower. Can i run a rain head then switch it to run a standard wall shower head and then switch it to run a hand held shower head? I only want one zone running at a time. Thanks Scott
Asked by: scott
Hello Scott, Thank you for your questions. Delta model T27959-SS includes a 6-setting integrated diverter. This means you will be able to use three different products and divert between them. There will be 6-settings, 3 shared settings and 3 non-shared settings. Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2016-10-19

What is the difference between the T27959 and the T24959 trim kits? I will be running a shower head, body sprays and wand. Also ordering a R22000-WS. Sufficient?

Asked by: patrick
Thank you for your inquiry, Patrick! The Delta Contemporary T27959-SS is a 17 Series unit that controls volume and water temperature independently with two separate handles for more refined control of your shower experience. The T24959-SS is a 14 Series unit with a single handle controlling temperature only, with one constant volume.. Both trim kits are compatible with the matching Integrated Rough-In R22000 valve. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28
  • y_2026, m_6, d_20, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_en_US, sid_T27959, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 78ms
  • questions, product
PART LIST

PART LIST

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

1.80 5
Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-Master-RP84978

Trinsic®

Trinsic® Temperature Knob & Cover - T17 Integrated Diverter

List Price: $43.80 - $66.40
Free Ground Shipping All Orders $49+

RP84978

Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-Master-RP84936

Cassidy®

Cassidy® Trim Sleeve - T27 Series

List Price: $29.85 - $73.20
Free Ground Shipping All Orders $49+

RP84936

Image-Master-RP90543

Delta®

Delta® Extension Kit - MultiChoice® Integrated Diverter - 27 Series

List Price: $244.50 - $290.65
Free Ground Shipping All Orders $49+

RP90543

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP84972

Trinsic®

Trinsic® Set Screw & Button - Integrated Series

List Price: $19.65 - $30.20
Free Ground Shipping All Orders $49+

RP84972

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
