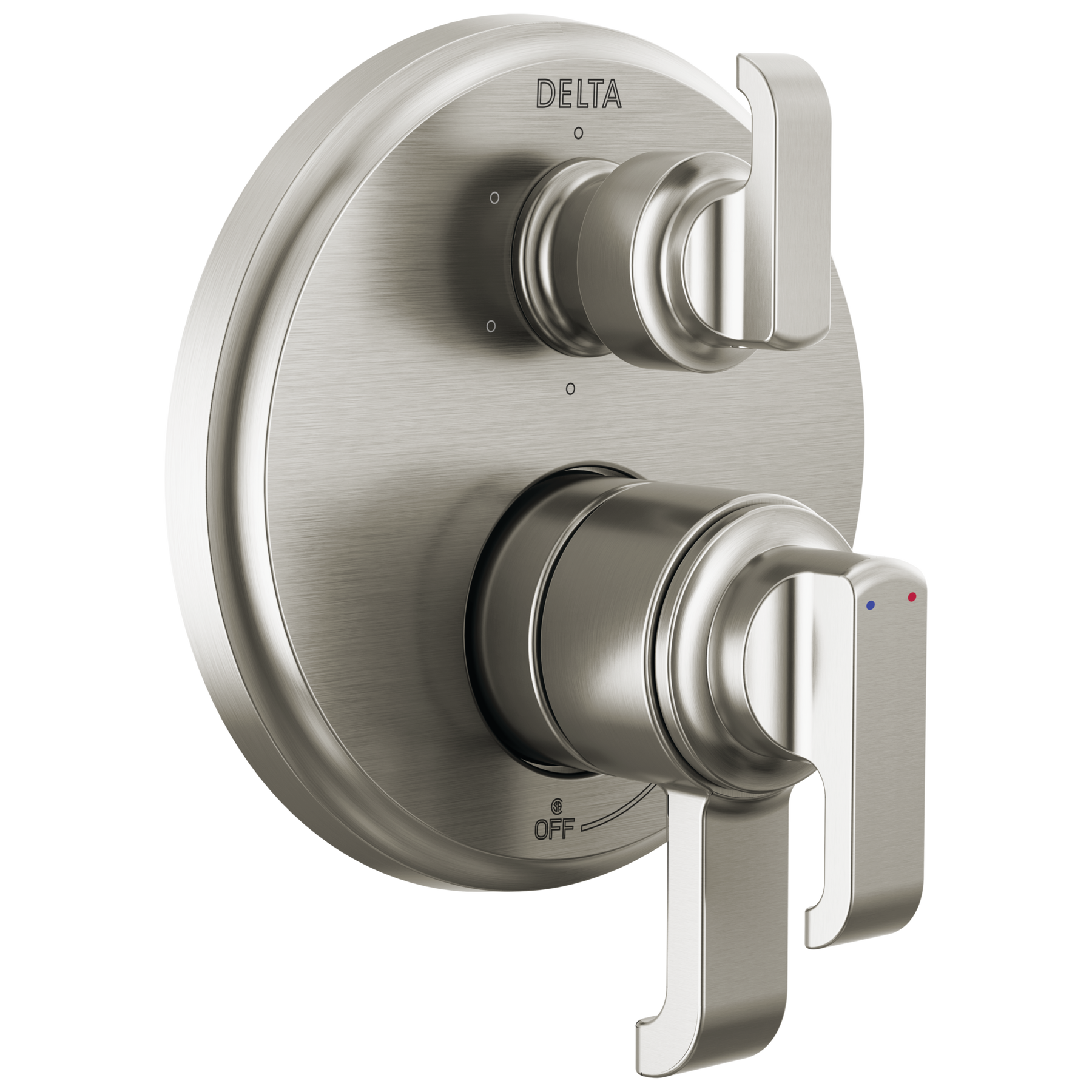

17 Series Integrated Diverter Trim with 6-Setting in Lumicoat® Stainless

Model#: T27989-SS-PR
17 Series Integrated Diverter Trim with 6-Setting in Lumicoat® Stainless
Model#: T27989-SS-PR
List Price: $51300
PRODUCT FEATURES
Familiar geometries and subtle curves in the Tetra™ Bath Collection combine to bring a sleek, architectural look and feel to the bath. Delta® showers with TempAssure® thermostatic valves are engineered to make sure you don't experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without the need for cleaners or chemicals. The ultra-sleek surface repels liquids, resisting water spots and staying cleaner longer, so your faucet’s most commonly touched areas stay beautiful. Integrating separate controls on one trim with the MultiChoice® Integrated Shower Diverter allows you to simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. You can install with confidence, knowing Delta® products are backed by our Lifetime Limited Warranty.
  • Lumicoat® Finishes easily wipe clean without cleaners or chemicals and are guaranteed to resist mineral buildup and hard water stains on the product’s most commonly touched areas
  • TempAssure® thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure

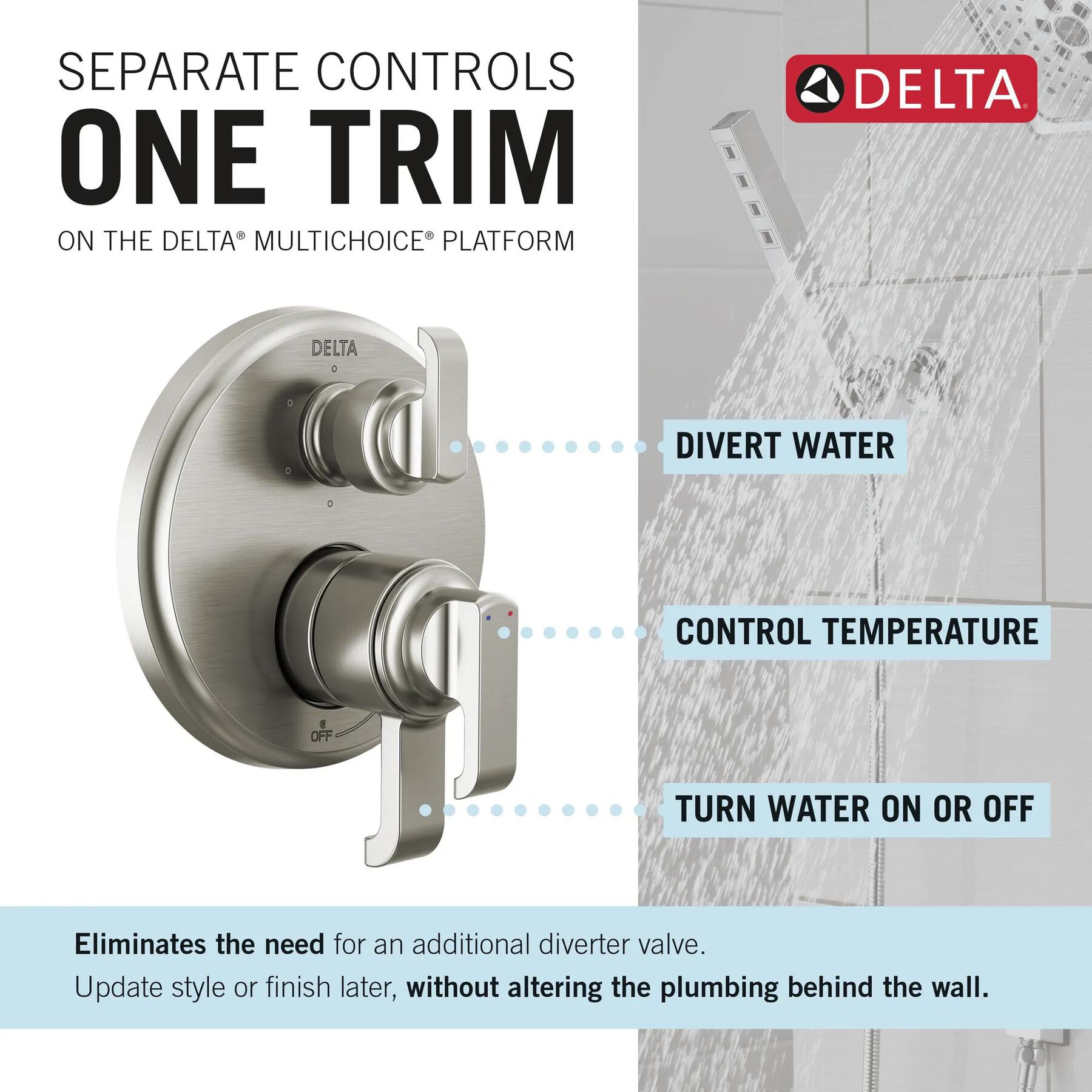

  • MultiChoice® Integrated Shower Diverter provides a sleek, streamlined style for your shower while eliminating the need for an additional diverter valve
  • 6-function diverter offers 3 individual positions and 3 shared positions
  • Trim kit only, must order MultiChoice® Universal valve rough (R22000) separately to complete the unit
  • Top handle controls diverter functions
  • Bottom handle controls on/off and adjusts volume, while the dial controls temperature
  • Cartridges included
  • ADA Compliant
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Installation Information

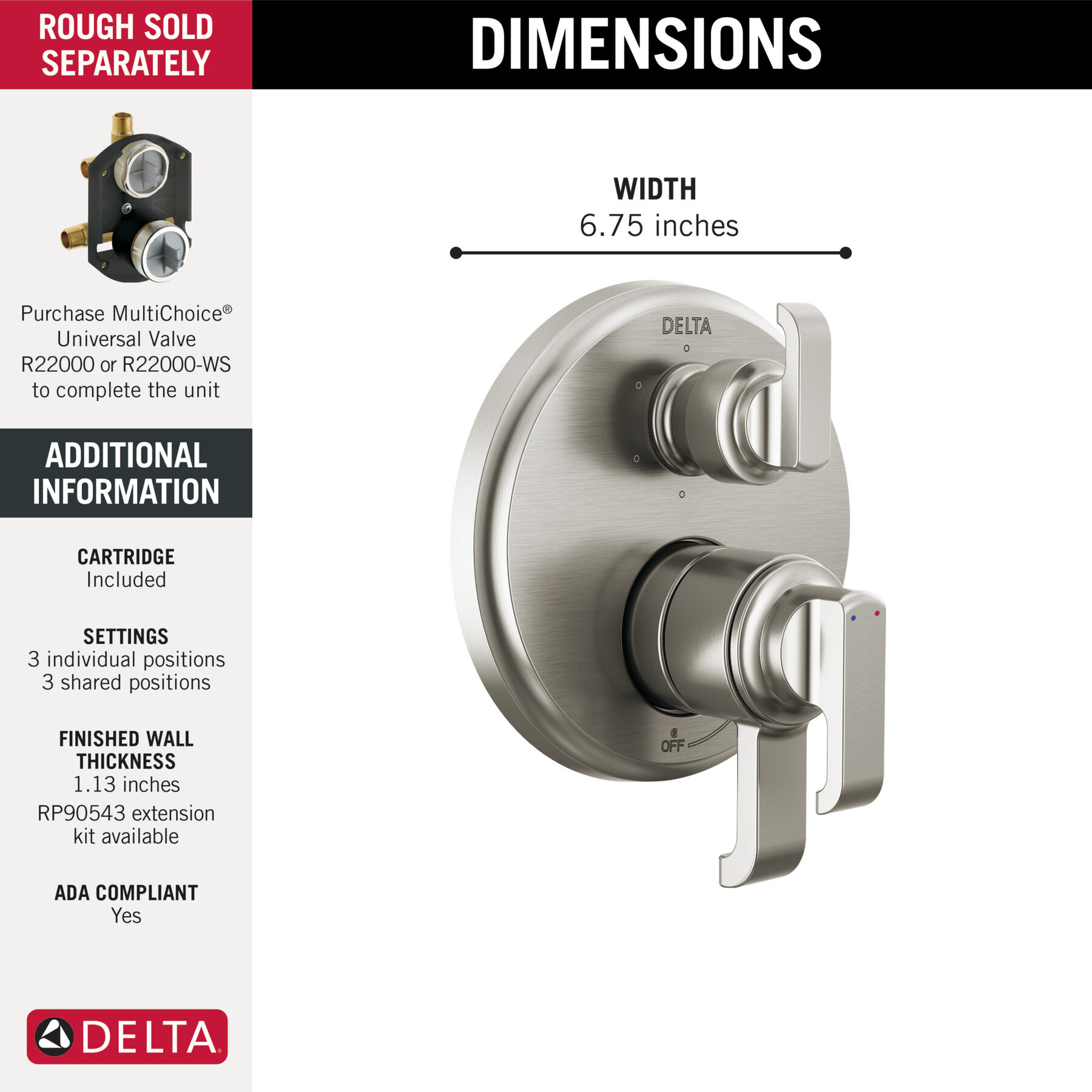

Overall Height (in.) :
7-7/8
Valve Type:
Cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Looks and works as decribed [This review was collected as part of a promotion.] Quality product. Finish is very good. Have had this in place for about a year with no issues.
Date published: 2025-09-12
Rated 5 out of 5 by from Delta Multi function valve Color is beautiful Easy to use and matching rest of Delta Champagne bronze perfectly Not a “hot Brass” color
Date published: 2025-02-23
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_T27989-SS-PR, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

is this all metal? what is the mx gpm?

Asked by: melo
Hello Thank you for your question! There are both metal and non-metallic components. The max gpm is 6.3gpm at 80psi. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-07-22

Can the Delta T27989-SS-PR be used with a tub faucet? I read that it is not recommended, but if I do use it with a tub faucet, are there any major issues to be anticipated? Is there a way that this product can be use with a tub faucet?

Asked by: cb88
Hi cb88, Thank you for reaching out to Brizo Faucet Company! Yes, you can use this model with the recommended non-diverting tub spouts listed below. RP43028SS - https://www.deltafaucet.com/bathroom/product/RP43028SS.html RP48333SS - https://www.deltafaucet.com/bathroom/product/RP48333SS.html RP53237SS - https://www.deltafaucet.com/bathroom/product/RP53237SS.html RP77092SS - https://www.deltafaucet.com/bathroom/product/RP77092SS.html RP77350SS - https://www.deltafaucet.com/bathroom/product/RP77350SS.html RP100197SS - https://www.deltafaucet.com/bathroom/product/RP100197SS.html RP100747SS - https://www.deltafaucet.com/bathroom/product/RP100747SS.html We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Engagement Specialist
Answered by: Customer Service
Date published: 2024-01-31

Can the Delta T27989-PR be used with Delta non-diverter tub spout RP102061PCPR? I read that it is not recommended, but if I do use it with this model tub spout, are there any major issues to be anticipated? What is recommended?

Asked by: Rene
Hi Rene, Thank you for your question about the Delta Faucet model T27989-PR. We don't recommend connecting a tub spout to a shower diverter. It will work, but the flow will be reduced compared to an R10000 series valve with a tub outlet. It may also be inconvenient to have the tub spout turned on in the shared positions. Or, the spout may drip until put in a shared position to let air into the pipe and drain the water. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-08-01

Please explain the difference between the T27T989-PR and the T27989-PR

Asked by: Maverick
Hi Maverick, Thanks so much for contacting Delta Faucet Company! The TETRA™ TempAssure 17T Series Integrated Diverter Trim MODEL#: T27T989-PR is a Thermostatic bath mixing valve trim. The TETRA™ 17 Series Integrated Diverter Trim MODEL#: T27989-PR is a pressure balanced dual function bath mixing valve trim. Please reach out with further questions! Best Regards, Kelley Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-12-10

Can the 6 way diverter rotate through all positions?

Asked by: Steve
Hi Steve, Thank you for your question about the Delta Faucet model T27989-PR. The diverter handle rotates 360 degrees. Three individual settings and three shared settings. Please reach out with any additional questions! Best Regards, Bryan
Answered by: Delta
Date published: 2025-09-11

During a bath remodel we had a Delta T27989-CZ-PR installed with the Delta 51308-CZ Shower package.  Upon using it the first time we could not get the water hot enough.  Water is warm but not hot enough.  I presume it needs an adjustment. Can you help?

Asked by: MickeyD
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_6
  • loc_en_US, sid_T27989-SS-PR, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 140ms
  • questions, product
PART LIST

PART LIST

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

1.80 5
Image-Master-RP103303PCPR

Tetra®

Tetra® Handle, Set Screw & Cover

List Price: $45.25 - $72.90

RP103303PCPR

Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-Master-RP103300PCPR

Tetra®

Tetra® Temperature Handle, Set Screw & Cover

List Price: $52.35 - $84.40

RP103300PCPR

Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP101742

Galeon®

Galeon® 17S SHOWER ADAPTER AND SCREW

List Price: $23.85
Online Price: $19.08
Free Ground Shipping All Orders $49+

RP101742

Image-Master-RP100386

DELTA

DELTA Valve Seal - Integrated Div

List Price: $31.45
Online Price: $25.16
Free Ground Shipping All Orders $49+

RP100386

Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-Master-RP84936

Cassidy®

Cassidy® Trim Sleeve - T27 Series

List Price: $29.85 - $73.20
Free Ground Shipping All Orders $49+

RP84936

Image-Master-RP103301PCPR

Tetra®

Tetra® Volume Handle

List Price: $51.35 - $84.40

RP103301PCPR

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
