Delta®

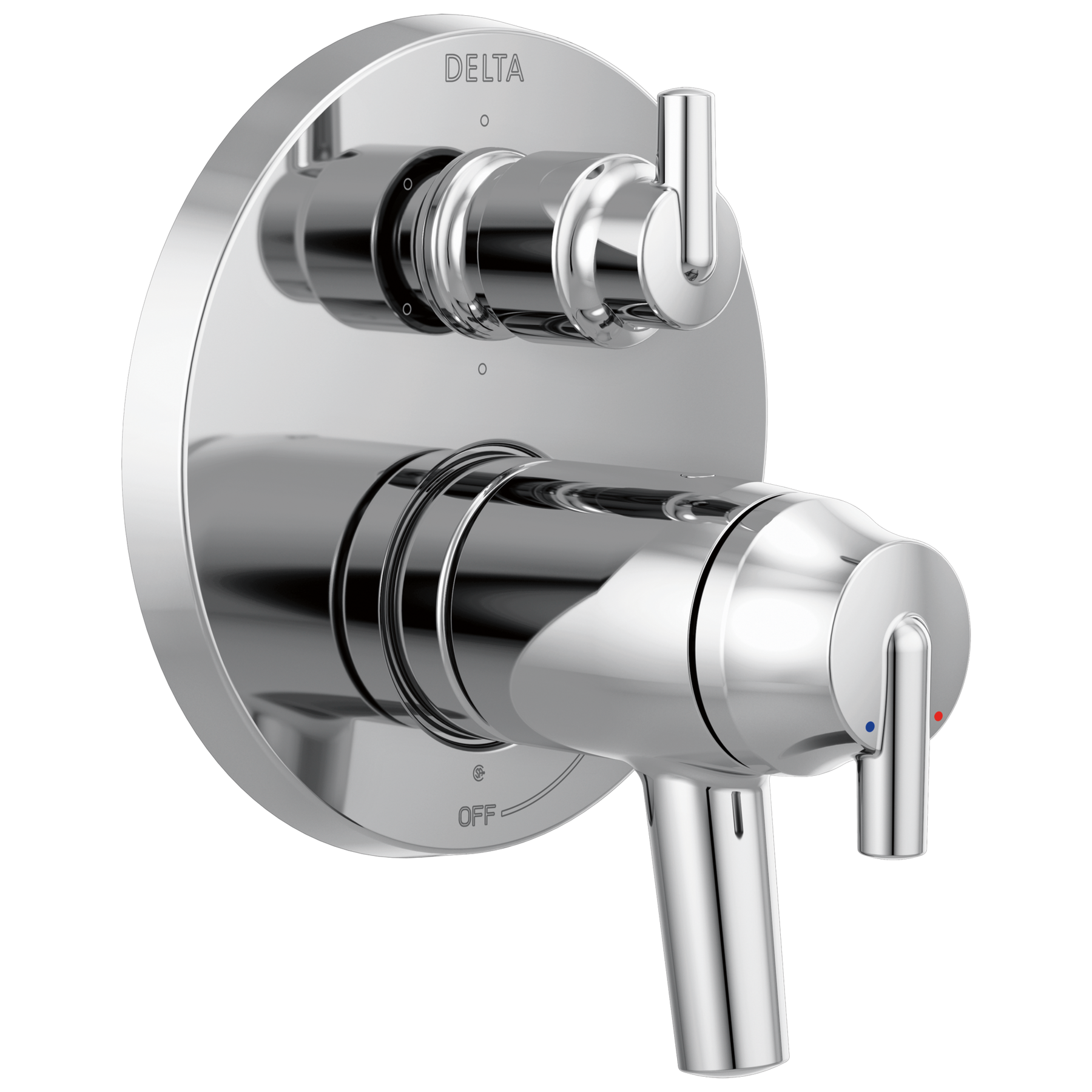

Contemporary Two Handle TempAssure® 17T Series Valve Trim with 6-Setting Integrated Diverter in Chrome

Model#: T27T959
Add to Favorites
Find local Delta® installers.
Delta®
Contemporary Two Handle TempAssure® 17T Series Valve Trim with 6-Setting Integrated Diverter in Chrome
Model#: T27T959
List Price: $77000
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The contemporary round style is a smooth take on modern geometrics, offering a fresh look which can complement a wide range of decor. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. Delta's dual-function thermostatic valve cartridge keeps water temperature consistent (within 3.6°) by actually measuring and monitoring the temperature of the water. Temperature can be set in order to remain consistent shower after shower.
  • 6-Setting diverter trim
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure Thermostatic cartridge measures and monitors the temperature of the water and automatically adjusts to maintain a more precise water temperature
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
6-3/4
Valve Type:
Dual-function thermostatic cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from [This review was collected as part of a promotion.] The product is great and functions exactly how anticipated.
Date published: 2025-09-12
Rated 5 out of 5 by from Amazing shower This temperature & water controller is amazing. You set the temperature handle at your desired temperature & then all you have to do is turn the larger handle on & you are ready to go.
Date published: 2024-06-12
Rated 5 out of 5 by from Works and looks great There were limited options of all in one valves that could control 3 shower fixtures, the temperature, and the water volume. I'm really happy I found this one. I was considering other options that cost a lot more but this is great.
Date published: 2023-09-29
Rated 5 out of 5 by from [This review was collected as part of a promotion.] Works well, looks good in my new bathroom.
Date published: 2019-07-22
Rated 5 out of 5 by from Awesome quality [This review was collected as part of a promotion.] Awesome quality
Date published: 2017-06-19
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_US, sid_T27T959, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Is this valved avalable in Polished Nickel?

Asked by: Stephen Suttles
Hi, Stephen! Thank you for your question. Unfortunately, we do not have this unit in Polished Nickel at the time. The T27T959 comes in Chrome, Brilliance Stainless Steel, and Venetian Bronze. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-04-17

can this be used with tub spout

can this be used with tub spout
Asked by: jkrame
Hey jkrame, Thank you for your question. We do not recommend to use this unit with a tub spout except as a temperature tester only. The flow rate from the diverter will be less than from the bottom port of a standard R10000 rough-in valve. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

I am in California with its Title 20 water efficiency requirements. I am considering this valve/diverter to feed 3 separate heads. Each heads would be below the 1.8Gpm requirement. Is this device compliant in the shared function?

Asked by: spurious
Hello Spurious, Thank you for your question. In order to be compliant with the California Title 20 Water Efficiency requirements you would need to use the non-shared cartridge assembly for the Delta Contemporary Integrated TempAssure Trim T27T959 model. However, we would also recommend checking your local and state plumbing codes since that is subject to change. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

how much less is water flow

please tell me how less water pressure is on tub spout
Asked by: jkrame
Hi jkrame, Thank you for your question. The maximum flow rate will be .6 GPM to 1.0 GPM lower from the diverter port of the R22000 valve than from the tub spout port of an R10000 valve using the same series trim at 60 PSI. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

How it works?

Whats the function of each handle?
Asked by: Caca
Hi Caca, Thanks for your question. The larger handle at the bottom is a volume control (on/off) and the front handle controls the temperature. The handle at the top allows you to divert the water between three different showering components (shower head, hand shower, etc.). Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-06-05

Function of upper handle

I understand the handles on the bottom.. large handle is off/on and smaller is for temperature. The small upper can it control handheld or rain head or Both at the same time?
Asked by: Dee
Hi Dee! Thank you for your question. The model T27T959 is a 17T series valve trim with an integrated 6-setting diverter, meaning the handle on top will divert water between three different products. If you only need to divert between a raincan shower head and hand held with the option of using both at the same time, we would recommend the model T27T859. Below is link. https://www.deltafaucet.com/bathroom/product/T27T859 Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28

Is Model # T27T959 all brass construction?

Is Delta Contemporary Two Handle TempAssure® 17T Series Valve Trim with 6-Setting Integrated Diverter, Model#: T27T959 all brass construction or is it chrome coated/plated? I am looking Chrome finish shower trim but prefer all brass construction for the trim.
Asked by: Amp512
Amp512, Thank you for your question. The escutcheon plate, volume handle, and diverter handle are plated metal. The cartridge is brass. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Can this be used as a diverter between the Showerhead, Handshower and Tub spout?

Asked by: Tweetie831
Thank you for your question, Tweetie831! We do not recommend an integrated diverter trim to be used with a tub spout. A tub spout could be installed as a temperature tester only, however the flow rate from the diverter will be less than that of the bottom port of a standard R10000 rough-in valve. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_18
  • loc_en_US, sid_T27T959, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 46ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

1.80 5
Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-Master-RP84968

Trinsic®

Trinsic® Temperature Knob & Cover - T17T Integrated Diverter

List Price: $45.70 - $66.40
Free Ground Shipping All Orders $49+

RP84968

Image-Master-RP84924

Cassidy®

Cassidy® Trim Sleeve - Integrated Diverter

List Price: $35.90 - $61.05
Free Ground Shipping All Orders $49+

RP84924

Image-Master-RP90544

Delta®

Delta® Extension Kit 17T Integrated Diverter

List Price: $297.50 - $360.80
Free Ground Shipping All Orders $49+

RP90544

Image-Master-RP84929

Cassidy®

Cassidy® Set Screw & Button - Volume Control Handle - T27T Series

List Price: $20.15 - $27.85
Free Ground Shipping All Orders $49+

RP84929

Image-RP47201 Secondary Image-RP47201

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17T Series

List Price: $600.40
Online Price: $480.32
Free Ground Shipping All Orders $49+

RP47201

2.03 34
Image-Master-RP84972

Trinsic®

Trinsic® Set Screw & Button - Integrated Series

List Price: $19.95 - $30.20
Free Ground Shipping All Orders $49+

RP84972

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
