Delta®

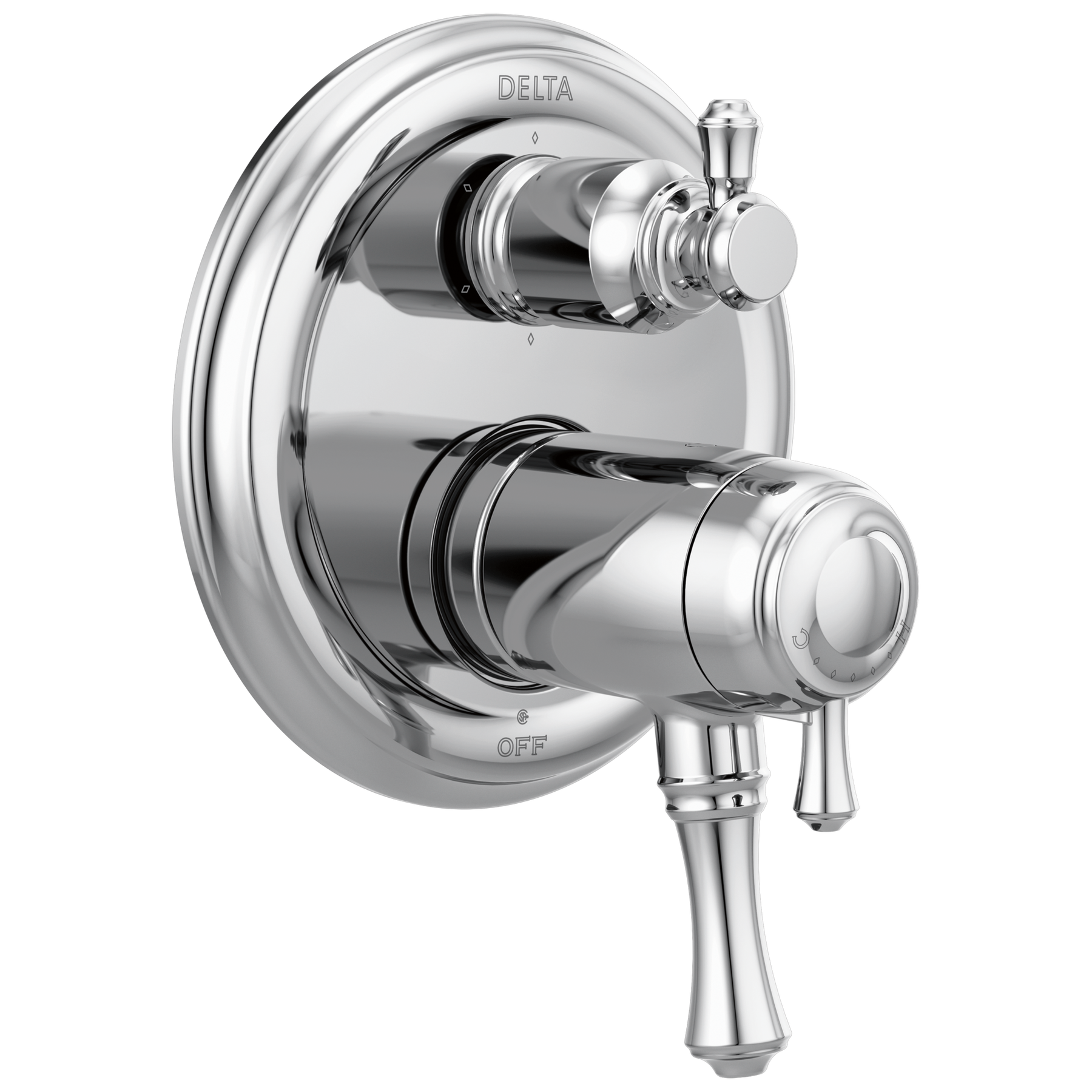

Traditional 2-Handle TempAssure® 17T Series Valve Trim with 6-Setting Integrated Diverter in Chrome

Model#: T27T997
Add to Favorites
Find local Delta® installers.
Delta®
Traditional 2-Handle TempAssure® 17T Series Valve Trim with 6-Setting Integrated Diverter in Chrome
Model#: T27T997
List Price: $98500
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The traditional round style lends a timeless feel to your space. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. Delta's dual-function thermostatic valve cartridge keeps water temperature consistent (within 3.6°) by actually measuring and monitoring the temperature of the water. Temperature can be set in order to remain consistent shower after shower.
  • 6-Setting diverter trim
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure Thermostatic cartridge measures and monitors the temperature of the water and automatically adjusts to maintain a more precise water temperature
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Overall Height (in.) :
8-1/32
Valve Type:
Dual-function thermostatic cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Why is a tub spout application not recommended.

I am trying to understand why one of the outputs on this valve can not be a tub spout. I love the idea of temperature, flow control and diverter in one unit. Please advise. Thanks.
Asked by: PeggySue
Hi PeggySue, Thank you for your question. We do not recommend to connect a tub spout to a diverter valve because flow will be reduced. To get the full flow rate from the tub spout, it should be connected to the bottom port of an R10000 valve. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-03-21

You do not recommend connecting a tub spout to one of the ports due to reduced flow rate - what is the difference in flow rate if the tub spout IS connected to this unit vs. the recommended R10000 valve? Is flow rate the only concern?

Asked by: Divertthermvol seeker
Hi Divertthermvol seeker, Thank you for your question. This valve is not designed to be used with a tub spout. However, you may connect a non-diverter tub spout to one of the diverter ports as a temperature tester. Since the flow rate from the spout would be lower than a standard installation, we do not recommended to use it as a tub filler. The flow rate at 80 PSI is between 5.6 gpm and 7.4 gpm depending on the series of trim/cartridge used. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Is Delta 17T available in Polished Nickel

Asked by: Suttles Plumbing
Hi Suttles Plumbing, Thanks for your question. This model is available in Chrome, Venetian Bronze, and Stainless Steel. We do not currently have a valve trim with an integrated diverter in the Polished Nickel finish. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-04-20

If you have three components, A, B, and C, do I understand correctly that the six possible settings are A alone, B alone, C alone, AB, AC, BC, but that there is no option for all three ABC at the same time?

Asked by: Randy
Hi, Randy! Thank you for your question. The T27T997 6 setting diverter trim has 3 individual settings and 3 shared settings. The 3 shared settings have two shower components on at the same time. There is not a setting to have three on at once. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Would this diverter work with the 17 T/18T Lahera series? We have the traditional, the handheld, and we added rain shower. Plumber initially suggested above 3 way diverter would work; now say we need: You need Delta 6 setting diverter cartridge PR51919

Asked by: ManeNick
Hi, Thank you for contacting us. We apologize for any inconvenience with your Delta Faucet Company product. I am also more than happy to have this opportunity to help you. The 3-way is for 2 products such as a shower head and a hand held. When there are more than 2 products it would require the 6-way. Please contact us back if you have any questions or if you need further assistance you may call us at 1-800-345-3358. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Thank you for your cooperation. Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2024-03-28

What is the diameter of the trim? I am replacing an existing shower head, etc and do not want to replace the marble if possible.

Asked by: LouL
Hi, LouL! Thank you for your question. The T27T997 escutcheon plate has a 7" diameter. You can view this here: https://media.deltafaucet.com/SpecSheet/DSP-B-T27T897%20Rev%20D.pdf Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

What exactly to the settings (3 or 6) control on the diverter? Can it be used for 2 shower heads and allow full flow to both?

Asked by: Stan
Dear Stan, Thank you for you inquiry. The Delta Traditional TempAssure 17T Series Valve Trim with 6-Setting Integrated Diverter T27T997 would used if you are install three different showering units. If you are just installing two shower heads, you would want the T27T897 model. This will allow you to use each showerhead by itself and then both at the same time, with their full flow rates. Best regards, Tanya
Answered by: Tanya
Date published: 2016-10-17

are all parts (except rough in) of theT27T997 valve trim (knobs, escutcheon plate, etc) made of metal (brass) or does it have plastic parts?

Asked by: Peter
Thank you for your question, Peter! The Delta model T27T997 valve trim is composed of brass. The handles are composed of a proprietary mixture of both metallic and non-metallic components to ensure a long lasting, durable model. Please know that all of our products undergo rigorous tests to ensure long-lasting use and are made with high-grade quality materials. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_en_US, sid_T27T997, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 44ms
  • questions, product
PART LIST

PART LIST

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

1.80 5
Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-RP47201 Secondary Image-RP47201

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17T Series

List Price: $600.40
Online Price: $480.32
Free Ground Shipping All Orders $49+

RP47201

2.03 34
Image-Master-RP84930

Cassidy®

Cassidy® Set Screw & Button - Diverter Handle - Integrated Series

List Price: $20.15 - $31.65
Free Ground Shipping All Orders $49+

RP84930

Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-Master-RP84931

Cassidy®

Cassidy® Metal Lever Handle - Diverter - Integrated Series

List Price: $93.20 - $144.50
Free Ground Shipping All Orders $49+

RP84931

Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-Master-RP84922

Cassidy®

Cassidy® Temperature Knob & Cover - T17T Integrated Diverter

List Price: $42.95 - $96.30
Free Ground Shipping All Orders $49+

RP84922

Image-Master-RP84924

Cassidy®

Cassidy® Trim Sleeve - Integrated Diverter

List Price: $35.90 - $61.05
Free Ground Shipping All Orders $49+

RP84924

Image-Master-RP90544

Delta®

Delta® Extension Kit 17T Integrated Diverter

List Price: $297.50 - $360.80
Free Ground Shipping All Orders $49+

RP90544

Image-Master-RP84929

Cassidy®

Cassidy® Set Screw & Button - Volume Control Handle - T27T Series

List Price: $20.15 - $27.85
Free Ground Shipping All Orders $49+

RP84929
