Single Handle Pull-Down Kitchen Faucet in Lumicoat® Polished Nickel
Model#:
9197-PN-PR-DST
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
null
null
null
null
PRODUCT FEATURES
Kitchen sink faucets with Touch-Clean® Spray Holes allow you to easily wipe away calcium and lime build-up with the touch of a finger. Delta® ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn messes while an innovative shield of water contains splatter and clears off the mess, so you can spend less time soaking, scrubbing and shirt swapping. Delta® Lumicoat™ Finishes are guaranteed to resist water spots and mineral buildup and easily wipe clean without the need for cleaners or chemicals. The ultra-sleek surface repels liquids, resisting water spots and staying cleaner longer, so your faucet stays beautiful. Delta® kitchen faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. Kitchen sink faucets with Touch-Clean® Spray Holes allow you to easily wipe away calcium and lime build-up with the touch of a finger. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.

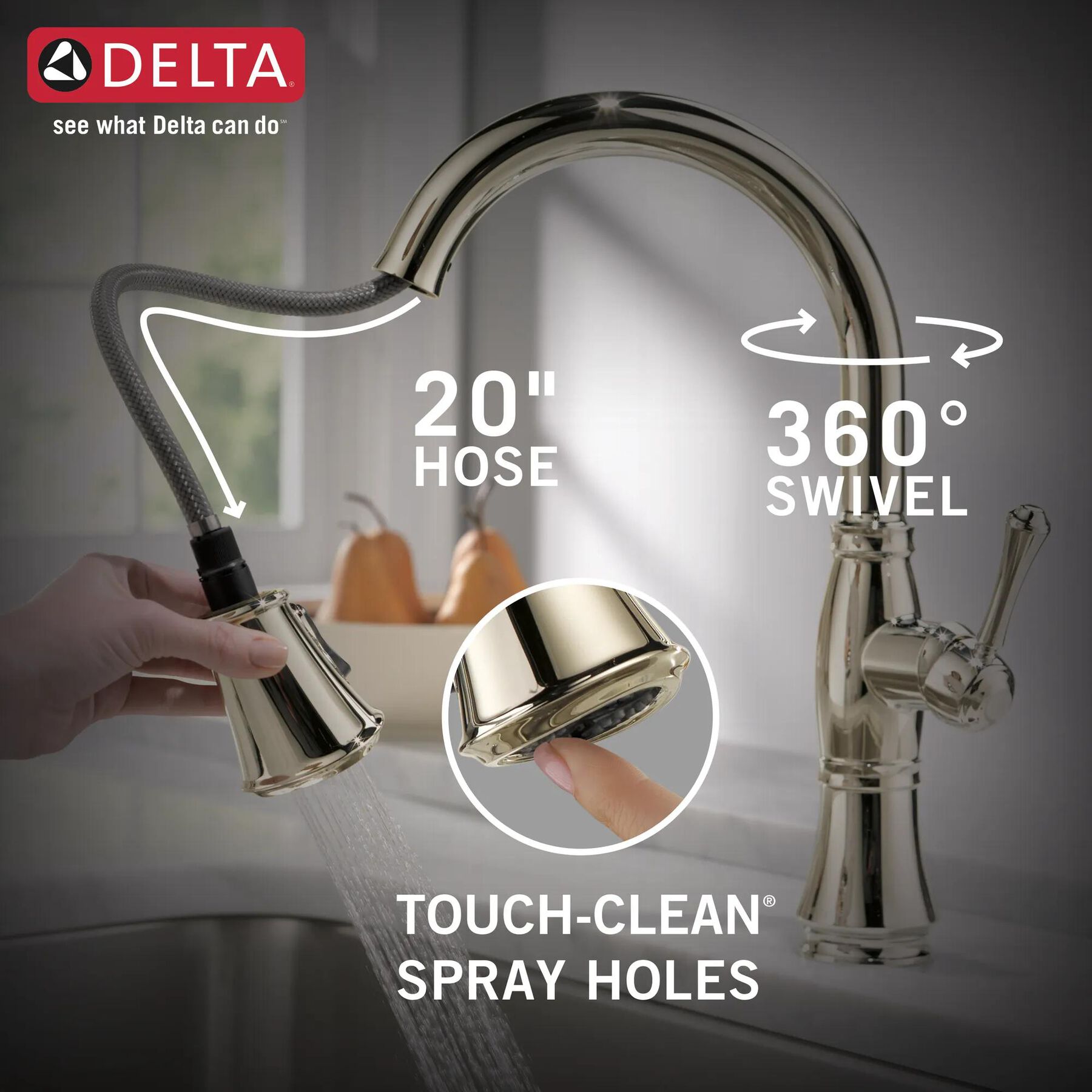

- FULL-RANGE, FLEXIBLE REACH: High-arc kitchen faucet swivels 360° with a 20-inch retractable hose for easier cleaning, filling and rinsing around the sink

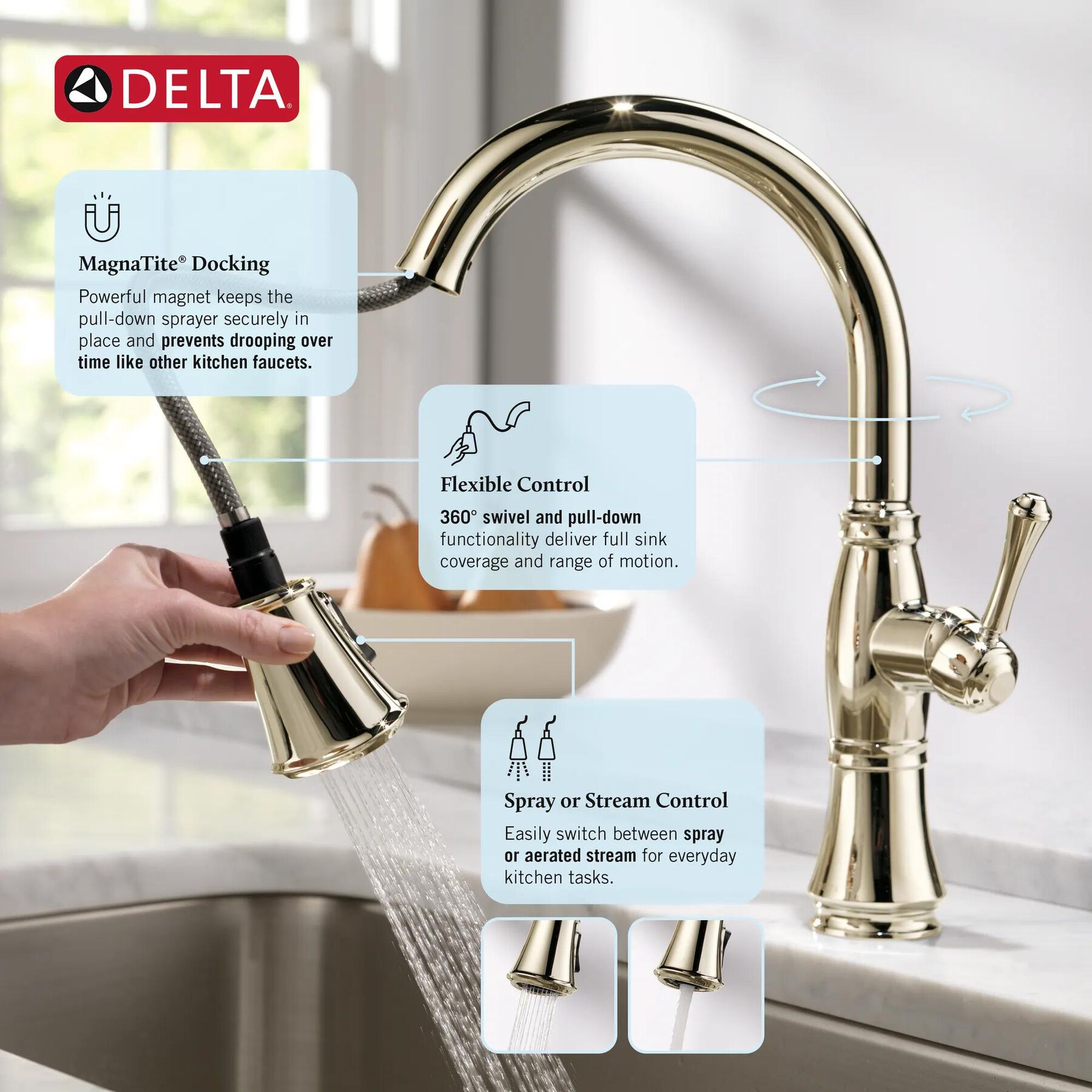

- MAGNETIC DOCKING SPRAYER: MagnaTite® Docking uses a powerful magnet to keep your pull-down kitchen faucet sprayer securely in place and prevent drooping over time
- LEAD-FREE COMPLIANT: Not all faucets are certified to necessary safety standards. Delta goes above and beyond with product testing and quality to ensure each faucet meets plumbing safety standards, including NSF/ANSI 61 and 372
- LASTS 2X LONGER: Patented DIAMOND Seal® Technology reduces leak points and lasts 2X as long as the industry standard for long-lasting, leak-free performance (Industry standard based on ASME A112.18.1 of 500,000 cycles)
- LEAK-FREE SUPPLY LINES YOU CAN TRUST: Delta® PEX supply lines are tested to withstand 20% more extreme pressure for 1,000 hours without leaking—far beyond plumbing standards
- EASY INSTALLATION OPTIONS: This kitchen sink faucet fits 1 or 3-hole configurations and includes integrated InnoFlex® PEX supply lines for faster installation; optional deck plate available separately

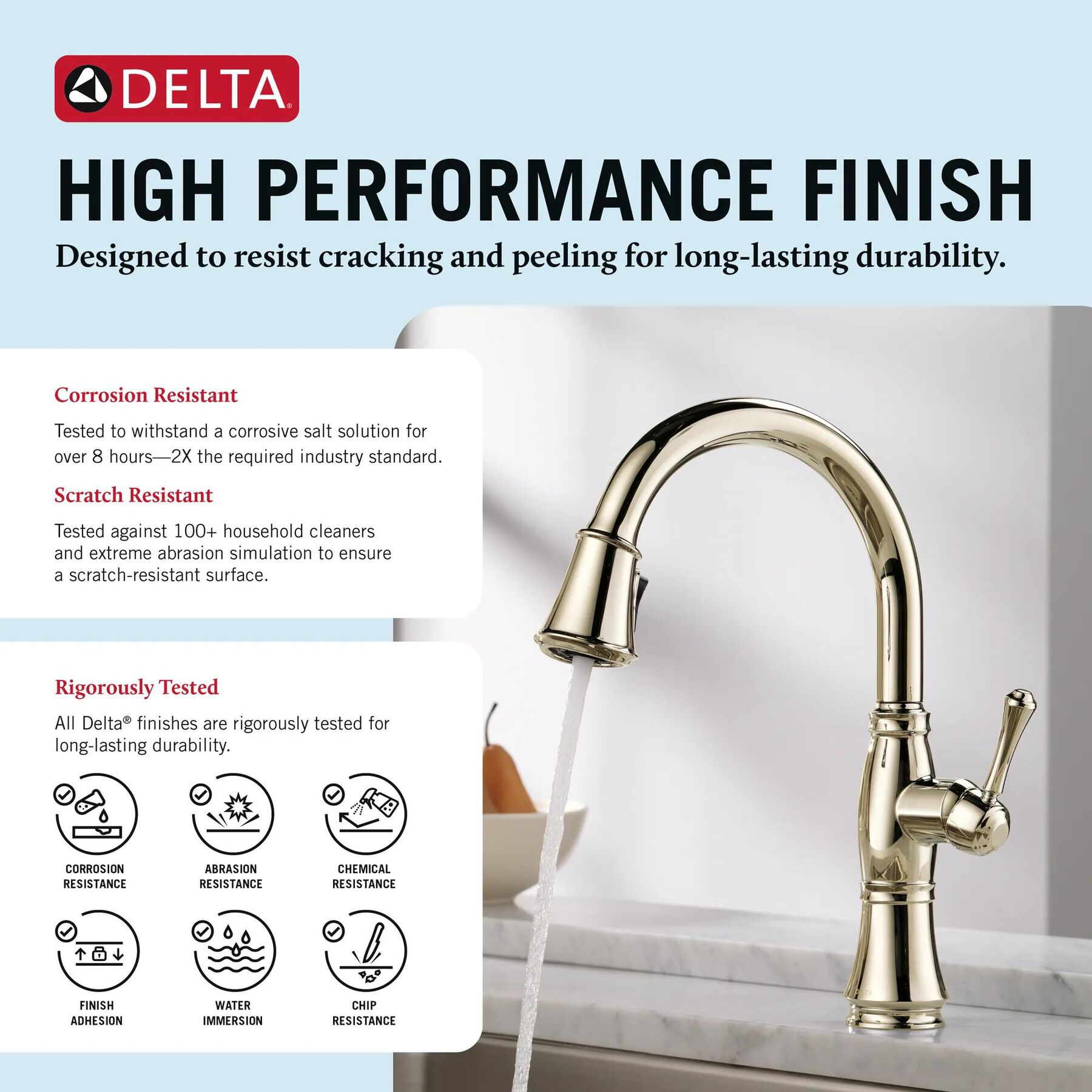

- CORROSION-RESISTANT FINISH: Our Lumicoat® finishes are intentionally engineered for durability and tested for corrosion resistance to at least 2 times industry standards
- QUICK-CLEAN SPRAY HOLES: Touch-Clean® spray holes let you easily wipe away calcium and lime buildup with the touch of a finger

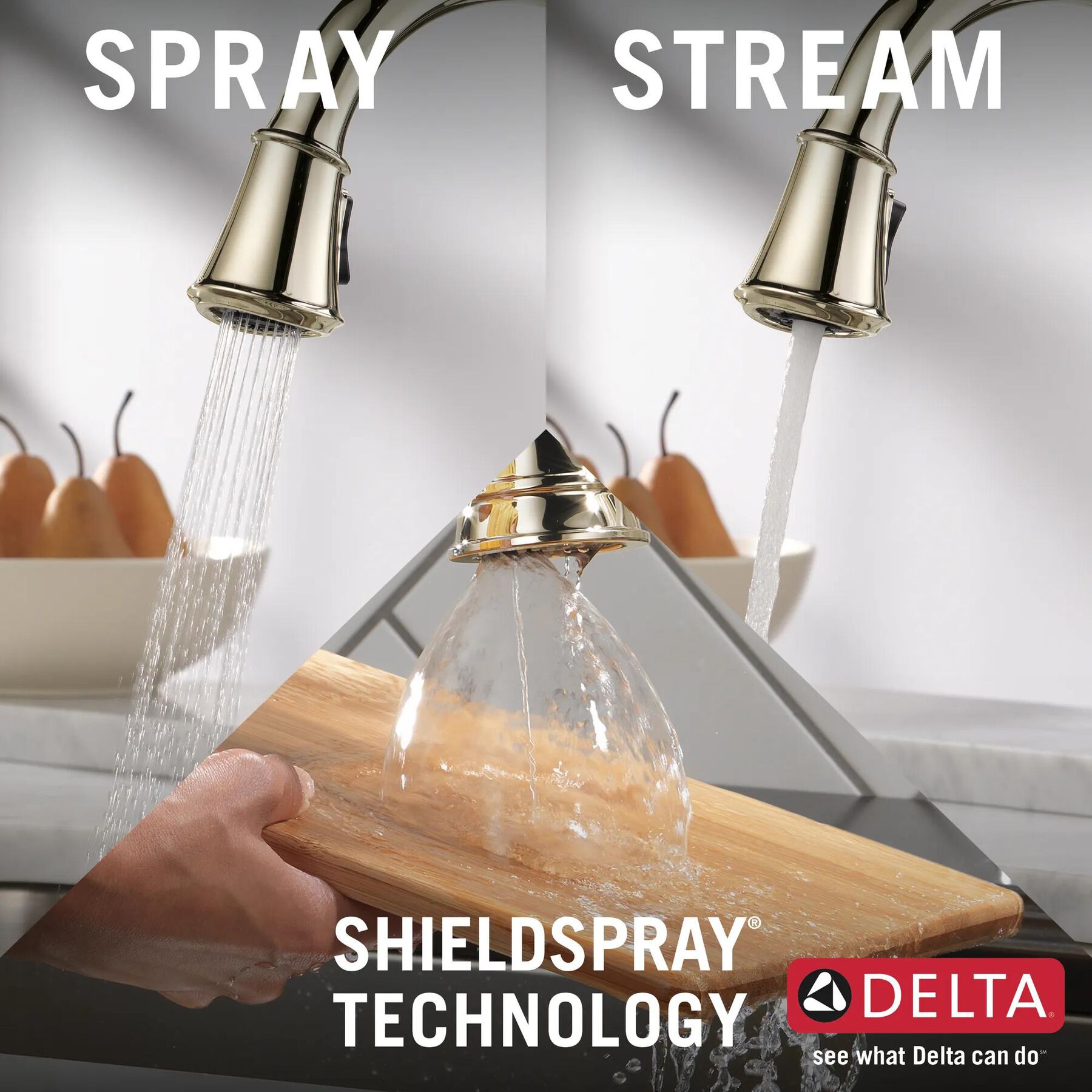

- POWERFUL SPRAY TECHNOLOGY: ShieldSpray® Technology cuts through stubborn messes with a powerful stream of water inside a protective sphere that contains the splatter, so you can spend less time soaking and scrubbing with an average of 90% less splatter than a standard spray
- LIFETIME LIMITED WARRANTY: Designed for lasting reliability and backed by Delta Faucet Company's Lifetime Limited Warranty
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Water-Efficient
Water-Efficient
CalgreenCert Tooltip information here...
Diamond Seal® Technology
Diamond Seal® Technology
DIAMOND™ Seal Technology is Delta’s revolutionary new water delivery system. An internal contact surface made up of tiny diamonds makes the valve leak-free and extraordinarily durable. It also keeps water free of contact with potential metal contaminants.
ShieldSpray®
ShieldSpray®
ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn remnants of food while an innovative shield of water surrounds the jet and mess to keep the splashing contained, so you can spend less time soaking, scrubbing and shirt swapping.
MagnaTite® Docking
MagnaTite® Docking
The pull-down spray head utilizes a powerful magnet which keeps the wand securely in place when not in use. No more dangling!
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
1 or 3-hole 8" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Overall Height (in.) :
15-1/2
Valve Type:
Euromotion DIAMOND(TM) Valve
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Q&A
We recently got this faucet and when you switch the button from spray to stream and vice verse it still drips or sprays a little of the opposite option. If I go and push the button harder it will fix the problem. I’m concerned that eventually it won’t.
Hi, Annette!
Thank you for your question. If the sprayer assembly is experiencing cross flow, water coming out of both spray and stream on the sprayer of the 9197-DST, we recommend to soak the sprayer in a solution of 50% white vinegar and 50% water solution for an hour or even overnight. If this does not solve the issue, we recommend to replace the sprayer assembly, RP72680. If you should need assistance with a replacement, please contact our Delta Customer Service line at (800)345-3358. We are available Monday-Friday, 7am-7pm, CST and Saturday, 8am-5pm, CST. You may also email at customerservice@deltafaucet.com.
Best Regards,
Rosanna
Date published: 2024-03-28
How do I disassemble to clean the sprayer? It seems to have hard water clog, the spray is all over the place and the pressure is low.
Hi, Jill!
Thank you for your question. The sprayer can be unscrewed off of the hose. You can soak the whole sprayer in a solution of 50% white vinegar and 50% water solution. You can soak from an hour or even overnight to clean.
Best Regards,
Rosanna
Date published: 2024-03-28
i like the style of this product, but some reviews suggest that its too big for a 24" wide sink. Is there a smaller similar product?
Hi Ronnie,
Thank you for your question. We do have a smaller Bar/Prep version of this faucet available, the 9997-DST.
http://www.deltafaucet.com/kitchen/details/9997-dst.html
Best regards,
Jon
Date published: 2024-03-28
Can someone tell me the vertical distance (space) between the valve and the sink / escutcheon?
Our dishwasher air gap is mounted just a few inches from the hole for the faucet. It's been heck trying to find a faucet that has a right-side control lever that doesn't interfere. This model appear to have a higher mounted control lever but I can't find the measurement in the specifications.
Hi Reverberocket, Thank you for your question. The measurement from the deck to the bottom of the handle assembly/valve on the model 9197-AR-DST is approximately 4-1/2".
Thanks,
Dave
Date published: 2024-03-28
When did delta come out with diamond tech. In it,s kitchen faucets?
Fixer,
Thank you for your question! We began manufacturing faucets with Diamond Seal Technology in 2009. For more information about DST, please click the link below.
https://www.deltafaucet.com/design-innovation/innovations/kitchen/diamond-seal-technology
Best regards,
Jon
Date published: 2024-03-28
Which finish looks better with a stainless sink - Arctic Stainless or Polished Nickel?
I am having a difficult time being able to decide based on the online images which of these finishes will look better with a stainless sink. Any advice?
Dear Julie,
Thank you for your question. The Arctic Stainless finish will match a stainless sink better than the Polished Nickel finish. Please click the link below to see a color sample side by side.
https://www.deltafaucet.com/service-parts/faq/faq-tablist-area/tabularlist/other/faq-item-14#answer-bcae231e-bdf4-49d9-aeac-b8f58ea59629
https://www.deltafaucet.com/design-innovation/inspiredliving/finish-vs-finish
Best regards,
Tanya
Date published: 2017-08-08
What type of metal is used and where?
I have searched all the Q&A answers, and although a couple of people asked what the faucet is made of, the answers given are not specific enough. Exactly what type of metal is used- Brass? Zinc? Zamak? What parts are metal and what parts are plastic? Your website conveniently (actually inconveniently) leaves out all details regarding material which is not a good sign for anyone looking for a quality faucet.
Hi DG,
Thank you for your question. The faucet body, spout, and handle are metal. Unfortunately, we do not have a complete breakdown of the materials used. In general, metal parts are usually brass (hub, handle, body, tube, fittings), zinc (escutcheon, hub, handle), or stainless steel (set screw, undercover plate).
Best regards,
Jon
Date published: 2017-07-14
In catalog, there's a black ring at the base of the Cassidy. Your website photo doesn't show this. What is/was function of this? What material is it?
Dear NH Dreaming,
Thank you for your inquiry! The Delta Cassidy Pull-Down Kitchen 9197-DST faucet doesn't come with a black ring or base parts. However, we do manufacture a Cassidy Pull-Down Touch2O Technology 9197T-DST faucet that has a black non-metallic LED base.
https://www.deltafaucet.com/kitchen/product/9197T-DST
Best regards,
Tanya
Date published: 2017-06-17
