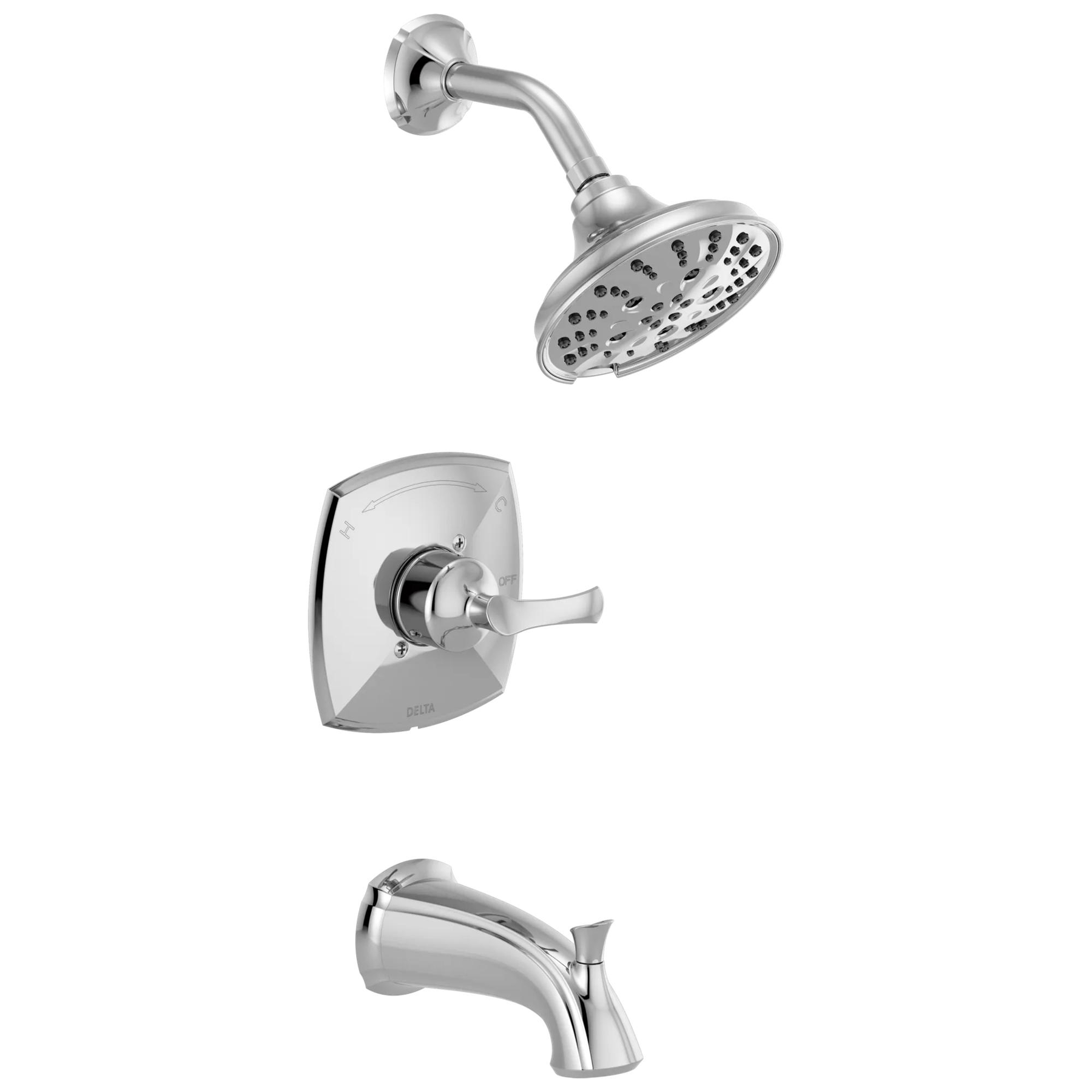

Monitor® 14 Series Tub & Shower Trim in Chrome

Hello Michael, Thank you for your question! The cartridge assembly that comes with the Delta Sandover Tub and Shower 144748 faucet has a Rotational Limit Stop, which can be adjusted to allow for less or more hot water. However, at the hottest setting the handle will rotate to about the 10 o'clock position. For help adjusting the RLS, please refer to page 8-9 of the Maintenance/Installation document linked below. https://media.deltafaucet.com/MandI/72264%20Rev%20G.pdf Best regards, Tanya

Thank you for your question, Tony! The diverter is built into the tub spout on model 144748-SP. If you do not want to install the tub spout, you can plug the bottom port on the R10000-UNBX rough in body. Best Regards, Benjamin

Hi, Marisa! Thank you for your question. The Delta Monitor 144748-SP Tub and Shower Faucet will match our Stainless Steel finish bath waste assembly, RP693SS. Here is a link to this option: https://www.deltafaucet.com/bathroom/product/RP693SS Best Regards, Rosanna

Thank you for your question, Michael! The shower head included with model 144748-SP, can be ordered separately. The model number for that shower head is 52669-SS. I have included a link to the model's web page, for your own reference. https://www.deltafaucet.com/bathroom/product/52669-SS Best Regards, Benjamin

Hi Brian B, Thank you for your inquiry! Most likely you are experiencing "shower-rise," where the water can’t get out of the spout as fast as it flows through the valve. This causes the water to back up and come out the shower head. There can be one of several reasons for this: 1. The valve could be upside down. 2. The length from the valve to the tub spout is outside of the 8" to 18" rule. 3. There is more than one 90-degree angle. 4. Something other than copper or galvanized pipe going to the spout was used. 5. The most common reason is that there is something restricting the water flow to the spout (for example, solder or something lodged in the pipe). Something is impeding the flow of water to the spout and causing it to back up and go out of the shower head. If this is the cause of shower-rise, it is possible to remove the blockage by removing the tub spout, and then feeding a plumber’s snake or a speedometer cable up through the tub drop. The act of feeding it causes it to twirl and loosen the blockage. Be sure to flush the valve before reinstalling the tub spout. Be sure to check the tub spout itself for blockage. If none of these help, you may need to call a plumber. After the shower has been installed and the wall has been closed, there is little that can be done to remedy this situation yourself. Please feel free to call, email, or message us on social if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet

Hi, Julia! Thank you for your question. At this time, the Delta Monitor 144748-SP Tub and Shower Unit is not available as a shower-only unit. We do apologize for any inconvenience this may cause. Best Regards, Rosanna

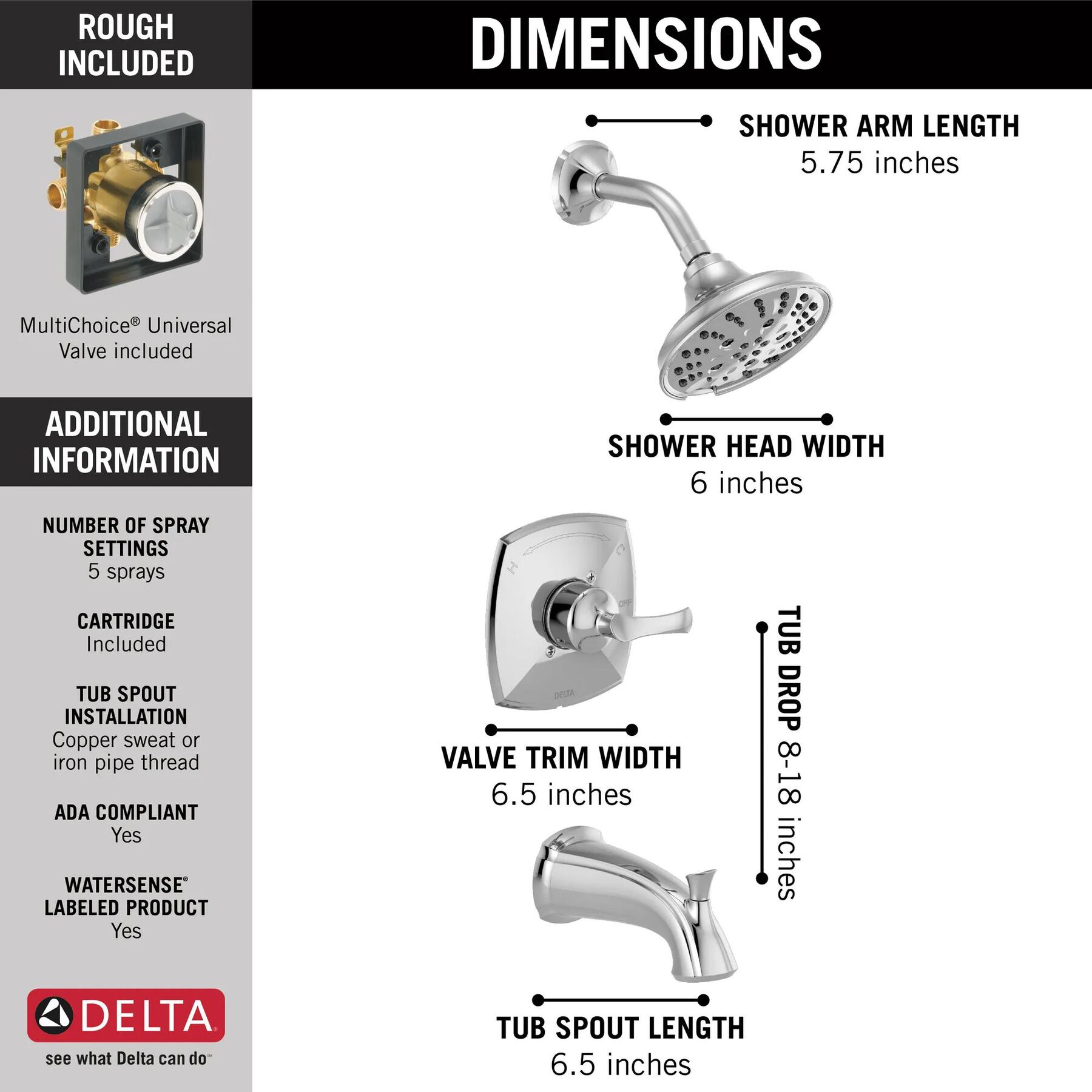

Hi, tkon8th! Thank you for your question. The Delta Monitor 144748-BL Tub Spout Assembly can be sweat onto 1/2" CWT - 1/4" to 1" from wall surface or thread onto 1/2" IPS nipple 5/8" to 1 5/8" from wall surface. Best Regards, Rosanna

Hello, Thank you for your question! Unfortunately we do not offer an escutcheon that will allow you to update to this trim kit and cover both holes left by the previous handles. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
