Foundations®
View Full Foundations® Bathroom Collection

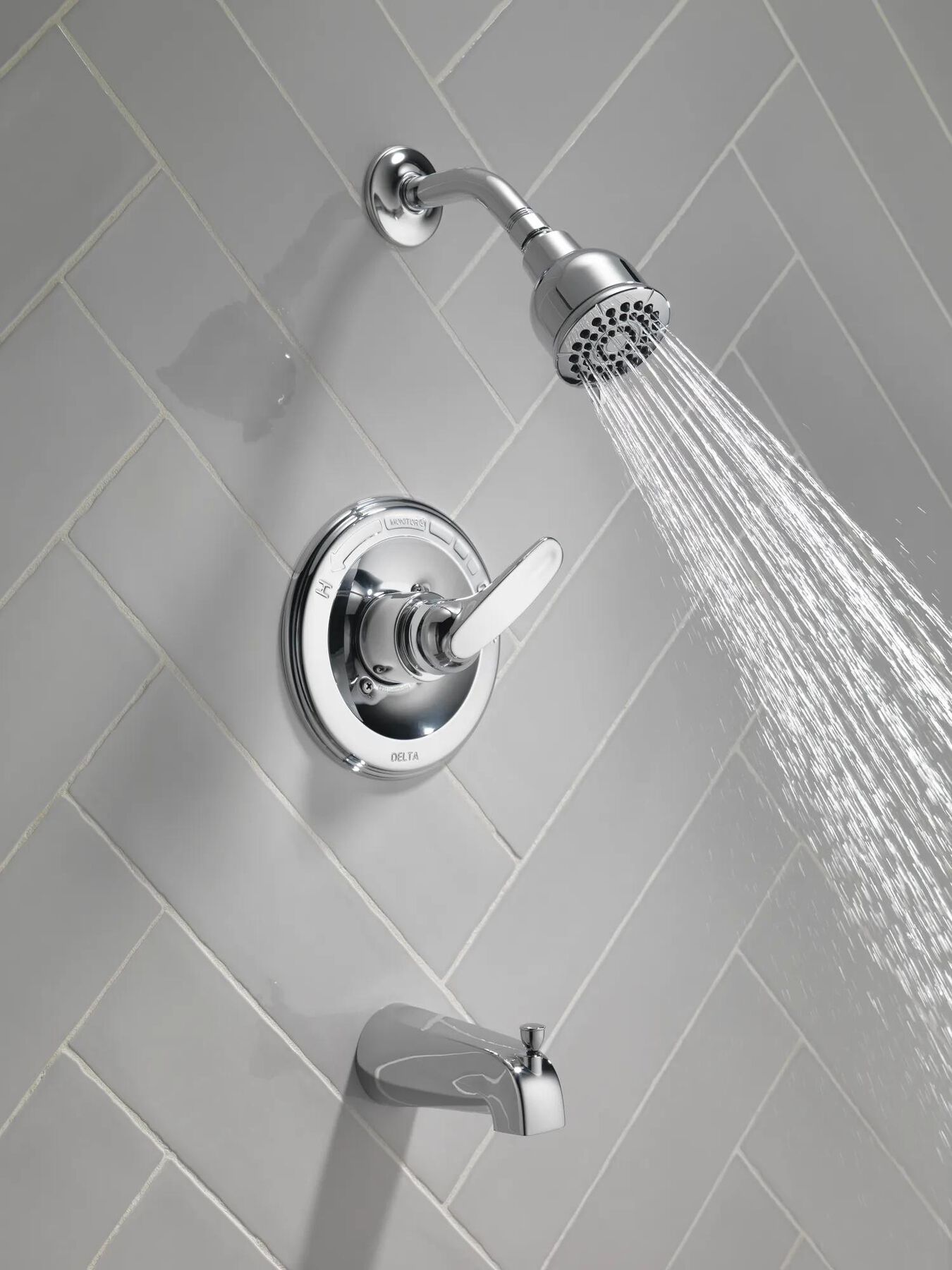

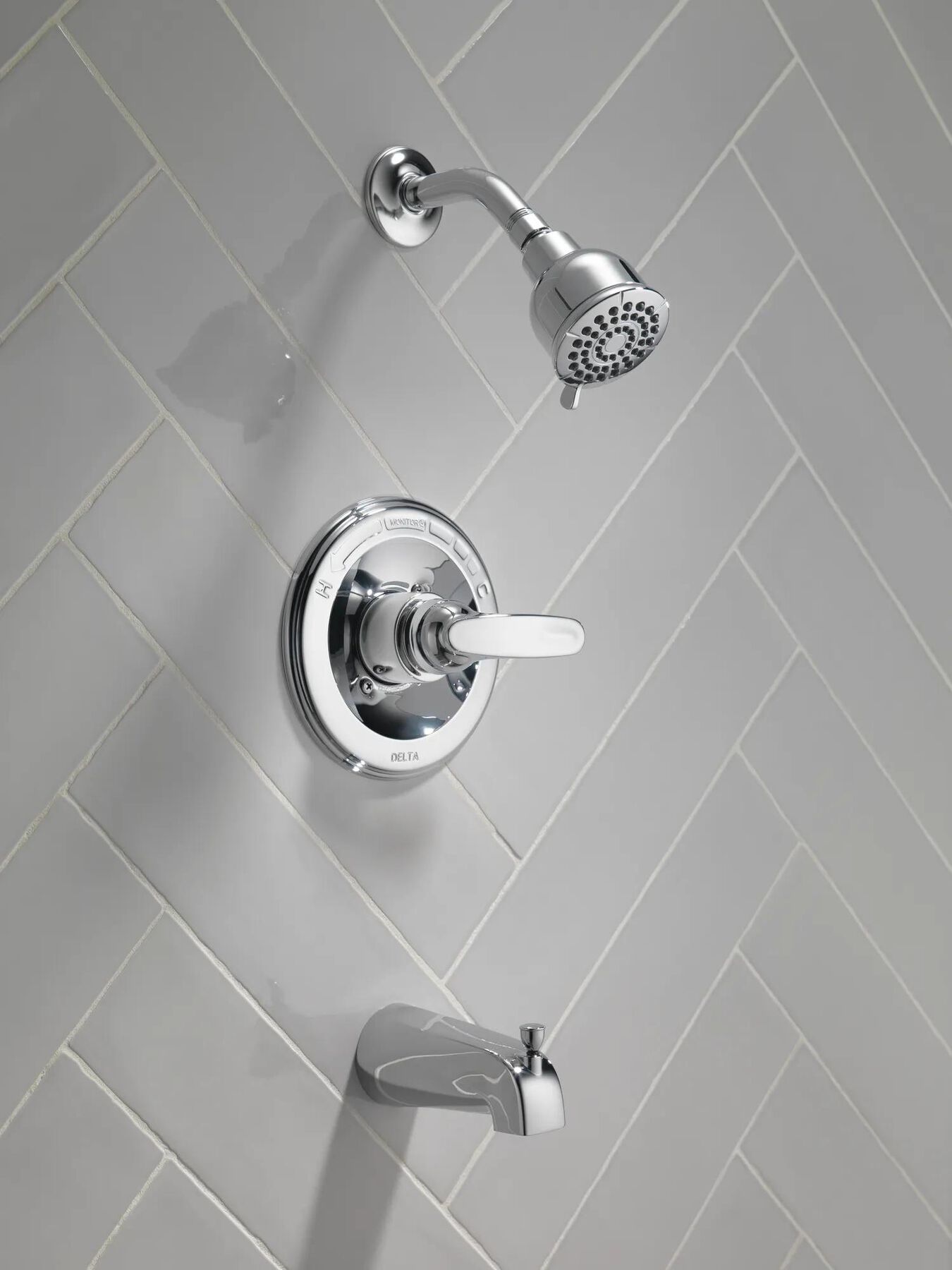

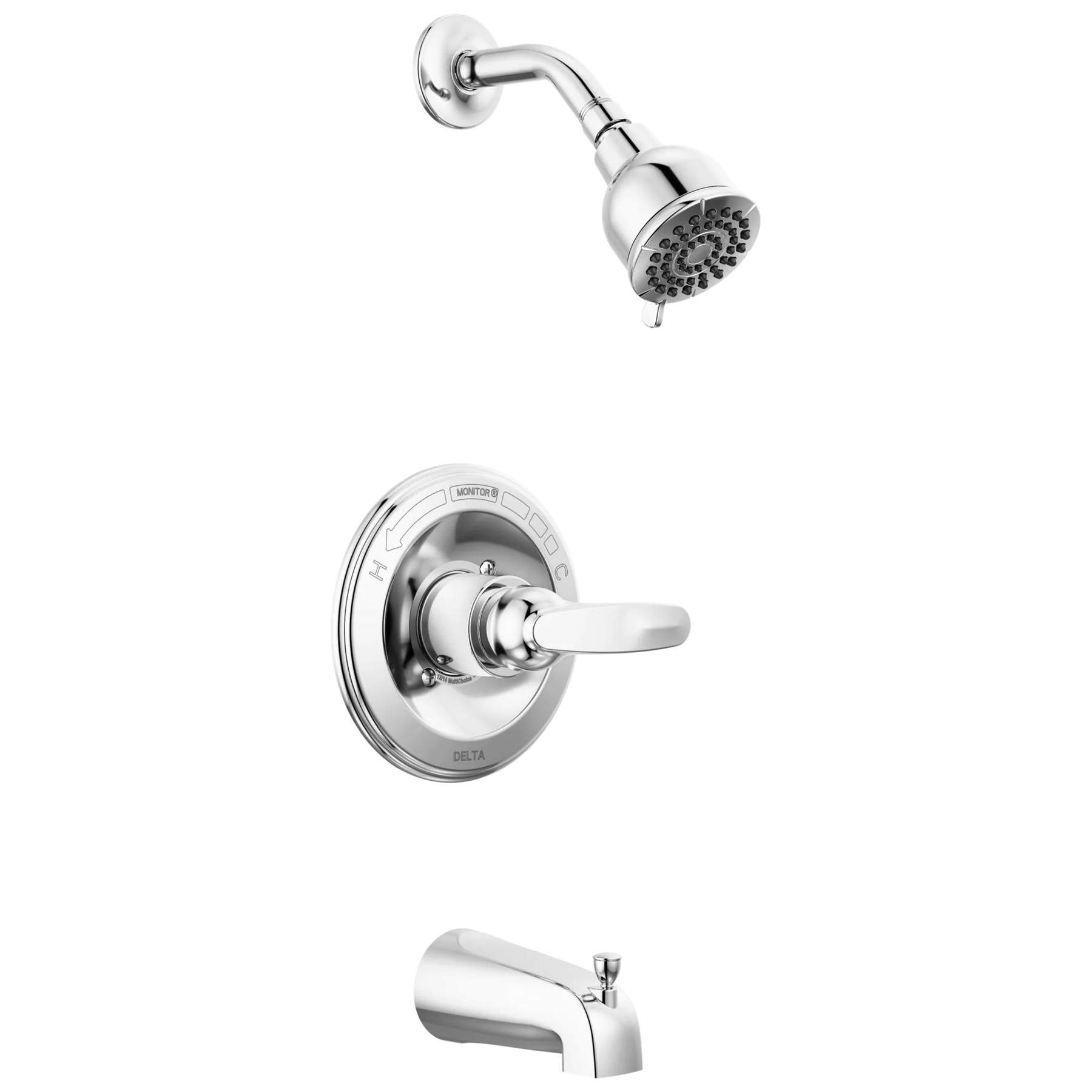

Monitor® 13 Series Tub & Shower Trim in Chrome

Model#: BT13410
Add to Favorites
Find local Delta® installers.
Foundations®
View Full Foundations® Bathroom Collection
Monitor® 13 Series Tub & Shower Trim in Chrome
Model#: BT13410
List Price: $13925
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings: Full spray and Soft spray
  • Full spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles
  • Pull-up tub spout diverts water from the tub spout to shower head
  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Stem extension kit RP77991 can be ordered for an additional 1 3/4 inch wall thickness
  • Back-to-back installation capability
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • ADA compliant
  • Backed by Delta Faucet's Limited Lifetime Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

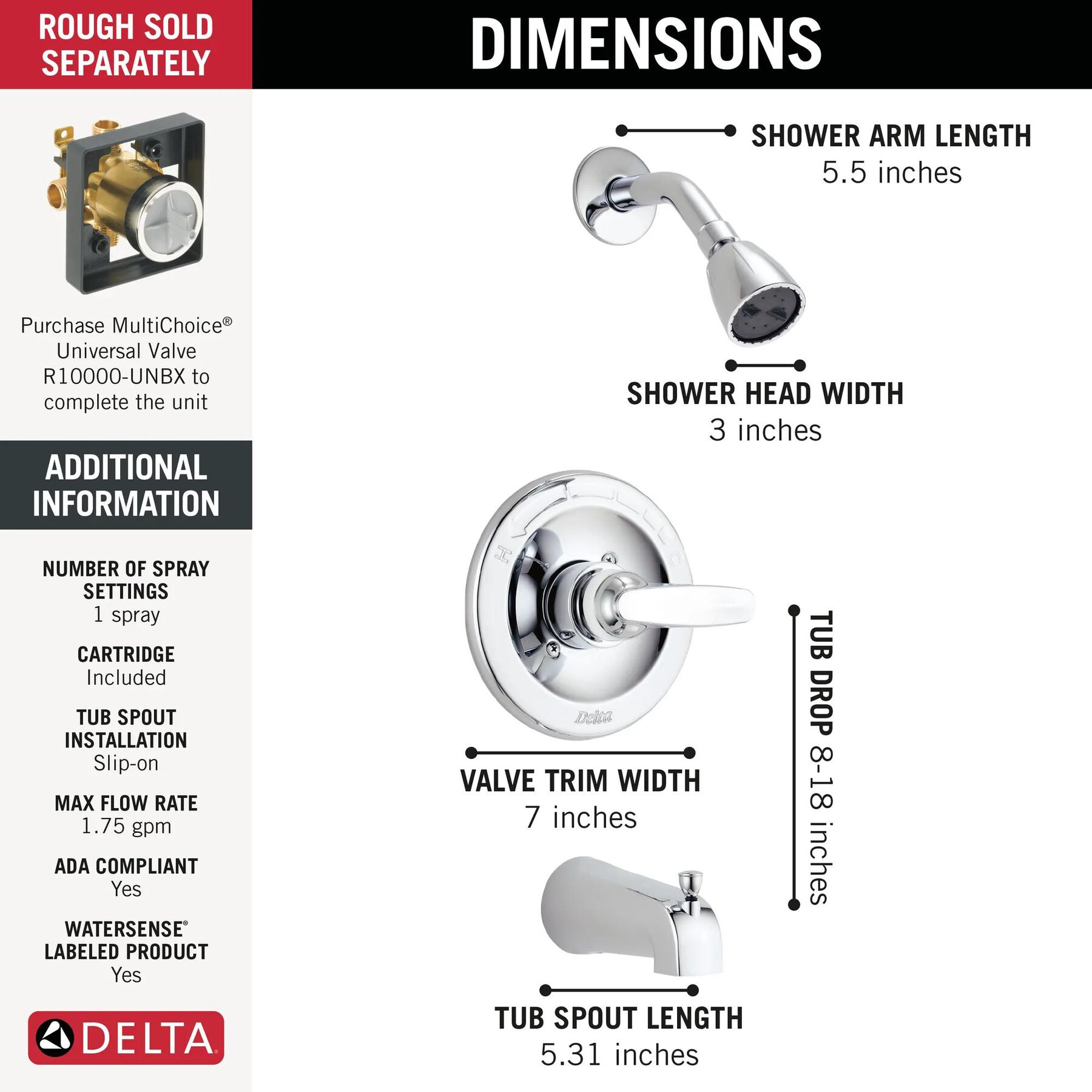

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
11-31/32
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Changes not documented in instructions They changed the mounting of the tube spigot but they didn't update the instructions to reflect the new type. Its a piece of garbage!!
Date published: 2025-07-07
Rated 3 out of 5 by from - tub spout does not tighten completely.
Date published: 2023-08-18
Rated 3 out of 5 by from Handle falls off We bought this set up for our bathrooms. Everything was easy to install and hook up aside for the knob to turn water on and off. It falls off after tightening down
Date published: 2022-05-31
Rated 2 out of 5 by from It works It works i just don't like how loose the on off part is. It feels like it could come off in my hands at any time. It feels like it is cheaply made.
Date published: 2022-03-25
Rated 5 out of 5 by from Some install I bought this about 2 weeks ago and it was probably the easiest one I've ever installed and works like it should my water pressure is a tad bit lower now but it's okay
Date published: 2021-04-18
Rated 2 out of 5 by from broken valve cartridge I have bought 2 sets of the one handle bath faucets Model Number B114915C . The valve cartridge has broken on the 2nd set as well. Last time I was sent a cartridge for free to repair. I need another one for this set. Too expensive to be replacing this often and a pain!
Date published: 2020-06-25
Rated 4 out of 5 by from HAD 2 REPLACE IT SO THE PLUMBER SAID 2 GET A DELTA SO FAR SO GOOD. I HAD 2 GET A REPLACEMENT FOR MY OTHER MODEL. THE PLUMBER SAID THAT DELTA STANDS BEHIND THEIR PRODUCTS
Date published: 2020-05-31
Rated 1 out of 5 by from Pretty but not functional I purchased 3 of these for a new construction, each one has had a problem. For the bath shower combo the the water is not separated. Water flows out of the top and bottom. Have no idea how to make this stop. Seems like they would be set up to work without adjusting. Very dissatisfied with this delay on the job.
Date published: 2020-05-03
  • y_2026, m_6, d_18, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_38
  • loc_en_US, sid_BT13410, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Can I use this trim with the #58470 in2ition h2okinetic shower/handshower?

Asked by: SCmom
Hi SCmom, Thank you for your question. You sure can! Any Delta shower head will work with this trim. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

I have the delta tub and shower B114900. I am trying to install the tub spout onto a 1/2" copper pipe that is 4" from my wall. It will not push flush to the wall. There is a 3/4" gap. Do I need to cut the copper pipe to 3 1/4"?

Asked by: dbrinton
Dbrinton, Thank you for your question. For a slip-on installation, the pipe should extend 1-1/2" to 2-3/4” from the finished wall. Threaded installations require a 3-7/8" to 4” pipe. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Do all shower/bath faucet kits come with the cartridge to insert in the Delta Multichoice rough-in?

Asked by: chad
Hi, Chad! Thank you for your question. All of our Delta Shower Bath Trim Kits do include the needed valve cartridge assembly to install with the trim and valve body. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

does this come in black matte

Asked by: colefest
Hello, Thank you for your question! Unfortunately this model is not available in that finish. However, please see the following link for our tub and shower trim kits that are available in the matte black finish. https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?cgid2=Delta_Bathroom_Showering_Tub-and-Shower-Faucets&prefn1=clearance&prefv1=false&prefn2=finish&prefv2=Matte_Black&prefn3=narrowResults&prefv3=hideDiscontinued&prefn4=recertified&prefv4=false&srule=price-low-to-high Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-06-19

Need replacement cartridge for Delta Foundations B114915C.  States lifetime warranty.

Asked by: Seeweed47
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-01-10

Does this kit come with the cartridge?

Asked by: naldo8552
Thank you for your question, naldo8552! Yes, this trim kit includes the cartridge assembly. The R10000 rough-in valve is sold separately. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

Can I weld my copper pipe inside the manifold

Asked by: Chris
Hi, Chris. Thank you for your question. We do not recommend welding the copper pipe inside the manifold for the Delta B114915C Tub and Shower Unit. We recommend reading the instructions before installing. Here is a link to the Maintenance & Installation Sheet for the faucet: https://media.deltafaucet.com/MandI/101650%20Rev%20B.pdf Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Does the cartridge come with it. If not, which cartridge ?

Asked by: Phyllis
Hi, Phyllis! Thank you for your question. The Delta B114915C does include the RP70538 Valve Cartridge Assembly. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_18, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_78
  • loc_en_US, sid_BT13410, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 20ms
  • questions, product
PART LIST

PART LIST

Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP64722

Foundations®

Foundations® Tub Spout - Non-Diverter

List Price: $75.60 - $111.30
Free Ground Shipping All Orders $49+

RP64722

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.24 105
Image-Master-RP64721

Foundations®

Foundations® Tub Spout - Pull-Up Diverter

List Price: $71.25 - $121.30
Free Ground Shipping All Orders $49+

RP64721

Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-Master-RP64772

Talbott™

Talbott™ Stem Unit Assembly, Seat and Spring, Bonnet Nut & Washer

List Price: $42.80
Online Price: $34.24
Free Ground Shipping All Orders $49+

RP64772

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS2-FD6101
Only at Online Retailers

Foundations®

Foundations® Tub Shower Trim with Universal Rough Bundle - 13 Series

List Price: $227.45 - $257.15
Standard Finishes

FVS2-FD6101

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
