Trinsic®

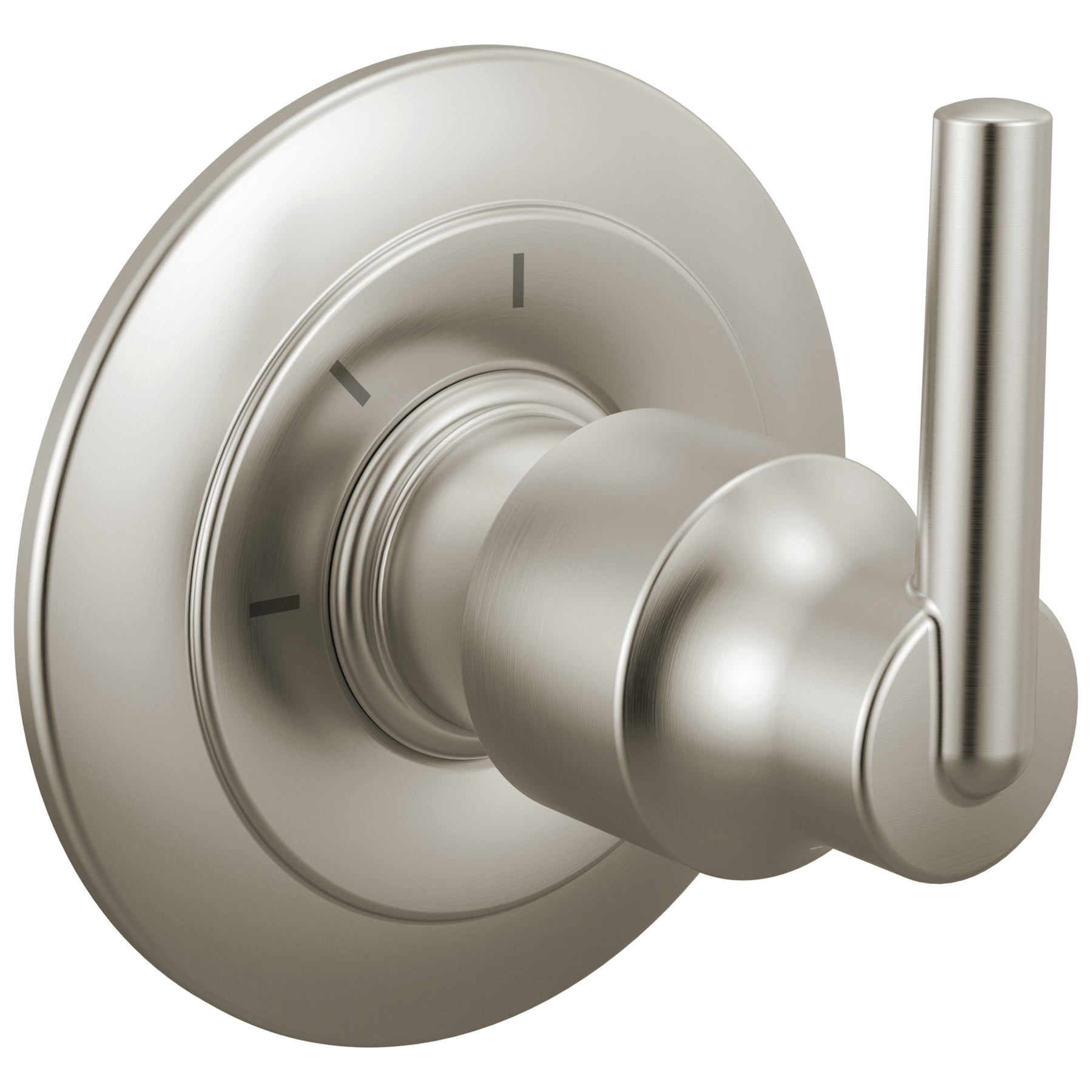

3-Setting 2-Port Diverter Trim
Model#: T11859-SS
Finish: Stainless
List Price*: $224.35
PRODUCT FEATURES
  • Includes cartridge
  • 2 individual positions, 1 shared position
  • For use with R11000 diverter rough-in
Special Features
ADA Compliant
ADA Compliant
California Prop 65 WARNING
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Over All Height :
4-7/16
Connection Type :
Universal fittings
PART LIST
REVIEWS
Rated 5 out of 5 by from Delta Trinsic Shower Trim Love this shower trim. Got it in matte black and it is timeless and elegant.
Date published: 2018-11-05
Rated 5 out of 5 by from In my Master Shower - use it every day. Couldn’t be happier The Trinsic line is exceptional quality for good price. Great value. This trim functions smoothly and feels solid and weighted right in your hand as you turn it.
Date published: 2018-11-03
Rated 5 out of 5 by from Great value! Modern design, easy to install and a great value for the cost. I have used this several times in bathroom remodels.
Date published: 2018-11-03
Rated 4 out of 5 by from Just as expected. For our master bath reno we ordered the trinisic shower and hand shower in champagne bronze. It works beautifully and looks beautiful as well.
Date published: 2018-11-02
Rated 5 out of 5 by from Functional and elegant The Trinsic Line added a lot to the design of our new farmhouse bathroom without being too fussy or too old fashioned. The geometry and clean lines kept the look simple, the black added sophistication. We are very happy with the purchase.
Date published: 2018-11-02
Rated 5 out of 5 by from Delta Valve I ordered this Delta Diverter Valve to use in my shower remodel. I am very pleased with it and it looks great!
Date published: 2018-09-22
Rated 5 out of 5 by from So nice I was very surprised at the quality of this product. I didn’t expect it to feel so “heavy duty” It looks really nice and sleek.
Date published: 2018-09-08
Rated 5 out of 5 by from looks nice I purchased this for a new construction - shower. I have not used it yet, but it feels sturdy and looks nice.
Date published: 2018-09-07
  • y_2021, m_1, d_21, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_19
  • loc_en_US, sid_T11859-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Does this come with the trim sleeve?

Asked by: Tom
Hi Tom, Thank you for your question. The RP51917 Trim Sleeve is included with the trim kit. Parts Diagram: https://media.deltafaucet.com/PartsDiagram/DPD-B-T11800.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-12-27

With this diverter, do you still have to pull up on the diverter attached to the downspout to get the shower to work or does this negate that step?

Asked by: lawillis
Hi lawillis, Thank you for your question. We recommend to have the diverter tub spout connected to the bottom port of the R10000 valve. In this setup, water will always flow to the tub spout first. The diverter on the tub spout will then send water to the 3-Setting Diverter. We do not recommend connecting a diverter tub spout to one of the exit ports of the diverter valve. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-06-07

How does the diverter work?

I want to put in a showerhead, bathtub spout, and have a handheld on a drop elbow. Which diverter would I need in order to have water running through both the showerhead and the handheld at the same time but still have the option to turn one off while the other is on. Which rough in would I need too please? Maybe you could explain what "3-setting" and 2-port" mean. Thanks
Asked by: Chris
Hi Chris, Thank you for your question! The 3-Setting trim will allow you to operate the shower head and handheld individually or together. 2-Port refers to the number of ports on the rough-in that the trim can use. This trim would require the R11000 diverter valve. http://www.deltafaucet.com/bath/details/r11000.html The tub spout should be connected to the bottom port of the R10000 (on/off, temperature) valve, rather than to the diverter valve. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-07-07

Will this trim work with two body sprays and one rain can shower head?

I want to purchase the T17T259-SSH2O shower trim and two body sprays, 50100-SS. I would like to be able to use the shower head separately, the two body sprays together, and then all three components together. Can I use this trim such that the two body sprays together are one individual position and then the shower head will be the second individual position. I realize I also need the R11000 valve and the R10000-UNBXHF valve. Thanks!
Asked by: Lynn
Hi Lynn, Thank you for your question. Delta model T11859-SS will be compatible with both T17T259-SSH2O and 50100-SS. It will also provide you with the three settings you are looking for. Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2016-06-27

Does this come with the valve, as well as the cartridge? Or must the valve be purchased separately?

Asked by: IHK_67
Hello IHK 67, Thank you for your question. The Delta Trinsic T11859-BL 3-Setting Diverter Trim comes with the RP51918 3-functions diverter cartridge assembly. This cartridge will allow you to switch between two shower components individually as well as a shared setting. The Rough-In Diverter Valve R11000 does need to be purchased separately. https://www.deltafaucet.com/bathroom/product/R11000 Best regards, Tanya
Answered by: Delta Faucet
Date published: 2019-03-14

We want to use a rain head, hand head and regular shower head with these but we want them to work individually. Will we need the non shared cartridge or would we need to go up to a 3 port diverter trim instead of a 2 port?

Asked by: trey
Hi, trey! Thank you for your question. The Delta T11859-BL will work with only two shower components. We recommend to use T11959-BL, this will allow 3 shared settings and 3 individual settings, 6 settings in all. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2018-08-23

Does this diverter come with a backplate?  If not does it require a backplate?

Asked by: Cilla
Thank you for your question, Cilla! Model T11859-BL does include the back escutcheon plate with this trim. We strongly recommended installing this plate to keep a water-tight seal between the trim and the wall. https://media.deltafaucet.com/PartsDiagram/DPD-B-T11800_B.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2019-02-11

Hi! Im trying to install this diverter in my shower but in my case my hand shower is at my right side and the 3 positions diverter only works on my left where I don't have anything, It's possible to use it on the center and the right positions?

Asked by: nmbatino
Hello Nmbatino, Thank you for your question. To have the Delta 3-Setting Diverter Trim T11859-CZ function properly, you would need to cap off the right side port of the diverter valve. If you decide to cap off the left port instead of the right port, you will need to purchase separately the 6-setting RP51919 diverter cartridge. This would provide you with your three function settings and a few dead spots. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-09-18
