Monitor® 13 Series H<sub>2</sub>Okinetic® Shower Trim in Chrome

Model#: T13220-H2OT
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Bathroom Collection

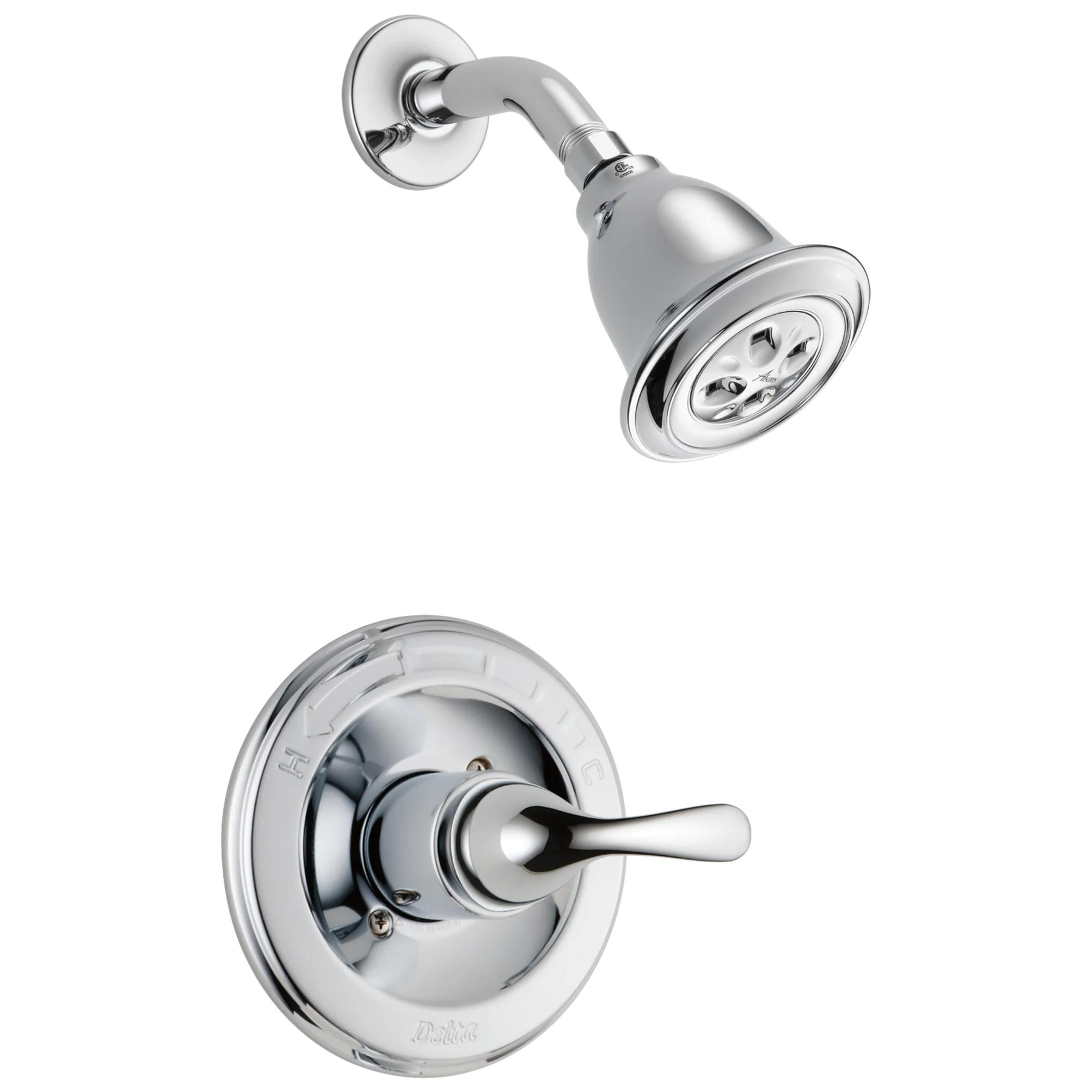

Monitor® 13 Series H<sub>2</sub>Okinetic® Shower Trim in Chrome
Model#: T13220-H2OT
List Price: $17560
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES

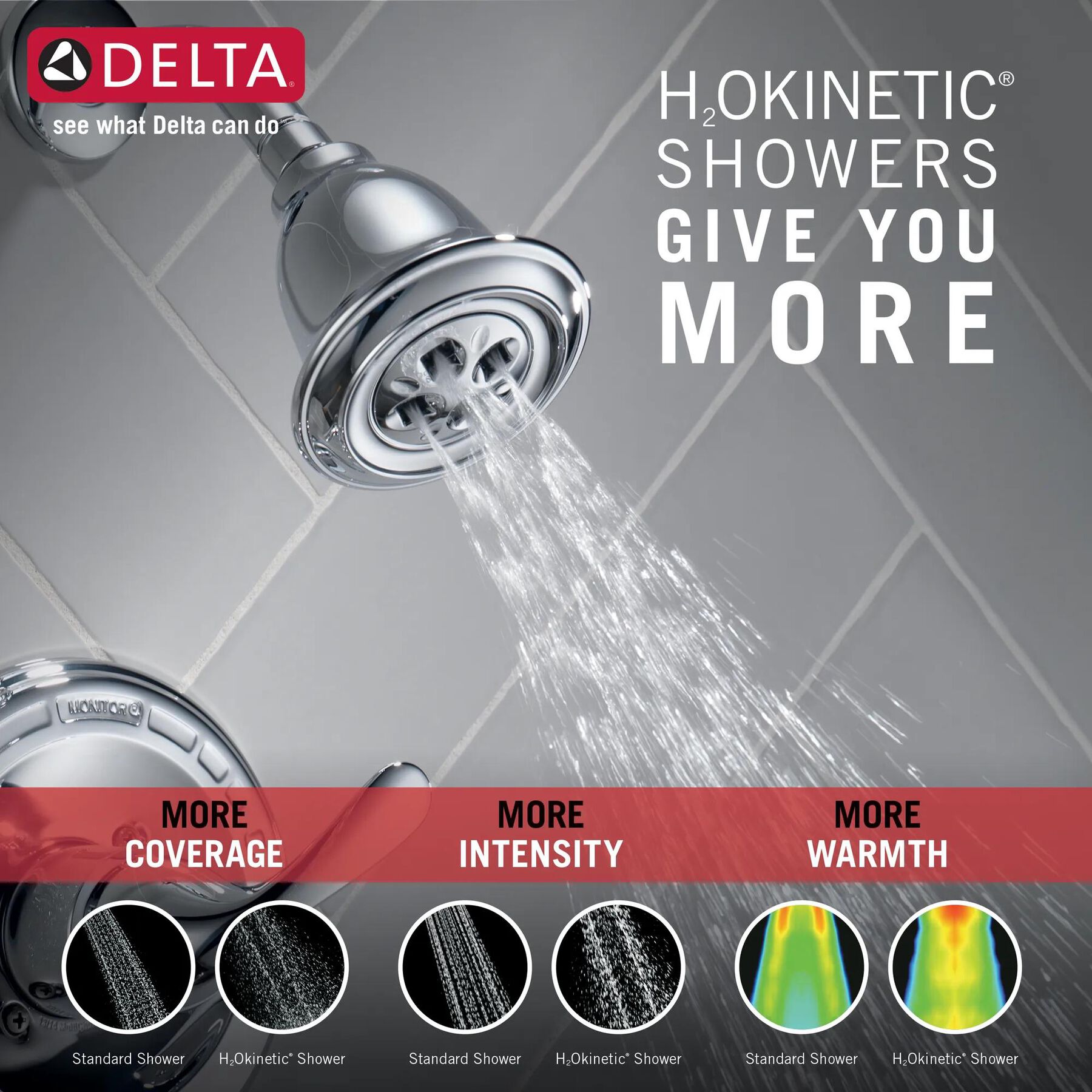

Complete the look in your bathroom with a shower from the Classic Bath Collection. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. Our H2Okinetic® Showers look different because they are different. H2Okinetic showers are powered by an innovative technology that sculpts the water into a unique wave pattern, giving you the feeling of more water and water pressure. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
  • H2Okinetic® Technology showers feel like more water and more pressure, with more coverage
  • H2Okinetic® PowerDrench® Spray creates powerful water patterns, for an energizing experience
  • Spray setting: H2Okinetic® PowerDrench® spray
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Temperature only controlled with metal lever handle
  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Solid brass forged body
  • Back-to-back installation capability
  • Stem extension kit RP77991 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
  • ADA compliant metal lever handle
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

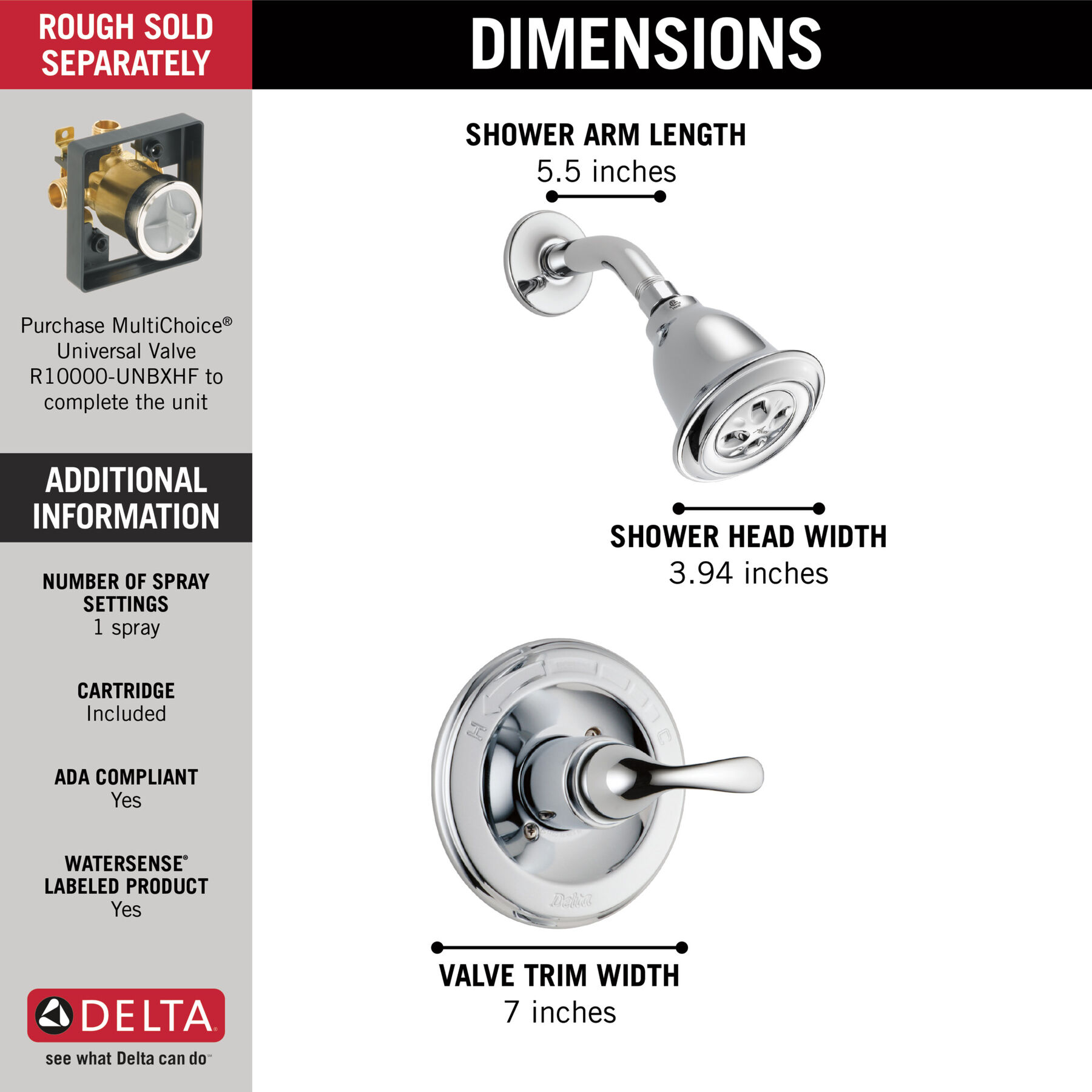

Flow Rate :
1.5 gpm @ 80 psi, 5.7 L/min @ 552 kPa
Overall Height (in.) :
9-1/2
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Shower fixtures It was just what I wanted and the price I wanted to pay.
Date published: 2025-09-12
Rated 5 out of 5 by from I recommend! [This review was collected as part of a promotion.] Great quality product for good price
Date published: 2025-07-22
Rated 5 out of 5 by from The best I love these trims, I am the office assistant of a plumbing company in the U.S. virgin islands and these are one of our biggest sellers.The pricing is great !
Date published: 2025-02-18
Rated 5 out of 5 by from Delta with shut off valves built in I like the Square rough in plastic for tile cut in and the Shut offs on each side for Maintenance of cartridge.
Date published: 2021-02-21
Rated 1 out of 5 by from Very disappointed with head and flow. I am not used to such a low flow when taking a shower. I was praying that I could find and remove a water flow restricter but I could not find it. This is in my master bathroom but now I am literally taking showers in another bathroom. The shower head is also terrible. It has very limited movement, it is very small and not made for a shower in a nice home. Calling it eco friendly should have given my plumber a hint. I was not looking for a cheap, low flow fixture without the ability to adjust the flow rate at all.
Date published: 2020-09-07
Rated 5 out of 5 by from Easy install and works great [This review was collected as part of a promotion.] Trim package was easy to install and looks and works great. It's a quick way to update older Delta fixtures.
Date published: 2019-11-19
Rated 5 out of 5 by from Delta Shower Head & Valve [This review was collected as part of a promotion.] Great value for the money & easy to clean!
Date published: 2018-01-20
Rated 4 out of 5 by from This was installed in a small shower. The customer wanted the shower head to spray more downward than it did and ended up changing the shower head. It will work fine in a larger shower situation.
Date published: 2012-11-27
  • y_2026, m_7, d_16, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_T13220-H2OT, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 29ms
  • reviews, product
Q&A

Classic Monitor&reg; 13 Series Shower Trim - How do you turn the water to go to the shower versus to the bath tub.

I don't want the knob on the water spicket to the tub.
Asked by: TerryR
Hi TerryR, Thank you for your question. Our classic monitor 13 series tub/shower trims will all divert the water to the showerhead using a pull up or pull down tub spout diverter. An option for you might be our 13 series commercial faucets. The model T13691 when combined with the R10300-UNWS rough in uses the push button diverter located on the escutcheon plate to divert the water to the showerhead. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Why is there such a price difference between the Classic Monitor 13 shower trim and the Lindon 14 shower trim.

I notice there is a little style difference but there must be something else to account for $$$ difference. Also, I alread have the Delta shower plumbing installed by a plumber. Do I just need the shower trim only?
Asked by: Molly
Hi Molly, Thank you for your question. The price difference between the 13 and 14 series trims is based on styling. The classic has been the same for a long period of time and the linden is a newer style. You can just change the trim on the 13/14 series without changing your older delta valve assembly. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

What is the difference in finish between brushed nickel and stainless please?

I want a finish that's not shiny like chrome but more contemporary. We live in New Mexico with hard water, will one look better than another, I do use a daily shower spray and that seems to help the hard water spots from showing.
Asked by: Molly
Hi Molly, Thank you for your question. Delta has the Brilliance Stainless finish that many refer to as brushed nickel. It is designated as SS. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Does the handle on shower faucet model TI 3220-H20T match the handles on sink faucet model 3530LF-MPU and whirpool faucet model T5722? It's difficult to tell in the photos.

Asked by: Mary
Hi Mary, Thank you for contacting us at Delta Faucet! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you. The handles for Delta Faucet model 3530LF-MPU have just a bit more curve in the design compared to the handle in model T13220-H2O. Please contact us directly by phone at 1-800-345-3358 or email at customerservice@deltafaucet.com if further assistance is needed at this time.&nbsp;&nbsp; We appreciate your loyalty to Delta Faucet Company. Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28
