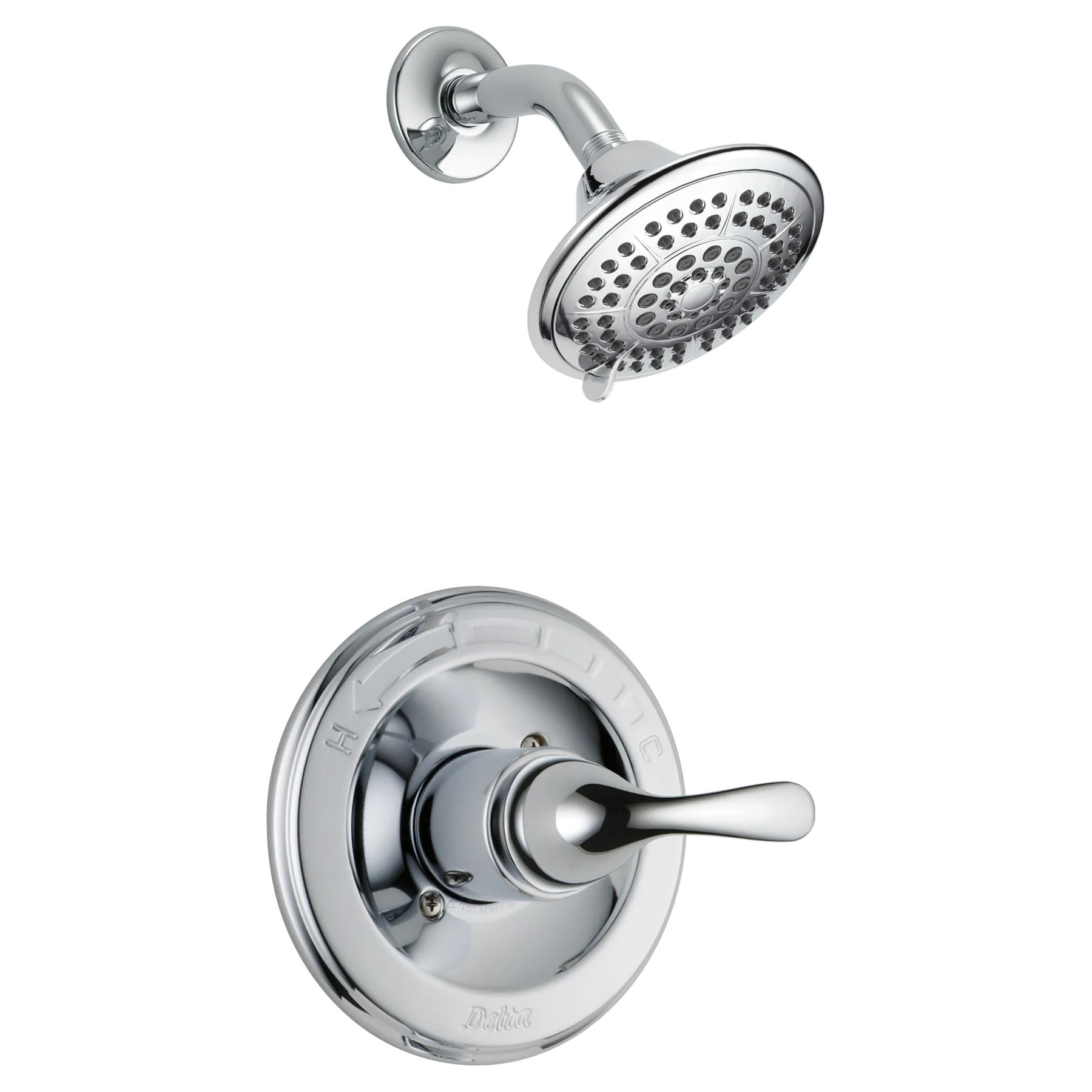

Monitor® 13 Series Shower Trim in Chrome

Model#: T13220-SHC
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Bathroom Collection
Monitor® 13 Series Shower Trim in Chrome
Model#: T13220-SHC
List Price: $18275
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Complete the look in your bathroom with a shower from the Classic Bath Collection. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. While other products may gather unsightly mineral buildup over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look — with no need for soaking or the aid of chemical cleaners. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
  • Spray settings include: Full Body spray, Full Spray with Massage, Massaging spray, Soft Drench with Full Spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Temperature only controlled with metal lever handle
  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Solid brass forged body
  • Back-to-back installation capability
  • Stem extension kit RP77991 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
  • ADA compliant metal lever handle
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
9-1/2
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from N/A Attractive; matches my other fixtures; works just fine
Date published: 2025-10-25
Rated 5 out of 5 by from Great shower kit After much research, I decided to purchase the Delta shower kit and have not been disappointed. The trim looks great and the water temp is easily set. I cannot comment on the shower head as we don't use it, we use a shower wand. However, the valve control works fantastic.
Date published: 2019-10-03
Rated 5 out of 5 by from Great product We are very happy with this showerhead and handle. It looks very nice. I wanted to go "green" but was a little worried about it being watersense/low flow. I can tell that it's less of a shower stream than my old showerhead, but it has not turned out to be a problem. Still plenty of water and pressure to have a great shower!
Date published: 2013-06-25
  • y_2026, m_7, d_17, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_T13220-SHC, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Water doesn't come out of all the holes in the shower head, why

Asked by: delu
Hi Delu! Thanks for your question. A few of the holes around the center of the shower head are for decorative purposes, and water is not designed to flow through those. If there are actual spray holes that seem to be clogged, you can soak the spray face in a mixture of 50% water and 50% white vinegar to assist in cleaning blocked nozzles.
Answered by: JessW
Date published: 2024-03-28

What is the shower head made of (plastic, metal...)? The ones we see in the big box stores are made of plastic, which we do not want.

Asked by: TambraO
Thank you for your question, TambraO. The shower head is non-metallic. Non-metallic products are beneficial in that they do not rust or corrode and help prevent heat transfer. Please know that all of our products undergo rigorous tests to ensure long-lasting use and are made with high-grade materials. We also have a Lifetime Limited Warranty on all parts and finish. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

What size set screw is in the handle of this product? Also, if it is stripped, what can be used to take the handle off?

Asked by: Ruben
Thank you for your question, Ruben! The screw will take a 3/32" Allen wrench. If it seems stuck, try soaking a rag with a 50/50 white vinegar and water solution and wrap it around the handle for about 15 minutes. You can also place a rubber band over the top of the screw before pressing the Allen key into the hole. If the set screw is stripped and won't turn, it may need to be drilled out. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-12-29

does this come with matching drain cover?

Asked by: Leslie
Hello Leslie, Thank you for your question. The T13220 does not include a bath drain assembly. The drains have to be ordered separately. Here is a link to the current drains offered: https://www.deltafaucet.com/search-results?searchTerm=bath+waste+assembly Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-10-26

We have the Classic Monitor Shower tim in polished brass.

I am thinking of replacing the shower head with a rain shower head. Would your item # Delta Faucet RP52382PB be a suitable replacement? Will it work with the existing rod? Thank you
Asked by: topher
Thank you for your question. All of our Delta Faucet showerheads are universal so the RP52382PB will work with your existing shower arm.
Answered by: Delta1
Date published: 2024-03-28

Does this kit work with the old style valve?

Asked by: Jerry61
Hi Mr. Lang, thank you for your interest in the T13220-SHC! Yes, the trim is compatible with the RP19804 cartridge. Please contact us directly if you have any questions or need additional assistance. Best Regards, Themar Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-03-22

Can I purchase the handle only for the T13220- chrome, Monitor 13 series?

Asked by: Donna
Hello Customer! Thank you for your question and we are happy to help. The handle for the Delta T13220 is RP48717. With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Carrie
Date published: 2025-06-26

I buy 3 Delta T13220 moniter 13 series shower trim fit multichoice unversal valve bought set,i install but shower handal turn left side up 3.00 clock to 12 o clock hot water not coming how to fix problem ,can you Help me or Send me vedio or note

Asked by: shailesh
Thank you for your question, shailesh. The faucet has a rotational limit stop (RLS) that can be adjusted to move the handle past the 12 o'clock position and allow hotter water. Installation instructions can be found here: https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf Please contact us directly for any additional assistance. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2024-03-28
