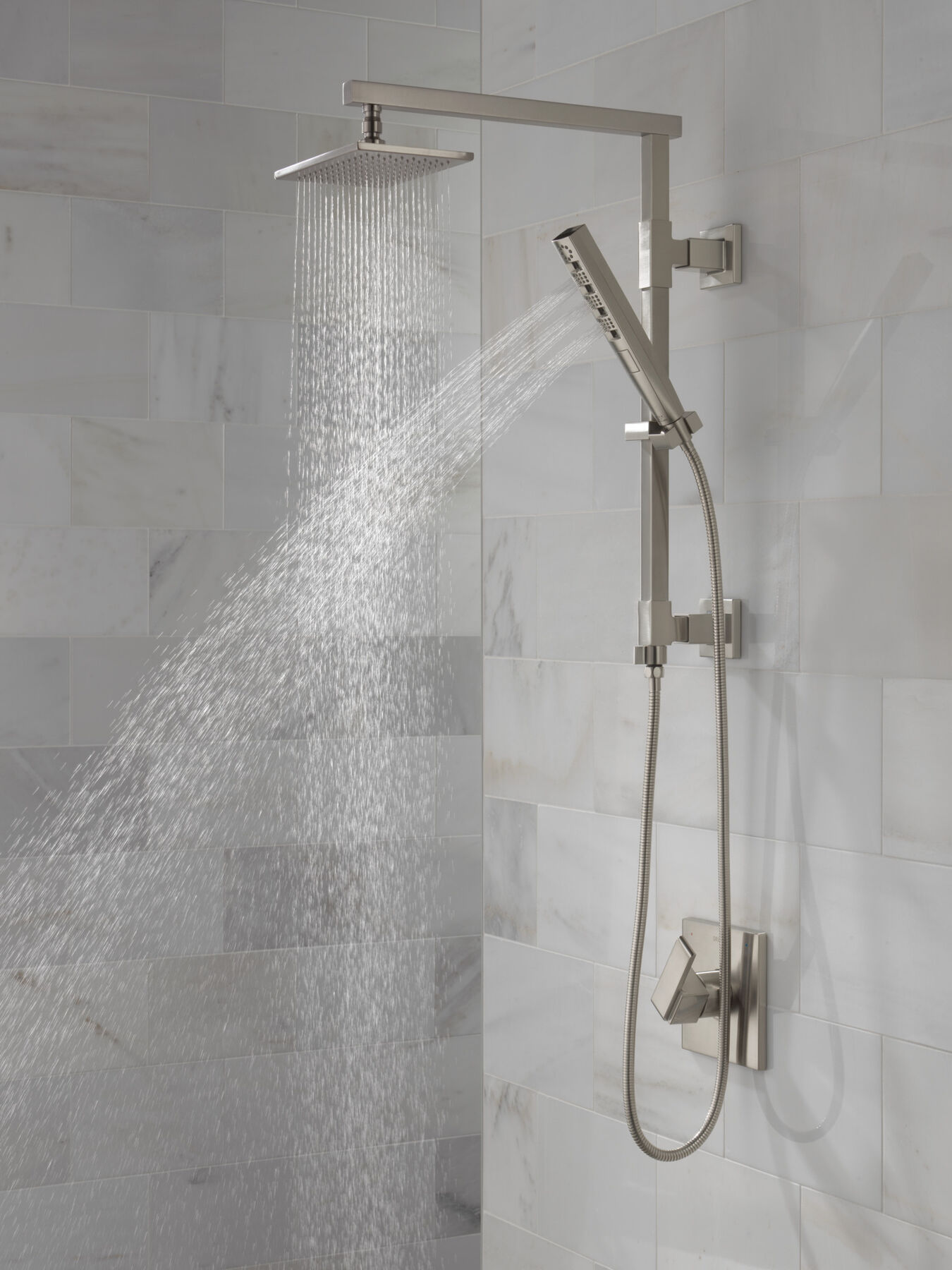

Monitor® 14 Series Valve Only Trim in Stainless

Model#: T14067-SS
Add to Favorites
Find local Delta® installers.
Ara®
View Full Ara® Bathroom Collection

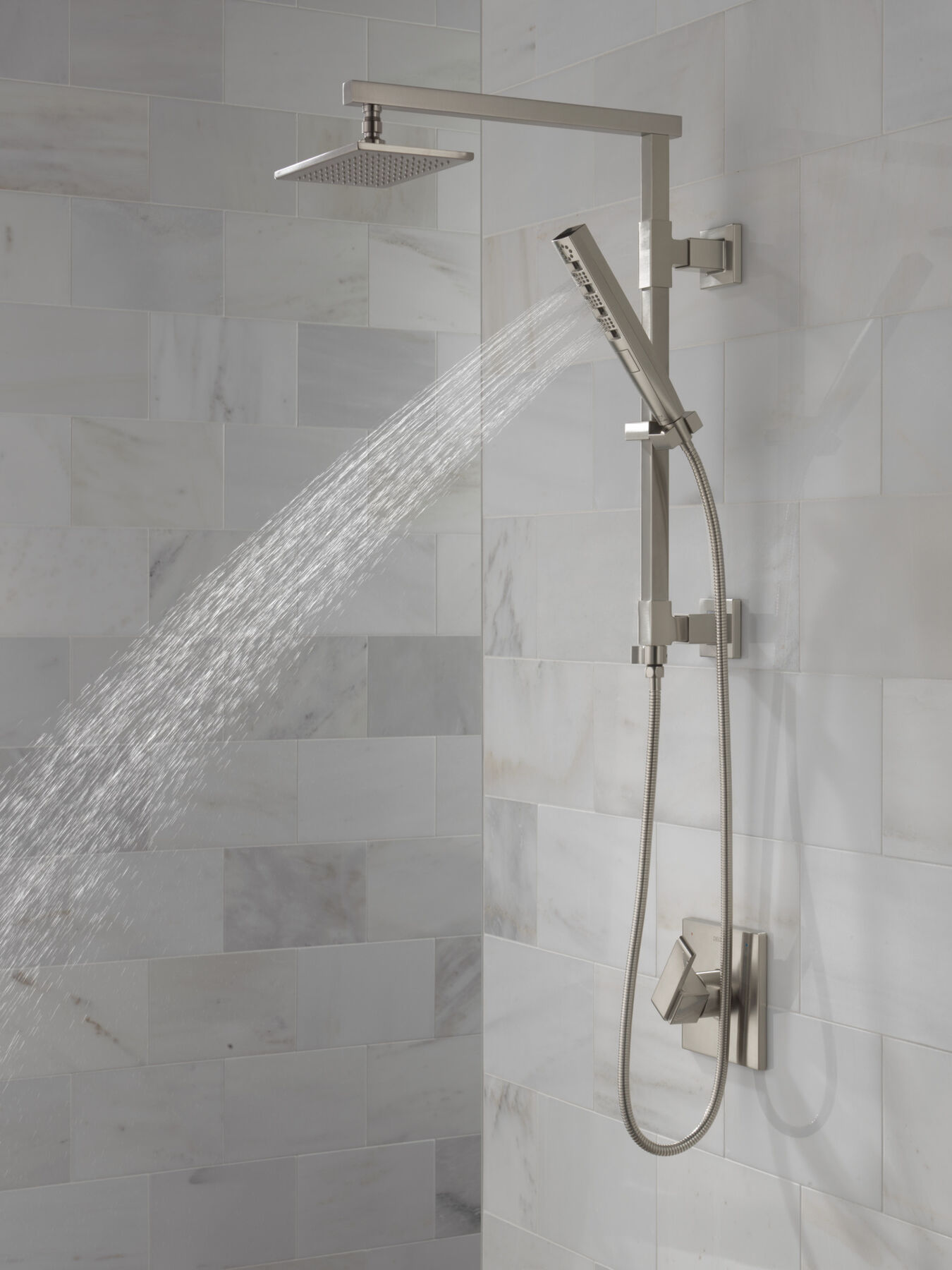

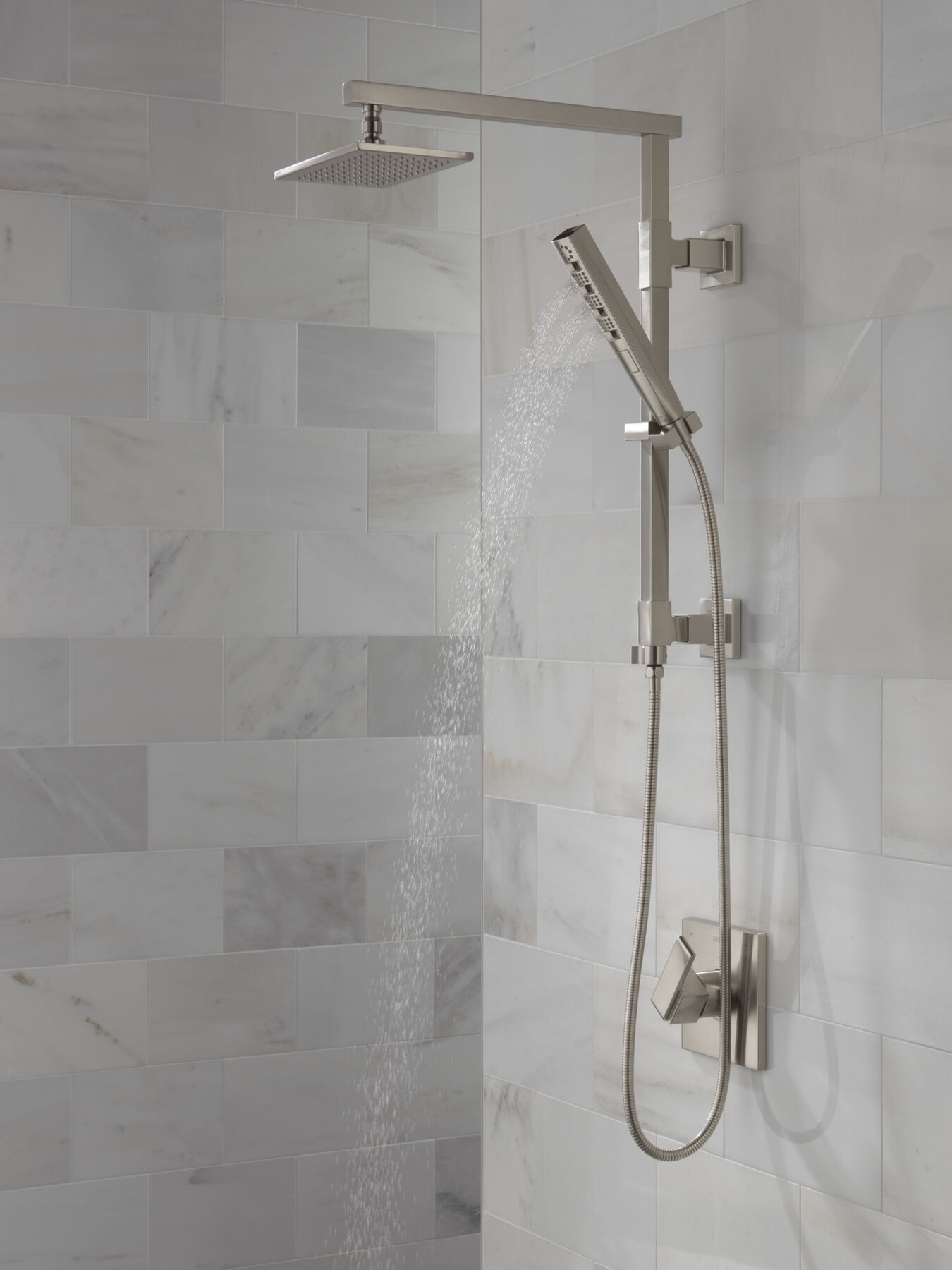

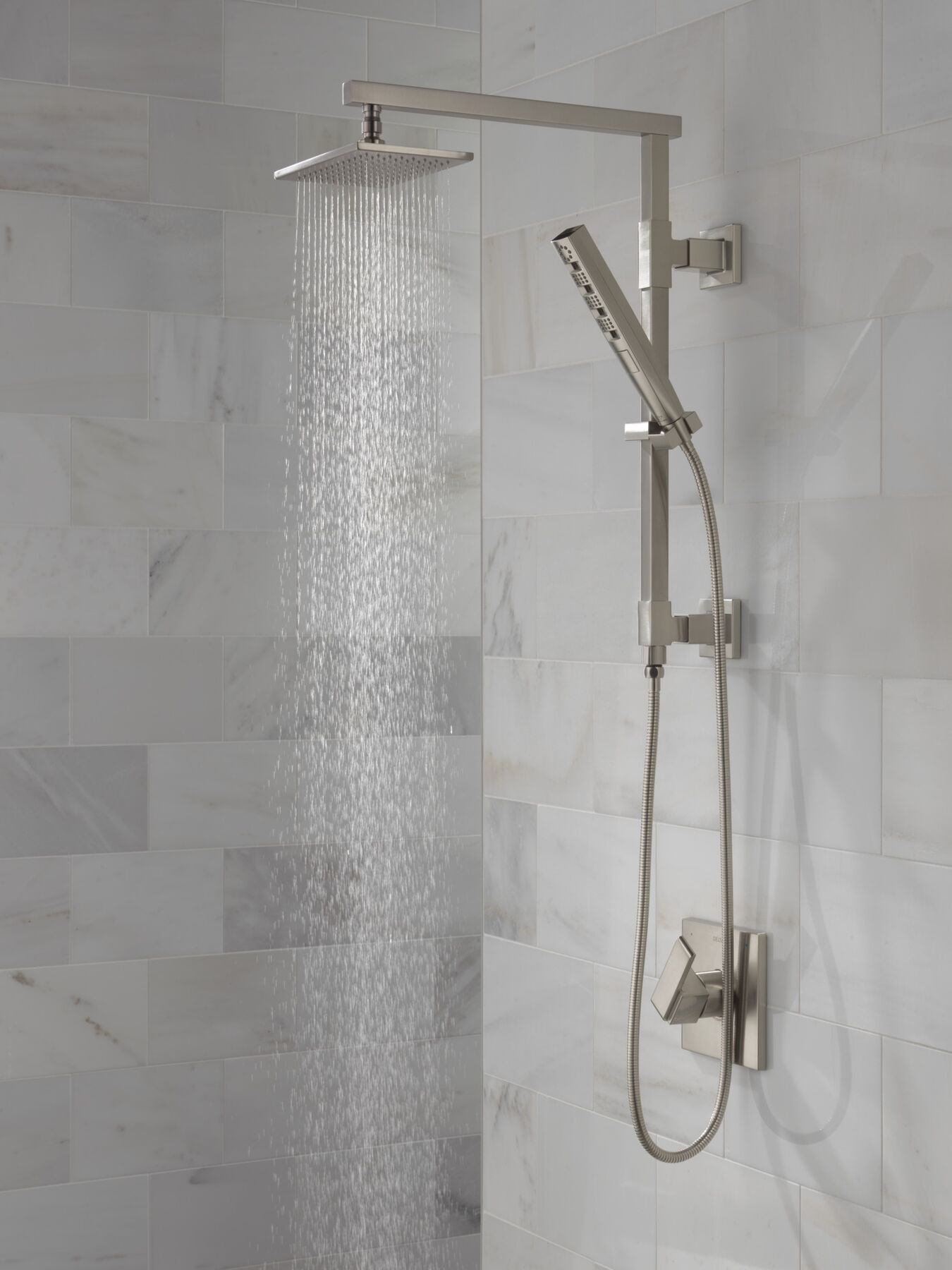

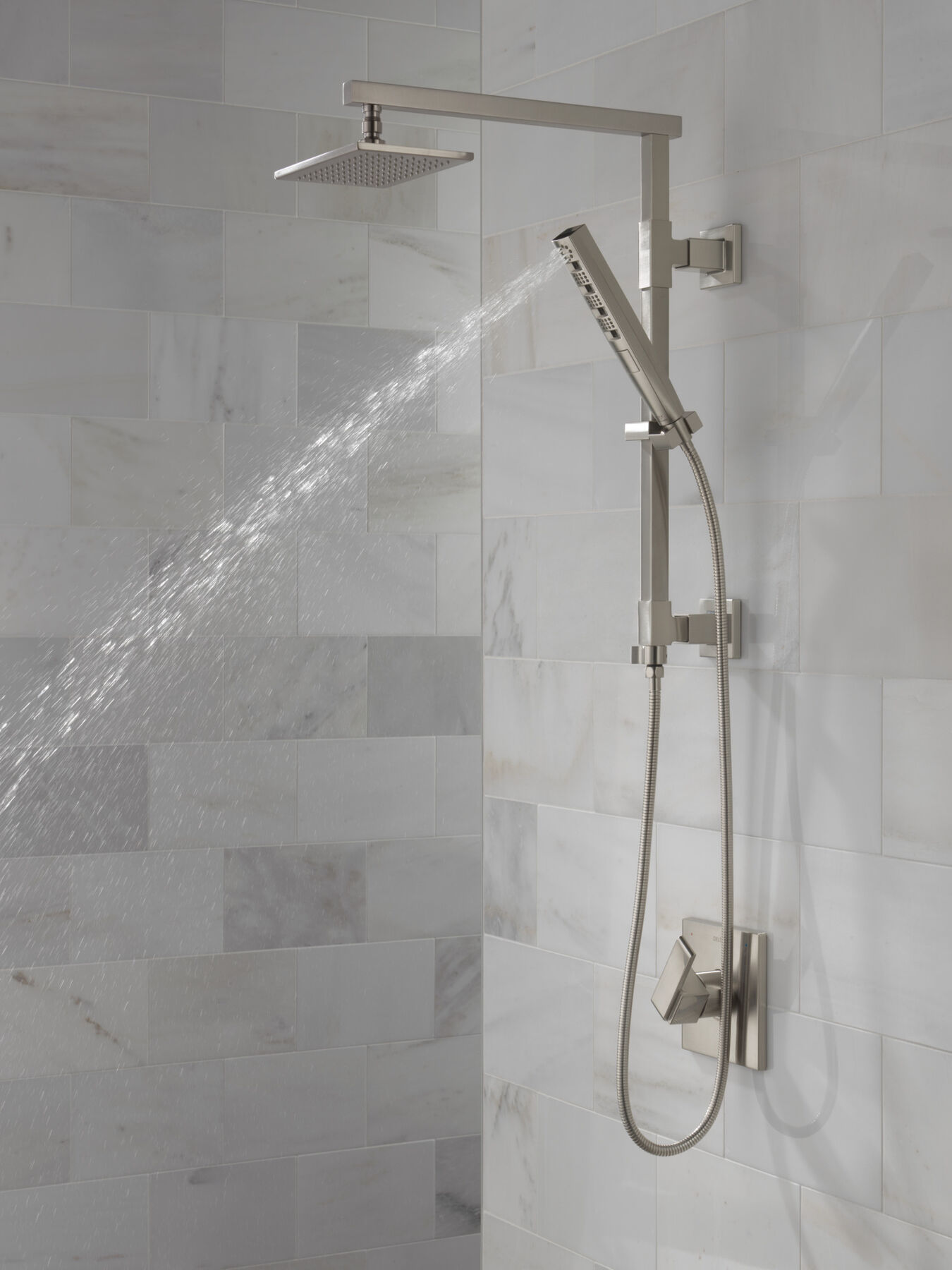

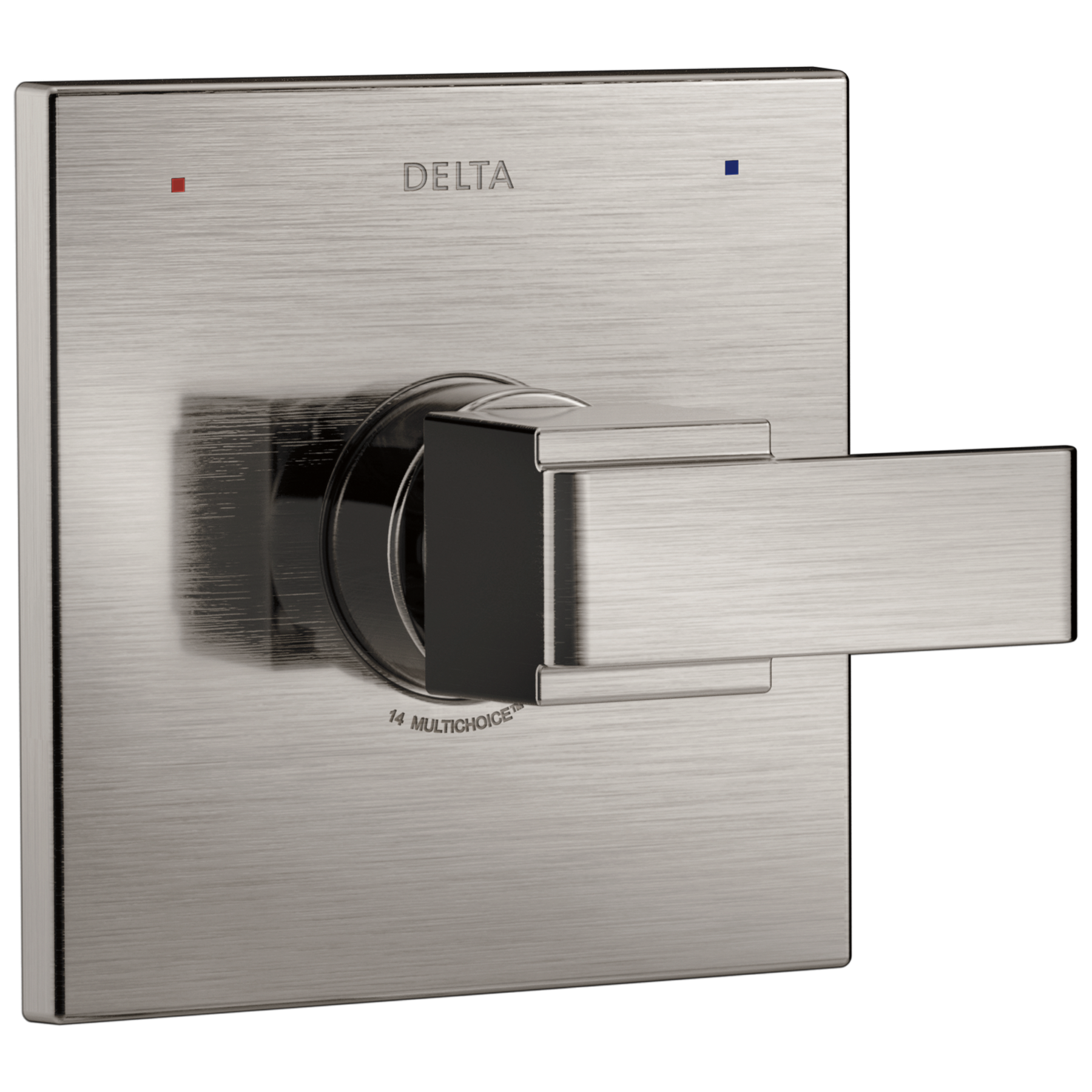

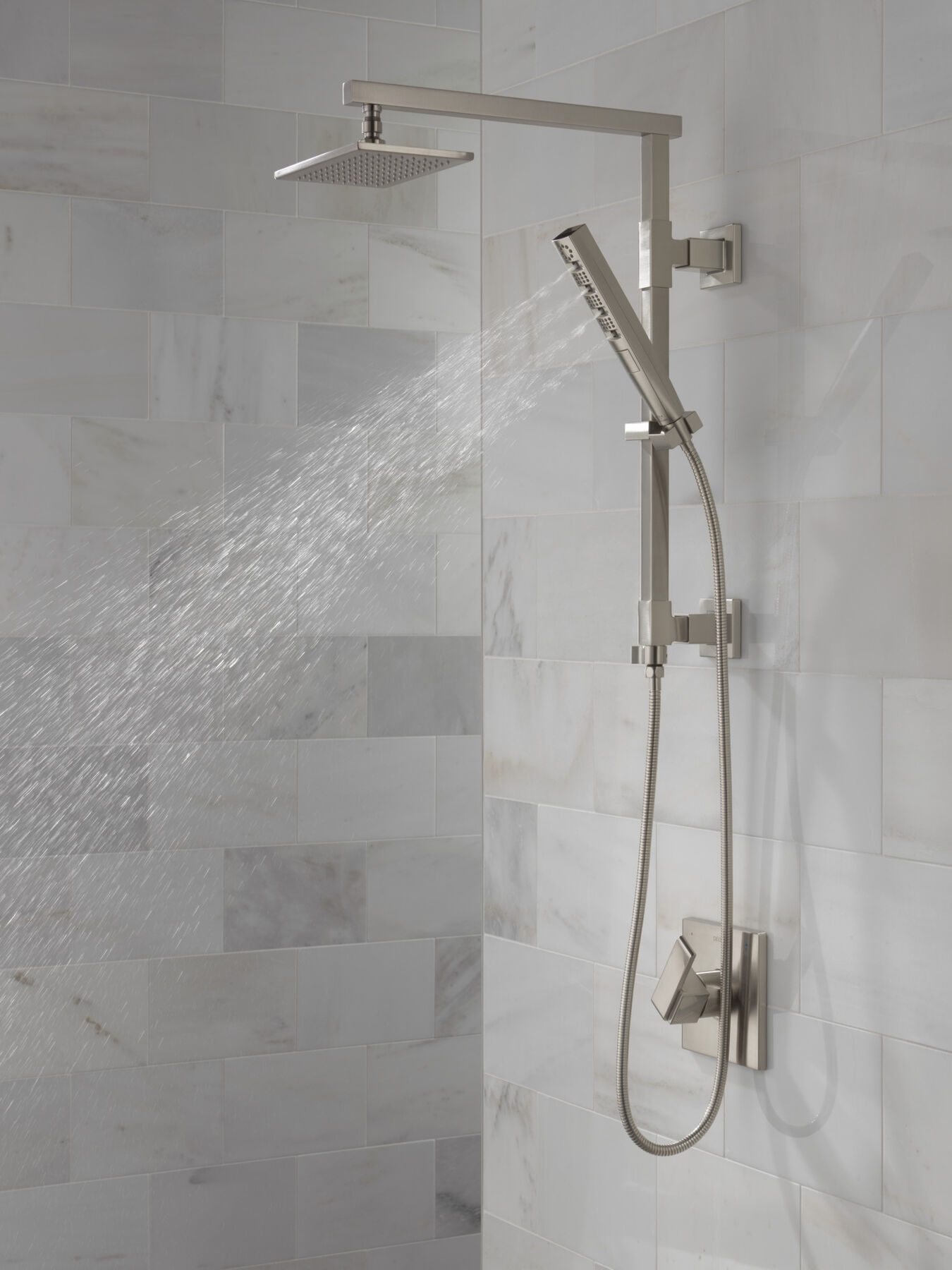

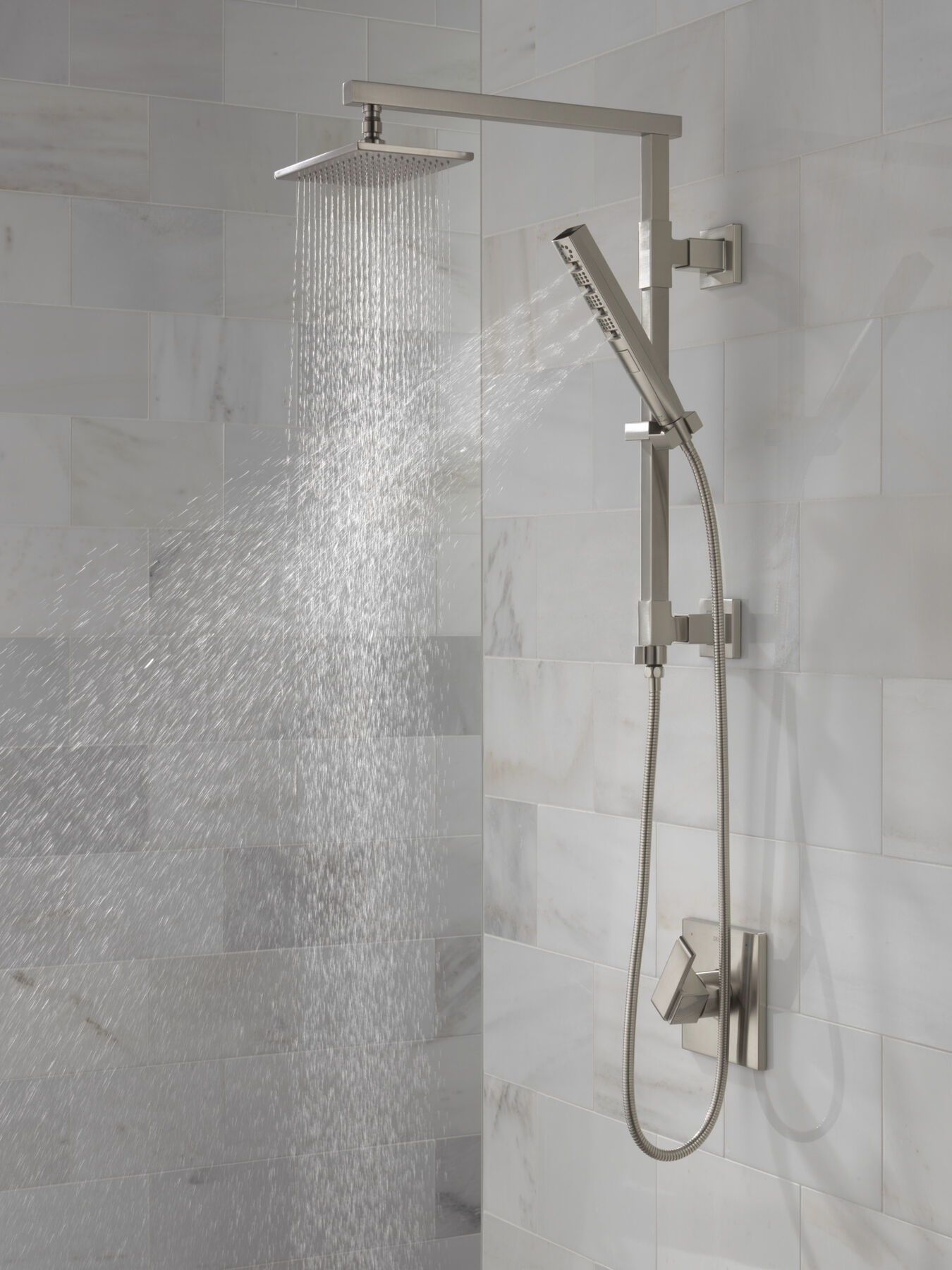

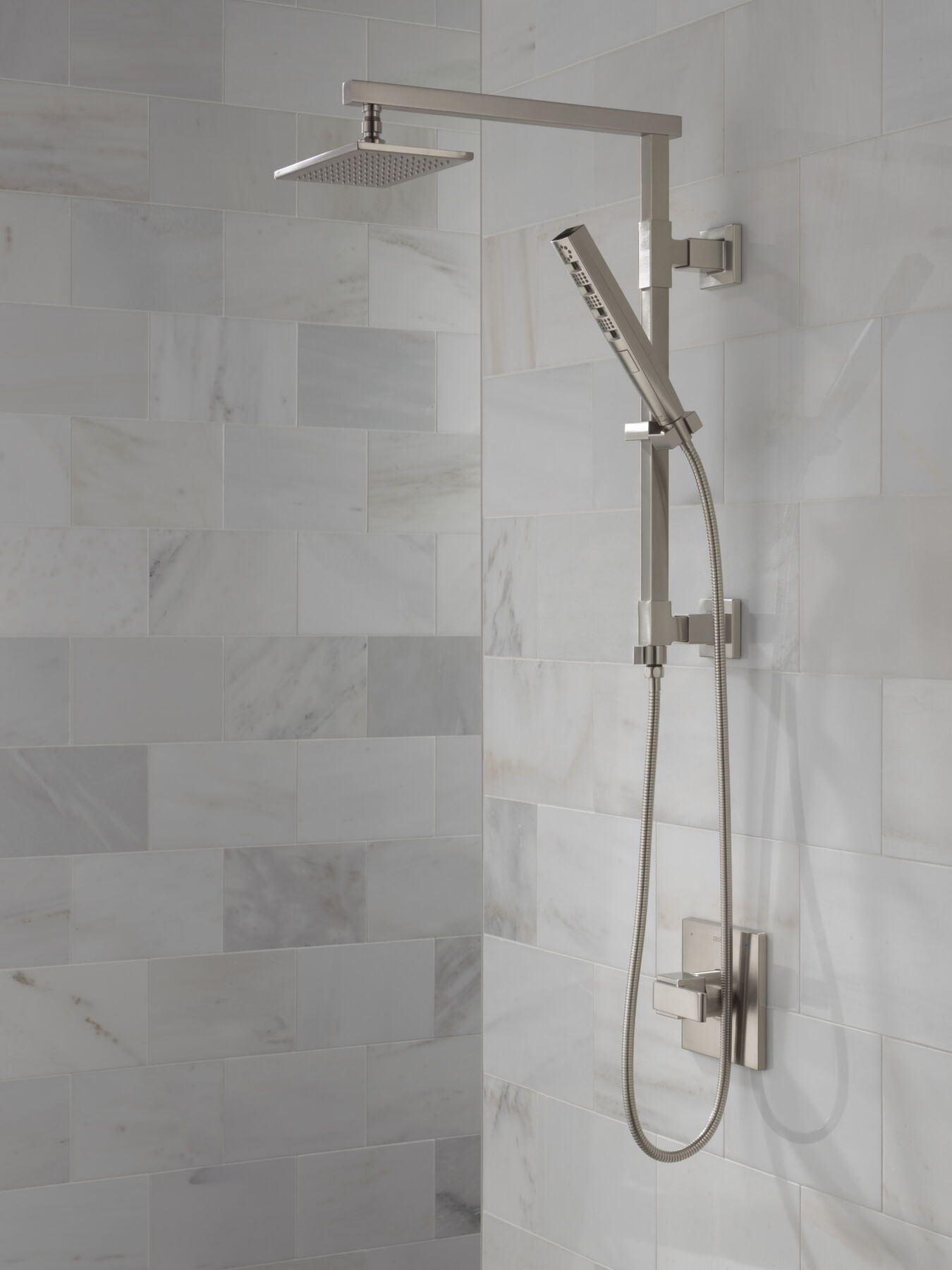

Monitor® 14 Series Valve Only Trim in Stainless
Model#: T14067-SS
List Price: $38500
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
Brilliance® Finish
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
6-1/2
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Buy buy buy Absolutely amazing purchase
Date published: 2026-06-10
Rated 5 out of 5 by from You will love it. Beautiful and easy to grab and turn.
Date published: 2023-11-22
Rated 3 out of 5 by from Had purchased the piece that goes behind this (our wall was open for a repipe, so had this new system installed and it gave the plumber nothing but trouble as nothing seemed to fit. The plumber got it in, but not without a lot of effort. Some issues on the installation
Date published: 2023-05-01
Rated 3 out of 5 by from A bit pricey for the Control ONLY Good product but be aware that this is ONLY the control itself. No head nor the pipe for the head that is shown in the image
Date published: 2022-07-24
Rated 5 out of 5 by from Gorgeous valves Sleek and gorgeous; heavy and great quality
Date published: 2022-02-11
Rated 5 out of 5 by from Beautiful faucet Absolutely beautiful faucet and a pretty easy install. The finish looks gorgeous with the matte finish in my bathroom. The handle is smooth and works easily to adjust water tempature from cool to hot.
Date published: 2021-11-09
Rated 5 out of 5 by from Love this faucet I absolutely love this delta bathroom faucet..its so beautiful and so well and beautifully designed with a great finish to it.it really adds a beautiful flair to design to any bathroom.its definitely a great product to own for anyone.
Date published: 2021-11-03
Rated 5 out of 5 by from easy to install Delta T14067 BL is very stylish and trendy at the same time. It was easy to install and looked very beautiful. It is very sturdy and heavy. I will definitely purchase more and recomend it to friends and family
Date published: 2021-11-03
  • y_2026, m_6, d_24, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_24
  • loc_en_US, sid_T14067-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

If I'm not getting hot water (just warm)....

I had a contractor install this trim kit. The handle only rotates 90° (straight up/down). The specs show it should rotate 120° maximum handle rotation.... Did they install wrong? Or is this adjustable to get Hot water and rotate to 120° ?
Asked by: Saellis3
Dear Saellis3, Thank you for your question. If you are not getting hot enough water and your handle is not rotating far enough to the hot side, you would need to adjust the rotational limit stop on the top of your cartridge. Please view the "How To Video" for adjusting your limit stop, in the below link. https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I Best regards, Tanya
Answered by: Tanya
Date published: 2017-07-17

1400 series shower trim

I need new shower trim/handle (and tub faucet at some point) for a 1400 series cartridge. I really want a contemporary square trim. Would this fit? I already have a modern square shower head installed. What are my options? Thanks!
Asked by: Beth
Hi Beth, Thank you for your question. The T14067-SS trim will work with your existing 1400 series rough in. The new trim will ship with a new cartridge, this new cartridge will not fit your existing rough. You will have to continue to use your current cartridge or replace it with a RP19804. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Can this trim kit be used with a shower-only mixing valve e.g.  r100000-UNBXHF or r10000-UNWSHF?

Asked by: Jeff
Hi, Jeff! Thank you for your question. The Delta Monitor T14067-SS Valve Trim Kit can be installed as a shower-only faucet with the Delta MultiChoice R100000-UNBXHF or R10000-UNWSHF Rough Valve Bodies. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Hello, does this Model#: T14067-SS come with the cartridge? Also, will it work with the R100000-UNWSHF? None of the listed choices show this particular valve body.

Asked by: Intaller
Hello Intaller, Thank you for your inquiry! Yes, the Delta Ara Valve trim T14067-SS can be used with the Delta MultiChoice Universal Rough-In R10000-UNWSHF valve. The Trim kit also does come with the RP46074 valve cartridge assembly. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Are the exterior components (backplate, lever) of T14067-SS solid metal or are they coated non-metallic?

Asked by: James
Hi, James! Thank you for your question. The Delta Monitor T14067-SS Valve Trim Kit lever, escutcheon plate, and sleeve are metallic. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Does this T14067 model come in brilliance stainless or brushed nickel?

Asked by: Remodeler
Hi, Remodeler! Thank you for your question. The Delta Monitor T14067-SS Valve Trim Kit is the model that is available in our Brilliance Stainless Steel. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Are the exterior components made of solid brass, underneath the coating/finish?

Asked by: Brian777
Hi, Brian777! Thank you for your question. The Delta Monitor T14067 Valve Trim has both non-metallic and metallic parts. The escutcheon plate and handle are metallic. The valve cartridge assembly is plastic. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

HOW DO YOU TIGHTEN HANDLE ON SHOWER UNIT

Asked by: MIKE J
Hello Mike J, Thank you for your inquiry! The handle of the Delta Ara Valve Trim T14067 faucet is designed to tighten using an 1/8" Allen wrench to tighten the set screw under the cover button of the handle. Please see the Parts Diagram link below, for the location of the parts. https://media.deltafaucet.com/PartsDiagram/DPD-B-T14067_H.pdf Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_22, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_22
  • loc_en_US, sid_T14067-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 75ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP75437

Ara®

Ara® Metal Lever Handle Kit - 14 Series

List Price: $84.90 - $116.90
Free Ground Shipping All Orders $49+

RP75437

Image-Master-RP75436

Delta®

Delta® Escutcheon & Gasket - 14 Series

List Price: $144.70 - $245.35
Free Ground Shipping All Orders $49+

RP75436

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.24 105
Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

List Price: $36.35 - $47.95
Free Ground Shipping All Orders $49+

RP51035

Image-Master-RP51034

Vero®

Vero® Flange - Shower

List Price: $26.45 - $47.45
Free Ground Shipping All Orders $49+

RP51034

Image-RP51019

Delta®

Delta® Set Screw & Button

List Price: $21.70
Online Price: $17.36
Free Ground Shipping All Orders $49+

RP51019

5.00 1
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-Master-RP75435

Ara®

Ara® Tub Spout - Pull-Up Diverter

List Price: $114.15 - $221.85
Free Ground Shipping All Orders $49+

RP75435
