Ara®

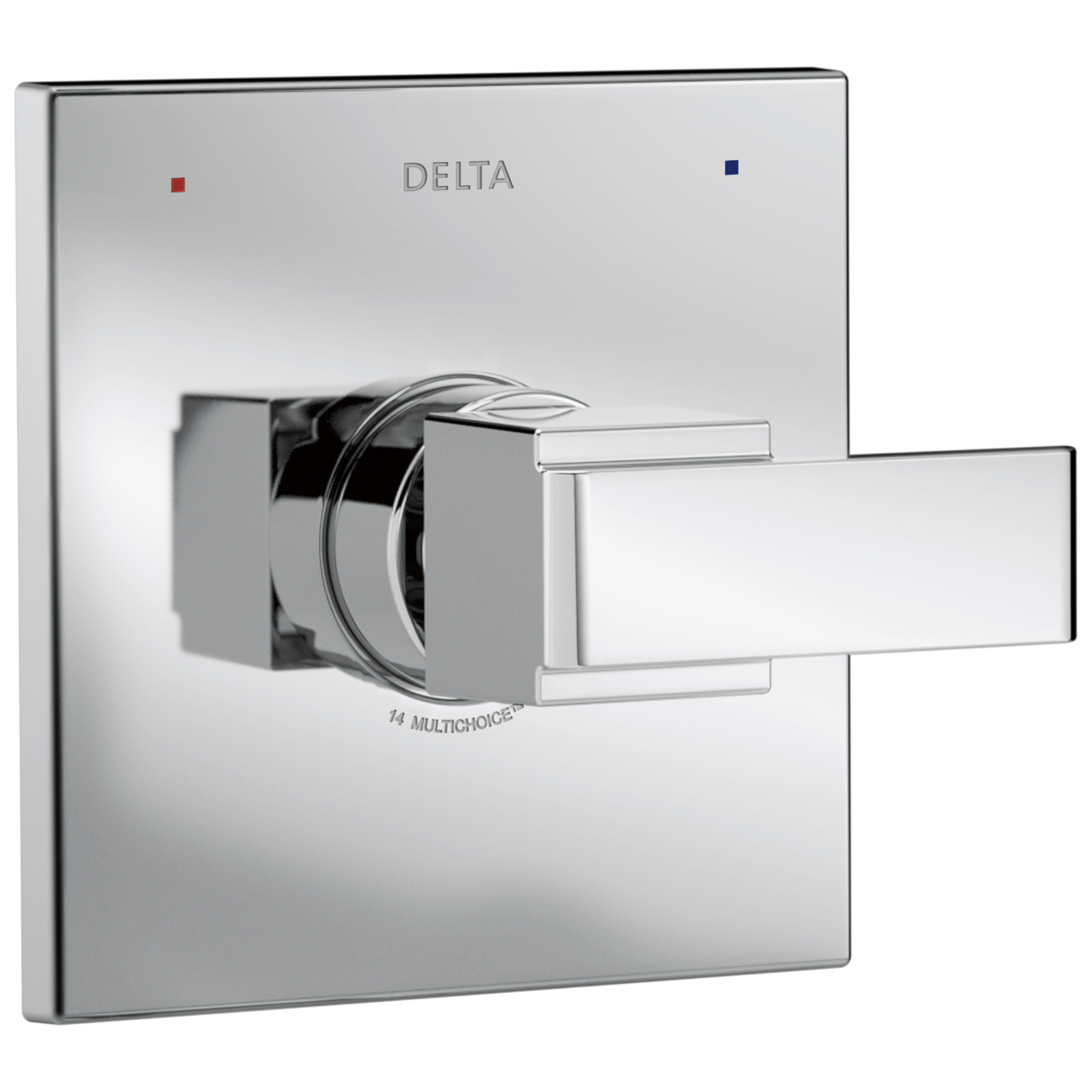

Monitor® 14 Series Valve Only Trim
Model#:
T14067
PRODUCT FEATURES
Technology
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
California Prop 65 WARNING
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Over All Height :
6-1/2
Connection Type :
Universal fittings
PART LIST
PART LIST
REVIEWS
Rated 5 out of
5
by
Lindsay from
Well built and modern
I haven't installed this in my bathroom yet but it looks great. I suggest getting it if you're looking for modern finishes. The product is heavy and good quality.
Date published: 2018-11-16
Rated 4 out of
5
by
wm77 from
Works as anticipated
The product works as anticipated and would recommend it if this is the look you are going for.
Date published: 2018-07-15
Rated 5 out of
5
by
TJrobo from
Beautiful Valve Trim!!
I ordered this for our guest bath that we were re-doing and using a frameless shower door so I knew the shower controls would be on full view. This is a modern and classy trim. Would for sure order again
Date published: 2018-03-03
Q&A
Are the exterior components made of solid brass, underneath the coating/finish?
Hi, Brian777!
Thank you for your question. The Delta Monitor T14067 Valve Trim has both non-metallic and metallic parts. The escutcheon plate and handle are metallic. The valve cartridge assembly is plastic.
Best Regards, Rosanna
Date published: 2020-03-05
HOW DO YOU TIGHTEN HANDLE ON SHOWER UNIT
Hello Mike J,
Thank you for your inquiry! The handle of the Delta Ara Valve Trim T14067 faucet is designed to tighten using an 1/8" Allen wrench to tighten the set screw under the cover button of the handle. Please see the Parts Diagram link below, for the location of the parts.
https://media.deltafaucet.com/PartsDiagram/DPD-B-T14067_H.pdf
Best regards,
Tanya
Date published: 2018-10-20
Does this include the cartridge?
Hi, JB15!
Thank you for your question. The Delta Monitor T14067 valve trim kit does include the valve cartridge assembly, RP46074.
Best Regards,
Rosanna
Date published: 2019-01-07
If I'm not getting hot water (just warm)....
I had a contractor install this trim kit. The handle only rotates 90° (straight up/down). The specs show it should rotate 120° maximum handle rotation.... Did they install wrong? Or is this adjustable to get Hot water and rotate to 120° ?
Dear Saellis3,
Thank you for your question. If you are not getting hot enough water and your handle is not rotating far enough to the hot side, you would need to adjust the rotational limit stop on the top of your cartridge. Please view the "How To Video" for adjusting your limit stop, in the below link.
https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I
Best regards,
Tanya
Date published: 2017-07-17
1400 series shower trim
I need new shower trim/handle (and tub faucet at some point) for a 1400 series cartridge. I really want a contemporary square trim. Would this fit? I already have a modern square shower head installed. What are my options? Thanks!
Hi Beth, Thank you for your question. The T14067-SS trim will work with your existing 1400 series rough in. The new trim will ship with a new cartridge, this new cartridge will not fit your existing rough. You will have to continue to use your current cartridge or replace it with a RP19804.
Thanks,
Dave
Date published: 2014-12-01
Can this trim kit be used with a shower-only mixing valve e.g. r100000-UNBXHF or r10000-UNWSHF?
Hi, Jeff!
Thank you for your question. The Delta Monitor T14067-SS Valve Trim Kit can be installed as a shower-only faucet with the Delta MultiChoice R100000-UNBXHF or R10000-UNWSHF Rough Valve Bodies.
Best Regards,
Rosanna
Date published: 2020-01-08
Hello, does this Model#: T14067-SS come with the cartridge? Also, will it work with the R100000-UNWSHF? None of the listed choices show this particular valve body.
Hello Intaller,
Thank you for your inquiry! Yes, the Delta Ara Valve trim T14067-SS can be used with the Delta MultiChoice Universal Rough-In R10000-UNWSHF valve. The Trim kit also does come with the RP46074 valve cartridge assembly.
Best regards,
Tanya
Date published: 2018-07-22
Are the exterior components (backplate, lever) of T14067-SS solid metal or are they coated non-metallic?
Hi, James!
Thank you for your question. The Delta Monitor T14067-SS Valve Trim Kit lever, escutcheon plate, and sleeve are metallic.
Best Regards,
Rosanna
Date published: 2019-11-22
