Monitor® 14 Series Shower Trim in Stainless

Model#: T14264-SS
Add to Favorites
Find local Delta® installers.
Ashlyn®
View Full Ashlyn® Bathroom Collection
Monitor® 14 Series Shower Trim in Stainless
Model#: T14264-SS
List Price: $27845
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. This Brilliance Stainless finish has subtle, warm undertones which make it an excellent match with nickel or stainless steel and is extremely versatile, complementing nearly any look, be it traditional, transitional or contemporary. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body spray
  • Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles

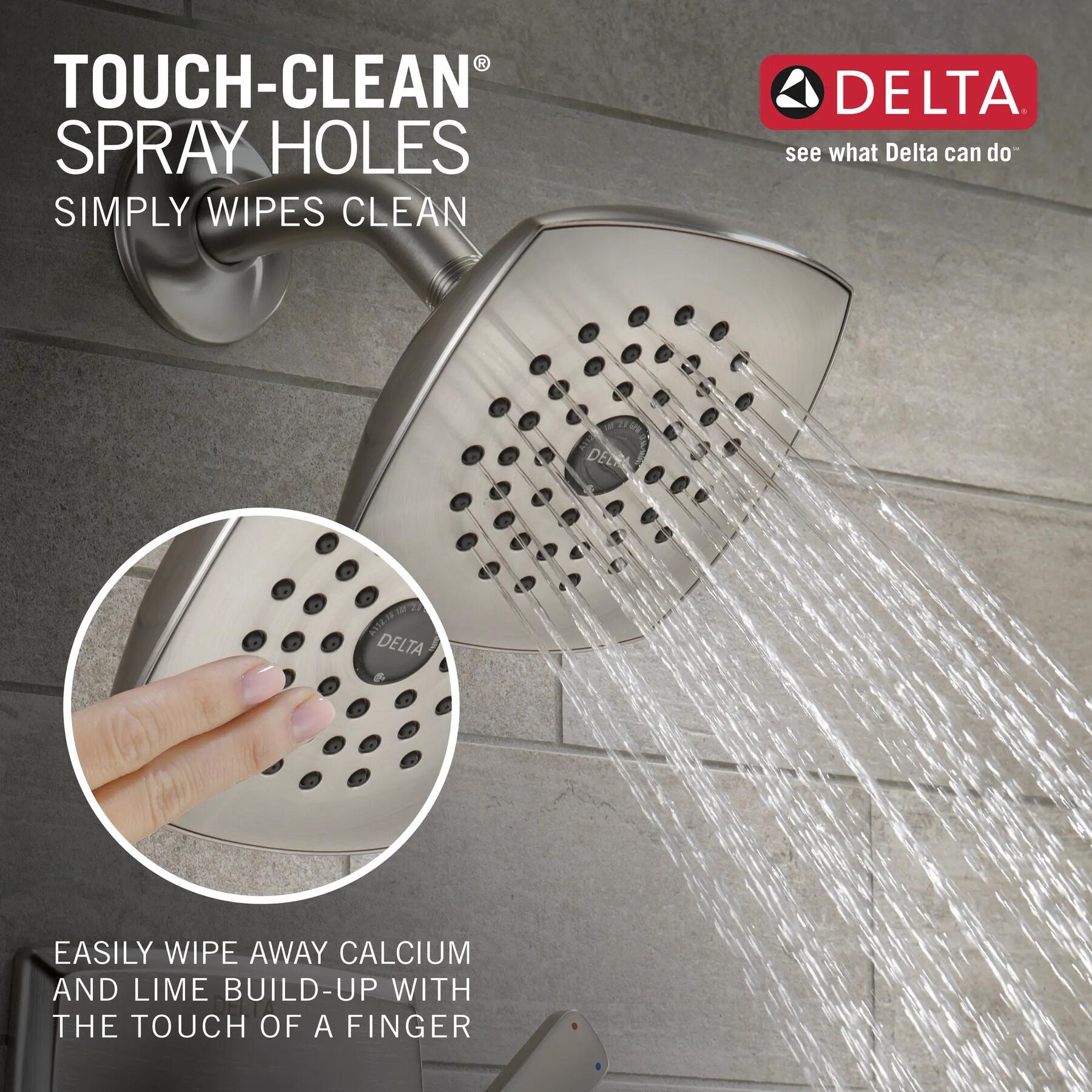

  • Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger

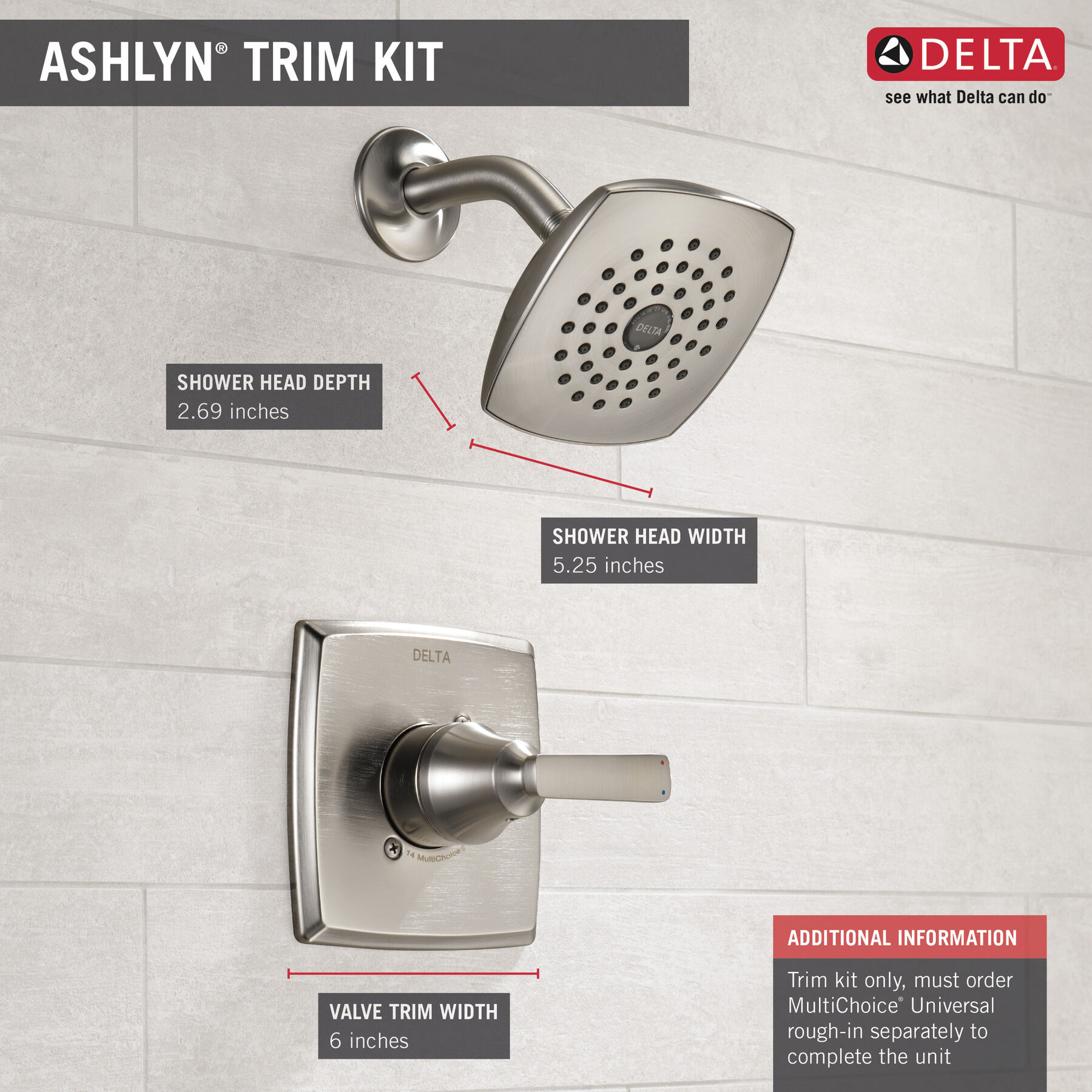

  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • ADA Compliant
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Brilliance® Finish
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

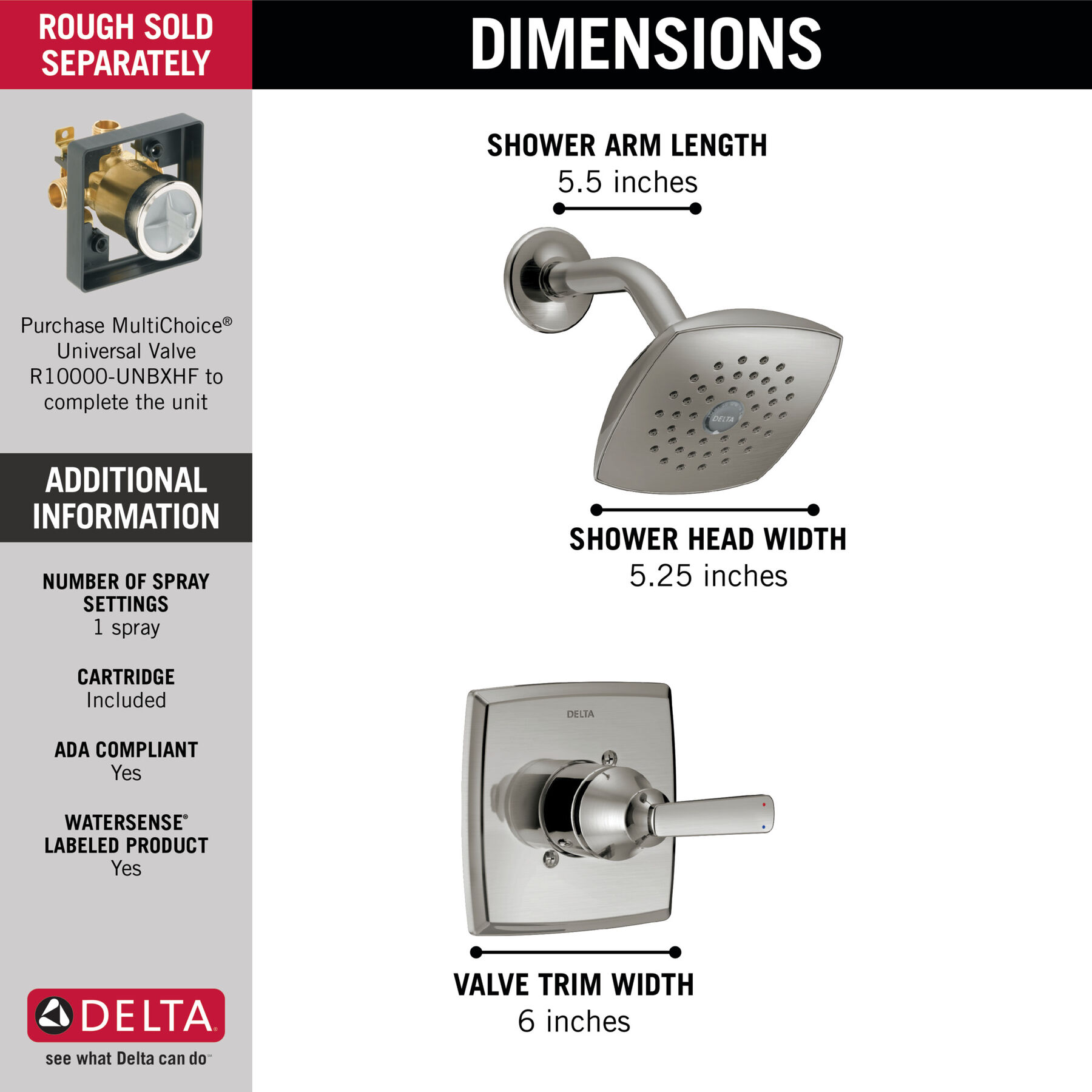

Connection Type :
1/2" IPS
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Bad Design Cartridge needs replaced every 8-9 months
Date published: 2026-06-12
Rated 4 out of 5 by from New Delta shower fixture Water pressure slightly lower than expected but ok.
Date published: 2026-03-26
Rated 5 out of 5 by from Luxury to the Bathroom I love the color of my new Shower Faucet in champagne bronze. It adds luxury to my bathroom and a high-end touch. The shower head has a great pressure. I love the stylish and modern look.
Date published: 2026-03-18
Rated 5 out of 5 by from Bathroom remodel Perfect design for my bathroom remodel
Date published: 2026-02-19
Rated 3 out of 5 by from Good quality materials Overall, I liked the feel and quality of the hardware however I found that the installation was not as easy as it seemed. I do like that it is easy to maintain cleanliness and that the materials feel higher end, but I do not know that I would purchase this again.
Date published: 2025-11-05
Rated 4 out of 5 by from Simple but nice looking faucet The design in bronze finish looks sleek. The installation process was simple. The water pressure is strong enough. The faucet was easy to maneuver.
Date published: 2025-08-28
Rated 5 out of 5 by from Stylish and Sleek Gorgeous Delta shower trim kit. The color is a champagne bronze which adds to the beauty of your bathroom while being fully functional. The materials used are of a nice durable quality. The kit comes with step by step instructions and needed pieces for installation. Also received the Delta universal rough which also came with it’s own installation instructions. Absolutely recommend this Delta product!
Date published: 2025-08-26
Rated 5 out of 5 by from So pretty! Exactly what I want. This shower head is absolutely gorgeous. The brushed champagne bronze is my favorite! The (almost) rain head is also wonderful. I cant wait to update the rest of the faucets and handles in my home to match!
Date published: 2025-08-24
  • y_2026, m_7, d_17, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_69
  • loc_en_US, sid_T14264-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 54ms
  • reviews, product
Q&A

I plan on installing this shower trim Delta T14264-SS outdoors by my pool. Is the material made of stainless steel or is that just the name of the finish? Do you know what grade of stainless it is?

Asked by: Dustin H
Hi, Dustin H! Thank you for your question. The Brilliance Stainless Steel for the Delta T14264-SS shower unit is the name of the finish. Unfortunately none of our faucets are specifically designed to be installed outdoors. They are not designed to withstand extreme cold weather conditions (freezing) or direct sunlight from the sun in the summer months. If you do decide to install one of our faucets outdoors, then please remember that our warranty only covers manufactures defects. Damage incurred to the faucet by the extreme weather conditions are not covered by our warranty program. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I am configuring using the Universal shower valve concept and have configured the following: R10000-UNBXHF universal shower valve, Ashlyn T14264-SS shower trim kit, What cartridge do i need?

Asked by: Edward
Thank you for your inquiry, Edward! The valve cartridge assembly RP46074 comes in the box with the Delta Ashlyn Shower T14264-SS trim kit. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

17 series vs 14 series

I'm interested in the Ashlyn shower single handle and shower head. It comes in a 17 series and a 14 series. what are the differences other than price? Also, do they both have the same flow rates?
Asked by: Aimee
Hi Aimee, Thank you for your question! The 14 series has a single handle that rotates from off, to cold, then hot. It runs at a constant volume through the warm and hot position. The 17 series has separate volume and temperature controls. It will stay in the same temperature setting that it was last set to with the temperature knob, and can be turned on and off using the volume handle. The T14264-SS and T17264-SS units have the same flow rate. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Which one - Rough in Valve

So there are many MultiChoice® Universal Valves to chose from...which one is it.
Asked by: DGI
Hi DGI, Thank you for your question. This trim will work with any MultiChoice R10000 rough-in valve. https://www.deltafaucet.com/search-results?searchTerm=R10000 Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-05-23

Can you change the flow rate of the Ashlyn 14 square shower head? If so, how can this be accomplished?

Asked by: William
Hi Tanya, @80psi if you punched out the internal ring that regulates the flow of water to the head, wouldn't that increase the flow to well beyond 1.75 GPM?
Answered by: William
Date published: 2024-03-28

Is delta stainless steel the same color as brushed nickel?

Asked by: SueR
Hello, Thank you for your question! It is nearly identical but there may be a slight difference with products next to each other with these two finishes. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2024-12-05

The shower head has a 1.75 gpm flow controller inside of it. 1) Can I remove this and install a flow controller with a larger flow rate (e.g., 2.5 gpm)? 2) Can I order a replacement 1.75 gpm flow controller if I break the one currently installed?

Asked by: Tony
Thank you for your question, Tony! The shower head does have a flow regulator inside however this is not intended to be removed and doing so will void the warranty. We do not offer replacement flow regulators nor do we recommend using another manufactures product with this item. Below is a link to our shower heads that offer the full 2.50 gpm flow rate. https://bit.ly/2B5dvIG Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28

Can i purchase a spout separately to go with the T14264.

If so let me have the applicable spouse item number as well as the other components and accessories i would need to have it fit.
Asked by: Mulligan
Hello Mulligan, Thank you for your question. You can use any tub spout to go with the T14264 shower trim. In addition to the trim you will need a rough in valve such as the R10000-UNBX. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-08-22
  • y_2026, m_7, d_17, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_40
  • loc_en_US, sid_T14264-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 31ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP6025PR

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025PR

Image-RP26853

Delta®

Delta® Allen Wrench - 3/32"

List Price: $4.05
Online Price: $3.24
Free Ground Shipping All Orders $49+

RP26853

1.00 2
Image-RP26865

Delta®

Delta® Set Screw

List Price: $12.40
Online Price: $9.92
Free Ground Shipping All Orders $49+

RP26865

4.67 3
Image-Master-RP77090

Ashlyn®

Ashlyn® Metal Lever Handle Kit - 14 Series

List Price: $82.40 - $123.35
Free Ground Shipping All Orders $49+

RP77090

Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP77092

Ashlyn®

Ashlyn® Tub Spout - Non-Diverter

List Price: $139.90 - $204.15
Free Ground Shipping All Orders $49+

RP77092

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.21 107
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.17 12
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-Master-RP77089

Ashlyn®

Ashlyn® Escutcheon - 14 Series

List Price: $73.95 - $120.65
Free Ground Shipping All Orders $49+

RP77089

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS14264
Only at Online Retailers

Ashlyn®

Ashlyn® Shower Trim Bundles

List Price: $278.10 - $388.10
Standard Finishes

FVS14264

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
