Ara®
View Full Ara® Bathroom Collection

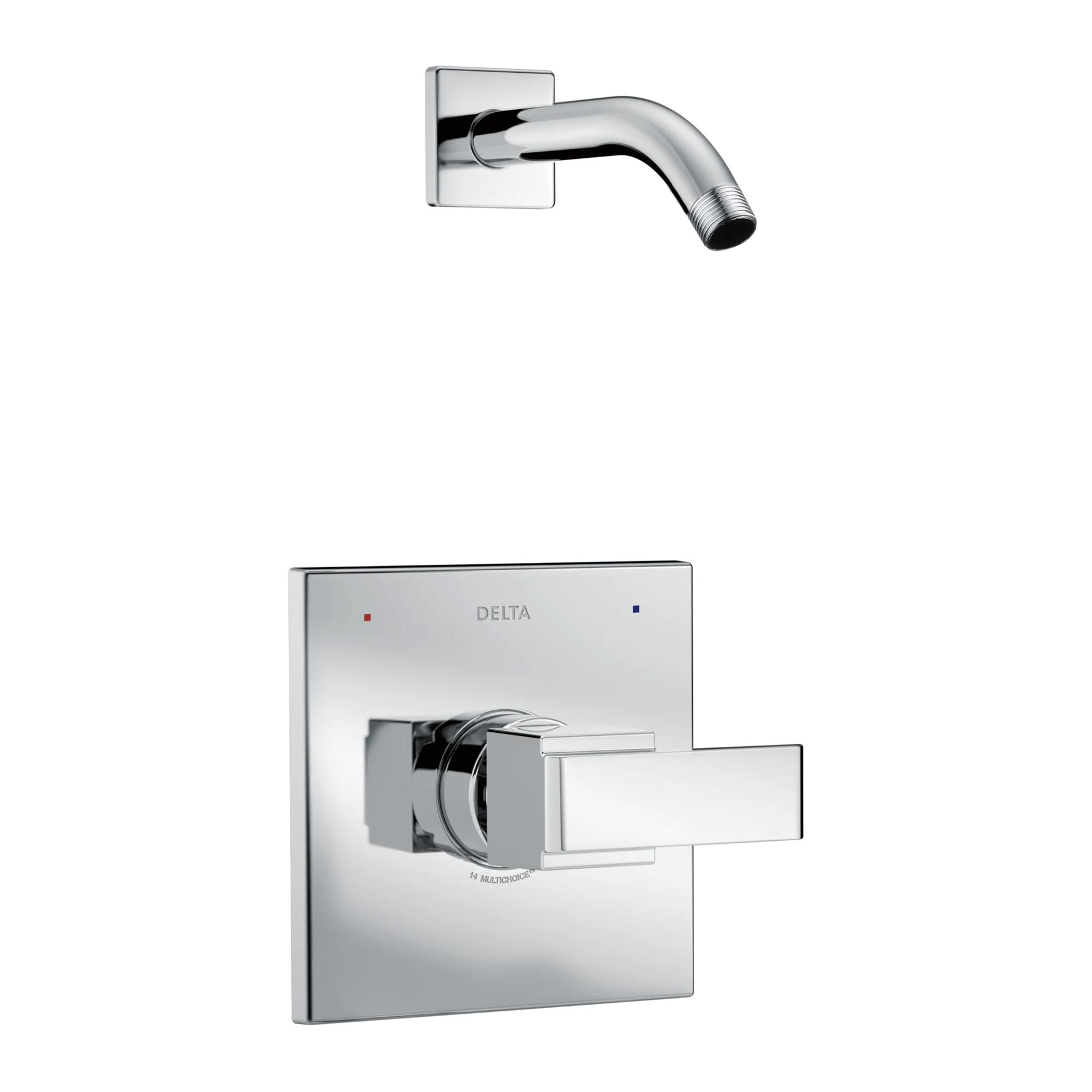

Monitor® 14 Series Shower Trim - Less Head in Chrome

Model#: T14267-LHD
Add to Favorites
Find local Delta® installers.
Ara®
View Full Ara® Bathroom Collection
Monitor® 14 Series Shower Trim - Less Head in Chrome
Model#: T14267-LHD
List Price: $29990
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia.
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
8-9/16
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 4 out of 5 by from Nice Nice and the only problem I have that the finis leaves water stains.
Date published: 2026-05-02
Rated 4 out of 5 by from Looks Good Have not installed it yet but it looks great. Only issue is the shower head spout is 7 inches long and we prefer a shorter 5 1/2" spout. We plan to purchase a shorter version.
Date published: 2025-03-01
Rated 5 out of 5 by from Great faucet for shower. Very nice faucet. Looks sleek and clean.
Date published: 2024-03-17
Rated 5 out of 5 by from Awesome Another great product by Moen.
Date published: 2024-02-27
Rated 5 out of 5 by from Very pleased It was the exact look we were going for. Quality Delta product. Very fast service
Date published: 2023-11-21
Rated 5 out of 5 by from It’s just a piece of pipe!!!!!!!!!!!!! Why it’s just some pipe!!!!
Date published: 2023-07-12
Rated 5 out of 5 by from Reliable Functions great! Contractor had no problems installing
Date published: 2022-04-16
Rated 5 out of 5 by from Delta H&C Controller I purchased retrofit Vigo shower panel, it took me a bit time finding the right H/C controller to match up with the Vigo panel and its color, the price was reasonable for such a high quality product. I was so happy that Delta made this part perfectly to my needs. The item is solid brass and nice Matt black. The best part is Delta logo is very invisible so it blends in Very well with Vigo panel. I highly recommend this product.
Date published: 2020-10-26
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_21
  • loc_en_US, sid_T14267-LHD, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Q&A

All the pictures for the Monitor 14 series shower trim - Less head Ara #T14267-LHD show the handle in a horizontal position when off.  Can the handle be installed so it is vertical when the water is off?

Asked by: Bill
Thank you for your question, Bill. The handle will be horizontal in the off position and will rotate counter-clockwise to turn on and adjust the temperature. Unfortunately, it cannot be installed so that the handle is vertical when the faucet is off, except by installing the valve sideways. This is not recommended since the plate will also be sideways. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Can the R1000-UNBXHF be used in place of the R1000-UNBX

Asked by: hawks
Hi hawks, Thank you for your question! The R10000-UNBXHF can be used in a shower only installation in place of the UNBX version. Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Do I need to order a cartridge for R10000-UNBXHF adn T14267-LHD

I ordered the R10000-UNBXHF Shower Only Body and the T14267-LHD Trim, but I can't tell if that is all I need or not. Do I need to order a separate cartridge? Also, would I be better off in the future instead ordering a body with integral stops for repairability?
Asked by: Chuck L
Hi Chuck L, Thank you for your question! The cartridge is included with our trims. The T14267-LHD should have the cartridge in the box. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

T14267LDH valve I purchased has the stops I guess for balancing hot cold water? Can I just plug the 1/4” NPT openings and leave the stops out and get best flow?

Asked by: G Man
Hello G Man, Thank you for your question. The R10000-UNWS has stops on it, so that if you need to work on or service the faucet you will be able to shut off the water supply at the faucet and not have to shut off the water to the rest of the house. The screw stops on the R10000-UNWS will stop turning when fully open. You can turn the stops clockwise up to three full turns from the open position without a noticeable reduction in flow. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

valve rotation

I have n R10000-unbxhf valve which I am using with the T14267-sslhd. I am preparing to install these and something doesn't seem right. When the valve is at the limit stop position it only rotates 90 degrees clockwise and then stops.
Asked by: steve
Hi Steve, Thank you for contacting us. The Rotational Limit Stop can be adjusted to allow the handle to turn further. To do this, loosen the set screw and remove the handle, pull the stop away from the cartridge, rotate it, and set it back in place. Be sure to measure the maximum temperature of the water so that it does not exceed what is allowed by your local plumbing code. How-To Video: http://www.deltafaucet.com/tools-resources/research/video-gallery/video.html?v=n2_uZ7wgV1I&cat= Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Lost the set screws. Can I order them?

Asked by: Swanny1758
Hi, Swanny1758! Thank you for your question. The Delta RP196BL Escutcheon Screws are available for order. Here is a link to the escutcheon screw kit: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP196BL Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Can I order the back bracket for this trim?

I got this trim used from amazon and the only part missing is the bracket that goes behind the trim. Can I order that bracket on its own?
Asked by: Miguel
Dear Miguel, Thank you for your question. Yes, the back bracket RP51035, for the escutcheon plate of the Delta Ara Shower T14267-SSLHD faucet can be ordered separate from the full trim kit. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Can this be used with UNWSHF?

Asked by: Jessica
Hi, Jessica! Thank you for your question. The Delta Monitor T14267-SSLHD shower valve trim can be used with the Delta MultiChoice Universal R10000-UNWSHF valve body. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_en_US, sid_T14267-LHD, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 50ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP75437

Ara®

Ara® Metal Lever Handle Kit - 14 Series

List Price: $84.90 - $116.90
Free Ground Shipping All Orders $49+

RP75437

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $38.65 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP75436

Delta®

Delta® Escutcheon & Gasket - 14 Series

List Price: $152.75 - $245.35
Free Ground Shipping All Orders $49+

RP75436

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.27 102
Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

List Price: $36.35 - $47.95
Free Ground Shipping All Orders $49+

RP51035

Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-Master-RP51034

Vero®

Vero® Flange - Shower

List Price: $26.45 - $47.45
Free Ground Shipping All Orders $49+

RP51034

Image-RP51019

Delta®

Delta® Set Screw & Button

List Price: $21.70
Online Price: $17.36
Free Ground Shipping All Orders $49+

RP51019

5.00 1
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-Master-RP75435

Ara®

Ara® Tub Spout - Pull-Up Diverter

List Price: $114.15 - $221.85
Free Ground Shipping All Orders $49+

RP75435
