Monitor® 14 Series H<sub>2</sub>Okinetic® Shower Trim in Chrome

Model#: T14267
Add to Favorites
Find local Delta® installers.
Ara®
View Full Ara® Bathroom Collection
Monitor® 14 Series H<sub>2</sub>Okinetic® Shower Trim in Chrome
Model#: T14267
List Price: $38500
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Delta® H2Okinetic® Showers look different because they are different. Using advanced technology, H2Okinetic showers sculpt water into a unique wave pattern, giving you 3X the coverage of a standard shower head.* The end result is a shower that provides more coverage, more warmth and more intensity for a truly drenching shower experience. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
  • H2Okinetic Shower technology sculpts water into a unique wave pattern, forming a powerful drench spray
  • Gives you the feeling of more water without using more water
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: H2OKinetic spray
  • H2Okinetic spray creates a shower with more warmth, coverage and intensity
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • Compatible with Delta® MultiChoice® Universal Valve (R10000-UNWS)
  • ADA Compliant
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa

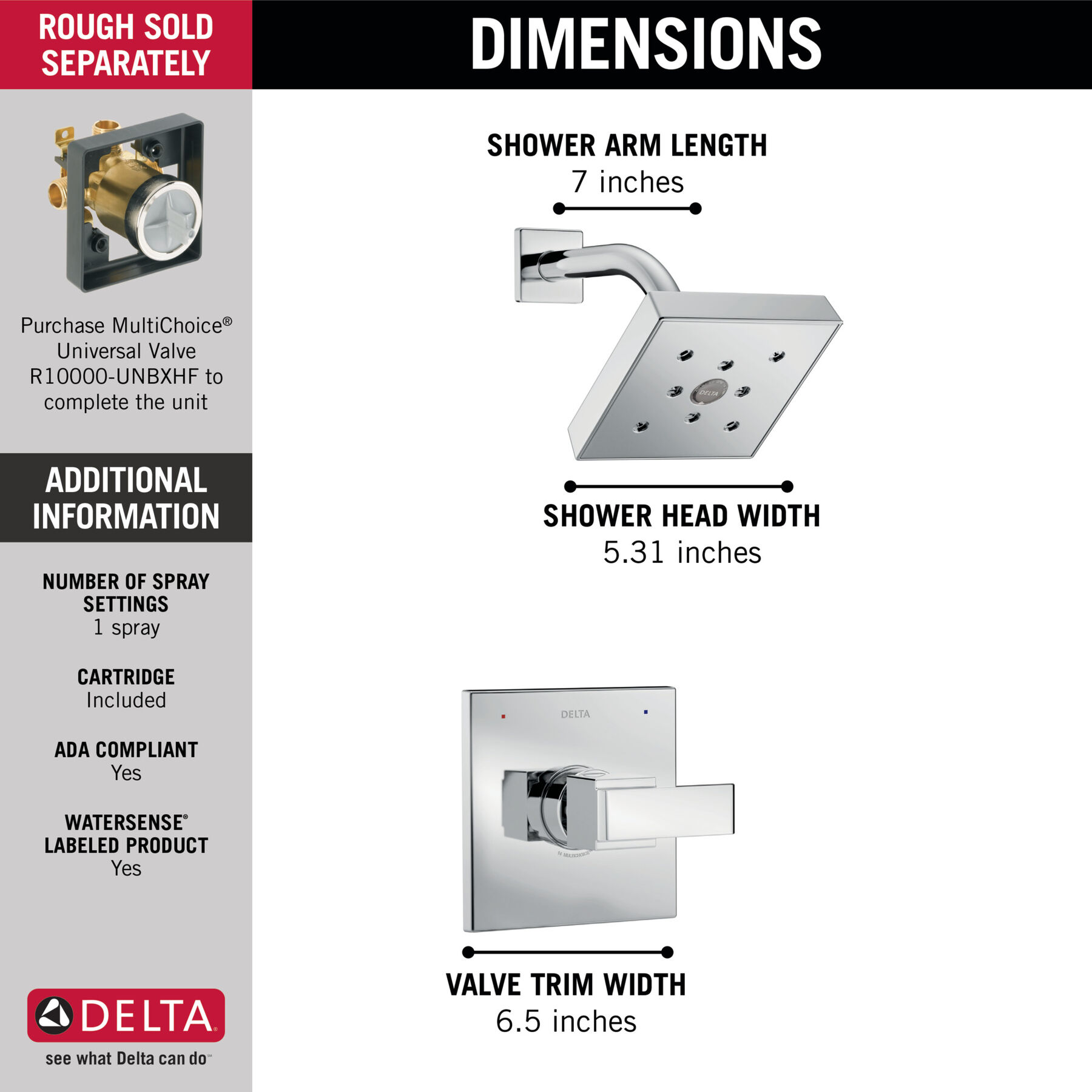

Overall Height (in.) :
6-1/2
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Delta Nice look, good quality:)
Date published: 2024-11-16
Rated 5 out of 5 by from Delta shower head Great shower fixture - we are very happy.
Date published: 2024-09-16
Rated 1 out of 5 by from Terrible water flow I bought two shower system for two of my bathroom updates. One in Matte black (Delta pivotal) and one in Brilliance Stainless (Delta Ara Monitoer 14) due to lack of availability of Delta pivotal in brilliance stainless. Delta Ara Monitor has terrible water flow. The water splashing so hard that frameless door can not keep it contained within the shower area. The head is not adjustable enough. Overall I am very unsatisfied with it and may have to change.
Date published: 2022-02-13
Rated 1 out of 5 by from Not enough water flow Terrible water flow out of this shower head. It's too bad b/c it looks really cool but it's just not functional for showering. We replaced it with a different shower head.
Date published: 2022-01-12
Rated 5 out of 5 by from GC good product for the price
Date published: 2021-11-24
Rated 5 out of 5 by from Elegant, easy install Upgrade your bathroom shower head to a soothing rainfall. This was easy to install and instantly gave my shower a face lift. Simple, easy to follow instructions included. Elegant and stylish. Love the soothing, gentle rainfall it produces. I was skeptical it would generate enough water or pressure to clean my long hair but I was wrong.
Date published: 2021-11-09
Rated 5 out of 5 by from The pop my bathroom needed Wow! This was the final pop my bathroom needed. I highly recommend getting a professional to install It if you’re not familiar with pumping. It wasn’t easy to install, but it was definitely worth it. It took my husband about an hr to install it on his own. I should also note that he’s not a professional plumber, but has experience with plumbing so most was pretty simple for him. I love how durable it us. You can feel and see the quality of the product right when you put it in your hands. If feels like it can we stand anything and last a lifetime. This is overall a great quality product and I highly recommend.
Date published: 2021-09-28
Rated 5 out of 5 by from Sleek Had this shower faucet and showerhead installed During our bathroom renovation this past month and it looks so modern and sleek and is also very functional and easy to use. The faucet and showerhead both operate smoothly. In terms of installation its a pretty easy process but we had a plumber go ahead and install these as a part of the reno so the whole process went pretty smooth. Definitely recommend this.
Date published: 2021-09-28
  • y_2026, m_6, d_19, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_39
  • loc_en_US, sid_T14267, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Q&A

Pressure Balance Valve

The ARA- T14267 model doesn't allow for enough hot water to flow through the fixture. Is there a way to remove the pressure balance valve to create a free flow of hot water???
Asked by: Chick
Hi Chick, Thank you for your question! To get more water, please try adjusting the Rotational Limit Stop. https://www.deltafaucet.com/cms/render/live/en/sites/delta/home/video-gallery/video-page.html?videoId=n2_uZ7wgV1I We do not advise to remove or modify the pressure balance mechanism. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-09-15

What are the required parts such as rough-in to make this system work properly?

For the Ara 14 Series Shower Trim - T14267
Asked by: Khoudia
Hi Khoudia, Thank you for your question. The T14267 shower trim needs our R10000 multichoice universal rough to make a complete faucet. For a shower only application you can use the model R10000-UNBXHF, or the R10000-UNWSHF. The R10000-UNSWHF includes screwdriver stops that allow you to shut the water off at the faucet instead of turning off the water to the whole house if you need to repair or do maintenance on the faucet. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

can the multi choice valve be used for a wand instead of tub

I have a shower (no tub) if I use your mulit choice valve, can I use it for a shower head and a wand on a bar instead of the tub fill.
Asked by: Bob
Hi Bob, Thank you for your question! A hand held shower can not be connected to the tub spout pipe nipple on the valve body. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

I have T14267 ARA shower Trim

Doe this model require spacer to be inserted in the sleeve. What is the purpose of the spacer. Also the valve is situated deeper behind the wall, i am unable to screw in the bracket on to the valve. Screw provided is short. Any suggestions on how to install the escutcheon. how many far is the cartridge suppose to be sticking out from the tub surround wall.
Asked by: Mike
Hi, Mike! Thank you for your question. The spacer inside of the sleeve helps to keep the sleeve snug on valve body. Distance from the stringer to the front of the plasterguard is 2 3/4&quot; &plusmn; 1/4&quot; (70 mm &plusmn; 6 mm). Note: This is the same distance to the finished wall. Distance from the stringer to the frontof the bonnet is 3 7/8. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

The hole in the tile is slightly larger on one side than shower flange (RP51034). Is there alternative flange of similar design (square) available?

Ara Monitor 14 Series Shower Trim Shower Flange RP51034
Asked by: Michael
Hi Michael, Thank you for your question! The RP51034 is 2&quot;. We do manufacture the RP:46872 which is 2 1/2&quot;. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

List Price is $217.20. Why does it include the rough cost when I'm looking up a trim?

Asked by: Troy
Hi, Troy! Thank you for your question. The list price for the T14267 is $217.20. The rough valve price is shown so if a customer needs the rough valve, they know it is an added price and the valve is separate from the trim price. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2024-03-28

what material is this collection? is there a difference in material between the black and the crome?

Asked by: shayaj
Hello Shayaj, Thank you for your question. The external trim parts are metallic, except for the shower head. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Can this be specified for an outdoor shower?

Asked by: Jonathan
Thank you for your question, Jonathan! We do not recommend installing this shower trim outdoors. If installed outdoors, any damage due to weather would not be covered under warranty. Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_19, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_20
  • loc_en_US, sid_T14267, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 58ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP75437

Ara®

Ara® Metal Lever Handle Kit - 14 Series

List Price: $84.90 - $116.90
Free Ground Shipping All Orders $49+

RP75437

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP75436

Delta®

Delta® Escutcheon & Gasket - 14 Series

List Price: $144.70 - $245.35
Free Ground Shipping All Orders $49+

RP75436

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.24 105
Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

List Price: $36.35 - $47.95
Free Ground Shipping All Orders $49+

RP51035

Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.17 12
Image-Master-RP51034

Vero®

Vero® Flange - Shower

List Price: $26.45 - $47.45
Free Ground Shipping All Orders $49+

RP51034

Image-RP51019

Delta®

Delta® Set Screw & Button

List Price: $21.70
Online Price: $17.36
Free Ground Shipping All Orders $49+

RP51019

5.00 1
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-Master-RP75435

Ara®

Ara® Tub Spout - Pull-Up Diverter

List Price: $114.15 - $221.85
Free Ground Shipping All Orders $49+

RP75435

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS14267
Only at Online Retailers

Ara®

Ara® Shower Trim Bundles

List Price: $473.20 - $658.20
Standard Finishes

FVS14267

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
