Vero®
Monitor® 14 Series Tub & Shower Trim
Model#:
T14453
PRODUCT FEATURES
- Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure

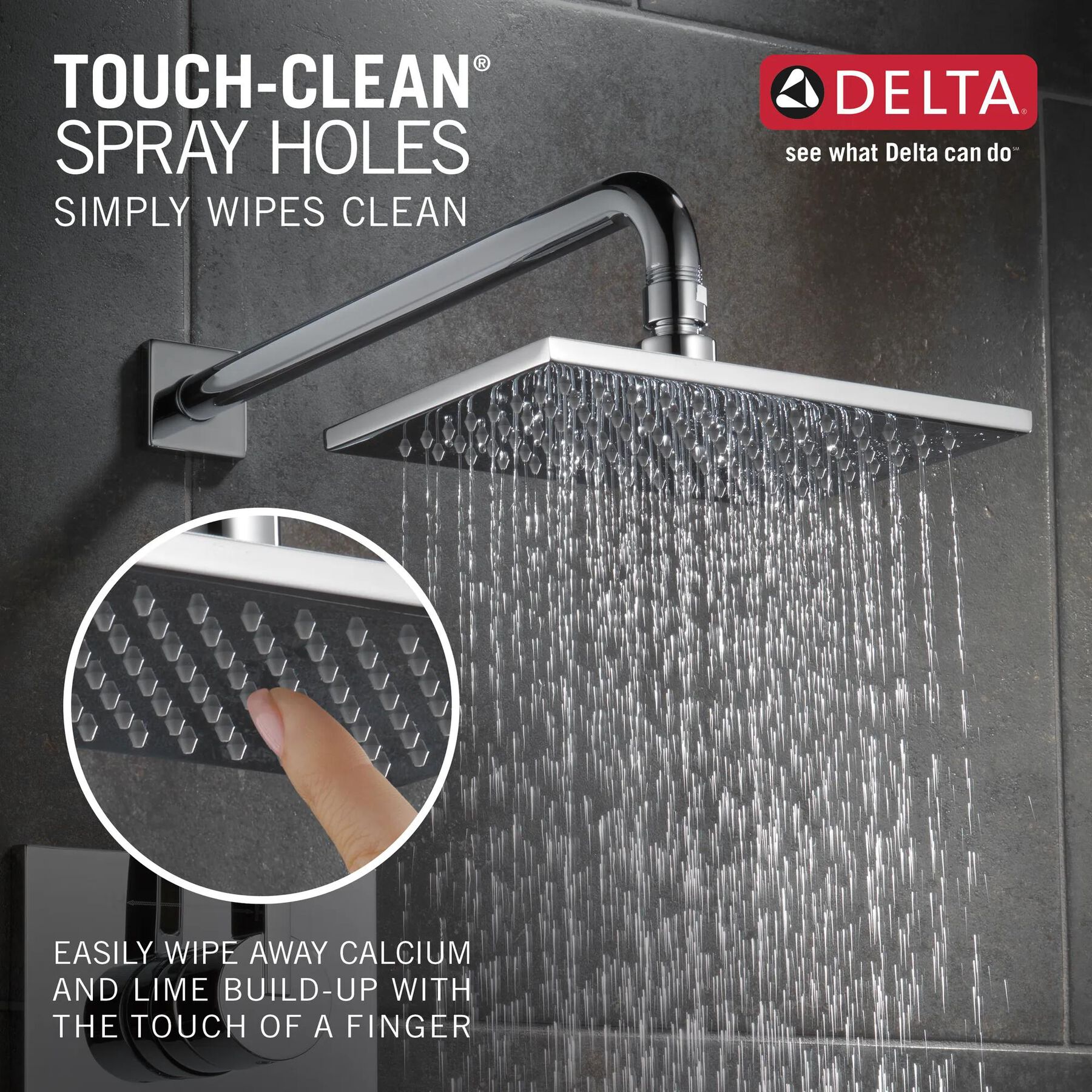

- Soft, rubber spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and handshower with the touch of a finger
- Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
- Single function operation
- Single lever handle for ease of temperature control
- Meets standards set by Americans with Disabilities Act (ADA)
- Spray settings include: Full Body
- Valve is not included, must purchase separately
- Monitor Valve protects from rapid changes in hot or cold water
- Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
California Prop 65 WARNING
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov
SUPPORT
Product Support, Repair Parts & Technical Specifications
PART LIST
PART LIST
REVIEWS
Rated 2 out of
5
by
Disappointed from
Plastic fixture???
The tub spout is plastic! Why?
I was extremely disappointed that I paid a lot of money for the system and I got a piece of plastic!
Date published: 2020-11-10
Rated 5 out of
5
by
Mandy C from
Gorgeous!
[This review was collected as part of a promotion.] Such an elegant fixture. It was perfect in my contemporary bathroom. Would highly recommend.
Date published: 2020-01-14
Rated 5 out of
5
by
GDR Services LLC from
Very elegant!
Purchased this for a remodel, it looks very elegant and clean in the new shower. looks great!
Date published: 2019-12-23
Rated 5 out of
5
by
dmc from
Amazing finish
Item received and lives up to its description. Perfect finish that modernizes bathroom
Date published: 2019-12-16
Rated 4 out of
5
by
Mo from
Good product
Installation pretty self explanatory. Easy of use
Date published: 2019-07-22
Rated 5 out of
5
by
Designermom904 from
Modern and beautiful
The pressure is great, looks fabulous and was easy to install.
Date published: 2018-11-17
Rated 5 out of
5
by
Denvergirl from
So Smooth
I have had many shower heads and this one is so smooth, the pressure is just right! So sleek, it looks amazing in our basement bathroom
Date published: 2018-08-05
Rated 5 out of
5
by
JS from
Guest bath shower/tub
Great looking trim package and went with the clean line look I was going for. No issues, exactly what I was looking for.
Date published: 2018-06-04
Q&A
Longer shower arm
Do you offer a longer shower arm? The one that comes with the kit forces you to stand too close to the tub spout in orther to be under the rainshower head.
Hello Mariofer,
Thanks for your question. The U6930 should work. It is extendable from 13" to 22".
Date published: 2015-11-30
Our plumber says that we cannot use this tub spout because there is not an option for "slip on" as the instructions show. There is no set screw. The part that came with this spout has to be sweat on, which is not possible with our copper.
Thank you for your question, kona513! The tub spout included with this model can be either sweat onto ½" C.W.T (copper) or thread onto ½" IPS (iron pipe) using the included RP12307 adapter assembly. The slip on adapter, part number RP33794 can be purchased and used instead. This includes the needed set screw and would tighten to a smooth copper pipe 2-4" in length.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP33794
Best regards, Edward
Date published: 2019-02-01
Can a hand held shower go with this system?
I wish to have in my shower this system (shower head and spout) but I also want a hand held shower. Would item #58470 (In2ition 2 in one shower) work with this system and what are all the parts I would need to buy? If not, is there any handheld shower I can add to the system?
Thank you for your question, Adi. The Delta Faucet model #58470 is compatible with any shower system and is easy to install.
For the type of installation you are looking for in your custom shower there are two options:
1) The Shower unit with model #58470 .
2) The hand shower unit purchased in addition to Delta Faucet model #T14453. With this option, a diverter valve assembly would also be required to complete installation (Delta part #R1100). The diverter assembly would allow you to use the hand shower separately or in conjunction with the shower head.
1)To build the Vero 14 series tub and shower system here are the model numbers we recommend you purchase to complete the shower with the In2ition shower head:
R10000-UNBX- Universal Rough-in valve
T14053- Vero valve only Trim
58470- In2ition shower head
RP40593- shower arm
RP51034- shower flange
RP53419- tub spout
*please note that while this option would require more pieces to be ordered individually, the in2uition shower head would allow you to have less plumbing installation behind the wall.
2) To build the Vero 14 series tub shower system with a diverter assembly.
R10000-UNBX- Universal Rough-in valve
T14453- Tub Shower Trim
R11000- Diverter rough
T11853- 3- setting diverter trim
50570- hand shower wall supply
55530-Single setting wall mount hand shower OR 57530 Single setting hand shower with slide bar
Date published: 2013-10-22
Is any part of this made of plastic? If so please list them.
Thank you for your question. Delta Faucet model # T14453-SS has both metallic and non-metallic parts. Most of the parts on the outside of the wall are non-metallic.
Date published: 2013-10-22
Want to buy T14453-SS and 57051-SS with 50570-SS.
Do I need T11853-SS to operate 57051-SS separately. And what valves do I need with this. Thank you
Hi Jelbros, Thank you for your question. You will want to use the R10000-UNBX rough in to work with the T14453-SS. You will want the R11000 rough in to go with the T11853-SS diverter trim. The diverter will allow you to operate the fixed showerhead only, the slidebar handheld showerhead only, or use both at the same time.
Thanks,
Dave
Date published: 2014-01-24
i would like to purchase the vero tub and shower system and also add the vero handshower. can you please tell me what plumbing components...
I would need to purchase to have a plumber install this in a complete bath remodel. Which rough in valve? do i need an additional diverter to use with the handshower? if so, which one. thank you.
Thank you for your questions. You will need the following models to complete your request:
T14453-SS-tub and shower trim
R10000-UNBX-tub and shower rough
R11000-divierter rough
T11853-SS-diverter trim
50560-SS-wall elbow
Either 55530-SS or 57530-SS-handshowers
Date published: 2013-10-22
How to change the temperature setting on t14453-ss
The water doesn't get hot enough how to change
Need water to be hotter but the handle doesn't go any further
Dear Water Temp,
Thank you for your question. If you are not getting hot enough water from your Delta Vero Tub and Shower T14453-SS faucet, you would need to adjust the rotational limit stop on the top of your RP46074 cartridge. Please view the "How To Video" for adjusting your limit stop, in the below link.
https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I
Best regards,
Tanya
Date published: 2017-04-08
Is the plastic piece inside the spout hole removable at all? Seems like it’s killing the water pressure.
Hello Crprz03,
Thank you for your question! I apologize that you are experiencing low pressure from the tub spout on your Delta model T14453-CZ, and we will be happy to help today.
We recommend leaving the plastic piece inside of the tub spout. The most common cause of a low flow rate is debris. The best way to clear any debris is to flush the supply lines. To do this, turn off the water supplies, remove the cartridge, and turn the supplies back on for one minute.
Please make sure that you are getting good flow through both the hot and cold sides while flushing. You can also shake the cartridge back and forth to make sure the back half of the cartridge rattles. This means that the pressure-balancing spool is moving freely, as it should. If it does not, you can try soaking the cartridge in white vinegar for about 15-30 minutes.
You can also remove the tub spout and flush through the pipe and then reinstall the tub spout.
Please contact us directly for any further questions or concerns.
Best Regards,
Renna
Date published: 2020-12-15
INSTALLATION SUPPORT
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
Installation made easy. Download the free BILT app to access step-by-step 3D interactive instructions.
