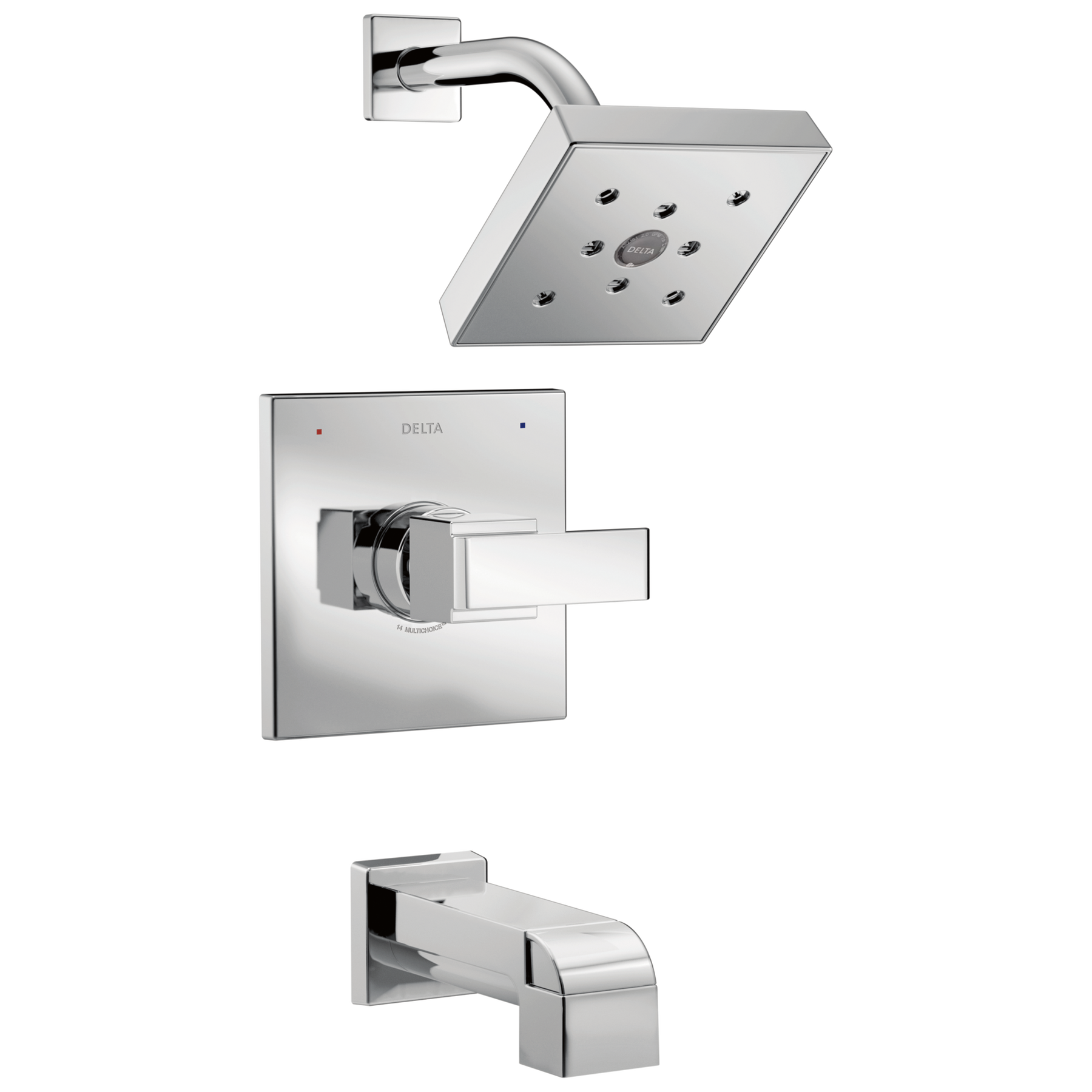

Monitor® 14 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Chrome

Model#: T14467
Add to Favorites
Find local Delta® installers.
Ara®
View Full Ara® Bathroom Collection
Monitor® 14 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Chrome
Model#: T14467
List Price: $45600
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
  • Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Single function operation
  • Single lever handle for ease of temperature control
  • ADA Compliant
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Compatible with Delta® MultiChoice® Universal Valve (R10000-UNWS)
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
6-1/2
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Excellent value Great value to get a set all invlusive
Date published: 2024-05-21
Rated 5 out of 5 by from Well worth the price This shower combo and recommend valve have been a wonderful change from the original We chose mat black which reall accents the new white tile. We just had a week of company and to the person the shower was complimented. Well worth the price.
Date published: 2023-10-31
Rated 2 out of 5 by from Pressure Balanced? Beautiful shower head BUT the water pressure is awful!! Is there a way to adjust that or remove something to get better pressure?
Date published: 2023-05-22
Rated 2 out of 5 by from Don’t buy Not impressed. Had to buy a new shower head because this one puts out hard uneven streams of water. The handle is very temperamental and the spout feel like cheap plastic. Would not recommend, wish I would not have purchased this
Date published: 2023-01-14
Rated 5 out of 5 by from Great Looking Great looking set for tub/shower
Date published: 2022-07-16
Rated 3 out of 5 by from Tub Spout Disappointment The spout is plastic. The top surface is very flat so water stays on top of it and dries, leaving bad water marks. I wish the quality was as good on this as most of the other Delta fixtures I've purchased.
Date published: 2022-07-16
Rated 3 out of 5 by from The spray nozzle is as advertised but not as strong as I would expect The spray nozzle is as advertised but not as strong as I would expect
Date published: 2022-01-15
Rated 2 out of 5 by from Drippy Faucet Six months after installation the tub faucet started dripping. My plumber said he needed to replace the cartridge. When calling Delta, I was informed that I first needed to replace some springs and gaskets, which of course didn't solve the issue and resulted in a wasted trip by the plumber. Hope the replacement cartridge works when it gets here!
Date published: 2021-08-30
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_32
  • loc_en_US, sid_T14467, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 10ms
  • reviews, product
Q&A

What are the required parts such as rough-in to make this system work properly?

Ara 14 Series Tub/Shower Trim - T14467
Asked by: Khoudia
Hi Khoudia, Thank you for your question. The T14467 tub and shower trim needs our R10000 multichoice universal rough to make a complete faucet. You can use the model R10000-UNBX, or the R10000-UNWS rough with the trim. The R10000-UNSW includes screwdriver stops that allow you to shut the water off at the faucet instead of turning off the water to the whole house if you need to repair or do maintenance on the faucet. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Does the valve divert flow between shower and bath as the tub spout does not have a diverter?

Delta T14467. Thanks.
Asked by: Tom
Hi Tom, Thank you for your question! The T14467 comes with a pull up diverter tub spout. The very front ( top) portion of the tub spout is where you pull up to divert the water to the shower head. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

Does model ARA Monitor 14 Series have a metal spigot rather than coated plastic?

Asked by: bill
Hi Bill, Thank you for your question. The RP75435 tub spout that comes with the T14467 tub/shower trim is not a metal spout. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Can the water pressure of the shower head be adjusted.

Asked by: Tony
Hi, Tony! Thank you for your question. There is not a way to adjust the shower head to have a higher flow rate. The Delta Monitor T14467 shower head shower has a flow rate of 1.75 gpm @ 80 psi. The unit is Water-Efficient and WaterSense&reg; Labeled. WaterSense&reg; labeled showers use at least 20% less water than the industry standard&mdash;saving you money without compromising performance. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

with the Ara 14467 t/s faucet, how do you turn the shower head on?

Asked by: Ann265
Hello, Thank you for your question! The showerhead is activated by pulling up on the diverter located on top of the tub spout. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-06-19

What is the difference between the Ara Monitor 14 Series and the 17 Series?

Asked by: Joe
Hi Joe, Thank you for your question. The 17 series has an on/off volume handle and a temperature control knob, which allows you to leave the temperature at the same setting between showers. The 14 series does not have volume control. The handle will rotate counter-clockwise from the off position and gets warmer as you turn the handle. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Need # of rough-in valve for T14267 shower only with internal shut off for new construction

Asked by: Tom P
Hi, Tom P! Thank you for your question. The T14467-BL does work with any of our Delta Multi-Choice R10000 rough valve body. The R10000-UNWSHF is a shower-only valve body with internal stops. Here is a link to this unit: https://www.deltafaucet.com/bathroom/product/R10000-UNWSHF Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Does the screw setting on the valve control the water pressure. &nbsp;The water flow is low with the Ara. The original shower head had good water pressure.

Asked by: Dbmuir
Thank you for your inquiry, Dbmuir! The shower head of the Delta Ara 14 Series H2Okinetic Tub and Shower T14467-SS has a flow rate of 1.75 GPM at 80 PSI. There is no way to increase or decrease the designed shower head flow rate. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_23
  • loc_en_US, sid_T14467, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 23ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP75437

Ara®

Ara® Metal Lever Handle Kit - 14 Series

List Price: $84.90 - $116.90
Free Ground Shipping All Orders $49+

RP75437

Image-Master-RP75436

Delta®

Delta® Escutcheon & Gasket - 14 Series

List Price: $152.75 - $245.35
Free Ground Shipping All Orders $49+

RP75436

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $38.65 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.27 102
Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

List Price: $36.35 - $47.95
Free Ground Shipping All Orders $49+

RP51035

Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-Master-RP51034

Vero®

Vero® Flange - Shower

List Price: $26.45 - $47.45
Free Ground Shipping All Orders $49+

RP51034

Image-RP51019

Delta®

Delta® Set Screw & Button

List Price: $21.70
Online Price: $17.36
Free Ground Shipping All Orders $49+

RP51019

5.00 1
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-Master-RP75435

Ara®

Ara® Tub Spout - Pull-Up Diverter

List Price: $114.15 - $221.85
Free Ground Shipping All Orders $49+

RP75435
