Classic
View Full Classic Bathroom Collection

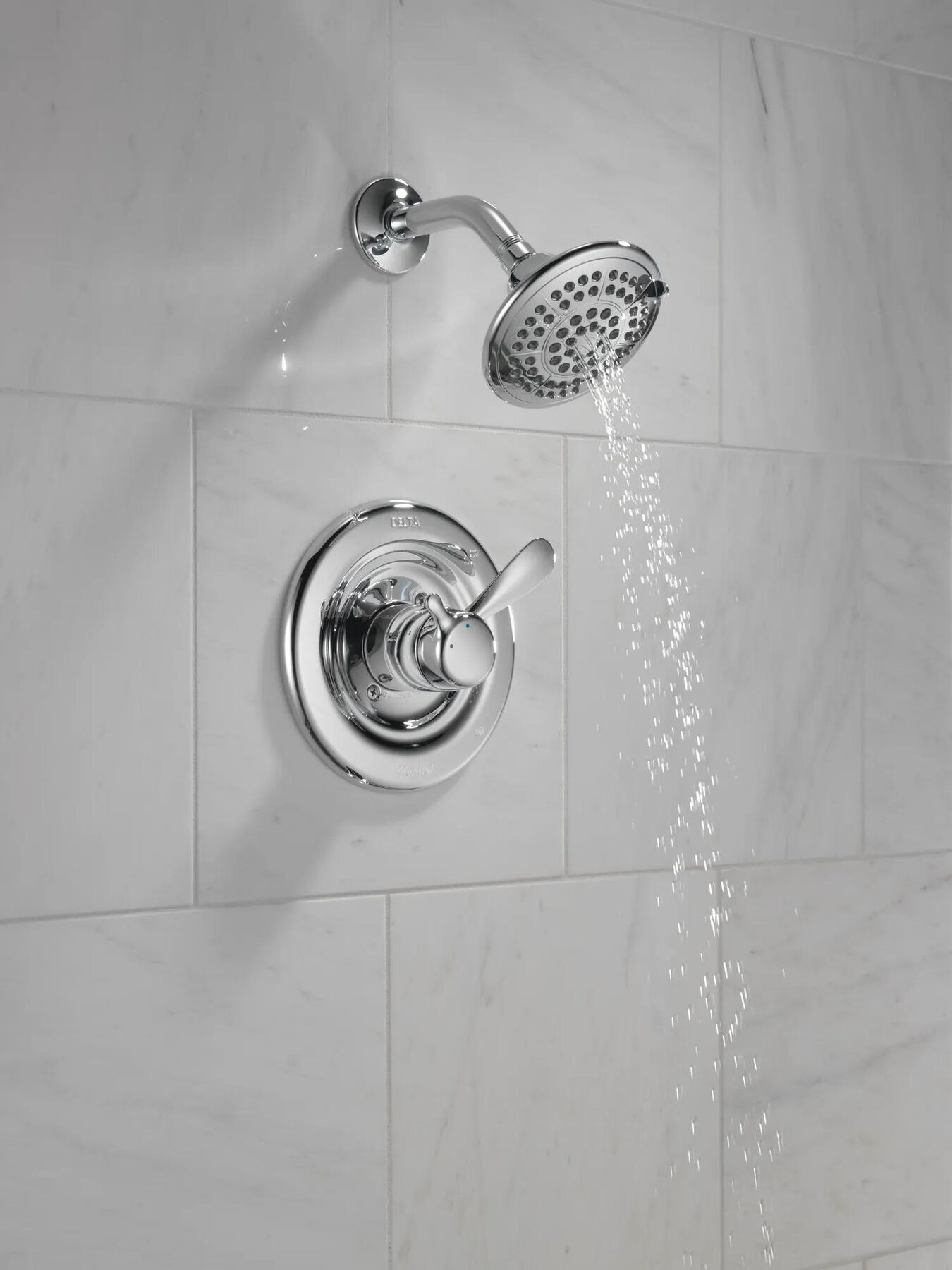

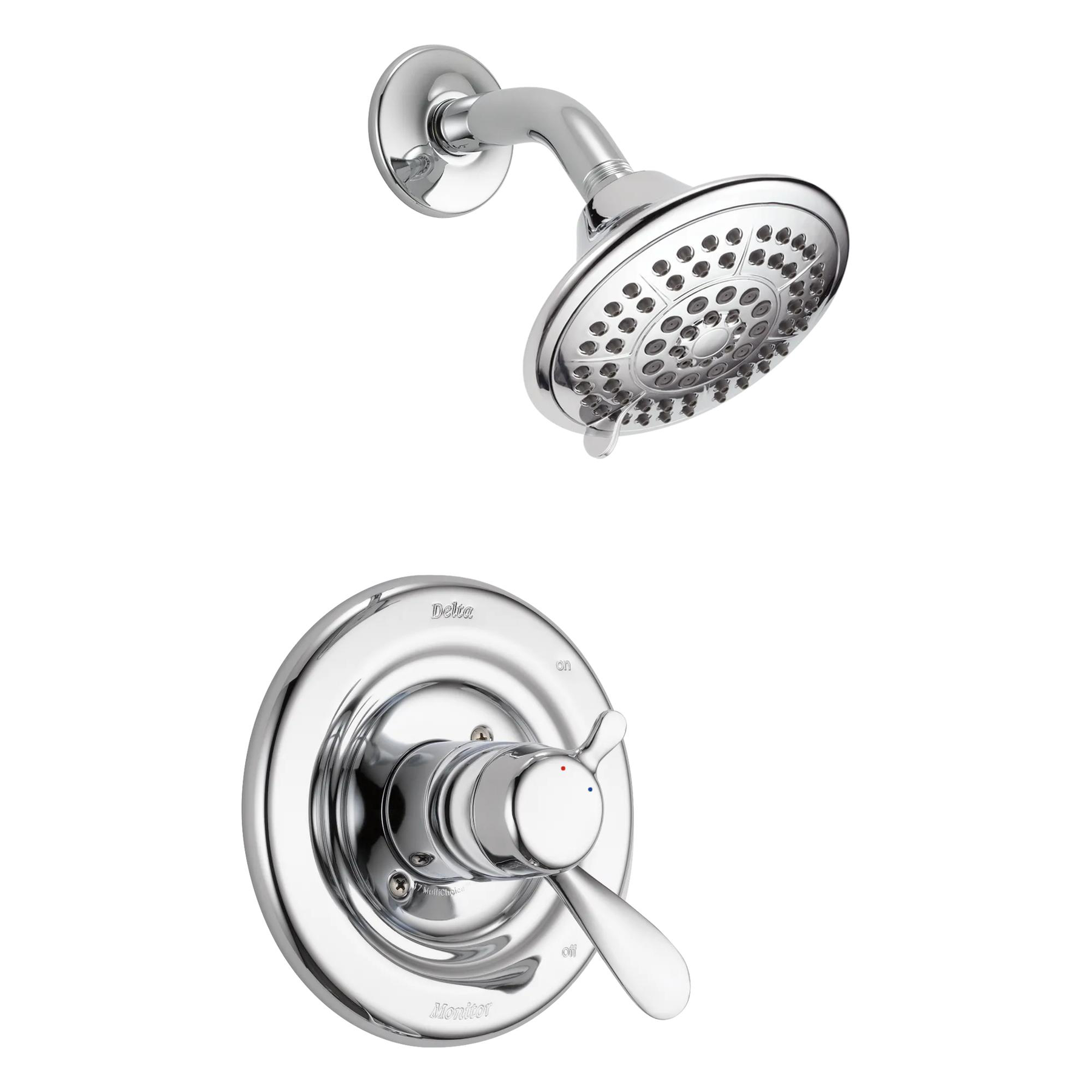

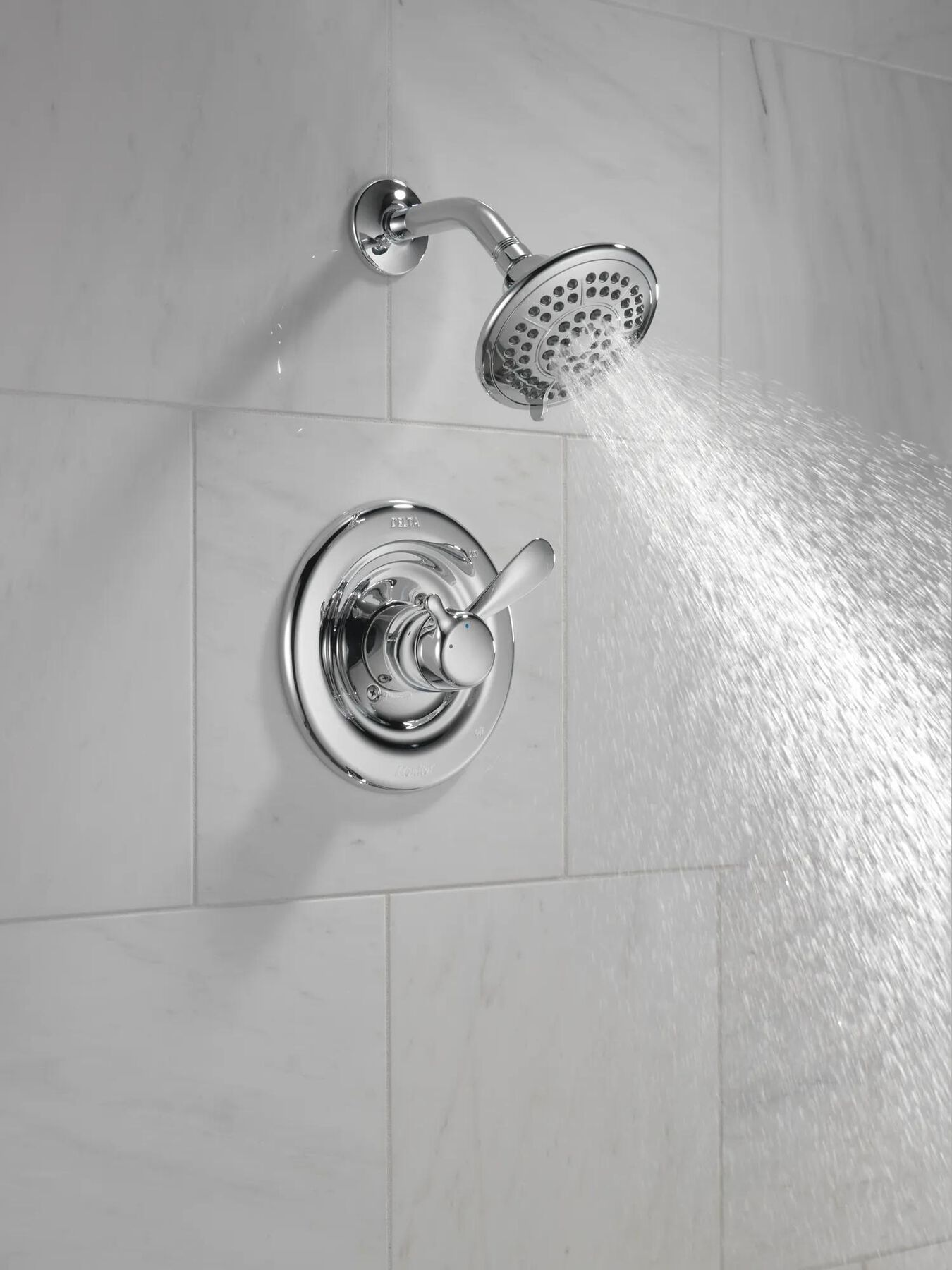

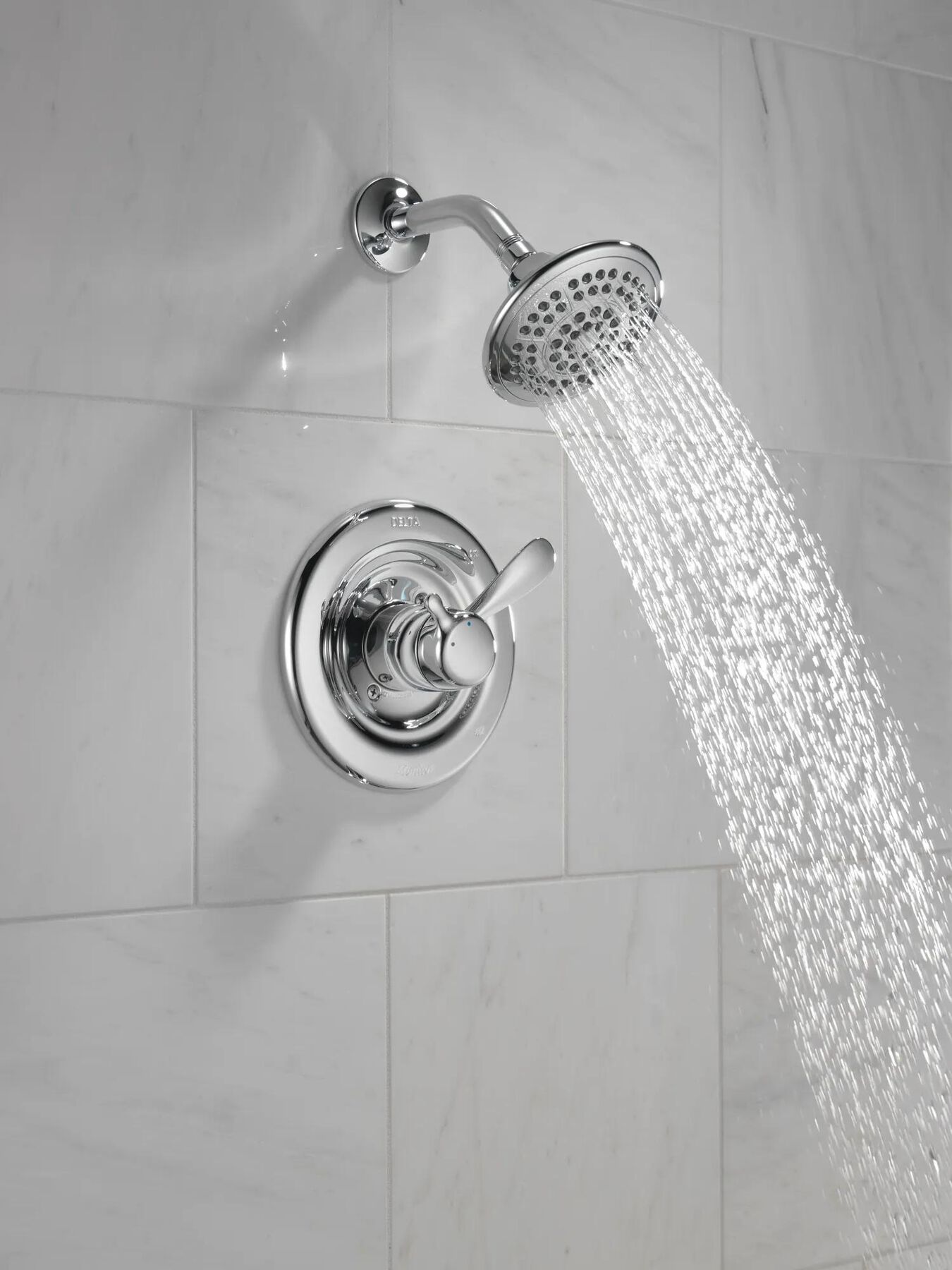

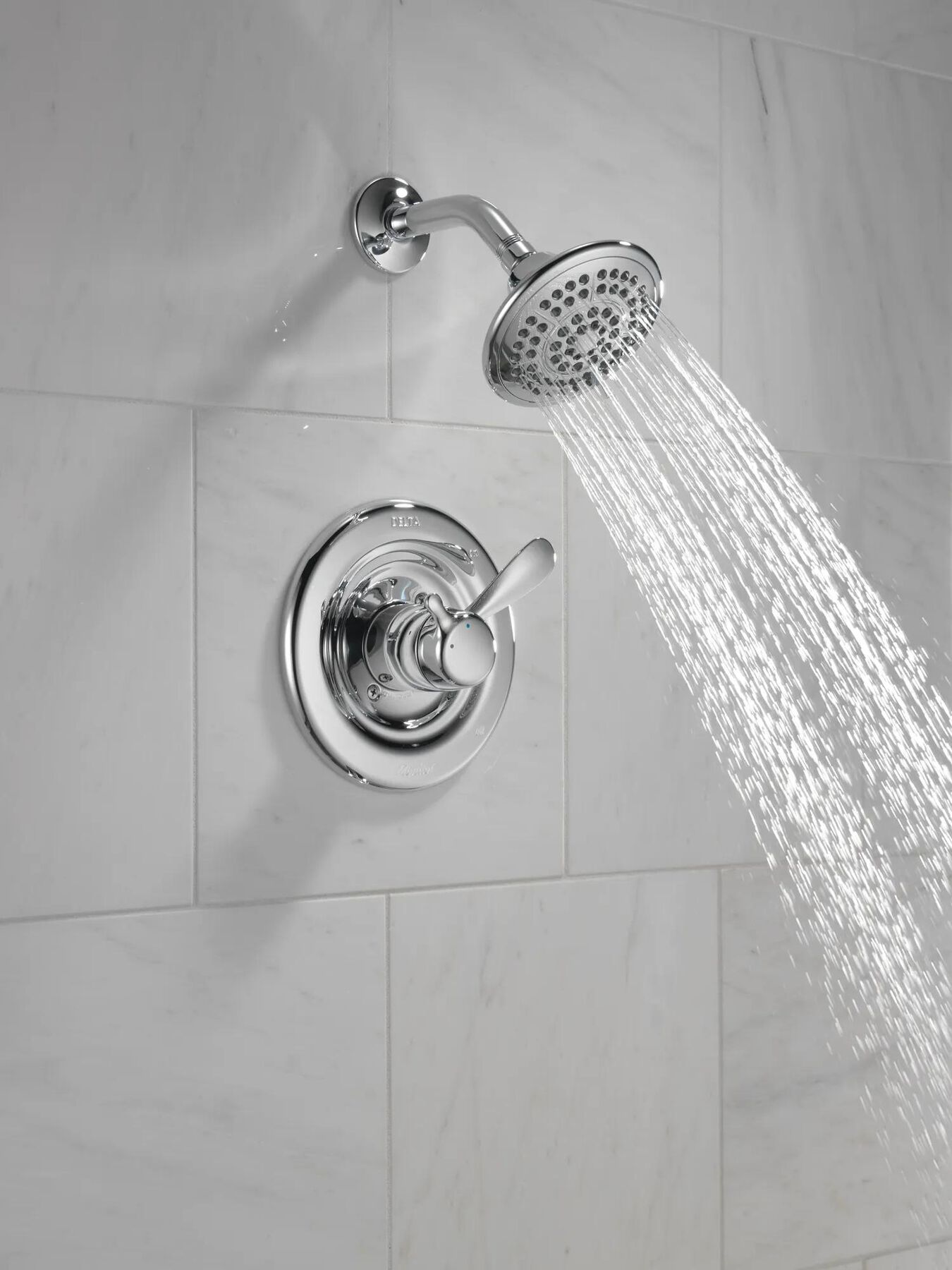

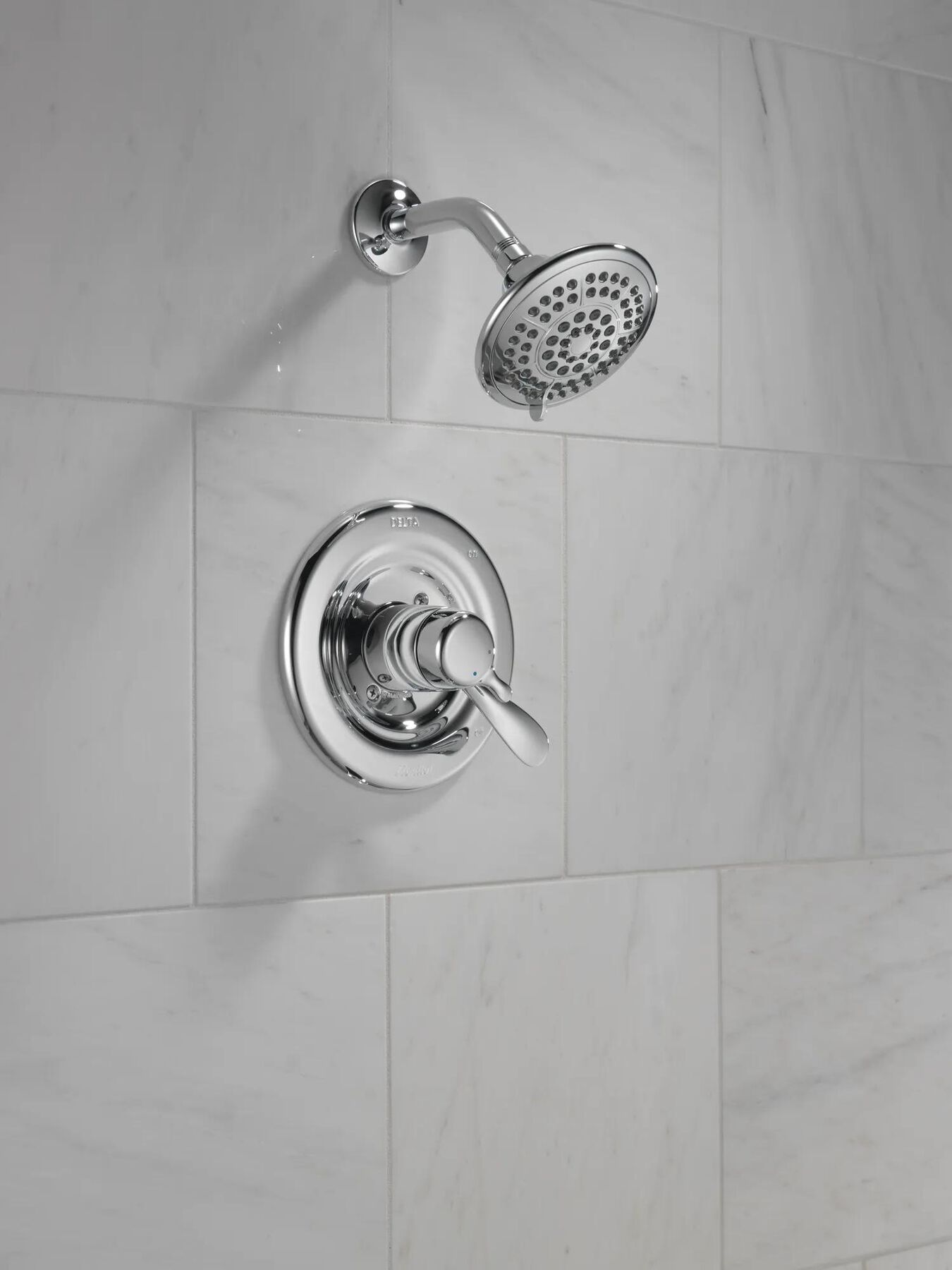

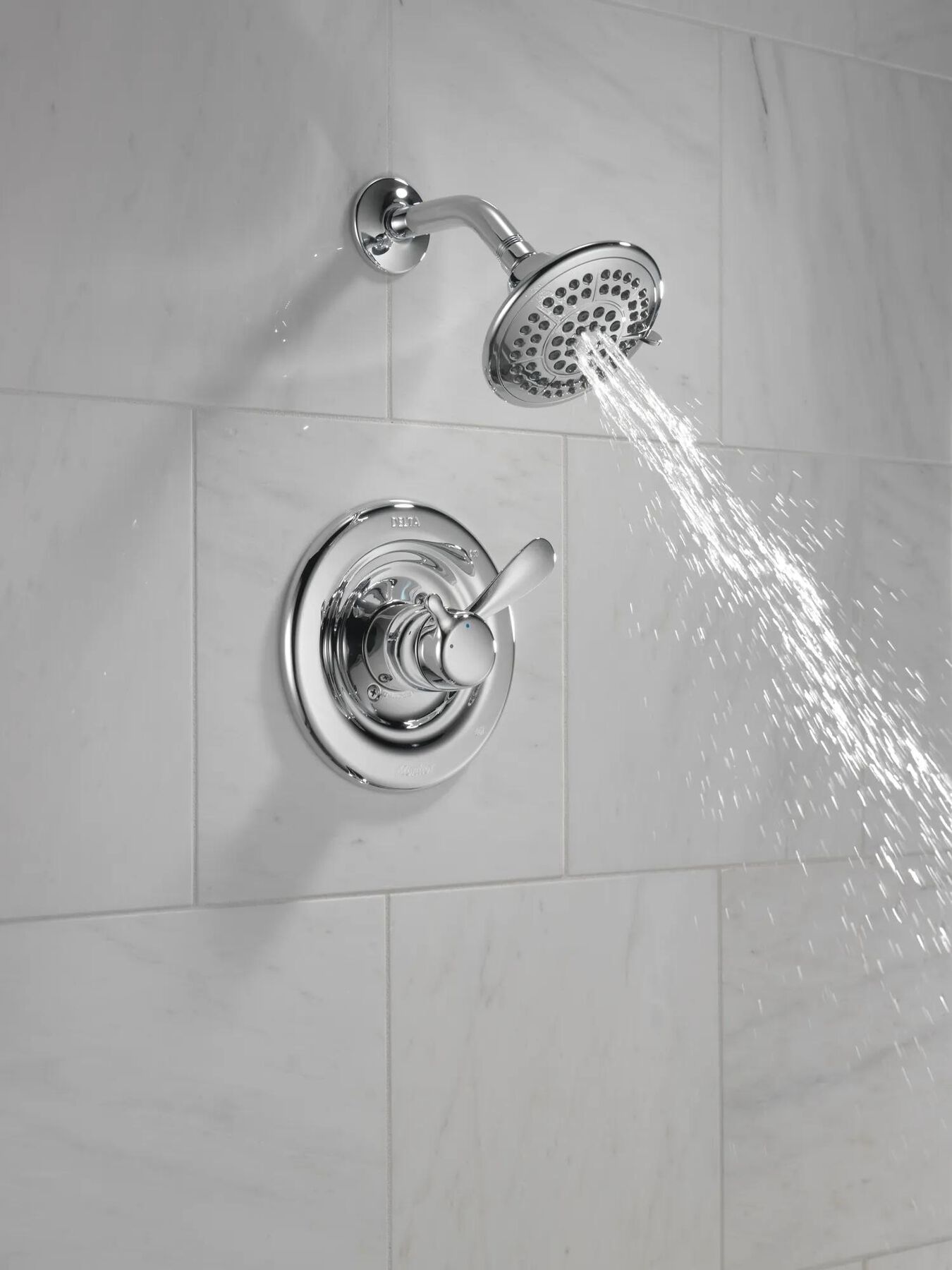

Monitor® 17 Series Shower Trim in Chrome

Model#: T17230
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Bathroom Collection
Monitor® 17 Series Shower Trim in Chrome
Model#: T17230
List Price: $27845
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Complete the look in your bathroom with a shower from the Classic Bath Collection. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. With separate handles for volume and temperature control, this Delta shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle — without interrupting your set temperature. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
  • Spray settings include: Full Body spray, Full Spray with Massage, Massaging spray, Soft Drench with Full Spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings

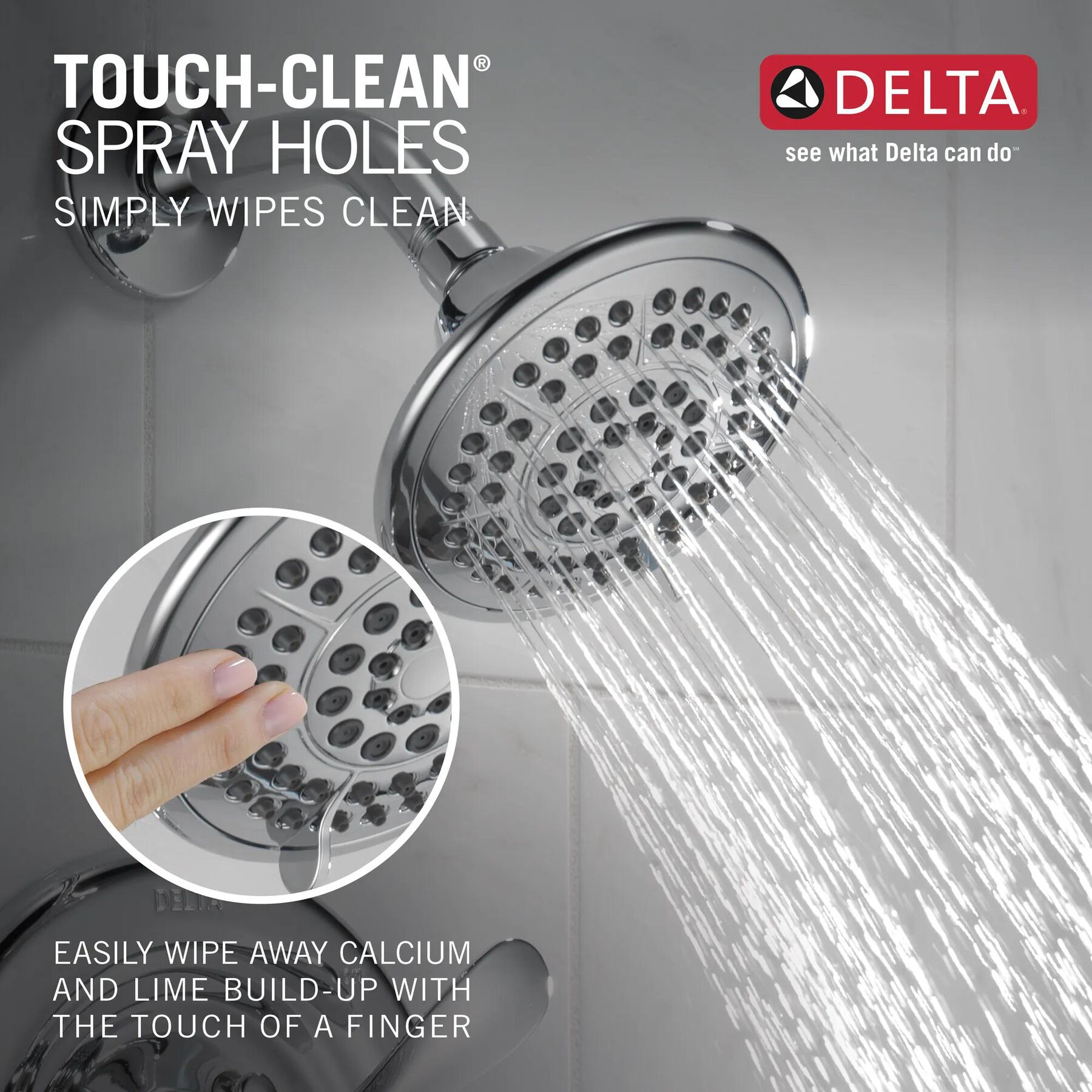

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Lever handle controls on/off and adjusts volume, while the dial controls temperature

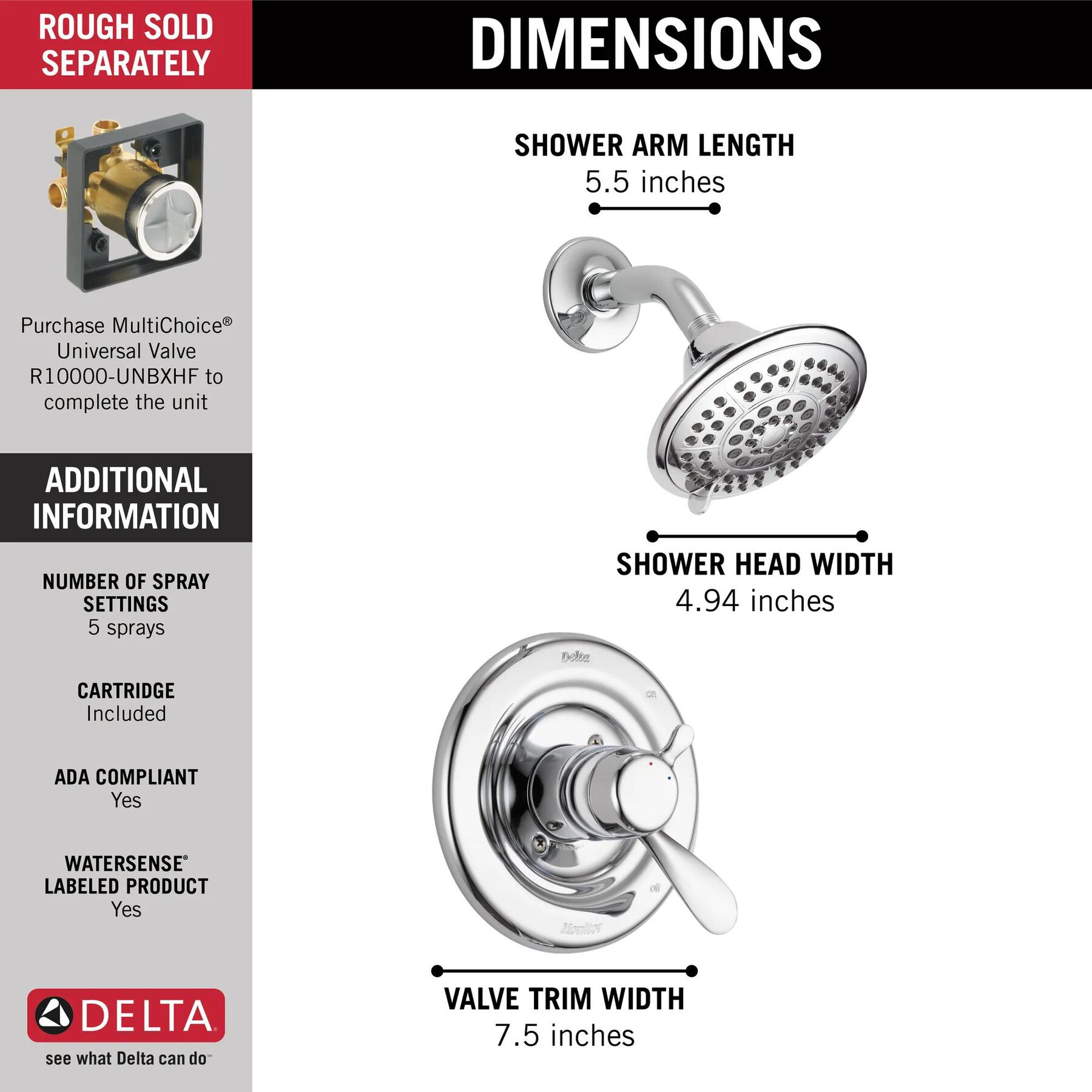

  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Solid brass forged body
  • Back-to-back installation capability
  • Stem extension kit RP77992 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
  • ADA compliant lever handle
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Volume Control
Touch-Clean®
MultiChoice® Universal Valve
Water-Efficient
Monitor®
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
10-1/16
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Stylish and Functional! This product was a replacement for a shower head I had installed about 15 years ago. Yes, Delta does stand behind the lifetime warranty. The shower head is much larger, and the water pressure much improved. I am completely satisfied with this product and Delta.
Date published: 2018-07-26
Rated 1 out of 5 by from Poor Function, Tacky Appearance Landlord's plumber installed this. Pressure from shower head is poor, the only setting that actually sprays is the fine spray in the outer ring, and it's so widely spaced it doesn't wet hair or rinse soap from skin. "Drenching" spray just spills straight down. No previous pressure problems with old set. Two hands required to change settings on shower head without loosening the whole thing, and it's too big for small hands to grip. Two hands also required to adjust temperature controls without turning off water. Less functional than either single-handle controls or 2-3 knob controls. Gaudy and ostentatious. In combination with chrome plate covering holes from previous 3-knob system, it looks like a wrestler's championship belt.
Date published: 2018-03-25
Rated 2 out of 5 by from temperature handle is made of cheap metal material that keeps breaking off!!!!! I've had this shower head and the temperature handle keeps breaking off. Now, I can't find a replacement part for this...even on the deltafaucet website ! The only way to get it is to buy the whole thing! Avoid!
Date published: 2017-04-27
Rated 2 out of 5 by from Liberty Bell Ordered unit that showed smaller showerhead in pic. Receive one that's about 5" in diameter. Had two, the other in larger bath, to much of a bother to send back so used both to be done with it. Very out of scale with corner shower stall, heavy on additional swivel needed to get more sweep causing it too droop and after shower is turned off it drips a lot of water on you when your trying to towel off in stall.
Date published: 2017-01-15
Rated 4 out of 5 by from Basic function [This review was collected as part of a promotion.] Recently replaced valve and seats under warranty to stop slow drip, and it corrected problem.
Date published: 2016-12-07
Rated 4 out of 5 by from Nice looking functional [This review was collected as part of a promotion.] Nice fixture. A little bulky. Functions well enough. I've had some leaking at the faucet with shower pull plus some noise when this is pulled but that could be an installation
Date published: 2016-11-30
Rated 5 out of 5 by from Best shower head we've had in years! [This review was collected as part of a promotion.] Our home is full of Delta products, but this shower head is the best! The pressure and and temperature is always just perfect. There's no adjustments to be made at all. Thank you Delta.
Date published: 2016-11-30
Rated 4 out of 5 by from Nice quality shower fixture Installed well, fixture was nicely constructed, solid, nice finish
Date published: 2016-08-09
Rated 4 out of 5 by from great features I didn't caare for the fact that the hot/cold adjustment was plastic. All of the other components were heavy duty and this piece just seemed to be cheap. I hope it can hold up.
Date published: 2016-04-04
Rated 5 out of 5 by from Nice product. Changed out an old Delta gold unit for the stainless. New unit installed easily and directions were easy to follow. Works well.
Date published: 2015-07-16
Rated 5 out of 5 by from Love this product even after the higher price than most others. I have all Delta products throughout my house. The warranty on Delta products is excellent.
Date published: 2015-07-01
Rated 5 out of 5 by from Great price! Used to buy this at my local supplier, but I paid more.
Date published: 2015-01-12
Rated 5 out of 5 by from Great! Just what my husband wanted with the separate temperature lever.
Date published: 2014-11-10
Rated 5 out of 5 by from Completely Satisfied w/Our Purchase There was a billing mistake which was quickly and accurately rectified. I was impressed with the company's speed of resolution and attention to the problem. Other companies should do so well. The unit itself is a cost effective solution to the problem of a shower stall that is on the small side. The variable control and no scald features work perfectly at all times. We have installed 2 of these in separate showers and are totally satisfied with their quality and value.
Date published: 2012-11-20
Rated 5 out of 5 by from This is and easy to use, user friendly unit. The large shower head adjusts and the temp setting allows easy use. I have this same unit in my own home and like it very much.
Date published: 2009-06-16
Rated 5 out of 5 by from Excellent This shower faucet is a very good buy. Easy to install, excellent instructions. It has a great finish also that resists water spotting. I would highly recommend.
Date published: 2008-12-29
  • y_2026, m_6, d_22, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_2, bvpage2n
  • co_hasreviews, tv_0, tr_24
  • loc_en_US, sid_T17230, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
Q&A

How do you adjust the water temperature on a monitor single handle shower faucet

Asked by: Larry
Hi, Larry! Thank you for your question. There is a rotational limit stop (RLS) at the temperature control to adjust the hot water limit. To adjust the RLS, first remove the temperature cover and take a Phillip's head screw driver and turn the set screw counter clockwise to remove. Remove the gray knob. Behind the knob, you should see a black disk. Take the disk and take it out and place the disk to the hotter side. The hot side should be up against the iron piece that is sticking down on the volume handle. Once adjusted, reinstall all handle parts. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

innovations 2 handle models T2730-LHP for tub and shower no longer exist. i need parts list for these.

are they the same as the sink 2 handle models 3530-24? seems like the parts for tub/shower would be larger. Your rep just told me they are the same and i wish to confirm. He gave me valve part as RP1740 and seats and springs as RP4993.
Asked by: jan
Thank you for your questions. Delta Faucet model # T2730-LHP is a roman tub faucet. The innovations handles that we recommend for this faucet are Delta Faucet part # H64 and A64. They are bigger than the handles for the lavatory faucets.
Answered by: Delta1
Date published: 2024-03-28

Hi. My delta 1700 series monitor is loose. How do I tighten the temperature control button. Thanks.

Asked by: Jim
Hi, Jim! Thank you for your question. There is a screw that can be tightened for your temperature knob handle. To get to this screw, you may pull the temperature knob cover straight off. This will expose the screw and you should be able to tighten the screw with a Philips screw driver. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-05-18

Volume and Temperature controls correct?

Builder just installed Classic with separate volume and temperature controls in new shower. When volume control handle is turned, temperature control turns with it. If I hold volume control steady with one hand, I can turn temperature control separately with the other hand. Is this how it's suppose to work? I thought they moved independently so that you shut the shower off, but the temperature control stays in the same place. I really need to see a video of this working because the written info doesn't say anything about how they function, just how it's installed. Thank you.
Asked by: Suz
Hi Suz, Thank you for your question. Your faucet is functioning properly. The temperature handle will also move when the volume control is moved. Once you have the temperature knob set in the desired position you can turn the volume control off and although the temperature knob moves with it when the handle is turned back on your temperature setting should return as well. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

i have a classic monitor 17 series and do not like the limit stop.can I replace with a different cartridge and just use a single handle control.

Asked by: jackie12z
Hello Jackie12z, Thank you for your inquiry! The Handle valve and cartridge assembly of your Delta Classic Shower T17230 can be replace with the Delta Classic 13 Series T13020 trim kit and cartridge assembly, as long as the MultiChoice Universal Rough-In valve R10000-UN was originally install in the wall. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Are monitor trim kits interchangeable with old monitor versions? The one I have has a temp control on it

Asked by: Jeremy
Thank you for your question, Jeremy! A current 17 series shower trim can be used on an older 1700 series valve, however, you will need to continue using the original RP32104 cartridge as the newer valve assemblies will not fit the 1700 series valve body. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Can you purchase this without a shower head?

I have a shower head that I like, but I'd like to upgrade the other parts of my shower (controls, handle, etc.). Is it possible to buy this unit without a shower head? Are the various parts that make up this item available separately? If not, is the shower arm a standard design so that I can attach any shower head to it? Thanks!
Asked by: Jay
Hi Jay, Thank you for your question! Unfortunately, this unit is not available without the shower head. However, the shower arm has universal 1/2" threads that should work with your shower head. Below is a link to our selection of Valve-Only 17 series trim kits. http://www.deltafaucet.com/bath/tubshower/filter-results.html?sort=pricelowhigh&finish=cr&parts=type-tub-valve&tech=volumecontrol The shower arm and flange are RP6023 and RP6025. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

What valve can I buy for a 17 series?

Asked by: Albert
Hi, Albert! Thank you for your question. The Delta Monitor T17230 Shower Trim Kit works with any of our Delta MultiChoice Universal R10000 Rough Valve Bodies. Here is a link to these options: https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?categories=Delta_Bathroom_Showering_Tub and Shower Faucets_Rough Valves Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_22, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_45
  • loc_en_US, sid_T17230, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 30ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP17453

Delta®

Delta® Tub Spout - Pull-Down Diverter

List Price: $45.50 - $157.00
Free Ground Shipping All Orders $49+

RP17453

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP28795

Delta®

Delta® Escutcheon - Monitor® 17 Series

List Price: $72.65 - $220.25
Free Ground Shipping All Orders $49+

RP28795

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP5883

Delta®

Delta® Escutcheon - 600 / 1600 Series Tub & Shower

List Price: $82.85 - $266.20
Free Ground Shipping All Orders $49+

RP5883

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.17 12
Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-RP73643

Classic

Classic Metal Lever Handle Kit - 1700 Series

List Price: $75.35
Online Price: $60.28
Free Ground Shipping All Orders $49+

RP73643

Image-RP73642

Classic

Classic Temperature Knob & Cover - 17 Series

List Price: $32.40
Online Price: $25.92
Free Ground Shipping All Orders $49+

RP73642

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
