Classic
View Full Classic Bathroom Collection

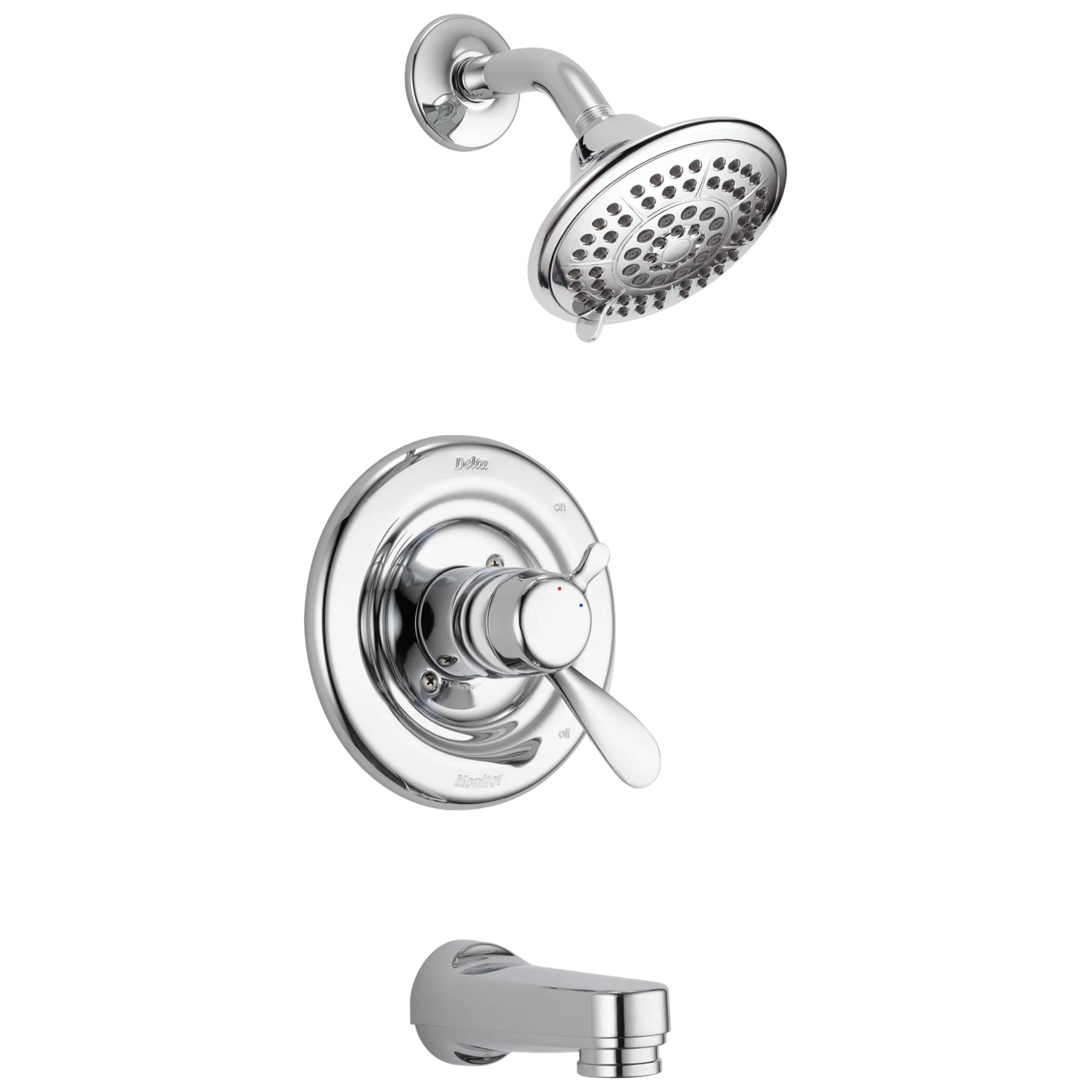

Monitor® 17 Series Tub & Shower Trim in Chrome

Model#: T17430
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Bathroom Collection
Monitor® 17 Series Tub & Shower Trim in Chrome
Model#: T17430
List Price: $31415
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Spray settings include: Full Body spray, Full Spray with Massage, Massaging spray, Soft Drench with Full Spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings

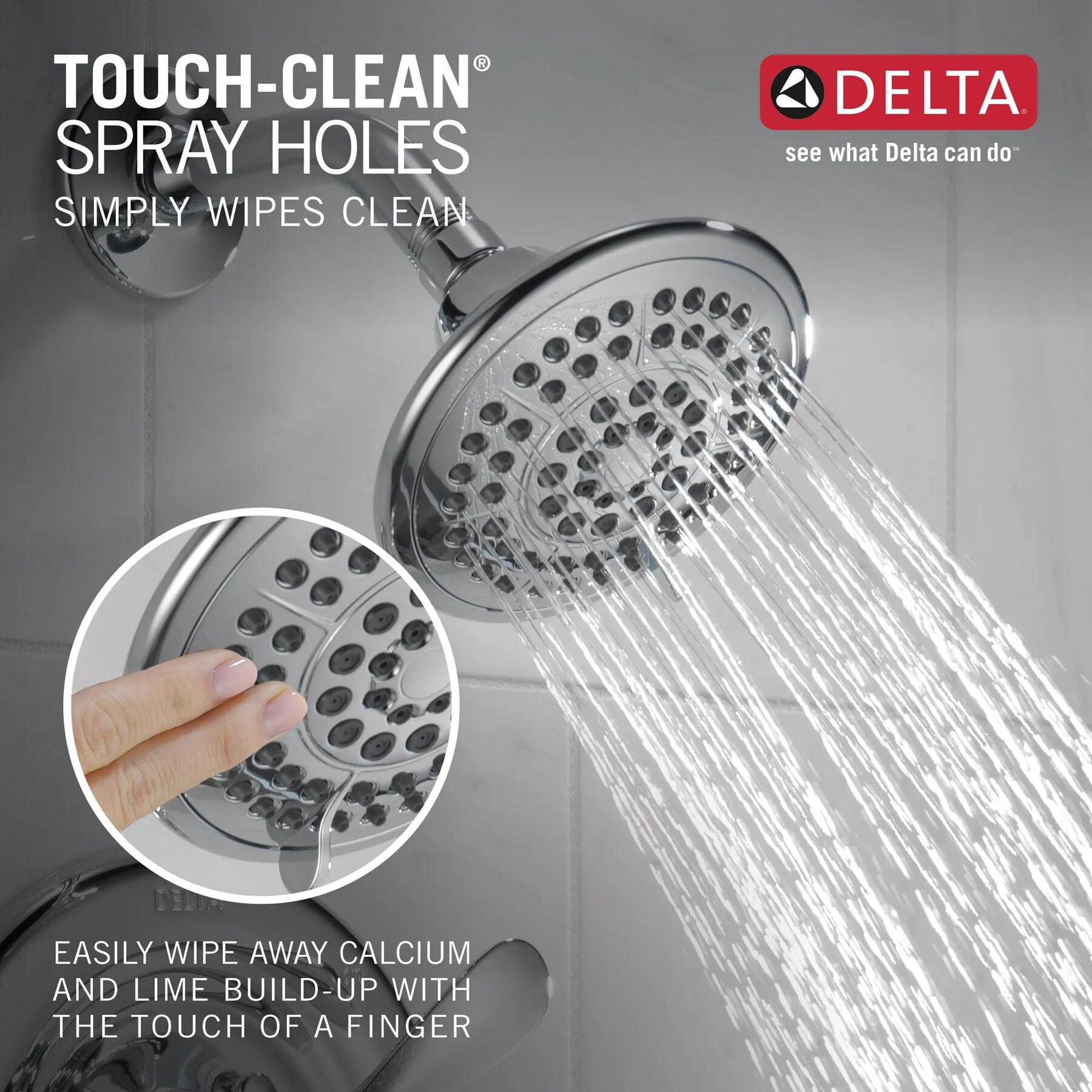

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Lever handle controls on/off and adjusts volume, while the dial controls temperature
  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Solid brass forged body
  • Back-to-back installation capability
  • Pull-down diverter tub spout
  • Universal tub spout adapter allows for thread, sweat or slip-on installation
  • Stem extension kit RP77992 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
  • ADA compliant lever handle
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Volume Control
Touch-Clean®
MultiChoice® Universal Valve
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

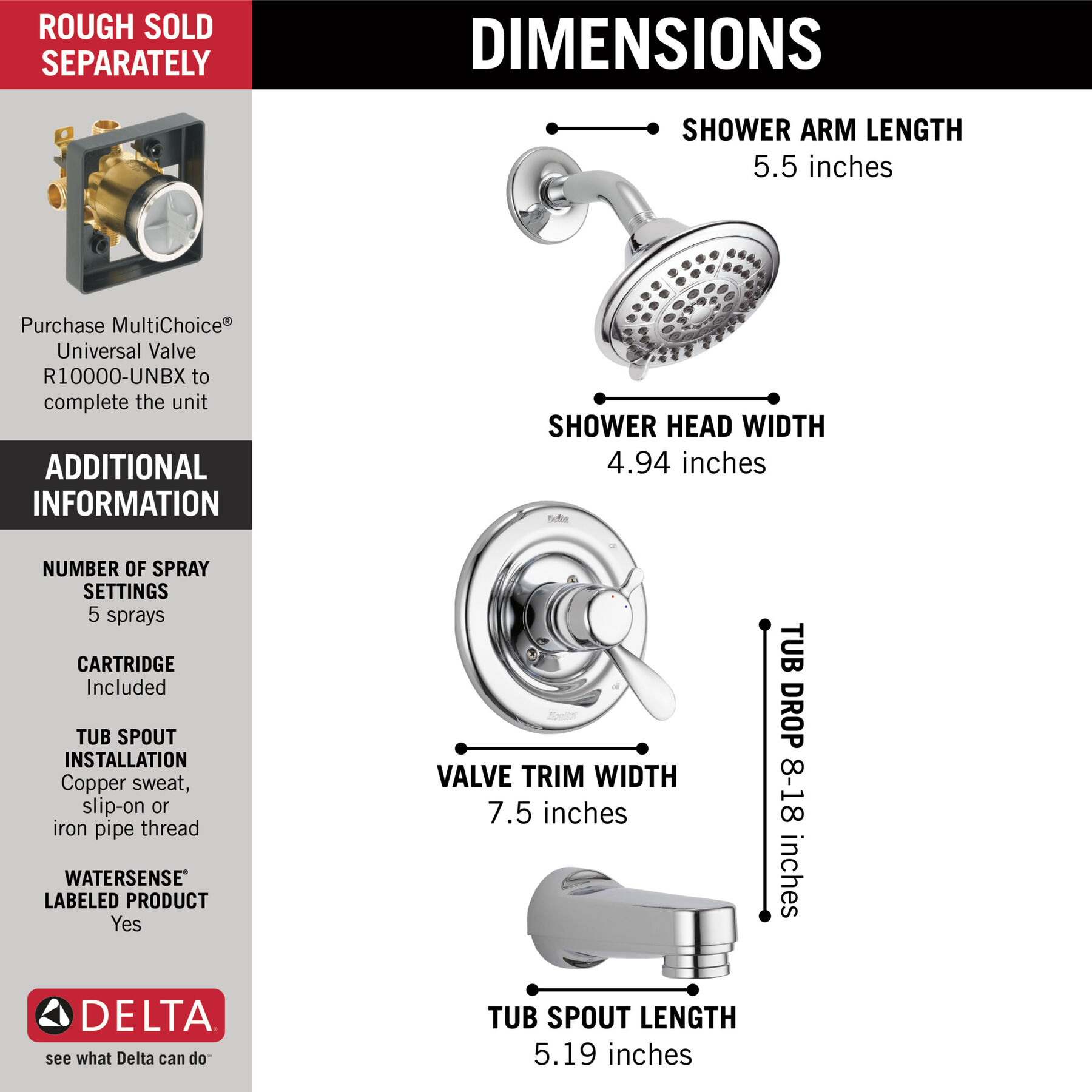

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12-5/8
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Lovely temperature control great faucet! [This review was collected as part of a promotion.] This Delta tub/shower faucet offers separate water volume and temperature controls making it a preferred faucet. The temperature control stays at the place you last left it so that you are not needing to do a complete hunt and seek for the correct temperature every time you get in the shower. The shower head offers several options for spray pattern.
Date published: 2025-12-12
Rated 5 out of 5 by from WAY BETTER THAN THE OLD ONE This is better than my original one I bought 18 years ago. Finish is top notch. So much better than old one. Operates smoother as well. Happy with my purchase
Date published: 2024-06-04
Rated 5 out of 5 by from Outstanding! Our plumber -- one of the best in NH -- recommended this unit to us. We couldn't be happier with it. Quality, performance, "look," you name it.
Date published: 2023-09-28
Rated 4 out of 5 by from Great product Works great. Water flow is nice. Instructions could have a been better concerning attaching the tub spout and setting the temperature range.@
Date published: 2019-08-20
Rated 5 out of 5 by from Beautiful shower set Spot resistant. Easy care with simple wiping using a damp cloth. Great shower head. Tub faucet installation was super easy. No leaks anywhere. Quality feel.
Date published: 2019-02-28
Rated 3 out of 5 by from Adjustments and water spots I'd ordered in the 17 series after reading other reviews that claimed this series was a better unit. I was disappointed to find alot of plastic in the fixture and the head of the shower dies not adjust left or right much at all. It is also awkward to change the shower flow on the shower head. Worst of all, the faucet and cover plate are badly spotted from water and no matter what I try to clean it with, I cannot get them off. They showed up immediately after we started using the shower in our new home. We purchased ALL Delta faucets as recommended by our builder and are noticing water spots on ALL of them. Found out AFTER they'd been installed that alot of the parts were plastic!!!! Disappointed. Please ask Delta how to clean the cheap plastic they use on their fixtures!
Date published: 2018-11-17
Rated 5 out of 5 by from As expected from a quality Delta Faucet! Better than another older Delta faucet set, this one is easier to maneuver for younger kids, so I can let my kids fill up the bathtub and adjust the proper temperature to their liking.
Date published: 2018-03-13
Rated 5 out of 5 by from Good product As always, I always buy delta product because of the high quality, abundant parts and excellent lifetime warranty.
Date published: 2017-02-11
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_16
  • loc_en_US, sid_T17430, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
Q&A

Please tell me what materials all of the parts are made of: 1)shower head 2)tub faucet 3)pull-down diverter 4)controls Thank you.

Asked by: Michael
Hello Michael, Thank you for your inquiry! The shower head, valve cartridge, temperature dial/handle and the pull-down diverter tub spout of the Delta Classic Tub and Shower T17430 model are non metallic, all other parts are metal. Please feel free to call, email, or message us on social if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2024-03-28

dual function or single function

what is the difference between dual function pressure balance cartridge and single function pressure balance cartridge? Also, I see that there is a dual function thermostatic cartridge - I always thought that the above mentioned cartridges were thermostatic as well? Is this thermostatic cartridge newer? How long has it been around?
Asked by: jg
Hi Jg, Thank you for your question. The single function pressure balance cartridge controls temperature only. The dual function pressure balanced and dual function thermostatic cartridges allows you to control the temperature and volume separately. The RP47201 thermostatic cartridge came out in 2006. The pressure balanced cartridges control temperature through water pressure, the thermostatic through water temperature. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

can I run 5 gpm @ +/- 65 psi through Delta Monitor Shower Valve

I have a 12 year old home with a Delta Monitor valve in the Master bath shower. I am planning to remodel the bath room and would like to install 2 - 2.5gpm shower heads. Can this valve handle the flow volume? The water lines in the home are 3/4" and reduced at the valve. Meter is 1" and service line to house is 1.5" so Valve would be restriction point. Water pressure is over 70psi on city main.
Asked by: kgg
Thank you for your question. Delta Faucet model # T17430 paired with the R10000-UNBX will flow at 6.0 gpm at 60 psi. We would recommend looping your showerheads behind the wall so they come into one port and you do not lose pressure. The fewer elbow turns you have, the better your pressure will be.
Answered by: Delta
Date published: 2024-03-28

Can you attach a shower hose to this?

Asked by: Magilla
Hello, Thank you for your question! Yes, a hand shower hose can be attached to the shower arm. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-03-26

Is there a model that has all these features but also includes an integrated diverter?

Asked by: JDBru
Hello JDBru, Thank you for your question. The Delta Classic 17 Series Tub and Shower T17430 faucet can be used with a R11000 Diverter Valve and one of the Classic 3 or 6-Setting Diverter Trim T11800 or T11900. Please feel free to call, email, or message us on social. https://www.deltafaucet.com/bathroom/product/R11000 https://www.deltafaucet.com/bathroom/product/T11800#specsTab https://www.deltafaucet.com/bathroom/product/T11900 Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Tanya
Date published: 2024-03-28

How can the HOT water be adjusted to allow MORE hot than cold?

Hot water is not hot enough. Is there an adjustment to open HOT water valve more?
Asked by: PaulD
Thank you for your question. Delta Faucet model # T17430 contains a rotational limit stop that may need adjusting to allow more hot water to flow through the valve. Included here are the maintenance and installation instructions for your faucet. The directions for adjusting the limit stop are on page 9. http://www.deltafaucet.com/customersupport/documentation/t17430.html?document=mi&documentIndex=0&proUser=true#flashWrapper
Answered by: Delta1
Date published: 2024-03-28

Do you make a water controller that has a back plate that is 7 5/8" or bigger in Brushed Nickel that has the features of the T17430. I presently have everything but it is gold and I would like to change them to Brushed Nickel. Thank you.

Asked by: Juju
Thank you for your question, Juju! Although many standard escutcheon plates with the same hole placement will work, we have limited options in Brushed Nickel such as RP61184BN which is only 7" however our Stainless Steel finish is a very close match so you could instead use the 7 1/2" plate RP28795SS. Furthermore the Victorian trim ring, part number RP34359SS is 8" long and 7-3/4" tall and could be used with any 7" escutcheon plate. https://www.deltafaucet.com/product-comparison?modelNumber=RP61184BN&modelNumber=RP28795SS&modelNumber=RP34359SS Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Can you clarify differences between the 3 Classic Monitor 17 Series models?

T17430 (and -MTS and -SOS) have separate volume controls, but only the -SOS is listed as having the dual-function pressure balance cartridge. "Understanding Delta Valve Cartridges" says the dual function cartridge supports separate volume control, but does not say that for the single function cartridge. This seems contradictory - how does the T-17430 and T-17430-MTS with single function cartridges provide for separate volume control? Also, I 'd like to verify whether the spouts for T-17430 and the -SOS are plastic or metal.
Asked by: Harold
Hi Harold, Thank you for your questions. All three models have the dual-function pressure balance cartridge. The tub spouts for T17430 and T17430-MTS are metallic while the tub spout for T17430-SOS is nonmetallic. Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2024-03-28
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_36
  • loc_en_US, sid_T17430, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 5ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP17453

Delta®

Delta® Tub Spout - Pull-Down Diverter

List Price: $73.55 - $157.00
Free Ground Shipping All Orders $49+

RP17453

Image-Master-RP293

Delta®

Delta® Bath Waste Assembly

List Price: $253.80
Online Price: $203.04
Free Ground Shipping All Orders $49+

RP293

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP28795

Delta®

Delta® Escutcheon - Monitor® 17 Series

List Price: $72.65 - $220.25
Free Ground Shipping All Orders $49+

RP28795

Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP5883

Delta®

Delta® Escutcheon - 600 / 1600 Series Tub & Shower

List Price: $82.85 - $266.20
Free Ground Shipping All Orders $49+

RP5883

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-Master-50560

Universal Showering

Universal Showering Wall Elbow for Hand Shower

List Price: $99.70 - $175.60
Free Ground Shipping All Orders $49+

50560

Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-RP73643

Classic

Classic Metal Lever Handle Kit - 1700 Series

List Price: $75.35
Online Price: $60.28
Free Ground Shipping All Orders $49+

RP73643

Image-RP73642

Classic

Classic Temperature Knob & Cover - 17 Series

List Price: $32.40
Online Price: $25.92
Free Ground Shipping All Orders $49+

RP73642

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
