Trinsic®
View Full Trinsic® Bathroom Collection

Monitor® 17 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Stainless

Model#: T17459-SS
Add to Favorites
Find local Delta® installers.
Trinsic®
View Full Trinsic® Bathroom Collection

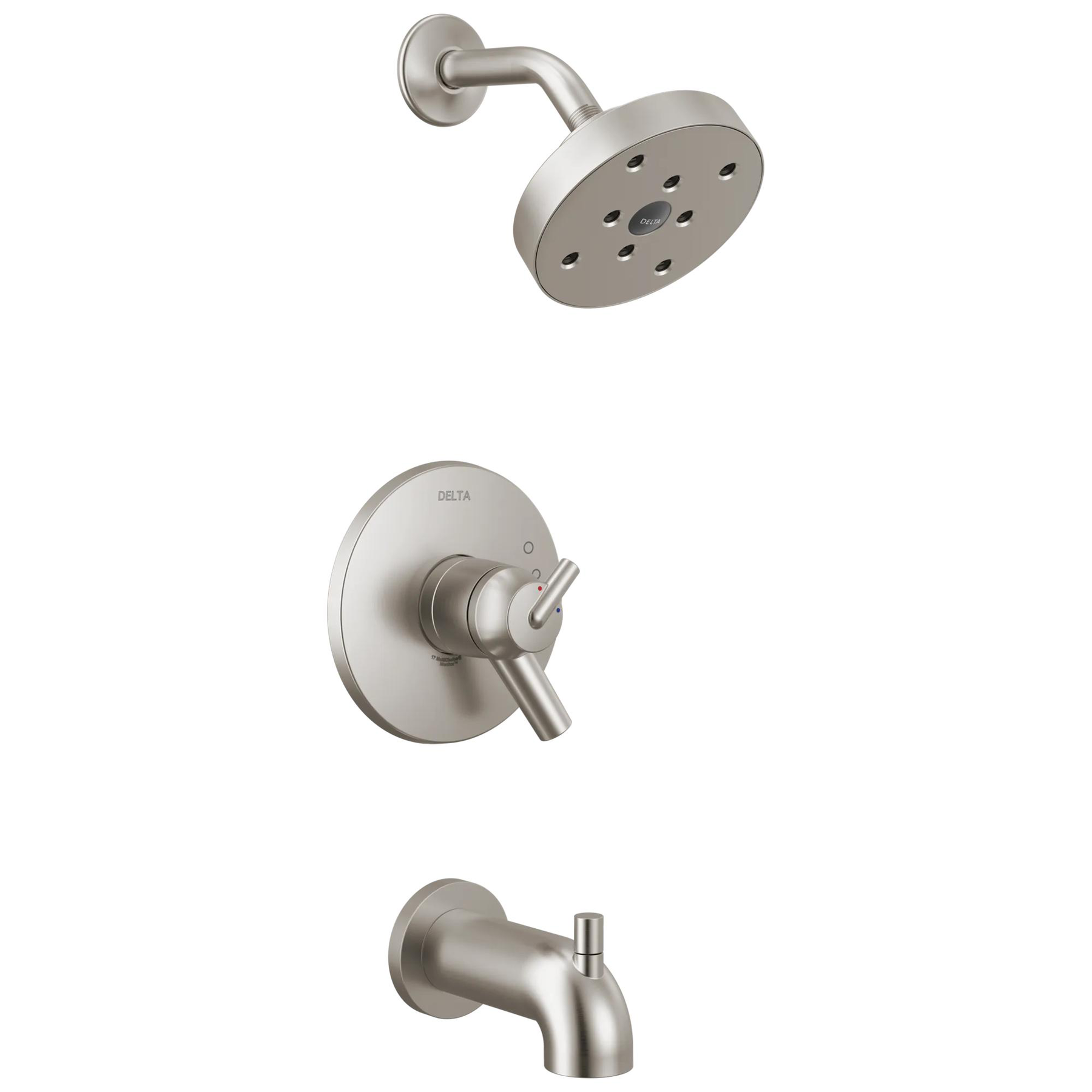

Monitor® 17 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Stainless
Model#: T17459-SS
List Price: $48500
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
  • WaterSense certification promotes water conservation
  • Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Spray settings include: H2OKinetic
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Volume Control
MultiChoice® Universal Valve
Brilliance® Finish
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa

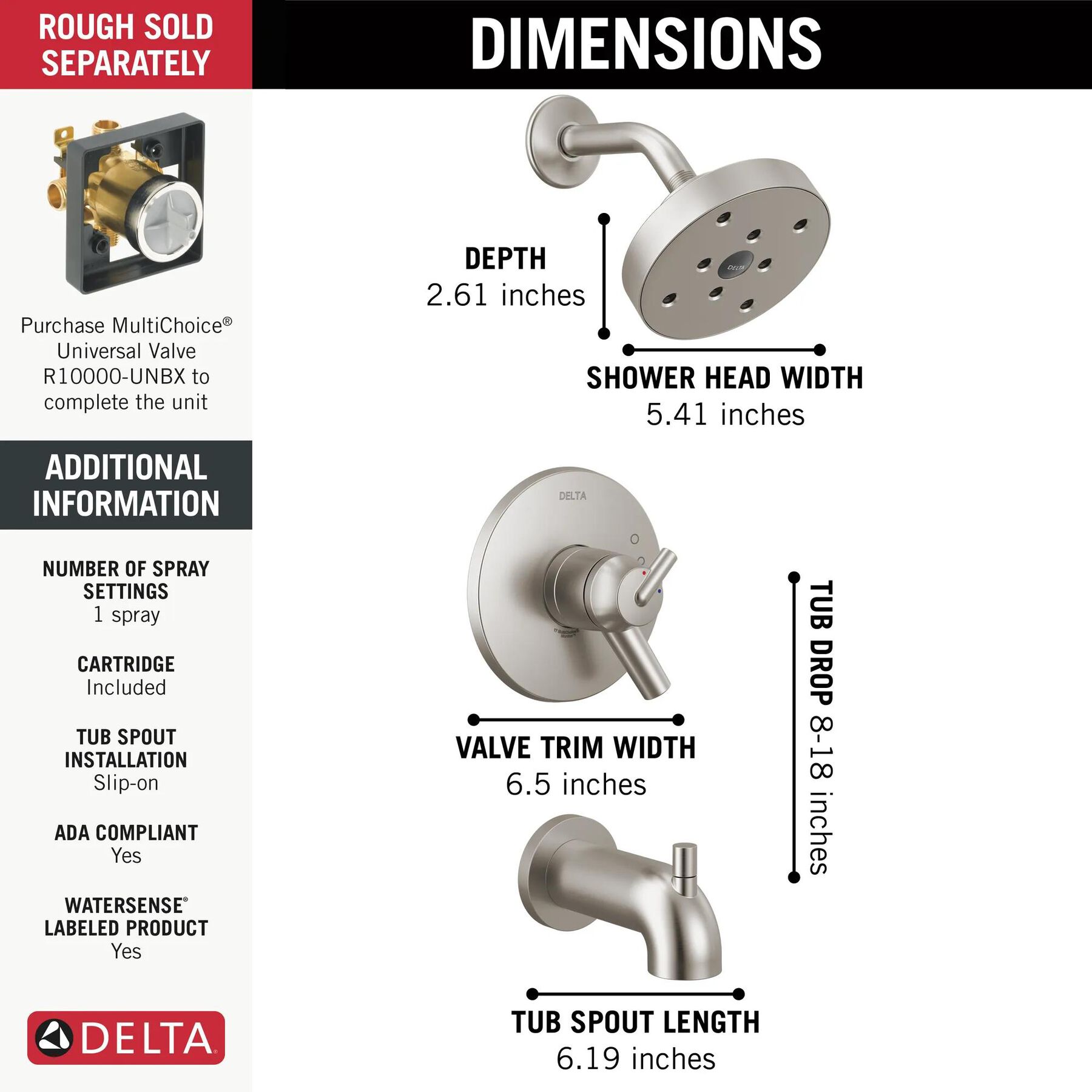

Overall Height (in.) :
6-1/2
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 4 out of 5 by from Beautiful update to old bathroom! Love this set. The only reason why I am giving it a four star rating is because when you first use, the water is not hot. I had to do quite a bit of research to realize that there is a setting behind the knob that you can adjust to allow more of a hot water flow. This information was not given in the instructions. I ended up calling Delta support, and they were very helpful. Once the hot water was adjusted, there has been nothing but nice, warm, enjoyable showers!
Date published: 2025-11-17
Rated 5 out of 5 by from Awesome fittings Excellent fittings from Delta. We are happy with our purchase.
Date published: 2025-02-14
Rated 5 out of 5 by from Happy customer Works great and great price
Date published: 2024-11-24
Rated 5 out of 5 by from Delta Trinsic means quality I continually spec the Delta Trinsic series for my showers and tub/showers. The Brilliance stainless finish is superb. Great rough in valves!
Date published: 2024-09-23
Rated 3 out of 5 by from Stylish but functional limitations This model is more expensive than other options but I went with it anyway because it is stylish, well-constructed, and has separate controls for volume and temperature. At this price point you might expect the shower spray to be adjustable but it's not. Given that lack of functionality, I was hoping the spray style would be generic, middle-of-the-road but instead it is very strong. Some people here (including but not limited to children) are refusing to use it because of that. A second problem is that the bath faucet is angled straight down instead of pointing a bit outwards from the wall (or else the faucet should protrude further out from the wall). As a result, the falling stream hits the overflow cap and wall before it hits the bottom (see photo). You cannot put anything bigger than a few fingers into the stream. I don't see how our installer could have done anything differently, it's just the way it is designed. Given that it's well-made it will probably work reliably for a long time, but we find ourselves secretly wishing it would break so we could justify replacing it with something more functional.
Date published: 2024-09-16
Rated 5 out of 5 by from Built to last Product is designed nicely and you can feel the durability.
Date published: 2024-07-25
Rated 5 out of 5 by from Delta Trinsic Great product. Easy purchase process.
Date published: 2024-06-15
Rated 5 out of 5 by from Very satisfied Works great, looks great!
Date published: 2024-05-21
  • y_2026, m_7, d_17, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_42
  • loc_en_US, sid_T17459-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 10ms
  • reviews, product
Q&A

1. What tub &quot;drain assembly&quot; do you make for this (T17459-SS) in stainless finish? 2. What is/are the difference(s) between the R10000-LBX or R10000-UNBX valves? Thanks.

Asked by: Steve
Hi, Steve! Thank you for you question. The Delta RP693SS bath waste assembly is the tub drain that we make in the Brilliance Stainless Steel finish to match the T17459-SS. The Delta MultiChoice Universal R10000-UNBX and R10000-LBX rough valve bodies are the exact same. The R10000-LBX rough valve is exclusive to Lowe's. The make, quality, and features are the exact same for each unit. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

will this fit on to the brass adapter that has been soldered on to 1/2in copper pipe?

Asked by: Landon
Hi, Landon! Thank you for your question. The Delta Trinsic Pull-Up Diverter Tub Spout RP73371 comes with an Universal adapter that should be soldered to a 1/2&quot; copper pipe. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2024-03-28

water not hot enough

I love the look of this but I cant get the water hot enough. I checked it and it is 112 degrees and all the other faucets in the house are 139 degrees. A plumber came over and made an adjustment from the back side of the unit (back wall and pipe exposed and accessible). He said that the only way to make the water hotter is to remove the scald guard. Is that correct? or is there another way? I also have the wall mounted handheld shower installed. Not sure if you needed to know that. Please advise
Asked by: psychetri
Hi Psychetri, I am sorry to hear about the trouble that you are having with your faucet and I would be happy to help. The increase the maximum hot water input for your faucet, you will need to adjust the rotational limit stop. To do this, remove the temperature handle but feeling behind the handle and prying off the outer cover. Remove the philips screw to remove the next piece. You will then see a round piece that looks like a gear. Each notch you move this piece counter clockwise will increase your maximum hot water temperature by 3-4 degrees.
Answered by: JessW
Date published: 2024-03-28

Does this come with a matte black tub drain stopper?

Asked by: Hillary
Hello Hillary, Thank you for your question. The Delta Trinsic Tub and Shower T17459-BL faucet does not come with a drain assembly. We do not manufacture a Bath waste/Drain assembly in the Matte Black finish. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Does this control the water flow volume to the bathtub faucet as well as shower? &nbsp;

Asked by: Michelllelee
Hi, Michellelee! Thank you for your question. The Delta Monitor T17459 valve trim will control the water flow volume for both the tub and shower. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Why does then spout installation manual show (4) possible installations with no sizes for any. Can you provide the necessary additional detail for each type so that the instructions can be used?

Asked by: NotHappy
Hi, NotHappy. Thank you for your question. The instructions that are included with the Delta Monitor T17459-BL Tub and Shower Faucet are general instructions for all of our Monitor 17 Series units. Our Monitor 17 Series units do include different types of tub spout assemblies and we've included all of the tub spout instructions so that they're easily accessible for our customers. I have included a link to a maintenance and installation sheet, that covers several tub spouts we manufacture. For installation instructions on model RP73371BL, the tub spout assembly that is included with the Delta Monitor T17459-BL Faucet, please refer to page 5, diagram C1. If you need further assistance, feel free to contact us directly. https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

how do you remove the temperature control cover? I thought you would just pop it off; but, I've pulled with considerable strength and it doesn't pop off.

Asked by: bmor
Hello bmor, Thank you for your question. The temperature knob of the Delta Trinsic Tub and Shower T17459-BL faucet can be removed by grasping the side edges and pull the cover straight off. Please feel free to call, email, or message us on social if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2024-03-28

Hello! Can this system be paired with one of your shower wands?

Asked by: Anna
Hi, Anna! Thank you for your question. The Trinsic Collection that the Delta Monitor T17459 trim kit works with has two hand shower units in this collection. Here is a link to these hand shower options: https://www.deltafaucet.com/bathroom/showering/showerheads--handshowers?categories=Delta_Bathroom_Showering_Shower+Heads+%26+Hand+Showers_Hand+Showers&amp;collections=Trinsic%C2%AE Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_7, d_16, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_31
  • loc_en_US, sid_T17459-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 6ms
  • questions, product
PART LIST

PART LIST

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP6025PR

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025PR

Image-RP73374SS

Trinsic®

Trinsic® Escutcheon - 17 Series

List Price: $130.85
Online Price: $104.68
Free Ground Shipping All Orders $49+

RP73374SS

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP73378SS

Trinsic®

Trinsic® Temperature Knob & Cover - 17 Series

List Price: $145.10
Online Price: $116.08
Free Ground Shipping All Orders $49+

RP73378SS

Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP73371SS

Trinsic®

Trinsic® Tub Spout - Pull-Up Diverter

List Price: $139.90
Online Price: $111.92
Free Ground Shipping All Orders $49+

RP73371SS

3.28 18
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP28598

Delta®

Delta® Decal - Hot / Cold Indicator - 17 Series

List Price: $8.30
Online Price: $6.64
Free Ground Shipping All Orders $49+

RP28598

3.40 5
Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS17459
Only at Online Retailers

Trinsic®

Trinsic® Shower Trim Bundles

List Price: $445.20 - $630.20
Standard Finishes

FVS17459

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
