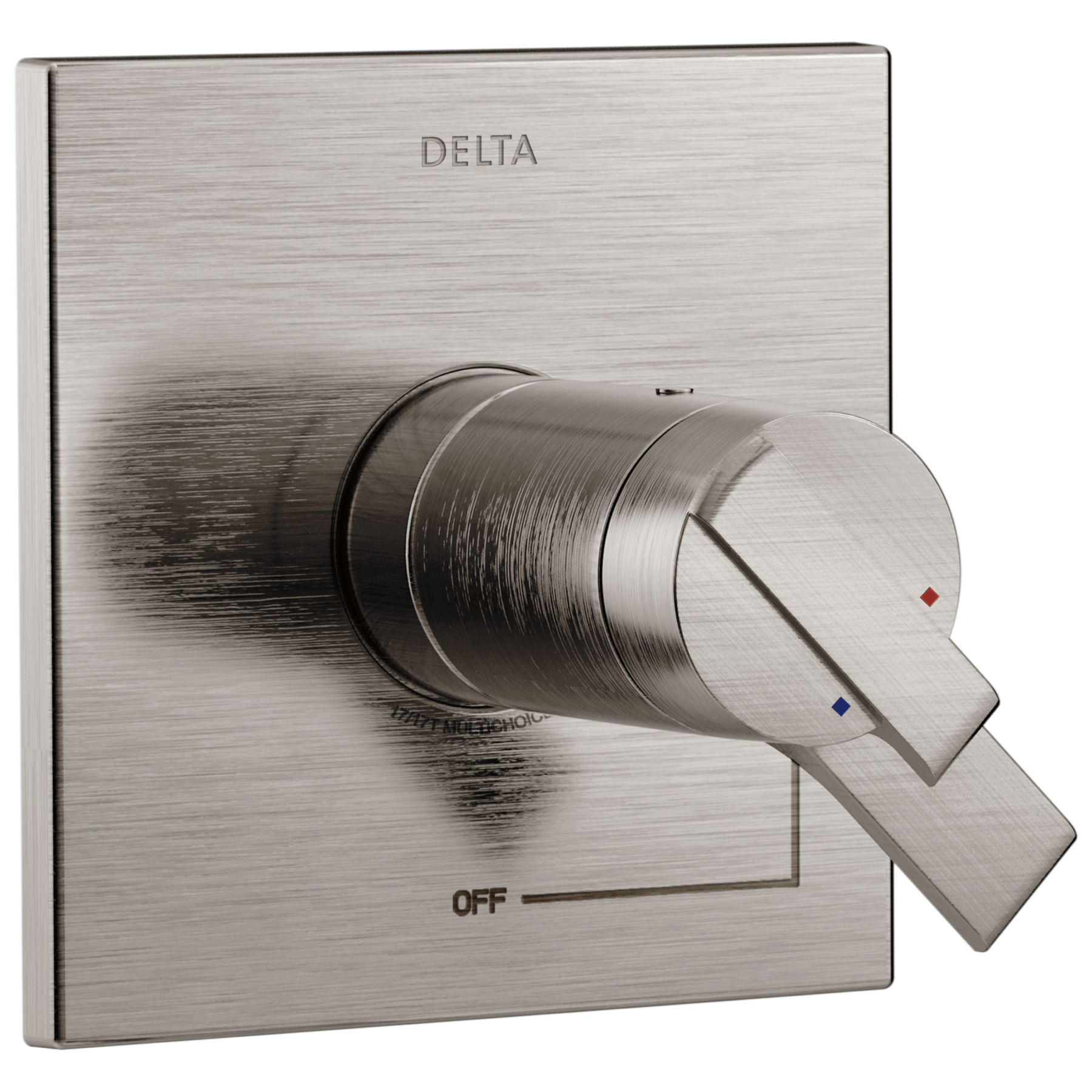

Ara®
TempAssure® 17T Series Valve Only Trim
Model#: T17T067-SS
TempAssure® 17T Series Valve Only Trim
TempAssure® 17T Series Valve Only Trim
TempAssure® 17T Series Valve Only Trim
Ara®
TempAssure® 17T Series Valve Only Trim
Model#: T17T067-SS
Finish: Stainless
List Price*: $568.20
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. This Brilliance Stainless finish has subtle, warm undertones which make it an excellent match with nickel or stainless steel and is extremely versatile, complementing nearly any look, be it traditional, transitional or contemporary.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
  • Metal lever handle meets standards set by Americans with Disabilities Act (ADA)
  • 1/2 in. rough-in
  • Back-to-back installation capability
  • Field adjustable to limit handle rotation into hot water zone
  • Adjusts for up to 1 in. wall thickness
  • Graphics indicate hot/cold temperature adjustment
  • Valve is not included, must purchase separately
  • Set ideal temperature and adjust volume separately
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Special Features
California Prop 65 WARNING
SUPPORT
Installation Information
Over All Height :
6-1/2
Connection Type :
Universal fittings
PART LIST

PART LIST

REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Does your T17T067 includes the 17t cartridge?

Asked by: Moon
Hi Moon, Thank you for your question! The RP47201 cartridge is included with the trim kit. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-04-28

Can this be used for an exterior shower?

Asked by: Greg
Hi, Greg! Thank you for your question. Unfortunately none of our shower faucets are specifically designed to be installed outdoors. They are not designed to withstand extreme cold weather conditions (freezing) or direct sunlight from the sun in the summer months. If you do decide to install one of our faucets outdoors, then please remember that our warranty only covers manufactures defects. Damage incurred to the faucet by the extreme weather conditions are not covered by our warranty program. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-05-10

Is it recommended to caulk around the T17T067 trim escutcheon plate?

The trim is snug against tile and has some kind of foam gasket inside. However, it seems inevitable that water will travel behind the trim and, possibly, into the wall. Is caulk required? Recommended?
Asked by: Steve S
Hi Steve, Thank you for your question. The escutcheon in the model T17T067 will seal with the foam gasket. You can seal with an additional bead of caulk if you desire, but it is not required. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2014-12-22

My T17T067 turned all the way to hot is only warm

In my new build home, the shower valve when set to maximum hot only allows warm water. nearby faucets and other showers produce very hot water so its not a water temperature issue. Is this a something to do with the temperature feature of this shower valve? How do I correct?
Asked by: Briz55
Hi Briz55, Thank you for your question! The cartridge can be adjusted to allow for hotter water. Please see our How-To Video below for adjusting the Rotational Limit Stop. https://www.deltafaucet.com/cms/render/live/en/sites/delta/home/video-gallery/video-page.html?videoId=n2_uZ7wgV1I Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-11-22

Is hot water to the left or right?

My plumber just installed this valve trim. It seems that the hot water is to the right and the cold to the left. This is different than all my other delta faucets. Did he install it the wrong way?
Asked by: NY homeowner
Hi NY homeowner, Thank you for your question! The hot side is normally on the left. Rotating the temperature dial counter-clockwise should increase the temperature. In a reverse or back-to-back installation, you can install the cartridge upside down to achieve the correct handle operation. Please click the link below to view the back-to-back installation instructions on page 3. http://www.deltafaucet.com/customersupport/documentation/t17t067.html?document=mi&fromDetailArea=bath&documentIndex=0#flashWrapper Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2015-12-28

What is the GPM for this faucet?

Asked by: Chris
Thank you for your question, Chris! The flow rate will depend on the rough-in valve that you use and the pressure in the home. The flow rate from the tub spout port will be between about 7 and 7.8 GPM from the tub spout port at 60 PSI. Please see the flow rate chart at the bottom of the Technical Specifications linked below. https://media.deltafaucet.com/SpecSheet/DSP-B-T17T067%20Rev%20E.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-07-25

How do you set the temperature

Asked by: Ronnie
Hi, Ronnie! Thank you for your question. The temperature for the Delta TempAssure T17T067 Valve Trim Kit can be set by turning the temperature control handle left for hot and right for cold. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-11-15

Hi My question is, This trim set is good to install in a delta model 30 years old? Thx for the answer

Asked by: Scarano Inc
Thank you for your question, Scarano Inc! Model T17T067 is a TempAssure unit that uses a Thermostatic cartridge which does not fit into the older Delta rough-in valve bodies. You will need a current MultiChoice Universal Rough-in valve such as the R10000-UNBX to install this trim. Alternatively, the Ara collection does offer a standard 17 series valve trim which will work as a replacement for 1500 or 1700 series kits that have screw placements at the 1 and 7 o'clock positions. The valve body itself will not accept current cartridges so the RP32104 assembly must be used instead. https://www.deltafaucet.com/bathroom/product/T17067 Best regards, Edward
Answered by: Delta Faucet
Date published: 2020-02-13
