Ara®
View Full Ara® Bathroom Collection

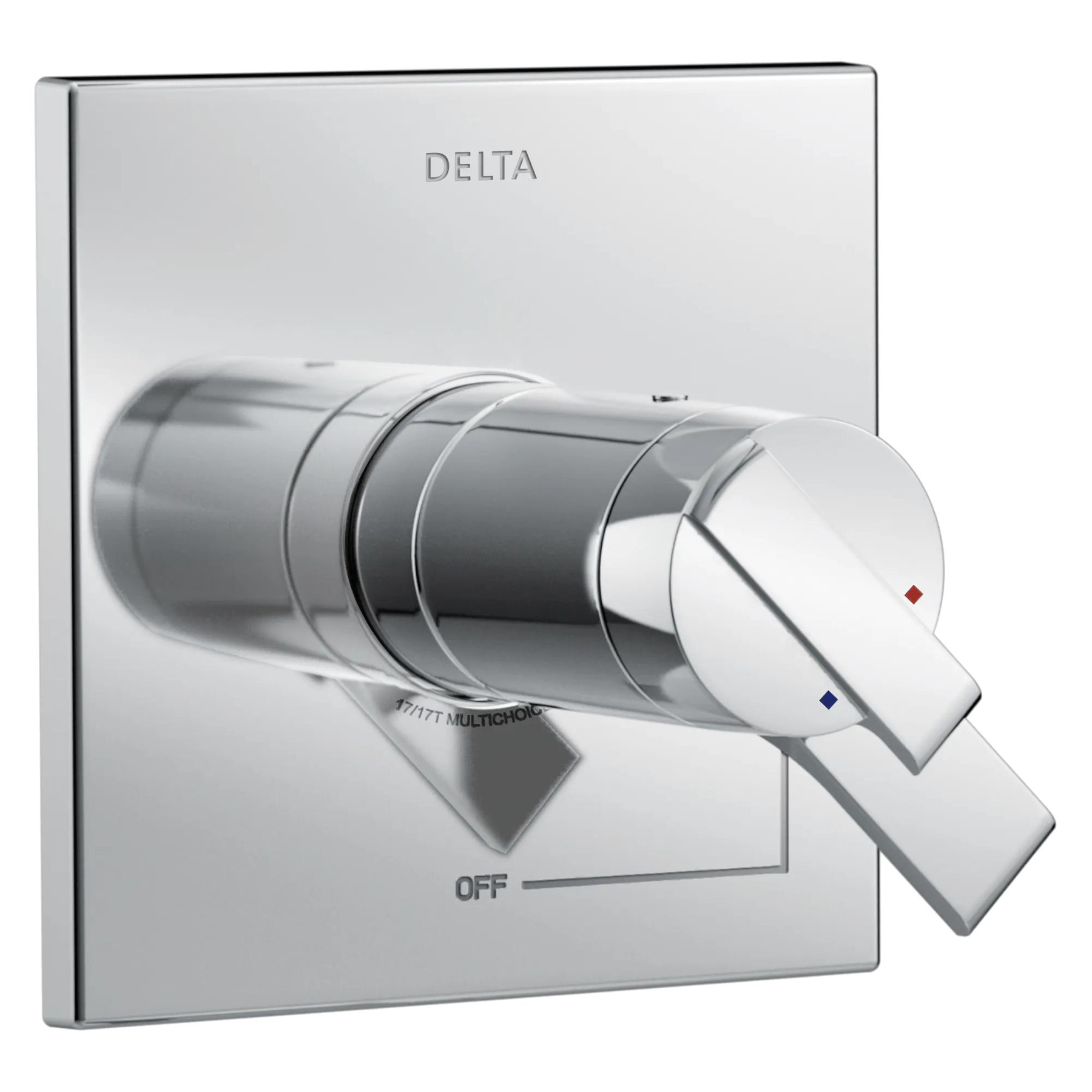

TempAssure® 17T Series Valve Only Trim in Chrome
Model#: T17T067
List Price: $64200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure thermostatic valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Metal lever handle meets standards set by Americans with Disabilities Act (ADA)
  • 1/2 in. rough-in
  • Back-to-back installation capability
  • Field adjustable to limit handle rotation into hot water zone
  • Adjusts for up to 1 in. wall thickness
  • Graphics indicate hot/cold temperature adjustment
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Volume Control
MultiChoice® Universal Valve
TempAssure™
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
6-1/2
Valve Type:
Dual-function thermostatic cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 4 out of 5 by from Good but not perfect [This review was collected as part of a promotion.] Delta is definitely one of the best, if not the best plumbing fixture brand in the world. I am very happy with how the valve works. Operation is smooth. Set the temperature lever and never have to adjust it again so when you turn on the shower next time there is no adjusting. It has a nice contemporary look. The reason I give it a 4 star rating is because the finish leaves finger prints and smudges that don’t easily wipe off. It makes it looks somewhat used and not clean
Date published: 2025-06-15
Rated 3 out of 5 by from Not impressed with the value of this trim As others noted: a plastic temperature control knob? At this price point? There's not even a set screw, it just snaps on. Time will tell if this faucet will last, but construction versus similar Hansgrohe is night and day. I would not buy this again.
Date published: 2024-08-08
Rated 4 out of 5 by from Cheap plastic temp handle! This product is superior in design and would have been a five star rating...except for the temperature handle. The handle is cheap plastic that snaps on and wobbles around due to a loose fitting design. I replaced the temperature handle with the RP62959SS which is metal and is secured with a screw for a nice tight fit. Shame on Delta for making such a poor design decision. Delayed my project and cost me more.
Date published: 2023-05-23
Rated 5 out of 5 by from Design and practical Appreciate the innovative practical use and heavy duty built
Date published: 2022-06-03
  • y_2026, m_6, d_10, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_T17T067, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Is it recommended to caulk around the T17T067 trim escutcheon plate?

The trim is snug against tile and has some kind of foam gasket inside. However, it seems inevitable that water will travel behind the trim and, possibly, into the wall. Is caulk required? Recommended?
Asked by: Steve S
Hi Steve, Thank you for your question. The escutcheon in the model T17T067 will seal with the foam gasket. You can seal with an additional bead of caulk if you desire, but it is not required. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

My T17T067 turned all the way to hot is only warm

In my new build home, the shower valve when set to maximum hot only allows warm water. nearby faucets and other showers produce very hot water so its not a water temperature issue. Is this a something to do with the temperature feature of this shower valve? How do I correct?
Asked by: Briz55
Hi Briz55, Thank you for your question! The cartridge can be adjusted to allow for hotter water. Please see our How-To Video below for adjusting the Rotational Limit Stop. https://www.deltafaucet.com/cms/render/live/en/sites/delta/home/video-gallery/video-page.html?videoId=n2_uZ7wgV1I Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-11-22

Is hot water to the left or right?

My plumber just installed this valve trim. It seems that the hot water is to the right and the cold to the left. This is different than all my other delta faucets. Did he install it the wrong way?
Asked by: NY homeowner
Hi NY homeowner, Thank you for your question! The hot side is normally on the left. Rotating the temperature dial counter-clockwise should increase the temperature. In a reverse or back-to-back installation, you can install the cartridge upside down to achieve the correct handle operation. Please click the link below to view the back-to-back installation instructions on page 3. http://www.deltafaucet.com/customersupport/documentation/t17t067.html?document=mi&fromDetailArea=bath&documentIndex=0#flashWrapper Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

What is the GPM for this faucet?

Asked by: Chris
Thank you for your question, Chris! The flow rate will depend on the rough-in valve that you use and the pressure in the home. The flow rate from the tub spout port will be between about 7 and 7.8 GPM from the tub spout port at 60 PSI. Please see the flow rate chart at the bottom of the Technical Specifications linked below. https://media.deltafaucet.com/SpecSheet/DSP-B-T17T067%20Rev%20E.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-07-25

How do you set the temperature

Asked by: Ronnie
Hi, Ronnie! Thank you for your question. The temperature for the Delta TempAssure T17T067 Valve Trim Kit can be set by turning the temperature control handle left for hot and right for cold. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Hi My question is, This trim set is good to install in a delta model 30 years old? Thx for the answer

Asked by: Scarano Inc
Thank you for your question, Scarano Inc! Model T17T067 is a TempAssure unit that uses a Thermostatic cartridge which does not fit into the older Delta rough-in valve bodies. You will need a current MultiChoice Universal Rough-in valve such as the R10000-UNBX to install this trim. Alternatively, the Ara collection does offer a standard 17 series valve trim which will work as a replacement for 1500 or 1700 series kits that have screw placements at the 1 and 7 o'clock positions. The valve body itself will not accept current cartridges so the RP32104 assembly must be used instead. https://www.deltafaucet.com/bathroom/product/T17067 Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Does your T17T067 includes the 17t cartridge?

Asked by: Moon
Hi Moon, Thank you for your question! The RP47201 cartridge is included with the trim kit. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-04-28

Can this be used for an exterior shower?

Asked by: Greg
Hi, Greg! Thank you for your question. Unfortunately none of our shower faucets are specifically designed to be installed outdoors. They are not designed to withstand extreme cold weather conditions (freezing) or direct sunlight from the sun in the summer months. If you do decide to install one of our faucets outdoors, then please remember that our warranty only covers manufactures defects. Damage incurred to the faucet by the extreme weather conditions are not covered by our warranty program. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_en_US, sid_T17T067, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 23ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP75438

Ara®

Ara® Escutcheon & Gasket - 17 Series

List Price: $149.85 - $235.90
Free Ground Shipping All Orders $49+

RP75438

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $38.65 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-RP47201 Secondary Image-RP47201

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17T Series

List Price: $600.40
Online Price: $480.32
Free Ground Shipping All Orders $49+

RP47201

2.03 34
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP52384

Delta®

Delta® Set Screw, Wrench & Button Cover

List Price: $15.70
Online Price: $12.56
Free Ground Shipping All Orders $49+

RP52384

Image-Master-RP75442

Ara®

Ara® Metal Lever Handle Kit - 17T Series

List Price: $100.25 - $131.35
Free Ground Shipping All Orders $49+

RP75442

Image-Master-RP51035

Delta®

Delta® Bracket & Screws - Shower

List Price: $36.35 - $47.95
Free Ground Shipping All Orders $49+

RP51035

Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-Master-RP75441

Ara®

Ara® Temperature Knob & Cover - 17 Series

List Price: $49.35 - $66.35
Free Ground Shipping All Orders $49+

RP75441

Image-Master-RP51034

Vero®

Vero® Flange - Shower

List Price: $26.45 - $47.45
Free Ground Shipping All Orders $49+

RP51034

Image-RP75136

Delta®

Delta® TempAssure® 17T Series Extension Kit

List Price: $102.30
Online Price: $81.84
Free Ground Shipping All Orders $49+

RP75136

Image-Master-RP75435

Ara®

Ara® Tub Spout - Pull-Up Diverter

List Price: $114.15 - $221.85
Free Ground Shipping All Orders $49+

RP75435
