Delta®

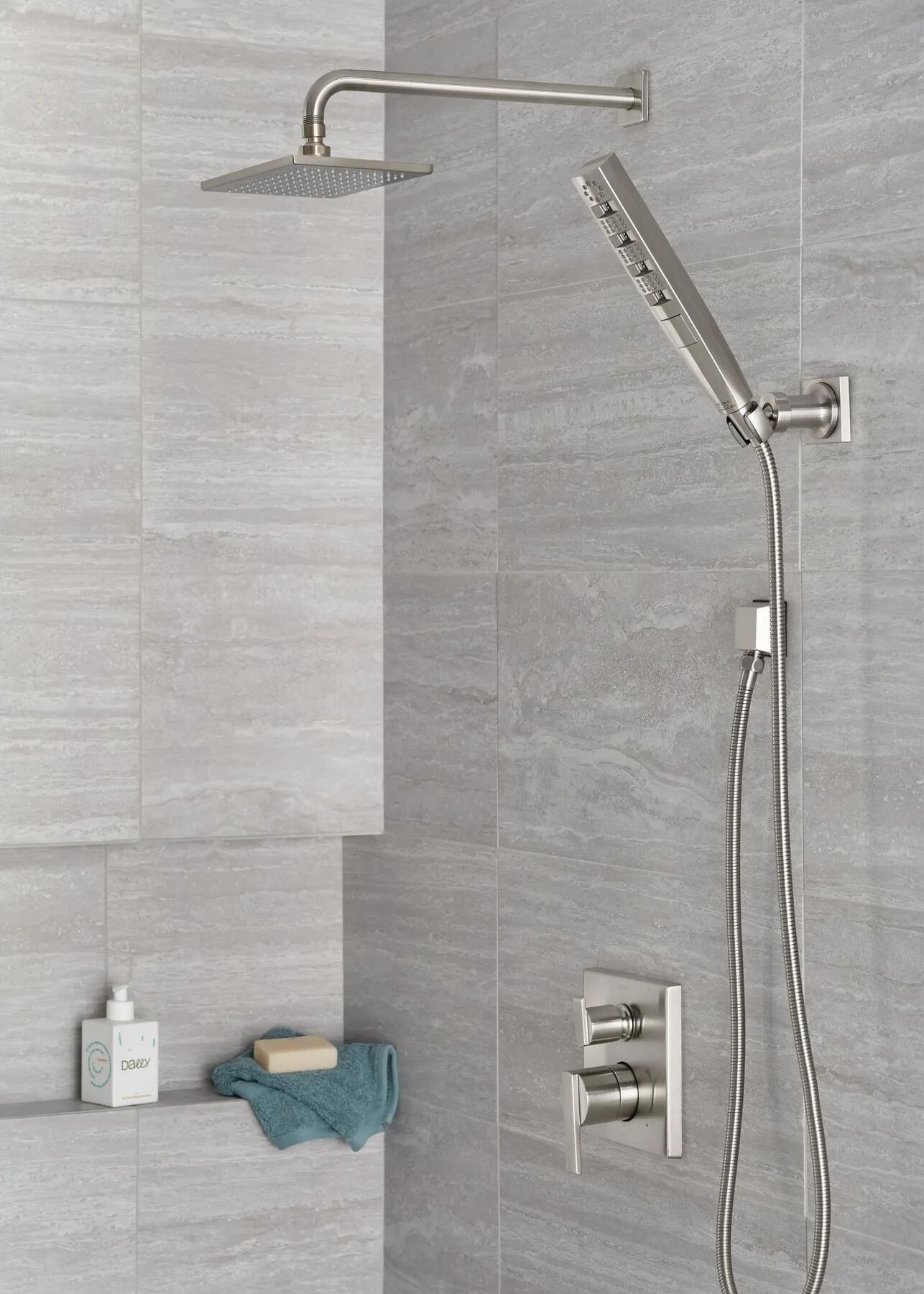

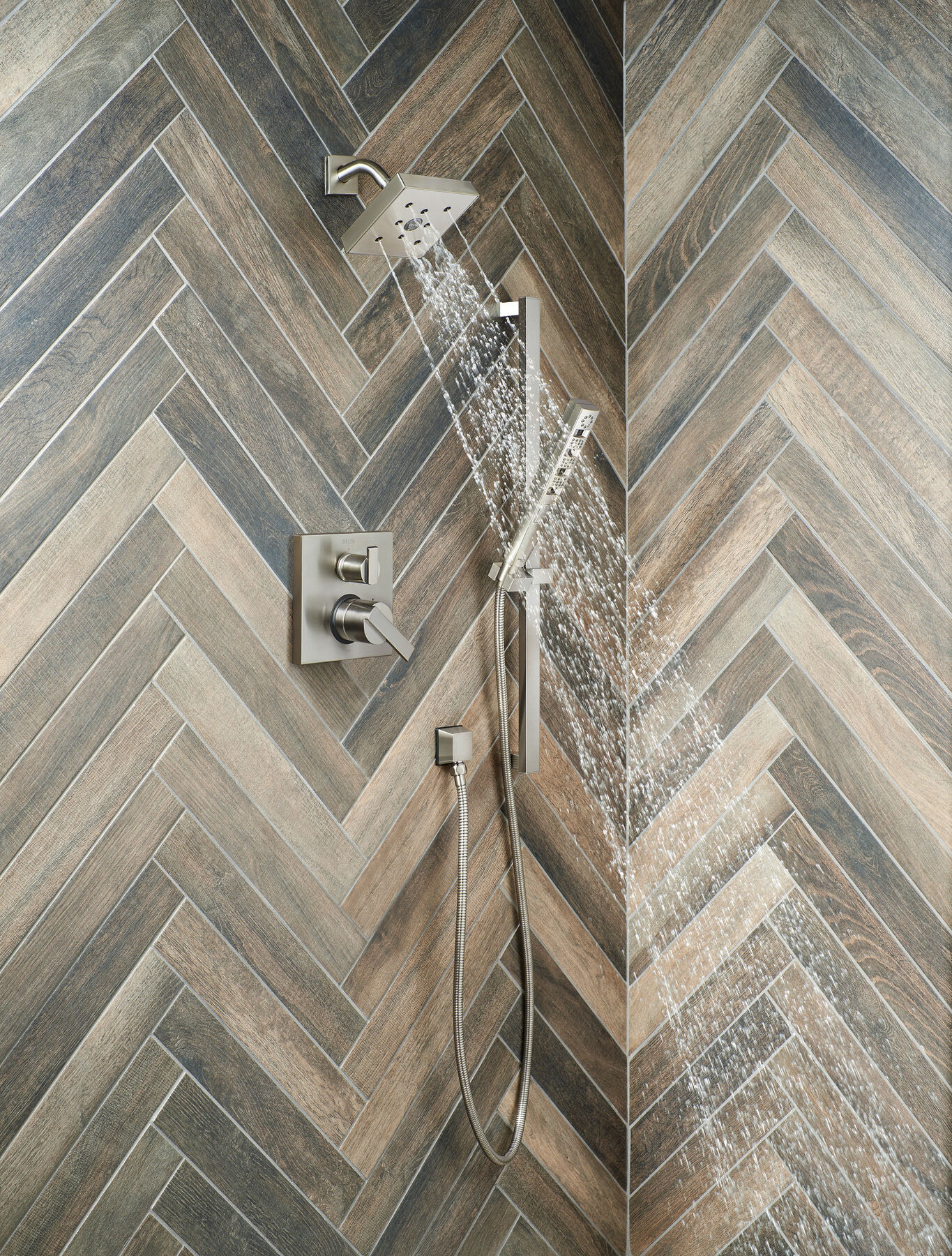

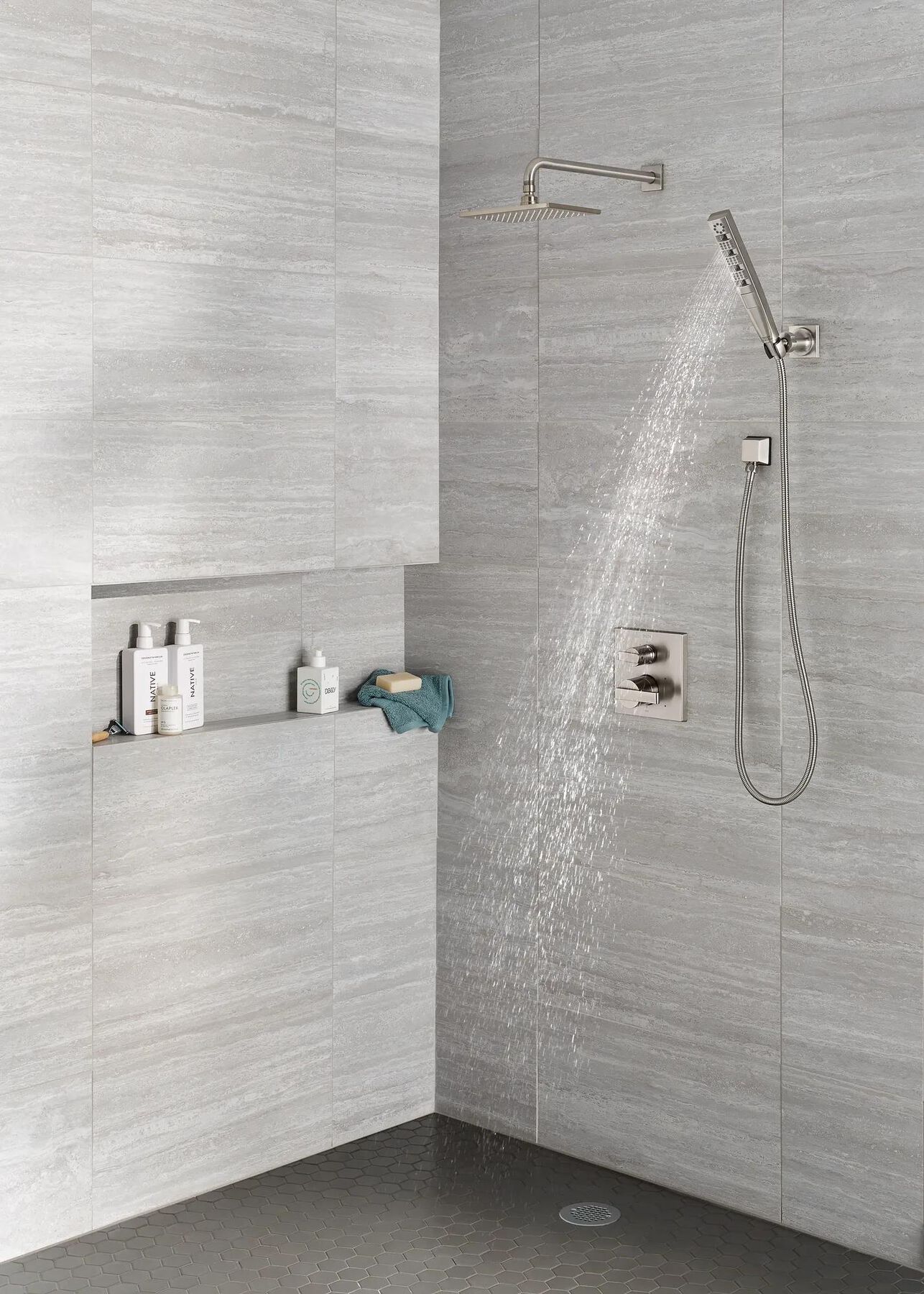

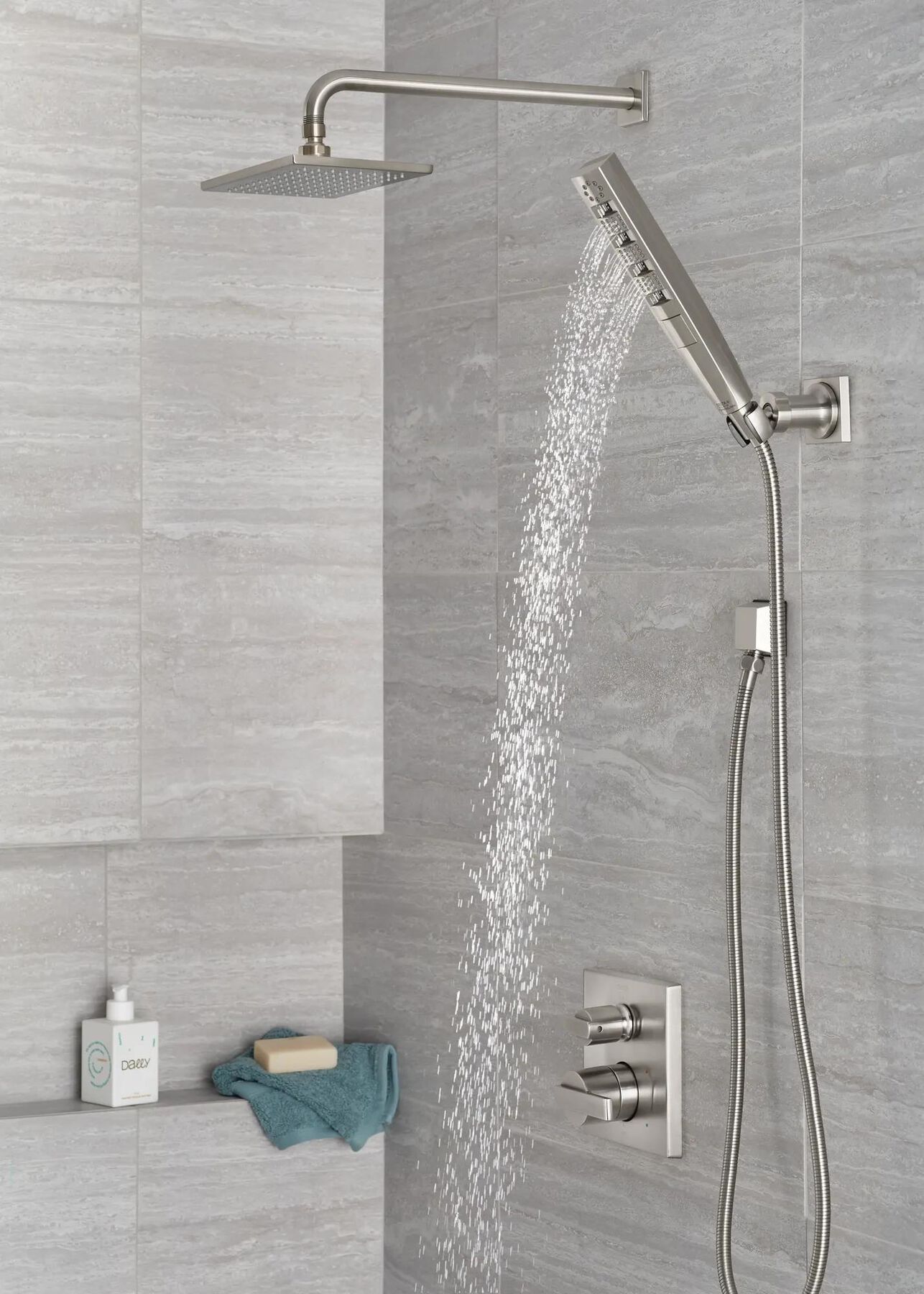

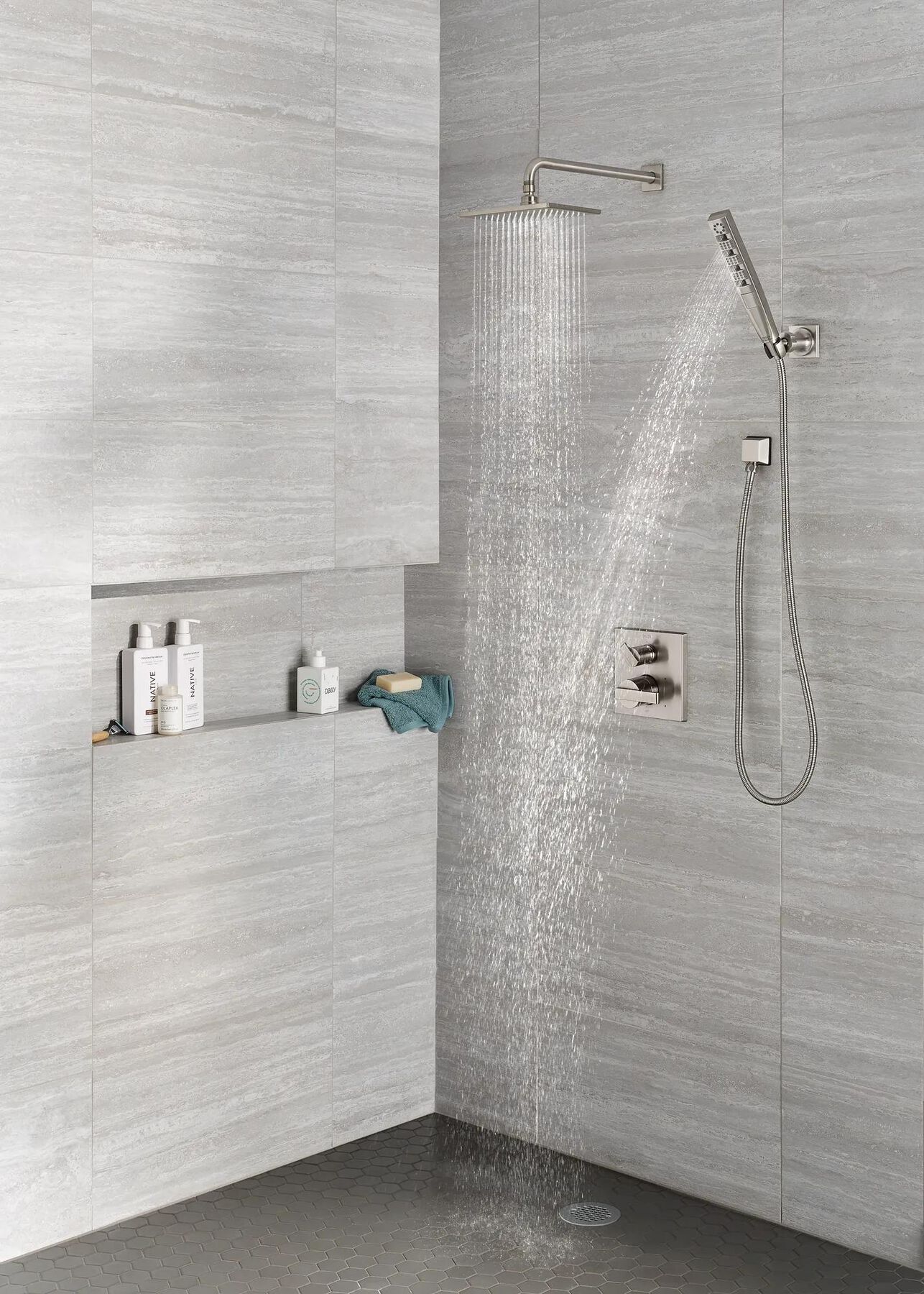

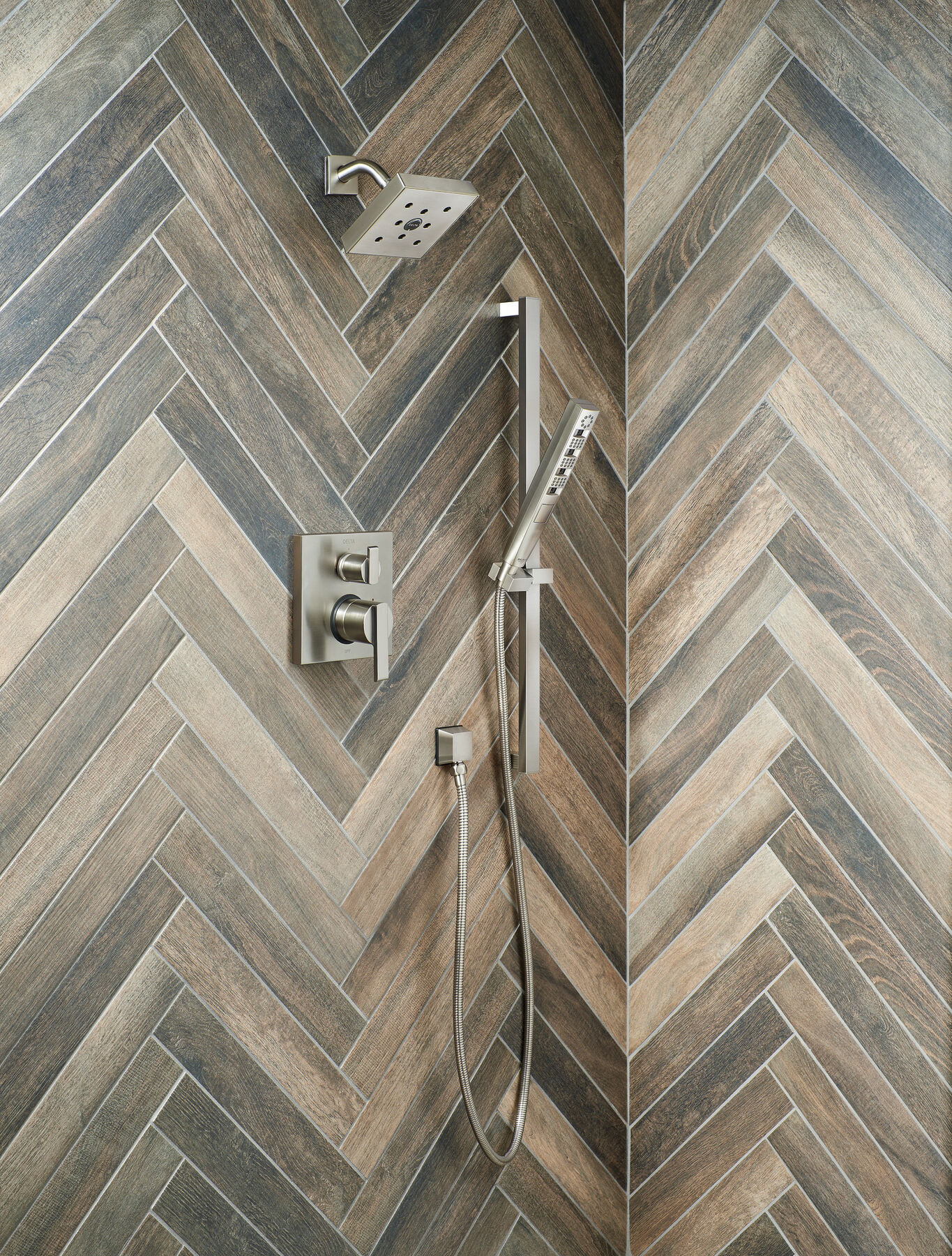

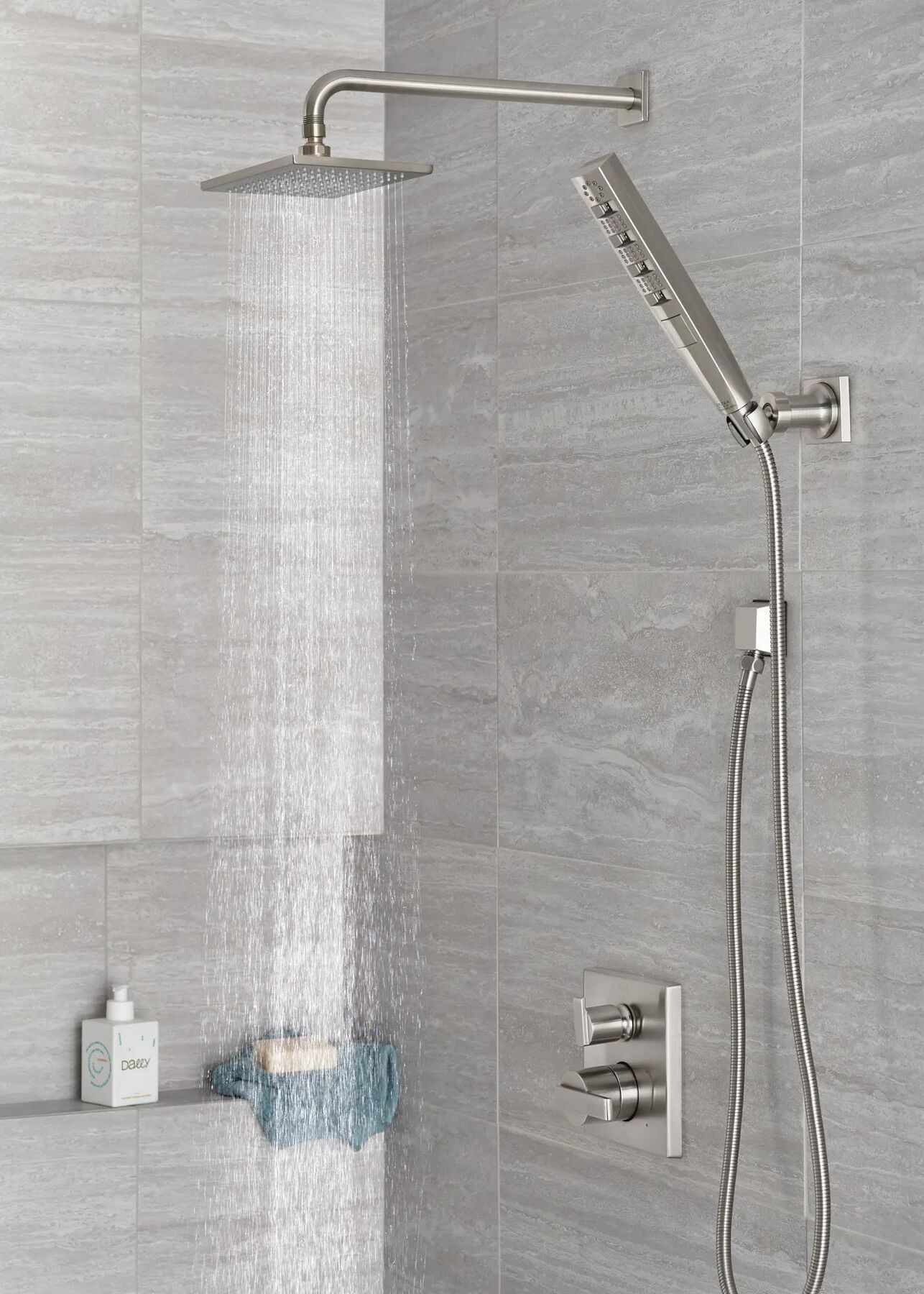

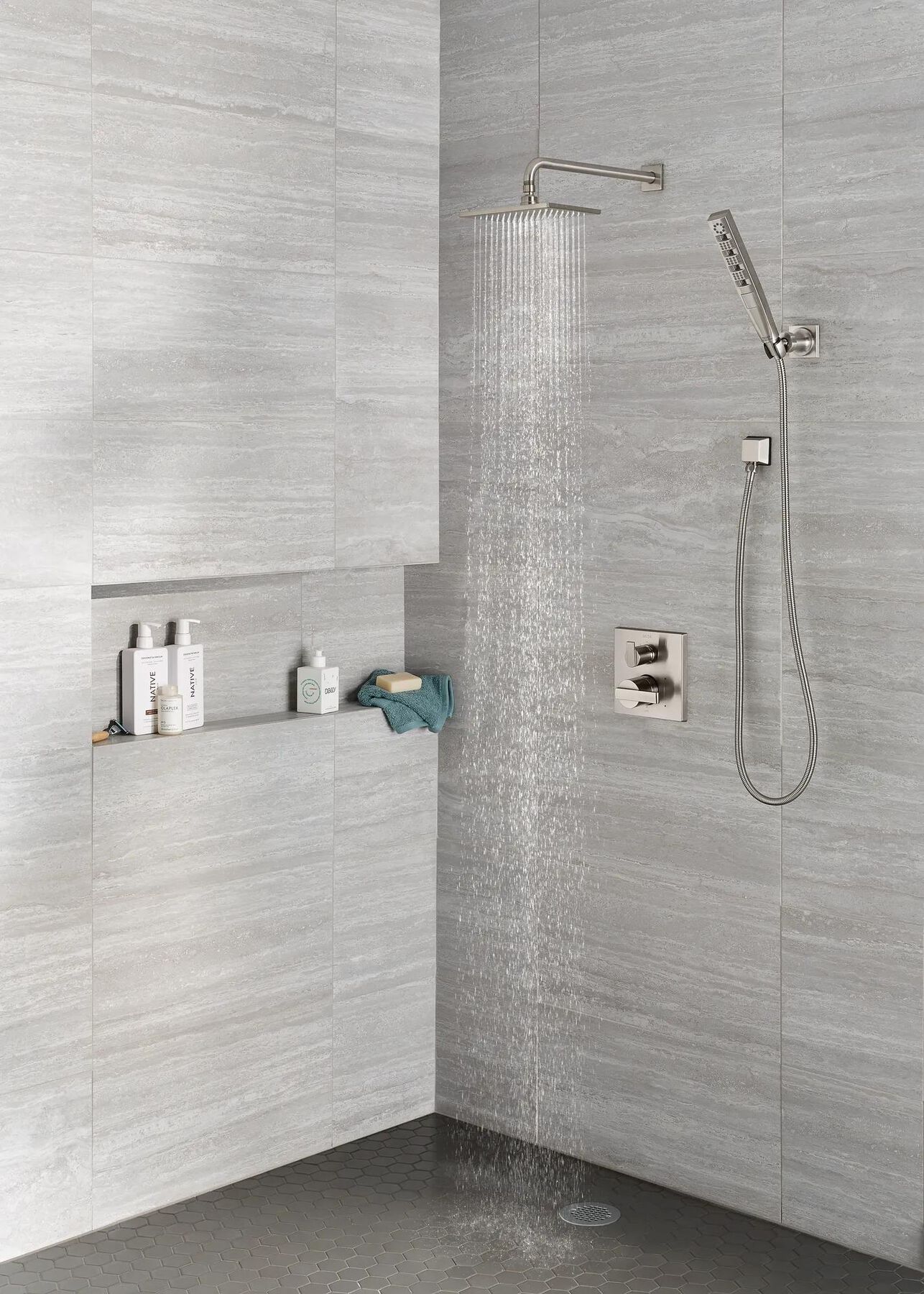

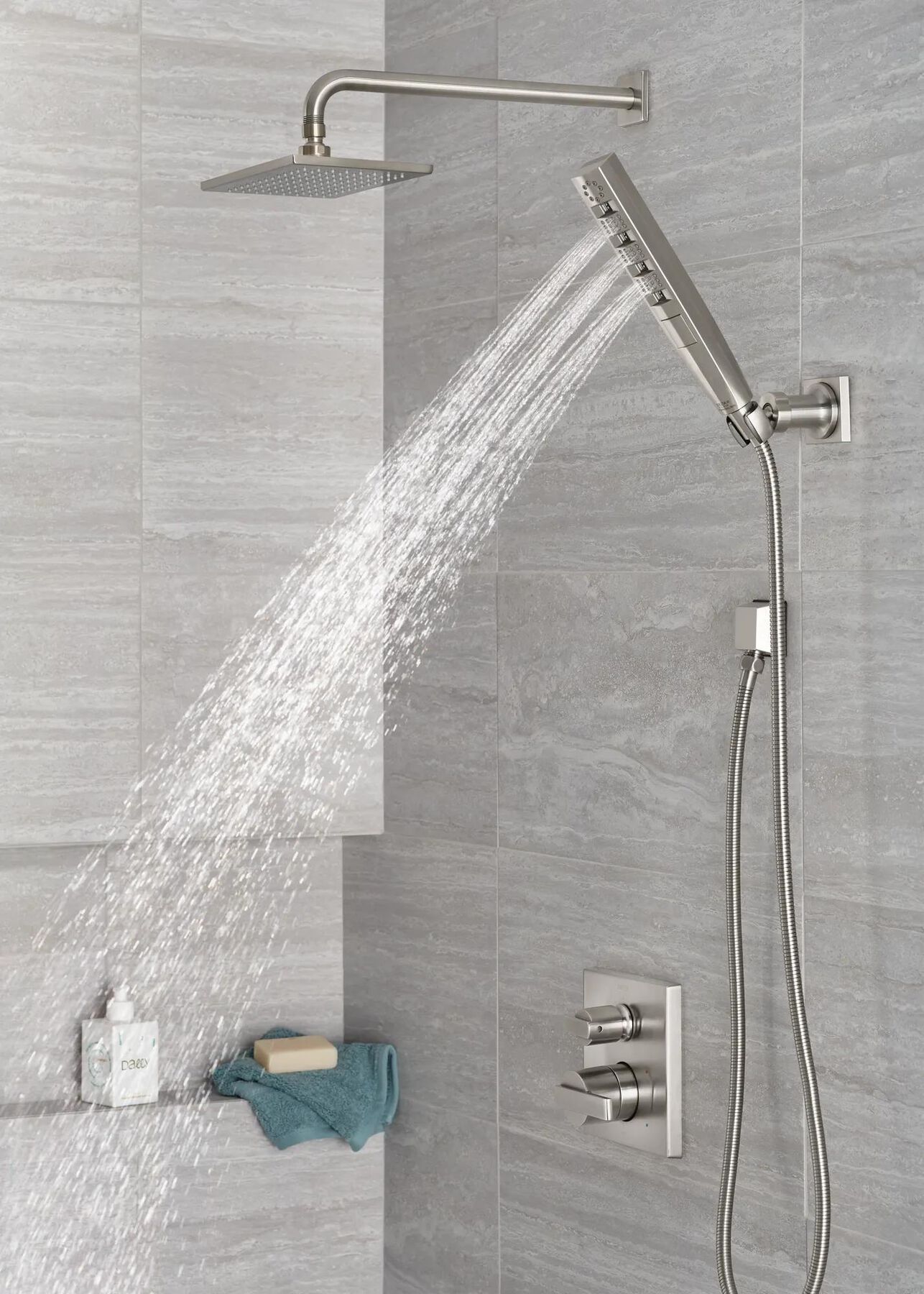

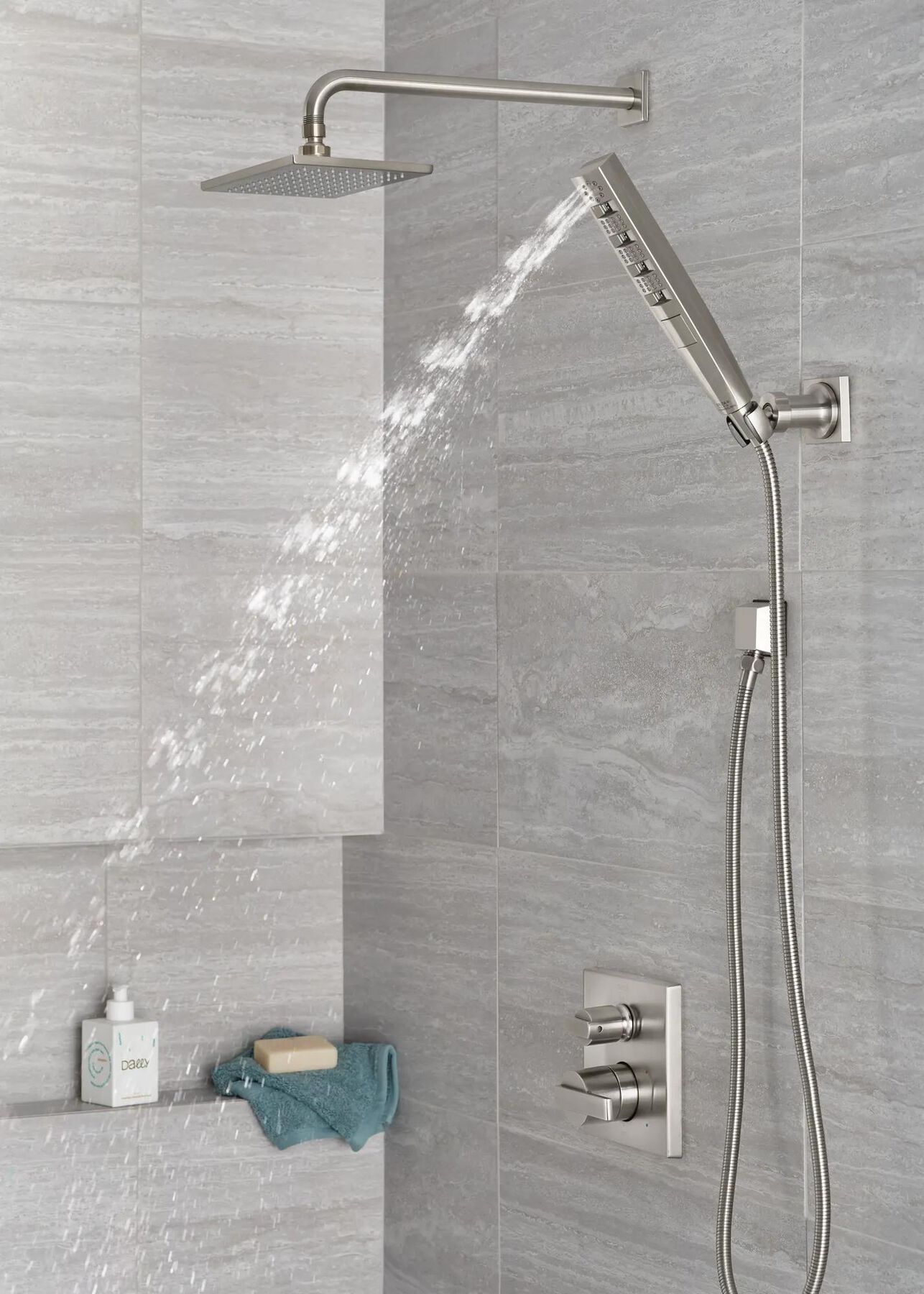

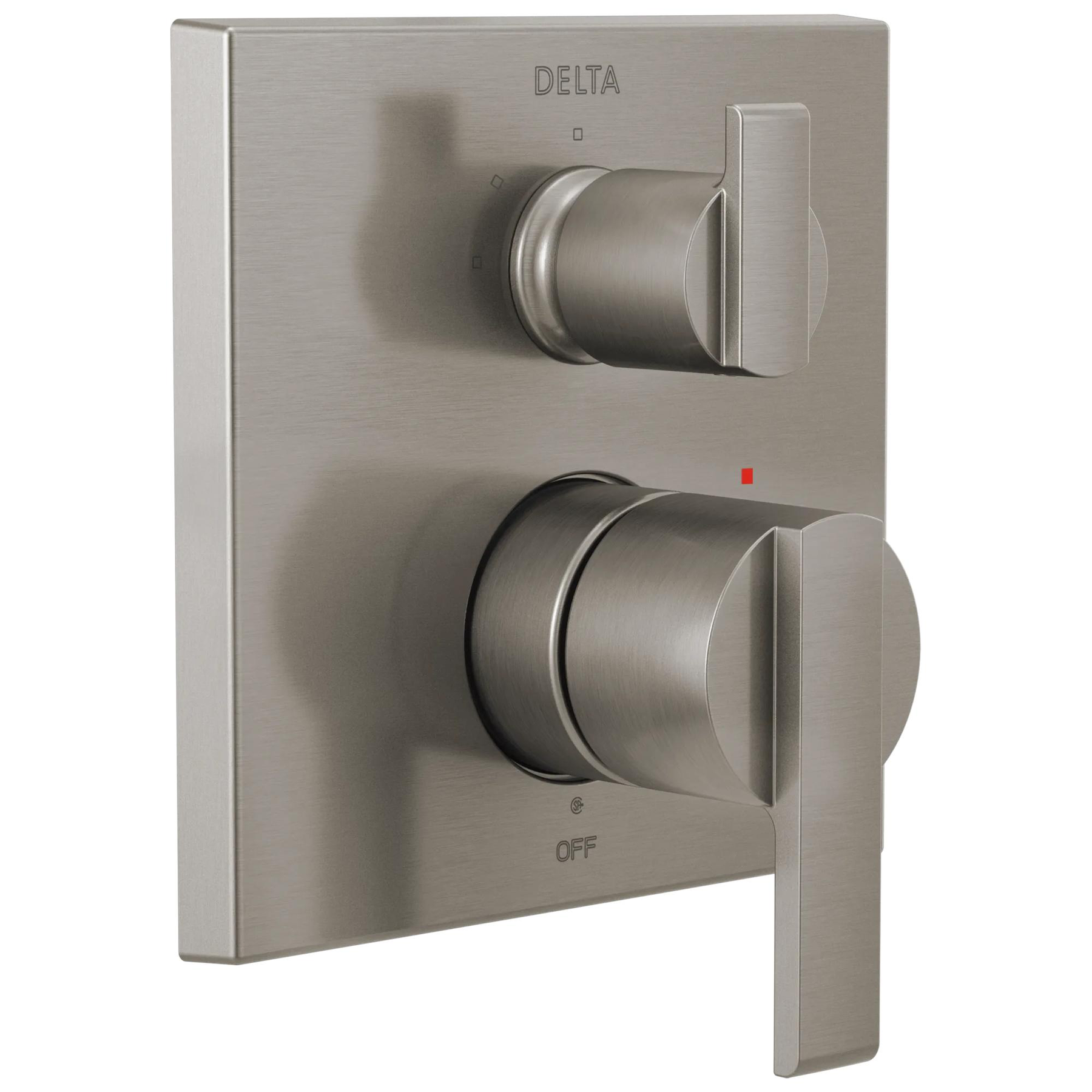

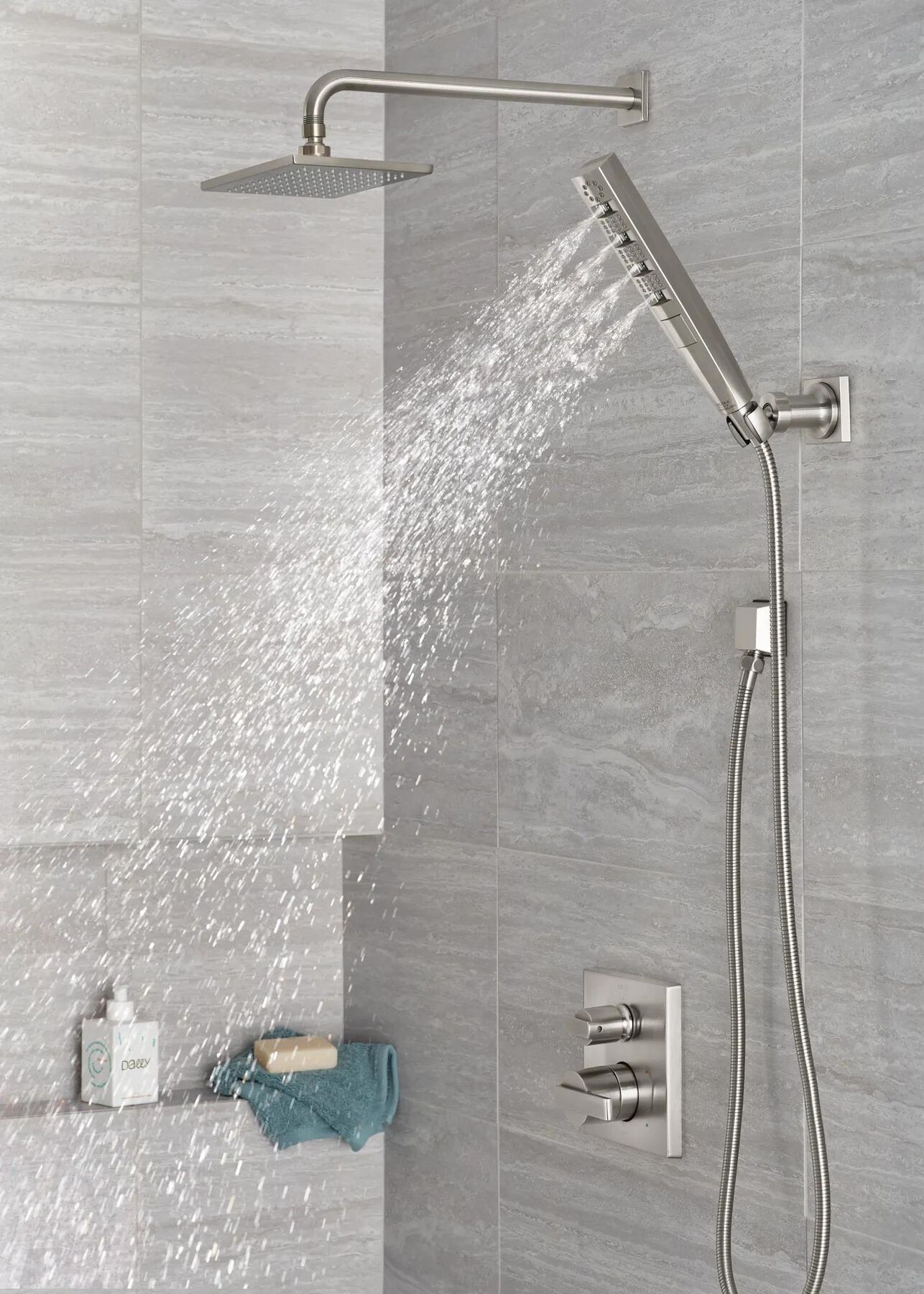

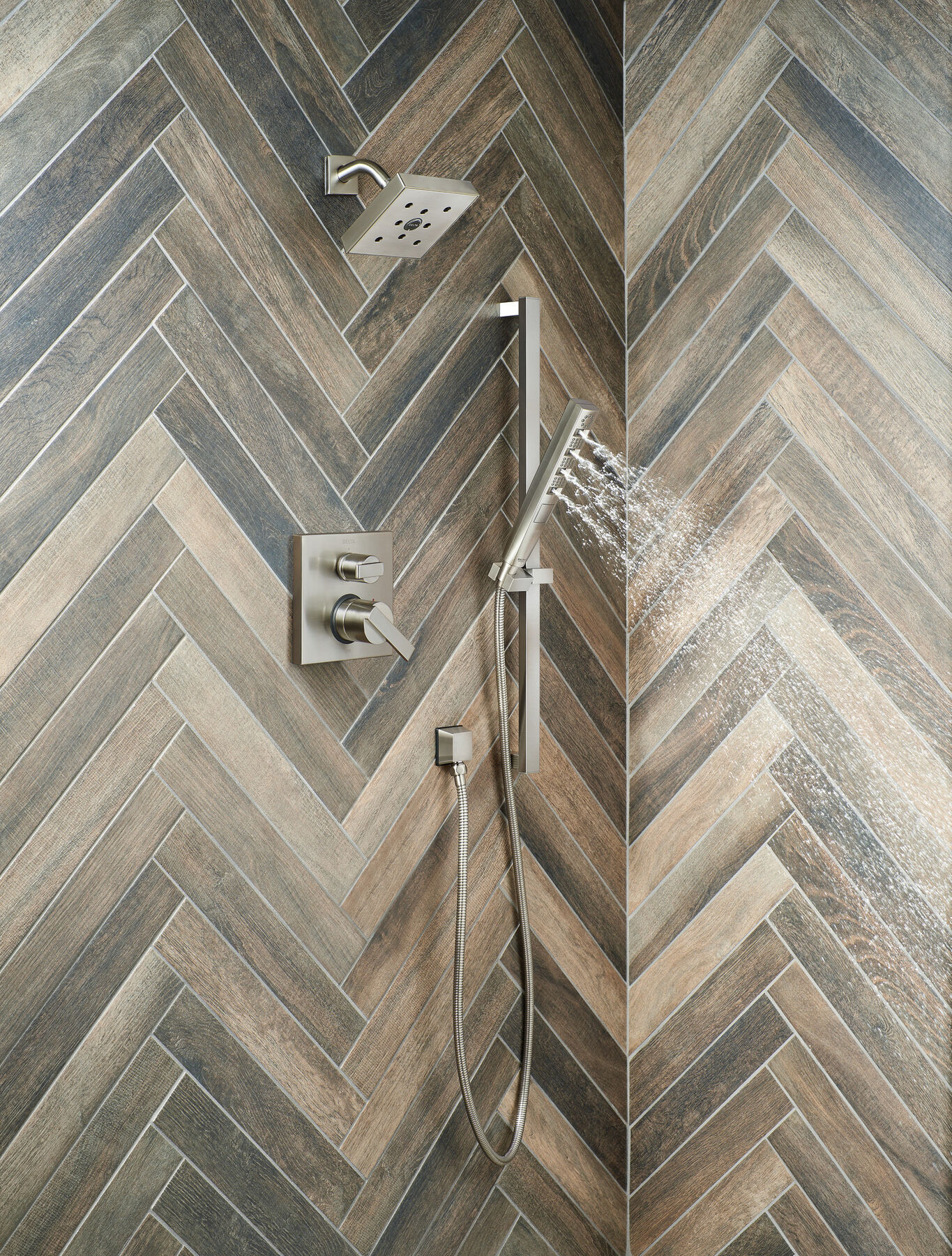

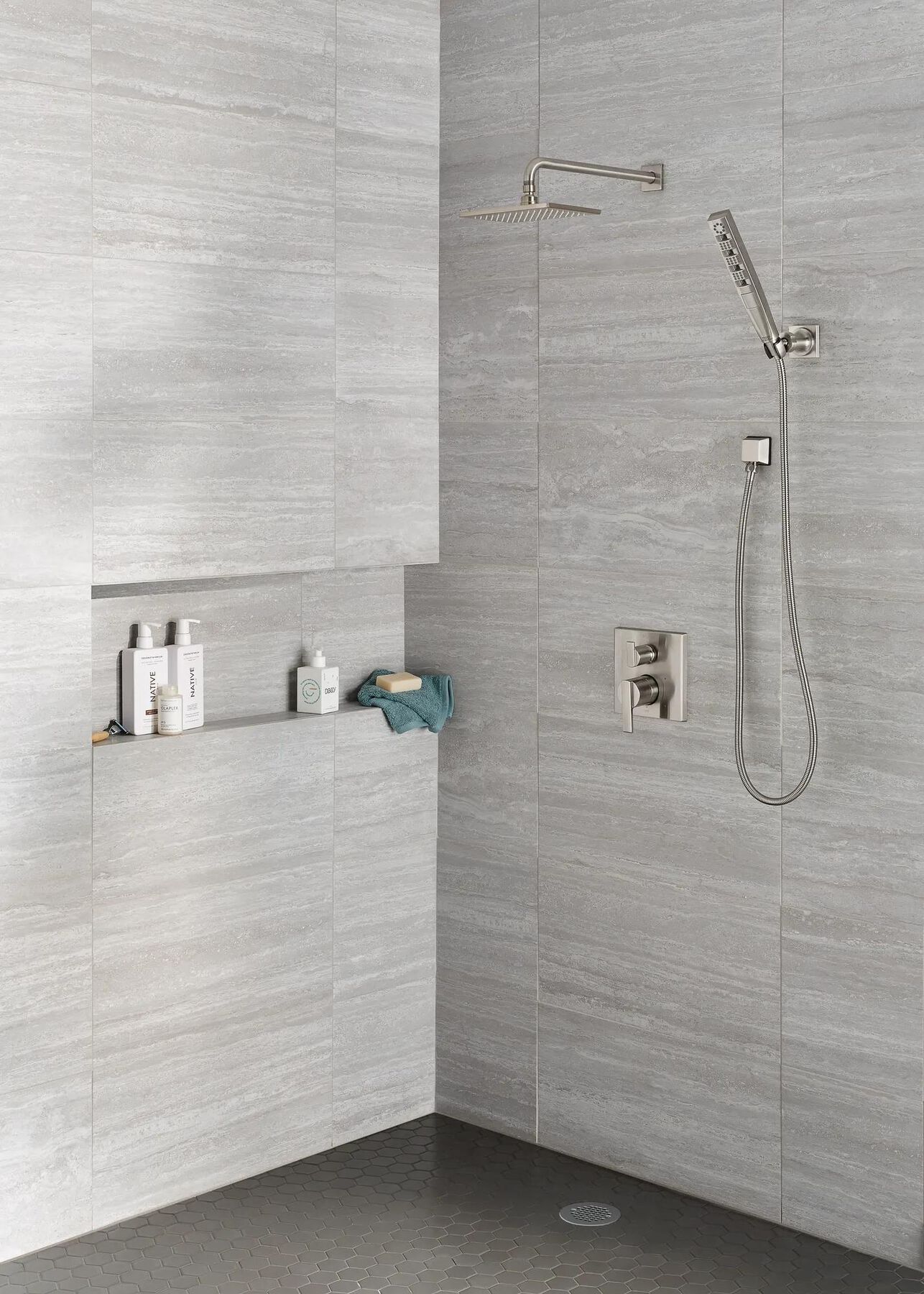

Angular Modern Monitor® 14 Series Valve Trim with 3-Setting Integrated Diverter in Stainless

Model#: T24867-SS
Add to Favorites
Find local Delta® installers.
Delta®
Angular Modern Monitor® 14 Series Valve Trim with 3-Setting Integrated Diverter in Stainless
Model#: T24867-SS
List Price: $74200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES

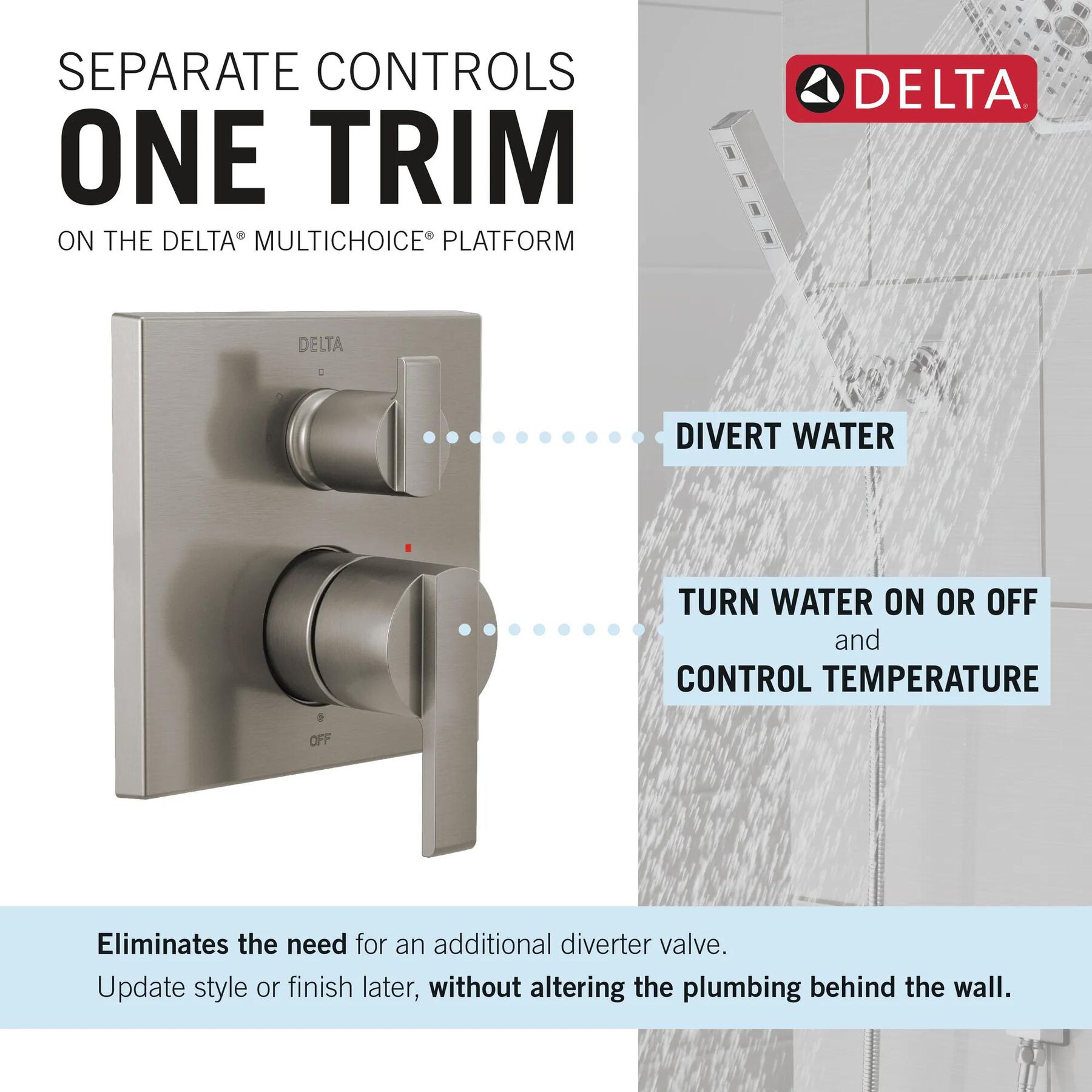

The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The angular modern style is boldly contemporary, featuring crisp lines for an upscale feel. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
  • 3-Setting diverter trim
  • 2-handle trim
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
MultiChoice® Universal Valve
Brilliance® Finish
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
7-5/8
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Bathroom Addition Becky was very helpful..she was a true professional
Date published: 2025-12-06
Rated 5 out of 5 by from Transitional style very flexible with decor Love the sleek transitional style. Excellent coordination with tile. Gold tone but not a shiny finish, looks more antiqued.
Date published: 2025-11-23
Rated 5 out of 5 by from Valve trim Good looking, you need to be an engineer to install it
Date published: 2025-02-14
Rated 5 out of 5 by from Shower Control I love the look of this shower control. I purchased it in polished chrome. It was installed by my plumber with no issues. I use it to control the regular shower head (bottom) and the rain shower (top). I also love that you can wipe it down easily with a dry towel and there are no water spots left behind.
Date published: 2025-01-01
Rated 5 out of 5 by from Delta Quality Delta makes a quality mixing and diverted valve.
Date published: 2023-06-28
Rated 5 out of 5 by from Trim kit for shower Very attractive in our new shower!
Date published: 2022-09-29
Rated 4 out of 5 by from Dual shower & hand held control I love the look & functionality but it spots terribly. I’ve got to investigate how to avoid all the water spots.
Date published: 2022-04-16
Rated 5 out of 5 by from Clean and modern lines My client loves the clean and modern lines this trim kit gave to their farmhouse bathroom.
Date published: 2022-01-11
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_13
  • loc_en_US, sid_T24867-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
Q&A

Do it make a difference which side of the divirter valve body sprayers are conneted to when roughing in with hand held and head

Asked by: Doing it myself
Hi Doing it myself, Thank you for your question! With a 3-Setting Diverter Trim, only the top and left port can be used. If you wish to connect three shower components, please purchase the 6-Setting version of the trim kit (T24967). The shower heads and sprays can be connected to any of the 3 ports with a 6-Setting diverter. However, we recommend connecting the shower head to the top port. Please refer to page 7 of the instructions for reference as to which ports will run at each setting. https://media.deltafaucet.com/MandI/84892%20Rev%20B.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Hi, please explain the difference between the T24867 and the T27867.

Asked by: Jackie
Hi, Thank you for contacting us. We apologize for any inconvenience with your Delta Faucet Company product. I am also more than happy to have this opportunity to help you. The difference between the T24867 and T27867, is the T27867 has an additional knob to control just the temperature. Please contact us back if you have any questions or if you need further assistance you may call us at 1-800-345-3358. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Thank you for your cooperation. Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2024-03-28

I have this Diverter with recommended Rough Valve (R22000). How I can use ShowerHead (52283) and Handheld shower (55445) independently with this setup? What other product should I get so that the water only comes from Handheld or ShowerHead, only?

Asked by: Amina
Hi, Amina! Thank you for your question. The T24867-SS Integrated valve trim kit includes a 3 setting diverter cartridge. This will give 2 individual settings and one shared setting. If only individual settings are wanted, we recommend the RP71717 2 setting non-shared diverter cartridge assembly. This will give one setting for the hand shower and one setting for the shower head. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

What does '3 settings'mean? I see it noted all over but never has there been an explanation of what that does.

Asked by: Dave D
Dear Dave D, Thank you for your question. The Delta Angular 14 Series Trim with 3 Setting Diverter T24867-SS can be used with a wall shower head and a hand shower unit or body sprays. You will have one setting for each unit to work independently and the third setting would be a shared setting, so both units run at the same time. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Can you confirm that MODEL#: T24867 can select between two different shower heads when using the R22000-WS? Thank you.

Asked by: Wulf77
Thank you for your question, Wulf77! The R22000-WS integrated diverter valve will allow you to switch between two or more devices depending on the trim purchased, for a customized mix of either shower heads, hand showers or even body jets. This rough in valve is not, however, intended for use with tub spouts. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

What is the difference between the series ARA 14 and ARA 17 series

Asked by: Dave22
Thank you for your question, Dave22! A Delta Monitor 14 series trim will operate by moving the handle counter-clockwise from coldest to hottest while also increasing flow rate. A 17 series unit will also have a volume control lever but with an additional temperature knob allowing you to set the preferred temperature for future use. A MultiChoice trim and valve makes it quick and easy change trims when upgrading. https://www.deltafaucet.com/design-innovation/innovations/shower/multichoice-universal-valve Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

need installation instruction forT24867-SS

Asked by: Clifford
Hi, Clifford! Thank you for your question. Here is a link to the instructions manual for the Delta T24867-SS trim kit: https://media.deltafaucet.com/MandI/84892%20Rev%20D.pdf Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

I only get water from the top shower and nothing on the handshower, what did I do wrong

Asked by: Rolly
Hi, Thank you for contacting us. We apologize for any inconvenience. We are more than happy to help you. We would recommend checking the diverter on the valve trim and mode selector on the hand shower are in the correct positions. Please contact us at 1-800-345-3358 if you have any further concerns. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_40
  • loc_en_US, sid_T24867-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 70ms
  • questions, product
PART LIST

PART LIST

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

1.80 5
Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-Master-RP84985

Ara®

Ara® Metal Lever Handle - Diverter - Integrated Series

List Price: $58.45 - $90.45
Free Ground Shipping All Orders $49+

RP84985

Image-Master-RP84984

Ara®

Ara® Set Screw & Button - Diverter Handle - Integrated Series

List Price: $20.15 - $29.50
Free Ground Shipping All Orders $49+

RP84984

Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.27 102
Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-Master-RP84924

Cassidy®

Cassidy® Trim Sleeve - Integrated Diverter

List Price: $35.90 - $61.05
Free Ground Shipping All Orders $49+

RP84924

Image-Master-RP84938

Cassidy®

Cassidy® Set Screw & Button - T24 Series

List Price: $16.05 - $24.80
Free Ground Shipping All Orders $49+

RP84938

Image-Master-RP90542

Delta®

Delta® Extension Kit - MultiChoice® Integrated Diverter - 24 Series

List Price: $168.85 - $200.55
Free Ground Shipping All Orders $49+

RP90542
