Delta®

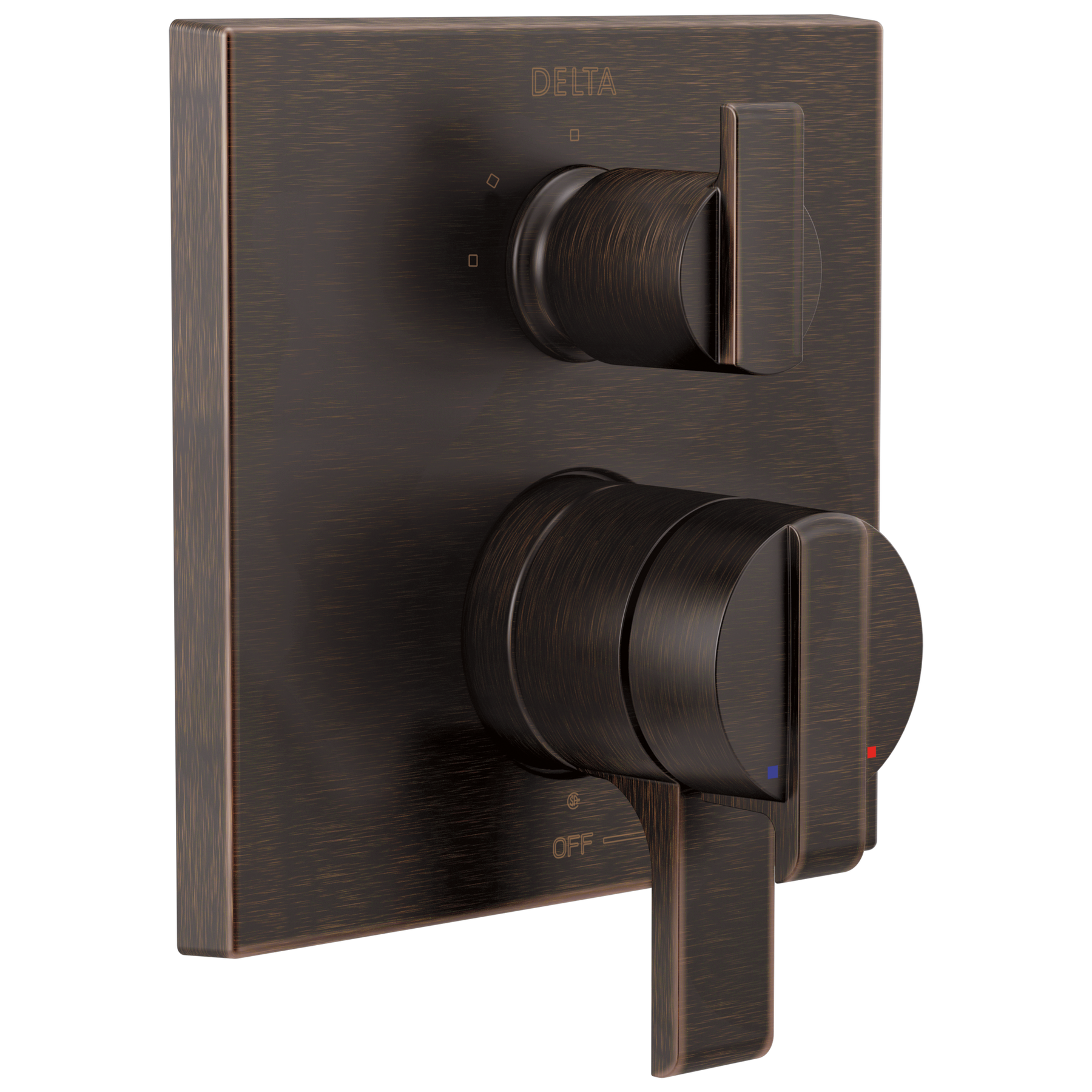

Angular Modern Monitor® 17 Series Valve Trim with 3-Setting Integrated Diverter in Venetian Bronze

Model#: T27867-RB
Add to Favorites
Find local Delta® installers.
Delta®
Angular Modern Monitor® 17 Series Valve Trim with 3-Setting Integrated Diverter in Venetian Bronze
Model#: T27867-RB
List Price: $84200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The angular modern style is boldly contemporary, featuring crisp lines for an upscale feel. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
  • 3-Setting diverter trim
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
7-13/16
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Ara 17 Series Delta Shower handles Delta Ara shower handles are perfect! In chrome, simply wipe dry in one swipe with a towel. Looks terrific, works great. Had to buy a different valve to use more than one shower head, otherwise, MUST BUY!
Date published: 2026-06-24
Rated 5 out of 5 by from remodel Item works well and is a good addition to our bath remodeling
Date published: 2024-05-30
Rated 5 out of 5 by from Excellent Option to Control Temp, Volume, and Diverter Excellent shower control for managing temperature, pressure, and diverting. Only complaint is wish it was avaipable in Lumacoat. The currebt finish tequires constant wupe down to avoid water spots.
Date published: 2024-02-03
Rated 5 out of 5 by from Awesome fixture for a reasonable price. This is a very nice fixture
Date published: 2023-07-30
Rated 4 out of 5 by from Quick and easy to order what I needef Accurate photo, good product description, easy to order, allows for separate billing and delivery addresses.
Date published: 2023-02-26
Rated 5 out of 5 by from Great Shower Handle Great look for the shower. It’s stylish and functional.
Date published: 2022-11-25
Rated 3 out of 5 by from Plastic? I found the face plate to be rough. All handles are metal except the temp knob it is plastic. Why? For the price I expected better.
Date published: 2022-11-05
Rated 5 out of 5 by from Smart and beautiful bathroom shower handle Works great and is so sleek, matches my bathroom fixtures perfectly. I love being able to use my rainfall shower head or my regular shower head of both at the same time!
Date published: 2022-04-02
  • y_2026, m_7, d_24, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_24
  • loc_en_US, sid_T27867-RB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Q&A

Can I use two seperate shower heads as follows with this valve as follows each independant and also together - if so how do I plumb - do I need anythig additional

Asked by: steve
Hi, Steve! Thank you for your question. Two shower heads can be used with the Delta Monitor T27867-RB Integrated Valve and 3-Setting Diverter Trim. To plumb, install the Delta MultiChoice Universal R22000 Integrated Valve and Diverter Body. Plumb the two shower heads, one on each left and top port. Close the right port. Instructions can be found, here: https://www.deltafaucet.com/product-detail/R22000 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Does this kit comes withe the Dual Function Pressure Balance Cartridge (RP46463)

Asked by: Randy
Thank you for your question Randy. The T27867-RB trim kit does come with the RP46463 Dual Function Pressure Balance Cartridge. It does not, however, include the MultiChoice® Universal with Integrated Diverter Rough R22000, as this is sold separately. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28

Where can I order it can not find online

Asked by: Docparsons
Hi, Docparsons! Thank you for your question. The Delta T27867-PN Angular Modern Monitor® 17 Series Valve Trim with 3-Setting Integrated Diverter can be purchased at any dealer that sells Delta Faucet products. Some good places to check can be found on our website under Where To Buy. http://www.deltafaucet.com/where-to-buy/index.html Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

does this come in champagne bronze

Asked by: bren
Hi, Bren! Thank you for your question. The Delta T27867-CZ Ingegrated Valve and Diverter Trim Kit in Champagne Bronze will be available for order after October 31, 2019. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

 1.  Recommended shower head arm and flange for T27867-SS 2.   Is the shower wand wall bracket holder included with the 55799-SS

Asked by: Homer 123
Hi, Larry! Thank you for your question. The Delta 17 Series T27867-SS Valve Trim with 3-Setting Integrated Diverter can use any of our Delta shower head arm and flange. We leave this option up the user to decide on how to customize the shower unit. The 55799-SS hand shower does include the hand shower wall mount. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

When and where can I purchase the polished nickel model

Asked by: Docparsons
Hi, Docparsons! Thank you for your question. The Delta T27867-PN Angular Modern Monitor® 17 Series Valve Trim with 3-Setting Integrated Diverter is available now for purchase. You can usually find Delta faucet parts at any dealer that sells Delta faucets. Some good places to check can be found on our website under Where To Buy. http://www.deltafaucet.com/where-to-buy/index.html Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

how do i adjust the hot temperature higher?  The max hot it gets is tool cool

Asked by: andy
Hello Andy, Thank you for your question! The Rotational Limit Stop may need to be adjusted to allow for hotter water. Please refer to page 6 of the Installation Instructions for help adjusting the stop. https://media.deltafaucet.com/MandI/92345%20Rev%20E.pdf Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Is there a escutcheon to go with this that is at least 9 inches square?

I have a hole in my tile that is 8w x 9h that I need to cover, I need an escutcheon that is larger than the one offered, do you have any product that is this large, even if it's a different style?
Asked by: AK
Dear AK, Thank you for your question! The Delta Angular Modern 17 Series Trim with 3-Setting Integrated Diverter T27867-SS comes with an escutcheon plate that is 6 13/16" (173 mm) Square. The Traditional 17 Series Trim with 3-Setting Integrated Diverter T27T897-SS comes with an escutcheon plate that is 7" (178 mm) Diameter and is the largest plate we make with the integrated diverter. https://media.deltafaucet.com/SpecSheet/DSP-B-T27867%20Rev%20C.pdf https://media.deltafaucet.com/SpecSheet/DSP-B-T27T897%20Rev%20C.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2017-07-01
  • y_2026, m_7, d_24, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_60
  • loc_en_US, sid_T27867-RB, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 7ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP84985

Ara®

Ara® Metal Lever Handle - Diverter - Integrated Series

List Price: $58.45 - $90.45
Free Ground Shipping All Orders $49+

RP84985

Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

2.33 6
Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

4.00 10
Image-Master-RP84986

Ara®

Ara® Temperature Knob & Cover - T17 Integrated Diverter

List Price: $54.65 - $84.50
Free Ground Shipping All Orders $49+

RP84986

Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-Master-RP84936

Cassidy®

Cassidy® Trim Sleeve - T27 Series

List Price: $29.85 - $73.20
Free Ground Shipping All Orders $49+

RP84936

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-Master-RP90543

Delta®

Delta® Extension Kit - MultiChoice® Integrated Diverter - 27 Series

List Price: $244.50 - $290.65
Free Ground Shipping All Orders $49+

RP90543

Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
