Delta®

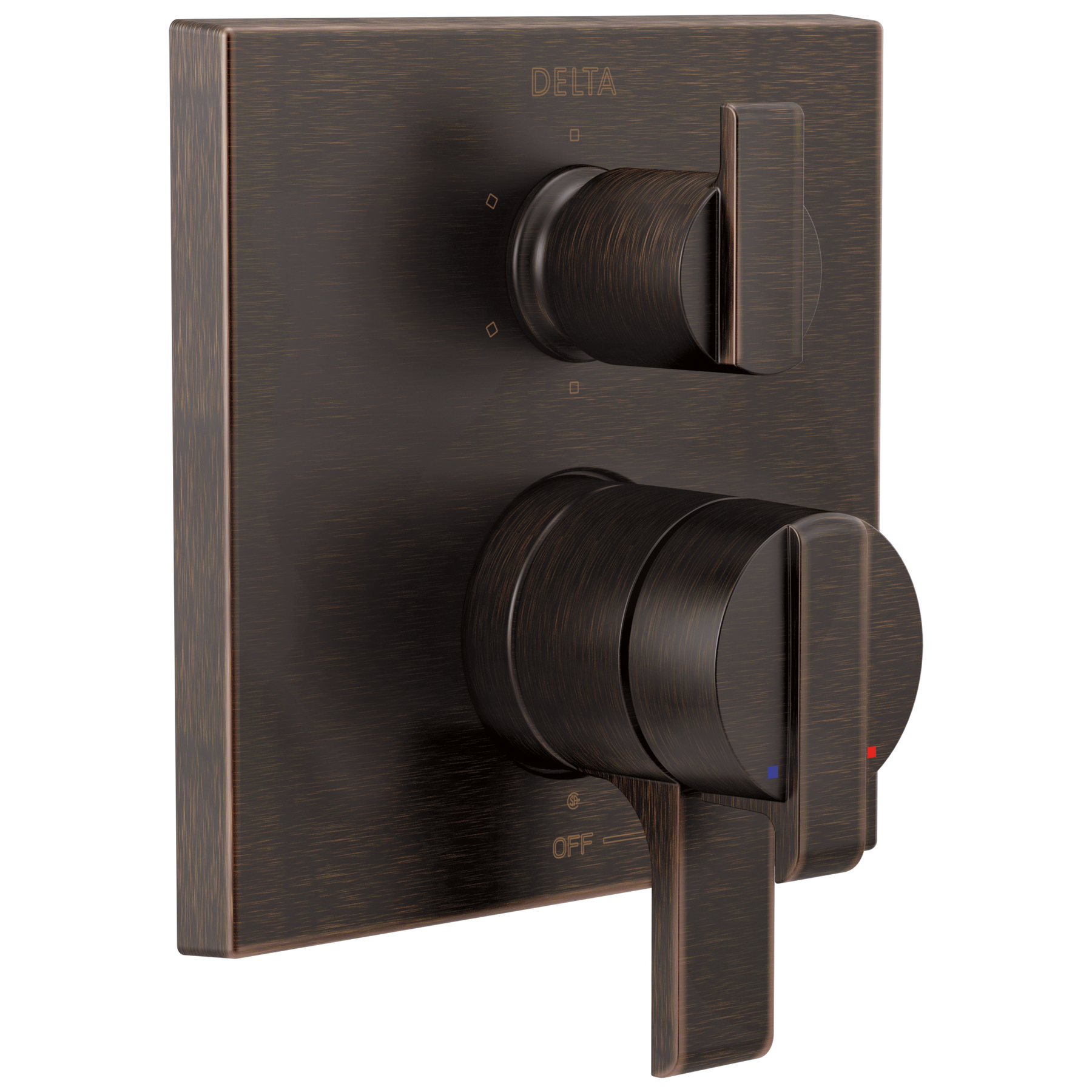

Angular Modern Monitor® 17 Series Valve Trim with 6-Setting Integrated Diverter
Model#: T27967-RB
Finish: Venetian Bronze
List Price*: $526.65
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The angular modern style is boldly contemporary, featuring crisp lines for an upscale feel. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates.
  • 6-Setting diverter trim
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Technology
California Prop 65 WARNING
SUPPORT
Installation Information
Over All Height :
7-13/16
Connection Type :
Universal fittings
PART LIST

PART LIST

REVIEWS
Rated 5 out of 5 by from Delta shower faucet with diverter Good quality, complete instructions, nice finish
Date published: 2020-10-23
Rated 5 out of 5 by from Multiple uses. We love it. Great sleek design. Works with multiple shower heads at the same time or individually. Owners love it and highly recommend it to others.
Date published: 2020-08-26
Rated 5 out of 5 by from Delta Ara Shower Mixing Valve Excellent value for a high-end design and functionality.
Date published: 2020-08-14
Rated 3 out of 5 by from Plastic thermostatic cover trim on otherwise hefty diverter trim Generally, it would have been an excellent product, but the outermost control arm is actually silver plastic. Also there is one round piece of plastic under the main volume control. Last minor comment, these Delta boxes are kind of flimsy and the contents are just all thrown in - not a lot of cardboard separating pieces and boxes are easily smashed.
Date published: 2020-06-24
Rated 5 out of 5 by from Gr8 Feature! Solid metal and I like that I can control all the items in my shower system (body jets, handheld and raincan) I can turn them on individually, both or all at the same time.
Date published: 2019-10-15
Rated 5 out of 5 by from Exactly what we needed We were originally going to purchase this item from a plumbing distributor and were pleased to see the item being offered for significantly less on this site. This is exactly what we needed to match the rest of our bathroom fixtures and it looks as well as works great!
Date published: 2019-02-22
Rated 5 out of 5 by from Very slick device, highly recommend it!! I had a bathroom renovated and wanted to have a dual device for tub and a handheld shower head. The problem is that most of these devices are not that nice or modern. Most of them were round and I wanted a more modern look. Finally I found this device. Delta T27967. I am glad I did. It works great, looks amazing and has a very nice look to it. I bought the one with the chrome finish. I definitely would buy this again and recommend it to others. Easy to clean as well.
Date published: 2018-12-22
Rated 5 out of 5 by from Smooth, elegant, attractive shower control The 6 way controls allow 3 separate heads to be used one at a time or a combination of any 2 at once. The temperature control is basically “set it and forget it” with only a minor adjustment needed for a hotter/cooler shower temperature preference. We rarely adjust it. The controls have a very smooth rotational feel. This wasn’t inexpensive but it looks great and simply works as expected.
Date published: 2018-11-23
  • y_2021, m_3, d_6, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_9
  • loc_en_US, sid_T27967-RB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Can a T27967 be converted to a thermostatic just by installing a tempassure cartridge?

Asked by: Manny
Hello Manny, Thank you for your question. Although a thermostatic valve cartridge can be installed in the valve of the Delta Angular Modern 17 Series Valve Trim with 6-Setting Integrated Diverter T27967-RB model, the sleeve and handle would also need to be upgraded for proper function. Please feel free to call, email, or message us on social if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2019-12-04

I have a rain shower, regular shower head, and a free handheld all connected to the multchoice R22000 valve. Do I need 3 setting integrated diverter or 6 setting diverter Delta Faucet Ara 17 Series Dual-Function Shower Handle Valve Trim Kit?

Asked by: Carrie
Hi, Carrie! Thank you for your question. We recommend purchasing a Delta Integrated Valve and Six Setting Diverter Trim Kit such as the T27967 to use three shower components. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-10-03

is there an extension kit for the trim for this valve

Asked by: shane
Hello Shane, Thank you for your inquiry! The thick wall installation kit RP90543 can be ordered to allow for up to 2 1/8" finished wall thickness for the Delta Angular Modern 17 Series Valve Trim with 6-Setting Integrated Diverter T27967 model installation. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP90543#specsTab Best regards, Tanya
Answered by: Delta Faucet
Date published: 2019-10-28

With The 6 setting integrated diverter, I assume I can also use (connect) the handheld shower sprayer, a wall shower sprayer, and a ceiling rainshower?

Asked by: Jerry
Thank you for your question, Jerry! The T27967-SS 6-setting diverter trim will allow you to switch between three individual settings as well as three shared positions. Best regards, Edward
Answered by: Delta Faucet
Date published: 2019-02-11

Hello the top 6 setting knob can that be turned clockwise and also counterclockwise. In the installation diagram it shows 1st position straight up and then position 2 is the immediate counterclockwise to the left .So can I go from position 1 to position6?

Asked by: GTTT
Hi, GTTT! Thank you for your question. The diverter handle on the T27967 can turn counterclockwise so that you can go from 1st setting to 6th setting. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-03-14

What is the difference in a 6 setting diverter and a 3 setting diverter? What are the settings?

Asked by: Robert J
Hello Robert J, Thank you for your inquiry! A 3/6 Setting diverter unit is used when you have one or two extra showering features are being added to your tub/shower or shower faucet. Showering features such as body sprays, hand shower, shower heads, etc. The 3 function diverter unit would have 2 individual positions and 1 shared position. The 6 function diverter unit would have 3 individual positions and 3 shared positions. Please see page 8 of the below document for diverter positions. https://media.deltafaucet.com/MandI/92345%20Rev%20B.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2018-03-10

Are there 2 different temp knobs? On the temp knob I bought the hot indicator is on the right and the cold is on the left. All the plumbing in my house hot is on the left and cold is on the right. So my question is are there 2 different temp indicators?

Asked by: Chris99
Hi, Chris99! Thank you for your question. The Delta Monitor T27967-SS Integrated Valve and Diverter Trim Kit has one temperature knob to adjust temperature (right for cold, left for hot), one volume control handle (this handle also turns on the water flow), and the top handle is a diveter handle to divert water from one shower component to another. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-12-10

I am looking to buy the 6 Setting T27967-SS trim + R22000-WS valve. The retailer's page says: "T27967-SS Trim kit only, must order MultiChoice® Universal Valve (R10000-LBX or R10000-UNBX) separately to complete the unit." Which Valve do I need to buy?

Asked by: Mario
Hi, Flavia! Thank you for your question. The Delta Monitor T27967-SS 17 Series Valve Trim with 6-Setting Integrated Diverter will work with our Delta MultiChoice® Universal R22000 Integrated Shower Diverter Rough. Here is a link to this unit: https://www.deltafaucet.com/bathroom/product/R22000 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-10-07
