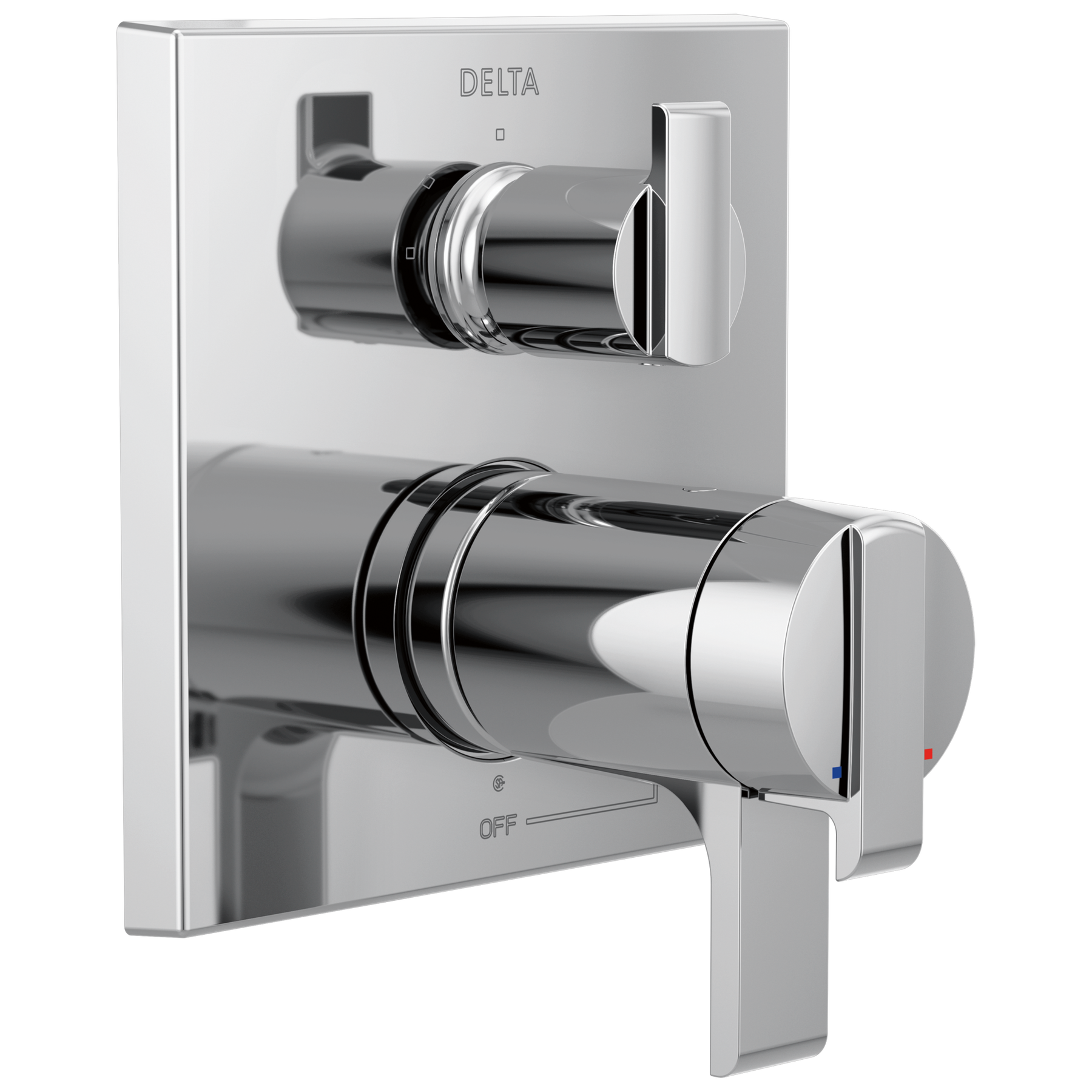

Angular Modern TempAssure® 17T Series Valve Trim with 3-Setting Integrated Diverter in Chrome

Model#: T27T867
Add to Favorites
Find local Delta® installers.
Delta®
Angular Modern TempAssure® 17T Series Valve Trim with 3-Setting Integrated Diverter in Chrome
Model#: T27T867
List Price: $87000
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Delta® MultiChoice® Integrated Shower Diverter consolidates custom shower design with its consumer-preferred streamlined style eliminating the need for an additional diverter valve. The angular modern style is boldly contemporary, featuring crisp lines for an upscale feel. With three popular style choices to coordinate with any bathroom décor, it provides you the flexibility to select the type of custom shower functionality you prefer. With the MultiChoice® Universal system, you have the freedom to upgrade style and functionality later. And, because there’s no need to alter plumbing behind the wall, you save time, effort and money on future renovation updates. Delta's dual-function thermostatic valve cartridge keeps water temperature consistent (within 3.6°) by actually measuring and monitoring the temperature of the water. Temperature can be set in order to remain consistent shower after shower.
  • 3-Setting diverter trim
  • 2-handle trim with separate temperature dial
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • TempAssure Thermostatic cartridge measures and monitors the temperature of the water and automatically adjusts to maintain a more precise water temperature
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Meets standards set by Americans with Disabilities Act (ADA)
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Integrated Diverter
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Connection Type :
Universal fittings
Overall Height (in.) :
7-15/16
Valve Type:
Dual-function thermostatic cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Nice integrated trim [This review was collected as part of a promotion.] This trim with integrated volume control worked great for our master bathroom. I like that the diverter is not a separate piece and it all looks nice on a single rectangle panel. We also liked the brushed nickel finish that goes well with the rest of our bathroom. The temperature control is effective and didn't notice any changes in temperature while using the shower. Overall, I would recommend this as a good modern option.
Date published: 2025-10-12
Rated 5 out of 5 by from shower [This review was collected as part of a promotion.] it will do everything we need it to do
Date published: 2025-09-30
Rated 5 out of 5 by from Great quality by Delta [This review was collected as part of a promotion.] I’m a big Delta fan. Service and quality never fails. System works fantastic.
Date published: 2025-04-11
Rated 5 out of 5 by from Highly recommended Great upgrade faucet for remodeled shower
Date published: 2024-11-17
Rated 5 out of 5 by from very satisfied Prompt delivery, good description on website
Date published: 2023-10-28
Rated 5 out of 5 by from Luxury at a modest price This valve it’s not only elegant and functional, it’s also well priced for a look that will have everyone wondering how you did it. I highly recommend this product.
Date published: 2022-06-19
Rated 5 out of 5 by from Shower Trim Great looking trim with a high quality and affordable price.
Date published: 2022-01-31
Rated 5 out of 5 by from Delta shower Very well made. This our second time purchasing this item for a second shower. Temperature of water never changes. Always perfect.
Date published: 2021-10-11
  • y_2026, m_7, d_5, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_9
  • loc_en_US, sid_T27T867, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 130ms
  • reviews, product
Q&A

I bought this trim kit and Integrated Shower Diverter R22000. Is there anything else that is needed for installation? My plumber is saying I'm missing 2 cartridges for proper 3 setting operation. That seems insane.

Asked by: Ross
Hi, Ross! Thank you for your question and I am sorry to hear that your Delta trim kit did not come with the cartridges. The T27T867 Integrated trim kit should come with both the valve cartridge assembly, RP47201, and the diverter cartridge assembly, RP51918. If the valve cartridge and diverter cartridge did not come with the trim kit, please contact the place you've purchased this at for a return/exchange. I do apologize for any inconvenience this may cause. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Valve installation instructions were not very good. Diverted diagram shows sprayer installation on right side when in fact the diverted directs it to the left side. Is there anyway to reverse the diverted direction?  I am assuming no.

Asked by: Bob Emig
Hello Bob Emig, Thank you for your question. Installing a hand shower on the right side of the Delta Angular Modern Integrated 3-Setting 17T Series T27T867 you would just need to install the 6-Setting diverter cartridge assembly RP51919, to still have your three settings. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP51919 Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

How do you take the shower temp select cap off and tighten up the assembly to make the shower temp select cap and water select lever asmbly less wobbly.  We have the Asa Model. Thanx. Erik

Asked by: Erik
Hi, Erik! Thank you for your question. The temperature cover for the Delta T27T867 trim kit by pulling the cover straight off. This will expose the temperature knob. Tighten the knob with a Philip's screw driver. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

How do you adjust the temp control? Just had installed and plumber did not leave info...doesn’t get hot enough how is currently set and can’t seem to adjust to hotter. Thx

Asked by: MaryEllen
Hi, MaryEllen. Thank you for your question! You can increase the maximum temperature by adjusting the Rotational Limit Stop. Please refer to page 5 of the Installation Instructions. https://media.deltafaucet.com/MandI/93488%20Rev%20B.pdf Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

If this does not allow both to operate simultaneously. Does Delta sell one that does ?

Asked by: Matthew
Thank you for your question, Matthew! The T27T867 Integrated Diverter trim allows the use of two separate products to work independently as well as a shared setting. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28

Are the trim parts all metal or a mix of plastic and metal?

Asked by: Louise
Hi, Louise! Thank you for your question. The shower unit, T27T867, is made up of metal and non-metal parts. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-04-17

I am looking for an extension kit for this valve T27T867 would you happen to know the part number please

Asked by: Last Minute
Hi, Last Minute! Thank you for your question. The extension kit for the Delta TempAssure T27T867 Integrated Valve And Diverter Trim Kit is RP90544. Here is a link for this kit: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP90544 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

If I am installing a showerhead on wall and rain fall showerhead from my ceiling. Does this 3 way diverter allow each shower head to operate individually with the third setting for them to operate simultaneously at the same time ?

Asked by: Matthew
Thank you for your question, Matthew! The T27T867 Integrated Diverter trim allows the use of two separate products to work independently as well as a shared setting. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_7, d_5, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_41
  • loc_en_US, sid_T27T867, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 47ms
  • questions, product
PART LIST

PART LIST

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

2.33 6
Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-RP47201 Secondary Image-RP47201

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17T Series

List Price: $600.40
Online Price: $480.32
Free Ground Shipping All Orders $49+

RP47201

2.00 35
Image-Master-RP84980

Ara®

Ara® Temperature Knob & Cover - T17T Integrated Diverter

List Price: $54.65 - $101.55
Free Ground Shipping All Orders $49+

RP84980

Image-Master-RP84985

Ara®

Ara® Metal Lever Handle - Diverter - Integrated Series

List Price: $58.45 - $90.45
Free Ground Shipping All Orders $49+

RP84985

Image-Master-RP84984

Ara®

Ara® Set Screw & Button - Diverter Handle - Integrated Series

List Price: $19.25 - $29.50
Free Ground Shipping All Orders $49+

RP84984

Image-Master-RP84932

Delta®

Delta® Trim Nut - Diverter - Integrated Series

List Price: $42.50 - $73.05
Free Ground Shipping All Orders $49+

RP84932

Image-RP84928

Cassidy®

Cassidy® Escutcheon Assembly - Integrated Diverter

List Price: $49.65
Online Price: $39.72
Free Ground Shipping All Orders $49+

RP84928

Image-Master-RP84924

Cassidy®

Cassidy® Trim Sleeve - Integrated Diverter

List Price: $35.90 - $61.05
Free Ground Shipping All Orders $49+

RP84924

Image-Master-RP90544

Delta®

Delta® Extension Kit 17T Integrated Diverter

List Price: $297.50 - $360.80
Free Ground Shipping All Orders $49+

RP90544

Image-Master-RP84929

Cassidy®

Cassidy® Set Screw & Button - Volume Control Handle - T27T Series

List Price: $20.15 - $27.85
Free Ground Shipping All Orders $49+

RP84929
