Ara®
View Full Ara® Bathroom Collection

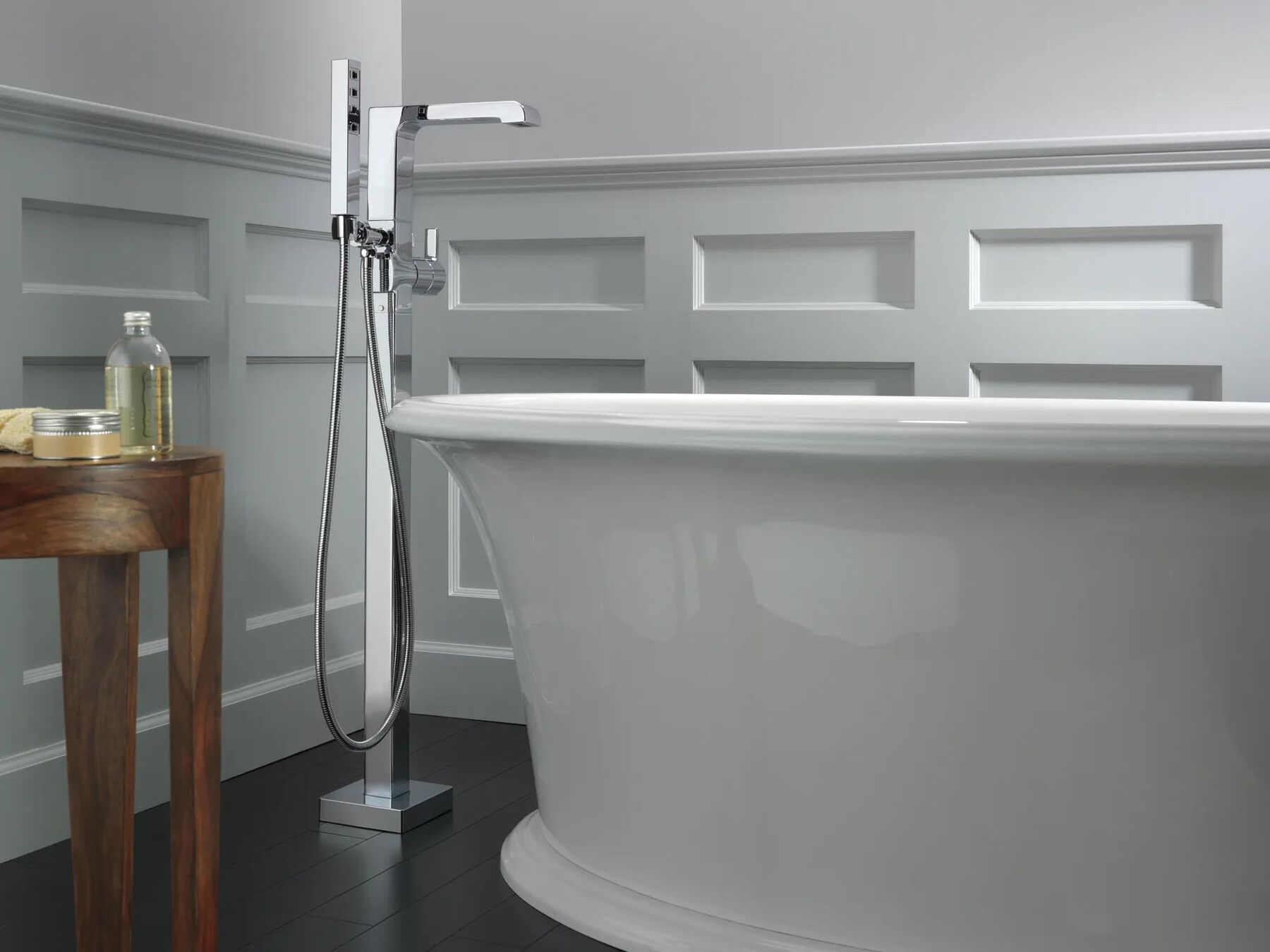

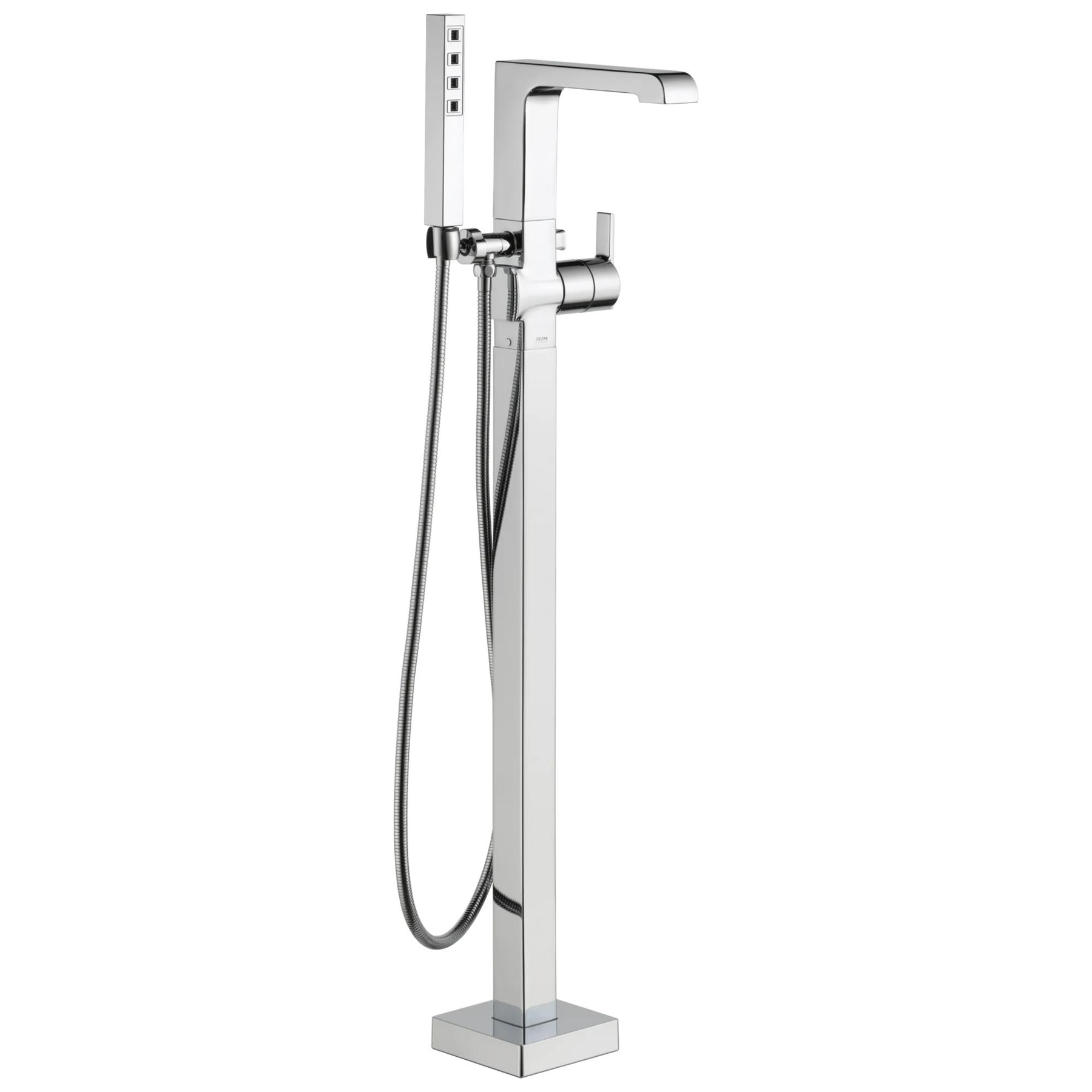

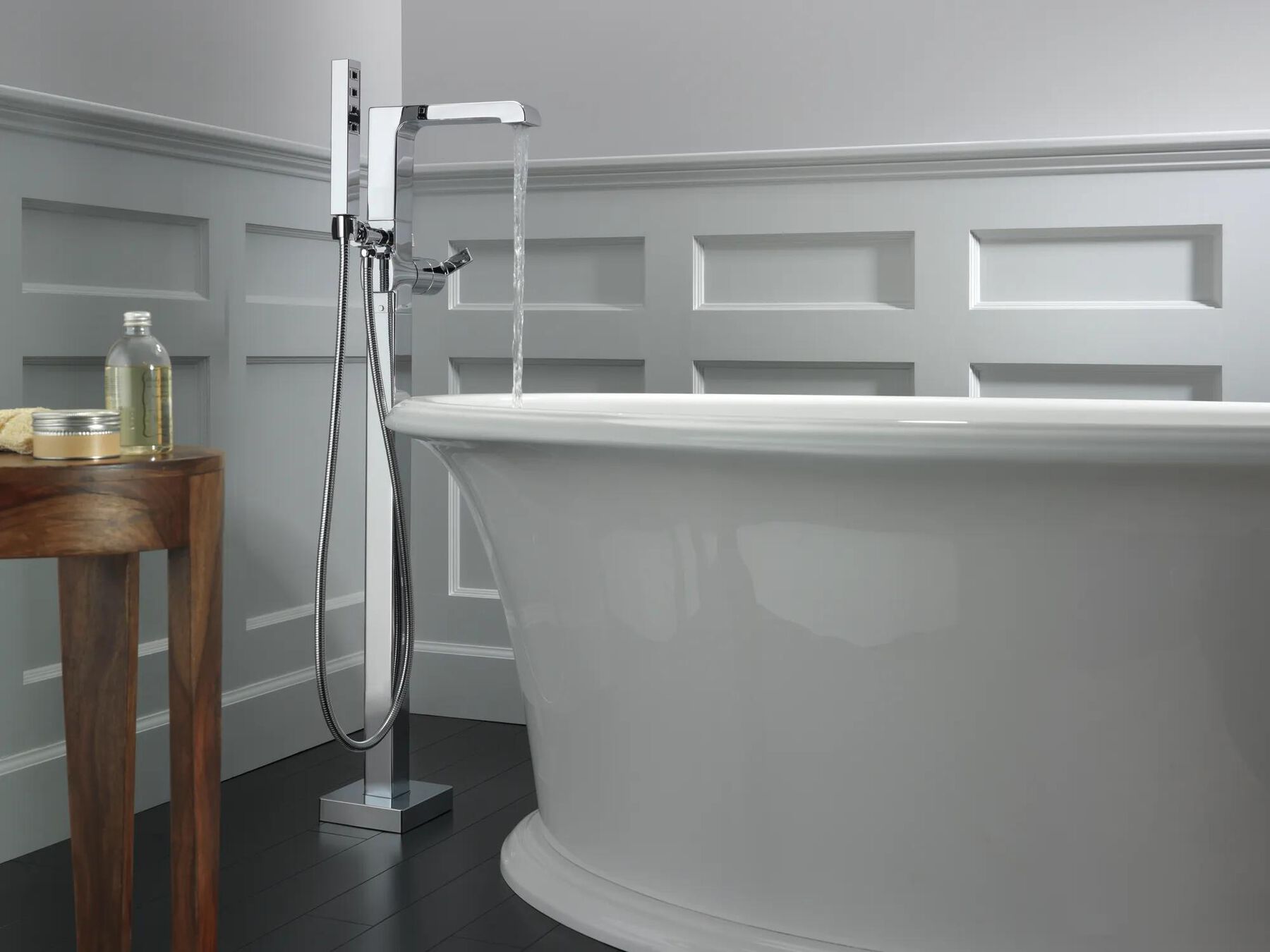

Single Handle Floor Mount Tub Filler Trim with Hand Shower in Chrome

Model#: T4767-FL
Add to Favorites
Find local Delta® installers.
Ara®
View Full Ara® Bathroom Collection
Single Handle Floor Mount Tub Filler Trim with Hand Shower in Chrome
Model#: T4767-FL
List Price: $2,75000
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Complete your bath with a beautifully designed Delta roman tub faucet, meticulously crafted to turn heads and enhance your experience. The included hand shower makes this a versatile addition to your bath, perfect for rinsing off, washing loved ones and pets or keeping your tub clean. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • Coordinating hand shower included
  • Spray settings include: Adjustable H2OKinetic spray, H2OKinetic spray
  • ADA Compliant
  • Trim kit only, must purchase rough-in R4700-FL separately to complete the unit
  • Hand shower includes double check valves for backflow protection
  • Single hole installation
  • Rigid spout
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Single hole installation
Single hole installation
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa

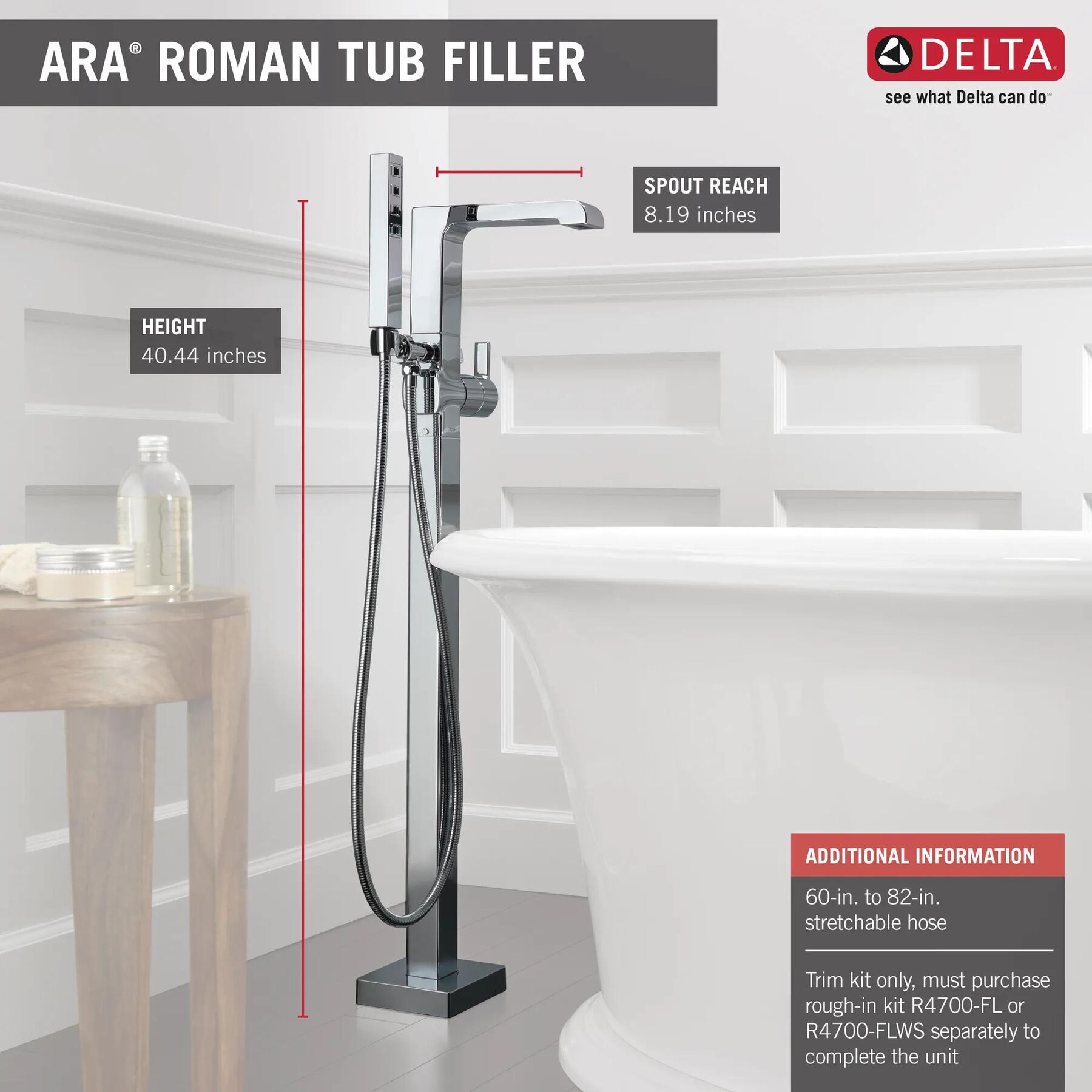

Overall Height (in.) :
40-7/8
Valve Type:
Single Function Non Pressure Balance Cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Defective Mine spayed water everywhere right out of the gate so my plumber immediately removed and will not install again as it will likely damage my sheet rock. Delta will not replace. Very disappointed after spending so much money. I will never buy delta again, I thought it was quality, I guess they spend their money on marketing and not on reliability.
Date published: 2026-01-26
Rated 1 out of 5 by from Sprays water everywhere. Wish I would’ve known that this thing is no good before spending $3K on it. Sprays water all over the floor. Spent a lot of money on a remodel and the tub filler is garbage. I give it zero stars. It was professionally installed by a plumber who has tried everything to solve the issue but it makes a mess on the wall and the floor
Date published: 2025-09-02
Rated 2 out of 5 by from Beautiful appearance, terrible functionality. This tub filler is beautiful. We had a stand alone tub installed in the master bath of our brand new home and it was gorgeous. Unfortunately, it splashes water all over the floor. There are no adjustments to try to fix the issue. Wish I had been able to check the reviews before the builder installed the tub filler
Date published: 2025-05-05
Rated 2 out of 5 by from Looks great but leaves a mess I was very excited to get this installed in my remodeled master bath. But when you turn it on water shoots out and splashes everyplace. You have to turn it at the way to get the hot water. I have to clean up all the water before I can enjoy a bath because water is 3/4 of the way up the walls.
Date published: 2025-01-15
Rated 2 out of 5 by from Water everywhere The way this filler is positioned means there is a lot of splashing. It can't be closer to the bath to fix this issue. Every time we use the filler we have to put a towel over the edge of the bath to prevent water from going everywhere. The shower handle setting is not changeable and the water comes out way too hard. If you use it while you are in the bath again water will spray everywhere.
Date published: 2024-07-02
Rated 1 out of 5 by from Do not recommend We are so disappointed with this product. I got my dream tub and in my brand new MBR. But the Delta tub filler leaks every time I use the tub. I end up just keeping the nozzle hanging over into the tub all the time. Absolutely aggravating and looks ugly. For the price I hate to have to replace the whole dang thing. Had the plumber out twice and says it is a defect.
Date published: 2023-08-16
Rated 2 out of 5 by from Beautiful. With Problems. Our contractor and their plumber installed per the instructions. However, the tub filler sprays all over the edge of the tub and onto the floor. We looked at the parts diagram and it appears that removing the "stream straightener" (aka aerator) part RP51009 might help? Can we permanently remove this part?
Date published: 2023-05-17
Rated 1 out of 5 by from Horrible product I have had nothing but trouble with this tub filler. The wand hose leaks, we have had to open our ceiling below bathroom where tub filler is located. Our contractor has tried to fix this 3 times, changing out different parts delta sent to us. Delta finally sent a hole new tub filler. This hose also leaks. My ceiling will need to be fixed for the 5 the time now. Have to take a bath with the hose in the tub so it doesn’t leak, and now the faucet has a constant drip that we can’t fix. Have to call delta again. I just want my money back to buy something else..
Date published: 2023-05-06
  • y_2026, m_6, d_22, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_18
  • loc_en_US, sid_T4767-FL, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 10ms
  • reviews, product
Q&A

On the R -4700 -FL rough in , when tiling the Floor , do I just need to leave the 4 screws accessible to install the final trim ?

Asked by: Ralph
Hi Ralph, Thank you for your question. The mounting nuts and washers come with the Delta Ara Floor Mount Tub Filler T4767-FL trim kit. The nut and washer from RP74819 are made to mount onto the RP74814 threaded stud that measures 1/4-20 x 3.45". Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

I see it says 1.75 GPM for handheld sprayer. What is the GPM for the tub spout filler?

Asked by: Shawn
Hello, Thank you for your question! The spout will provide a flow rate between 6 and 9 gpm. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-06-09

Is a longer spout available? This one measures 8.25" I need one that measures 10"

Asked by: Susan
Hello Susan, Thank you for your inquiry! The Delta Ara Floor Mount Roman Tub Filler T4767-FL does not have any 10" long or longer optional/extra spouts designed for it. The Delta Zura T4774-FL has the longest spout reach for any of the Floor Mount Roman Tub Fillers we make, it is 9 3/16" (233 mm). https://media.deltafaucet.com/SpecSheet/DSP-B-T4774-FL%20Rev%20C.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Is there an optional plate or addition to extend the size of the base to have a larger footprint?  It seems like the base is a bit small to support such a tall structure

Asked by: Guy58
Thank you for your question, Guy58! We do not offer a larger base or extension for this type of faucet. The base is not solely responsible for supporting the entire structure as this is actually mounted directly to the Floor Mount Tub Filler Rough. https://www.deltafaucet.com/bathroom/product/R4700-FL Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Is the height adjustable can I cut it down 42 inches is really above my tub?

Asked by: Morgan
Hi, Morgan! Thank you for your question. Unfortunately, the Ara Floor Mount Tub Filler Trim (T4767-FL) is not adjustable. This cannot be cut down. Modifying the faucet may void the warranty for this unit. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Does this have a pressure balancing valve (to prevent scalds if if another faucet is turned on while this is being used)?

Asked by: Melvin
Hi, Melvin! Thank you for your question. The Delta T4767-FL Free Standing Tub Filler does include a single function pressure balance valve cartridge assembly to prevent scalding. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

How do I adjust the water temperature?  Water comes out like warm, but not hot.y hot water source is a gas water heater, not tankless

Asked by: Danimal0531
Thank you for your question, Danimal0531! The rotational limit stop on the cartridge for this model can be adjusted to allow hotter water. The information on changing this setting can be found on page 7 of the Maintenance and Installation manual. https://media.deltafaucet.com/MandI/X00081898_B.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

ARA® Floor Mount Tub Filler Trim MODEL#: T4767-FL View Full Ara® Bathroom Collection..........Is there an option WITHOUT the sprayer attachment?

Asked by: Anthony
Thank you for your question, Anthony. Unfortunately, we do not currently offer a floor-mount tub filler without a hand shower. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_21, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_45
  • loc_en_US, sid_T4767-FL, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 26ms
  • questions, product
PART LIST

PART LIST

Image-RP22734

Delta®

Delta® Bonnet

List Price: $17.70
Online Price: $14.16
Free Ground Shipping All Orders $49+

RP22734

4.45 11
Image-Master-RP51009

Delta®

Delta® Spout Tip Assembly - T2787

List Price: $26.55
Online Price: $21.24
Free Ground Shipping All Orders $49+

RP51009

Image-Master-RP78718

Tesla®

Tesla® Button Cover - Handle

List Price: $42.90 - $62.15
Free Ground Shipping All Orders $49+

RP78718

Image-RP18362

Delta®

Delta® O-Ring - Roman Tub & Tub Filler

List Price: $9.30
Online Price: $7.44
Free Ground Shipping All Orders $49+

RP18362

Image-RP74819

Trinsic®

Trinsic® Nuts & Washers - Mounting

List Price: $14.85
Online Price: $11.88
Free Ground Shipping All Orders $49+

RP74819

Image-RP26865

Delta®

Delta® Set Screw

List Price: $12.40
Online Price: $9.92
Free Ground Shipping All Orders $49+

RP26865

4.67 3
Image-Master-RP74808

Delta®

Delta® Hand Shower - Holder Assembly

List Price: $124.80 - $249.90
Free Ground Shipping All Orders $49+

RP74808

Image-Master-RP74818

Delta®

Delta® Trim Sleeve - Floor Mount Tub Filler

List Price: $22.20 - $43.50
Free Ground Shipping All Orders $49+

RP74818

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP84078

Ara®

Ara® Spout Assembly - Channel - Tub Filler

List Price: $1,057.05 - $1,139.85
Free Ground Shipping All Orders $49+

RP84078

Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP23093

Delta®

Delta® Set Screw

List Price: $5.85
Online Price: $4.68
Free Ground Shipping All Orders $49+

RP23093

Image-Master-RP79166

Ara®

Ara® Metal Lever Handle Kit - 14 Series

List Price: $79.90 - $112.35
Free Ground Shipping All Orders $49+

RP79166

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.24 105
Image-RP79749

Compel®

Compel® Button Cover Set - Gray

List Price: $17.10
Online Price: $13.68
Free Ground Shipping All Orders $49+

RP79749

Image-RP74810

Trinsic®

Trinsic® Diverter Assembly - Floor Mount Tub Filler

List Price: $44.15
Online Price: $35.32
Free Ground Shipping All Orders $49+

RP74810

5.00 1
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
