Geist®
View Full Geist® Bathroom Collection

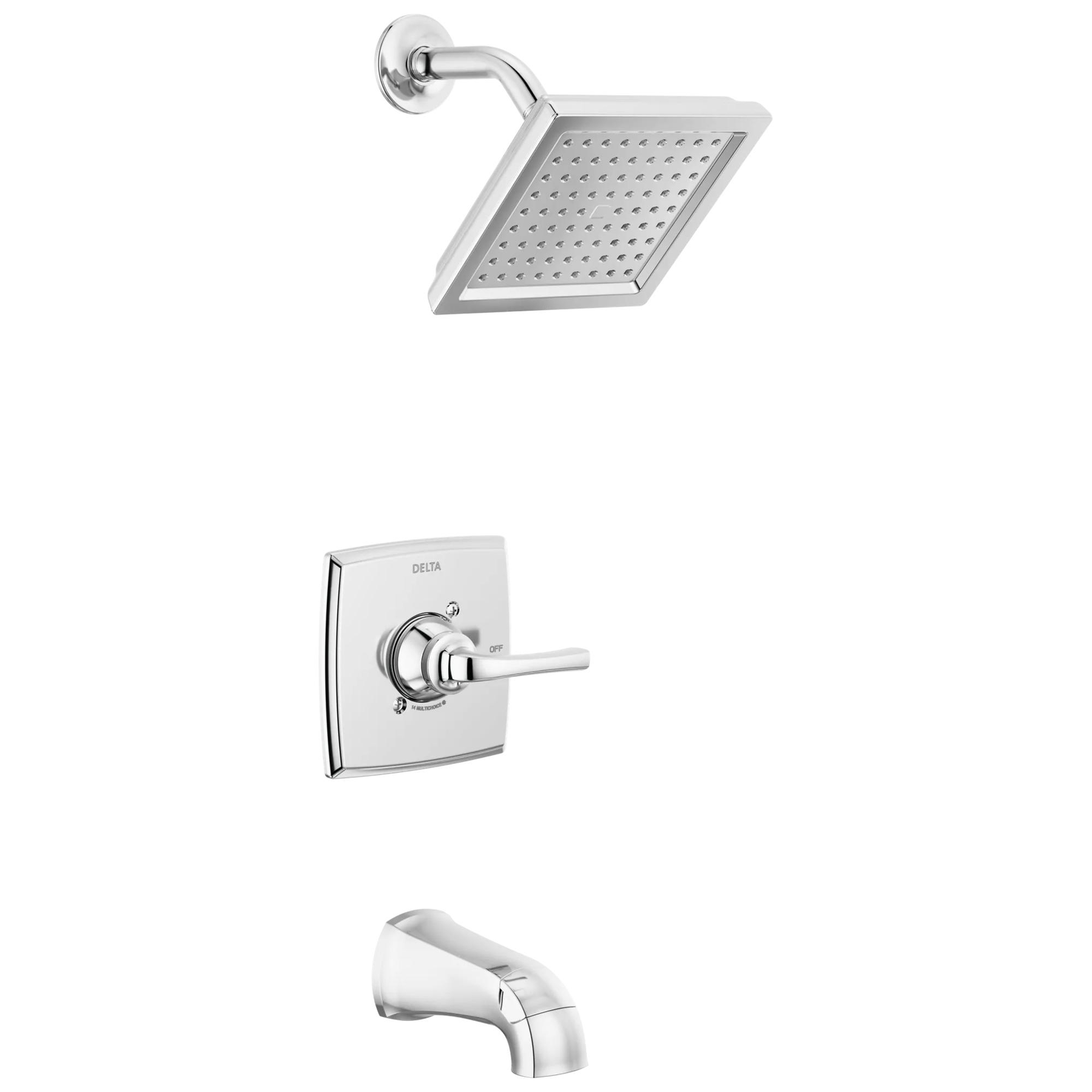

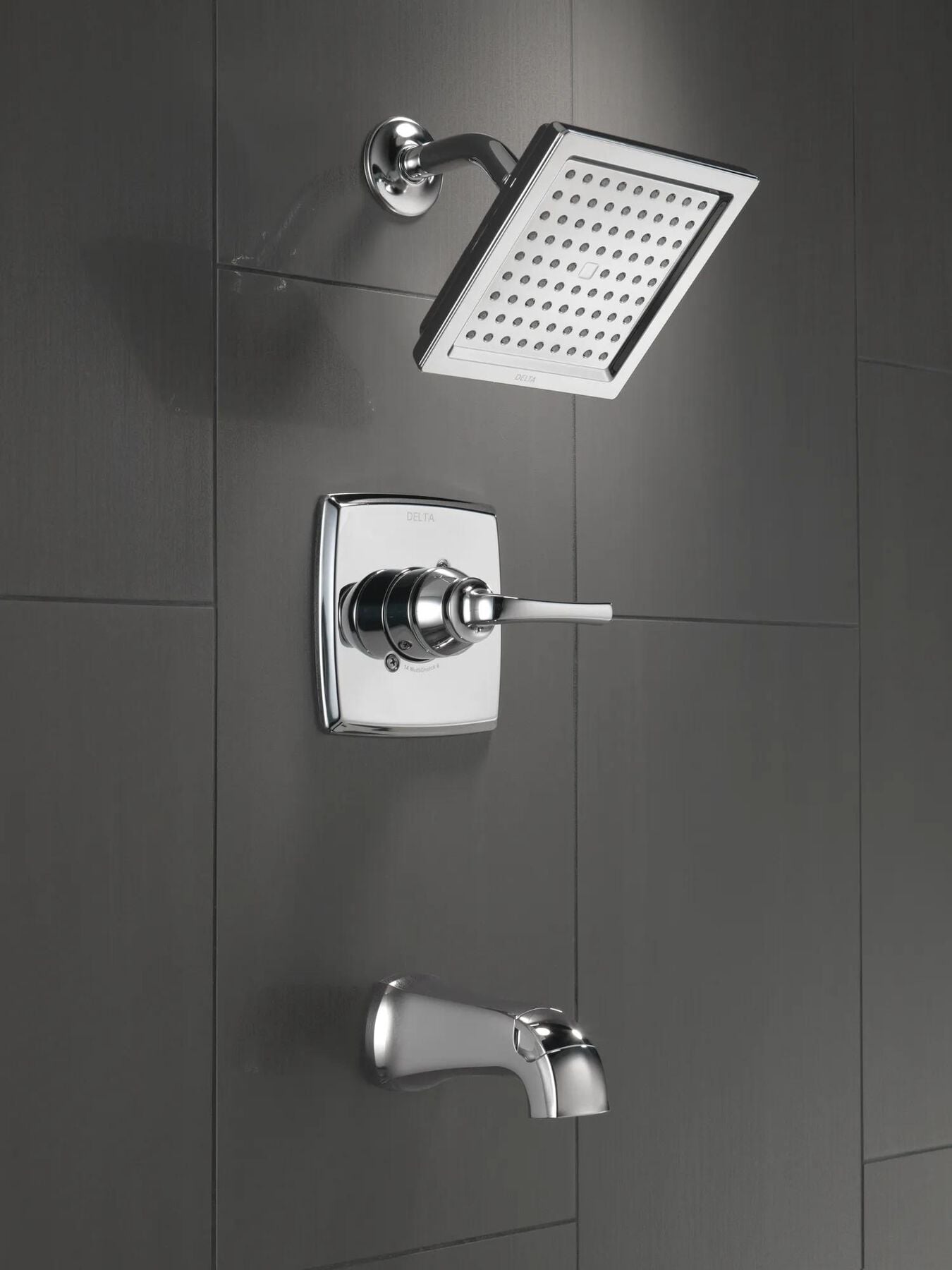

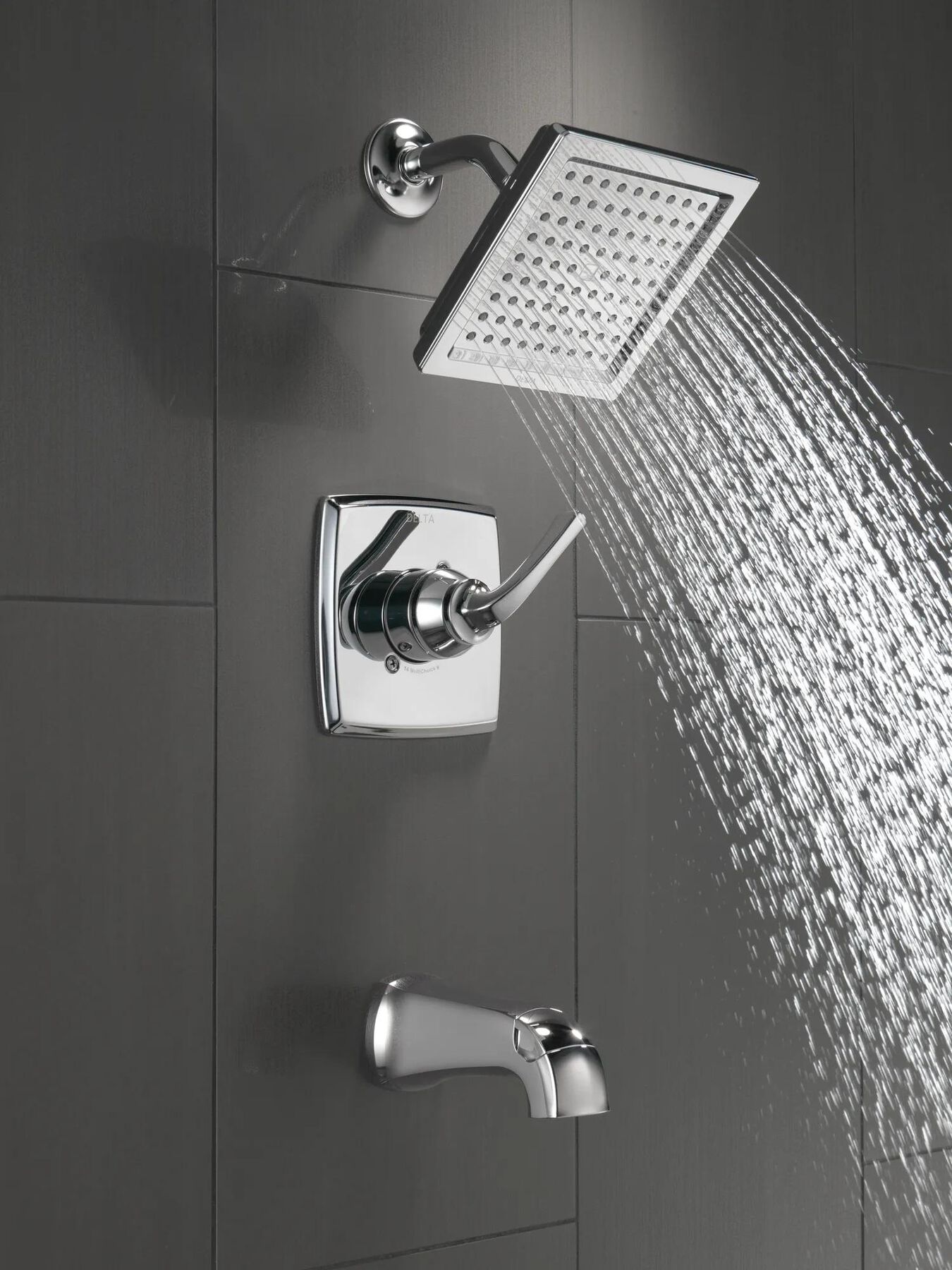

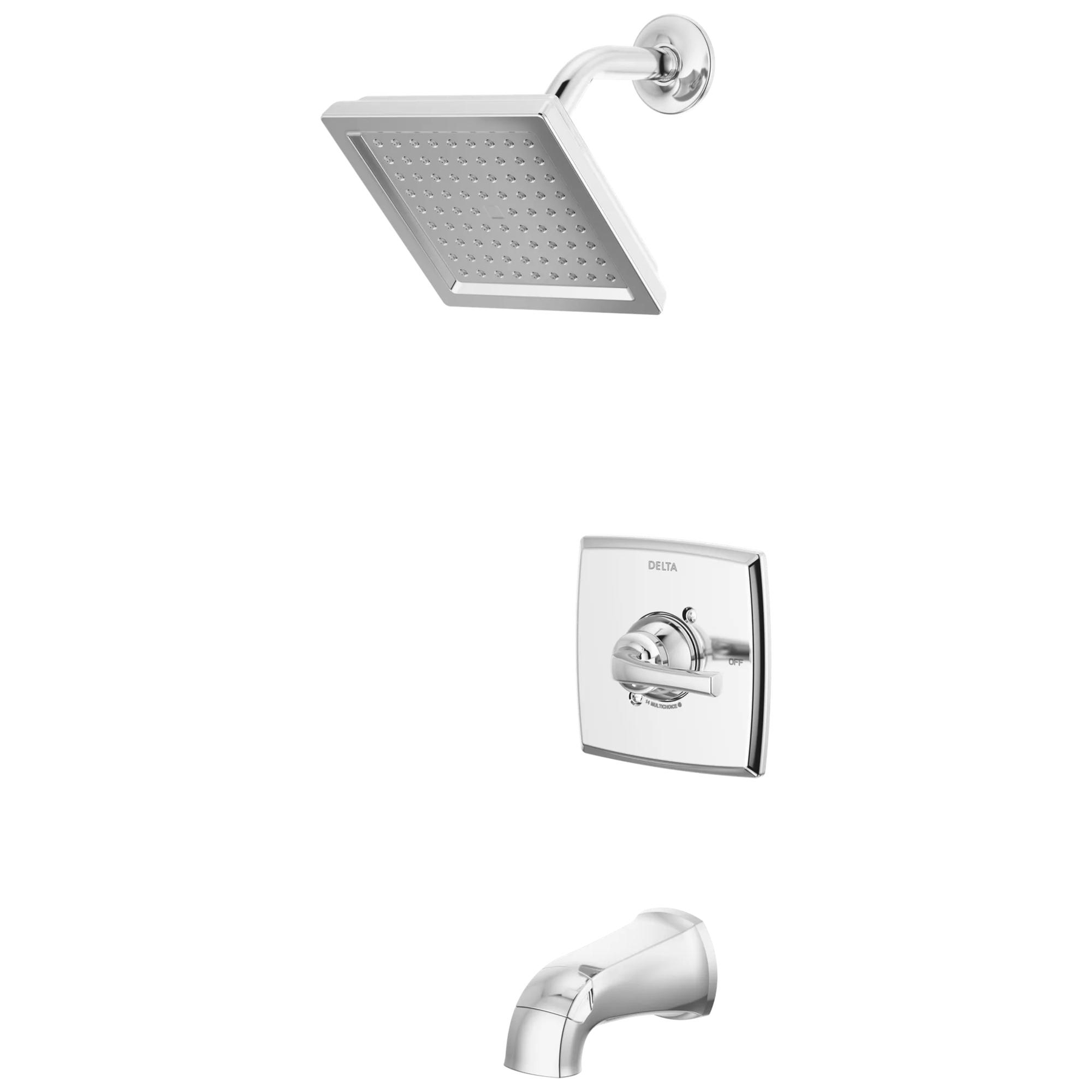

Monitor® 14 Series Tub and Shower in Chrome

Model#: 144864
Add to Favorites
Find local Delta® installers.
Geist®
View Full Geist® Bathroom Collection
Monitor® 14 Series Tub and Shower in Chrome
Model#: 144864
List Price: $24130
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Single setting shower head
  • Complete unit includes trim and MultiChoice® Universal Valve with rough-in
  • Pull-up diverter tub spout
  • Back-to-back installation capability
  • Solid brass forged body
  • Temperature only controlled with handle
  • All parts replaceable from the front of the valve
  • ADA Compliant
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product

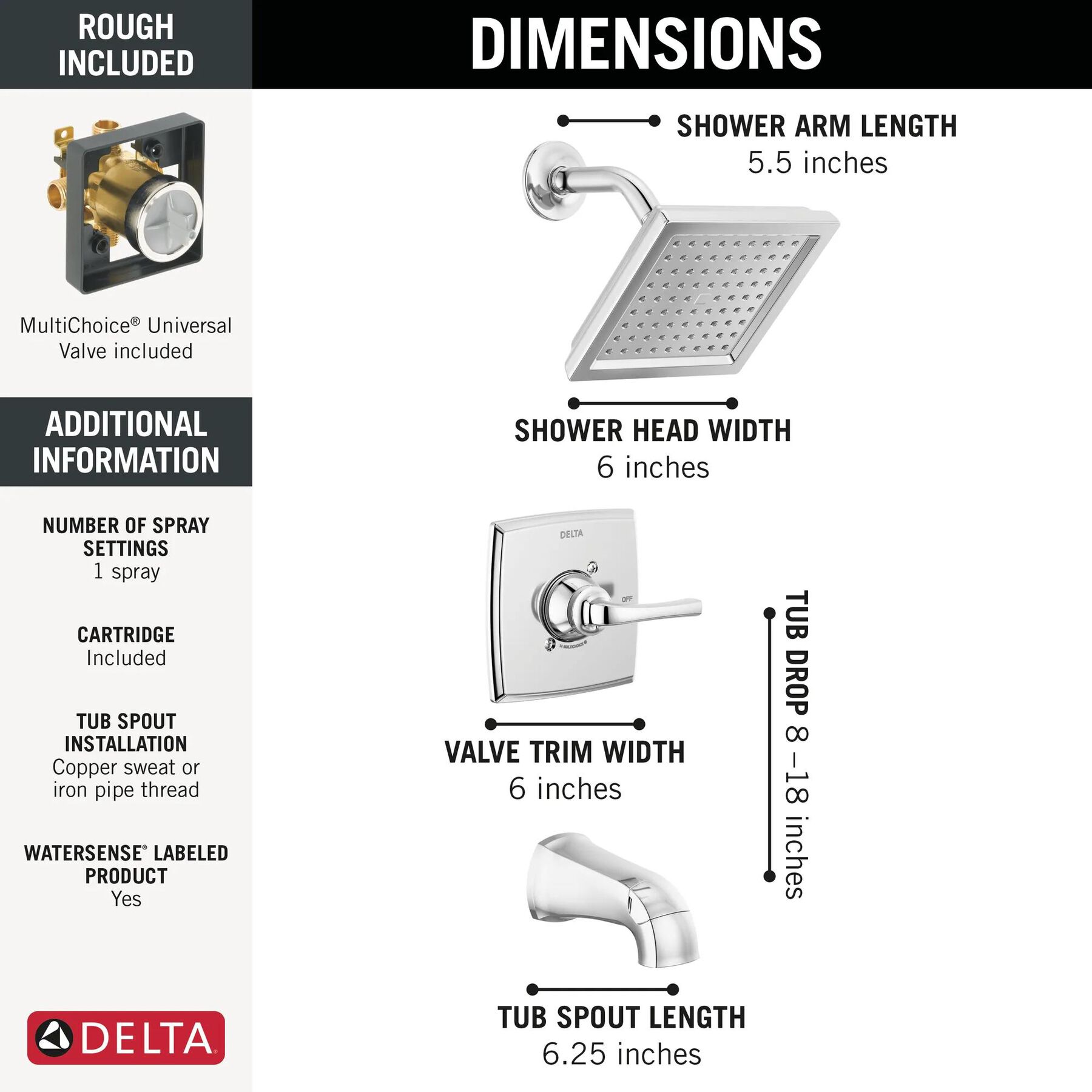

Installation Information
Connection Type :
1/2" IPS
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
16-1/8
Valve Type:
Cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 4 out of 5 by from Pleased with our purchase. [This review was collected as part of a promotion.] We ordered the Delta 144864 Geist Tub and Shower Trim package. Seems to be working as expected. We ordered based on feedback of shower head output (we like a concentrated spray - rather powerful). This seems to fit the bill. Also like the sleek look of the Geist set. Modern, but not in a 'too-trendy' sort of way. Very pleased.
Date published: 2026-02-15
Rated 3 out of 5 by from Did break and we had to order another, but looks nice!
Date published: 2025-05-16
Rated 5 out of 5 by from Builder [This review was collected as part of a promotion.] Rough in and the finishing trim in one box, way to go. It’s as easy as 1 2 3…….
Date published: 2025-02-15
Rated 1 out of 5 by from Defective Product We bought and installed this kit in Sept 2023. By November 2024, the shower head connector was about 80% split and was leaking water. We called Delta and got a replacement shower head in December 2024. That was defective as well, as there was a piece of "something" rolling around inside. Called Delta again and receive another shower head. Installed new shower head mid December 2024. It is now 1/4/25 and it is broken. Water everywhere. This is a faulty product.
Date published: 2025-01-04
Rated 1 out of 5 by from The shower head is plastic and broke already. Have used the new shower one time.
Date published: 2024-12-22
Rated 5 out of 5 by from Love the water flow We love the feeling of the warm water gently cascading over our heads and shoulders! The large square shower head provides a generous flow of water. Everything feels sturdy and the unit was a wonderful update for our older bathroom.
Date published: 2024-10-29
Rated 5 out of 5 by from Delta tub/shower kit Beautiful tub/shower fixture that works great
Date published: 2024-05-30
Rated 5 out of 5 by from Bathroom shower faucet This unit is made from high quality parts and the finish is fantastic. Easy to install and replace. I've replaced several in my lifetime and this one was simple and easy for me to install. I will continue to use this product for years to come
Date published: 2023-01-12
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_17
  • loc_en_US, sid_144864, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
Q&A

Can I purchase the Geist shower trim without the rough in valve?

Asked by: Diyer68
Hello Thank you for your question! Unfortunately this model is not available without the valve. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-07-17

The water won't get hot and I know there is usually a way to open the faucet and turn the dial over, however, there is no screws on the actual faucet, only the plate is screwed onto the wall. How do I open this model to move the control over?

Asked by: Pata
Hello! Thank you for contacting Delta Faucet Company! To adjust your 1400 series temperature for hotter water, please follow the instructions below. You shouldn't need to shut your water off but keep in mind it is still possible for the water to turn on if the stem is rotated. Please gather 1/8" allen wrench for a lever handle and a philips screwdriver for a knob handle. 1. Remove your handle with your 1/8" allen wrench. The set screw should be under the lever of the handle. If you have a knob, please remove the cap on the tip of the handle. You will need a philips head screwdriver to remove the screw. 2. Pull the sleeve assembly off of the valve. This is the cylindrical part behind your handle that hides the valve body. 3. You will see a brass stem and a plastic white piece on the tip of the cartridge. The white piece has notches on it to grip it easier. 4. Please pull the white piece towards you and rotate counter-clockwise for hotter water. *Please note there is a limit of how far this will rotate, if you rotate to the hottest setting it will be the same temperature as your water heater. This is not recommended as it can cause scalding. Please also note that each notch you rotate to can range anywhere between 4 and 16 degrees Fahrenheit.* Now you are able to install your sleeve and your handle onto your valve. Turn your water on and see if this is your desired temperature. If it is, tighten the set screw or the screw and the temperature adjustment on the cartridge is done! We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-10-22

Missing set screws for handles for 3 handles

Asked by: Anns

Does this combo come with the stopper required to plug off the tub spout valve? If not is there a part number to order one?

Asked by: Santana
Hi Santana, Thank you for your question about the Delta Faucet model 144864-OB. A plug for the tub outlet is not included. A 1/2" Female IPS Brass Cap is available as part number RP34849. Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-07-25

Is it possible to add a hand held to an existing MODEL#: 144864-OB shower head? If so, what parts do I need and where can I order them? Thank you!

Asked by: Brenda 58
Hello Valued Customer, Thank you for contacting Delta Faucet Company! Yes, you can purchase a shower arm diverter that will connect directly to the shower arm. The shower head will connect to the front of the shower arm diverter and the handshower hose will connect to the bottom connection. To switch modes between the shower head, hand shower, and both, there is a lever on the shower arm diverter itself. Please refer to the link below! U4920-PK - WITH hand shower mount - https://www.deltafaucet.com/bathroom/product/U4920-PK.html U4929-PK - WITHOUT hand shower mount - https://www.deltafaucet.com/bathroom/product/U4929-PK.html We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-04-07

We are remodeling our shower. Only updating fixtures and paint but not the tile. Is it possible to order the Geist model backing plate, center valve cover and handle, shower head, extension pipe, and pipe ring in oil rubbed bronze?

Asked by: Rob 67
Hi Rob 67, Thank you for your question about the Delta Faucet model 144864-OB. The part numbers RP39407OB, RP6023OB, and RP6025OB in oil rubbed bronze are available to order for the shower arm, flange, and trim sleeve. The RP77089OB escutcheon plate and RP102030OB handle kit are not yet available for orders but are expected to being shipping orders on 6/1/2023. See the parts diagram for more information: https://media.deltafaucet.com/PartsDiagram/DPD-B-142864%20Rev%20A.pdf Please reach out if you have any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-05-30

Can I use the Geist tub/shower faucet for a "tub only" application? I'm assuming the open port that would be for the shower stem just gets capped ? We have a separate shower and want the faucets to match.

Asked by: Randy1229
Hi Randy1229, Thank you for your question about the Delta Faucet model 144864-SP tub and shower faucet. Yes, this can be used as a tub filler only by capping the shower outlet port of the included valve rough. We also carry tub filler trims here without the valve rough included: https://www.deltafaucet.com/bathroom/bathing/tub-and-shower-faucets/valve-and-tub-spout Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-02-21

Wanting another square back plate handle . Just bought new one and it's cracked please tell me how to order one 144864-ob Geist tub and shower oil rubbed bronze color

Asked by: Heather
Hi Heather, Thanks so much for contacting Delta Faucet Company! The GEIST® Monitor® 14 Series Tub And Shower MODEL#: 144864-OB parts diagram can be found at the link below. https://media.deltafaucet.com/PartsDiagram/DPD-B-142864%20Rev%20A.pdf Parts can be purchased online or locally. Please see our Where to Buy page for help finding dealers in your area or online. https://www.deltafaucet.com/where-to-buy Please reach out with further questions! Best Regards, Kelley Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-02-27
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_8
  • loc_en_US, sid_144864, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 5ms
  • questions, product
PART LIST

PART LIST

Image-RP22734

Delta®

Delta® Bonnet

List Price: $17.70
Online Price: $14.16
Free Ground Shipping All Orders $49+

RP22734

4.45 11
Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $38.65 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP102029PC

Geist®

Geist® Showerhead

List Price: $164.00 - $229.20

RP102029PC

Only at Home Depot
Image-Master-RP100495
Only at Home Depot

DELTA

DELTA Tub Spout Diverter

List Price: $104.25 - $153.95
Free Ground Shipping All Orders $49+

RP100495

Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.27 102
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-RP39407

Delta®

Delta® Trim Sleeve & Spacer

List Price: $45.90
Online Price: $36.72
Free Ground Shipping All Orders $49+

RP39407

5.00 2
Image-Master-RP77089

Ashlyn®

Ashlyn® Escutcheon - 14 Series

List Price: $73.95 - $120.65
Free Ground Shipping All Orders $49+

RP77089

Image-Master-RP102030PC

Geist®

Geist® Metal Lever Handle Kit - 14 Series

List Price: $64.05 - $84.95

RP102030PC

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
