Ashlyn®
View Full Ashlyn® Bathroom Collection

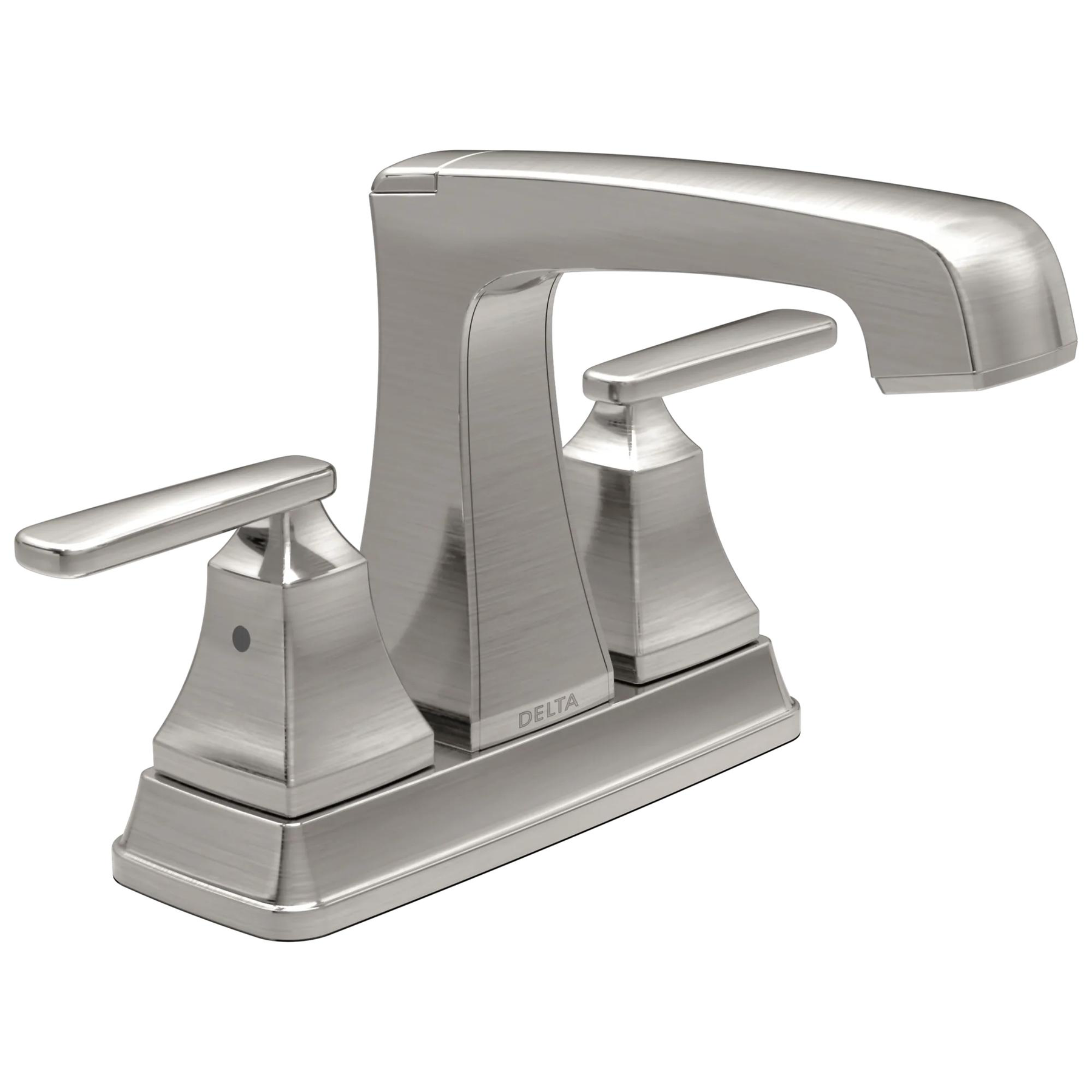

Two Handle Centerset Bathroom Faucet in Stainless

Model#: 2564-SSMPU-DST
Add to Favorites
Find local Delta® installers.
Ashlyn®
View Full Ashlyn® Bathroom Collection
Two Handle Centerset Bathroom Faucet in Stainless
Model#: 2564-SSMPU-DST
List Price: $32130
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.
  • DIAMOND Seal Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
  • Everything you need is together in one convenient box, including integrated InnoFlex PEX supply lines
  • 3-hole 4" installation
  • Metal pop-up
  • ADA Compliant
  • WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
  • Rigid spout
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
No-Lead Compliant
Brilliance® Finish
Water-Efficient
Diamond Seal® Technology
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
3-hole 4" installation
3-hole 4" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa

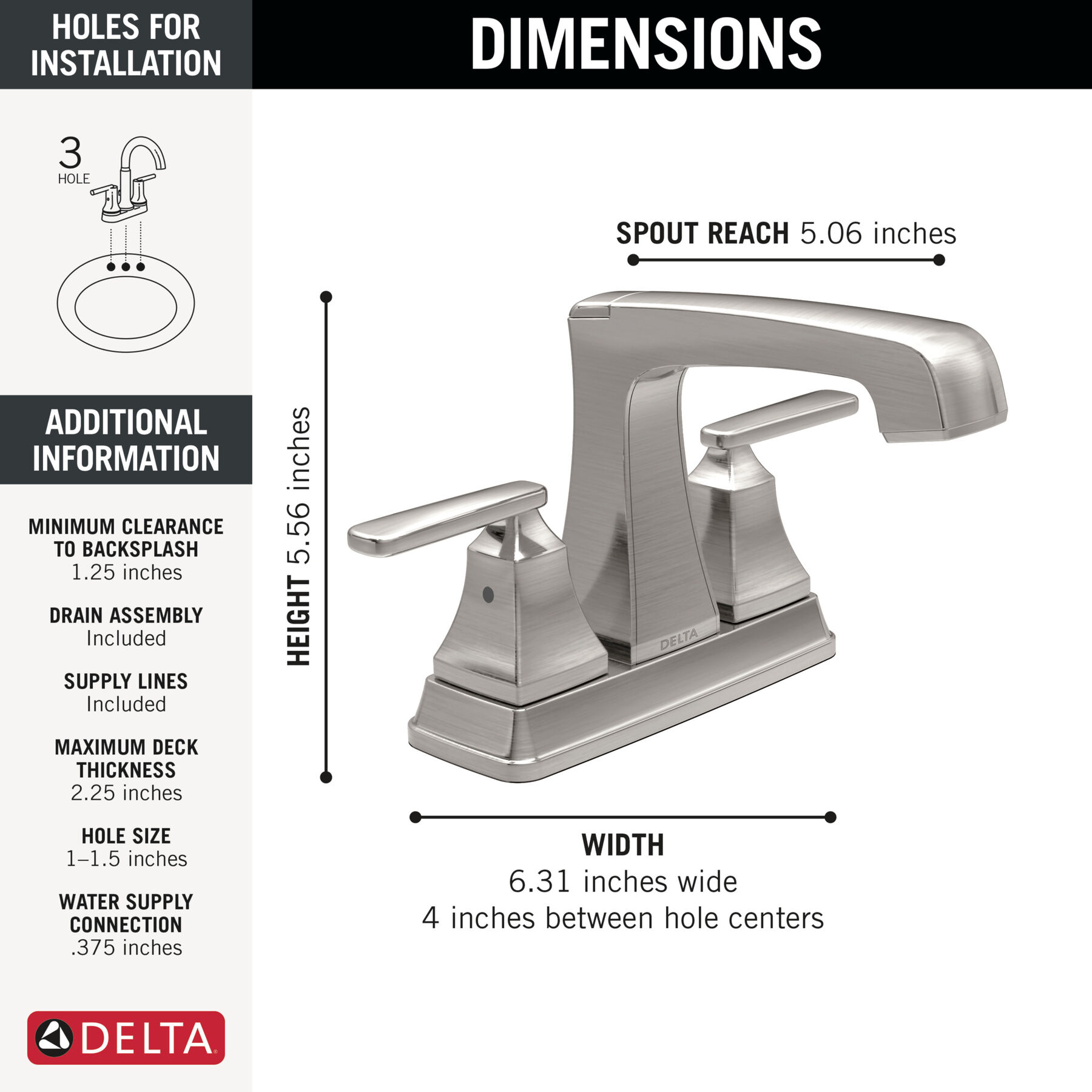

Overall Height (in.) :
5-9/16
Valve Type:
DIAMOND(TM) Seal Valve

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 4 out of 5 by from Love the style and quality but wish I had gotten spotless and the push down drain. I also really hope to purchase the Roman tub faucet to match but pricing is quite high
Date published: 2026-04-10
Rated 4 out of 5 by from I wish I had gotten the spotless faucet and disappointed it wasn't the drain that is just pushed...turns out it was the Ashlyn I wanted but a different model...disappointing for the cost but my fault for rushing. Design overall aesthetic is same
Date published: 2026-04-02
Rated 5 out of 5 by from Delta faucet Works fine and has a great nickel finish, very please with purchase!
Date published: 2026-03-14
Rated 5 out of 5 by from Love the color Such a beautiful faucet. The color matches the new colors I am adding to my house. Assembly was easy once we got the the old one removed. Product is of great quality Will look into buying the matching shower head
Date published: 2026-01-11
Rated 5 out of 5 by from Nice looking center set faucet I have used this faucet for many new construction and home renovation projects. It is a clean lined, versatile option at a good price.
Date published: 2026-01-09
Rated 5 out of 5 by from Very helpful store, I highly recommend this store
Date published: 2025-12-13
Rated 5 out of 5 by from The elite bathroom faucet. This is a GORGEOUS bathroom faucet. It was easy to assemble, is beautiful in champagne bronze, and performs perfectly. It is a show stopper in our guest bathroom.
Date published: 2025-12-13
Rated 5 out of 5 by from Beautiful faucet! This faucet is absolutely beautiful! It looks very elegant and expensive. The quality is top notch and feels very durable. Delta made a great faucet! I would absolutely buy this and recommend it!
Date published: 2025-12-08
  • y_2026, m_6, d_24, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_144
  • loc_en_US, sid_2564-SSMPU-DST, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
Q&A

Is it SLOW water FLOW???

Asked by: Tony
Thank you for your inquiry, Tony! The Delta Ashlyn Lavatory 2564-SSMPU-DST faucet is designed with a flow rate of 1.2 GPM at 60 PSI. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Does this faucet come with hot and cold indicators?

Asked by: Hoy97
Hi, Hoy97! Thank you for your question. The 2564-SSMPU-DST does come withe the buttons for the handles. The button number is RP83791. Here is a link to the button kit: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP83791 Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

I am looking for low-flow aerator for this "Ashlyn Two-Handle Centerset Bathroom Faucet Stainless Steel" faucet. Can you help me with a part number or something so that i could locate it?

Asked by: Naren
Thank you for your question, Naren! The RP54977-1.2 (1.2 GPM), RP72730 (1.0 GPM), or RP71111 (.5 GPM) will work with this faucet. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP54977-1.2 https://www.deltafaucet.com/parts-product-detail?modelNumber=RP72730 https://www.deltafaucet.com/parts-product-detail?modelNumber=RP71111 Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

Can this faucet be installed without the baseplate?

We have a 3 hole sink and would like to install the spout and handles directly on the sink surface without the baseplate. Can we do this and if so are all the parts we would need to do this included?
Asked by: Debbie B
Hi Debbie, Thank you for your question. This model cannot be installed without the base plate, however you can use the model 3564-SSMPU-DST in a 4 - 16" installation. http://www.deltafaucet.com/bath/details/3564-ssmpu-dst.html Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Can the PEX supplies be replaced with Stainless Steel flexible supplies? We are installing this on a pedestal Sink and they will be seen and wanted to dress it up a bit....

Asked by: Scott
Hi, Scott! Thank you for your question. The PEX Supply Lines on the Delta 2564-MPU-DST Faucet cannot be removed as they are built in into the body of the faucet. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

what are the dimensions at the base of the escutcheons?

Asked by: kuds
Hi Kuds, Thank you for your question. The base of the escutcheons on the model 3564-SSMPU-DST measure 2-1/8". Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

I am looking at Ashlyn center set bathroom centerset faucet.Can the 2564-MPU-DST be used with or with out excusion plate? I was also looking at the 25

64-TP-DST without excusion plate.I am not sure which one I need or will work.Can I find the measurements on them?I will be ordering on line so really can,t look to see how they will fit. Thank You PS also looking at dual function head&hand held shower package.
Asked by: Jack
Thank you for your question, Jack. This faucet cannot be installed without the base. The model 3564-MPU-DST can be installed on a 4 1/2" to 16" installation. https://www.deltafaucet.com/bathroom/product/3564-MPU-DST The model T17264-I shower trim includes an In2ition shower head and hand shower. You can use any R10000 rough-in valve with this trim. https://www.deltafaucet.com/bathroom/product/T17464-I Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

what is the height of the faucet?

I have a low clearance area for a bathroom faucet and am wondering what the height of this model is from base to the top of the faucet?
Asked by: Michelle G
Hi Michelle, Thank you for your question. This model is 5 9/16" tall. Here is a link to the Technical Specifications for this and other measurements: https://media.deltafaucet.com/SpecSheet/DSP-L-2564-MPU-DST%20Rev%20C.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-03-21
  • y_2026, m_6, d_24, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_61
  • loc_en_US, sid_2564-SSMPU-DST, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 154ms
  • questions, product
PART LIST

PART LIST

Image-RP73814

Delta®

Delta® Gasket - 2H Bar / Prep

List Price: $26.55
Online Price: $21.24
Free Ground Shipping All Orders $49+

RP73814

1.00 3
Image-Master-RP26533

Delta®

Delta® Metal Drain Assembly - Less Lift Rod - Bathroom

List Price: $96.10 - $201.80
Free Ground Shipping All Orders $49+

RP26533

Image-RP63263

Delta®

Delta® Adapter Kit - PEX Compression (4)

List Price: $45.35
Online Price: $36.28
Free Ground Shipping All Orders $49+

RP63263

3.67 3
Image-Master-RP41588

Delta®

Delta® Lift Rod - Bathroom

List Price: $20.00 - $28.80
Free Ground Shipping All Orders $49+

RP41588

Image-RP60400 Secondary Image-RP60400

DELTA

DELTA DIAMOND™ Valve - 2H

List Price: $46.65
Online Price: $37.32
Free Ground Shipping All Orders $49+

RP60400

3.68 22
Image-Master-H264

Ashlyn®

Ashlyn® Metal Lever Handle Set

List Price: $86.30 - $139.50
Free Ground Shipping All Orders $49+

H264

Image-RP12517

Delta®

Delta® Horizontal Rod

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP12517

2.50 6
Image-RP53531

Delta®

Delta® Mounting Nuts - 15 / 16 Series

List Price: $27.15
Online Price: $21.72
Free Ground Shipping All Orders $49+

RP53531

Image-Master-RP90913

Ashlyn®

Ashlyn® Lift Rod and Finial

List Price: $32.95 - $51.05
Free Ground Shipping All Orders $49+

RP90913

Image-RP5648SS

Delta®

Delta® Drain Stopper - Bathroom

List Price: $53.60
Online Price: $42.88
Free Ground Shipping All Orders $49+

RP5648SS

4.25 8
Image-RP12516

Delta®

Delta® Strap w/ Screw

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12516

Image-RP6142

Delta®

Delta® Gasket

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP6142

2.00 1
Image-RP54977

Lahara®

Lahara® Aerator - Water-Efficient w/ Wrench - 1.5 GPM

List Price: $21.25
Online Price: $17.00
Free Ground Shipping All Orders $49+

RP54977

3.67 9
Image-RP6140

Delta®

Delta® Nut & Washer - Drain Assembly

List Price: $25.00
Online Price: $20.00
Free Ground Shipping All Orders $49+

RP6140

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
