Trinsic®
Monitor® 14 Series Valve Only Trim
Model#: T14059-RB

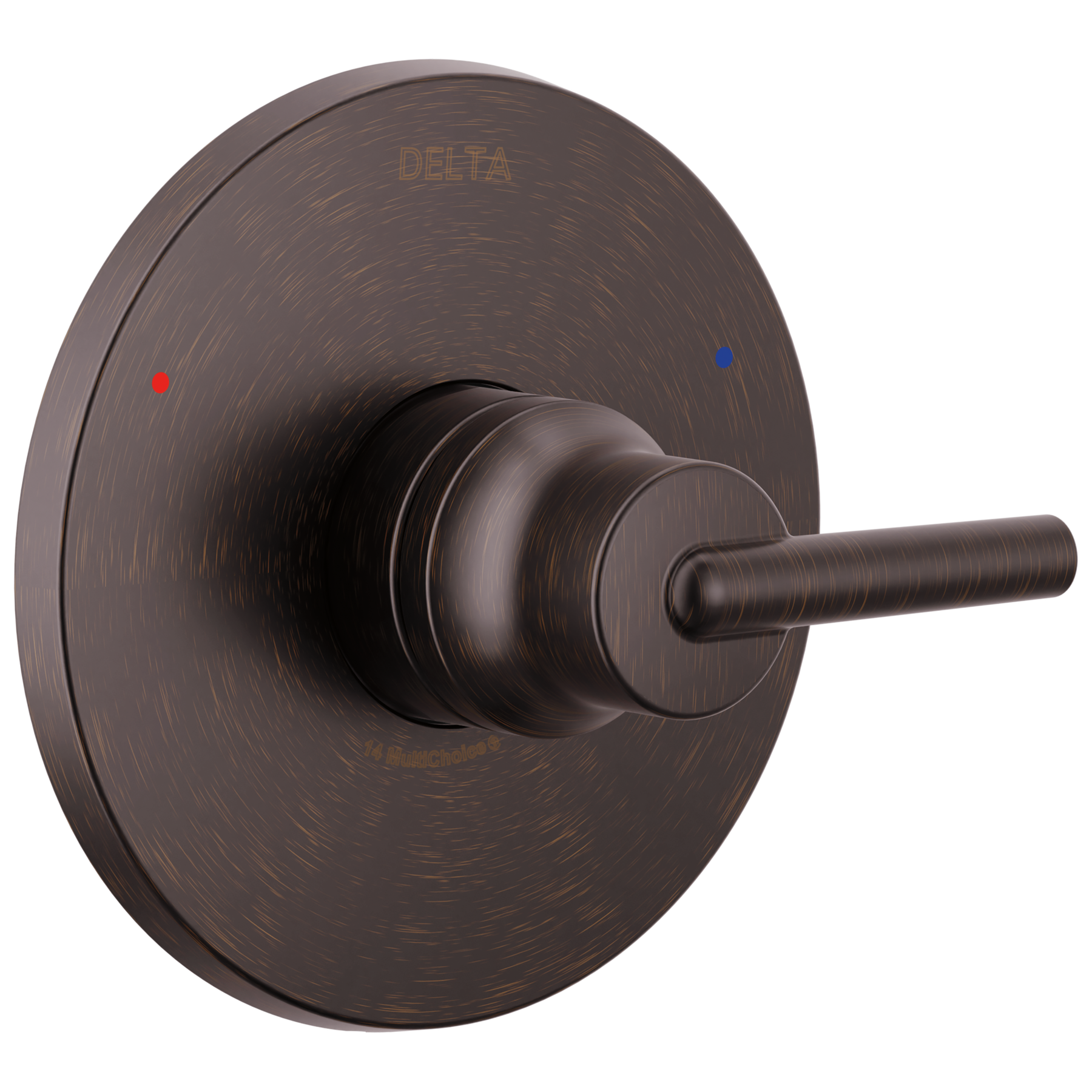

Monitor® 14 Series Valve Only Trim
Trinsic®
Monitor® 14 Series Valve Only Trim
Model#: T14059-RB
Finish: Venetian Bronze
List Price*: $202.10
PRODUCT FEATURES
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Single function operation
  • Single lever handle for ease of temperature control
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Special Features
California Prop 65 WARNING
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information

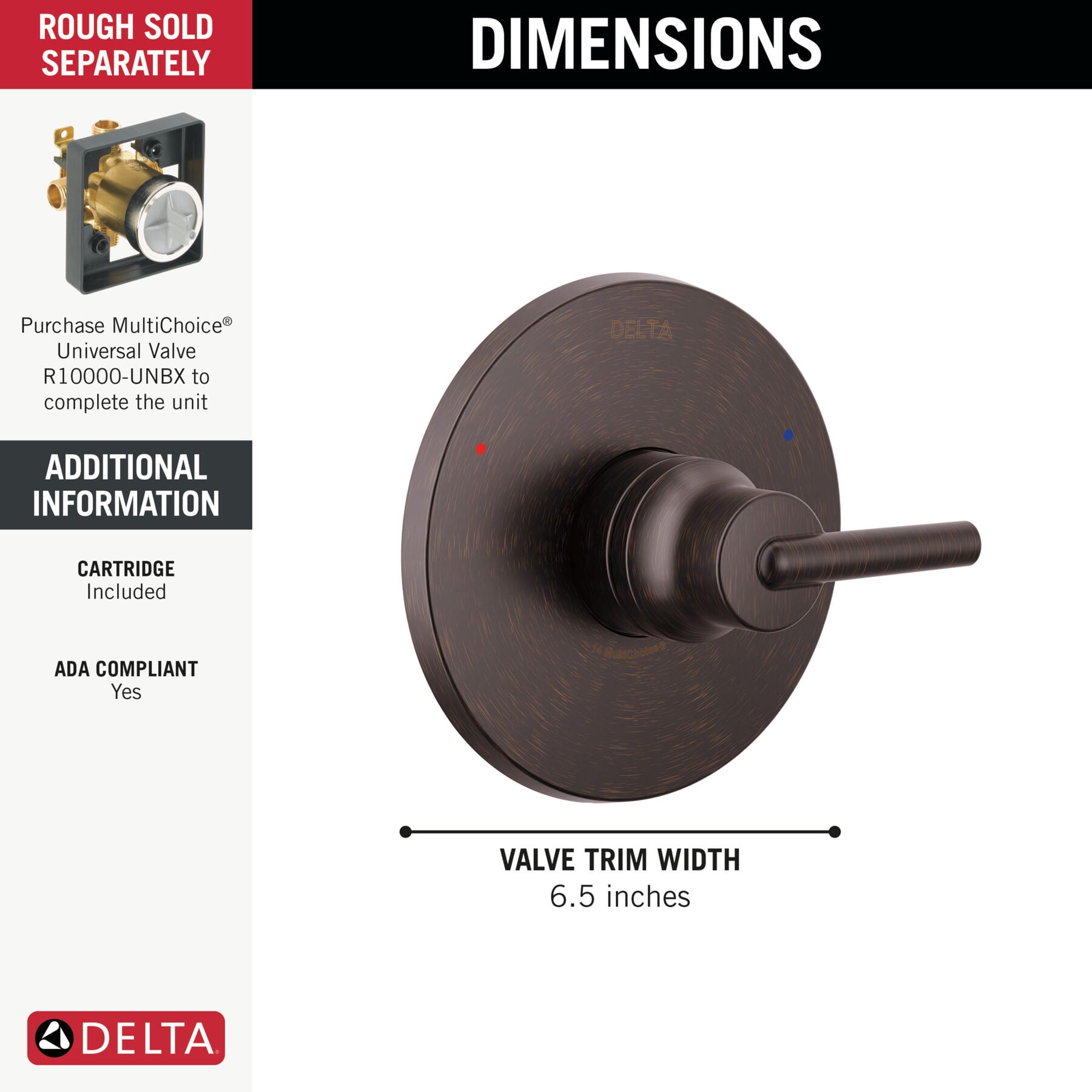

Over All Height :
6-1/2
Connection Type :
Universal fittings
PART LIST
REVIEWS
Rated 5 out of 5 by from Shower hardward Great new shower hardware
Date published: 2021-01-08
Rated 4 out of 5 by from Nice [This review was collected as part of a promotion.] Received this on time. I love the color, a muted aged brass, not too shiny. I didn't give it 5 stars because the plate is not as solid as I expected and looks like it can scratch easily
Date published: 2019-07-23
Rated 5 out of 5 by from Delta Trinsic control valve [This review was collected as part of a promotion.] Remodeled a clients bathroom, we got the bronze finish. We selected Delta for the way the finish is applied which will withstand hard well water. The client loves it. Very smooth operation. All metal parts. A transitional style
Date published: 2019-07-23
Rated 5 out of 5 by from [This review was collected as part of a promotion.] The Delta T14059 looks great. We are in the middle of a remodeling job and while it has been installed what have yet to use the shower that it was purchased for. We try to use Delta products as much as possible. The quality is excellent and the costs are competitive.
Date published: 2019-07-14
Rated 5 out of 5 by from Clean and sleek look! This is the third Delta Trinsic I've purchased. I love the classic and modern look of them and how easy they are to use. My plumber also found Delta products to be easiest for install. Would purchase again!
Date published: 2018-12-28
Rated 5 out of 5 by from Matte Black Trinsic Purchased for new home-build. Matte black faucets throughout - modern farmhouse style. This is sleek and ergonomic design. Would specify/use again.
Date published: 2018-12-25
Rated 3 out of 5 by from Champagne color is beautiful but can't keep fingerprint "stains" off Beautiful and well made but what keeps it clean? Every fingerprint shows up and is difficult to clean and keep clean
Date published: 2018-12-22
Rated 4 out of 5 by from Works well, difficult to clean This is a beautiful collection, and the color is very nice (true to the photos). The lever works well and is sensitive to even the slightest push in either direction. It gets "dirty" easily, hard to explain, but it will keep fingerprints or have water stains on it right after I clean it, which is frustrating. I also don't see any information on the manufacturer's website about how to properly clean it. All in all, I am happy with the product.
Date published: 2018-12-10
  • y_2021, m_1, d_21, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_US, sid_T14059-RB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

How can I tell if this kit goes with the valve in my shower? Do you have a way to figure out which rough in valve is in my wall? We want to update.

Single handle chrome escutcheon and handle in place, we want to replace with oil rubbed bronze.
Asked by: Frizzle
Hi Frizzle, Thank you for your question. Please check on the plate directly under the handle for a series number. This trim will work with an existing 1300/1400 series rough-in using the RP19804 cartridge or any Delta rough-in manufactured after September 2006 (MultiChoice R10000). Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-04-05

Is the plate metal or plastic

Asked by: Sandfox
Hi, Sandfox! Thank you for your question. The escutcheon plate for the Delta Monitor T14059-CZ Trim Kit is metallic. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-04-09

Are any parts of the T17059 (escutcheon/plate, handle) made of anything other than metal?

Asked by: NH
Hi NH, Thanks for your question. All of the external parts are metal. The cartridge assembly has non-metallic components. Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2015-09-19

can this be used with 2-in-1 showerheads

Asked by: Amethyst
Hi Amethyst, Thank you for your question! You may use a 2-in-1 showerhead with this valve. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-12-08

Do you carry a Trinsic shower trim escutcheon extension? The tiler did not set the tile the proper amount back/out from the in-wall valve, consequently, the trim escutcheon will not screw flush against the wall.

Asked by: Paulmc
Hello Paulmc, Thank you for your inquiry! The Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. The RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630(BL) escutcheon screws in desired finish. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP77991 Best regards, Tanya
Answered by: Delta Faucet
Date published: 2019-01-03

What is the diameter of the inner circle?

Asked by: kells32
Thank you for your question! The escutcheon plate of the Delta Trinsic Valve Trim T14059-BL has an inner diameter of the hole is 2 1/4". The plate itself is 7" in diameter. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-08-07

I have the Monitor 14 series of the Trinsic shower valve - the water temperature is too cold in the setting from the factory - how can I change it so that the water can come out hotter?

Asked by: Jo Lene
Thank you for your question, Jo Lene! The Rotational Limit Stop can be adjusted to allow for more hot water. Please refer to page 7 of the Installation Instructions for help with this: https://media.deltafaucet.com/MandI/68881%20Rev%20M.pdf Best regards, Jon
Answered by: Delta Faucet
Date published: 2018-09-07

I'd like to update my Pulse Tru-Temp Valve – 3001-RIV-PB https://www.pulseshowerspas.com/index.php/product/tru-temp-valve-3001-riv-pb-2/   - will this Monitor 14 series valve trim work with that?

Asked by: Girmant
Hello Girmant, Thank you for your inquiry. The Delta Trinsic 14 Series Valve only trim T14059-BL is designed for Delta only valve and cartridge assemblies. This trim will not work on your Pulse valve and parts. Best regards, Tanya
Answered by: Tanya
Date published: 2018-08-13
  • y_2021, m_1, d_19, h_22CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_11
  • loc_en_US, sid_T14059-RB, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 45ms
  • questions, product
Mike and Hanna
Delta logo thumb

Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.

Delta BiLT app
BiltLogo IntelligentInstructions Horizontal

Installation made easy. Download the free BILT app to access step-by-step 3D interactive instatuctions.

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
