Kayra®
View Full Kayra® Bathroom Collection

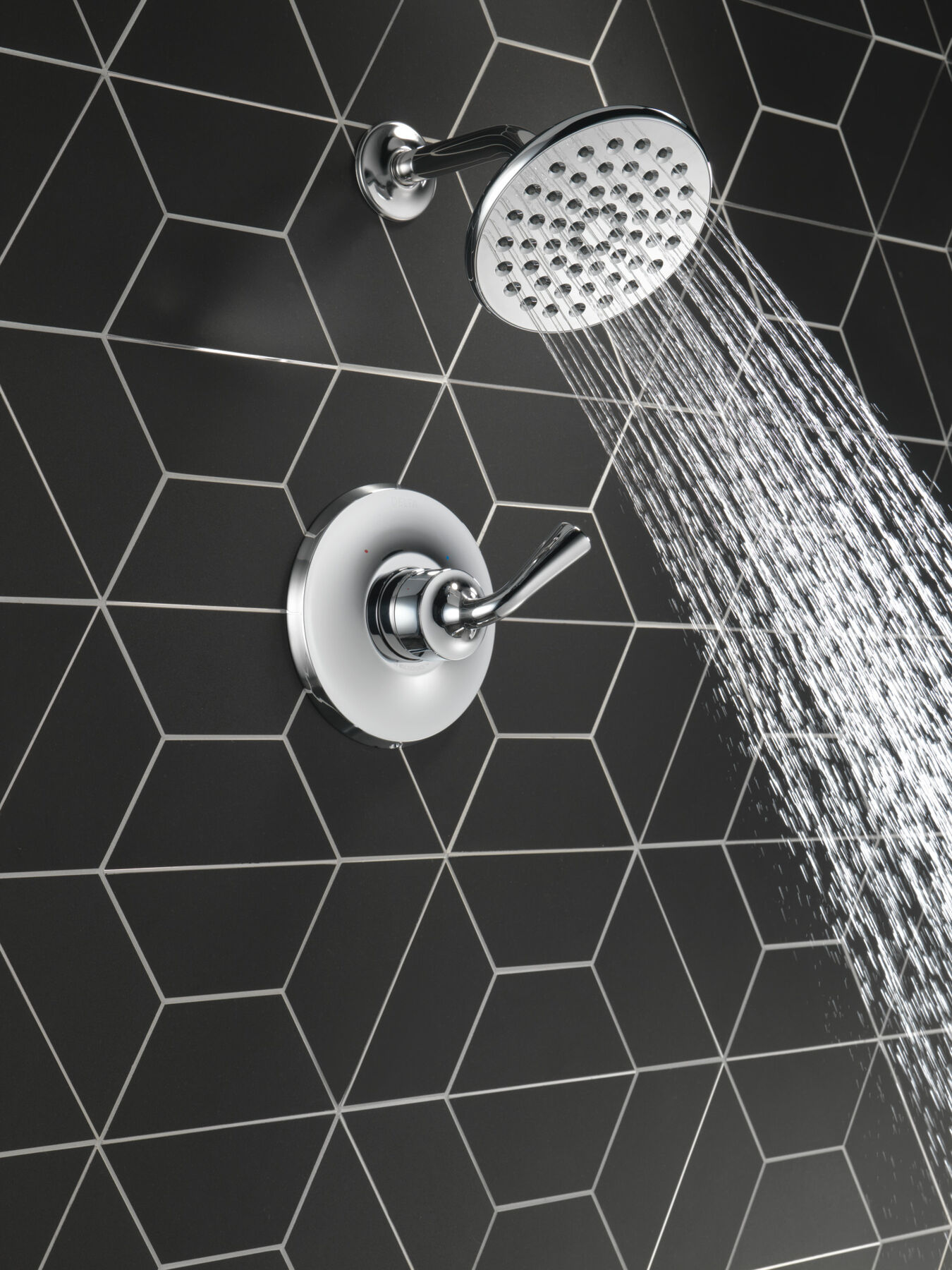

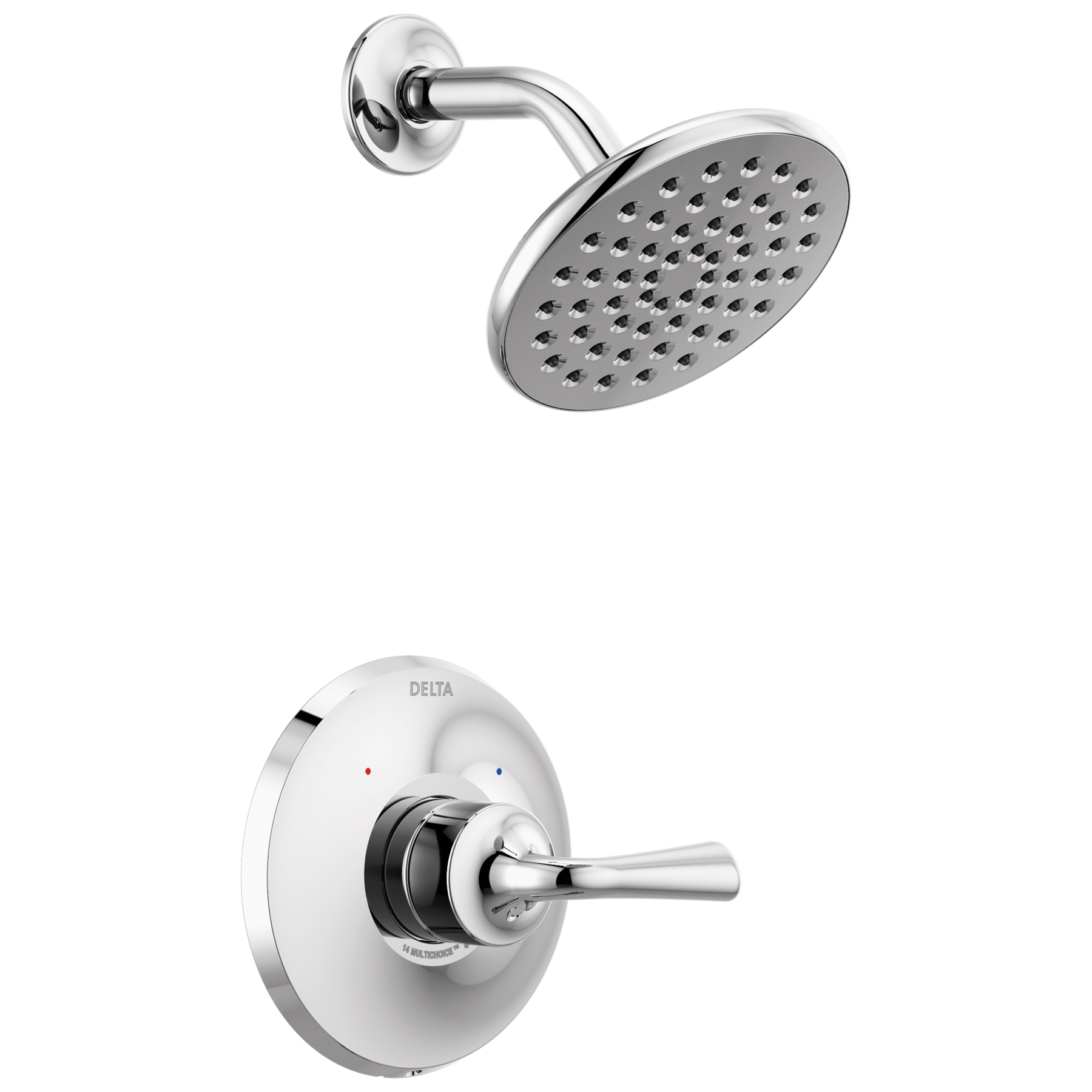

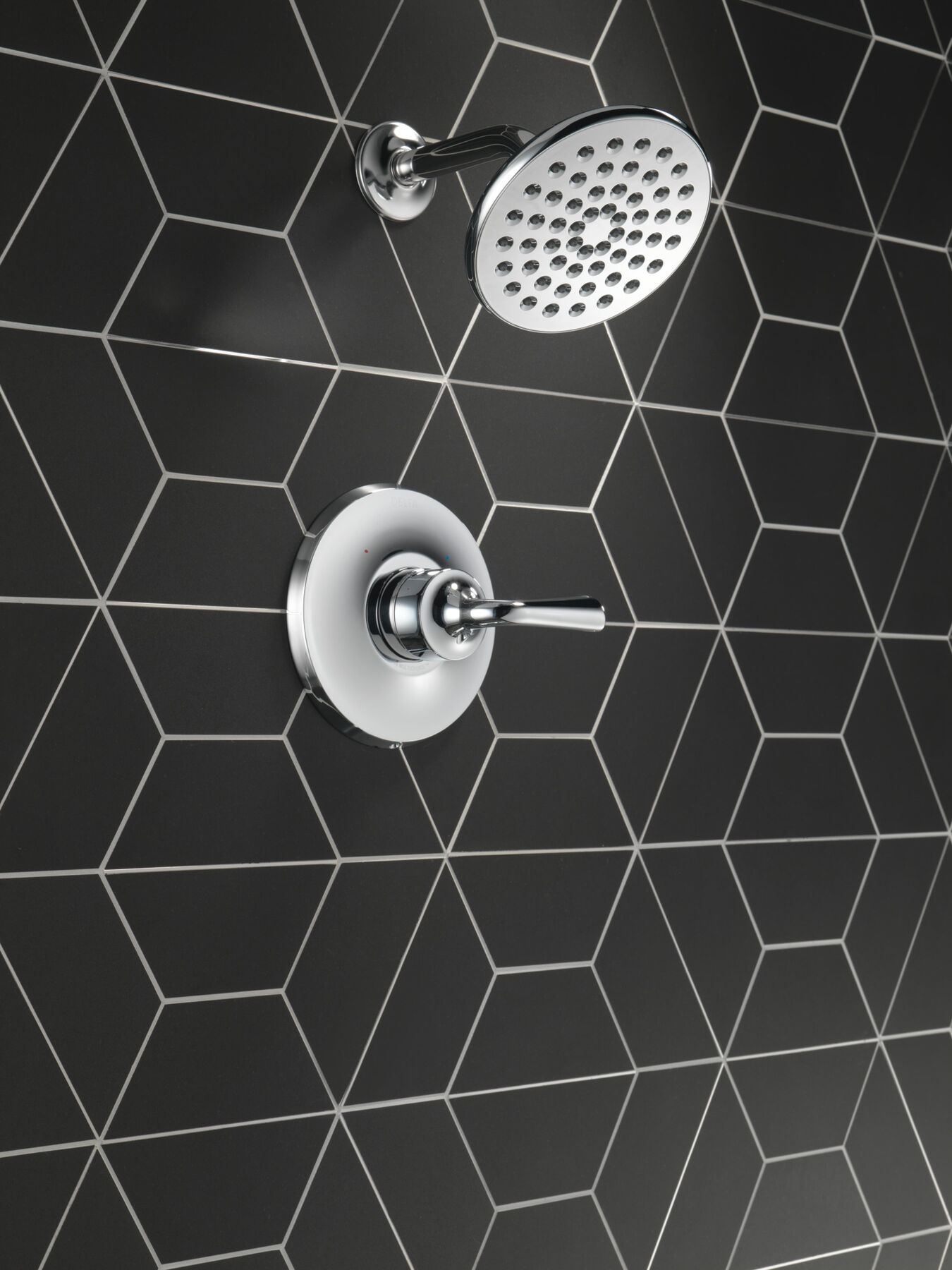

Monitor 14 Series Shower Trim in Chrome

Model#: T14233
Add to Favorites
Find local Delta® installers.
Kayra®
View Full Kayra® Bathroom Collection
Monitor 14 Series Shower Trim in Chrome
Model#: T14233
List Price: $20415
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The stretched feminine form and unbroken lines of the Kayra™ Bath Collection create a clean, flowing design. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Recommended rough-in kit R10000 series
  • Monitor® pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body spray
  • ADA compliant metal lever handle
  • Temperature only controlled with handle
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Red/Blue indicator markings
  • Cartridge included
  • Shower only
  • All parts replaceable from the front of the valve
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

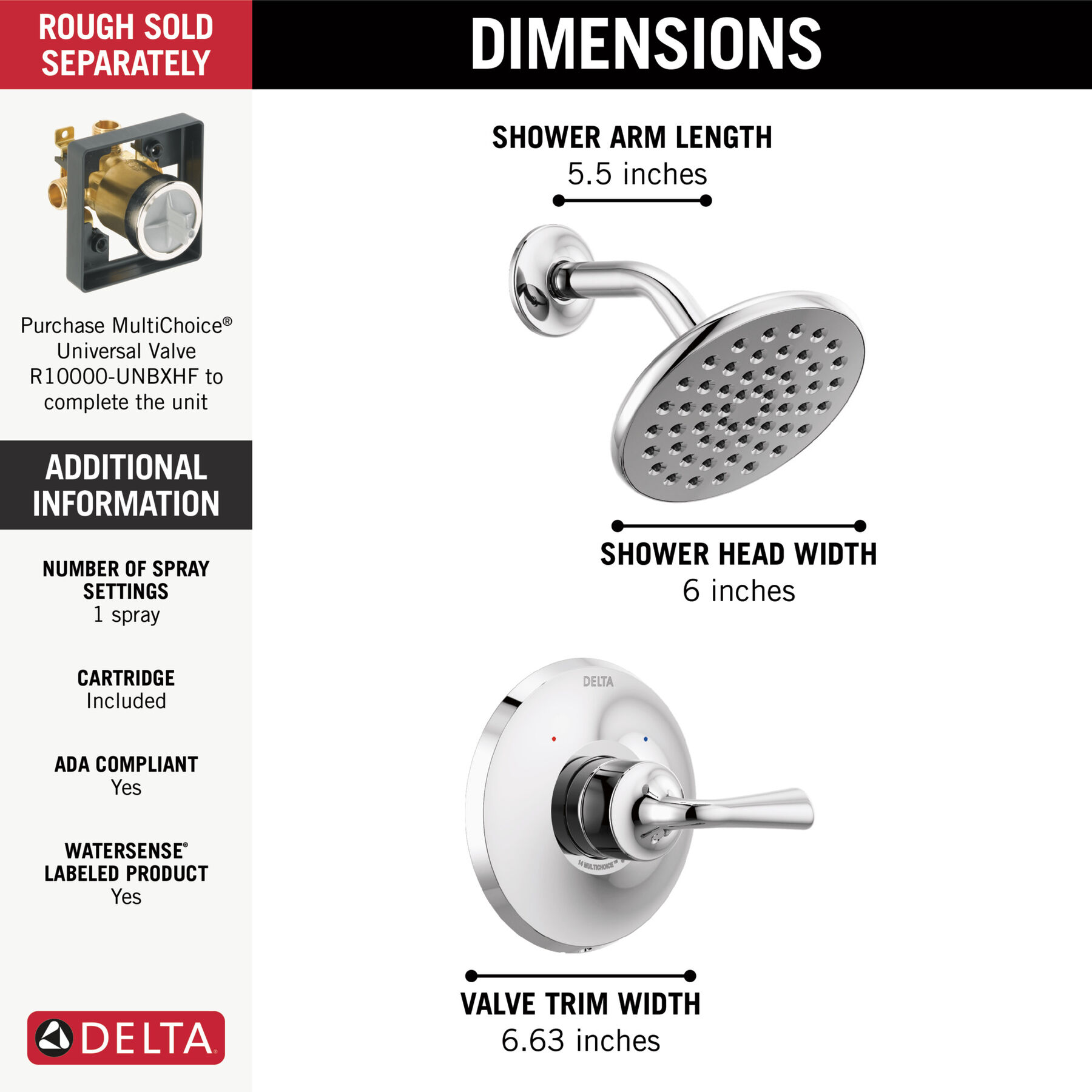

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
6-5/8
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 3 out of 5 by from Water hot enough? We recently had this trim installed in our new shower and even though the water flow is nice, we can't seem to get it hot enough, even with the handle all the way up (vertically). We had the plumbing contractor come back out and he appeared to adjust something, but it's still just warm and not as hot as we would like it. Is there a valve restriction on this product to keep it "warm" rather than as hot as we would like it?
Date published: 2024-05-07
Rated 5 out of 5 by from So fancy! I received this sample of a Delta shower head with hot/cold handle T14233-SS. It was fairly easy to install with the directions that it came with. Once installed, the shower worked very well. The amount of water that came out was wonderful for my aching muscles. It made rinsing off a breeze. Delta never let's me down with their quality products.
Date published: 2023-01-25
Rated 3 out of 5 by from Back plate won’t stay on The style is nice but the back plate on the shower trim keeps coming loose! Is there a trick to putting it on?? There is a set screw under the set screw cap does that hold it on? I didn’t install it this happened once we started using it and I get it on and it comes loose again. Any advice ??
Date published: 2022-11-21
Rated 5 out of 5 by from Great This shower head and handle are really nice design and the quality meets my expectations and standards. It was easy to install and begin to use. The water flies beautifully from the showers head and the handle to turn on and off moves effortlessly and smooth. I am pleased
Date published: 2022-04-10
Rated 4 out of 5 by from It does the job It works and we are happy about that.
Date published: 2021-12-06
Rated 5 out of 5 by from Looks great! The installation went smoothly and was fairly easy considering. The quality is really nice and looks beautiful! It works flawlessly, definitely designed not only with appearance in mind but also functionality. I would definitely recommend it.
Date published: 2021-11-03
Rated 5 out of 5 by from Very nice! I installed this shower head in my stand up shower and I read like it. Installation went very smoothly and it looks and functions great. Delta products are always of high quality and this is no exception. I would definitely recommend it.
Date published: 2021-09-26
Rated 3 out of 5 by from Dripping shower head The shower head is a nice design, however I have had to have my contractor out 2X after installation as it continues to drip all day long after using. He said the tube inside is plastic instead of metal. And he can't get it to stop dripping! Help!
Date published: 2021-07-20
  • y_2026, m_6, d_16, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_20
  • loc_en_US, sid_T14233, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

need to replace shower faucet handle for kayra model

Asked by: eugenio
Hello, Paulino! Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet DELTA® Kayra™ Monitor 14 Series Shower Trim In Chrome MODEL#: T14233 handle is RP101542. Please see the parts breakdown in the link below. https://media.deltafaucet.com/PartsDiagram/DPD-B-T14033.pdf Thank you for being a loyal Delta customer. Please feel free to call, email, or message us on social if you need anything else. Best Regards, Themar
Answered by: Delta
Date published: 2024-03-28

What is the minimum water pressure your shower valve is designed for, or do you have any shower valves that are designed to work with a minimum water pressure of 15PSI.

Asked by: Frank
Hello Frank, Thank you for your question about the Delta Faucet model T14233 Kayra™ Monitor 14 Series Shower Trim In Chrome. I apologize for any difficulty finding this information. We are happy to help! We recommend water pressure between 30 and 100 psi for our pressure-balanced faucets. Unfortunately, we cannot guarantee performance at 15 psi for our faucets. I apologize for the inconvenience this causes. Please reach out at customerservice@deltafaucet.com or 1-800-345-DELTA if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2024-03-28

Hello, I am replacing original (1996) bathroom fixtures in my shower. When purchasing a new shower head and faucet how do I know the new fixtures will work in my bathroom shower?

Asked by: Nikki
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-05-13

I have a Delta model T14233-SS. When I go to install the trim piece for the shower valve the set screw for the trim piece is on the right side of the valve and the diagram is a quarter turn off. I is there a fix for this?

Asked by: Mike

can you adjust this shower head from side to side and up and down?

Asked by: Karen
Hi Karen, Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you. Our Delta Faucet Kayra™ Monitor 14 Series Shower Trim In Chrome MODEL#: T14233 shower head has a ball connector swivel angle of 44° (22° per side). Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions. Best Regards, Nicole
Answered by: Customer Service
Date published: 2024-03-28

Is this trim plastic or metal. Also I need matching diverted for second shower head could you give model number for the diverted valve

Asked by: Charles
Hi Charles, Thank you for contacting us at Delta Faucet! The handle and the shower arm for this Delta Faucet model T14233 are the only metal components. We recommend the T11800 3 setting diverter trim kit to match this item. Please see the following link for more information. https://www.deltafaucet.com/parts/product/T11800.html Please contact us directly if further assistance is needed at this time.   Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

I have a shower faucet installed in my bathroom in the year 2000, it’s the gold trim. I don’t have a model number for it. I have water leaking around the faucet body, I’m sure it’s either a gasket or o-ring, I need the complete valve assembly also.

Asked by: Jimmy mullis
Hi Jimmy mullis, Thank you for your question regarding our Delta Faucet T14233. We have reached out to you directly. Thank you for being a loyal Delta Faucet customer. Best Regards, Themar Digital Communications Specialist (800) 345-3358 customerservice@deltafaucet.com
Answered by: Customer Service
Date published: 2024-04-02

Can this be used with a handheld shower too?

Asked by: Kylie
Hi Kylie, Thank you for contacting Delta Faucet Company. Please accept our sincere apology for the inconvenience you are experiencing locating this information. We will be happy to assist you. You can add a hand shower to the Delta Faucet KAYRA™ Monitor 14 Series Shower Trim In Stainless MODEL#: T14233-SS. You will need to add a shower arm diverter or diverter valve and a wall elbow to the system. https://www.deltafaucet.com/search-results?q=diverter&prefn1=recertified&prefv1=false&cgid2=Delta_Bathroom_Showering_Shower-Components_Diverters-%26-Volume-Controls https://www.deltafaucet.com/search-results?q=wall+elbow&lang=en_US Thank you for being a loyal Delta Faucet customer. We look forward to continuing to serve you. Please feel free to contact us back for further assistance. Best Regards, Kelley
Answered by: Customer Service
Date published: 2024-03-28
  • y_2026, m_6, d_16, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_16
  • loc_en_US, sid_T14233, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 8ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP51303

Lahara®

Lahara® Tub Spout - Pull-Up Diverter

List Price: $99.70 - $164.80
Free Ground Shipping All Orders $49+

RP51303

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP101542

DELTA

DELTA Handle, Set Screw and Button

List Price: $43.00 - $101.20
Free Ground Shipping All Orders $49+

RP101542

Image-RP25620

Delta®

Delta® Set Screw

List Price: $6.45
Online Price: $5.16
Free Ground Shipping All Orders $49+

RP25620

4.21 14
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP100936

DELTA

DELTA 14S ESCUTCHEON W/ GASKET

List Price: $152.45 - $249.70
Free Ground Shipping All Orders $49+

RP100936

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.26 103
Image-RP100154

DELTA

DELTA Tub Spout Adapter - Tri Universal

List Price: $35.80
Online Price: $28.64
Free Ground Shipping All Orders $49+

RP100154

1.60 5
Image-RP51019

Delta®

Delta® Set Screw & Button

List Price: $21.70
Online Price: $17.36
Free Ground Shipping All Orders $49+

RP51019

5.00 1
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
