Lahara®
View Full Lahara® Bathroom Collection

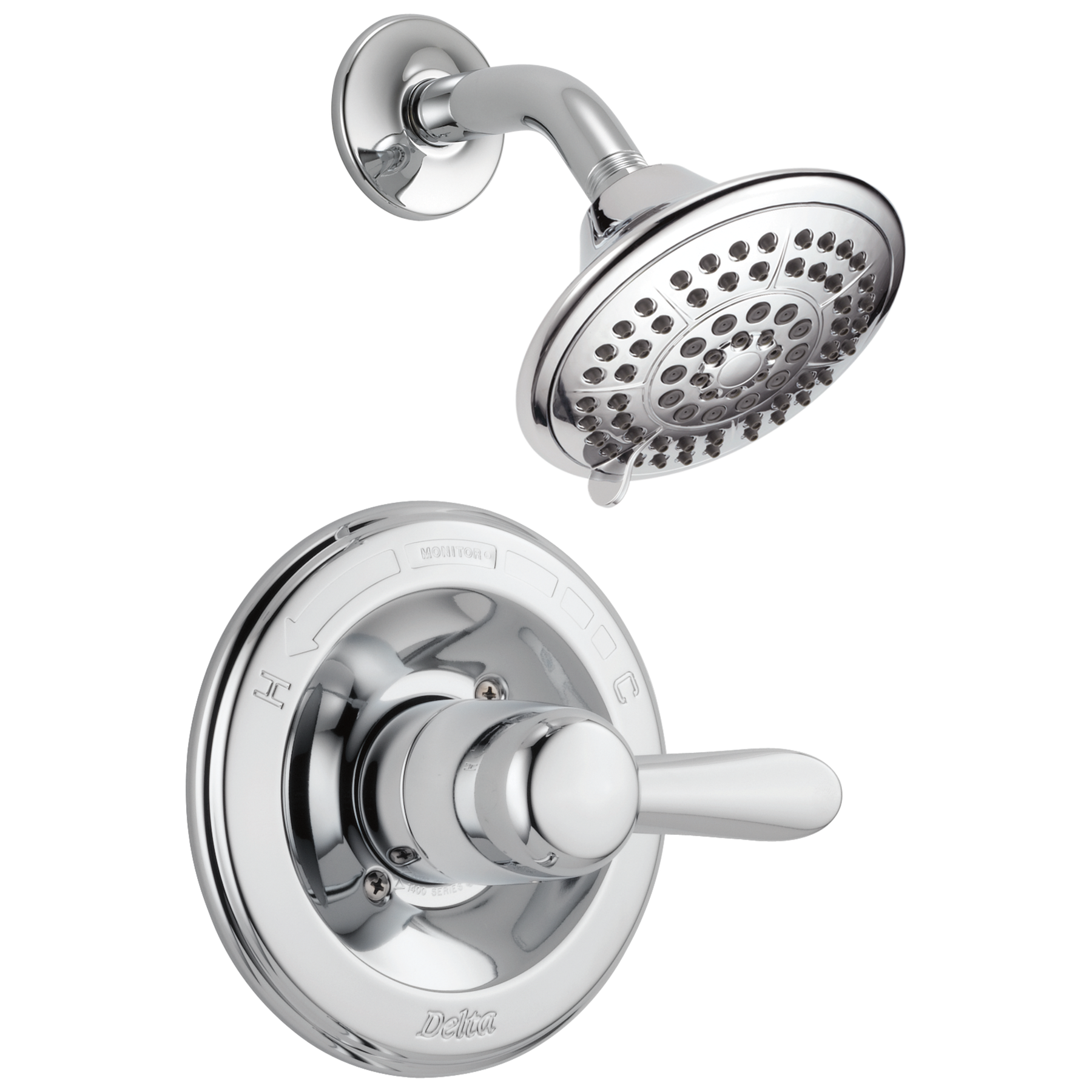

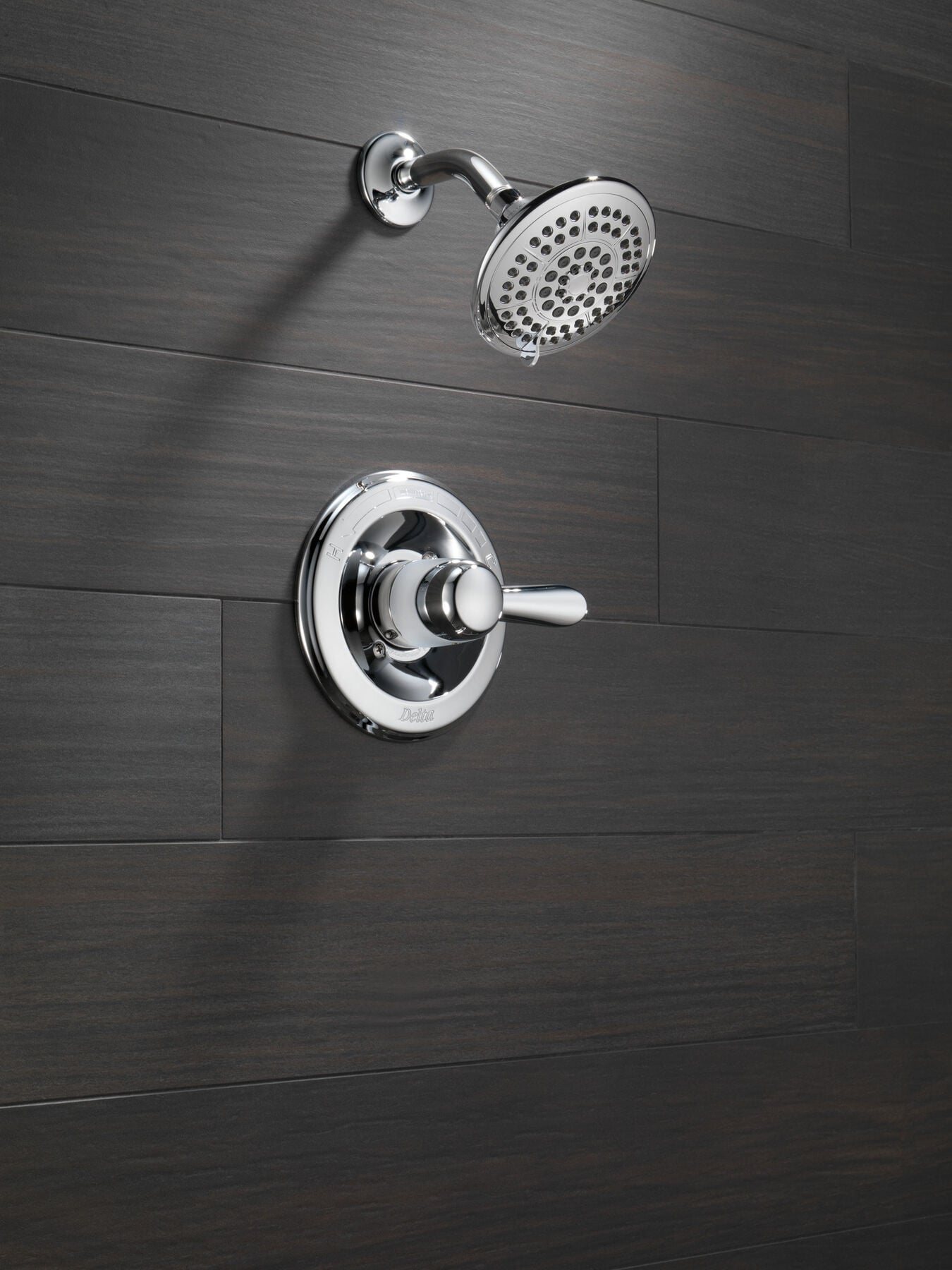

Monitor® 14 Series Shower Trim in Chrome

Model#: T14238
Add to Favorites
Find local Delta® installers.
Lahara®
View Full Lahara® Bathroom Collection
Monitor® 14 Series Shower Trim in Chrome
Model#: T14238
List Price: $22130
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray

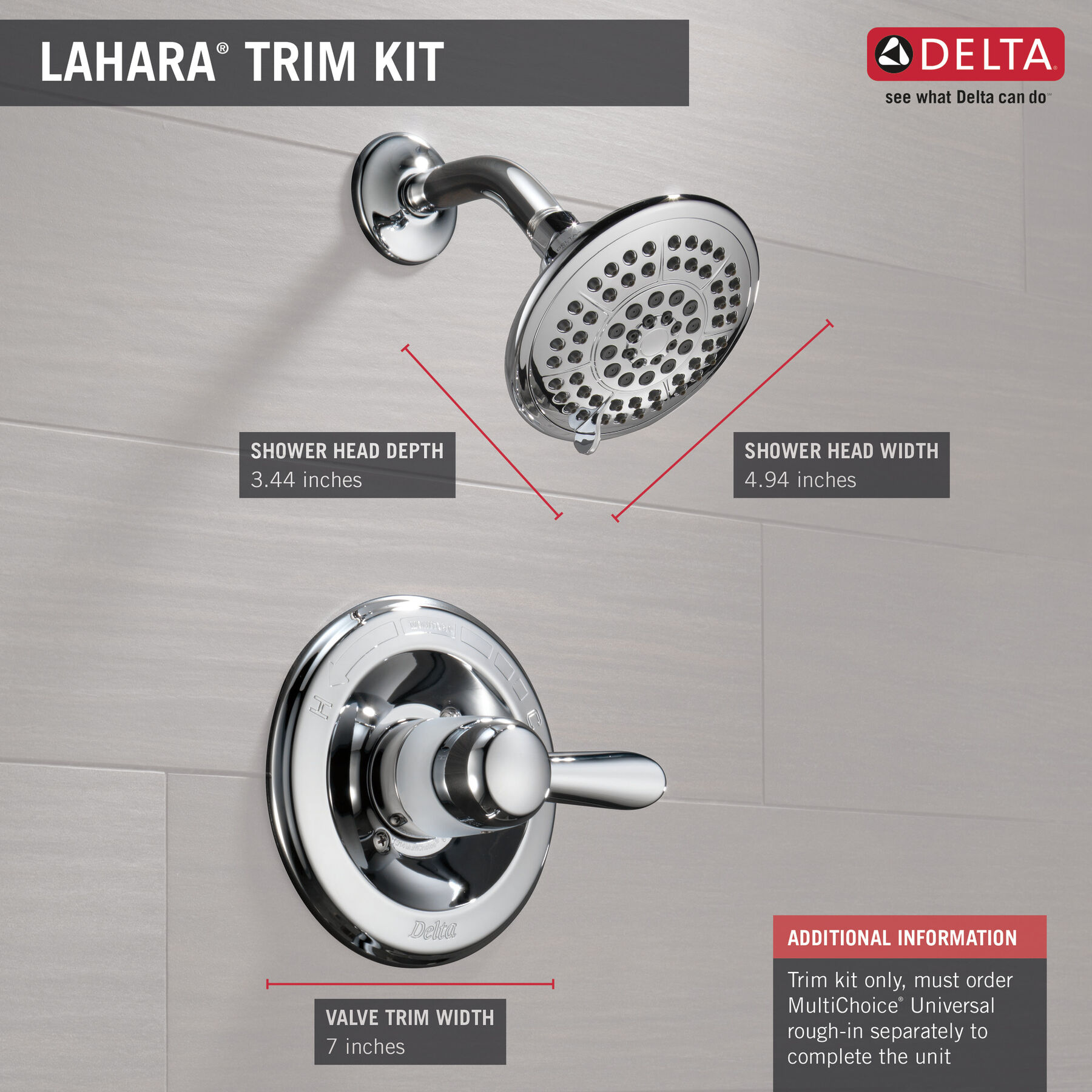

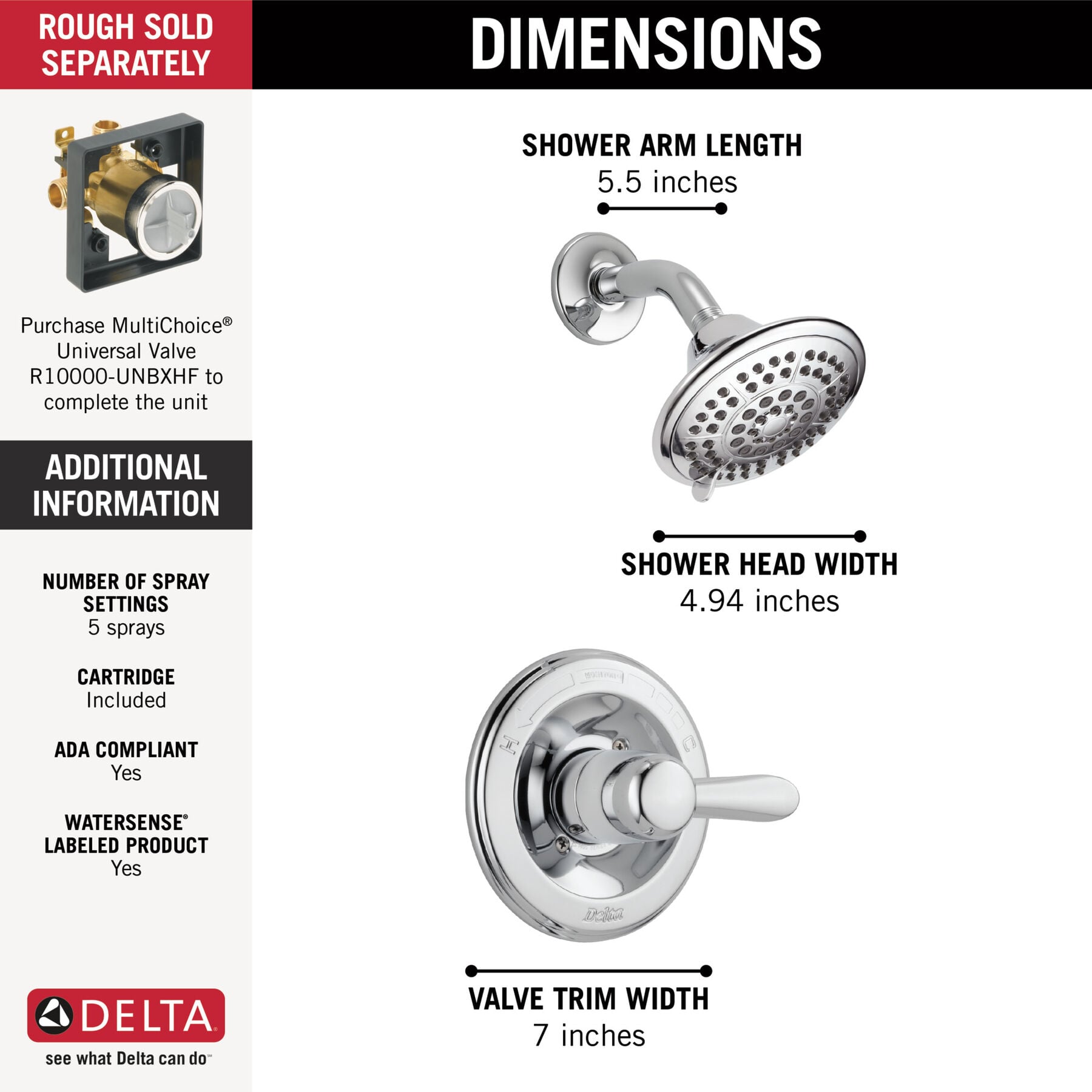

  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit

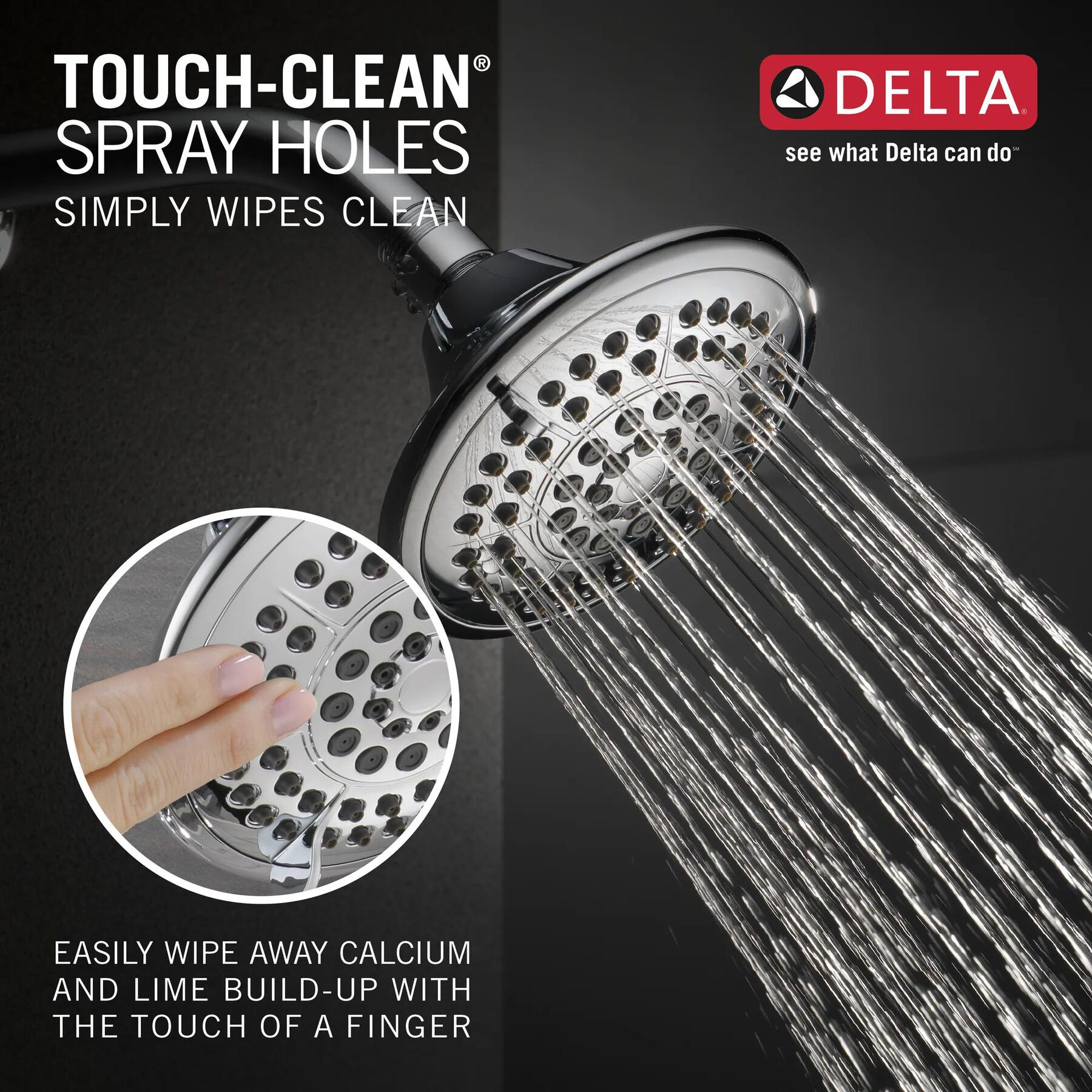

  • Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Single function operation
  • Single lever handle for ease of temperature control
  • Meets standards set by Americans with Disabilities Act (ADA)
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
9-1/2
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Quality product Better quality than retail stores. Worth every penny to go to plumbing supply center
Date published: 2025-09-12
Rated 4 out of 5 by from Replacing brass trim with stainless I saved almost half of the cost I would have paid to a plumbing shop. I needed to change to color of the shower trim plate and controls. Know what you are looking for...
Date published: 2025-02-23
Rated 3 out of 5 by from No hot water The on of valve had a limiter on it. The water would not get hot. I don’t know why anyone would put a limiter on a valve. Had to have a plumber adjust it just so I could get hot water. It was a pain!!!
Date published: 2024-12-23
Rated 3 out of 5 by from Delta shower facia, valve and head Water flow was greatly reduced. Appearance was great.
Date published: 2023-12-09
Rated 2 out of 5 by from Remodel 2023 Wish shower head was square
Date published: 2023-05-09
Rated 5 out of 5 by from Great shower fixture! Great product! It looks classy and is very functional for our purposes
Date published: 2022-11-30
Rated 5 out of 5 by from Perfect Put in the lower level bathroom.
Date published: 2022-06-07
Rated 4 out of 5 by from Pretty but not the best This shower trim set is aesthetically pretty, and I do want to thank this website/store for delivering in an extremely timely manner. However, the trim itself is very cheap. I had this set and another set and had the plumber choose. Despite me preferring the finish on this (champagne bronze), the set itself feels way too flimsy, with a sort of foamy, thin, plastic type liner on the inside of the shower trim. The other brand had a thick strip of water resistant foam. Due to the excellent and honest shipping time, I will be purchasing from here again but this particular item is going back.
Date published: 2022-02-12
  • y_2026, m_6, d_11, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_45
  • loc_en_US, sid_T14238, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Will monitor 14 trim kits fit 600 models?

Asked by: Artman
Thank you for your question, Artman. This trim will work with a MultiChoice R10000 Rough-In Valve or an existing 1400 Series valve and cartridge (RP19804). If you have a 600 Series, the valve will first need to be replaced. However, you can update the 600 Series trim using the RP54870 Renovation Kit. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP54870 Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

How to increase water pressure

How can you increase the water pressure with these units? Thanks,
Asked by: Todd
Thank you for your question. Delta Faucet model # T14238 is a single function pressure balanced cartridge shower system. The user is only changing the temperature of the faucet. The volume or water pressure cannot be changed. We do manufacture a system where you can change the temperature and the volume with model # T17238.
Answered by: Delta1
Date published: 2024-03-28

Does this product have a temperature sensor? We cannot get hot water to the shower but have it everywhere else.

Asked by: Greg
Hi Greg, Thank you for your question. This unit has a pressure balance cartridge to maintain a consistent temperature (+/- 3 degrees). It does not sense the temperature. If you are not able to get hot water, please adjust the Rotational Limit Stop. This will allow you to adjust how fare the handle will rotate to the hot side. https://www.deltafaucet.com/video-gallery/video-page?videoId=n2_uZ7wgV1I Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-06-23

Will it fit, and do I need accessories

I have a Delta Pro 1400 series shower (no tub) that's about 15 years old. I'm renovating the shower, and would like to purchase the Lahara T14238. Will this fit the current delta valve? thanks,
Asked by: Toan
Thank you for your question. Delta Faucet model # T14238-RB will work with your existing valve except for the new cartridge that comes with the valve. You will want to use your old cartridge with your older valve. If that also needs replaced, then you will need to order Delta Faucet model # RP19804.
Answered by: Delta1
Date published: 2024-03-28

HOW DO YOU SET THE SHOWER HEAD ON THE T14238-SS. I TRIED, BUT ANYWAY I TURN IT, NOTHING CHAGES. IT COMES OUT LIKE A POWER WAHSER. PAINFUL ON SKIN.

Asked by: Julie
Hello Julie, Thank you for your question! You can rotate the face of the shower head using the thumb tab to change the 5-spray settings. This shower shower head that comes with the Delta Lahara 14 Series Shower T14238-SS model spray settings include: Full Body spray, Full Spray with Massage, Massaging spray, Soft Drench with Full spray and the Pause feature. Please feel free to call, email, or message us on social, if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Tanya
Date published: 2024-03-28

Does the T14238RB have a companion sprayer wand?

Asked by: metatum
Hi metatum, Thank you for your question! Unfortunately there is not a specific hand shower exclusive to this model. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-01-31

Install instructions

Asked by: Bob B
Hello Bob B, Thank you for contacting Delta Faucet Company to inquire about the Delta Faucet Single Handle Pull-Out Kitchen Faucet 14 Series Shower Trim, model T14238! I am sorry that this information was not readily available to you; however, I am happy to help you! I have included a link to the installation instructions for the Delta Faucet, model T14238, below. T14238 Install Guide — https://media.deltafaucet.com/MandI/107528%20Rev%20D.pdf Please contact us with any questions or for further assistance. Thank you for being a loyal Delta Faucet customer. Best Regards, Emma
Answered by: Delta7
Date published: 2024-03-28

How do I adjust the light blue scald guard. None of the videos has that one.

Asked by: Larry
  • y_2026, m_6, d_11, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_23
  • loc_en_US, sid_T14238, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 23ms
  • questions, product
PART LIST

PART LIST

1 2 >
Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $38.65 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP51303

Lahara®

Lahara® Tub Spout - Pull-Up Diverter

List Price: $99.70 - $164.80
Free Ground Shipping All Orders $49+

RP51303

Image-Master-RP51304

Lahara®

Lahara® Metal Lever Handle Kit - 14 Series

List Price: $82.15 - $124.40
Free Ground Shipping All Orders $49+

RP51304

Image-RP26853

Delta®

Delta® Allen Wrench - 3/32"

List Price: $4.05
Online Price: $3.24
Free Ground Shipping All Orders $49+

RP26853

1.00 2
Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP47201 Secondary Image-RP47201

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17T Series

List Price: $600.40
Online Price: $480.32
Free Ground Shipping All Orders $49+

RP47201

2.00 35
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP25620

Delta®

Delta® Set Screw

List Price: $6.45
Online Price: $5.16
Free Ground Shipping All Orders $49+

RP25620

4.21 14
Image-RP32104 Secondary Image-RP32104

Delta®

Delta® Cartridge Assembly - Monitor® 17 Series (04/2006 and earlier)

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP32104

4.56 34
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP19809

Delta®

Delta® Escutcheon - 13 / 14 Series

List Price: $77.95 - $235.50
Free Ground Shipping All Orders $49+

RP19809

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.27 102
