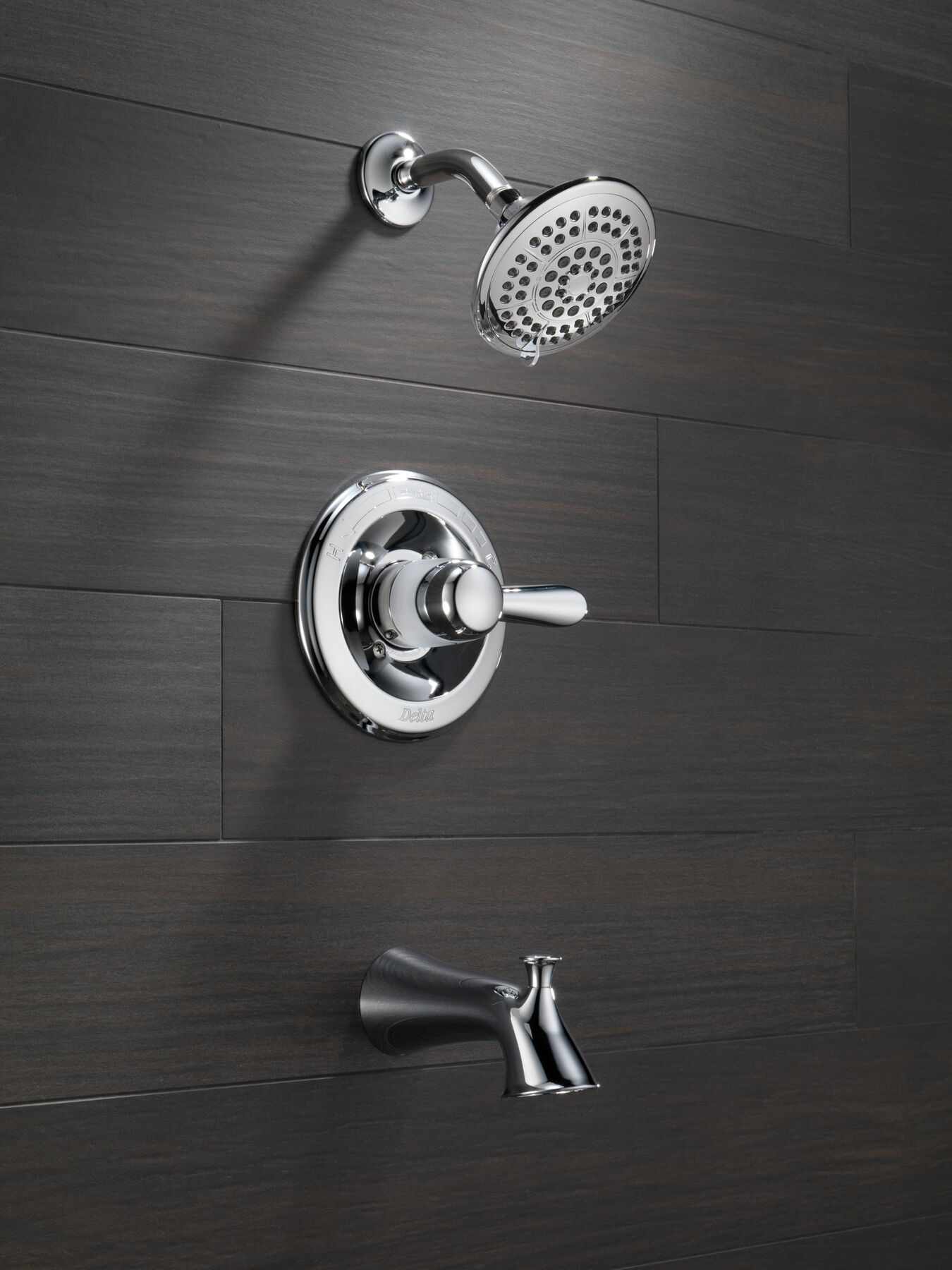

Monitor® 14 Series Tub & Shower Trim in Chrome

Model#: T14438
Add to Favorites
Find local Delta® installers.
Lahara®
View Full Lahara® Bathroom Collection
Monitor® 14 Series Tub & Shower Trim in Chrome
Model#: T14438
List Price: $27130
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Single function operation
  • Single lever handle for ease of temperature control
  • Meets standards set by Americans with Disabilities Act (ADA)
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information

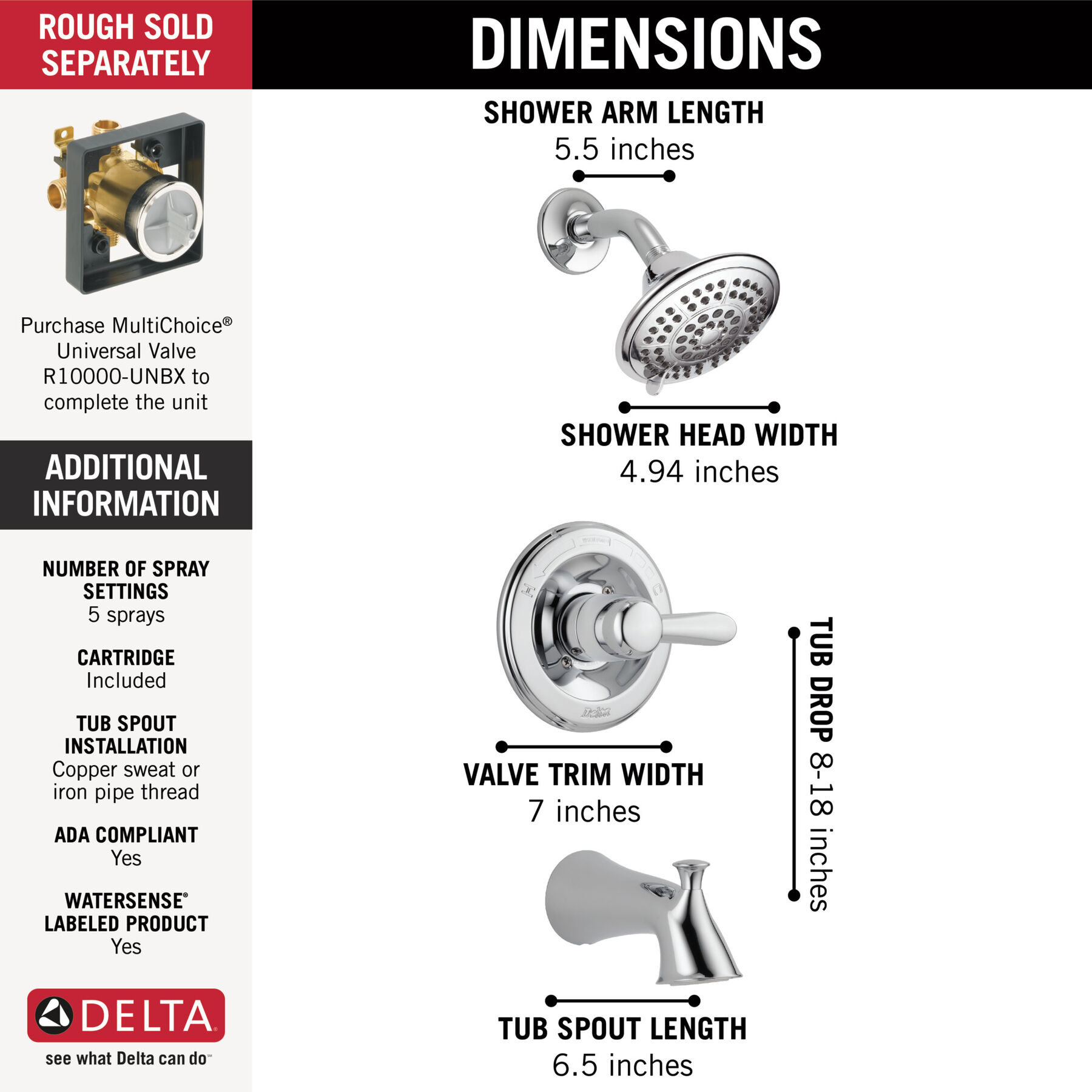

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
13-1/16
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Awesome Great look and functionality.
Date published: 2026-05-15
Rated 5 out of 5 by from Looks great! Beautiful set to replace existing one.
Date published: 2026-01-01
Rated 5 out of 5 by from Great shower system! We needed to update our guest bath shower and this Delta system is great!
Date published: 2024-02-16
Rated 5 out of 5 by from Beautiful shower! We bought the champagne bronze and love the color. These pieces looks wonderful in our new bathroom and works very well. If you don’t want shining gold, this is a good option.
Date published: 2023-07-30
Rated 5 out of 5 by from Easy and helpful Very easy to order and very accommodating when i ordered the wrong part (twice!). Highly recommended.
Date published: 2023-04-20
Rated 5 out of 5 by from Great faucet! It was easy to install and looks great. The faucet and diverter was reasonably priced.
Date published: 2022-05-15
Rated 5 out of 5 by from Delta Plumbing Fixtures Purchased three years ago, we have these Delta plumbing fixtures in a downstairs bathroom. We liked them so much we recently ordered them again. Build Ferguson was a pleasure to work with and shipping was extremely timely!
Date published: 2022-05-10
Rated 5 out of 5 by from Repeat Buyer so it Must be Good! Second bathroom remodel using this series and it works really well. Very happy with the fit, finish and the shower water flow. Tub filler seems a bit light on the tub fill rate but could just be the size of the new tub. Much larger than the previous. There are some screws to adjust behind the trim plate so maybe a visit to the operating instructs are in order as the default may be turned down. Cannot speak highly enough of this Delta faucet series.
Date published: 2022-04-23
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_34
  • loc_en_US, sid_T14438, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

What is the flow rate of the water coming out of the tub spout @ 50 psi?

Asked by: DennyH
Hello Denny H, Thank you for your question. The tub spout port of the Delta Lahara 14 Series Tub/Shower T14438 unit has a maximum flow rate of 8.6 gpm @60 PSI for the R10000-UNBX rough in, however, this means the actual flow rate will depend on the pressure coming into the home. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Can the pull diverter spout that comes with the 14438RB be installed directly to 1/2” copper pipe (not threaded) by using the optional RP33794 Tub Spout Adapter for Slip-On Diverter?

Asked by: huebass
Thank you for your question, huebass! The RP51303 pull up diverter tub spout can be used with the RP33794 adapter which would then need to be sweat onto 1/2" C.W.T. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Is the watersaver flow cartridge changeable to one that allows more flow?

Asked by: dryrunner
Dear Dryrunner, Thank you for your inquiry! The 1.75 gpm @ 80 psi flow rate of the Delta Lahara 14 Series Tub/Shower T14438 unit is in regards to the shower head, not the cartridge assembly. We do make other shower heads with 2 gpm and 2.5 gpm flow rates. https://www.deltafaucet.com/bathroom/showering/showerheads--handshowers Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Will this trim kit fit R10000-MFWS

Asked by: Daryl
Hi, Daryl! Thank you for your question. The Delta Monitor T14438 Tub and Shower Faucet does work with the Delta MultiChoice Universal R10000-MFWS Rough Valve Body. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Can I replace the diverter on the tub spout? Model number is RP51303RB

Asked by: Jeremy
Hi, Jeremy! Thank you for your question. The diverter on the Delta RP51303RB tub spout assembly is not replaceable. If there is an issue with a diverter assembly, the whole RP51303RB tub spout would need to be replaced. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

what is the width of the valve plate model T14438

replacing a chrome 1400 series plate and want to be assured that tile work is not needed
Asked by: Paul

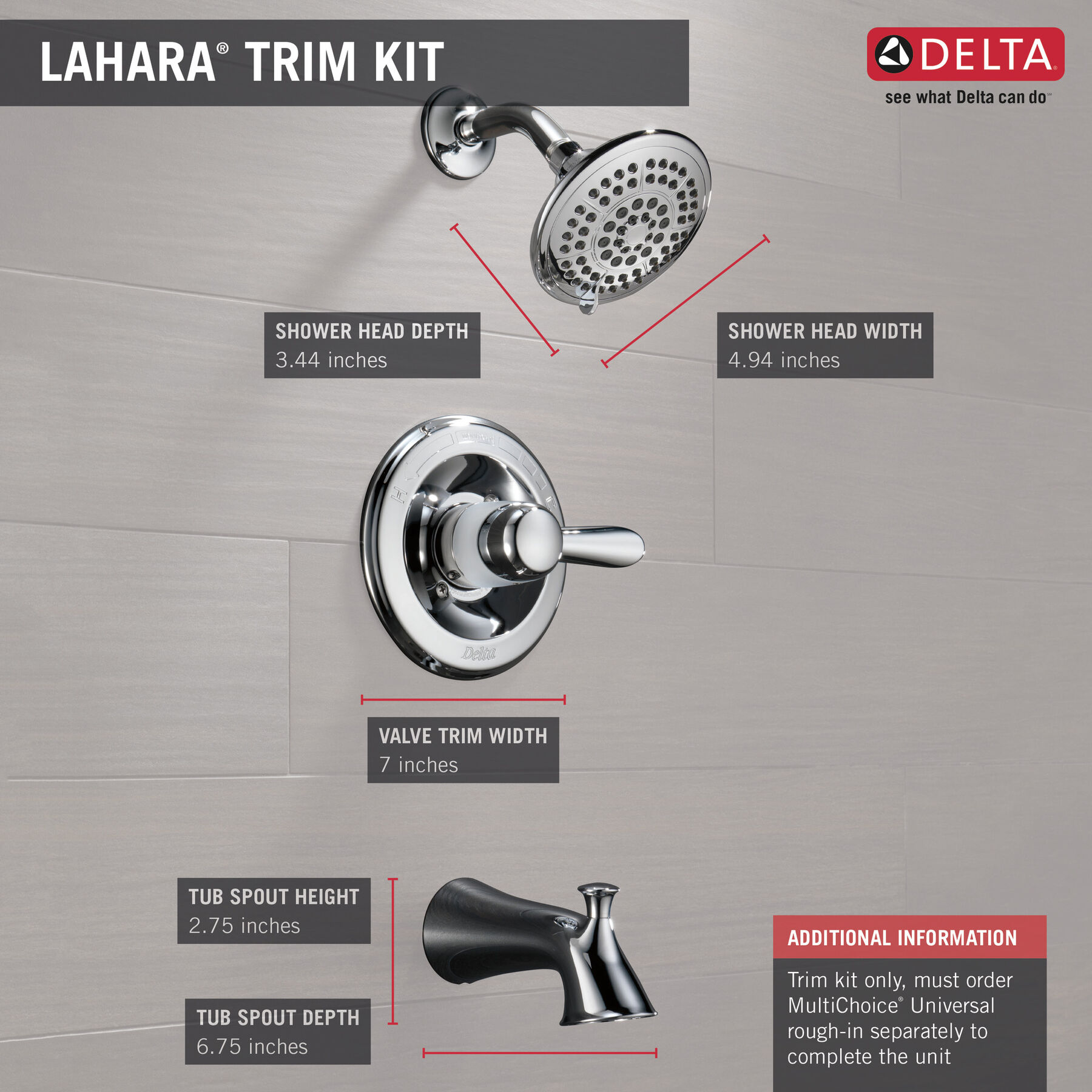

Hi Paul, Thank you for your question. The diameter of the escutcheon plate on the model T14438 is 7". Here is a link to the spec sheet. http://www.deltafaucet.com/customersupport/documentation/t14438.html?document=ts&fromDetailArea=bath&documentIndex=0#flashWrapper Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Can I get a copy of installation instructions

Asked by: Pita
Hi Pita, thank you for contacting Delta Faucet Company! The maintenance and Installation instructions rae available with the product as well as the website. Please refer to the Maintenance and Installation instructions and the Parts Diagram links below for reference. M&I: https://media.deltafaucet.com/MandI/107528%20Rev%20D.pdf Parts Diagram: https://media.deltafaucet.com/PartsDiagram/DPD-B-T14038_A.pdf We appreciate your inquiry. Please reach out directly with further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

The connections have ½" MPT threads, and will also suit nominal ½" hard copper, correct? Also: the square frame around the valve is strictly for mounting the valve and has nothing to do with the wall opening, correct? What parts are plastic if any?

Asked by: 1940LaSalle
Thank you for your questions 1940LaSalle. The tub spout can be installed by sweat onto 1/2" C.W.T. or thread onto 1/2" IPS. The T14438 does not include a valve body. The square plaster guard on the R10000 valve body can be removed but is helpful to position the valve. The tub spout and showerhead include non-metallic parts. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_19
  • loc_en_US, sid_T14438, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 37ms
  • questions, product
