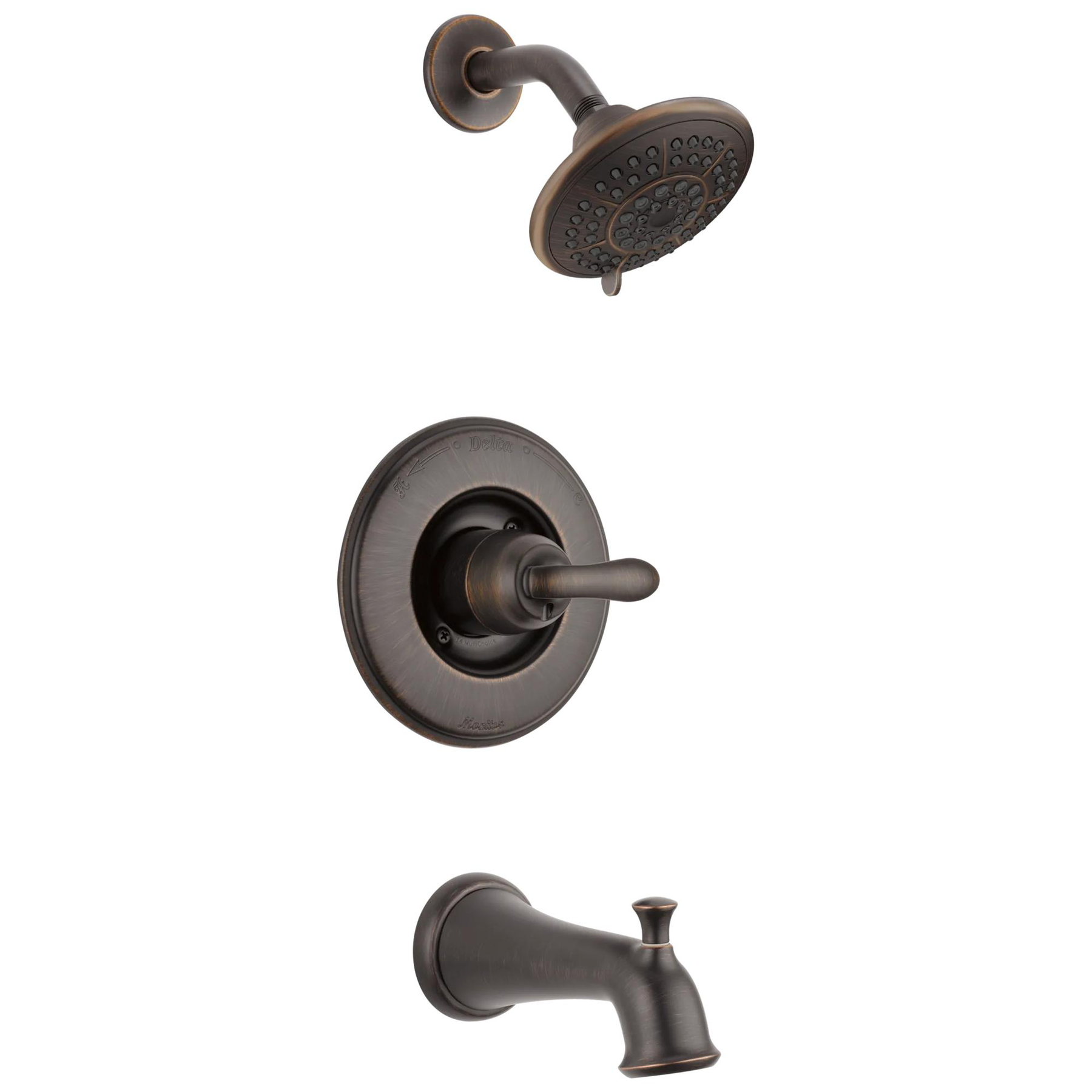

Monitor® 14 Series Tub & Shower Trim
Model#: T14494-RB
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim
Monitor® 14 Series Tub & Shower Trim

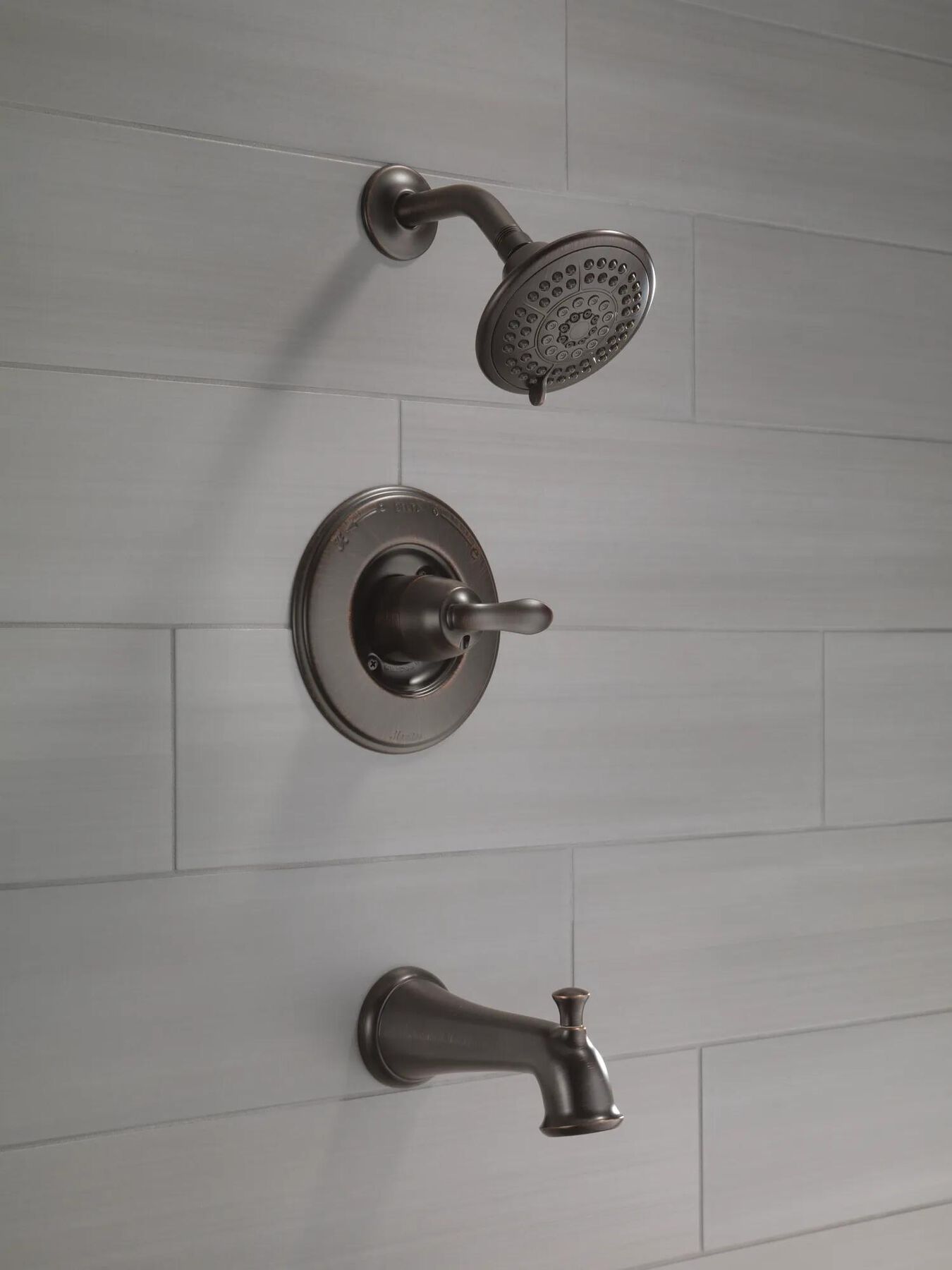

Linden™
Monitor® 14 Series Tub & Shower Trim
Model#: T14494-RB
Finish: Venetian Bronze
List Price*: $295.05
PRODUCT FEATURES
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure

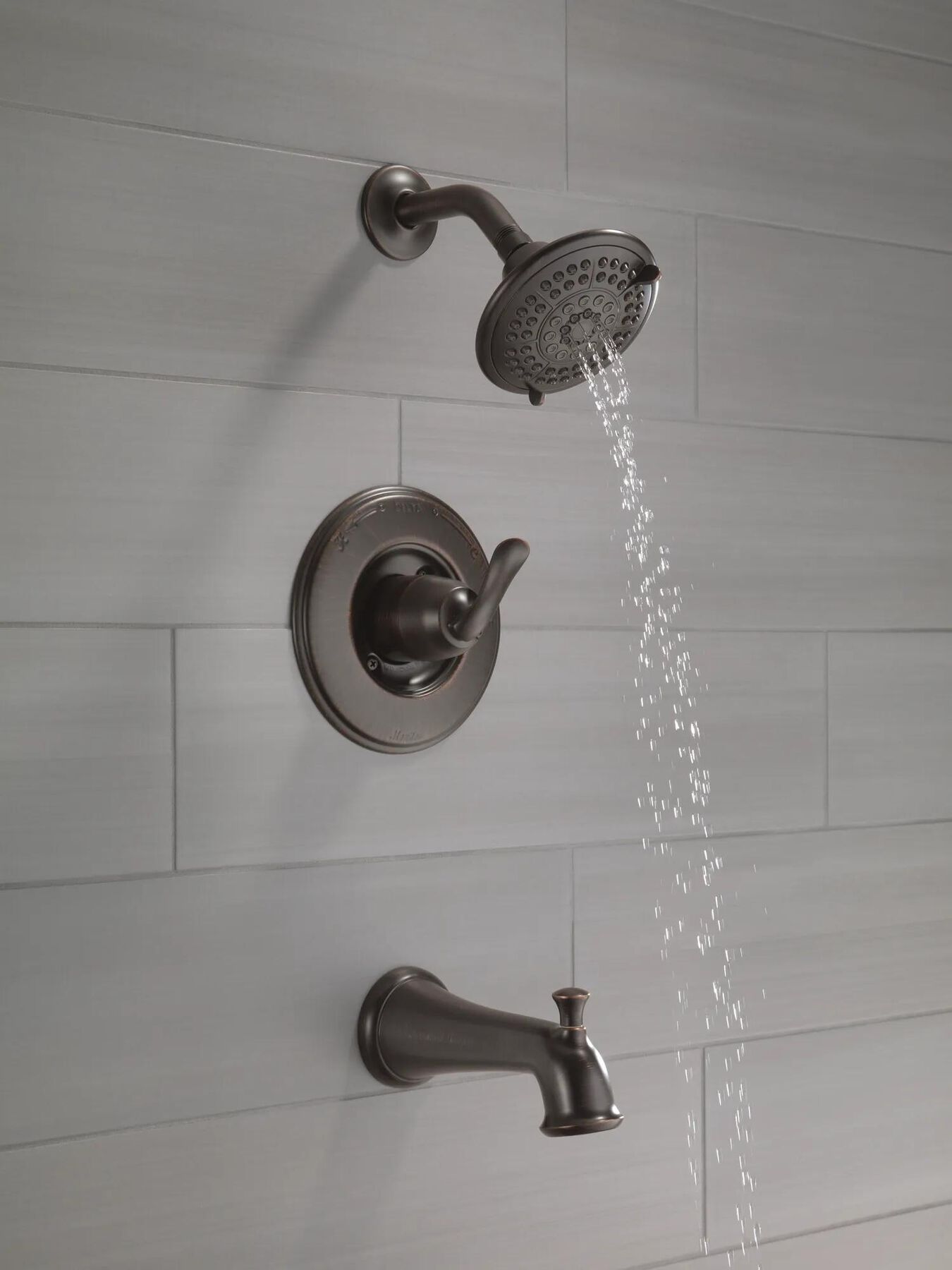

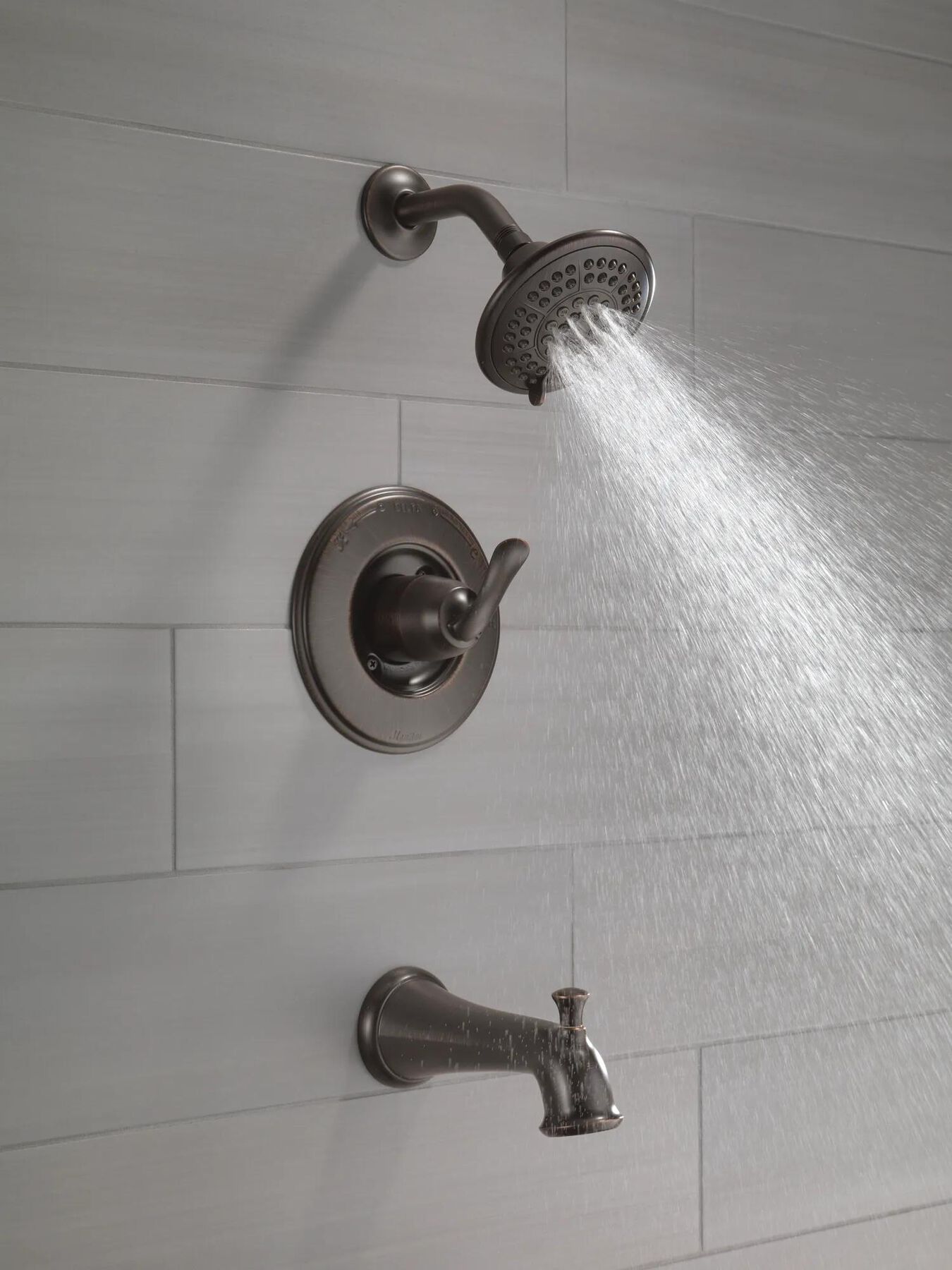

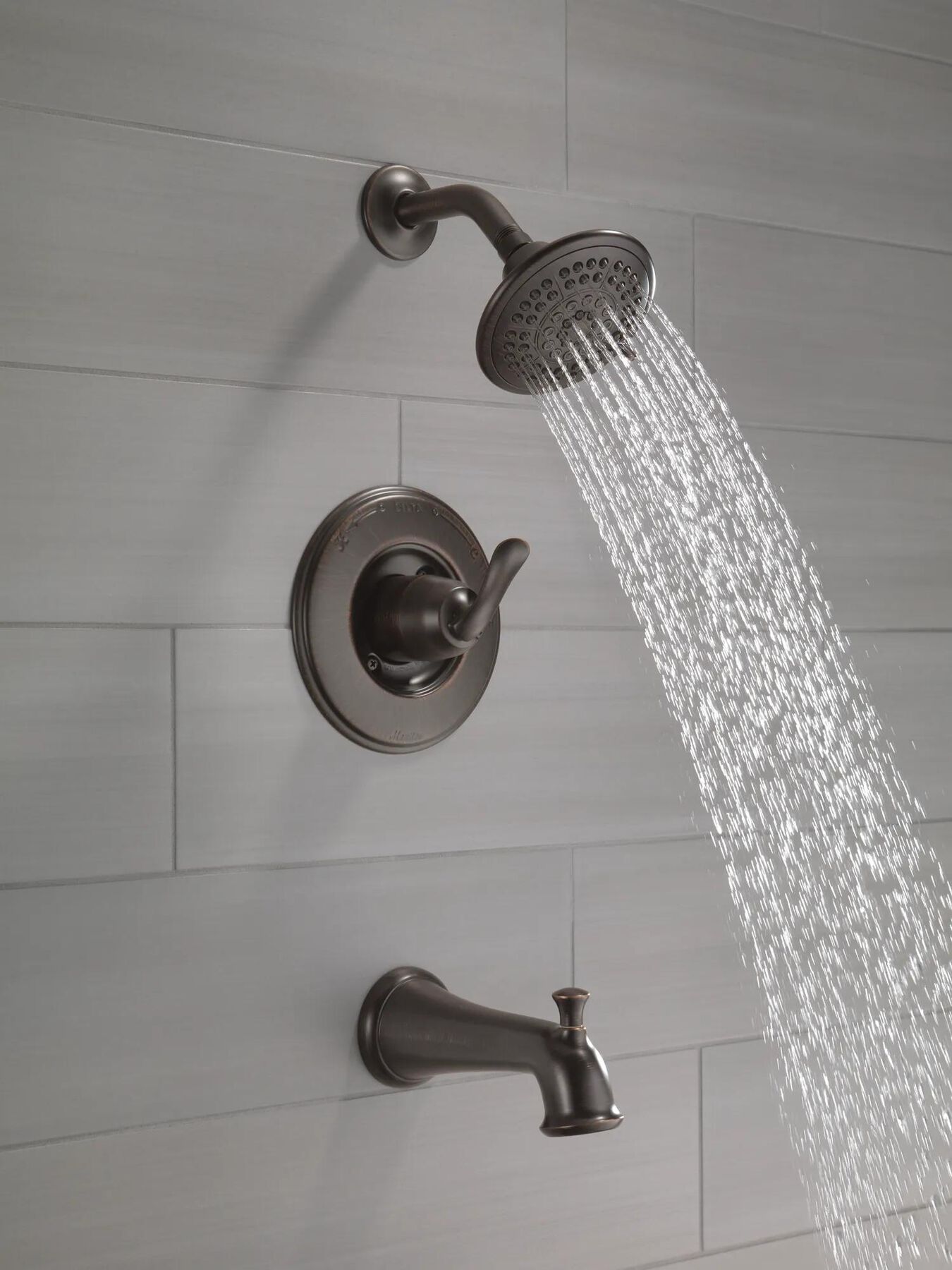

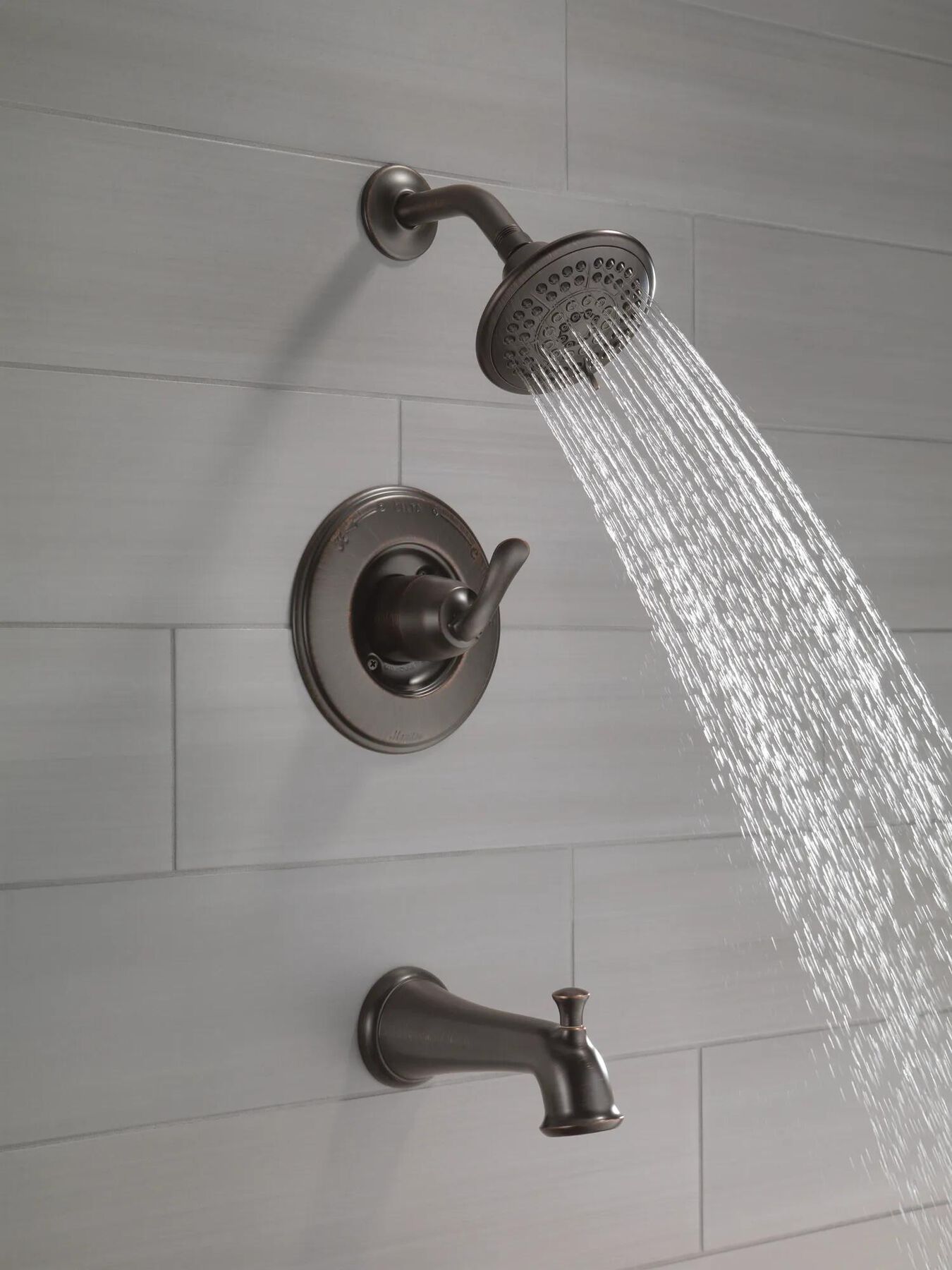

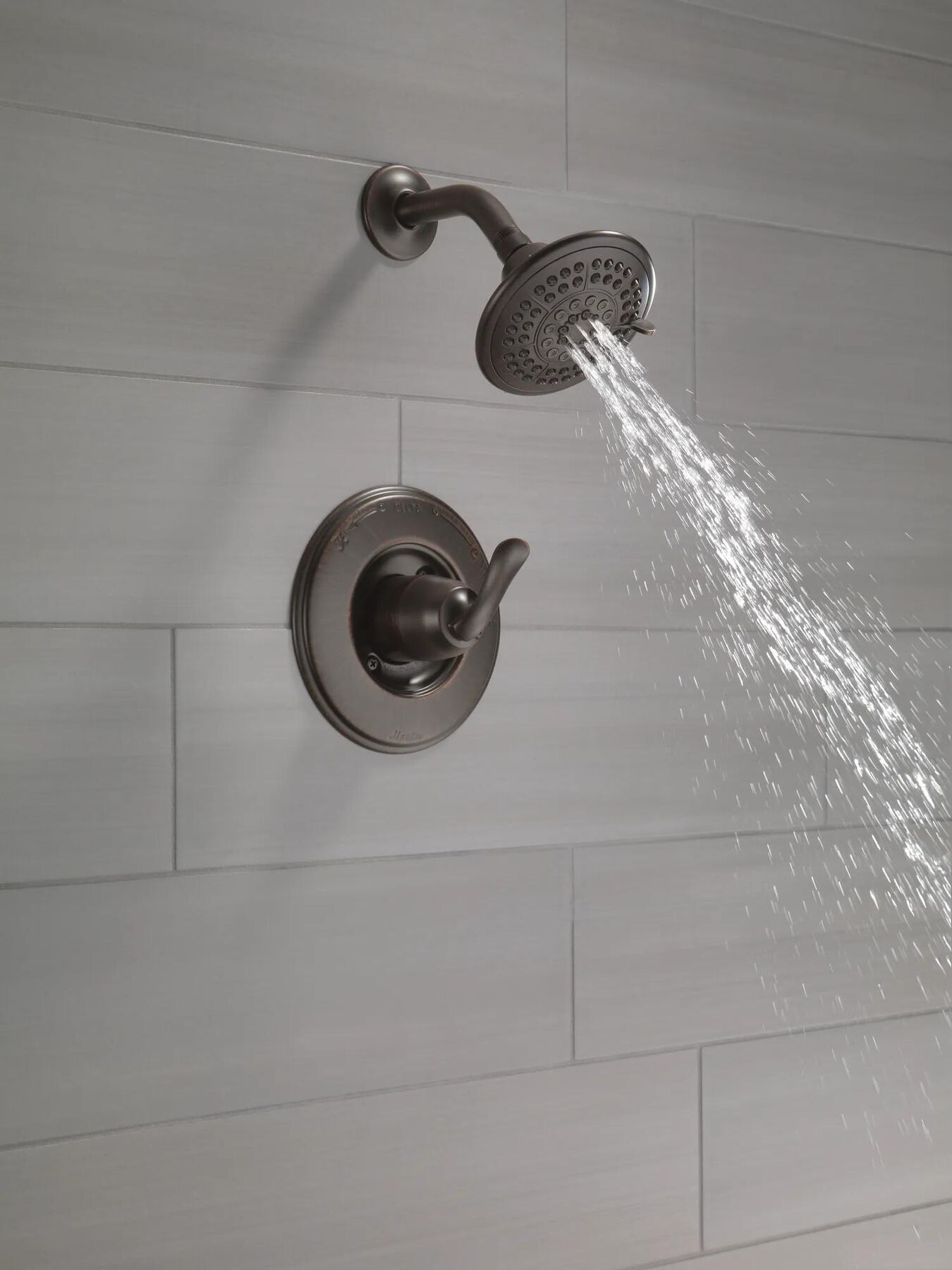

  • Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray

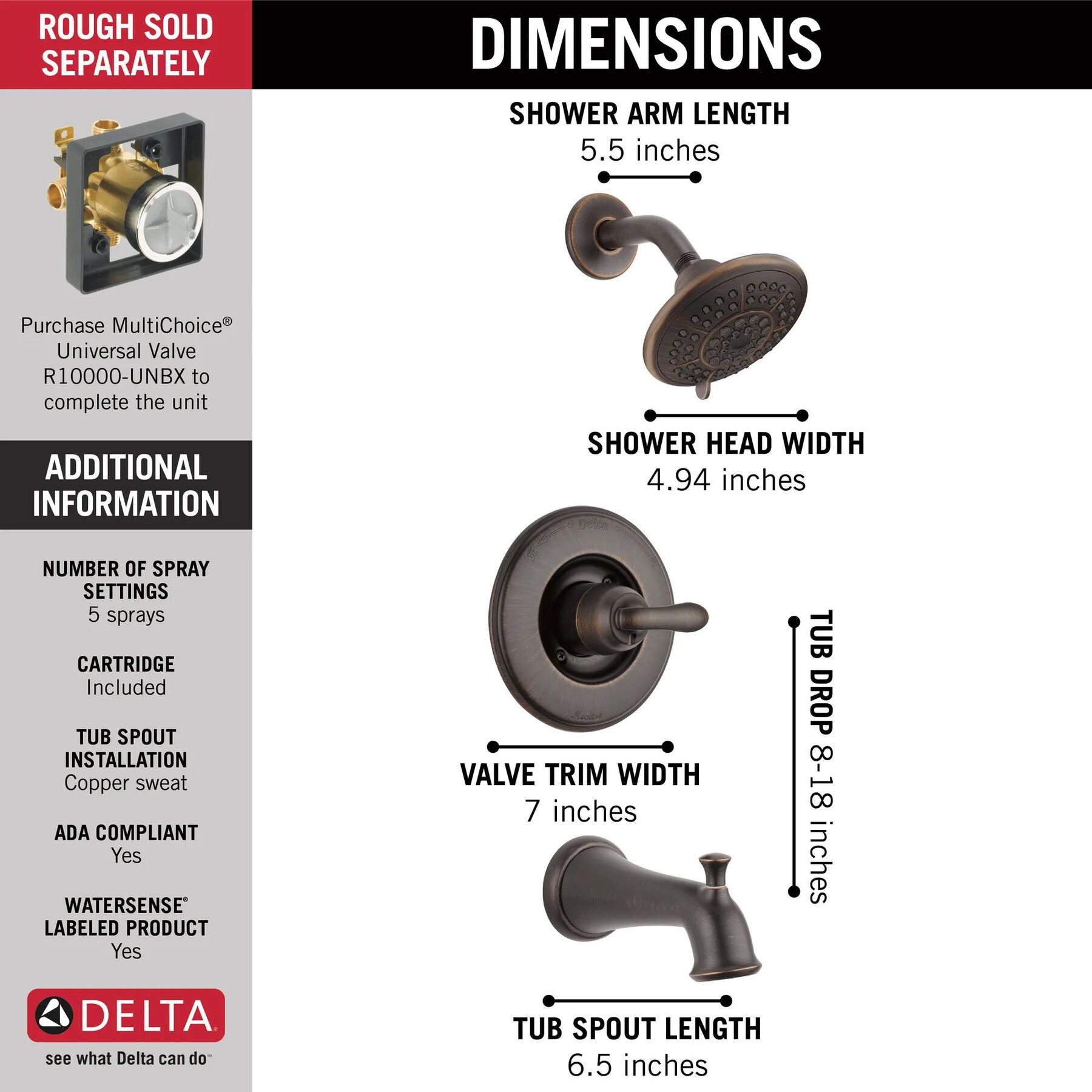

  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit

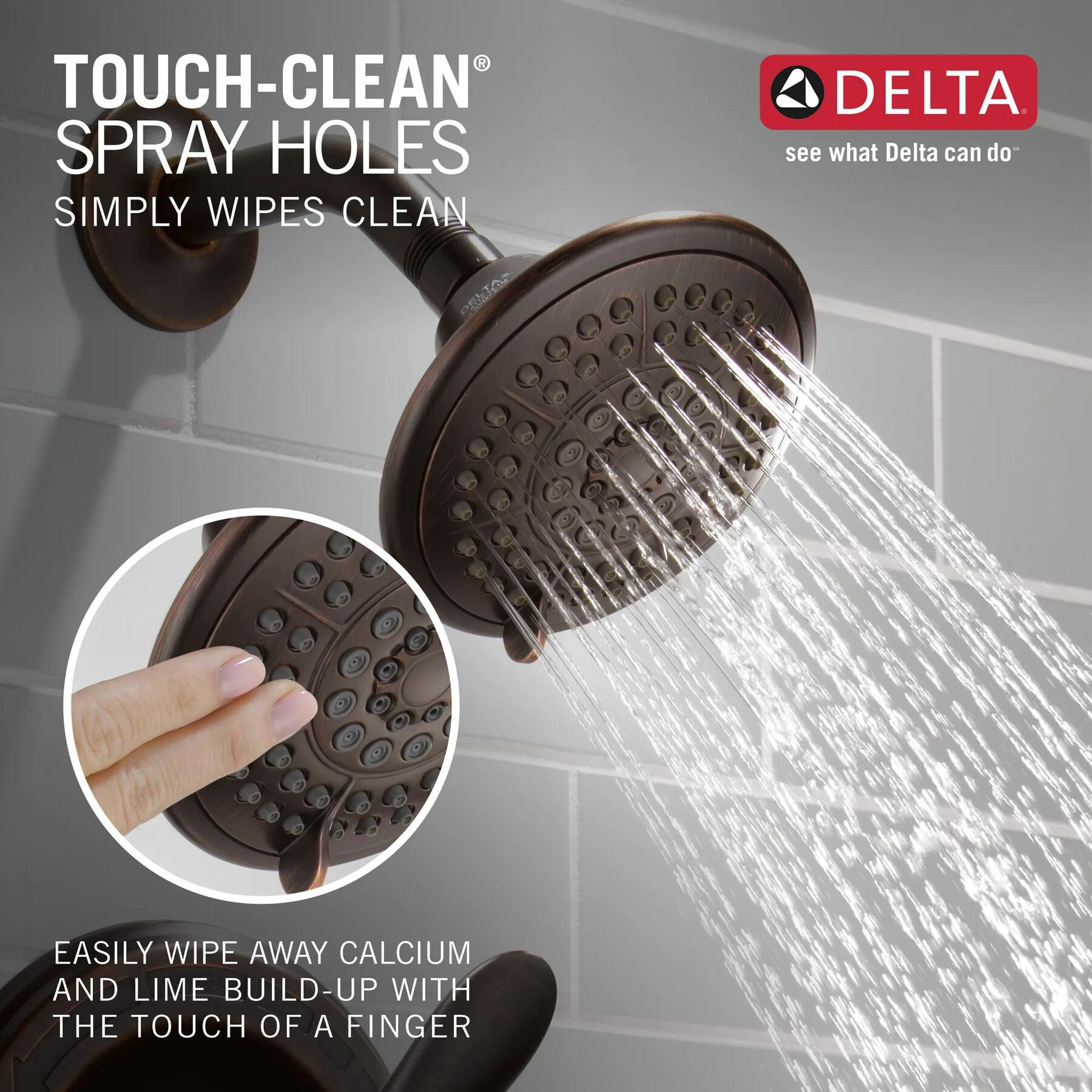

  • Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Single function operation
  • Single lever handle for ease of temperature control
  • Meets standards set by Americans with Disabilities Act (ADA)
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Monitor Valve protects from rapid changes in hot or cold water
  • 5-setting shower head
  • Valve is not included, must purchase separately
Eco-Friendly
WaterSense® Labeled
Technology
California Prop 65 WARNING
SUPPORT
PART LIST

PART LIST

REVIEWS
Rated 1 out of 5 by from Thes monitor and scalding 'technology' is not needed. These 'safety' features are not needed and in fact these features are more likely to fail as like thermostats they wear out faster. You don't need these pressure monitoring 'technology' it shuts off and you have to wait like an hour for it to ' rebalance'. Theball valve faucet 'technology' has not changed since the 60's and 50's and it's perfect and genius design compared to the old seat faucet cartridges using 'washers' which had to be replaced every year. . . Adding new 'safety' technology is not necessary.. Durability is more important less garbage and wasted time replacing parts that may be discontinued and you have to replace entire plumbing which cost thousands. These plumbing suppliers make majority of their revenue from 'NEW' construction' and selling garbage to new home buyers that will see their plumbling break or malfunction in 10 years instead of 25 years. causing more wasted time and money and garbage in the landfills.
Date published: 2021-01-15
Rated 2 out of 5 by from Not a star I’m not impressed with the Delta products we used in our 2 bathroom remodel. The water temperature is hard to control. I prefer Koehler or Moen.
Date published: 2020-12-12
Rated 5 out of 5 by from OOPS The drain trim doesn’t come with it.
Date published: 2020-11-14
Rated 1 out of 5 by from I placed these items in my guest bathrooms, and the items look nice, but the brilliance stainless finish is awful. The water spots left on it, after just one use, is terrible. And it' hard to clean off. I ordered this finish for my master bathroom remodel as well, but will be returning them. Bummer because I've already installed the rough in valves in master so I have to stick with Delta products.
Date published: 2020-03-21
Rated 5 out of 5 by from Great Set Received this bath faucet set and just love it. The quality is outstanding. The color is great and matches perfectly for what we have with our other sinks and fixtures. The rubbed oil bronze doesn't peel or crack when cleaned and scrubbed with a hard bristle brush. This was also extremely easy to install and the instructions were super easy to follow.
Date published: 2020-02-18
Rated 5 out of 5 by from Absolutely Stunning! If you love the farm house and rustic style looks, then this is the perfect accent to your bathroom. Not only was the install fairly easy, the look when it's finished is even better. The finish on the shower pieces themselves is stunning! The shower handle is easy to maneuver and the shower itself is easily adjustable! The perfect touch to a rustic home!
Date published: 2020-01-30
Rated 5 out of 5 by from Absolutely Stunning! I am utterly stunned with how beautiful the finish on the pieces looks. It completely changed the entire look of my shower! The finish is smooth and rustic and beautiful. The install was not as difficult as I thought it would be, especially for not being a professional. But the instructions were spot on. It's easy to use, the control lever maneuvers easily. So happy with the improved shower look! If you love the rustic look and feel, this is the perfect piece to accent it out in the bathroom!
Date published: 2020-01-30
Rated 5 out of 5 by from Looks great This is a great addition to make my bathroom look amazing. I the installation was very easy and didn't take too long at all. I am also very pleased with the pressure and the ease of operating the temperature.
Date published: 2020-01-29
  • y_2021, m_2, d_28, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_35
  • loc_en_US, sid_T14494-RB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

I have a Delta Monitor 14 series tub/shower... with what looks like the Monitor 1300/1400 cartridge RP19084/Pre 2006.   What fixture can i order that uses the same cartridge.  I need a complete Oil bronze kit, due to location i can't replace valve body.

Asked by: John
Hello John, Thank you for your question. As long as the screw holes on your large round escutcheon plate are at the 1 and 7 o'clock positions and you do not have a push button shower diverter directly below the off and on handle, then the Delta Linden Tub and Shower T14494-RB (Venetian Bronze) trim kit and any of our other trim kits that start with a T13XXX-RB/OB or a T14XXX-RB/OB (Oil-Rubbed Bronze) will interchange for you. The cartridges that come with the new trim kits will not fit your valve body, so you will need to reuse your existing cartridge (RP19804). https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets Best regards, Tanya
Answered by: Tanya
Date published: 2018-04-17

I have a Delta Monitor 14 series tub/shower... with what looks like the Monitor 1300/1400 cartridge RP19084/Pre 2006.   What fixture can i order that uses the same cartridge.  I need a complete Oil bronze kit, and due to location i can replace valve body.

Asked by: John
Hello John, Thank you for your question. As long as the screw holes on your large round escutcheon plate are at the 1 and 7 o'clock positions and you do not have a push button shower diverter directly below the off and on handle, then the Delta Linden Tub and Shower T14494-RB (Venetian Bronze) trim kit and any of our other trim kits that start with a T13XXX-RB/OB or a T14XXX-RB/OB (Oil-Rubbed Bronze) will interchange for you. The cartridges that come with the new trim kits will not fit your valve body, so you will need to reuse your existing cartridge (RP19804). https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets Best regards, Tanya
Answered by: Tanya
Date published: 2018-04-16

Plastic or Metal?

Is the tub spout made of plastic or metal?
Asked by: eagercolin
Dear EagerColin, Thank you for your question. The tub spout that comes with the Delta Linden Tub/Shower T14494 model is non metallic. We do not make this tub spout style in metal. Best regards, Tanya
Answered by: Tanya
Date published: 2016-10-12

Rough valve

1. Can you please provide the part number for the Rough Valve I need to go with the Linden Monitor 14 Series Tub and Shower Trim? 2. Is there anything else from Delta I need to purchase for this? thanks- Paul //
Asked by: Paul
Hi Paul, Thank you for your question. The rough in valve needed for your model T14494-SS is the R10000-UNBX. You will not need any additional items from Delta for your faucet. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2015-05-29

Do you have a part number for the tub drain and overflow cover?

Something that matches this T14494-SS Shower head trim kit.
Asked by: Jared
Thank you for your question, Jared. The RP31556 Overflow Plate or RP31555 Trip Lever Overflow Plate. https://www.deltafaucet.com/for-professionals/product-resources/product-resource-search-tool?searchTerm=overflow+screw Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-11-06

We purchased an older home and need to upgrade the tub/shower kit. What is in now is a Delta so the plumber told us we had to replace it with Delta and gave us this number. Do you make other models in metal that would fit? No plastic please.

Asked by: Wilma9918
Thank you for your inquiry, Wilma9918! Delta does not manufacture any tub and shower faucets that are made of all metal. However, all of our current available faucets are shown on our website at www.deltafaucet.com. Best regards, Tanya
Answered by: Tanya
Date published: 2018-05-07

My plumber insists the tub spout for this model should have come with a set screw and one did not come with it. Does the tub spout need a set screw? Thanks,

Asked by: Carolyn76
Hi, Carolyn76! Thank you for your question. The tub spout assembly for theDelta Monitor T14438 faucet is part number RP51303. This tub spout does not need a set screw as it can be sweated onto 1/2" C.W.T. or threaded onto 1/2" IPS. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-10-11

Volume control?

According to the Lowes website, this unit has "Metal lever handle adjusts volume and temperature". I only see one handle. Does it adjust volume and temp seperately? How with only one handle?
Asked by: Richard
Thank you for your question. Delta Faucet model # T14494-SS has one handle and that handle only controls temperature. The volume cannot be controlled. We appreciate you letting us know about the Lowes site and we will get that information changed.
Answered by: Delta
Date published: 2013-10-22
