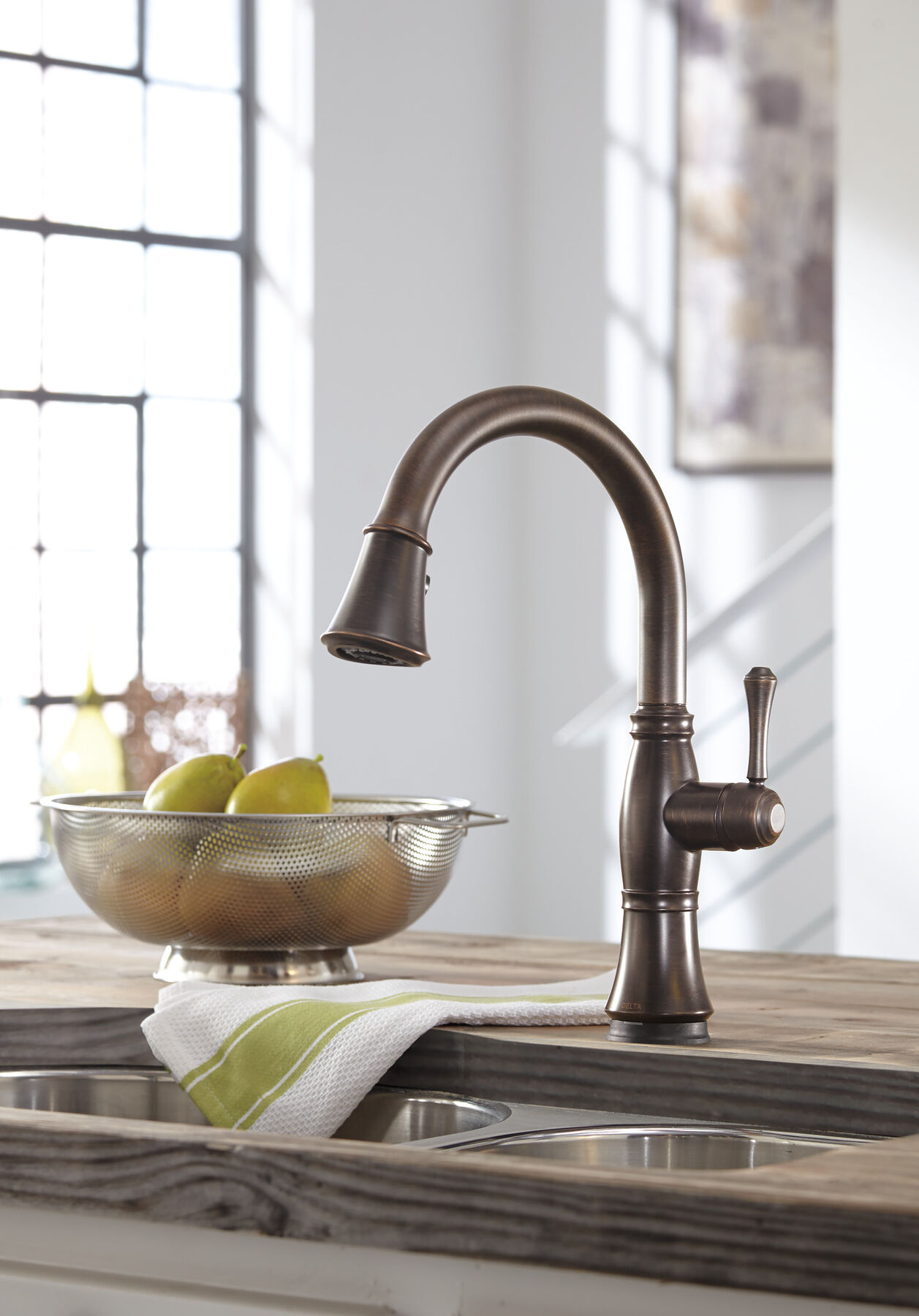

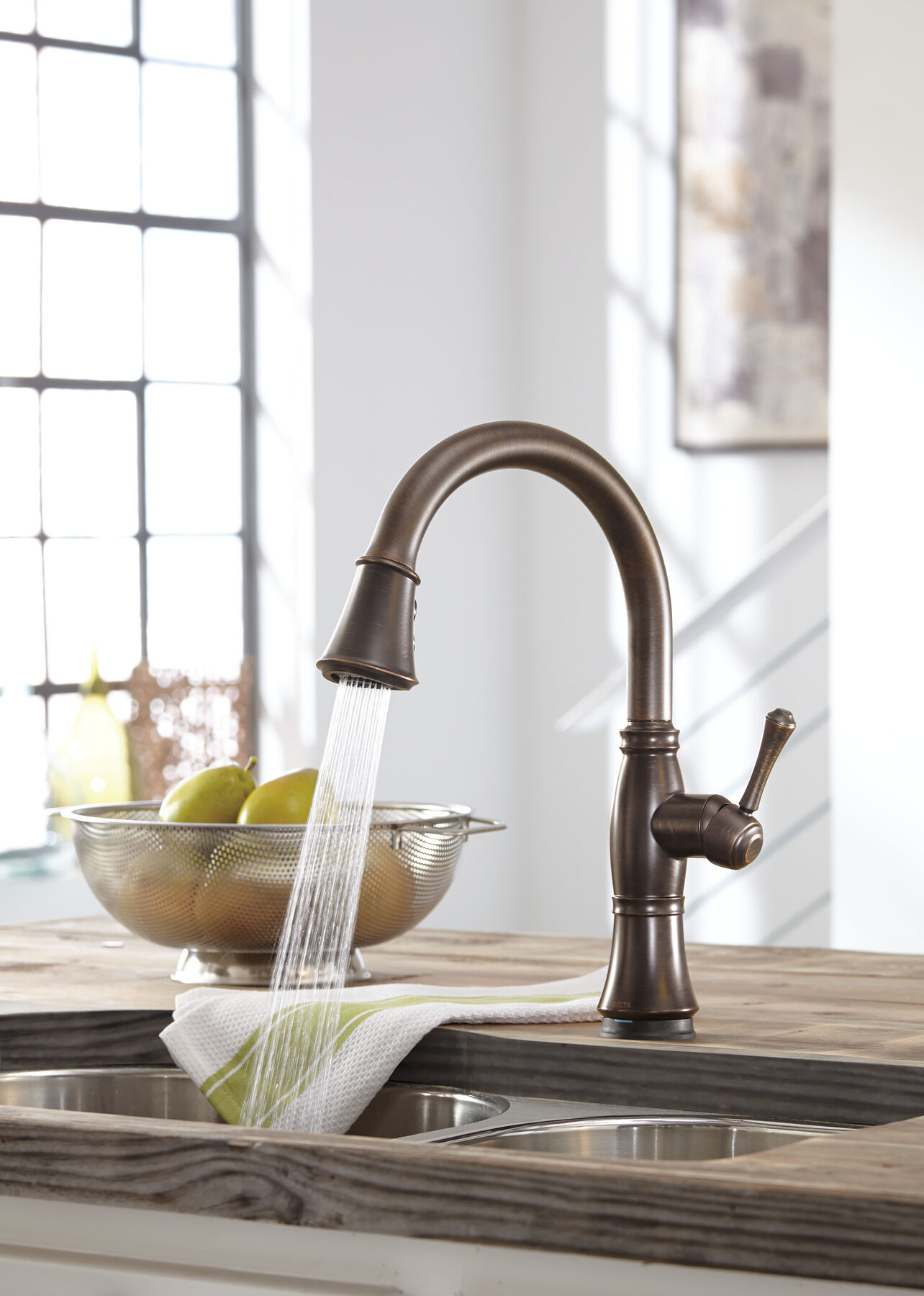

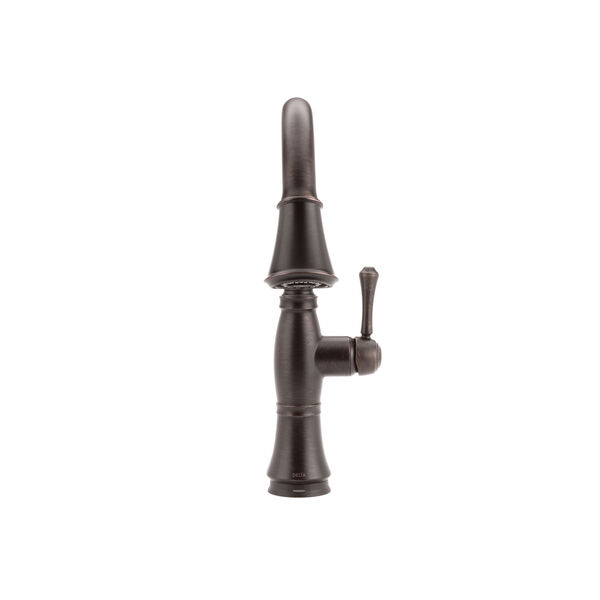

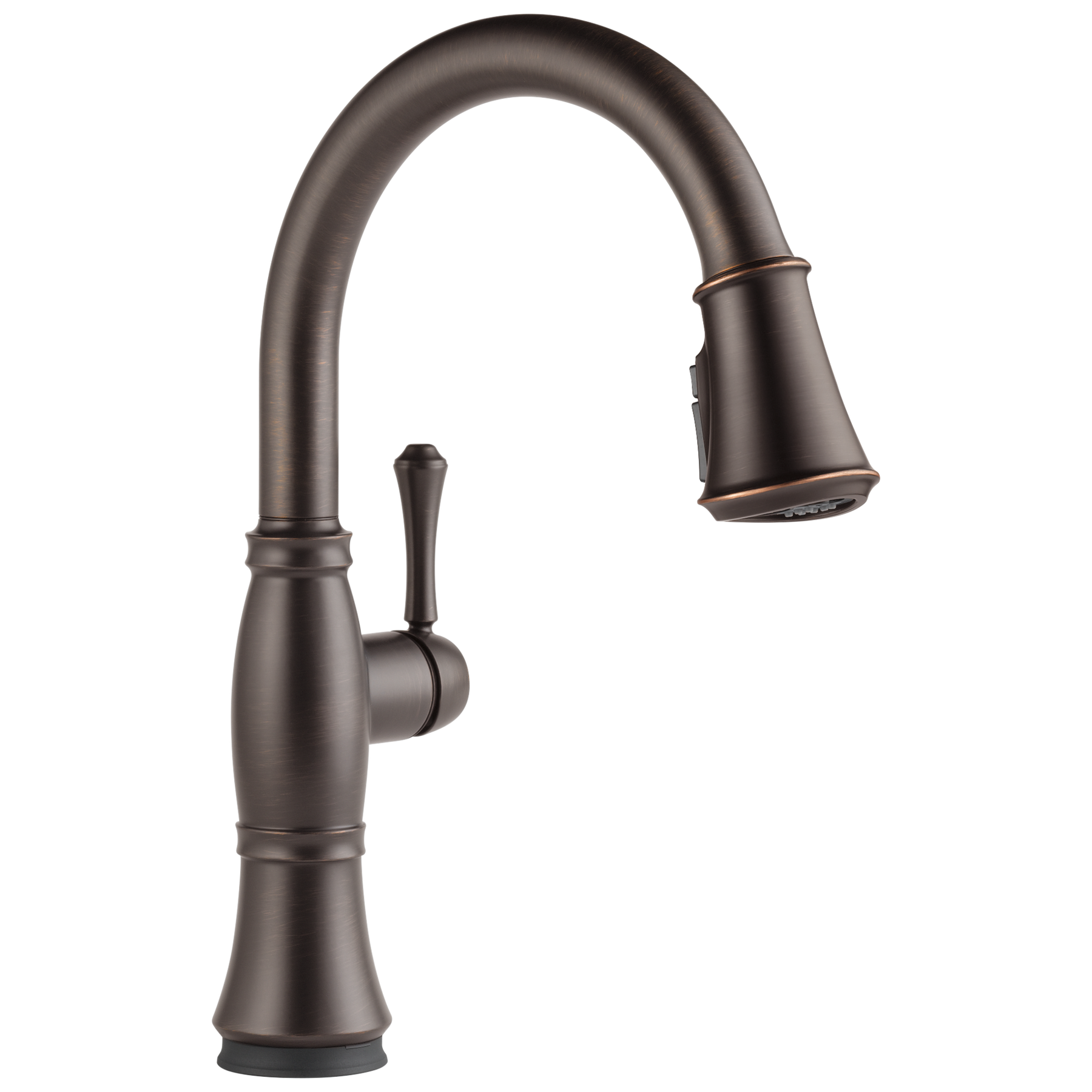

Cassidy™
Single Handle Pull-Down Kitchen Faucet with Touch<sub>2</sub>O® and ShieldSpray® Technologies
Model#:
9197T-RB-DST
PRODUCT FEATURES

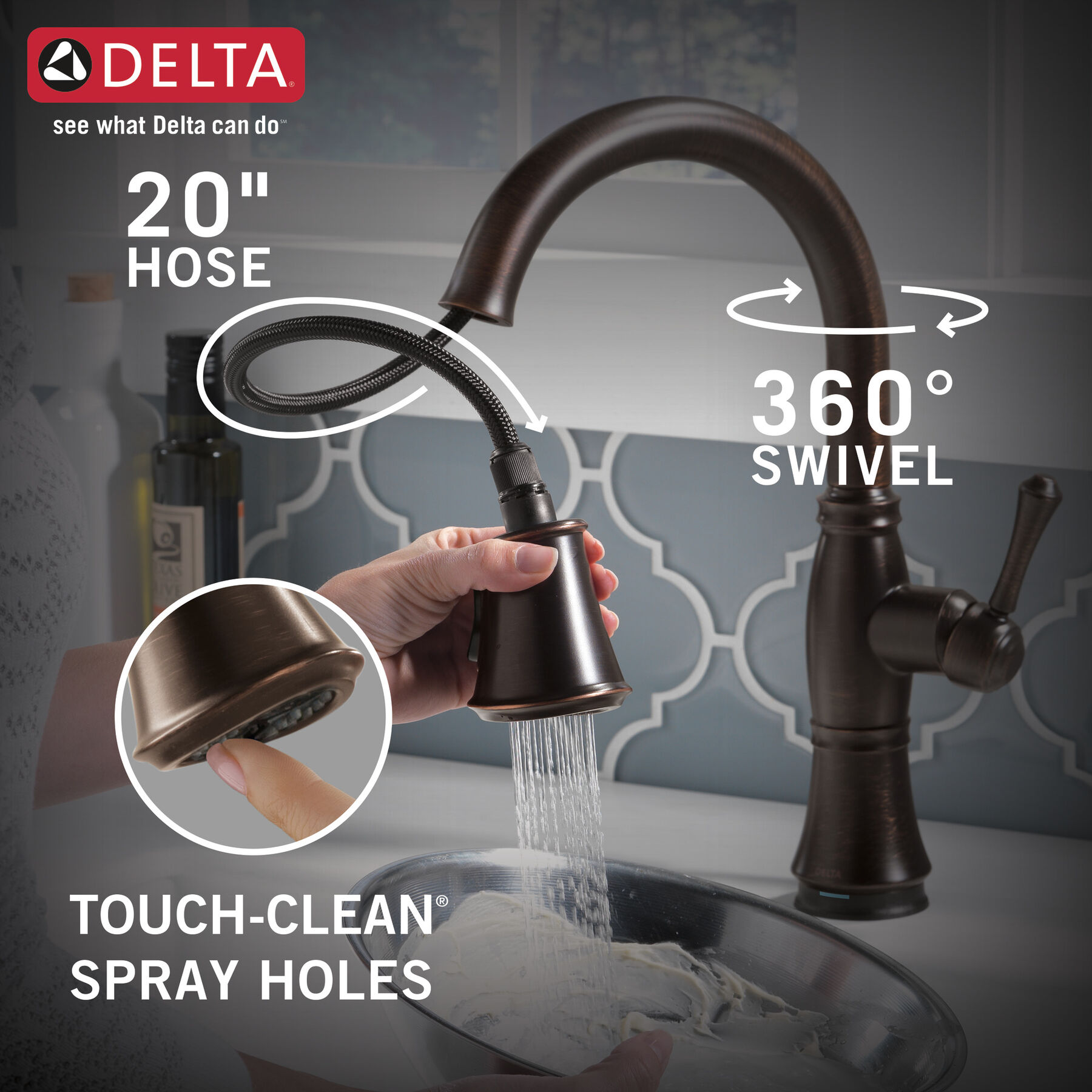

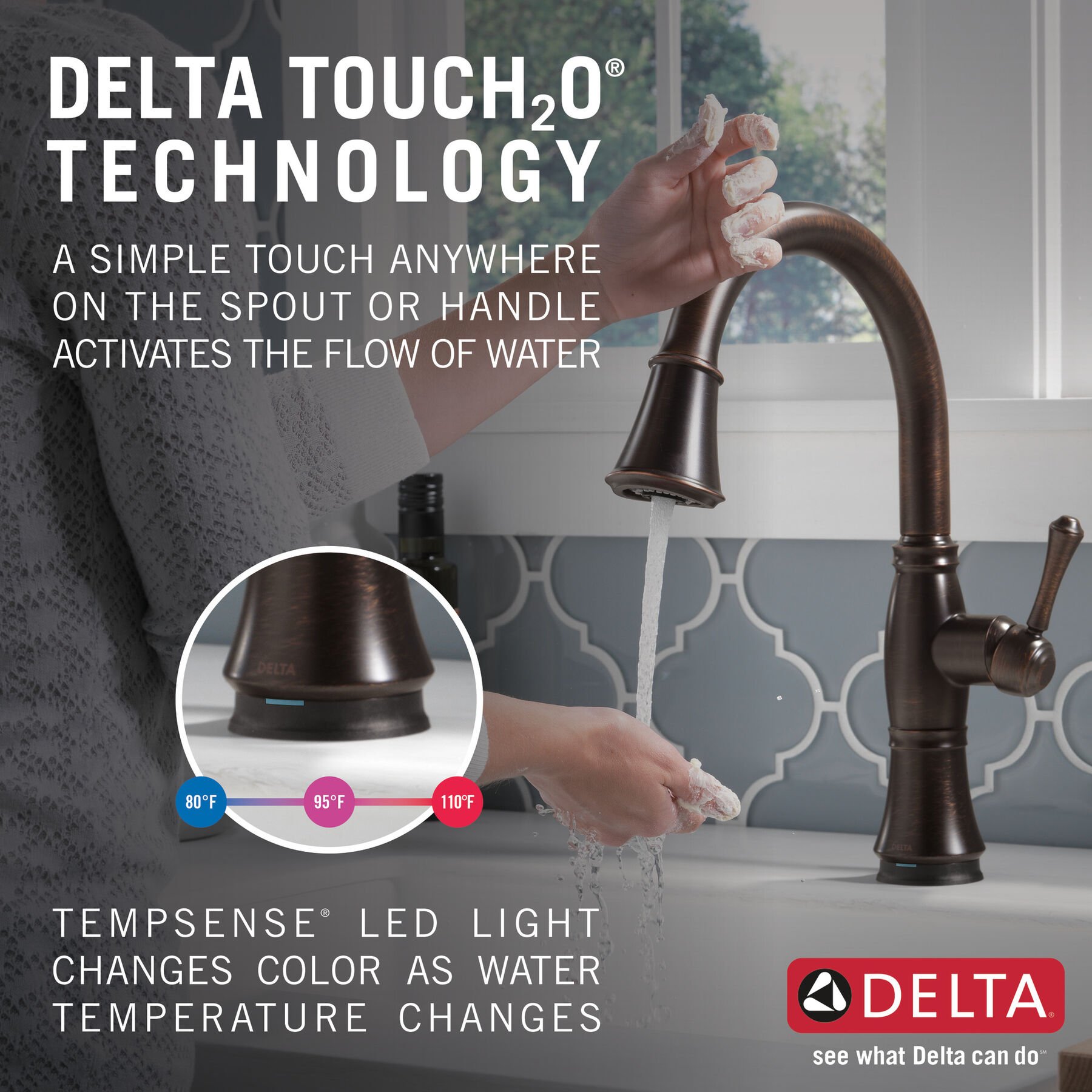

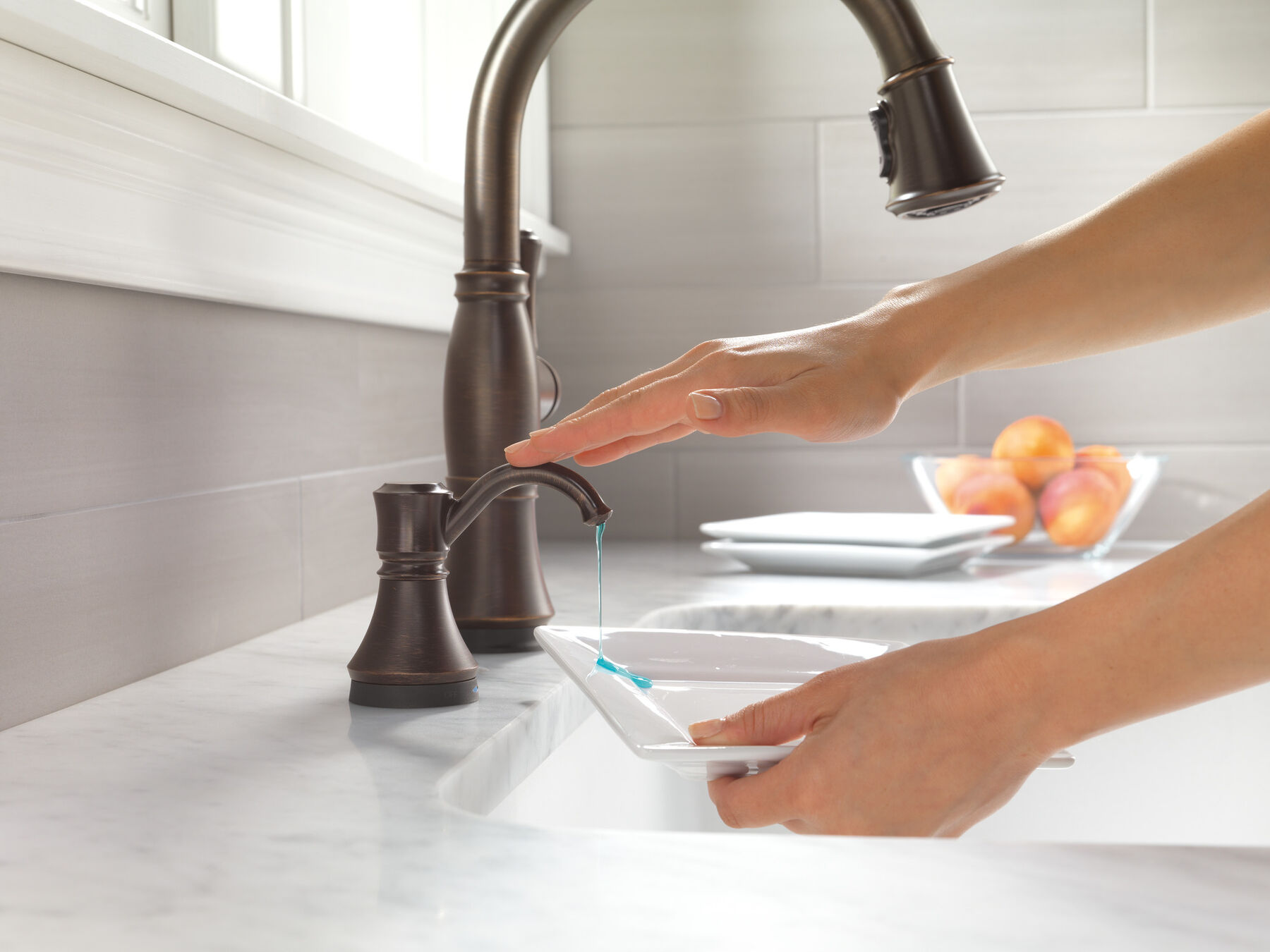

Touch it on. Touch it off. Whether you have two full hands or 10 messy fingers, Delta® Touch2O® Technology helps keep your faucet clean, even when your hands aren’t. A simple touch anywhere on the spout or handle with your wrist or forearm activates the flow of water at the temperature where your handle is set. The Delta TempSense™ LED light changes color to alert you to the water’s temperature and eliminate any possible surprises or discomfort. Delta® MagnaTite® Docking uses a powerful integrated magnet to pull your faucet spray wand precisely into place and hold it there so it stays docked when not in use. Delta® ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn messes while an innovative shield of water contains splatter and clears off the mess, so you can spend less time soaking, scrubbing and shirt swapping. Delta® faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. Kitchen faucets with Touch-Clean® Spray Holes allow you to easily wipe away calcium and lime build-up with the touch of a finger. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Electronic parts are backed by our 5-year electronic parts warranty. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.
- With Touch2O® Technology a simple touch anywhere on the spout or handle will start and stop the flow of water
- Helps keep your faucet cleaner, because washing the mess off your hands shouldn’t involve making a mess of your faucet
- LED light signals blue when touch mode is active and flash red when batteries are running low
- Automatic water flow shut-off after four minutes helps conserve water
- Integrated TempSense™ LED light shows water temperature, changing from blue to magenta to red as temperature increases
- Battery operated 6 AA (included) with a battery life of approximately 1 year or 6 C (not included) with a battery life of approximately 3 years
- Intuitive Touch2O® Technology can sense the difference between a touch and a grab, reducing the chances of activation
- Optional A/C adapter EP73954 may be ordered separately
- MagnaTite® Docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place and hold it there so it stays docked when not in use and doesn’t droop over time
- ShieldSpray® Technology powers off the mess without making a mess
- Featuring Delta Touch2O Technology: touch it on, touch it off
- Delta MagnaTite Docking holds spray wand firmly in place
- Backed by Delta Faucet’s 5-Year Limited Warranty
Technology
DIAMOND™ Seal Technology
DIAMOND™ Seal Technology
DIAMOND™ Seal Technology is Delta’s revolutionary new water delivery system. An internal contact surface made up of tiny diamonds makes the valve leak-free and extraordinarily durable. It also keeps water free of contact with potential metal contaminants.
ShieldSpray®
ShieldSpray®

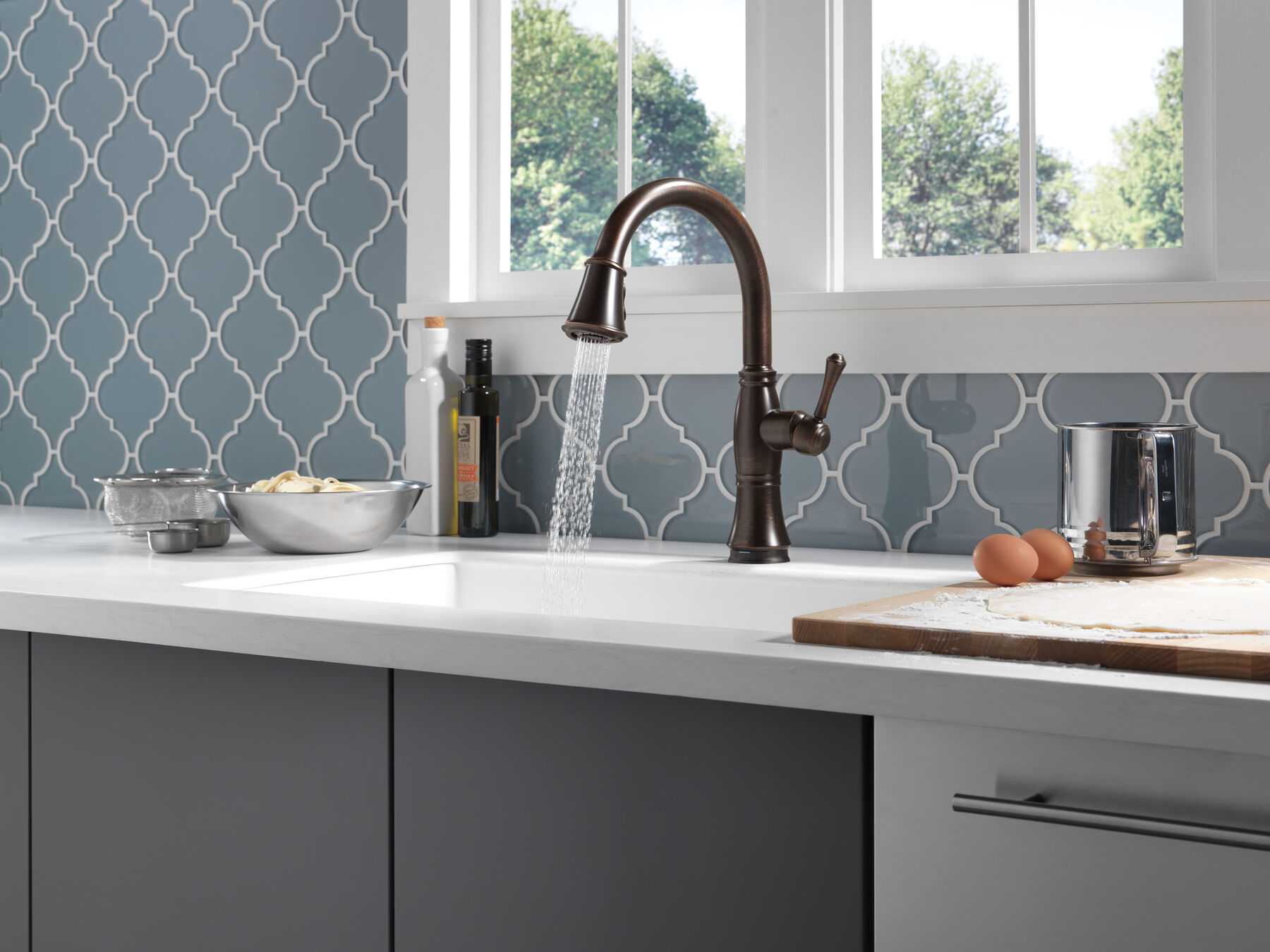

ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn remnants of food while an innovative shield of water surrounds the jet and mess to keep the splashing contained, so you can spend less time soaking, scrubbing and shirt swapping.
Touch2O® Technology
Touch2O® Technology

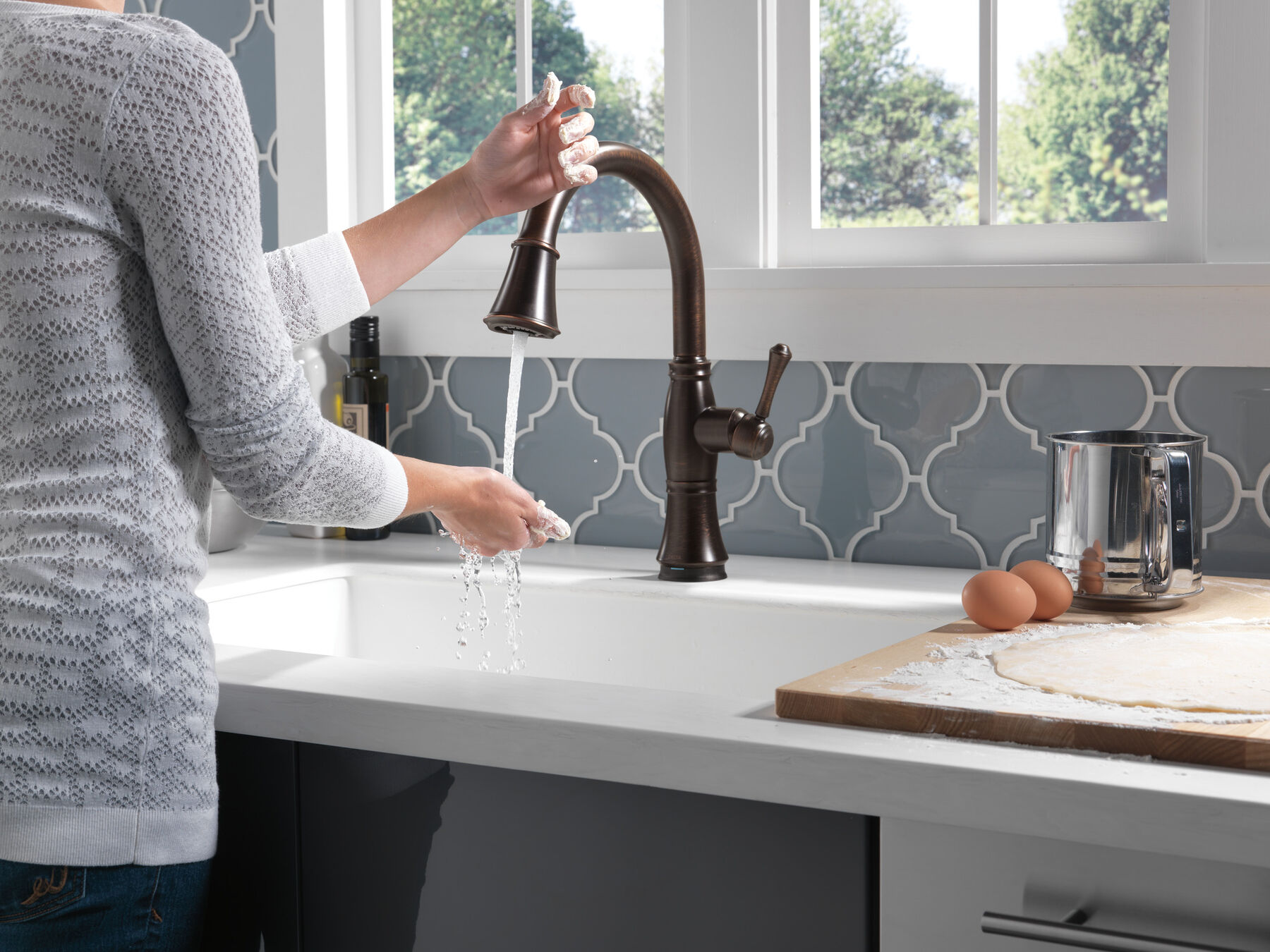

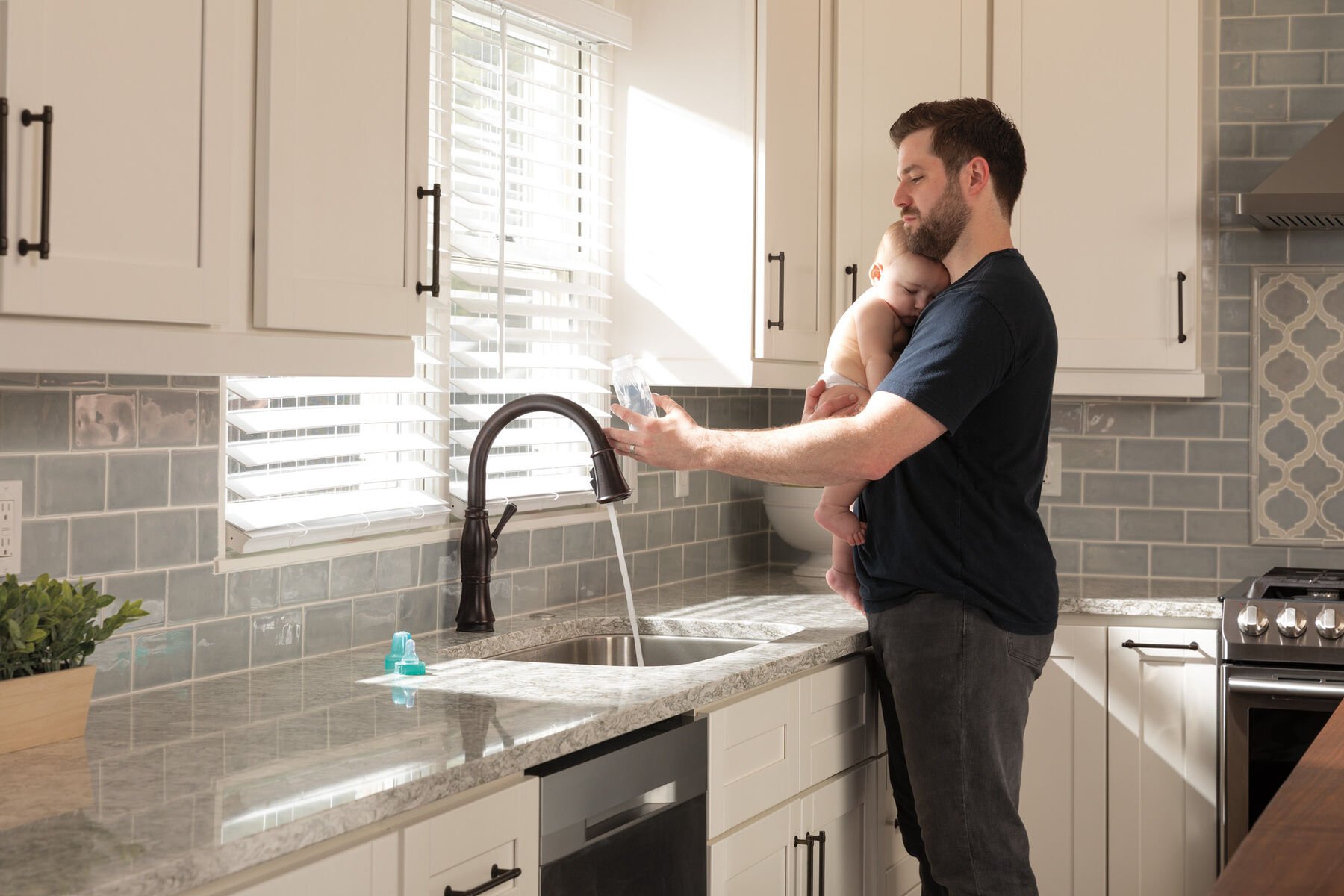

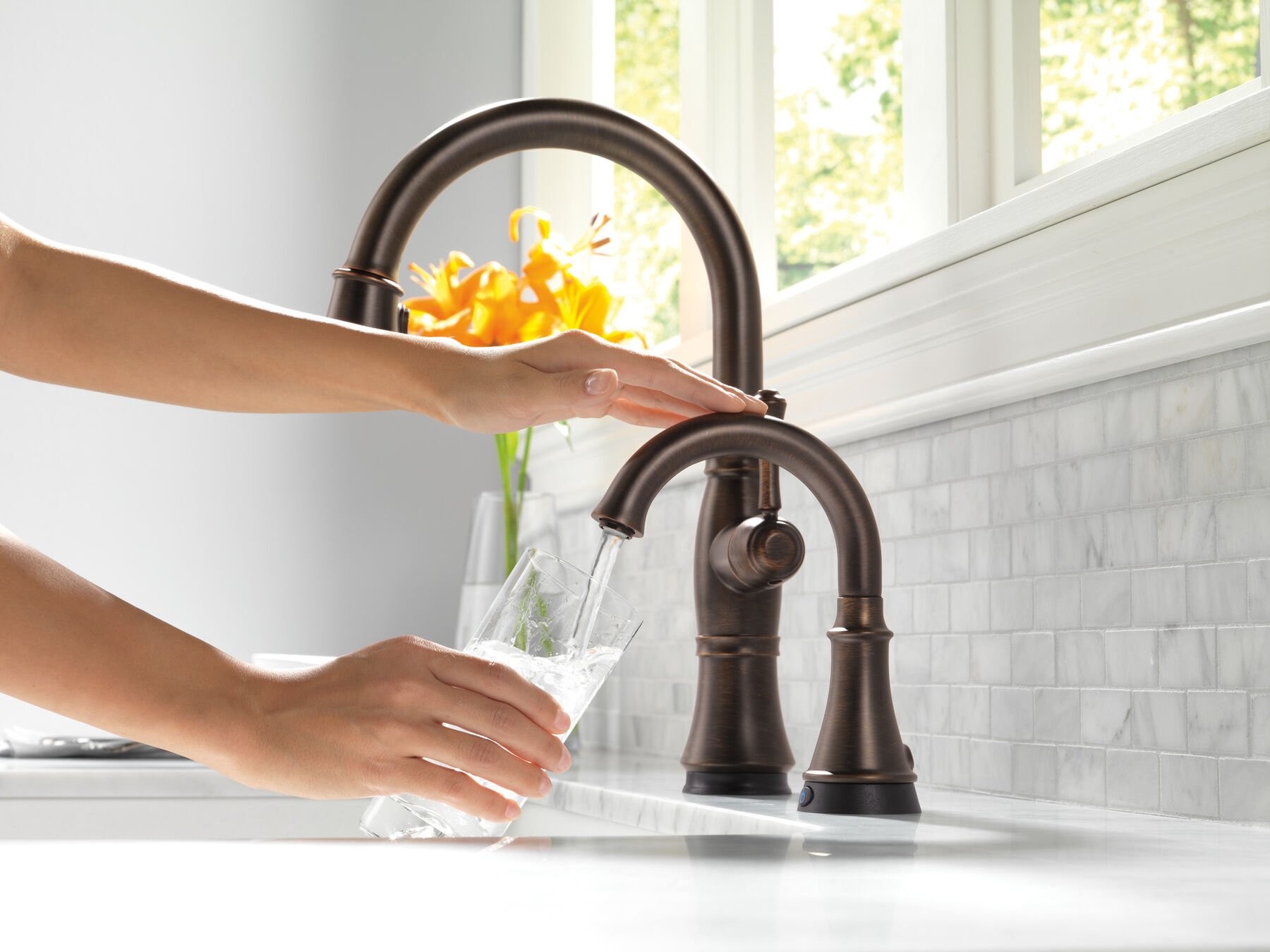

Touch2O® Technology lets you turn the water on or off just by touching any part of the handle or faucet. It’s more sanitary, and it lets you save water by stopping it momentarily when your hands are full and you don’t want to reach back and manually turn the handle.
Electronic Faucet
Electronic Faucet
The pull-down spray head utilizes a powerful magnet which keeps the wand securely in place when not in use. No more dangling!
MagnaTite® Docking
MagnaTite® Docking
The pull-down spray head utilizes a powerful magnet which keeps the wand securely in place when not in use. No more dangling!
Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Compliant with State and Federal drinking water legislation.
SpotShield®
SpotShield®
SpotShield™ Technology resists water spots, fingerprints and stains and helps reduce stain and odor causing microbial growth on the faucet finish so the faucet stays cleaner longer.
SUPPORT
Product Support, Repair Parts & Technical Specifications

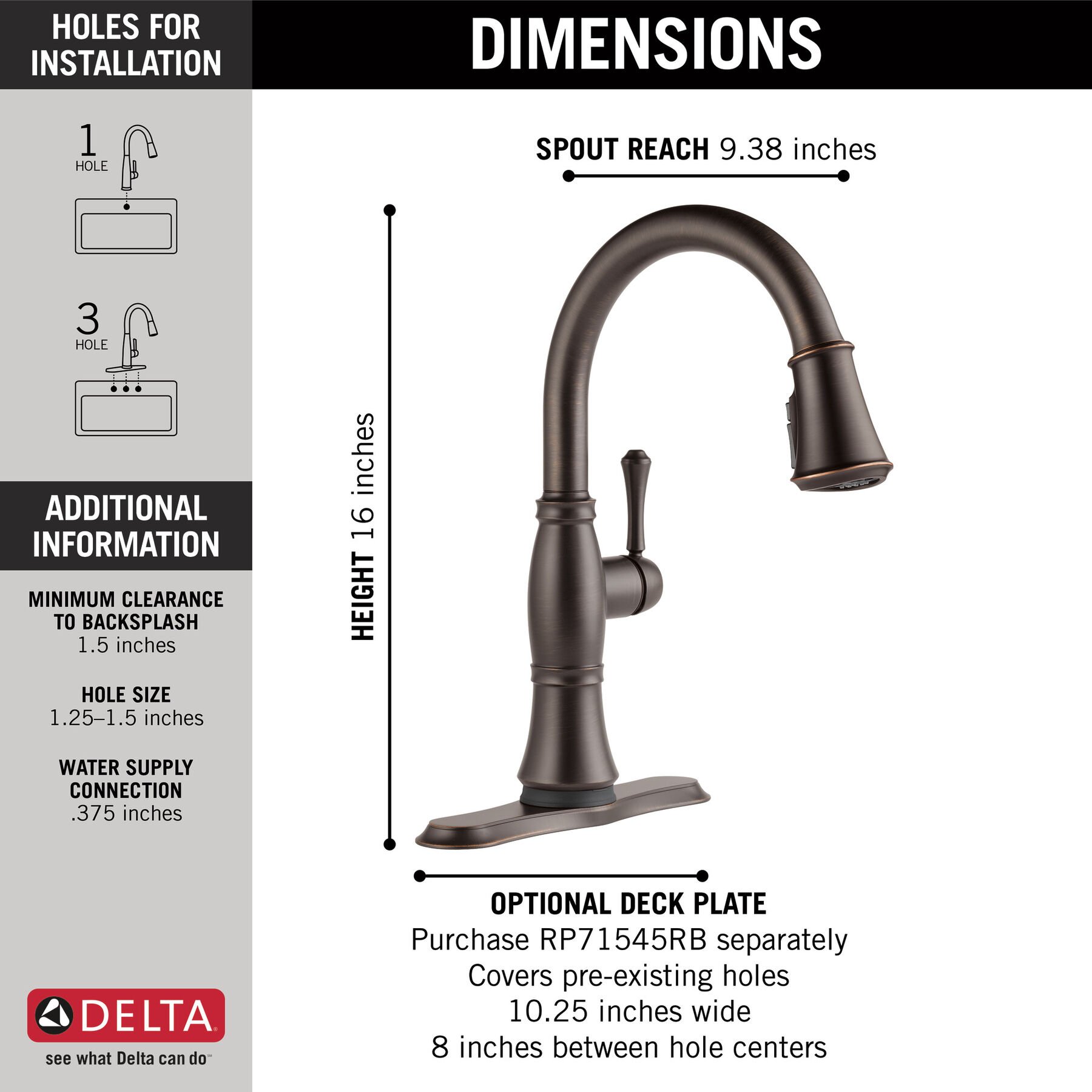

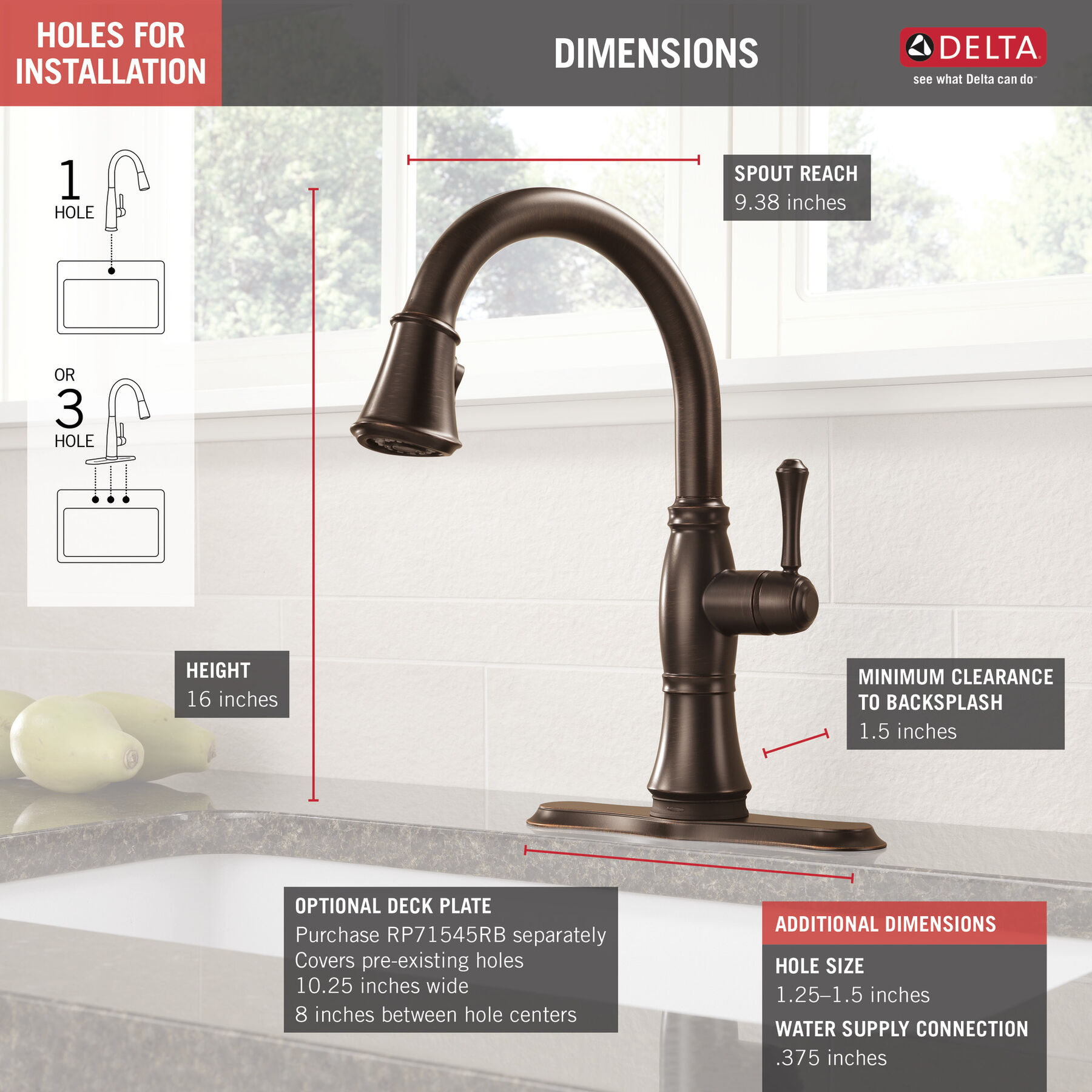

Installation Information
1 or 3-hole 8" installation
Spout Height :
16
Over All Height :
16
Spout Height Deck :
9-21/32
Connection Type :
3/8" compression fittings
Supply Lines :
Included InnoFlex® Pex-C Supply Lines
Spout Length :
9-3/8
Max Deck Thickness :
2.5
PART LIST
PART LIST
REVIEWS
Rated 2 out of
5
by
Kitchenchef20220 from
Perfect Color
The only thing good about this faucet is the color. I’ve had this for about a year. When the batteries run out, it doesn’t work. So keep batteries in hand. The other issue is the touch. It doesn’t come on with touch when you need it and it goes off if you barely touch it. I’m finally replacing it. Never buy a battery operated faucet.
Date published: 2021-02-19
Rated 1 out of
5
by
judithm45 from
Do Not Buy--Poor Flow
This product is rated at 1.8 gallons per minute. We are lucky to get 1 gallon per minute and there is not enough pressure to clean anything. It takes ages to fill a sink or even a glass of water! We have followed all of their instructions, i.e. flushing etc., and the flow has not increased.
Date published: 2021-01-25
Rated 1 out of
5
by
AZGuy from
It has stopped working - don’t buy.
After less than a year this faucet has stopped working. You can’t turn it iPod with the normal handle control nor with the touch on/off feature about 2/3 of the time. Meaning we have no water in the kitchen sink. Inexcusable.
Date published: 2020-12-31
Rated 5 out of
5
by
GMorgan from
Great faucet
The Delta single touch sink faucet is awesome. It is expensive but works flawlessly and is beautiful. I like it much better than I expected and I would definitely recommend.
Date published: 2020-11-01
Rated 5 out of
5
by
Mhiggy from
Very Happy!
We had the Cassidy Arctic Stainless with Lumicoat and ShieldSpray installed in a kitchen update about a month ago. We are very pleased with it's performance and graceful lines. The pull down adjustable sprayer and docking work easily. The ShiedSpray is not as impressive as I'd hoped but there is less splashing.
Date published: 2020-10-10
Rated 5 out of
5
by
Super Dan from
Great form, finish, function and performance!
Touch control is a great feature! Just adjust your temperature and stream volume and you're set.
Date published: 2020-06-30
Rated 5 out of
5
by
BudMac from
Replacement sink magnets
I contacted Delta about the sink magnet. They said it was in warranty and they sent us a replacement kit. Easy to replace. It only took me about 10 minutes to do the repair. Thank you delta for designing this so a repair can be done so easy!
Date published: 2020-06-16
Rated 5 out of
5
by
AminalBob from
Innovative and Beautiful
Absolute luxury to just touch the faucet and have preset temperature and flow of water. This faucet is quality through and through. The pull down feature is great for rinsing our dishes and stays in place when returned to the faucet. I was pleasantly surprised at how easy the installation went, too. I’m not Mr. Handyman but was able to knock this install out all by myself.
This faucet is easy to use and has a temperature light so we know whether the water will be hot or cold. We just tell kids to come get us if the light is red. The other feature I must give a big thumbs up to is the “Shieldspray.” It actually does a great job of keeping the water contained when power rinsing dishes. A really cool and innovative feature. The faucet is beautiful and adds an elite touch to our kitchen.
Date published: 2020-06-15
Q&A
On the specs sheet Rev E for Cassidy 9197T-RB-DST, it says dual function wand shield spray for kitchen model only. When searching for this model, on-line retailers all say this model only has traditional stream and spray. What does "kitchen model" mean?
Hi, Rain Flower27!
Thank you for your question. The 9197T-RB-DST does come with the traditional stream and spray sprayer assembly. ShieldSpray™ Technology for the 9197T-RB-DST is not available until Spring of 2018.
Best Regards,
Rosanna
Date published: 2018-02-07
What is the height from the counter to the bottom of the handle?
Thank you for your question, Tina O! The height from the counter to the handle will measure approximately 4 3/4" without the optional escutcheon plate.
Best regards, Edward
Date published: 2020-01-06
Should the red LED be on during normal use? Sometimes the red LED is on and sometimes not. It is not blinking. My mother in law has the same faucet but there is a blue LED during use. Where are the instructions about this?
Hi, RyanfromIowa!
Thank you for your question. A red light on the LED light base indicates hot water in use. The red light can also indicate the batteries do need to be replaced.
Best Regards,
Rosanna
Date published: 2018-02-27
Does the 0 touch work on and off manually if the batteries go dead?
Hello Laura,
Thank you for your question. If the batteries powering the Delta Cassidy Kitchen Touch2O 9197T-RB-DST faucet, go completely dead, you would need to replace them in order to get water back running manually and touch wise.
Best regards,
Tanya
Date published: 2018-10-20
HI IM PLANING TO ORDER NEW MODEL#91971T-RB-DST AND I WOULD LIKE TO KNOW WHAT IS THE BODY MADE OUT OF ?
Hello Chetna,
Thank you for your inquiry! The body of the Delta Cassidy Touch2O Pull-Down Kitchen 9197T-RB-DST faucet is made of metal.
Best regards,
Tanya
Date published: 2019-05-01
Hello, Wiil the new ShieldSSpray head fit the hose fittings on an older 9197-rb-dst ? If so ,what is the part number, and the web site address ? Thanks, Mark
Hello Mark,
Thank you for your question. Yes, the ShieldSpray wand/sprayer assembly RP90839RB will attach to the hose assembly of the older Cassidy Pull-Down Kitchen 9197-RB-DST faucet model. Both model styles uses the same hose assemblies.
https://media.deltafaucet.com/PartsDiagram/DPD-K-9197-DST_B.pdf
Best regards,
Tanya
Date published: 2019-06-24
can you bypass the electronic operation and just do manual operation?
Thank you for your question, Karen! With the faucet running, removing the battery box lid will override the touch function, leaving the faucet to operate as a standard, manual model. If this is not possible, the Solenoid assembly below can be manually removed instead. Please contact us directly if you have any questions or need assistance.
Best regards, Edward
Date published: 2019-09-27
What does red light flashing mean
It means you must replace the battery for the faucet
Date published: 2018-01-11
