Trinsic®

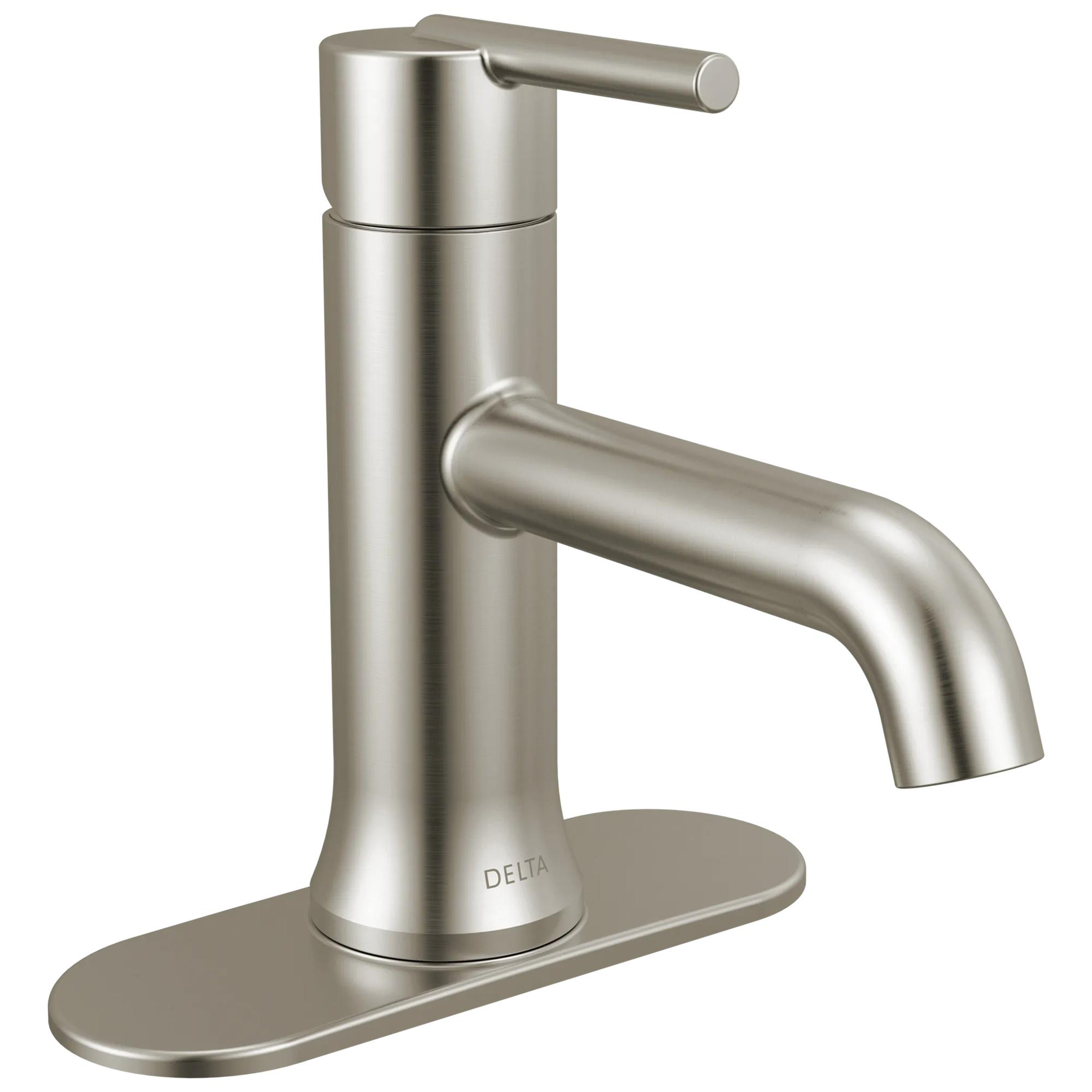

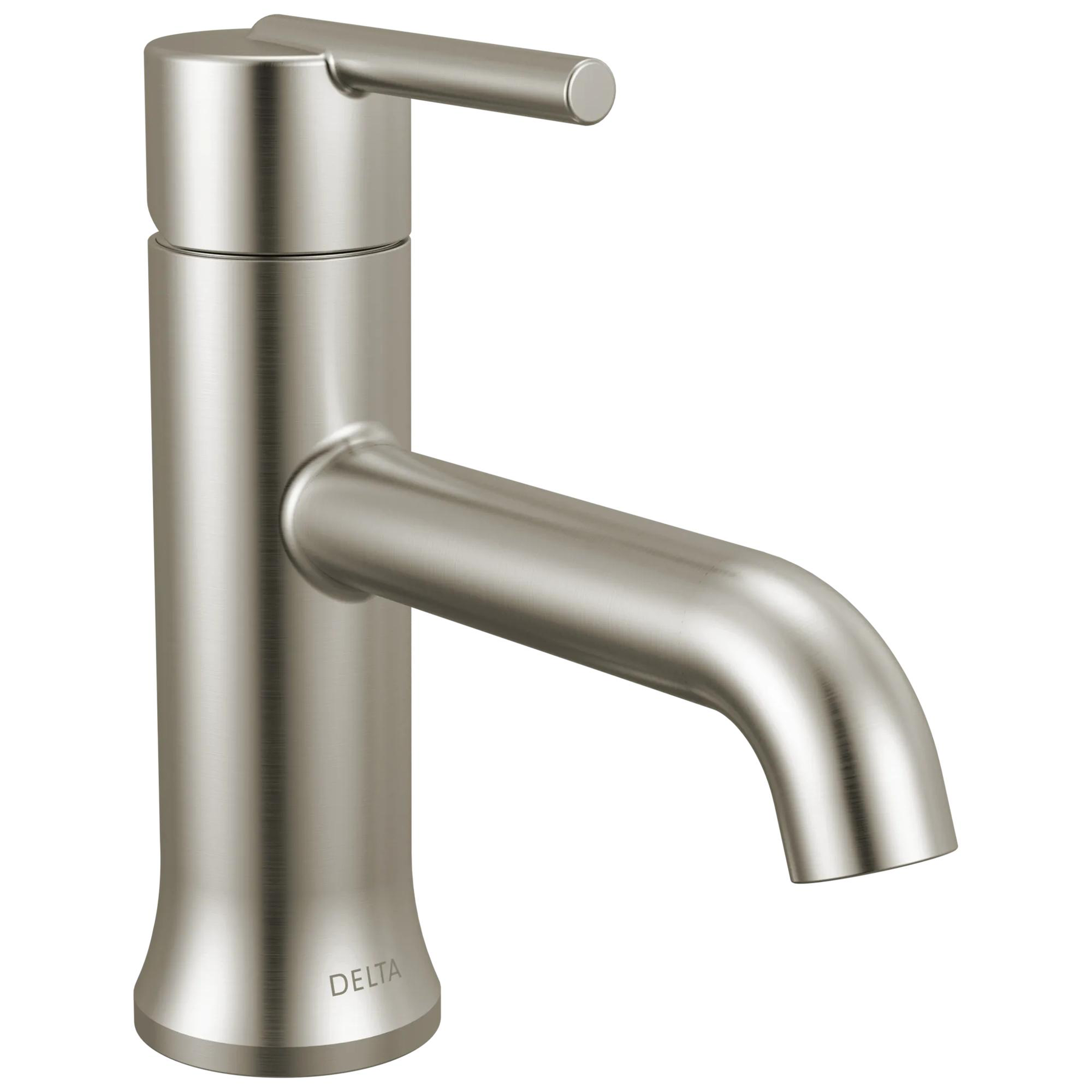

Single Handle Bathroom Faucet
Model#:
559LF-SSMPU
PRODUCT FEATURES
Delta® faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
*Industry standard is based on ASME A112.18.1 of 500,000 cycles.
- DIAMOND Seal Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
- Everything you need is together in one convenient box, including integrated InnoFlex PEX supply lines
- 1 or 3-hole 4" installation
- Metal pop-up
- ADA Compliant
- WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
- 1 or 3-hole 4" installation
- Includes deck plate to support 3-hole installation
- Metal drain pop-up assembly in matching finish included
Eco-Friendly
WatersenseCert
Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
1 or 3-hole 4" installation
Spout Height :
3-1/2
Over All Height :
6-1/4
Spout Height Deck :
2-3/8
Connection Type :
3/8" compression fittings
Supply Lines :
32" minimum InnoFlex® supply lines below the deck included
Spout Length :
5
Max Deck Thickness :
2.25
PART LIST
PART LIST
REVIEWS
Rated 5 out of
5
by
Anonymous from
Works well, even with a tiny sink
It’s attractive and functional, works well with a tiny sink.
Date published: 2020-10-28
Rated 1 out of
5
by
homebuyer 888 from
Leaky Faucet Dont' Buy
Purchased 2 Of these for a new bathroom. We just had to replace the second one shortly after installation. Both were leaky! I would not recommend. See picture for proof.
Date published: 2020-10-26
Rated 4 out of
5
by
Anonymous from
Perfect balance between vintage and modern.
It looks great in our powder room. Our only complaint is that the water lines cannot be cut to fit a smaller sink to give the p-trap a cleaner look.
Date published: 2020-09-03
Rated 5 out of
5
by
Anonymous from
Great products at competitive pricing!
I would buy again, great product
Date published: 2020-08-02
Rated 5 out of
5
by
tkmadre424 from
Smooth Features!
The installation process was a breeze for my husband. This color looks so good in person. Water flow pressure is average but it does run smoothly. Not a single thing design wise I would change. The time to switch from cold to hot is almost instant. I would definitely recommend this.
Date published: 2020-02-26
Rated 5 out of
5
by
writerofwords from
Very modern look
I was a little overwhelmed at first by this product, but after reading through the assembly instructions, I found the installation to be a lot easier than I envisioned.
The faucet not only looks very modern and elegant, but the solid and heavy pieces mean that this is one durable and strong faucet that will stand up to frequent use.
Overall it is very appealing and the I love the simple design. It works really well and the pressure is perfect.
Date published: 2020-02-15
Rated 4 out of
5
by
Anonymous from
Sleek & Simple
Let me start off with saying the install was easy. Didn’t take us long to install this faucet. The water lines are very long though, which thinking is unnecessary but it’s a simple connection.
The black is hard to keep clean from water spots but very modern and goes perfectly with our modern remodeling. The handle moves easily up and down plus installing the drain was very simple.
The water pressure and non splashing of water, makes a nice smooth stream. I do need to mention the quality. This is a nice sturdy and heavy faucet, you can tell that upon opening of the box and throughout use. I’ll definitely be buying a second one for our guest bath.
Date published: 2020-02-07
Rated 5 out of
5
by
Rettafaye from
Beautiful faucet
We chose this for its sleek and modern design. We have gotten numerous compliments on this. It was very easy to install, I'm glad we took the initiative to do it ourselves. I can't wait to replace the other faucets in our home.
Date published: 2020-02-01
Q&A
how large does the cut hold need to be
what is the size of the hole to be cut on countertop for a single mount?
model 559LF-SSMPU
Thanks!
Hi Fusace, Thank you for your question!
The hose size for the model 559LF-SSMPU can be viewed on the technical specification sheet. Below is a link to the document:
http://www.deltafaucet.com/customersupport/documentation/559lf-ssmpu.html?document=ts&fromDetailArea=bath&documentIndex=0#flashWrapper
Best regards,
Brandis
Date published: 2016-05-19
Hooking up a portable washer?
I'd like to connect a portable washing machine to this faucet. Is there an aerator adaptor to go from the Trinsic faucet to a standard kitchen faucet size?
Hi Samantha,
Thank you for your question! The spout has a thread size of M16.5x1. Unfortunately, we do not make an adapter for this unit, but you may be able to find one locally or online.
Best regards,
Jon
Date published: 2017-01-25
How do I remove the stopper?
2 issues: 1.) the stopper does not seem to be working properly. The water drains ever so slightly when the stopper is engaged.
2.) how do I remove the stopper in order to clear a potential clog in the plumbing?
Thanks for your help!
Dear GB,
Thank you for your question. The pop-up drain assemblies are not designed to hold water for long periods of time. If the water is leaking out of the sink bowl right away, then the water may actually be leaking around the flange and running down the drain. If you push down on the stopper with water in the sink bowl and the water still leaks out of the bowl, then the flange is not sealed properly. I would suggest removing the flange from the sink bowl and applying a large bead of clear silicon to the bottom side of the flange to properly seal the flange with your sink bowl before you reinstall it.
If a stopper does not lift straight out, it is being held in by the horizontal rod. Behind the drain pipe under the sink is a horizontal rod connected to the lift rod via the strap. The horizontal rod is held in place by a nut. Remove the nut and pull the horizontal rod straight away from the pipe about an inch. The stopper should now come free of the
drain.
Best regards,
Tanya
Date published: 2016-10-24
2 questions
How long is the spout?
Where can I buy this?
Thank you for your questions. Delta Faucet model # 559LF-SSMPU has a 5 inch spout. This model can be ordered and purchased through your local retailer or wholesaler.
Date published: 2013-10-22
IS THERE A .35 GPM AERATOR FOR THIS FAUCET?
Thank you for your question, TomL! Unfortunately we do not manufacture aerators with a .35gpm flow rate. Model 559LF-SSMPU does have the option of using 1.2gpm, 1.0gpm or 0.5gpm. These aerators have a thread size of M16.5x1-6g and you may find an aerator with this flow rate and thread size at a local plumbing supply.
https://media.deltafaucet.com/PartsDiagram/DPD-L-559LF.pdf
Best regards, Edward
Date published: 2019-02-03
Is there any warranty on these faucets?
Thank you for your question, Sidd! All parts (other than electronic parts and batteries) and finishes of this Delta faucet are warranted to the original consumer purchaser to be free from defects in material and workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed. For complete information on this warranty, please click on the link below.
https://www.deltafaucet.com/service-parts/warranty
Best regards, Edward
Date published: 2019-01-17
Is the flow laminar or aerated?
Hi thaggerty, Thank you for your question. The model 559LF-MPU has an aerated flow.
Thanks,
Dave
Date published: 2015-02-09
Does the TRINSIC model #: 559LF-CZMPU come with a hands free option in Champagne Bronze?
Hi Steven S,
Thank you for your question. The Delta Trinsic Lavatory 559LF-CZMPU faucet is not currently manufactured with the Touch2O technology feature.
Best regards,
Tanya
Date published: 2019-08-20
INSTALLATION SUPPORT
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
Installation made easy. Download the free BILT app to access step-by-step 3D interactive instatuctions.
