Trinsic®
View Full Trinsic® Bathroom Collection

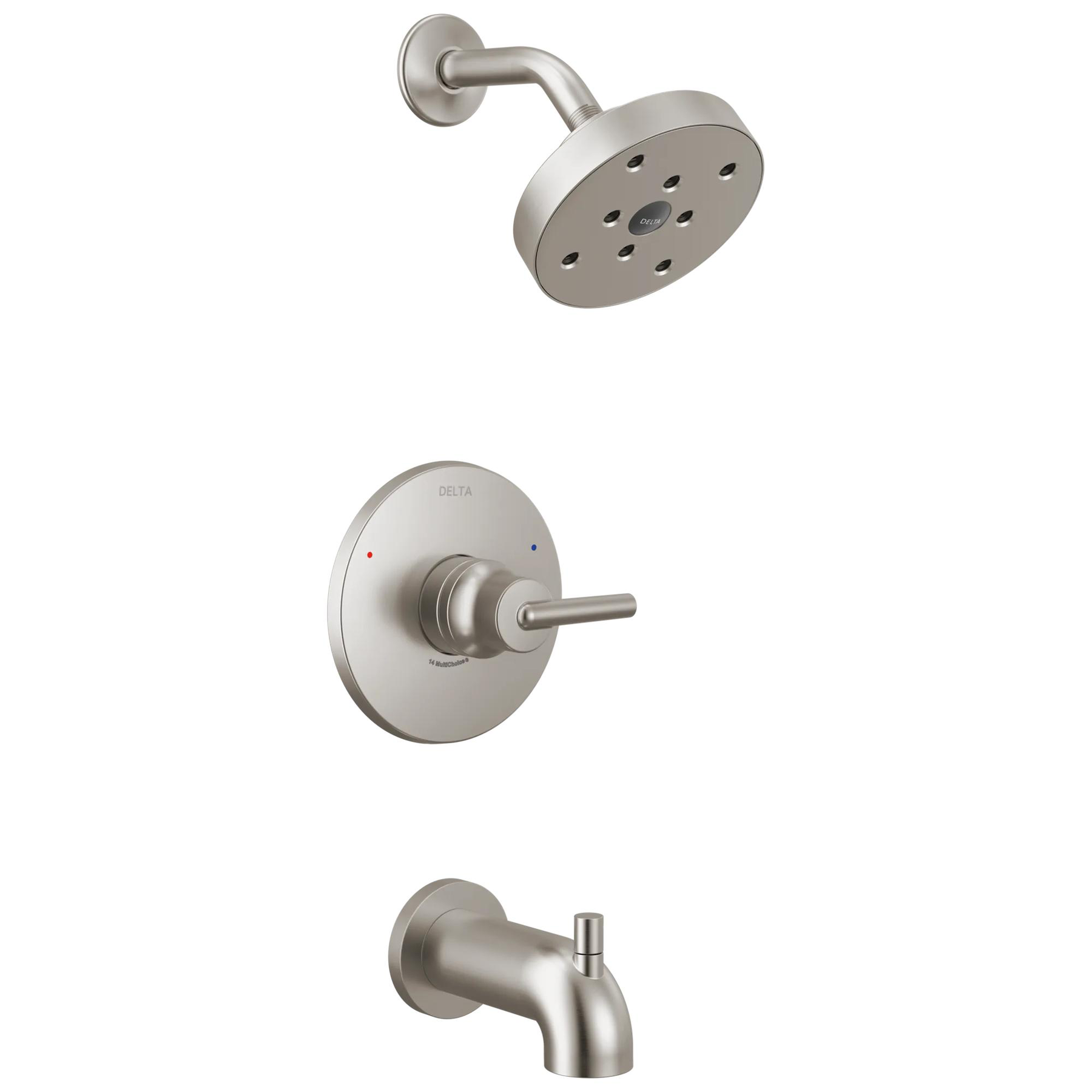

Monitor® 14 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Stainless

Model#: T14459-SS
Add to Favorites
Find local Delta® installers.
Trinsic®
View Full Trinsic® Bathroom Collection
Monitor® 14 Series H<sub>2</sub>Okinetic® Tub & Shower Trim in Stainless
Model#: T14459-SS
List Price: $42800
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
H2Okinetic Technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
  • WaterSense certification promotes water conservation
  • Monitor pressure balance valve keeps water temperature within a safe ± 3.6⁰ F (± 2.0⁰ C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
  • Single function operation
  • Single lever handle for ease of temperature control
  • Spray settings include: H2OKinetic
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
MultiChoice® Universal Valve
Brilliance® Finish
Water-Efficient
H2Okinetic® Technology
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

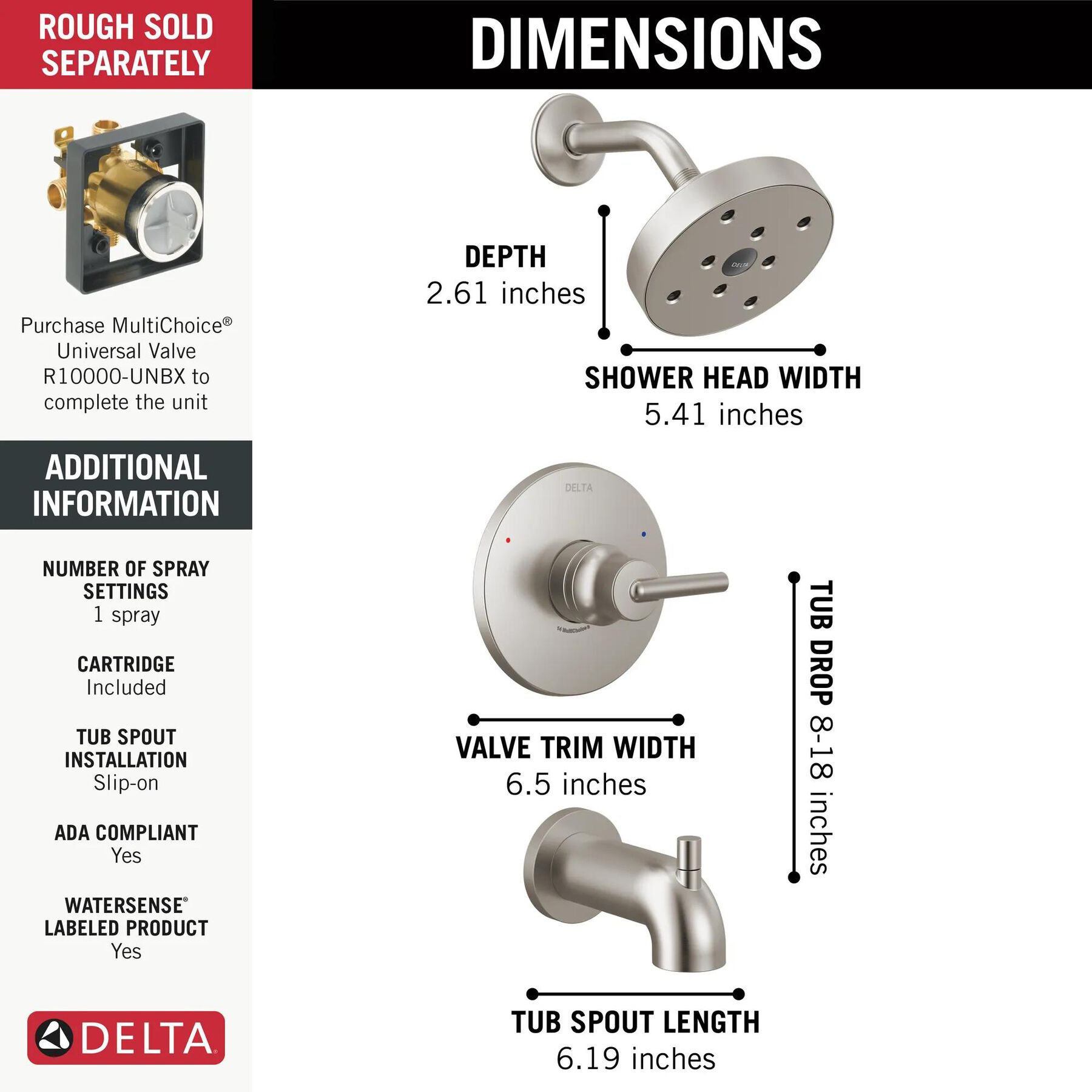

Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
6-1/2
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Disappointed For a delta showerhead, I expected a much nicer water flow. I really don't like the way the water comes out of this shower head and the way it feels when showering.
Date published: 2026-01-02
Rated 2 out of 5 by from hard stream We had to purchase a different shower head bc the stream was too divided and hurt my kids.
Date published: 2025-12-03
Rated 5 out of 5 by from Nice, very nice Nice looking, easy install. Used as part of new remodel. Quality is great, all parts included.
Date published: 2025-10-25
Rated 5 out of 5 by from The modern world has arrived in my shower I replaced an ancient Delta shower/tub set in silver with this in the gold finish. Love the look and, more than that, love the shower and how it distributes the water in a fun fashion. It's almost pulsating and such a dramatic change from the tired old shower head. Very happy. Like other reviewers mentioned, there is a component of water spots and will need wiping down if I want it to look sparkly all the time.
Date published: 2025-08-05
Rated 5 out of 5 by from Great product, great service! Great product, great service!
Date published: 2025-04-14
Rated 5 out of 5 by from Quality hardware Looks good… just what we wanted.
Date published: 2024-04-13
Rated 2 out of 5 by from Poor shower head. Shower head doesn’t have good water flow. Only had for a few months and the metal looks dirty… like mineral deposits from water. Even after I wash with bleach.
Date published: 2021-12-05
Rated 5 out of 5 by from working good this worked out good for me , but instructions for installation need to be more detailed, like distances from finished wall, caulking behind cover plates.
Date published: 2021-11-21
  • y_2026, m_6, d_18, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_57
  • loc_en_US, sid_T14459-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Which tub drain assembly is compatible with T14459? &nbsp;&nbsp;

Asked by: SFRemodel
Thank you for your question, SFRemodel. You can find our Bath Waste Assemblies at the link below. Please check the dimensions of your tub to ensure that it will work in your installation. https://www.deltafaucet.com/search-results?searchTerm=bath+waste+assembly Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

My valve was made before 2006, what do I need to buy together?

Which cartridge does this trim package come with by default? Do I need to buy a different cartridge for my old valve? If so which model I need to buy (RP19804??)? Thanks!
Asked by: Ryan
Hi Ryan, Thank you for your question. The RP46074 is the cartridge that will ship with the T14459-SS trim. Your existing 1300/1400 series faucet which was made prior to 2006 should use the RP19804 cartridge. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Slip on installation for the tub spout

The details on the slip on installation for the tub spout is very minimal. What is the length of the pipe from the wall? Also, does any caulk need to be used? also, it says to tighten the set screen, but the white plastic middle is in the way and does not have a whole? Is the adapter supposed to be inside the white plastic piece in the middle? Very poor instructions!!
Asked by: Kevin
Thank you for your question, Kevin. The tub spout will include a brass slip-on adapter (RP33794) that you can remove from the tub spout. The 1/2&quot; copper pipe should extend 2&quot; to 4&quot; from the finished wall. Install the adapter so that there is a 1/4&quot; to 1/2&quot; between the adapter and the finished wall. Tighten the set screw, then thread the tub spout onto the adapter. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Hi, I am looking into updating the shower/bath trim in my bathroom&gt; I currently have a delta system installed and I am looking to update with a black trim system. &nbsp;Is there a way to avoid updating valves? Thx

Asked by: julie
Hello Julie, Thank you for your question. As long as the screw holes on your current Delta 13/1400 series large round escutcheon plate are at the 1 and 7 o'clock positions and you do not have a push button shower diverter directly below the off and on handle, then The Delta Trinsic Tub and Shower T14459-BL trim kit and any of our other trim kits that start with a T13 or a T14 will interchange for you, without having to replace the rough-in valve body in the wall. The cartridges that come with the new trim kits may not fit your valve body, so you may need to reuse your existing cartridge. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Which valve works best? My wife ordered the trim and now I have to order the valve. You have numerous different valves listed.

Asked by: Ricky
Hi, Ricky! Thank you for your question. The Delta T14459-CZ trim kit works with any of our Delta MultiChoice R10000 rough valve body. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I'm interested in the&nbsp;T14459-CZ, but need a hand held shower with bar as well, the&nbsp;57085-CZ. What components would I need to get this set up to work?

Asked by: maroos
Hello, marcoos! Thank you for your question. There are a couple options to divert the water between the showering components. The first is an in-wall diverter. For this, you will need the R11000 Rough-In Valve and a T11859 Diverter Trim Kit to match your shower valve trim. You will also need a supply elbow for the hand shower hose, such as the 50560. The second option is to use a shower arm diverter, such as the U4923-PK or U4929-PK. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

Is there a matte black tub drain to match this fixture?

Asked by: Tracy
Hi, Tracy! Thank you for your question. At this time, we do not make a matching bath waste assembly in the Matte Black finish. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Hi Delta, I'd like to purchase the Trinsic shower fixtures and the Trinsic wall mounted sink faucet. I'd like to know if the entire product is made of metal. I don't want to purchase an item that has plastic parts inside. Thanks!

Asked by: Brad In Brooklyn
Hello Brad, Thank you for your question. The handle, escutcheon plate, and shower arm are metal. The shower head and tub spout have non-metallic components. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28
  • y_2026, m_6, d_17, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_40
  • loc_en_US, sid_T14459-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 42ms
  • questions, product
PART LIST

PART LIST

1 2 >
Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-RP26853

Delta®

Delta® Allen Wrench - 3/32"

List Price: $4.05
Online Price: $3.24
Free Ground Shipping All Orders $49+

RP26853

1.00 2
Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP92502SS

Trinsic®

Trinsic® Set Screw, Button, Wrench

List Price: $15.35 - $18.50

RP92502SS

Image-RP25620

Delta®

Delta® Set Screw

List Price: $6.45
Online Price: $5.16
Free Ground Shipping All Orders $49+

RP25620

4.21 14
Image-RP32104 Secondary Image-RP32104

Delta®

Delta® Cartridge Assembly - Monitor® 17 Series (04/2006 and earlier)

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP32104

4.56 34
Image-Master-RP101945PC

Trinsic®

Trinsic® Handle

List Price: $116.75 - $169.40

RP101945PC

Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.25 104
Image-RP73375SS Secondary Image-RP73375SS

Trinsic®

Trinsic® Metal Lever Handle Kit - 14 Series

List Price: $116.15
Online Price: $92.92
Free Ground Shipping All Orders $49+

RP73375SS

Image-RP73373SS

Trinsic®

Trinsic® Escutcheon - 14 Series

List Price: $130.85
Online Price: $104.68
Free Ground Shipping All Orders $49+

RP73373SS

Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2

BUNDLES FEATURING THIS PRODUCT

Only at Online Retailers
Image-Master-FVS14459
Only at Online Retailers

Trinsic®

Trinsic® Shower Trim Bundles

List Price: $323.80 - $558.20
Standard Finishes

FVS14459

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
