Grant®
View Full Grant® Kitchen Collection

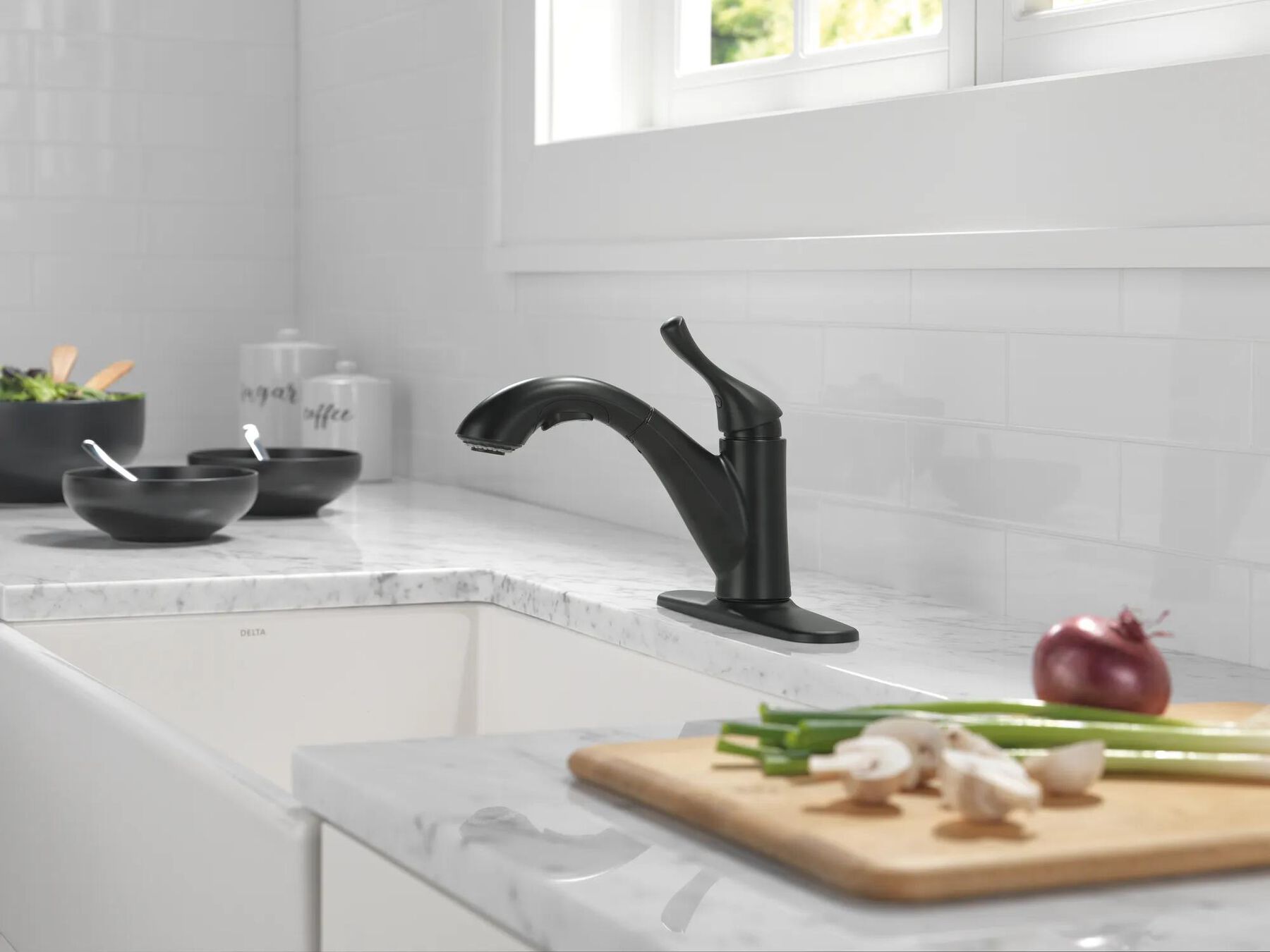

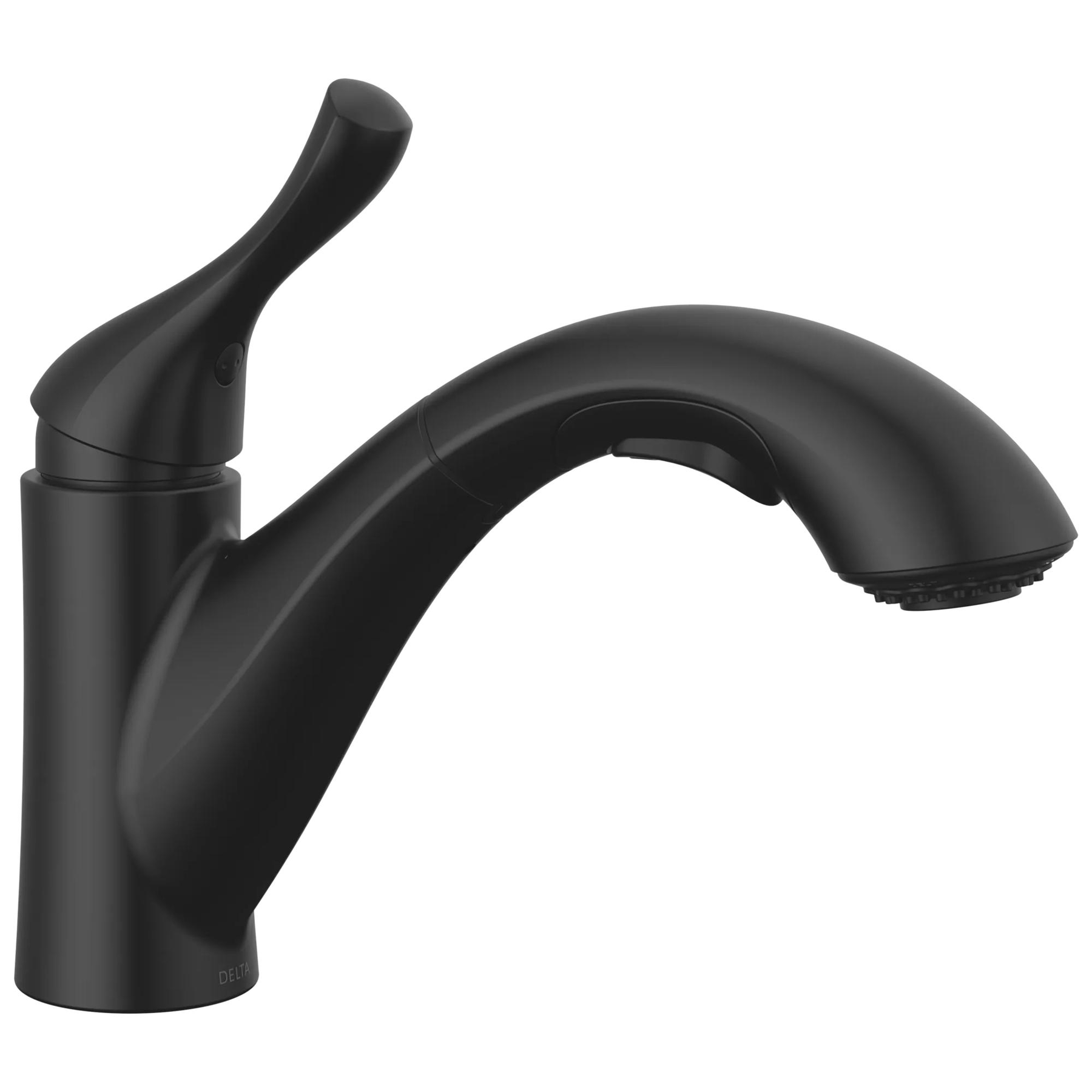

Single Handle Pull-Out Kitchen Faucet in Matte Black

Model#: 16953-BL-DST
Add to Favorites
Find local Delta® installers.
Grant®
View Full Grant® Kitchen Collection
Single Handle Pull-Out Kitchen Faucet in Matte Black
Model#: 16953-BL-DST
List Price: $28310
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Delta's exclusive DIAMOND Seal® Technology uses a valve with a tough diamond coating. InnoFlex® PEX waterways keep water inside the faucet out of contact with potential metal contaminants. This powerful combination brings you a faucet built to last up to five million uses. Only Delta faucets are equipped with Touch-Clean® soft, rubber nubbins that allow you to easily wipe away calcium and lime build-up with the touch of a finger. The included escutcheon completes the ensemble for a more finished look.
  • LEAD-FREE COMPLIANT: Not all faucets are certified to necessary safety standards. Delta goes above and beyond with product testing and quality to ensure each faucet meets plumbing safety standards, including NSF/ANSI 61 and 372.
  • DIAMOND Seal Technology features a valve embedded with diamonds to ensure like-new operation for the life of the faucet
  • Meets standards set by Americans with Disabilities Act

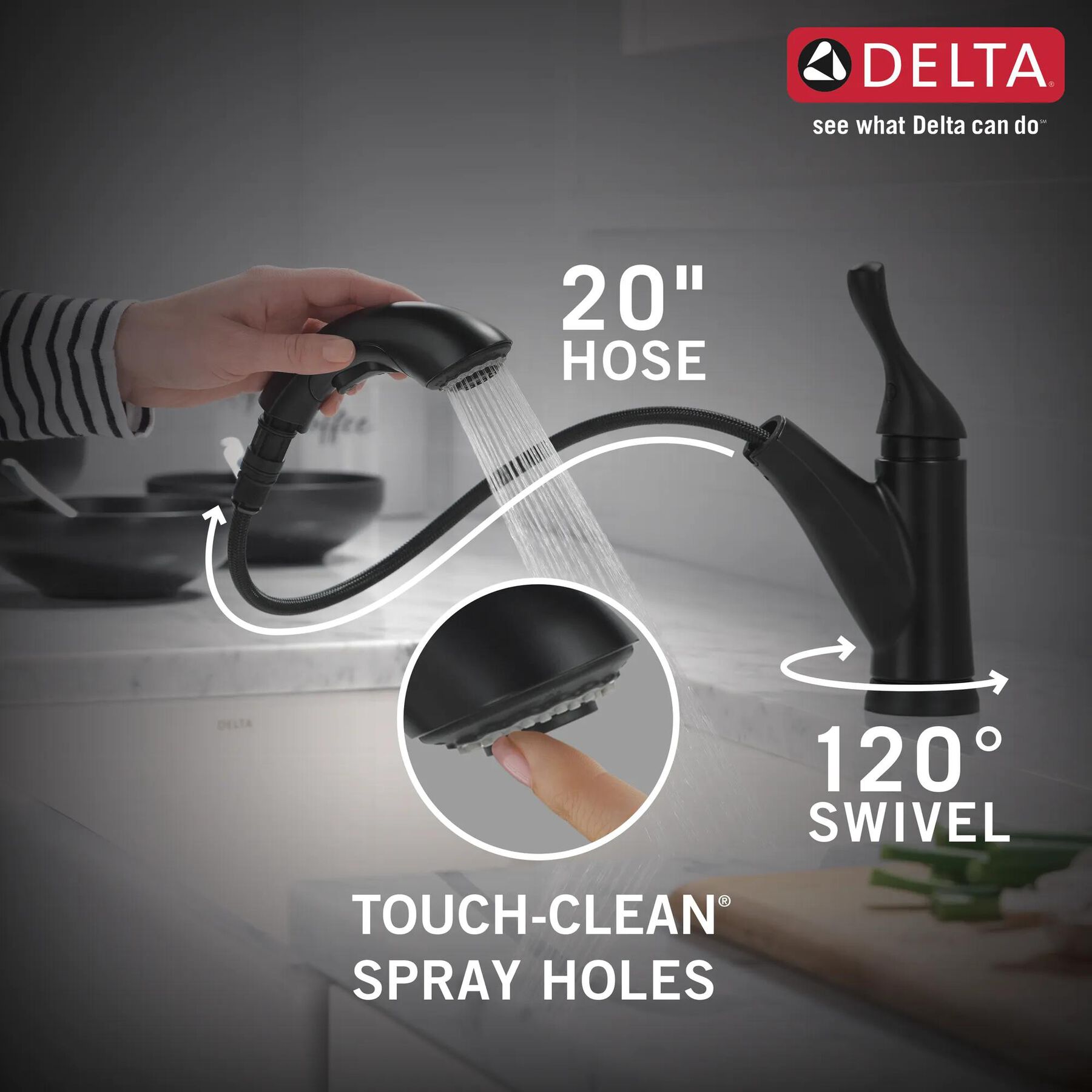

  • Touch-Clean spray holes allow for easy removal of hard water build-up
  • Fits 1 or 3-hole installations with included 10-1/2 in. deck plate
  • Pull-out spout swivels 120degrees for added convenience

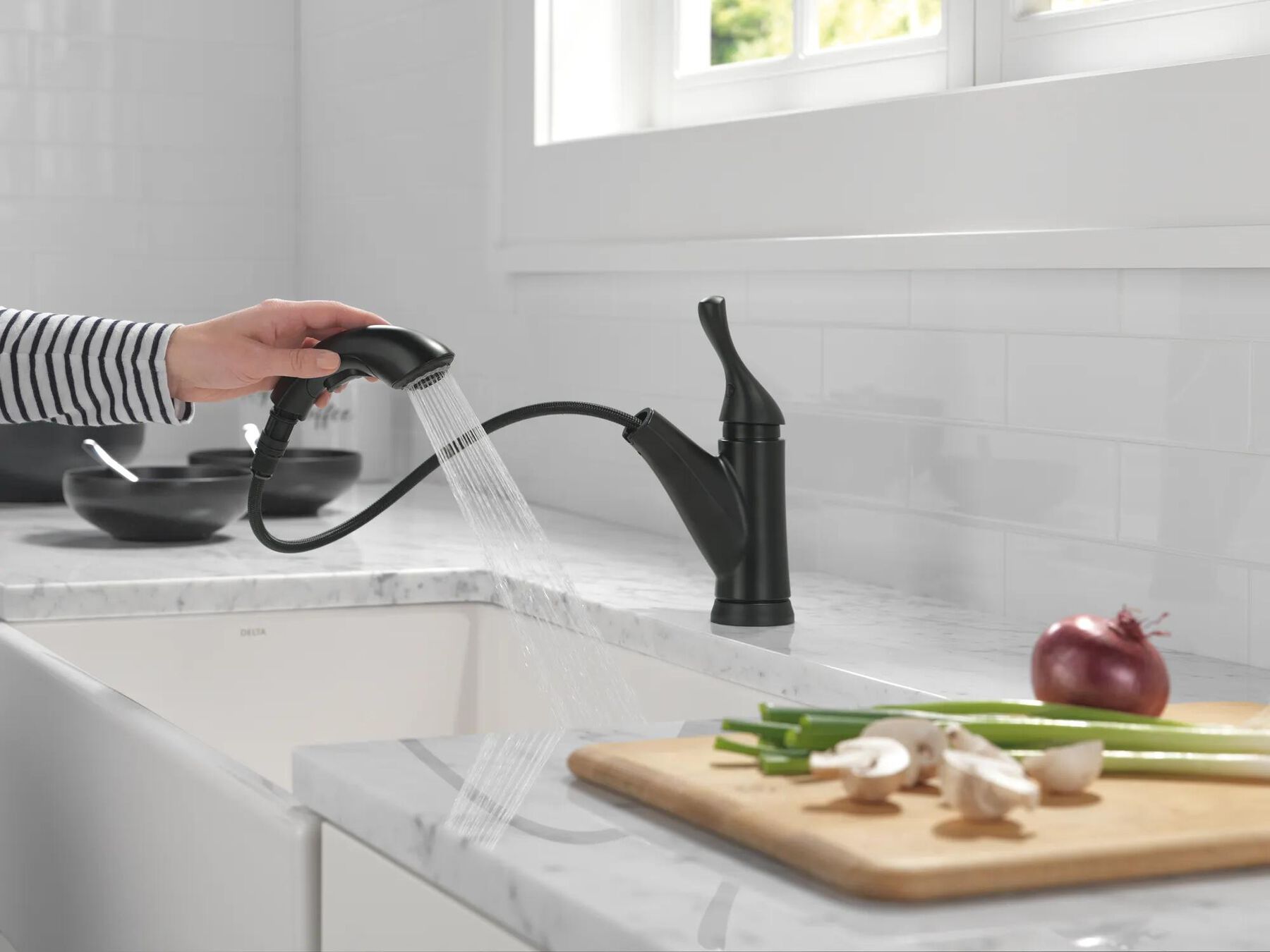

  • Pull-out spout operates in an aerated or spray mode via an easy push button
  • Red/blue graphics on handle button to indicate hot/cold temperature
  • Includes 3/8 in. O.D. straight, staggered PEX supply tubes - 35 in. (889 mm) and 36 in. (914 mm) long
  • Standard 3/8 in. (10 mm) compression gasket fittings
  • Integral double check valves in spout
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Touch-Clean®
No-Lead Compliant
Diamond Seal® Technology
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product

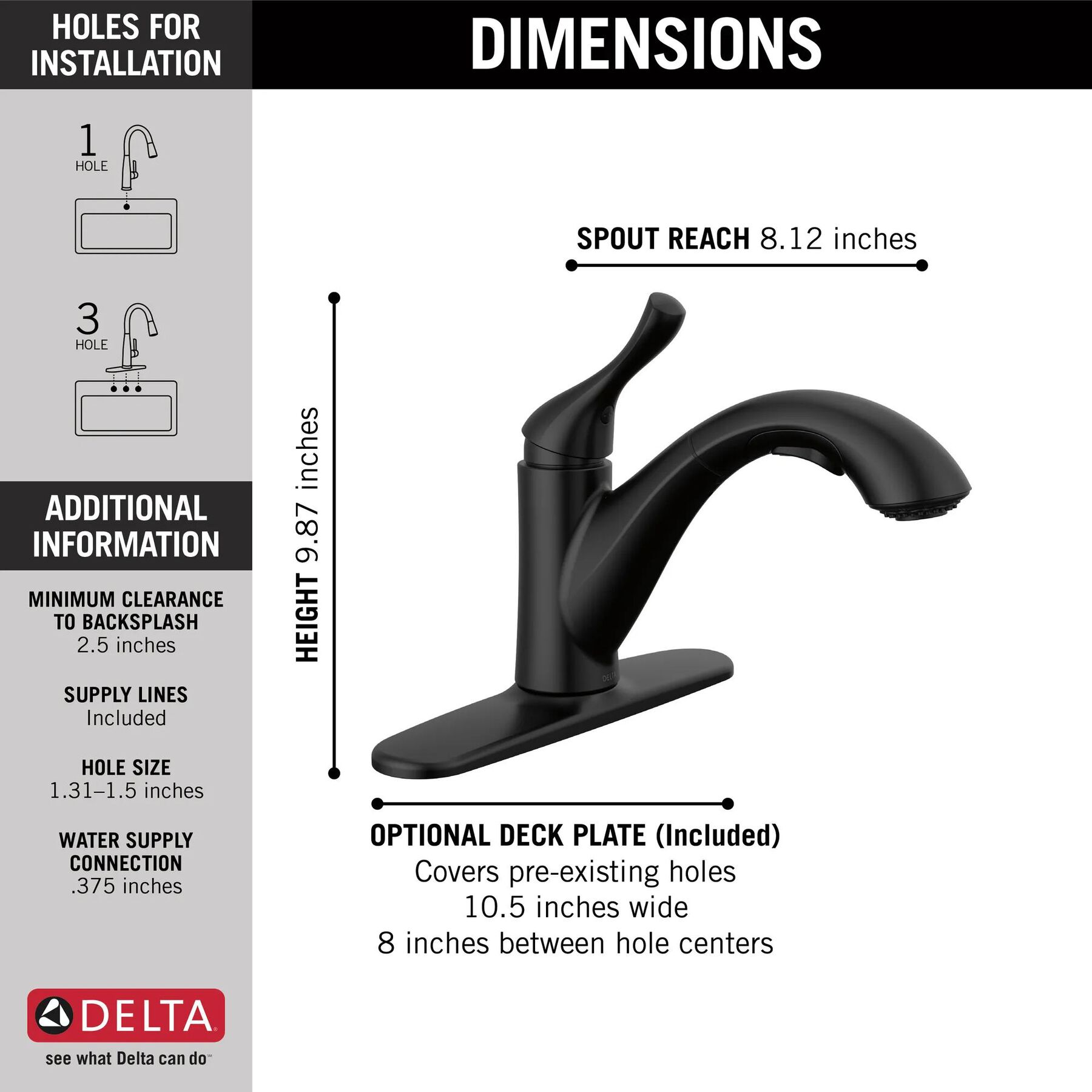

Installation Information
1 or 3-hole 8" installation
1 or 3-hole 8" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Overall Height (in.) :
9-1/8
Valve Type:
DIAMOND(TM) Seal Valve

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Nice sprayer Easy to install. Works great.
Date published: 2026-07-07
Rated 5 out of 5 by from Better than expected Replaced older, more expensive Delta faucet where cartridge could not be changed due to stripped set screw. Was height limited by cabinet above sink. Wanted magnetic coupling but unavailable in faucet that fit. Surprisingly, this faucet recoils and mates easier than the one it replaces.
Date published: 2026-02-06
Rated 5 out of 5 by from Great product. I have used this model for my rental business
Date published: 2025-12-08
Rated 1 out of 5 by from Don’t buy Don’t like the pull out part stick and the faucet part won’t move back and forth
Date published: 2025-03-29
Rated 3 out of 5 by from Beautiful faucet, worked well for first 2 years Beautiful faucet, worked well for a couple of years then began leaking (hard to shut off flow) due to cartridge (part # RP50587Y). Florida water is hard and hard on the cartridge. Delta is gracious enough to send replacement cartridges under warranty; otherwise, at $40 a pop for a new cartridge, I would not be able to afford to keep it. First cartridge lasted 2 years, the second lasted for almost 3 years. I miss the o-ring replacement type faucets. Rating would be lower but saved by the great warranty service.
Date published: 2024-07-24
Rated 3 out of 5 by from Flawed design, now leaks I purchased at Home Depot about a year ago and although it is pretty solid, the design of the switch makes it difficult to fully close consistently. Now, over time, the faucet has started to leak. I never had this issue with my Moen faucet because their switch/valve made it easier to fully shut off. I was hoping this faucet would last longer.
Date published: 2024-03-27
Rated 1 out of 5 by from Very disappointed I purchased this faucet and it worked well for a few months. Now the spray nozzle gets stuck in the faucet and nearly impossible to remove and insert as it should. I tried lubricants to help; however, to no avail.
Date published: 2023-11-25
Rated 5 out of 5 by from Easy install if you’re replacing a newer faucet It took my son and I a full day to install the faucet. I had a faucet that was about 15 years old, and it was leaking and in bad shape. I bought this faucet at Home Depot and brought it home just to find out the water lines were a different size. We had to make three trips back to Home Depot to find the right adaptor. If your faucet is over fifteen years old they changed the standard for faucets since then, but that was about the only problem we ran into a couple more hiccups because the directions were not that good. Other than that for the first day the water flow and sprayer worked great, compared to what I had it is a dream.
Date published: 2023-08-26
  • y_2026, m_8, d_8, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_242
  • loc_en_US, sid_16953-BL-DST, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 180ms
  • reviews, product
Q&A
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 33ms
  • questions, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
PART LIST

PART LIST

1 2 >
Image-RP70738

Delta®

Delta® Wand Assembly - Pull-Out

List Price: $74.25

RP70738

5.00 2
Image-RP63265

Delta®

Delta® Adapter - Slip Joint

List Price: $58.55
Online Price: $46.84
Free Ground Shipping All Orders $49+

RP63265

Image-RP63264

Delta®

Delta® Adapter Kit - PEX Compression (10)

List Price: $92.90
Online Price: $74.32
Free Ground Shipping All Orders $49+

RP63264

Image-RP70739

Delta®

Delta® Metal Lever Handle Kit

List Price: $67.60
Online Price: $54.08
Free Ground Shipping All Orders $49+

RP70739

Image-Master-RP44645

Valdosta®

Valdosta® Escutcheon - 3 Hole - Pull-Out Kitchen

List Price: $36.25 - $85.05
Free Ground Shipping All Orders $49+

RP44645

Image-RP63263

Delta®

Delta® Adapter Kit - PEX Compression (4)

List Price: $45.35
Online Price: $36.28
Free Ground Shipping All Orders $49+

RP63263

3.67 3
Image-Master-RP51502

Delta®

Delta® Bonnet Cap

List Price: $18.05 - $49.70
Free Ground Shipping All Orders $49+

RP51502

Image-RP50815

Victorian®

Victorian® Aerator & Wrench - Pull-Out or Pull-Down

List Price: $31.10
Online Price: $24.88
Free Ground Shipping All Orders $49+

RP50815

4.56 27
Image-RP44648

Palo®

Palo® O-Ring - Pull-Out

List Price: $13.60
Online Price: $10.88
Free Ground Shipping All Orders $49+

RP44648

Image-RP47666

Delta®

Delta® Set Screw

List Price: $13.90
Online Price: $11.12
Free Ground Shipping All Orders $49+

RP47666

1.00 1
Image-RP49835

Delta®

Delta® Mounting Nut, Washer & Screws (2)

List Price: $42.80
Online Price: $34.24
Free Ground Shipping All Orders $49+

RP49835

1.00 2
Image-RP47271

Allora®

Allora® Set Screw & Button

List Price: $26.85
Online Price: $21.48
Free Ground Shipping All Orders $49+

RP47271

Image-RP13938

Delta®

Delta® O-Ring

List Price: $8.25
Online Price: $6.60
Free Ground Shipping All Orders $49+

RP13938

4.50 2
Image-Master-RP51490

Delta®

Delta® Escutcheon - Pull-Out

List Price: $22.20 - $29.35
Free Ground Shipping All Orders $49+

RP51490

Image-RP50390

Delta®

Delta® Quick Connect Hose & Clip - 54" - Pull-Up / Pull-Down DST Faucets

List Price: $108.65
Online Price: $86.92
Free Ground Shipping All Orders $49+

RP50390

3.96 27
Image-RP51503

Delta®

Delta® Bonnet Nut w/ Valve Seal

List Price: $35.10
Online Price: $28.08
Free Ground Shipping All Orders $49+

RP51503

5.00 3
