Kate®
View Full Kate® Kitchen Collection

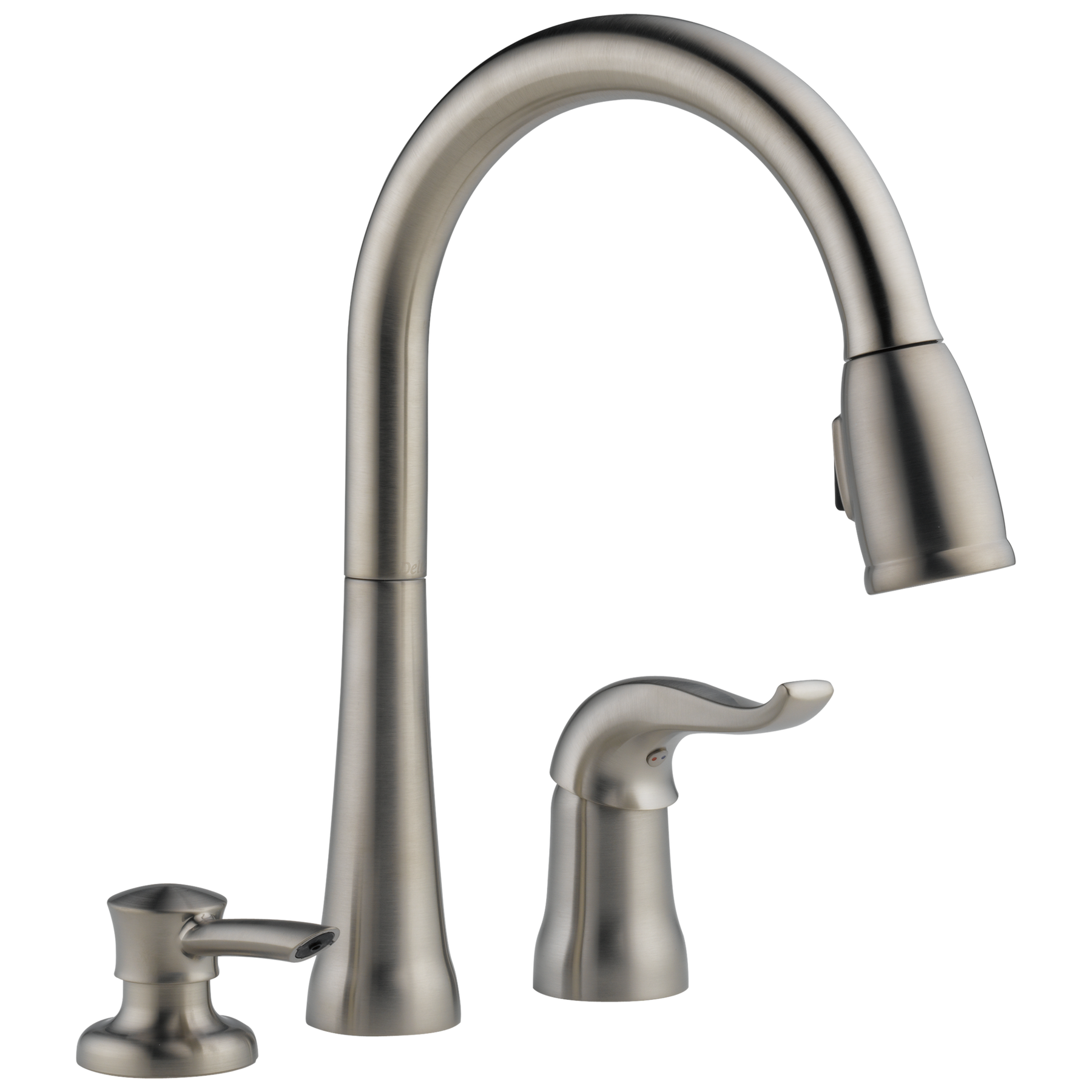

Single Handle Pull-Down Kitchen Faucet with Soap Dispenser in Stainless

Model#: 16970-SSSD-DST
Add to Favorites
Find local Delta® installers.
Kate®
View Full Kate® Kitchen Collection
Single Handle Pull-Down Kitchen Faucet with Soap Dispenser in Stainless
Model#: 16970-SSSD-DST
List Price: $64200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The pull-down spray wand comes free with a gentle tug and gives you total flexibility. The hose extends and retracts without friction points, fed by gravity. As you raise the wand to dock it, the magnet embedded in the spout pulls the wand precisely into place. So, unlike other pull-downs that tend to droop over time, MagnaTite® keeps your pull-down faucet looking picture-perfect. Delta's exclusive DIAMOND Seal® Technology uses a valve with a tough diamond coating. InnoFlex® PEX waterways keep water inside the faucet out of contact with potential metal contaminants. This powerful combination brings you a faucet built to last up to five million uses. Only Delta faucets are equipped with Touch-Clean® soft, rubber nubbins that allow you to easily wipe away calcium and lime build-up with the touch of a finger.
  • LEAD-FREE COMPLIANT: Not all faucets are certified to necessary safety standards. Delta goes above and beyond with product testing and quality to ensure each faucet meets plumbing safety standards, including NSF/ANSI 61 and 372.

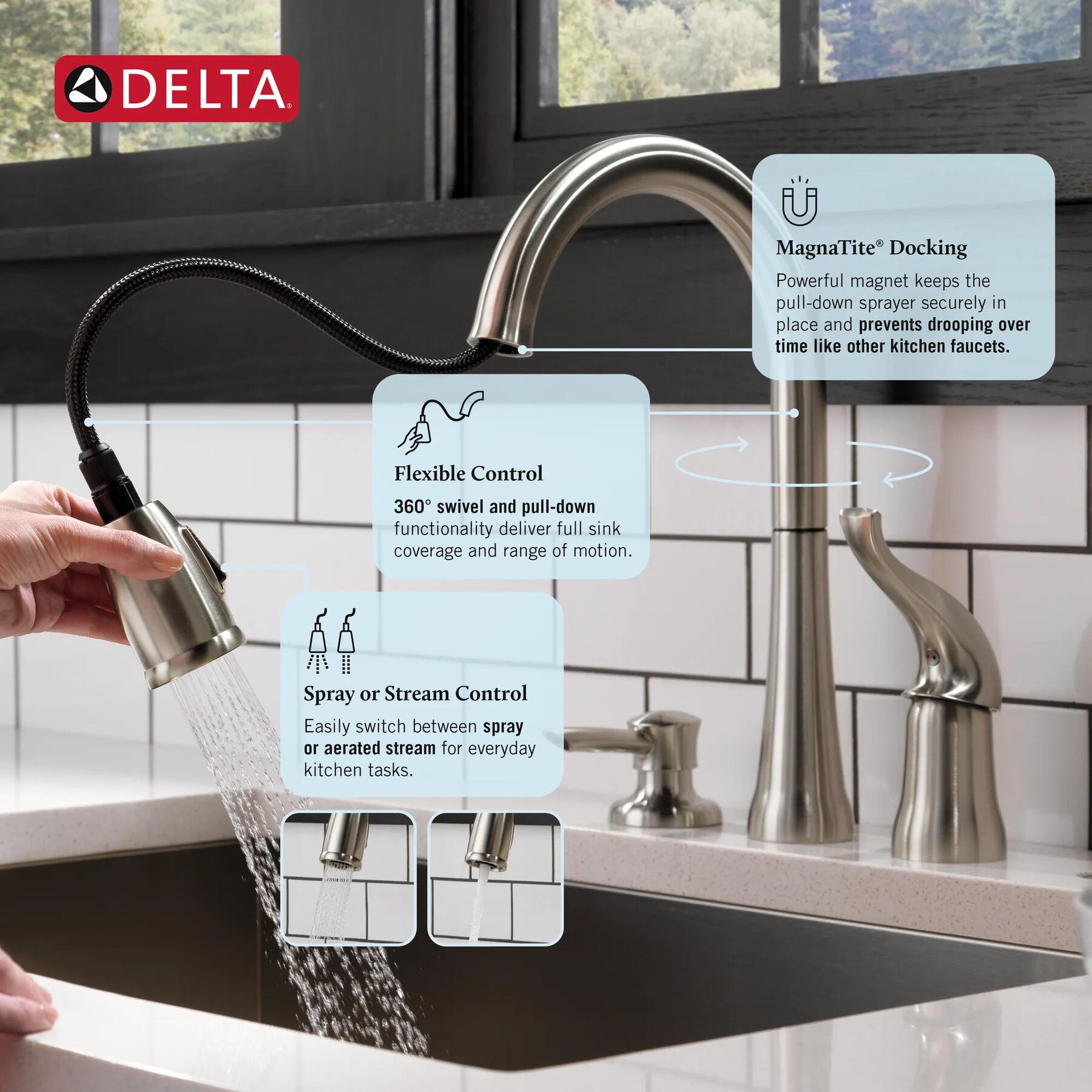

  • MagnaTite docking keeps the kitchen pull-down spray wand firmly in place with a powerful integrated magnet, so it stays docked when not in use
  • DIAMOND Seal Technology features a valve embedded with diamonds to ensure like-new operation for the life of the faucet
  • Includes matching finish soap dispenser
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Touch-Clean spray holes allow for easy removal of hard water build-up
  • 3-hole 6-16 in. installation

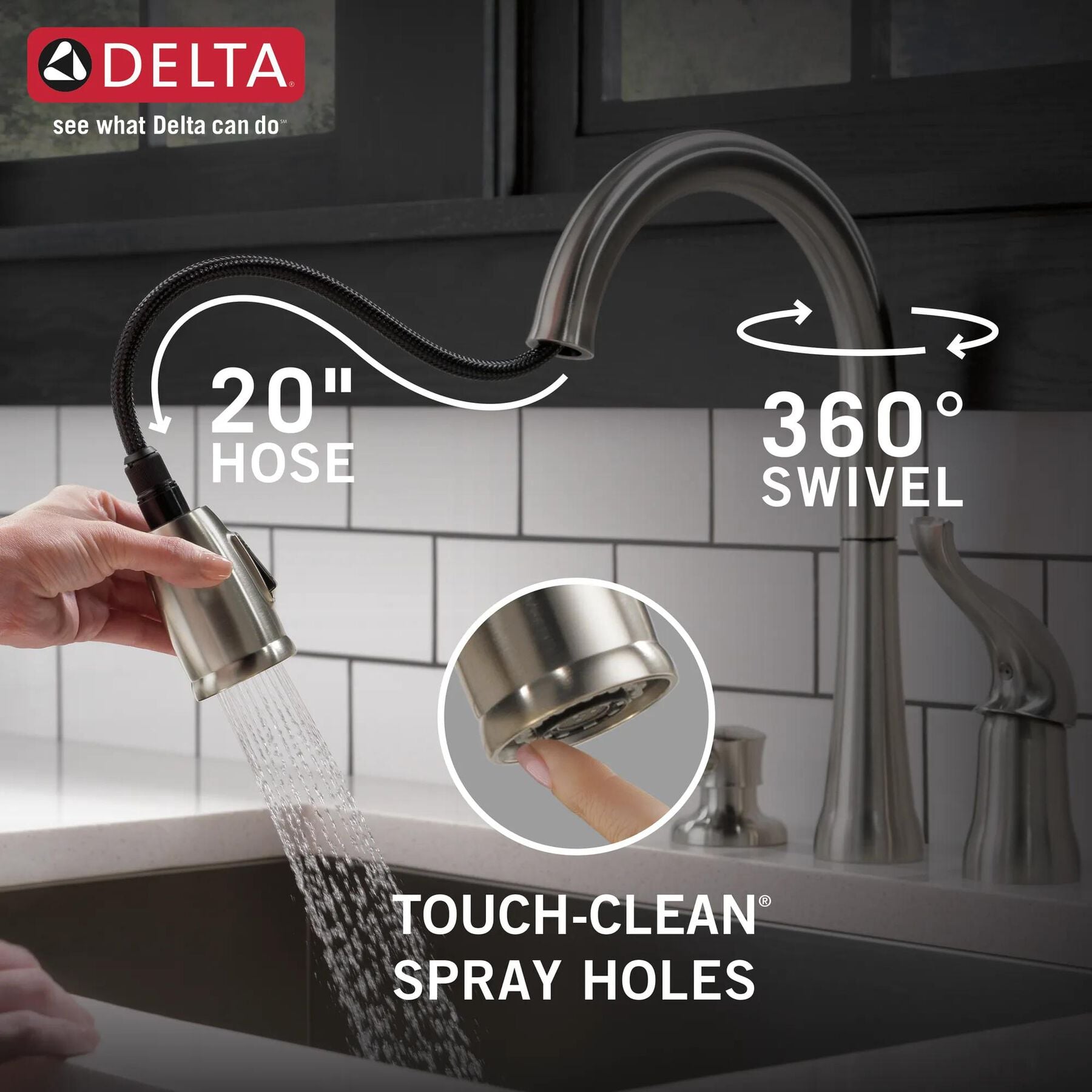

  • The high-arc, gooseneck design swivels 360 degrees with a 20-in. retractable hose for added convenience during everyday kitchen tasks
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
No-Lead Compliant
Brilliance® Finish
Water-Efficient
Soap Dispenser
Diamond Seal® Technology
MagnaTite® Docking
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information

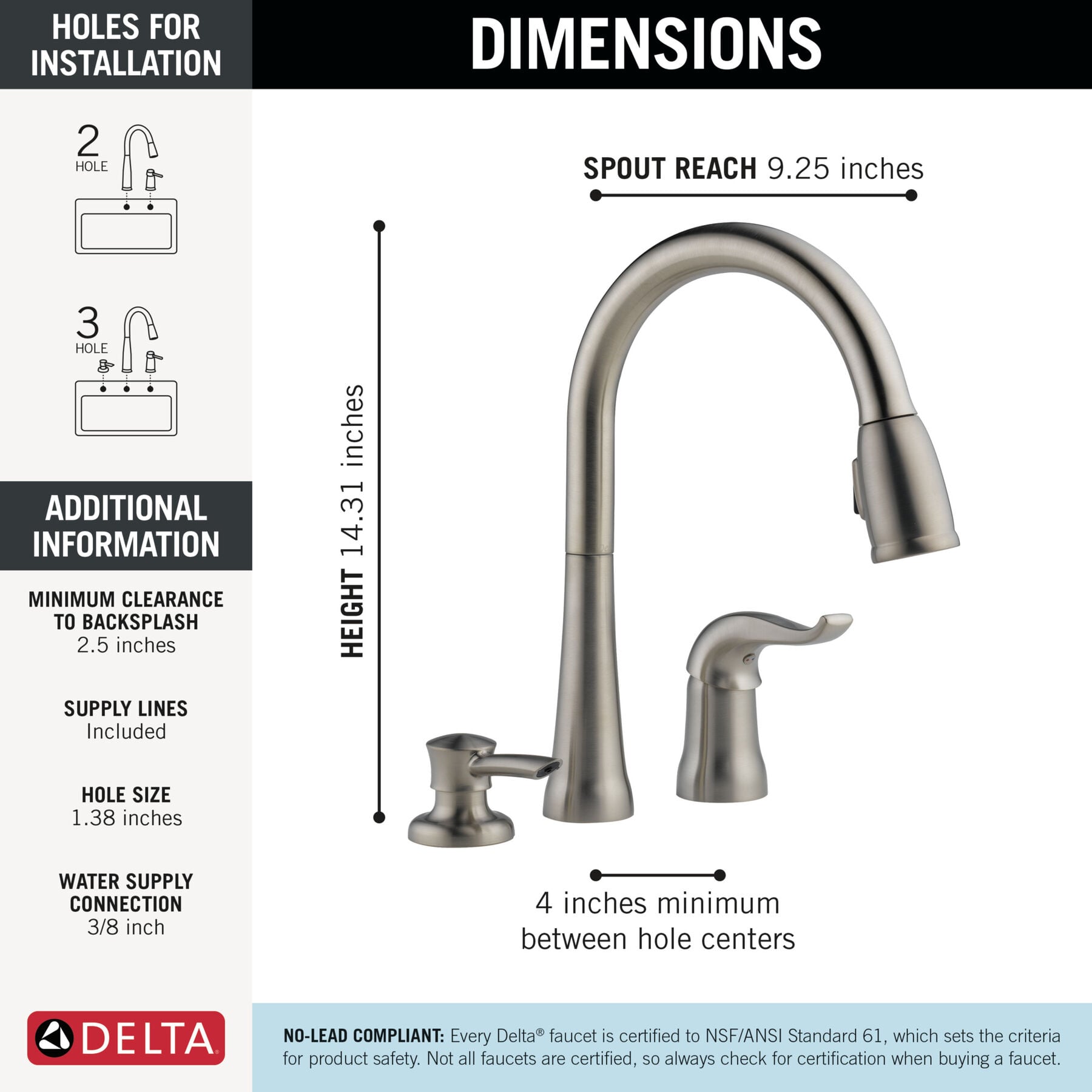

3-hole 6-16" installation
3-hole 6-16" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Overall Height (in.) :
14-5/16
Valve Type:
Ceramic Disc

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Falling apart This completely fell apart :( The hose portion just dangles and the handle to turn the water on/off doesnt turn off properly without a lot of maneuvering. Also, it doesnt maneuver in a way that captures any cold water at this point either. Lukewarm is the coolest you can get. Just not made well unfortunately :( Do they have replacement parts so I dont have to purchase a completely new faucet?
Date published: 2025-03-03
Rated 2 out of 5 by from I was reading reviews. I just paid for it to be installed and a week later the hot and cold little piece fell out and the handle is loose. Someone else in reviews said the same thing. I just paid a lot for the faucet and for it to be installed. How do I fix it?? It is less than two weeks old.
Date published: 2025-02-13
Rated 4 out of 5 by from Very nice faucet! Had a plumber install it so I can't comment on that, but I do love the faucet. My only problem is the faucet "hot cold" handle is somewhat loose. I guess the set screw fell out. I don't see that anywhere on the parts list. This is very inconvenitnt as the hardware store guy said I really have to know the size. Set screws are dumb
Date published: 2024-11-13
Rated 5 out of 5 by from Excellent replacement for our 2003 faucet We installed a Delta faucet for our kitchen when we built our home in 2003. This replacement with the pull out faucet is exactly what we needed!
Date published: 2024-03-29
Rated 5 out of 5 by from Home owner Nice design, great product
Date published: 2023-10-11
Rated 5 out of 5 by from Delta Faucet Beautiful design and great functionality!
Date published: 2023-04-08
Rated 3 out of 5 by from Just Installed - Instructions Don't Quite Match Just installed this product. I'm not a professional installer, so it took an hour or so longer than it should have because the installation instructions/illustrations (both printed included in the box and the same on-line) do not match the product very well. Even the cover page does not match the product. Left me guessing on how to install some pieces.
Date published: 2023-02-18
Rated 1 out of 5 by from Dripping We bought new one few months ago, because previous one was dripping(Same faucet) , but this one started dripping too. This one is even worse than previous one.
Date published: 2023-02-09
  • y_2026, m_6, d_11, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_94
  • loc_en_US, sid_16970-SSSD-DST, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

any chance you can look up my prior chat that disconnected? it was an hour ago approx and the question was about a new cartrdge for my 16970-sssd-dst faucet. she sent me the picture and I am in your system as a customer. what do i need to do to get one

Asked by: Larry
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-04-10

Is there any way to get this with a 2.2 gpm flow rate?

Asked by: Bill
Hi Bill, Thank you for your question! The 16970-SSSD-DST single handle kitchen faucet is not available with a 2.2 gpm aerator. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

Hello, can the Kate soap dispenser be filled with foaming soap?  Thanks!

Asked by: Stuman74
Hello Stuman74, Thank you for your question. Soap Dispensers can use liquid dish soap, liquid hand soap, alcohol based hand-sanitizer,and even typical hand lotions. Foaming soap will pump from the soap dispenser but it will not foam. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

How many ounces does the soap dispenser hold?

Asked by: MarBer
Hi, MarBer! Thank you for your question. The Delta 16970-SSSD-DST Soap Dispenser bottle holds 13 ounces. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

How deep does the sink need to be to work with this faucet?

My sink is a high low unit with the deeper sink being 9 1/2" deep. Will it work with a sink this shallow?
Asked by: Judie
Hi Judie, Thank you for your question. This faucet should work with your sink. It can work with sinks of any depth. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Can the soap dispenser be placed on the far right with the faucet on the far left and the lever in the middle?

I want to replace the discontinued Delta 172 Waterfall model. Will the existing holes work for the Kate model?
Asked by: Mary
Hi Mary, Thank you for your question. The soap dispenser can be installed to the right of the handle. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-04-04

Why do Delta single control faucets require 2.5 inches to backsplash? I only have 2 inches so does that mean Delta is a non-option for me?

Asked by: 300m
Thank you for your question, 300m! We recommend a minimum 2 1/2" (64 mm) clearance to the back splash in order to provide comfortable room for handle operation or for a lift rod concerning a lavatory faucet that uses a stopper assembly. This is also advised for the consideration of ease of install or repairs. This model will still work for your installation however. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2024-03-28

What size holes?

What size holes to drill into the granite for this faucet?
Asked by: Erin
Hi Erin, Thank you for your question. The recommended hole size for the model 13970-SSSD-DST faucet is 1-3/8" or 35mm. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28
  • y_2026, m_6, d_10, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_116
  • loc_en_US, sid_16970-SSSD-DST, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 45ms
  • questions, product
PART LIST

PART LIST

1 2 >
Image-RP37490

Delta®

Delta® Stabilization Plate

List Price: $29.40
Online Price: $23.52
Free Ground Shipping All Orders $49+

RP37490

3.20 5
Image-RP63265

Delta®

Delta® Adapter - Slip Joint

List Price: $58.55
Online Price: $46.84
Free Ground Shipping All Orders $49+

RP63265

Image-RP63264

Delta®

Delta® Adapter Kit - PEX Compression (10)

List Price: $92.90
Online Price: $74.32
Free Ground Shipping All Orders $49+

RP63264

Image-Master-RP54537

Leland®

Leland® Spout Assembly

List Price: $123.80 - $247.15
Free Ground Shipping All Orders $49+

RP54537

Image-RP50815

Victorian®

Victorian® Aerator & Wrench - Pull-Out or Pull-Down

List Price: $31.10
Online Price: $24.88
Free Ground Shipping All Orders $49+

RP50815

4.56 27
Image-RP21945

Delta®

Delta® Soap / Lotion Dispenser - Nut

List Price: $8.30
Online Price: $6.64
Free Ground Shipping All Orders $49+

RP21945

4.00 2
Image-RP63263

Delta®

Delta® Adapter Kit - PEX Compression (4)

List Price: $45.35
Online Price: $36.28
Free Ground Shipping All Orders $49+

RP63263

3.67 3
Image-RP80977

Delta®

Delta® Magnet Replacement Kit

List Price: $69.80
Online Price: $55.84
Free Ground Shipping All Orders $49+

RP80977

3.02 54
Image-RP47029

Leland®

Leland® Mounting Bracket - 1H Bathroom

List Price: $18.05
Online Price: $14.44
Free Ground Shipping All Orders $49+

RP47029

5.00 2
Image-RP60923

Delta®

Delta® Friction Spacers & Clip - Kitchen

List Price: $24.35
Online Price: $19.48
Free Ground Shipping All Orders $49+

RP60923

5.00 2
Image-RP23093

Delta®

Delta® Set Screw

List Price: $5.85
Online Price: $4.68
Free Ground Shipping All Orders $49+

RP23093

Image-RP13938

Delta®

Delta® O-Ring

List Price: $8.25
Online Price: $6.60
Free Ground Shipping All Orders $49+

RP13938

4.50 2
Image-RP47030

Leland®

Leland® Bathroom Wrench

List Price: $10.00
Online Price: $8.00
Free Ground Shipping All Orders $49+

RP47030

1.00 2
Image-RP50390

Delta®

Delta® Quick Connect Hose & Clip - 54" - Pull-Up / Pull-Down DST Faucets

List Price: $108.65
Online Price: $86.92
Free Ground Shipping All Orders $49+

RP50390

3.96 27
Image-RP50788

Victorian®

Victorian® Gasket

List Price: $17.25
Online Price: $13.80
Free Ground Shipping All Orders $49+

RP50788

Image-RP51503

Delta®

Delta® Bonnet Nut w/ Valve Seal

List Price: $35.10
Online Price: $28.08
Free Ground Shipping All Orders $49+

RP51503

5.00 3
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
