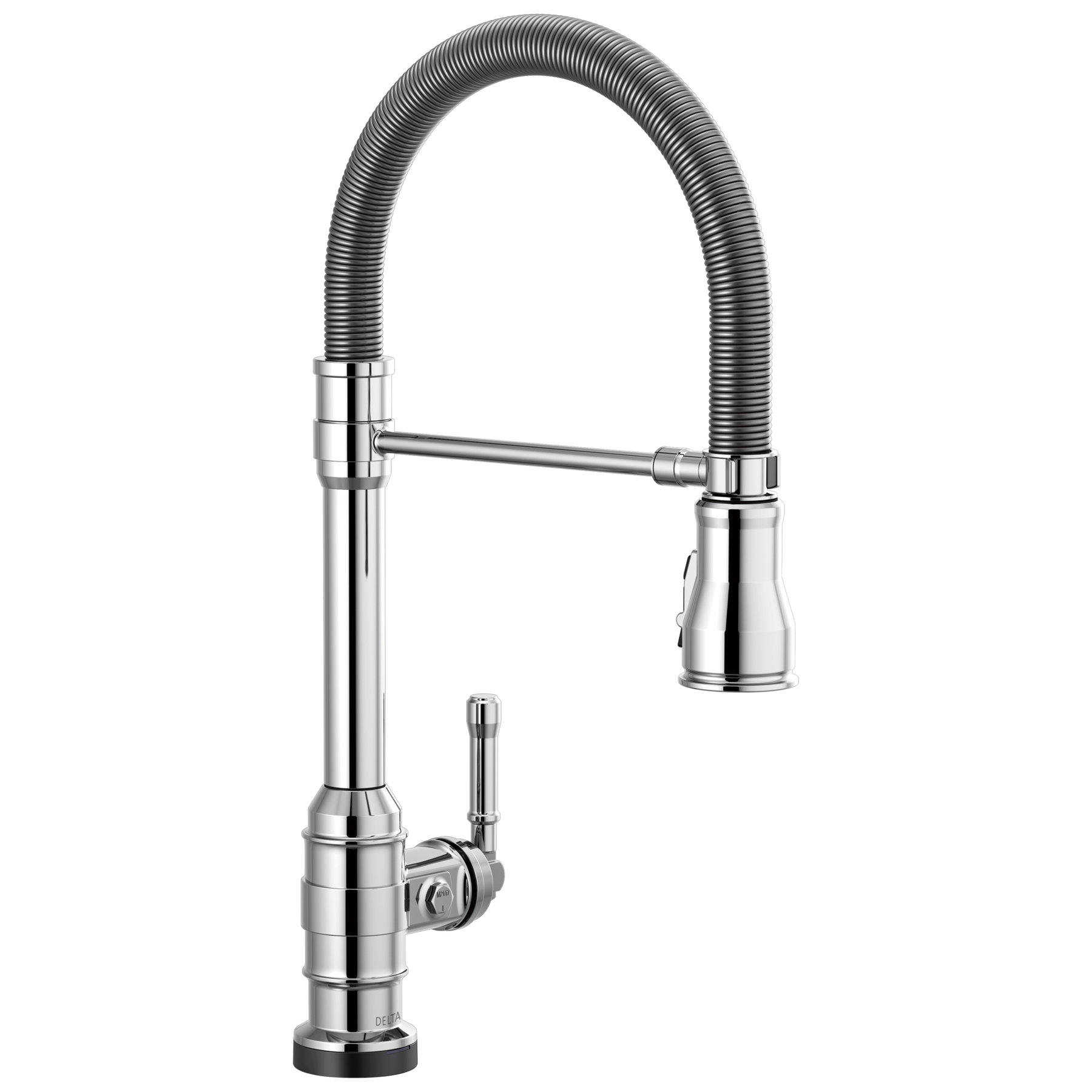

Broderick™ Pro
Single Handle Pull-Down Kitchen Faucet Spring Spout with Touch2O Technology
Model#: 9690T-DST
Single Handle Pull-Down Kitchen Faucet Spring Spout with Touch2O Technology
Broderick™ Pro
Single Handle Pull-Down Kitchen Faucet Spring Spout with Touch2O Technology
Model#: 9690T-DST
Finish: Chrome
List Price*: $840.00
PRODUCT FEATURES
The powerful features of the Broderick™ Collection take center stage in the kitchen, with an industrial style that alludes to a rich heritage. The collection includes distinctive bridge faucet and pull-down spring spout faucet options that add a unique element to any kitchen. Styled after the rugged nuts and bolts of machinery, it serves as a true centerpiece in the kitchen. Take control of your kitchen with the flexible, spring-design undocking spout, which can be easily disconnected then magnetically re-docked for free range of motion. When docked, the Broderick Pro faucet still operates as a true pull-down faucet with MagnaTite® Docking. Touch it on. Touch it off. Whether you have two full hands or 10 messy fingers, Delta® Touch2O® Technology helps keep your kitchen faucet clean, even when your hands aren’t. A simple touch anywhere on the spout or handle with your wrist or forearm activates the flow of water at the temperature where your handle is set. The Delta TempSense™ LED light changes color to alert you to the water’s temperature and eliminates any possible surprises or discomfort. Kitchen sink faucets with Touch-Clean® Spray Holes allow you to easily wipe away calcium and lime build-up with the touch of a finger. Delta® ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn messes while an innovative shield of water contains splatter and clears off the mess, so you can spend less time soaking, scrubbing and shirt swapping. Delta® kitchen faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. Kitchen sink faucets with Touch-Clean® Spray Holes allow you to easily wipe away calcium and lime build-up with the touch of a finger. You can install with confidence, knowing that Delta kitchen faucets are backed by our Lifetime Limited Warranty. Electronic parts are backed by our 5-year electronic parts warranty. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.
  • With Touch2O® Technology a simple touch anywhere on the spout or handle will start and stop the flow of water
  • Helps keep your faucet cleaner, because washing the mess off your hands shouldn’t involve making a mess of your faucet
  • LED light signals blue when touch mode is active and flash red when batteries are running low
  • Automatic water flow shut-off after four minutes helps conserve water
  • Integrated TempSense™ LED light shows water temperature, changing from blue to magenta to red as temperature increases
  • Requires 6 AA (included) or 6 C batteries
  • Over 90% of households operate their Touch2O® Faucets 20 minutes per day or less
  • Intuitive Touch2O® Technology can sense the difference between a touch and a grab, reducing the chances of activation
  • Optional A/C adapter EP73954 may be ordered separately
  • Tightly-coiled spring spout design makes cleaning a breeze
SUPPORT

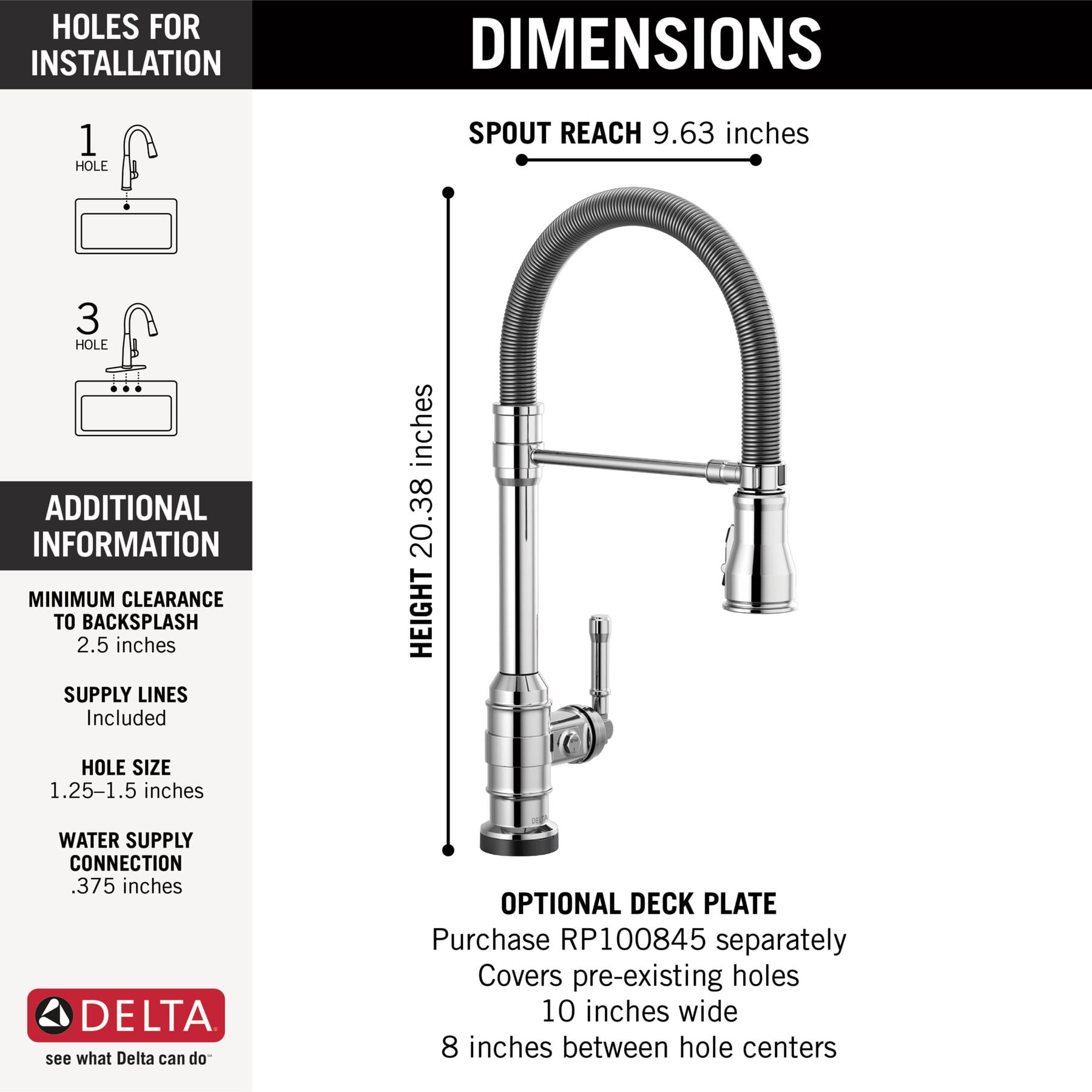

Installation Information
1 or 3-hole 8" installation
1 or 3-hole 8" installation
Spout Height :
20-3/8
Over All Height :
20-3/8
Spout Height Deck :
8-1/2
Connection Type :
3/8" compression fittings
Spout Length :
9-9/16
Max Deck Thickness :
2.5
PART LIST
REVIEWS
Rated 5 out of 5 by from Touch faucet I love my new Delta faucet. It was worth the wait.
Date published: 2021-01-03
Rated 5 out of 5 by from Front of my book This is on the front of the Delta price book, so it has to be good.
Date published: 2020-06-23
  • y_2021, m_2, d_26, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_9690T-DST, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

are these the only two finishes

Asked by: sandra
Hi sandra! Thank you for you question! At this time the Delta model 9690T-AR-DST is available in Chrome as well as Arctic Stainless finishes. Best Regards, Antoine
Answered by: DeltaFaucet7
Date published: 2020-06-05

Is the arch part of the faucet grooved and what material is it made of?

Asked by: Westexas
Hi, Westexas! Thank you for your question. The Delta 9690T-AR-DST Faucet Arc Spout Assembly is grooved. The spout assembly is metallic. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-01-08

When will this become available?

Asked by: Allan
Thank you for your question, Allan! The Delta Broderick Pro pull down kitchen faucet is available for special order now and is expected to start shipping 11/21/2019. Best regards, Edward
Answered by: DeltaFaucet11
Date published: 2019-11-05

can i buy the part that stabilizes the pull out faucet

Asked by: ken826
Hello bob 43, Thank you for your question. We are happy to help with any questions about your Delta Faucet 9690T-DST! A replacement spout is available as part number RP100837. Please see the parts diagram for additional information. https://media.deltafaucet.com/PartsDiagram/DPD-K-9690-DST%20Rev%20C.pdf Please reach out directly if you have any questions or need additional assistance. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2020-12-14

What’s the height on this?

Asked by: Day a
Hi Day A! Thank you for contacting us at Delta Faucet! I will be happy to help. The overall height is 20 3/8". Best Regards, Tim
Answered by: Delta
Date published: 2021-01-26
